P83318-005 HPE Proliant Ml350 Gen11 Intel Xeon Silver 12-core 2.4GHz DDR4 4LFF 4U Rack-Mountable Server

HPE P83318-005 Proliant ML350 Gen11 Rack-Mountable Server Overview

The HPE P83318-005 Proliant ML350 Gen11 Intel Xeon Silver server is engineered for businesses demanding robust performance, high scalability, and reliable infrastructure. This 4U rack-mountable solution comes with a 12-core 2.4GHz processor and DDR4 memory, ensuring seamless data processing and enterprise-level workloads.

Product highlights

• Model: HPE P83318-005 ProLiant ML350 Gen11 — robust 4U tower server engineered for small and medium enterprises
• Processor: 5th-Gen Intel® Xeon® Silver 4510 (12 cores, 2.4 GHz base, up to 4.1 GHz Turbo)
• Memory: 32 GB DDR5 SDRAM (1×32 GB), scalable up to 8 TB using registered DIMMs
• Storage: 4 × LFF bays populated with 2 × 4 TB SATA HDDs and an Embedded Intel VROC SATA hybrid RAID
• Networking: Broadcom BCM5719 — quad 1 GbE; OCP 3.0 mezzanine interface
• Power: Dual hot-plug 800 W PSUs (1+1 redundant) with 80 PLUS Platinum efficiency

Key Features of HPE Proliant ML350 Gen11

• Powered by Intel Xeon Silver 12-core 2.4GHz processor for efficient multitasking
• Supports DDR4 memory modules for faster data handling
• Equipped with 4 Large Form Factor (LFF) bays for enhanced storage options
• 4U rack-mountable design for space optimization in data centers
• Ideal for virtualization, cloud computing, and database-intensive tasks

Processor & chipset

CPU specifications

• Intel Xeon Silver 4510 — 12 physical cores, Hyper-Threading and Intel® Turbo Boost Technology 2.0 enabled
• Socket: LGA4677 (Socket E)
• Quantity: 1 CPU installed, supports up to 2 CPUs for 2-way scalability

Chipset

Built on the Intel C741 chipset for modern platform capabilities and I/O density.

Memory & cache

Memory architecture

• Installed: 32 GB (1 × 32 GB) DDR5 RDIMM — HPE Smart Memory compatible
• Maximum: Up to 8 TB (32 DIMM slots total; population rules apply — slots 17–32 available in two-processor setups)
• Rated/Effective speeds: Rated at 5600 MHz (effective operational bandwidth varies by configuration); ECC, Registered, Dual-Rank support, and Online Spare features for uptime

Cache

Per-processor L3 cache: 30 MB — optimized for database and transactional workloads.

Storage & controllers

Internal storage

• Bays: 8 total 2.5" bays (configured as 4LFF in this Smart Choice model)
• Drives installed: 2 × 4 TB SATA HDD (hot-swappable)
• Hot-plug support: Yes — designed for field maintenance and fast drive replacement

Storage controller

Embedded Intel VROC SATA Hybrid RAID — provides software-defined RAID capabilities and NVMe/VROC integration options where applicable.

Networking & remote management

Network interfaces

• OCP 3.0 mezzanine slot for flexible NIC expansion
• Integrated Broadcom BCM5719 — 4 × 1 GbE ports (RJ-45)
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Remote management

• Integrated Lights-Out 6 (iLO 6) for remote systems management and firmware updates
• Management protocols supported: SNMP v3, IPMI 2.0, SMASH CLP
• Features: Wake on LAN (WOL), PXE boot support

Expansion & I/O

PCIe & bays

• PCIe slots: 4 × PCIe 5.0 x16 (operating in x8 mode where specified) — all slots free in this configuration
• Drive bays: 8 total (6 free in the shipped setup) — flexible for future storage additions

Front/Rear I/O

• Front: DisplayPort 1.1a (1), HPE iLO Type A service port (USB style)

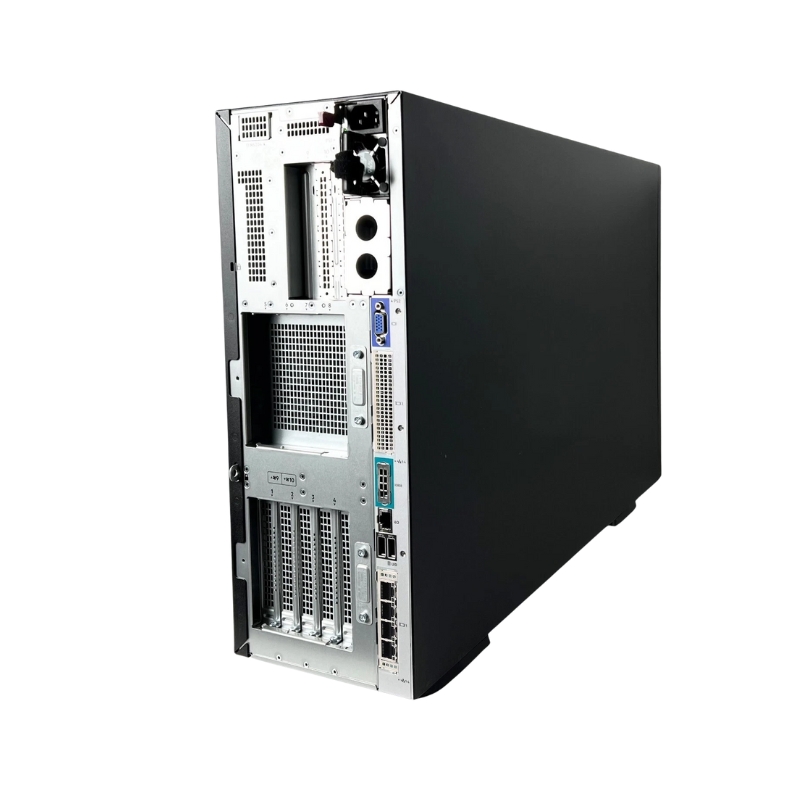

• Rear: VGA, iLO RJ-45 management port, 4 × RJ-45 LAN ports, multiple USB 3.2 Gen1 and USB 2.0 internal/external ports

Power, cooling & reliability

Power

• Dual hot-plug 800 W PSUs (1+1 redundant) — supports AC 100–120 / 200–240 V at 50/60 Hz
• 80 PLUS Platinum certification — energy efficient for datacenter operations

Cooling & fault tolerance

• Standard CPU heatsink plus 3 system fans included
• Theft/intrusion deterrents: Kensington security slot, padlock eye (cable lock sold separately)

Standards & certifications

• TLS 1.2, Redfish API, SMBIOS 3.1, UEFI 2.7, ACPI 6.1
• Security/FIPS and energy: FIPS 140-3, ENERGY STAR certified
• ASHRAE classes supported: A3/A4 for datacenter thermal profiles

Dimensions, weight & chassis

• Form factor: 4U tower (convertible rack/tower designs common across ML350 family)
• Dimensions: Width 6.9 in • Depth 28 in • Height 18.2 in
• Weight: ~54.52 lbs (shipping/configuration dependent)

Software & serviceability

• OS: Server shipped without preinstalled OS — supports a broad ecosystem (Windows Server, Linux distributions, virtualization stacks)
• Management software: HPE iLO Standard with Intelligent Provisioning; HPE OneView Standard available for download
• Manufacturer program: HPE Express Buy for streamlined procurement

Included accessories & package contents

• Included: 1 × CPU heatsink, 3 × standard system fans, 2 × 800 W power supplies, factory-installed memory and drives (as specified)
• Optional accessories and upgrades: additional DIMMs, spare hot-swap HDDs/SSDs, OCP mezzanine NICs, GPU/accelerator cards for specialized workloads

Performance and Scalability

This Proliant ML350 Gen11 server is optimized for both small and large-scale operations. Its 12-core CPU provides enhanced computational power while DDR4 memory boosts data transfer speeds. The expandable architecture supports future upgrades, ensuring long-term usability.

Advantages for Enterprises

• Handles demanding workloads with ease
• Supports multiple applications simultaneously
• Offers dependable uptime and reliability
• Scales with growing IT infrastructure needs

Storage Capabilities

With 4LFF storage bays, the HPE P83318-005 provides ample space for data-heavy applications. The server supports flexible drive configurations, enabling businesses to balance performance and capacity according to their requirements.

Storage Benefits

• Expandable drive capacity
• Optimized for large datasets and virtual environments
• Enhanced data protection options

Design and Rack Compatibility

The 4U rack-mountable design ensures smooth integration within existing rack systems, allowing for efficient use of physical space in IT setups. Its durable build offers both flexibility and longevity for mission-critical applications.

Rack-Mount Advantages

• Efficient space management in data centers
• Sturdy build for high reliability
• Compatible with standard rack infrastructures
