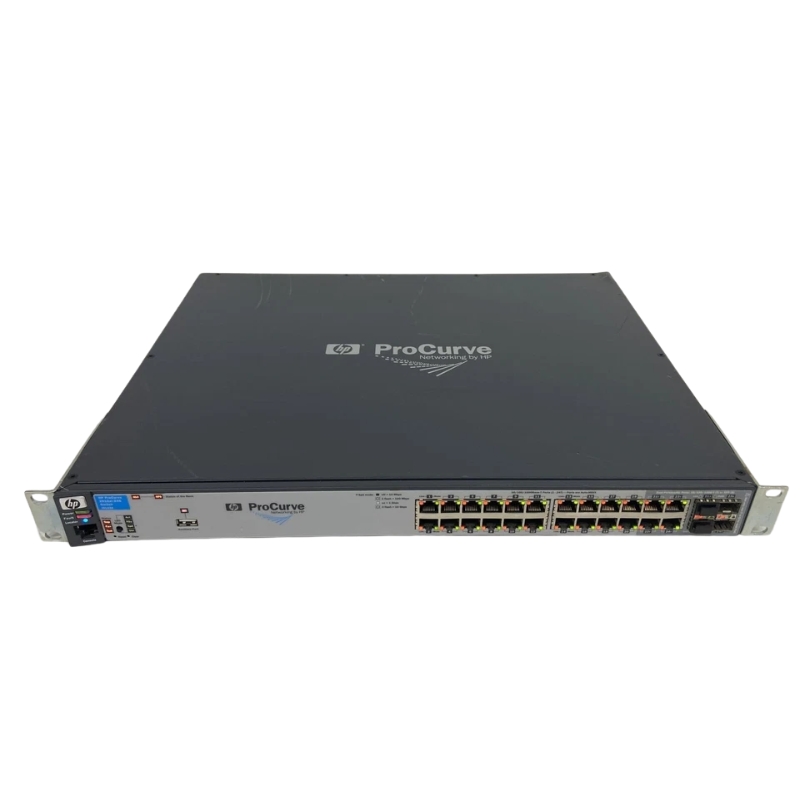

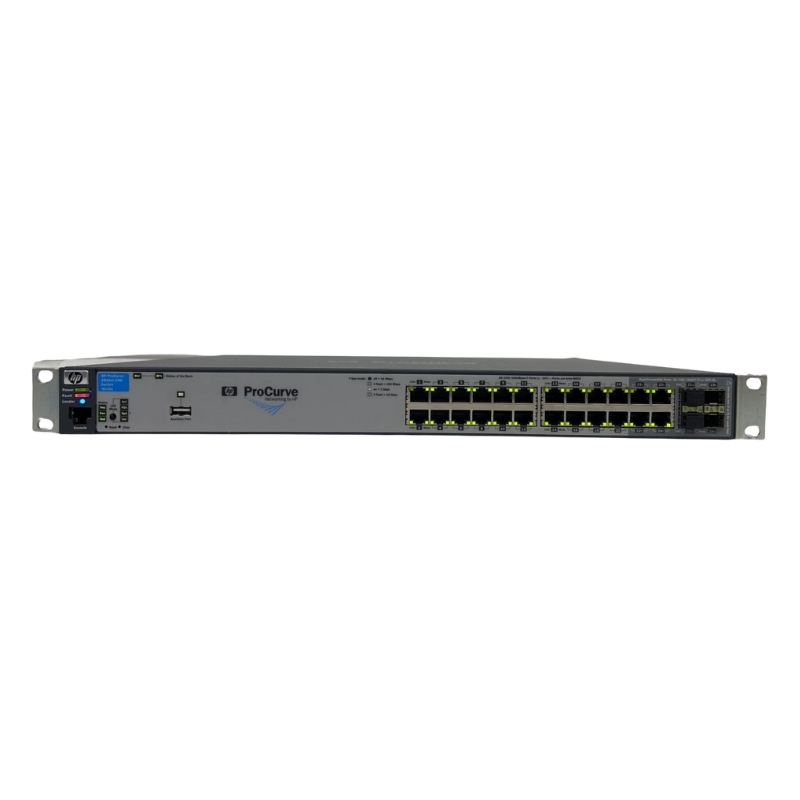

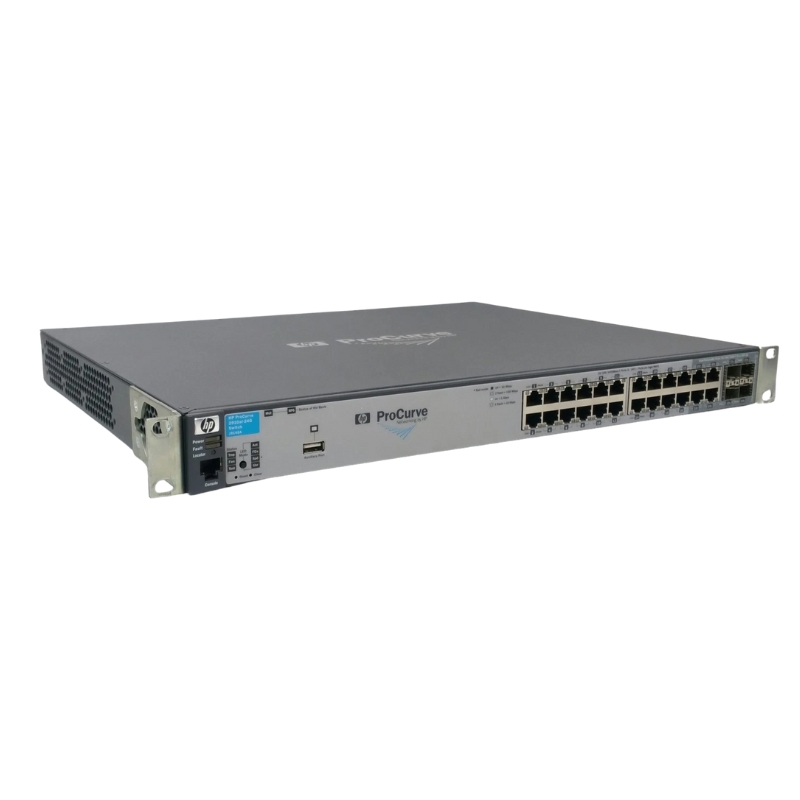

HPE Procurve 2910al J9145-61101 24-Port Ethernet Switch

Overview of HPE J9145-61101 Managed Switch

General Information

• Manufacturer: HPE
• Part Number / SKU: J9145-61101
• Device Type: Managed Switch

Processor Details

• Processor Type: Dual ARM Arm1156t2-S
• Processor Speed: 515 MHz

Memory Specifications

• RAM: 512 MB SDRAM
• Flash Memory: 1 GB

Networking Capabilities

Ports and Data Transfer

• Port Types: 24 x Ethernet (10Base-T, 100Base-TX, 1000Base-T)
• Maximum Stackable Units: 16
• Data Transfer Rate: 1 Gbps

Protocols and Connectivity

• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Routing Protocols: RIP-1, RIP-2, Static IP Routing
• Remote Management Protocols: SNMP v1, RMON v1-v3, Telnet, SNMP v3, SNMP v2c, HTTP, SSH
• Connectivity Technology: Wired
• Communication Modes: Half-Duplex, Full-Duplex
• Switching Protocol: Ethernet
• MAC Address Table Size: 2,000 Entries

Features and Standards

Advanced Features

• Flow Control: Supported
• Auto-Sensing: Per Device
• DHCP Support: Yes
• Auto-Negotiation: Yes
• BOOTP Support: Yes
• ARP Support: Yes
• VLAN Support: Yes
• Auto-Uplink (Auto MDI/MDI-X): Supported
• Port Mirroring: Yes
• Manageable: Yes
• IPv6 Support: Yes
• Quality of Service (QoS): Yes
• Jumbo Frames Support: Yes

Compliance and Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s

Expansion and Connectivity

• Expansion Slots (Available): 4 x SFP (Mini-GBIC)
• Interfaces:
  • 24 x Network – Ethernet (10Base-T/100Base-TX/1000Base-T) – RJ-45
  • 1 x Management – Console – RJ-45

Power Specifications

• Power Supply: Internal
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Consumption: 82 Watts (Operational)

Ports

The HPE Procurve 2910al Stackable Ethernet Managed Switch comes equipped with 24 ports, making it an ideal choice for businesses of all sizes. Whether you're a small startup or a large enterprise, having a sufficient number of ports is crucial for your networking needs. In this section, we will delve into the benefits and importance of the 24 ports feature, highlighting how it enhances productivity, scalability, and flexibility.

Enhanced Productivity

With 24 ports, the HPE Procurve 2910al allows you to connect multiple devices simultaneously, enabling efficient communication and collaboration within your organization. Each port serves as a connection point for various devices such as computers, printers, servers, and IP phones. This means that employees can easily access shared resources, transfer data, and communicate with colleagues without experiencing network congestion or slowdowns.

Furthermore, the switch's high-performance architecture ensures smooth data transmission between connected devices. With faster data transfer speeds, your employees can complete tasks in less time, boosting overall productivity. The 24 ports feature eliminates the need for additional switches or hubs, simplifying your network infrastructure and reducing clutter.

Scalability

As your business grows, so does your network infrastructure. The 24 ports on the HPE Procurve 2910al provide ample room for expansion without requiring costly upgrades or replacements. You can easily add new devices to your network without worrying about running out of available ports.

Additionally, the switch supports stacking, allowing you to connect multiple units together seamlessly. Stacking enables you to manage multiple switches as a single entity, simplifying network administration and reducing maintenance efforts. With the ability to stack switches, you can scale your network as needed while maintaining centralized control.

Flexibility

The HPE Procurve 2910al's 24 ports offer considerable flexibility in how you deploy and manage your network. You can allocate ports based on the specific requirements of different departments or teams within your organization. For example, you can dedicate certain ports for high-bandwidth applications such as video conferencing or data-intensive tasks, ensuring optimal performance for these critical functions.

Furthermore, the switch supports various network technologies such as Ethernet, Fast Ethernet, and Gigabit Ethernet, allowing you to connect devices with different network capabilities. This flexibility ensures that you can integrate legacy devices into your network without compatibility issues. Whether it's older computers, printers, or specialized equipment, the 24 ports feature ensures seamless connectivity regardless of the device's network capabilities.

Improved Network Efficiency

The 24 ports feature of the HPE Procurve 2910al contributes to improved network efficiency by reducing bottlenecks and congestion. With more ports available, each device can communicate directly with the switch without competing for limited resources. This eliminates unnecessary traffic and ensures a smooth flow of data throughout your network.

Moreover, the switch's advanced management features enable you to prioritize traffic based on your organization's needs. You can assign Quality of Service (QoS) settings to ensure that critical applications receive the necessary bandwidth while less time-sensitive tasks are allocated appropriate resources.

Enhanced Network Security

Having 24 ports on the HPE Procurve 2910al allows you to segregate your network and implement security measures effectively. You can create virtual LANs (VLANs) to isolate sensitive data or restrict access to specific resources. This helps prevent unauthorized users from accessing critical information and minimizes the risk of data breaches.

Additionally, with more ports available, you have the flexibility to allocate separate ports for guest networks or public Wi-Fi access. By separating guest traffic from your internal network, you can enhance security and protect sensitive data from potential threats.

Cost-Effective Solution

The 24 ports feature of the HPE Procurve 2910al offers a cost-effective solution for businesses. Instead of investing in multiple switches or hubs, you can achieve the same level of connectivity and performance with a single device. This reduces upfront costs and lowers maintenance expenses associated with managing multiple units.

Furthermore, the switch's energy-efficient design helps minimize power consumption without compromising performance. With 24 ports, you can consolidate your network infrastructure and reduce energy costs in the long run.

Part Number

The HPE Procurve 2910al Stackable Ethernet Managed Switch's part number is J9145-61101. This unique identifier plays a significant role in ensuring compatibility, support, and easy identification of the switch. In this section, we will explore the benefits and importance of the J9145-61101 part number, highlighting how it simplifies procurement, troubleshooting, and maintenance processes.

Compatibility and Support

The J9145-61101 part number ensures compatibility with other HPE Procurve products and accessories. When expanding or upgrading your network, having matching part numbers simplifies the procurement process. You can confidently select additional components knowing they are designed to work seamlessly with your existing infrastructure.

Moreover, the part number provides a reference for support and warranty services. It allows you to quickly identify the specific switch model when seeking assistance from HPE's technical support team. This streamlines troubleshooting and ensures that you receive accurate guidance tailored to your device.

Easy Identification

The J9145-61101 part number serves as a unique identifier for the HPE Procurve 2910al Stackable Ethernet Managed Switch. With numerous networking devices available in the market, having a distinct part number makes it easy to identify and differentiate this particular switch from others. This is especially beneficial when managing multiple switches within a network or when procuring replacement parts.

Additionally, the part number provides essential information about the switch's specifications, including its capabilities, performance, and supported features. This allows you to make informed decisions while comparing different switch models and selecting the one that best suits your organization's requirements.

Efficient Maintenance

The J9145-61101 part number simplifies maintenance tasks by ensuring accurate identification of the switch during routine inspections or repairs. When managing a complex network infrastructure, it is crucial to have a standardized system for identifying and tracking devices. The part number helps streamline inventory management, making it easier to keep track of switches and their respective locations within your network.

Furthermore, the part number facilitates firmware updates and software patches. HPE regularly releases updates to enhance performance, address security vulnerabilities, and introduce new features. With the J9145-61101 part number, you can effortlessly identify the correct firmware version or software patch applicable to your specific switch model, ensuring that it remains up to date and secure.

Streamlined Documentation

The J9145-61101 part number plays a vital role in documentation and record-keeping processes. When maintaining detailed network documentation, having accurate information about each device is crucial. The part number provides a standardized reference that can be easily recorded and referenced in network diagrams, asset registers, or configuration files.

Moreover, the part number aids in tracking warranty periods and service contracts associated with the switch. By documenting the part number alongside purchase details and warranty information, you can ensure timely renewal or replacement of support agreements. This helps safeguard your investment in the HPE Procurve 2910al Stackable Ethernet Managed Switch and ensures ongoing technical assistance when needed.

Conclusion

In conclusion, the HPE Procurve 2910al Stackable Ethernet Managed Switch's 24 ports offer enhanced productivity, scalability, and flexibility to meet the demands of modern networks. The J9145-61101 part number simplifies procurement, troubleshooting, maintenance, and documentation processes, ensuring seamless integration and efficient management. By leveraging these features, businesses can build reliable and high-performing networks that support their growth and operational needs.
