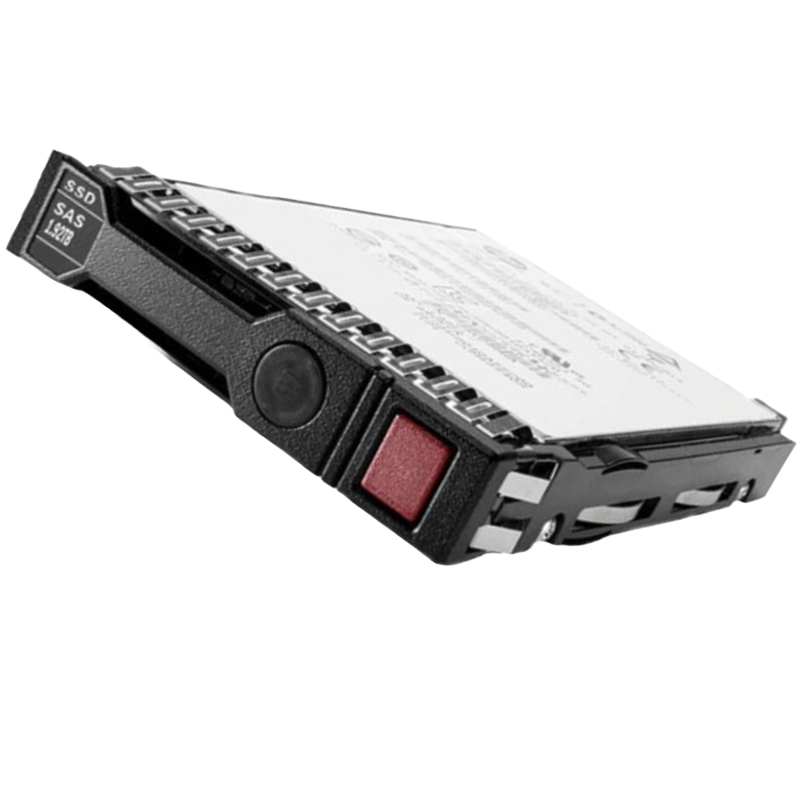

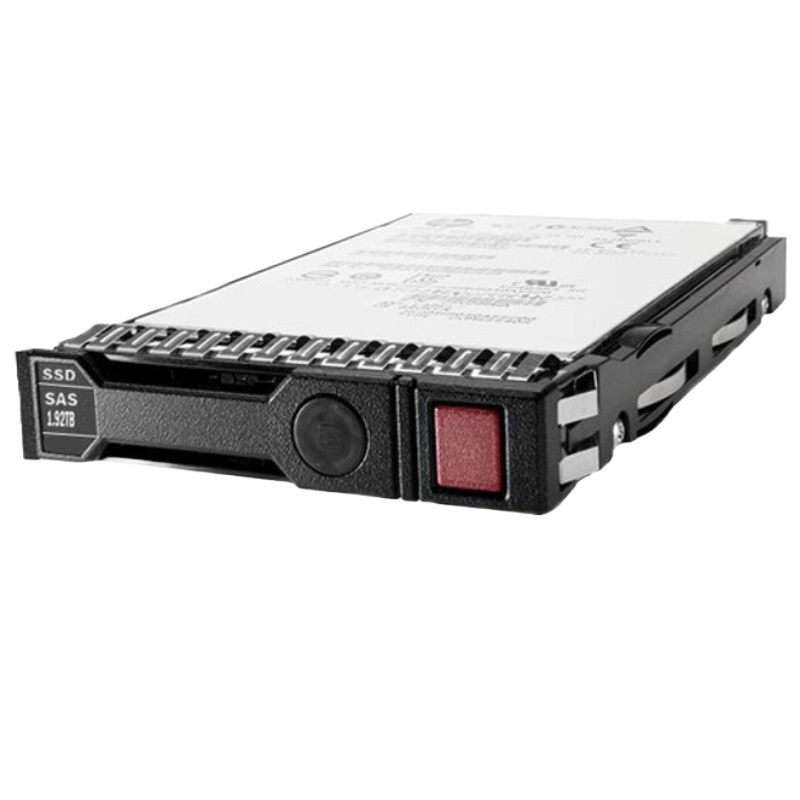

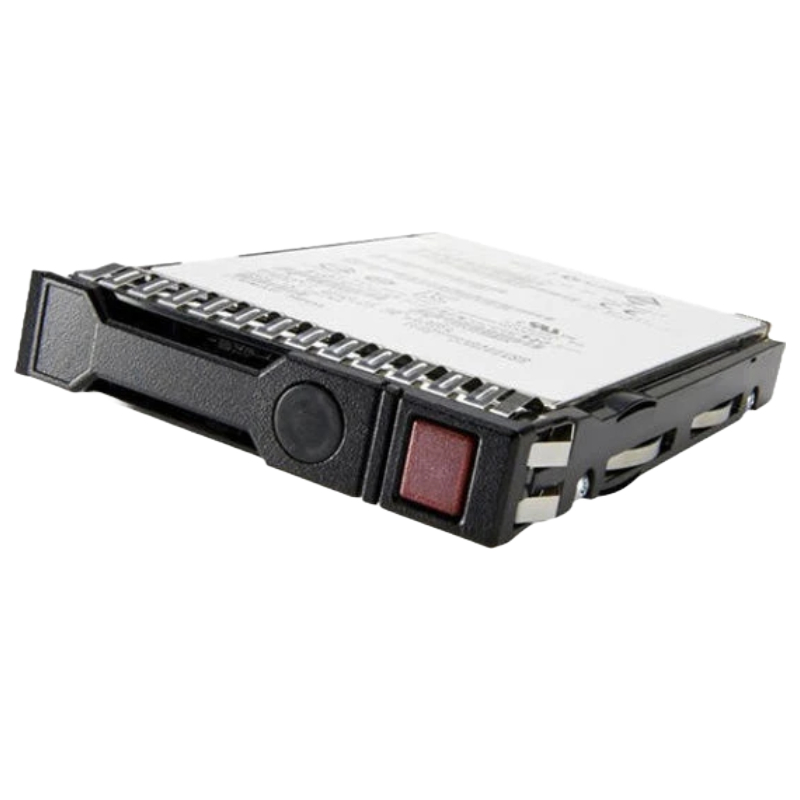

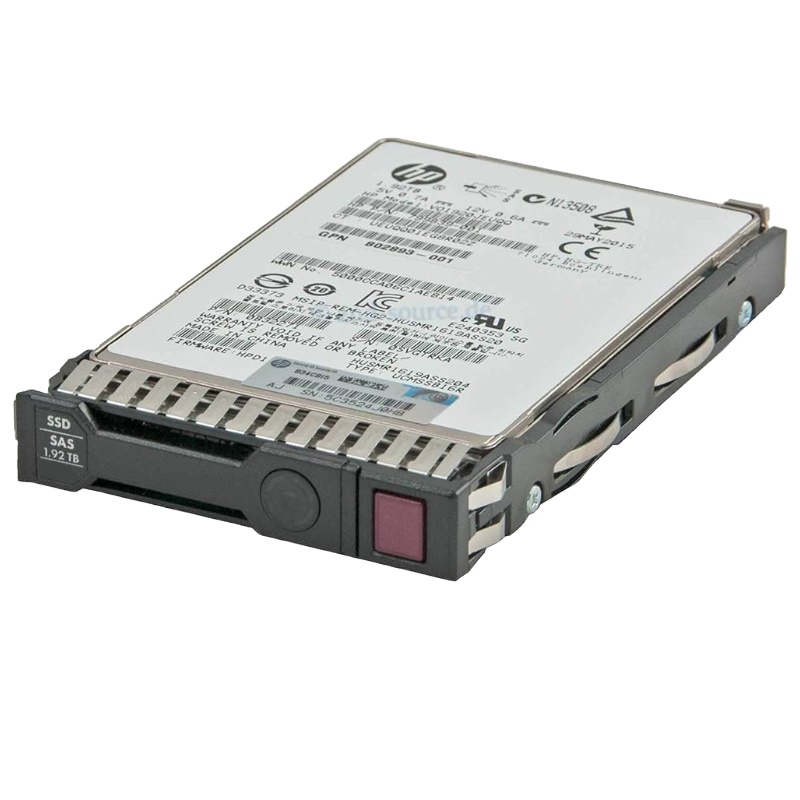

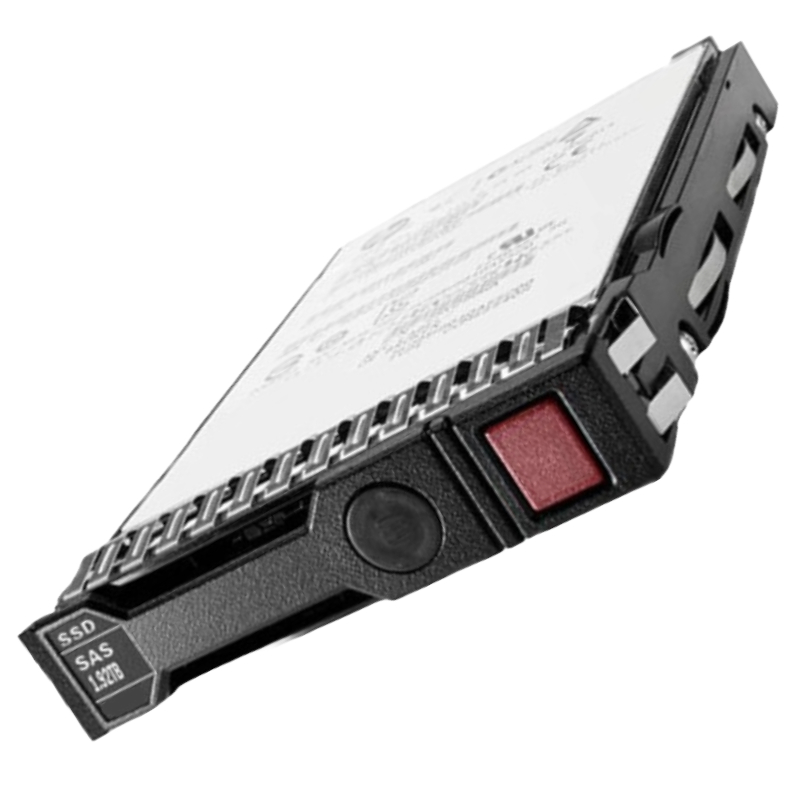

HPE ProLiant 1.92TB SAS 12GBPS SSD P04519-H21

Specifications of the HPE P04519-H21 SSD

Brand and Model Details

• Brand: HPE
• MPN (Manufacturer Part Number): P04519-H21
• Option Part Number: P04519-H21
• Spare Part Number: P06597-001
• Model Number: VO001920JWTBL
• Assembly Number: P04172-002

General Specifications

• Device Type: Hot-swap Solid State Drive (SSD)
• Storage Capacity: 1.92 TB
• Form Factor: 2.5-inch Small Form Factor (SFF)
• Interface: SAS 12Gbps
• NAND Flash Type: Triple-Level Cell (TLC)
• Hot-Plug Capable: Yes
• Carrier Type: HPE Smart Carrier (SC)
• Workload Classification: Read-Intensive
• Firmware Features: Digitally Signed Firmware (DS)
• Supported Platforms: HPE ProLiant Rack/Tower/BladeSystem Servers and Synergy
• Drive Height: 15 mm

Performance Overview

• Endurance DWPD (Drive Writes Per Day): 1
• 30-Day Write Capacity: 3504 TB
• Drive Transfer Rate: 12 Gb/sec
• Maximum Sequential Read Throughput: 1075 MiB/s
• Maximum Sequential Write Throughput: 1030 MiB/s
• Random Read Latency (4KiB, Q1): 135 µsec
• Random Write Latency (4KiB, Q1): 35 µsec
• Random Read IOPS (4KiB, Q=16): 109,000
• Random Write IOPS (4KiB, Q=16): 54,000
• Maximum Random Read IOPS (4KiB, Q=32): 165,000
• Maximum Random Write IOPS (4KiB, Q=4): 54,000

Expansion and Connectivity

• Compatible Bay Size: 2.5" SFF
• Interface: 1 x SAS 12 Gb/s

Power Consumption

• Idle Power Consumption: 5.00 Watts
• Power Draw During Random Read: 6.00 Watts
• Power Draw During Random Write: 6.00 Watts
• Sequential Read Power Usage: 6.98 Watts
• Sequential Write Power Usage: 6.98 Watts
• Random Read/Write Power Consumption: 5.43 Watts
• Maximum Power Consumption: 8.98 Watts

Physical Dimensions and Weight

• Height: 12.70 cm (5.00 inch)
• Depth: 17.78 cm (7.00 inch)
• Width: 22.86 cm (9.00 inch)
• Weight: 0.50 kg (1.10 lbs)

Compatibility Information

• Compatible with HPE Apollo Series: 4200 Gen9/Gen10, 4510 Gen9 (2.5 inch)
• Compatible with HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)
• Compatible with HPE ProLiant DL Series: DL325, DL360, DL380, DL385, DL560, DL580 Gen9/Gen10 (2.5 inch)
• Compatible with HPE ProLiant ML Series: ML110, ML350 Gen10 (2.5 inch)
• Compatible with HPE ProLiant XL Series: XL170r, XL190r, XL270d Gen10 (2.5 inch)
• Compatible with HPE Synergy Series: 660 Gen9/Gen10, 680 Gen9 (2.5 inch)

Capacity

The HPE P04519-H21 SSD boasts a remarkable capacity of 1.92TB, making it an excellent choice for users who require a large storage solution. With this substantial amount of storage space, users can comfortably store and access their data without worrying about running out of space.

Increased Storage Capability

One of the primary benefits of the 1.92TB capacity is the ability to store a vast amount of data. Whether you are a professional working with large files or a content creator needing ample space for your projects, this SSD offers an ideal solution. With 1.92TB at your disposal, you can store thousands of high-resolution photos, hours of HD video footage, or a vast library of documents and files.

Efficient Data Management

Having a high-capacity SSD like the HPE P04519-H21 allows for efficient data management. Users can easily organize their files and folders without the need to constantly shuffle data between different storage devices. This streamlines workflow and improves productivity by providing quick access to all your important files in one place.

Reduced Need for External Storage

The spacious 1.92TB capacity eliminates the need for external storage devices, such as external hard drives or additional SSDs. This not only saves you money but also reduces clutter and simplifies your setup. With all your data stored in one SSD, you can enjoy a neat and organized workspace.

Seamless Multimedia Experience

For media enthusiasts and professionals, the 1.92TB capacity is particularly valuable. It allows for the smooth storage and playback of high-definition videos, large audio files, and graphics-intensive projects. So whether you are editing videos or working with graphics-intensive applications, this SSD ensures a seamless multimedia experience.

Interface

The HPE P04519-H21 SSD features a SAS interface, which offers several advantages for users. The SAS interface is known for its reliability, speed, and compatibility with a wide range of systems.

Reliability and Durability

The SAS interface is designed to provide high reliability and durability, making it an excellent choice for users who require consistent performance. This interface ensures that your data remains secure and accessible even under demanding conditions. With the HPE P04519-H21 SSD's SAS interface, you can trust that your files are safe and protected.

Compatibility with Existing Systems

Another significant advantage of the SAS interface is its compatibility with a variety of systems. Whether you are using a desktop computer, server, or enterprise-grade storage solution, the HPE P04519-H21 SSD with its SAS interface can seamlessly integrate into your existing setup. This versatility ensures that you can upgrade your storage without the need for extensive system modifications.

Increased Transfer Speeds

The SAS interface offers faster data transfer speeds compared to other interfaces. With a transfer rate of up to 12GBPS, the HPE P04519-H21 SSD allows for quick and efficient data transfer. This is particularly beneficial for users who regularly work with large files or need to transfer data between multiple devices. The fast transfer speeds ensure minimal waiting times and enhance overall productivity.

Improved Scalability

The SAS interface also provides improved scalability options for users. Whether you need to expand your storage capacity in the future or upgrade to a higher-performing system, the SAS interface allows for easy scalability. This ensures that your storage solution can grow alongside your needs and adapt to changing requirements without significant disruptions or additional investments.

Speed

The HPE P04519-H21 SSD offers impressive speed capabilities with its 12GBPS interface. The speed of an SSD is a crucial factor that directly impacts overall system performance and user experience.

Enhanced Data Transfer

With a speed of 12GBPS, the HPE P04519-H21 SSD enables lightning-fast data transfer. Whether you are copying files, launching applications, or booting up your system, the high speed ensures minimal waiting times and a smooth user experience. This is especially important for users who work with resource-intensive applications or require quick access to their data.

Improved System Responsiveness

The fast speed of the HPE P04519-H21 SSD significantly improves system responsiveness. Applications load faster, and operations such as file searches and data retrieval are executed swiftly. This enhances productivity and allows users to work efficiently without delays or interruptions.

Seamless Multitasking

The 12GBPS speed of this SSD enables seamless multitasking capabilities. Users can run multiple applications simultaneously without experiencing a significant drop in performance. This is particularly beneficial for professionals who often work with multiple software tools or need to switch between tasks quickly.

Reduced Latency

The high-speed interface of the HPE P04519-H21 SSD reduces latency, ensuring that data access and retrieval occur almost instantaneously. This is crucial for time-sensitive operations, such as real-time data processing or running critical applications. The reduced latency guarantees a smooth and uninterrupted workflow, even during demanding tasks.

Form Factor

The HPE P04519-H21 SSD features a compact 2.5-inch form factor, offering numerous benefits for users in terms of compatibility, versatility, and space-saving advantages.

Easy Integration

The 2.5-inch form factor is widely supported in various devices, making it easy to integrate the HPE P04519-H21 SSD into your system. Whether you are upgrading your laptop, desktop, or server, the compact size ensures a seamless fit. This compatibility eliminates the hassle of finding specific mounting solutions or adapters, saving both time and effort during installation.

Portable and Lightweight

The small form factor of the HPE P04519-H21 SSD makes it highly portable and lightweight. This is particularly advantageous for users who need to carry their data with them or frequently work remotely. The compact size allows for easy transportation, whether you are traveling for business or simply moving between workstations. Additionally, the lightweight design ensures minimal additional weight when using the SSD in portable devices.

Space-Saving Solution

The 2.5-inch form factor is an excellent space-saving solution, especially in compact setups or crowded server rooms. The small size of the HPE P04519-H21 SSD allows for efficient utilization of available space, enabling users to maximize their storage capacity without sacrificing valuable real estate. This is particularly beneficial for users with limited physical storage options.

Versatility and Compatibility

The 2.5-inch form factor offers versatility and compatibility across a wide range of devices and systems. Whether you are using a desktop, laptop, gaming console, or server, the HPE P04519-H21 SSD can seamlessly integrate into your setup. This flexibility ensures that you can enjoy the benefits of this high-performance storage solution regardless of the device or system you use.

Usage

The HPE P04519-H21 SSD is specifically designed for read-intensive usage scenarios, offering numerous benefits in terms of performance, reliability, and endurance.

Optimized Read Performance

The read-intensive nature of this SSD ensures optimized read performance. It excels in applications that require fast data retrieval, such as booting up your operating system, launching applications, or accessing frequently used files. The HPE P04519-H21 SSD's read-intensive design guarantees quick response times and a smooth user experience.

Extended Endurance

Read-intensive SSDs are known for their extended endurance capabilities. The HPE P04519-H21 SSD is built to withstand continuous reading operations without compromising its performance or lifespan. This endurance ensures that the SSD can handle demanding workloads over an extended period without experiencing a decline in performance.

Reliability and Data Integrity

The read-intensive design of the HPE P04519-H21 SSD emphasizes data reliability and integrity. The SSD is engineered to deliver consistent and accurate data access, minimizing the risk of data corruption or loss. Whether you are working on critical projects or storing important files, this SSD ensures that your data remains intact and accessible at all times.

Cost-Effective Solution

The read-intensive nature of this SSD makes it a cost-effective storage solution for users who prioritize read performance over write operations. By focusing on read-intensive usage scenarios, this SSD offers an affordable alternative without compromising on performance or durability. This makes it an ideal choice for users who do not require extensive write capabilities but still need high-performance storage.
