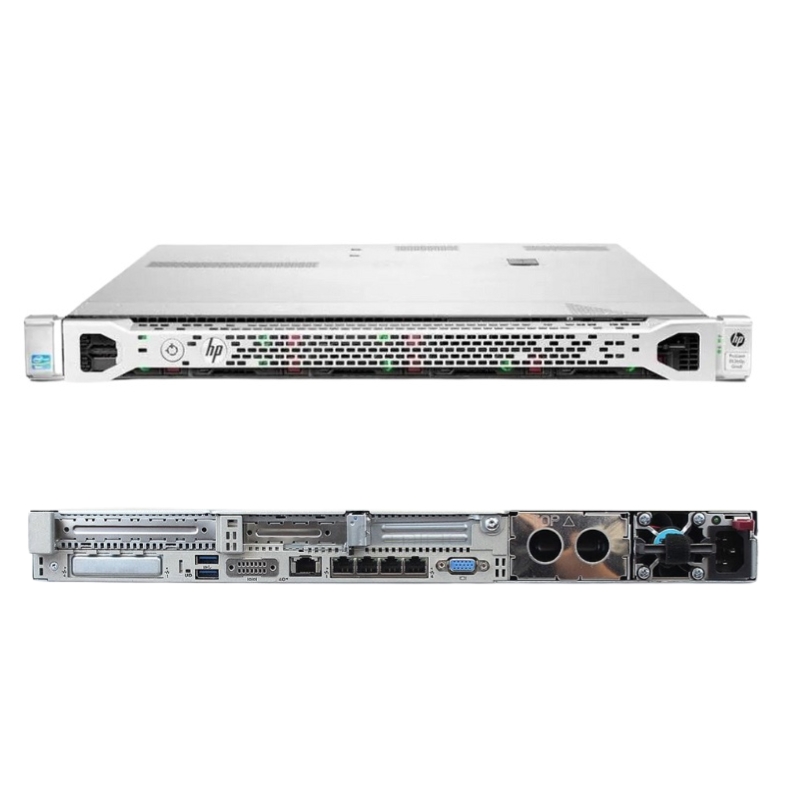

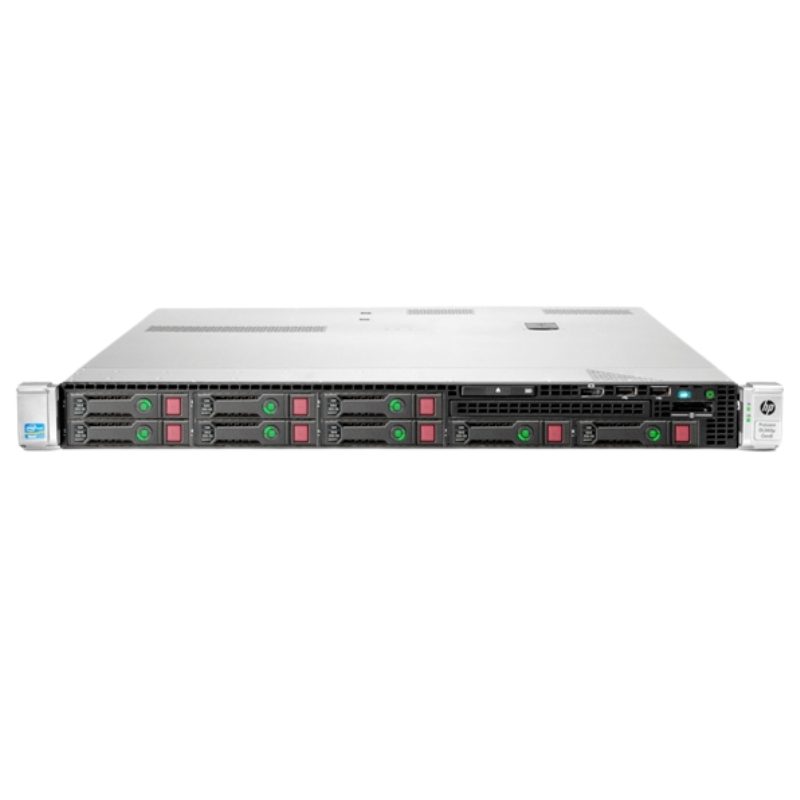

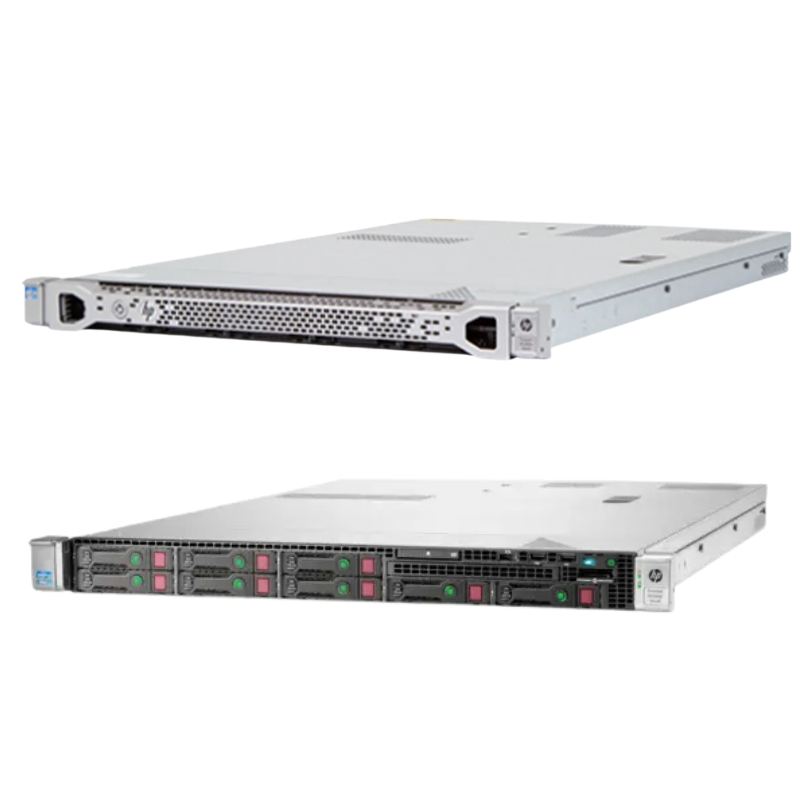

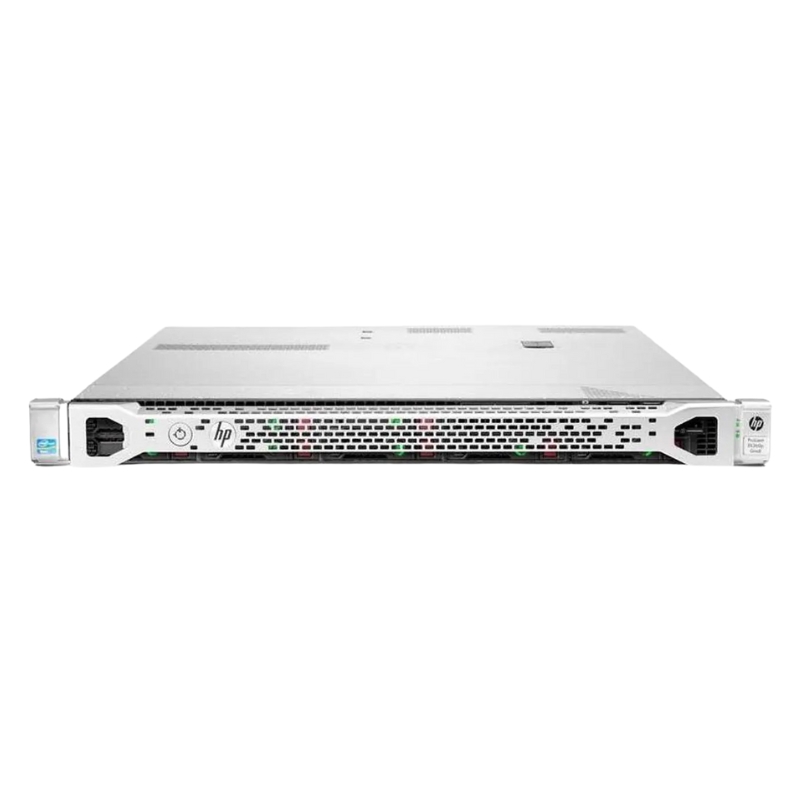

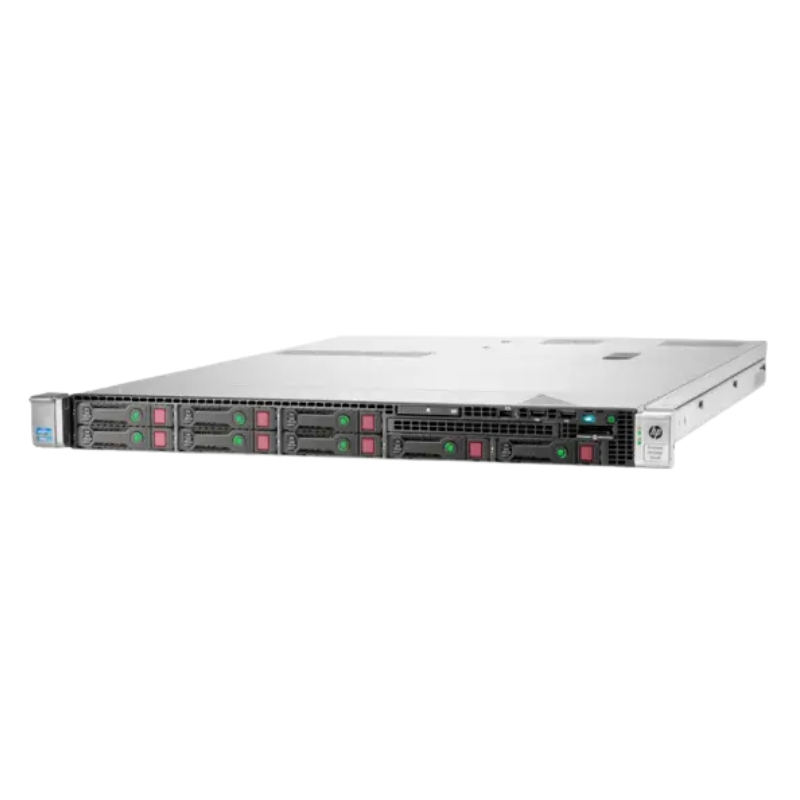

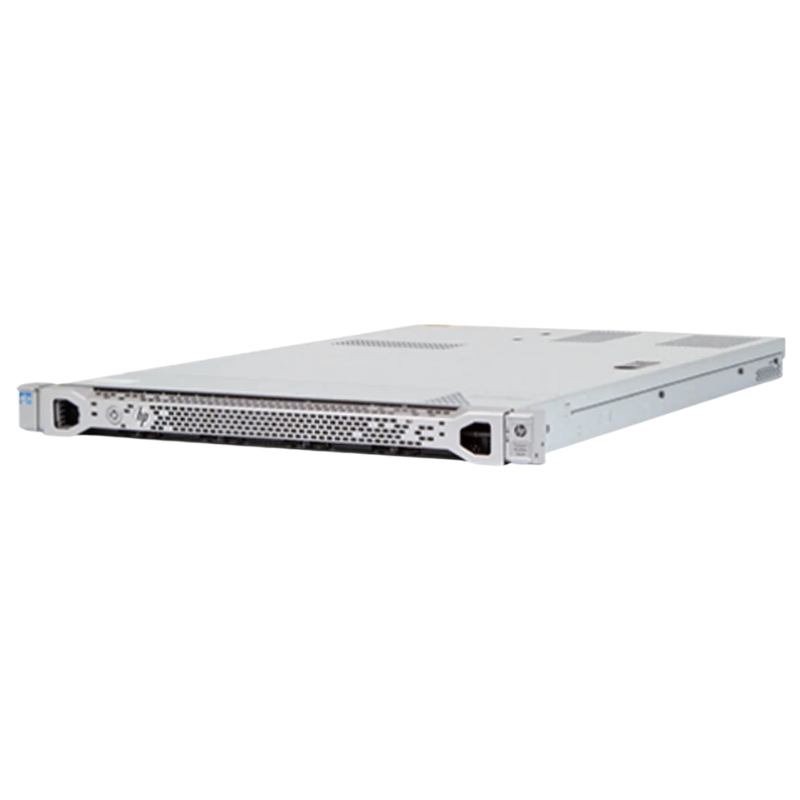

HPE Proliant DL120 Gen9 Hot Plug 8SFF 1U Rack Server 777426-B21.

Processor

The HPE Proliant DL120 G9 CTO 1U Rack Server is equipped with the powerful Intel Xeon E5-V3 processor. This processor is known for its exceptional performance and reliability, making it an excellent choice for businesses that require high processing power.

General Details

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: 777426-B21
• Product Name: Proliant DL120 Gen9 - 1U Rack Server (CTO Model)

Processor & Chipset

• Processor Type: Intel Xeon E5-v3
• 64-bit Computing: Yes
• Compatible Processor Socket: FCLGA2011-3
• Maximum Supported Quantity: 1
• Chipset Type: Intel C610 Series

Cache Memory

• Cache Memory Type: Smart Cache

Memory Specifications

• Installed Size: 0 GB / 256 GB (maximum)
• Memory Technology: DDR4 SDRAM PC4-17000R (DDR4-1600)
• Form Factor: DIMM 288-pin
• Total Memory Slots: 8 (total) / 8 (empty)
• Supported RAM: 128 GB - Registered, 256 GB - Load-reduced

Storage Capabilities

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Name: Smart Array B140i
• Buffer Size: None
• Disk Drive Support: Up to 6 GB/s SATA (Serial ATA)
• Connectors: 10 Internal SATA Connectors
• Server Interface: x4 PCIe 2.0
• SATA Speed: 6 GB/s SATA Links
• Logical Drives Supported: Up to 8 Logical Volumes (6 Physical Drives)
• Host Memory Addressing: 64-bit, supporting greater than 4 GB server memory space
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Graphics Controllers

• Type: Integrated
• Graphics Processor: Matrox G200eh2
• Video Interfaces: VGA

Network & Communication

• Interface (bus) Type: PCI Express 2.0 x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HP NC361i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion and Connectivity

Expansion Bays

• Total (free): 8 (total) / 8 (free) x Hot-swap 2.5" SFF

Expansion Slots

• Total (free):
  • 1 x CPU
  • 8 x DIMM 288-pin
  • 1 x PCIe 3.0 x16 - Low-profile
  • 1 x PCIe 3.0 x8 - Low-profile
  • 1 x PCIe 3.0 x8 - Half-length, Full-height
  • 1 x microSD Card (internal)

Interfaces & Ports

• 2 x LAN (Gigabit Ethernet)
• 1 x VGA
• 1 x USB 2.0 (1 in front)
• 3 x USB 3.0 (2 rear, 1 internal)

Miscellaneous

• Included Accessories: HP Thumbscrew Ears
• Features: Administrator Password, Power-on Password, UEFI BIOS
• Compliant Standards: ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438

Pricing Type

• CTO (Configure-To-Order)

Dimensions & Weight

• Depth: 23.9 inches
• Width: 17.1 inches
• Height: 1.7 inches
• Weight: 19.8 lbs

Benefits of Intel Xeon E5-V3 Processor

1. Enhanced Performance

The Intel Xeon E5-V3 processor offers superior performance compared to its predecessors. With multiple cores and high clock speeds, it can handle demanding tasks and applications effortlessly. This means faster data processing, improved system responsiveness, and reduced waiting times for users.

2. Scalability

The Xeon E5-V3 processor supports advanced technologies like Hyper-Threading and Turbo Boost, which allow for increased scalability. It can efficiently handle a wide range of workloads, from basic office tasks to complex computations, making it suitable for various business needs.

3. Reliability and Stability

When it comes to reliability, the Xeon E5-V3 processor is second to none. It is designed for 24/7 operation and can handle heavy workloads without compromising stability. Its robust architecture ensures that the server remains operational even under demanding conditions, minimizing downtime and ensuring uninterrupted business operations.

4. Energy Efficiency

Energy efficiency is a crucial consideration for businesses looking to reduce their carbon footprint and lower operational costs. The Xeon E5-V3 processor is designed with energy-saving features that optimize power consumption without compromising performance. This helps businesses save on electricity bills while contributing to a greener environment.

Importance of Intel Xeon E5-V3 Processor

The Intel Xeon E5-V3 processor plays a vital role in the overall performance and capabilities of the HPE Proliant DL120 G9 CTO 1U Rack Server. Here are some reasons why this processor is important for users:

1. Improved Productivity

With its exceptional processing power, the Xeon E5-V3 processor enables faster data analysis, complex calculations, and multitasking capabilities. This translates to improved productivity for businesses, as employees can work more efficiently and complete tasks in less time.

2. Enhanced Virtualization

Virtualization has become a standard practice in modern data centers, allowing businesses to maximize server resources and reduce hardware costs. The Xeon E5-V3 processor supports advanced virtualization technologies, such as Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d). These features improve virtual machine performance, enable efficient resource allocation, and enhance overall server utilization.

3. Future-Proof Investment

Investing in a server with the Intel Xeon E5-V3 processor ensures that your business is ready to handle future growth and technological advancements. Its scalability and robust architecture make it capable of meeting the evolving needs of your business for years to come. By choosing a server with this processor, you are making a future-proof investment that will save you from frequent hardware upgrades.

RAM

The HPE Proliant DL120 G9 CTO 1U Rack Server comes with the option of "No RAM." While this may seem unusual, it provides users with flexibility and customization options when it comes to memory configuration.

Benefits of No RAM Option

1. Customization

By offering the "No RAM" option, HPE allows users to customize their server's memory configuration according to their specific requirements. This means you can choose the amount and type of RAM that best suits your needs, whether it's DDR3 or DDR4, ECC or non-ECC, and the capacity that suits your workload.

2. Cost Savings

Choosing the "No RAM" option can lead to cost savings for businesses. Instead of paying for pre-installed RAM that may not be fully utilized, users can purchase and install RAM modules based on their exact needs. This allows businesses to allocate their budgets more effectively and invest in other critical components or upgrades.

3. Scalability

The absence of pre-installed RAM gives businesses the flexibility to scale their server's memory as needed. As your workload grows or changes over time, you can easily add more RAM modules to meet the increased demands. This scalability ensures that your server can adapt to evolving business requirements without the need for a complete hardware replacement.

Importance of No RAM Option

The "No RAM" option may initially seem unconventional, but it offers significant advantages for users:

1. Tailored Performance

Every business has unique requirements when it comes to memory capacity and performance. By choosing the "No RAM" option, users have the freedom to select RAM modules that precisely match their workload demands. This customization allows for optimal system performance and ensures that memory resources are utilized efficiently.

2. Future-Proofing

The "No RAM" option allows businesses to future-proof their server investments. As memory technology advances and new modules become available, you have the flexibility to upgrade your server's memory without replacing the entire system. This adaptability ensures that your server can keep up with changing demands and technological advancements.

3. Reduced Wastage

Pre-installed RAM modules may not always align with your specific needs, resulting in underutilization or wastage of resources. By opting for the "No RAM" option, you can avoid such wastage and allocate your resources more efficiently. This not only saves costs but also reduces electronic waste, contributing to a more sustainable IT environment.

Storage

The HPE Proliant DL120 G9 CTO 1U Rack Server features the Smart Array B140I Without FBWC storage configuration. This storage solution offers several benefits, including reliability, flexibility, and data protection.

Benefits of Smart Array B140I Without FBWC

1. Reliability

The Smart Array B140I Without FBWC provides reliable storage for your critical business data. It offers RAID (Redundant Array of Independent Disks) functionality, which allows for data redundancy and protection against disk failures. This ensures that your data remains accessible even in the event of a drive failure, minimizing the risk of data loss and downtime.

2. Flexibility

The Smart Array B140I Without FBWC supports various RAID levels, including RAID 0, 1, and 10. This flexibility allows businesses to configure their storage to meet their specific needs. Whether you require maximum performance, data redundancy, or a combination of both, this storage solution can be tailored to suit your requirements.

3. Cost-Effective Solution

The Smart Array B140I Without FBWC offers a cost-effective storage solution for businesses with moderate storage needs. It eliminates the need for dedicated storage controllers and external storage enclosures, reducing upfront costs and simplifying installation and maintenance processes.

Importance of Smart Array B140I Without FBWC

The Smart Array B140I Without FBWC is an important feature of the HPE Proliant DL120 G9 CTO 1U Rack Server. Here's why it matters for users:

1. Data Protection

Data is the lifeblood of any business, and protecting it is crucial. The Smart Array B140I Without FBWC ensures that your data remains safe and accessible, even in the face of disk failures. By implementing RAID functionality, this storage solution provides an added layer of data protection, giving businesses peace of mind and minimizing the risk of data loss.

2. Performance Optimization

The Smart Array B140I Without FBWC allows businesses to optimize their storage performance. By configuring RAID levels that suit their specific workload requirements, businesses can achieve the desired balance between performance and data redundancy. This flexibility ensures that storage resources are used efficiently and that critical applications and processes run smoothly.

3. Simplified Management

Managing storage can be complex, especially in large-scale deployments. The Smart Array B140I Without FBWC simplifies storage management by integrating RAID functionality directly into the server hardware. This eliminates the need for separate storage controllers and streamlines the management and maintenance processes. Administrators can easily monitor and configure their storage within a unified interface, reducing complexity and improving efficiency.

Networking

The HPE Proliant DL120 G9 CTO 1U Rack Server is equipped with a 1GB 2-PORT 361I Ethernet Adapter for networking connectivity. This feature offers numerous benefits in terms of network performance, reliability, and flexibility.

Benefits of 1GB 2-PORT 361I Ethernet Adapter

1. High Network Performance

The 1GB 2-PORT 361I Ethernet Adapter provides high-speed network connectivity, enabling fast data transfer between the server and other devices on the network. With a capacity of 1 gigabit per second (Gbps), it can handle large data volumes efficiently, ensuring smooth communication and minimizing network bottlenecks.

2. Reliable Connectivity

Reliable network connectivity is essential for businesses to ensure continuous operations and data accessibility. The 1GB 2-PORT 361I Ethernet Adapter offers reliable connectivity, with support for advanced features such as link aggregation and failover. These features enhance network reliability by providing redundancy and ensuring seamless connectivity even in the event of a network component failure.

3. Flexibility

The 1GB 2-PORT 361I Ethernet Adapter offers flexibility in terms of network configuration. It supports a variety of network protocols and standards, allowing businesses to integrate the server into existing network infrastructures seamlessly. Whether your network utilizes Ethernet, Fast Ethernet, or Gigabit Ethernet, this adapter can accommodate your networking needs.

Importance of 1GB 2-PORT 361I Ethernet Adapter

The 1GB 2-PORT 361I Ethernet Adapter plays a crucial role in the networking capabilities of the HPE Proliant DL120 G9 CTO 1U Rack Server. Here's why it's important for users:

1. Seamless Communication

Efficient and reliable network connectivity is vital for seamless communication within a business environment. The 1GB 2-PORT 361I Ethernet Adapter ensures that data can be transferred quickly and reliably between the server and other devices on the network. This enables employees to collaborate effectively, access shared resources, and communicate without delays or disruptions.

2. Enhanced Network Performance

The high-speed capabilities of the 1GB 2-PORT 361I Ethernet Adapter contribute to improved overall network performance. By providing ample bandwidth, it prevents congestion and ensures that data can flow freely between connected devices. This results in faster file transfers, reduced latency, and improved responsiveness for critical applications.

3. Scalability and Compatibility

As businesses grow, their networking requirements may evolve. The 1GB 2-PORT 361I Ethernet Adapter offers scalability and compatibility, allowing businesses to expand their network infrastructure without significant disruptions. With support for the latest network protocols and standards, this adapter can seamlessly integrate into existing network environments and accommodate future upgrades.

Drive Bays

The HPE Proliant DL120 G9 CTO 1U Rack Server features 8SFF Hot Plug drive bays, providing users with ample storage capacity and flexibility for their data storage needs.

Benefits of 8SFF Hot Plug Drive Bays

1. Increased Storage Capacity

The 8SFF Hot Plug drive bays allow businesses to maximize their storage capacity within a compact form factor. With support for up to eight small form factor (SFF) drives, users can store large volumes of data, including documents, media files, databases, and applications. This ensures that businesses have sufficient storage space to accommodate their growing data requirements.

2. Hot Plug Capability

Hot plug functionality is a valuable feature that allows users to add or remove drives without powering down the server. The 8SFF Hot Plug drive bays enable seamless hot swapping of drives, ensuring uninterrupted operations and eliminating the need for server downtime during drive maintenance or upgrades. This enhances system availability and minimizes disruption to business operations.

3. Flexibility and Scalability

The 8SFF Hot Plug drive bays offer flexibility and scalability in terms of storage configuration. Users can choose from various drive types, including solid-state drives (SSDs) and hard disk drives (HDDs), depending on their performance and capacity requirements. Additionally, the hot plug capability allows for easy expansion or replacement of drives as storage needs evolve, ensuring that businesses can adapt to changing data storage demands.

Importance of 8SFF Hot Plug Drive Bays

The 8SFF Hot Plug drive bays are a critical feature of the HPE Proliant DL120 G9 CTO 1U Rack Server. Here's why they are important for users:

1. Data Storage and Management

Efficient data storage and management are essential for businesses of all sizes. The 8SFF Hot Plug drive bays offer ample storage capacity, allowing businesses to store and manage their data effectively. With the ability to accommodate multiple drives, users can organize their data in a structured manner, ensuring easy accessibility and efficient retrieval when needed.

2. High Availability and Redundancy

The hot plug capability of the 8SFF Hot Plug drive bays enhances system availability and data redundancy. By allowing drives to be added or replaced on the fly, businesses can ensure continuous operations without any downtime. This is especially crucial for mission-critical applications and environments where uninterrupted access to data is essential.

3. Scalability and Future-Proofing

As businesses grow, their storage requirements increase. The 8SFF Hot Plug drive bays offer scalability, allowing businesses to add more drives as needed. This future-proofs their storage infrastructure, ensuring that they can accommodate expanding data volumes without investing in additional servers or storage systems. This scalability saves costs and simplifies maintenance and management processes.

Product Number

The HPE Proliant DL120 G9 CTO 1U Rack Server has a product number of 777426-B21. This unique identifier is essential for identifying and ordering the specific server model.

Benefits of Product Number (777426-B21)

1. Accurate Identification

The product number (777426-B21) serves as an accurate identifier for the HPE Proliant DL120 G9 CTO 1U Rack Server model. It ensures that users can easily identify and differentiate this server from other models in the HPE Proliant DL120 G9 series or other server series offered by HPE. This accurate identification streamlines procurement processes and eliminates any confusion or errors in ordering.

2. Compatibility Assurance

The product number (777426-B21) is associated with specific hardware configurations, ensuring compatibility between components and accessories. When ordering accessories or replacement parts for the HPE Proliant DL120 G9 CTO 1U Rack Server, users can rely on the product number to ensure that the ordered components are compatible with their specific server model. This compatibility assurance simplifies the procurement and maintenance processes, reducing the risk of compatibility issues.

3. Documentation and Support

The product number (777426-B21) is used in official documentation, support materials, and online resources related to the HPE Proliant DL120 G9 CTO 1U Rack Server. Users can refer to this product number when accessing manuals, firmware updates, drivers, and technical support information specific to their server model. This ensures that users have access to accurate and relevant information, making it easier to troubleshoot issues and maximize the server's performance.

Importance of Product Number (777426-B21)

The product number (777426-B21) is an important aspect of the HPE Proliant DL120 G9 CTO 1U Rack Server for users:

1. Streamlined Procurement

The product number simplifies the procurement process by providing a unique identifier for the specific server model. When ordering or requesting quotes, users can use the product number (777426-B21) to ensure that they are requesting the correct server configuration. This streamlines the procurement process, reduces errors,
