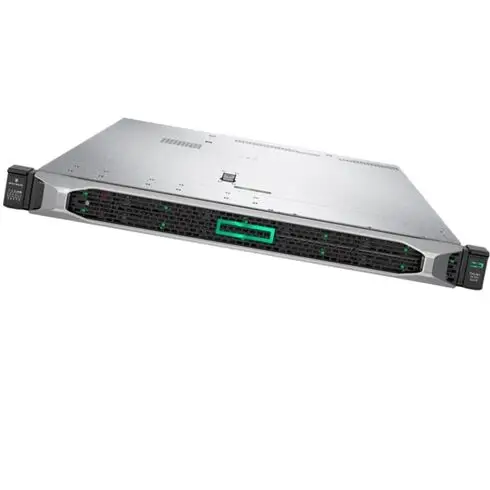

HPE Proliant DL360 1P 32GB-R S100I NC 8SFF 800W PS Server P24740-B21

RAM

The HPE Proliant DL360 Server is equipped with a powerful 32GB RAM, providing users with exceptional performance and reliability. This feature is essential for businesses and organizations that require high-speed data processing and multitasking capabilities.

General Information

Manufacturer Details

• Brand: Hewlett Packard Enterprise
• Part Number: P24740-B21
• Product Name: Proliant DL360 Gen10 - 1U Rack Mountable Server (NC Model)

Processor & Chipset

CPU Specifications

• Processor: Intel Xeon Gold 5218R, 2.1 GHz
• Max Turbo Frequency: 4 GHz
• Core Count: 20 cores
• Installed CPUs: 1
• Max CPUs Supported: 2
• Upgradability: Yes
• Main Features: Hyper-threading, Intel Turbo Boost Technology 2
• Socket Type: FCLGA3647
• Chipset: Intel C621

Cache Memory

Details

• Installed Cache Size: 27.5 MB L3 Cache
• Cache Per Processor: 27.5 MB

Memory

Specifications

• Installed Memory: 32 GB, expandable up to 1 TB
• Memory Type: DDR4 SDRAM with Advanced ECC
• Effective Speed: 2666 MHz
• Rated Speed: 2933 MHz
• Memory Standard: PC4-23466
• Form Factor: DIMM 288-pin
• Available Slots: 24 total, 23 empty
• Features: Registered, Online Spare, No Mixing of Different Memory Types, Slots 13-24 for Two-Processor Configurations, 6-Channel Architecture
• Memory Configuration: 1 x 32 GB
• Supported RAM: Up to 3 TB Load-Reduced, 1.54 TB Registered, 6 TB HPE Persistent Memory

Storage

Available Options

• Hard Drive: None
• Optical Drive: None

Storage Controllers

Features

• Controller Type: RAID
• Controller Interface: PCIe 3.0 x4
• Interface Type: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software RAID
• Channels: 14
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 10

Display & Graphics Controllers

Specifications

• Video Memory: 16 MB
• Video Interfaces: VGA

Network & Communication

Connectivity

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Controller: HPE 562FLR-T
• Data Link Protocol: 10 Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion / Connectivity

Bays and Slots

• External Universal Media Bay: 1 total, 1 free
• Hot-Swap 2.5" SFF Bays: 8 total, 8 free
• PCIe Slots:
  • 1 x PCIe 3.0 x16 - Three-Quarter-Length, Full-Height
  • 1 x PCIe 3.0 x8 - Low-Profile
• FlexibleLOM Slot: 1 total, 0 free
• MicroSD Card Slot: 1 total, 1 free

Interfaces

• VGA Port: 1
• LAN Ports: 2 x 10 Gigabit Ethernet
• HPE iLO Port: 1 x RJ-45
• USB 3.0 Ports: 3 (1 Front, 2 Rear)

Miscellaneous

Included Accessories

• High-Performance Heatsink
• SFF Easy Install Rails

Compliance Standards

• AES
• Triple DES
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• Redfish API
• UEFI

Power Description

Power Supply Details

• Type: Hot-Plug Power Supply
• Redundancy: Optional
• Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

Physical Measurements

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Improved Performance

The 32GB RAM significantly improves the server's performance by enabling it to handle multiple tasks simultaneously without any lag or slowdown. It ensures that even resource-intensive applications run smoothly, allowing users to work efficiently without any performance bottlenecks.

Enhanced Multitasking

With 32GB RAM, the HPE Proliant DL360 Server can effortlessly handle multiple virtual machines, making it an ideal choice for virtualization environments. Users can create and manage numerous virtual machines simultaneously without experiencing any performance degradation.

Increased Productivity

The ample amount of RAM allows users to run memory-intensive applications such as databases, analytics software, and complex simulations effortlessly. This results in improved productivity as users can complete tasks faster and more efficiently.

Future-Proofing

By providing a generous 32GB RAM, the HPE Proliant DL360 Server ensures that businesses and organizations are well-equipped for future growth and expansion. As technology advances and software becomes more demanding, having sufficient RAM becomes increasingly important. With 32GB RAM, users can avoid the need for immediate upgrades and continue to benefit from optimal performance for years to come.

Reliability and Stability

The HPE Proliant DL360 Server's 32GB RAM ensures reliable and stable operation even under heavy workloads. It minimizes the risk of crashes or system failures, allowing users to rely on the server for critical business operations without worrying about data loss or downtime.

Flexibility and Scalability

The 32GB RAM provides the flexibility to accommodate future growth and changing business needs. Users can easily expand the server's memory capacity by adding more RAM modules as required, ensuring scalability without the need for a complete system overhaul.

Optimized Virtualization

Virtualization is a key component of modern IT infrastructure. With 32GB RAM, the HPE Proliant DL360 Server can host multiple virtual machines efficiently, allowing businesses to consolidate their hardware resources and reduce costs. The ample memory also ensures that each virtual machine has sufficient resources to operate smoothly, enhancing overall virtualization performance.

Efficient Data Processing

The 32GB RAM enables faster data processing, reducing latency and improving response times. This is particularly beneficial for applications that require real-time data analysis or quick decision-making. Users can expect improved business intelligence, faster report generation, and more efficient data processing with the HPE Proliant DL360 Server.

RAID Controller

The HPE Proliant DL360 Server features the S100I RAID controller, offering users enhanced data protection, improved performance, and increased storage flexibility. This feature is crucial for businesses that prioritize data integrity and require reliable storage solutions.

Data Protection

The S100I RAID controller provides advanced data protection features such as RAID levels 0, 1, 5, and 10. These RAID configurations offer various levels of redundancy and fault tolerance to safeguard critical data against drive failures. In the event of a drive failure, data can be easily recovered without any loss or downtime.

Improved Performance

The S100I RAID controller improves overall system performance by distributing data across multiple drives. This ensures that read and write operations are evenly distributed, reducing latency and improving response times. Users can expect faster data access and improved application performance with the HPE Proliant DL360 Server.

Storage Flexibility

The S100I RAID controller allows users to configure different drive types and sizes in a single RAID array. This flexibility enables businesses to optimize storage resources according to their specific needs without being limited by drive compatibility issues. Users can mix and match SAS, SATA, and SSD drives to create a storage solution that best suits their requirements.

Seamless Integration

The S100I RAID controller seamlessly integrates with the server's management software, providing users with an intuitive interface to monitor, configure, and manage their RAID arrays. This simplifies the setup process and allows for easy maintenance and troubleshooting. Users can quickly identify any issues and take proactive measures to ensure optimal performance and data integrity.

Scalable Storage Capacity

The S100I RAID controller allows for easy expansion of storage capacity as business needs grow. Users can add additional drives to the RAID array without disrupting operations or requiring complex reconfiguration. This scalability ensures that businesses can efficiently manage their increasing storage demands without significant downtime or costly upgrades.

High Availability

The S100I RAID controller's fault tolerance capabilities ensure high availability of data, minimizing the risk of data loss or system downtime. In the event of a drive failure, the server continues to operate seamlessly using the redundancy provided by the RAID configuration. This ensures uninterrupted access to critical data and applications, preventing any disruption to business operations.

Cost-Effective Data Protection

The S100I RAID controller offers cost-effective data protection by eliminating the need for external RAID controllers. This reduces hardware costs without compromising on data integrity. Businesses can benefit from robust data protection without incurring additional expenses, making the HPE Proliant DL360 Server an economical choice for reliable storage solutions.

Drive Bays

The HPE Proliant DL360 Server is equipped with eight Small Form Factor (8SFF) drive bays, offering users ample storage capacity, easy accessibility, and enhanced flexibility. This feature is essential for businesses that require efficient and scalable storage solutions.

Ample Storage Capacity

The eight Small Form Factor drive bays provide users with sufficient storage capacity to accommodate their growing data requirements. Each drive bay can house a 2.5-inch hard drive or solid-state drive (SSD), allowing businesses to store vast amounts of data without worrying about running out of space.

Hot-Swappable Design

The hot-swappable design of the 8SFF drive bays allows for easy maintenance and upgrades without interrupting server operations. Users can replace or add drives on the fly, minimizing downtime and ensuring continuous access to critical data. This feature is particularly beneficial for businesses that cannot afford even a momentary disruption in their operations.

Flexibility and Scalability

The 8SFF drive bays offer flexibility and scalability, allowing businesses to adapt to changing storage needs quickly. Users can easily expand their storage capacity by adding more drives as required, without the need for complex reconfiguration or hardware upgrades. This flexibility ensures that businesses can efficiently manage their storage resources and scale their infrastructure without significant disruptions.

Improved Data Accessibility

The 8SFF drive bays ensure quick and easy access to stored data. With multiple drive bays, businesses can organize and categorize their data effectively, improving data retrieval times. Users can access the required information promptly, enhancing productivity and efficiency.

Optimized Storage Performance

The 8SFF drive bays enable businesses to configure their storage solution to meet their specific performance requirements. Users can mix and match different drive types and sizes, allowing for customized storage configurations. This flexibility ensures that businesses can optimize their storage performance according to the needs of their applications and workloads.

Efficient Space Utilization

The Small Form Factor design of the drive bays allows for efficient utilization of server rack space. The compact size of the drives enables businesses to maximize their storage capacity in a limited physical footprint. This is particularly advantageous for organizations with space constraints or those looking to optimize their server room layout.

Redundancy and Fault Tolerance

The 8SFF drive bays support various RAID configurations, providing businesses with redundancy and fault tolerance capabilities. By distributing data across multiple drives, users can ensure that critical data remains accessible even in the event of a drive failure. This redundancy minimizes the risk of data loss and system downtime, ensuring continuous operations and data integrity.

Power Supply

The HPE Proliant DL360 Server is powered by an 800W power supply, offering users robust power delivery, energy efficiency, and scalability. This feature is crucial for businesses that require reliable and efficient power management for their server infrastructure.

Robust Power Delivery

The 800W power supply provides ample power to support the server's components, ensuring smooth and reliable operation even under heavy workloads. It delivers consistent power to all critical components, minimizing the risk of voltage fluctuations or power supply-related issues that can lead to system instability or failures.

Energy Efficiency

The 800W power supply is designed to optimize energy usage, reducing electricity consumption and operating costs. It complies with energy efficiency standards, such as 80 PLUS certification, ensuring that power is utilized efficiently without unnecessary wastage. This feature is particularly beneficial for businesses looking to minimize their environmental footprint and reduce their energy expenses.

Scalability and Redundancy

The 800W power supply offers scalability and redundancy options to meet the changing needs of businesses. Users can add redundant power supplies to ensure uninterrupted power delivery in case of a primary power supply failure. This redundancy eliminates the risk of downtime and ensures continuous operations, making the HPE Proliant DL360 Server a reliable choice for critical business environments.

Smart Power Management

The 800W power supply incorporates smart power management features that enable users to monitor, control, and optimize power usage. Server administrators can access power consumption data, set power limits, and implement power-saving strategies through advanced management software. This level of control allows businesses to fine-tune their power management, reducing energy expenses and optimizing resource allocation.

Hot-Plug Capabilities

The 800W power supply supports hot-plug capabilities, allowing users to replace or add power supplies while the server is running. This feature ensures uninterrupted operations during maintenance or upgrades, minimizing downtime and enhancing overall system availability. Businesses can perform necessary power supply maintenance without impacting critical operations or causing disruptions.

Reliability and Stability

The 800W power supply's robust design ensures stable and reliable power delivery even in demanding environments. It is built to withstand fluctuations in input voltage, ensuring consistent performance without compromising on system stability. Users can rely on the HPE Proliant DL360 Server to deliver uninterrupted power, protecting critical data and ensuring business continuity.

Efficient Cooling

The 800W power supply is equipped with efficient cooling mechanisms to maintain optimal operating temperatures. It incorporates intelligent fan control and airflow management to dissipate heat effectively, preventing overheating and ensuring component longevity. This efficient cooling contributes to the overall reliability and lifespan of the server, minimizing the risk of hardware failures due to excessive heat.
