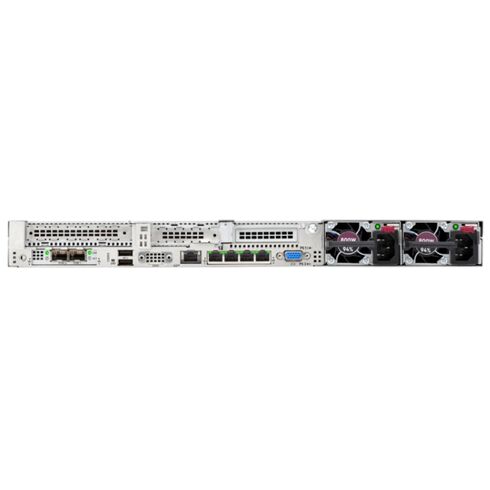

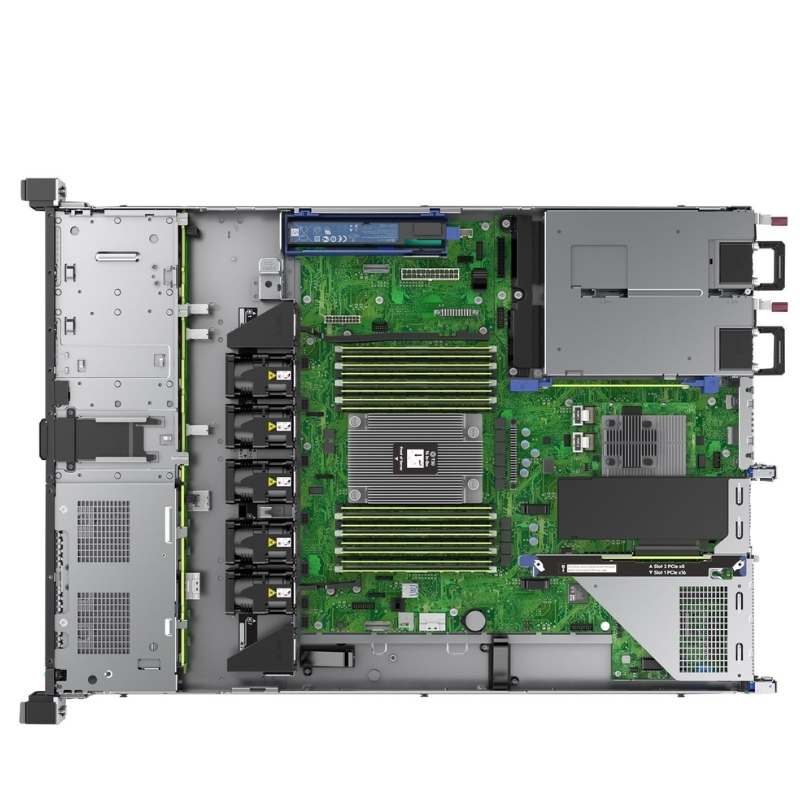

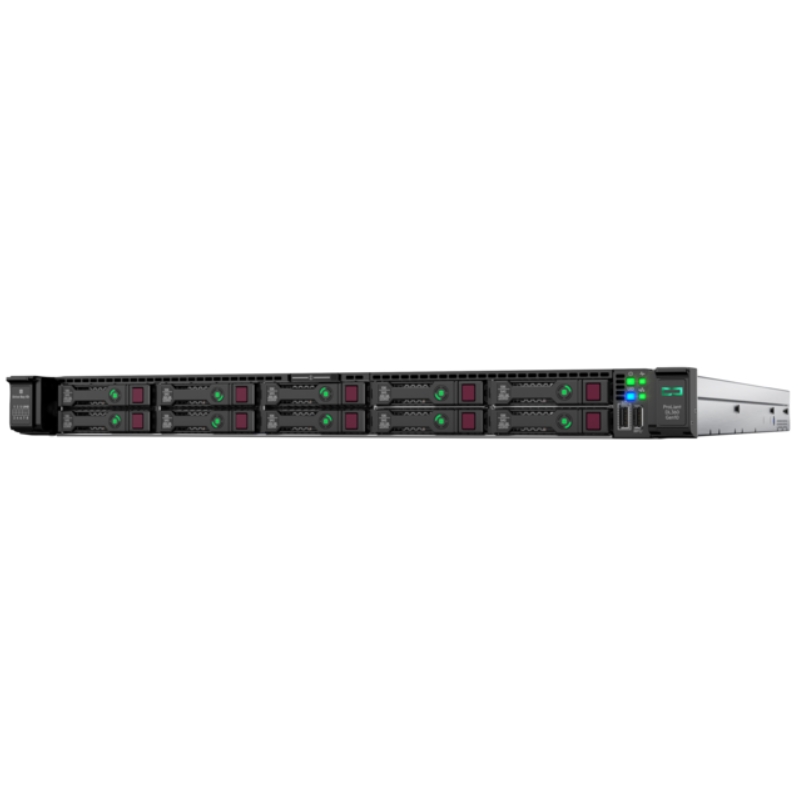

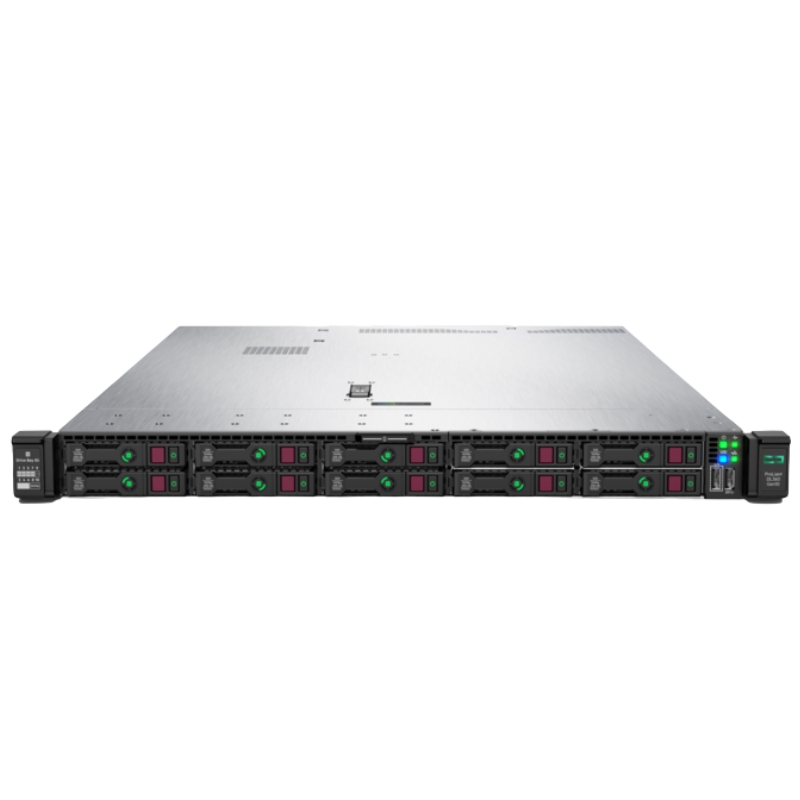

HPE P69746-005 DL360 Gen10 2nd Gen Intel Xeon 8-core Silver 800W PS Server.

Processor

The HPE Proliant DL360 Gen10 Smart Choice Model is equipped with an Intel Xeon 8-core Silver 4208 CPU, which plays a crucial role in delivering exceptional performance and efficiency for users. The processor's advanced capabilities make it an essential component of this rack server.

Main Information of Proliant DL360

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P69746-005
• Type: Rack-mountable Server
• Rack Height: 1U
• Scalability: 2-way
• Hot-swap Bays: 8
• Product Name: HPE Proliant DL360 Gen10 4208 2.1GHz

Processor and Chipset

• CPU: Intel Xeon Silver 4208
• Clock Speed: 2.1 GHz
• Max Turbo Speed: 3.2 GHz
• Core Count: 8-core
• CPU Quantity: 1
• Maximum CPUs: 2
• CPU Upgradability: Yes
• Key Features: Hyper-threading, Intel Turbo Boost
• Chipset: Intel C621

Cache Memory

• Cache Size: L3 Cache - 11 MB
• Cache per Processor: 11 MB

Memory Specifications

• Installed RAM: 64 GB
• Maximum RAM: 1.5 TB
• Memory Technology: DDR4 SDRAM
• Effective Speed: 2400 MHz
• Rated Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Slots: 24 total / 22 empty
• Memory Features: Registered, HPE SmartMemory, Slots 13-24 Available in 2-processor Configuration Only
• Supported RAM Configurations:
  • 3 TB Load-reduced ECC
  • 1.5 TB Registered ECC
  • 192 GB Non-volatile ECC

Internal Storage

• Type: SSD - 2.5"
• Capacity: 2 x 480 GB
• Interface: SATA

Optical Drive

• No Optical Drive Included

Storage Controller

• Type: RAID
• Interface Type: SATA 6Gb/s / SAS 12Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channel Quantity: 8
• Buffer Size: 2 GB

Graphics and Video

• Video Memory: 16 MB
• Video Interfaces: VGA

Networking

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WOL), PXE Support

Expansion and Connectivity

• External Universal Media Bay: 1 total / 1 free
• Hot-swap 2.5” SFF Bays: 8 total / 6 free

Slots

• PCIe 3.0 x16: 1 total / 1 free (three-quarter-length, full-height)
• PCIe 3.0 x8: 1 total / 1 free (low-profile)
• FlexibleLOM: 1 total / 1 free (three-quarter-length, full-height, low-profile)
• MicroSD Card (internal): 1 total / 1 free

Interfaces

• HPE iLO Type A: 1 (Front)
• HPE iLO RJ-45: 1
• USB 3.0 Ports: 5 (1 Front, 2 Rear, 2 Internal)
• VGA Port: 1
• LAN Ports (Gigabit Ethernet): 4

Miscellaneous

• Included Accessories: SFF Easy Install Rails
• Compliance Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
• Manufacturer Selling Program: HPE Smart Choice

Power Supply

• Device Type: Hot-plug Power Supply
• Redundancy: Yes
• Redundancy Scheme: 1+1
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Voltage Required: AC 100-120/200-240 V (50/60 Hz)
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum

Operating System and Software

• Operating System Provided: None
• Certified Operating Systems:
  • CentOS
  • Microsoft Windows Server 2012 R2
  • VMware vSphere 6.0 (ESXi)
  • SUSE Linux Enterprise Server 11 SP4
  • Microsoft Windows Server 2016
  • Red Hat Enterprise Linux 7.3
  • Red Hat Enterprise Linux 6.9
  • VMware vSphere 6.5 (ESXi)
  • SUSE Linux Enterprise Server 12 SP2
  • ClearOS

Sustainability Information

• Energy Star Certified: Yes

Environmental Parameters

• Minimum Operating Temperature: 50 °F
• Maximum Operating Temperature: 95 °F
• Humidity Range Operating: 8 - 90% RH (non-condensing)

Dimensions and Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Unmatched Performance

The Intel Xeon 8-core Silver 4208 CPU offers impressive performance capabilities, allowing users to handle demanding workloads with ease. With a base frequency of 2.1GHz and a maximum turbo frequency of 3.2GHz, this processor ensures that you can achieve fast and efficient operations, even when dealing with complex tasks.

Increased Productivity

The high-performance nature of the Intel Xeon 8-core Silver 4208 CPU enables users to maximize their productivity. Whether you are running multiple virtual machines, handling data-intensive applications, or managing databases, this processor ensures smooth operations and minimizes any possible bottlenecks.

Enhanced Security

Security is a paramount concern for businesses, and the Intel Xeon 8-core Silver 4208 CPU addresses this concern by offering advanced security features. With Intel's built-in security technologies, such as Intel AES-NI and Intel Secure Key, this processor provides hardware-level encryption and secure key generation to protect sensitive data.

Improved Energy Efficiency

Energy efficiency is a critical consideration for any server infrastructure. The Intel Xeon 8-core Silver 4208 CPU is designed to deliver excellent performance while minimizing power consumption. Its enhanced power management features ensure that the server operates efficiently, reducing energy costs and environmental impact.

Scalability and Flexibility

The HPE Proliant DL360 Gen10 Smart Choice Model's Intel Xeon 8-core Silver 4208 CPU allows for scalability and flexibility in meeting evolving business needs. With its support for Intel's Hyper-Threading Technology, it can handle multiple threads per core, enabling efficient multitasking and enhancing overall system performance.

Future-Ready Technology

Investing in the Intel Xeon 8-core Silver 4208 CPU ensures that your server is future-proofed to a certain extent. The processor supports the latest technologies and instruction sets, allowing compatibility with future software and applications. This future-ready aspect ensures that your server can adapt to changing business requirements without the need for immediate hardware upgrades.

Network Adapter

The HPE Proliant DL360 Gen10 Smart Choice Model is equipped with a 4x 1GbE Ethernet Adapter, providing reliable and high-speed network connectivity. The network adapter plays a crucial role in facilitating data transfer and communication within the server infrastructure.

Seamless Network Connectivity

With the 4x 1GbE Ethernet Adapter, users can enjoy seamless network connectivity. This adapter enables fast and reliable data transfer, ensuring that critical information can be accessed and shared without any lag or delay. Whether you are accessing files, running applications, or communicating with other devices, this network adapter ensures a smooth experience.

Increased Bandwidth

The 4x 1GbE Ethernet Adapter offers increased bandwidth, allowing for higher data transfer rates. This is especially beneficial in scenarios where large files or data sets need to be transferred quickly. With this network adapter, users can experience improved performance when transferring data over the network.

Efficient Network Management

Efficient network management is essential for maintaining a well-functioning server infrastructure. The 4x 1GbE Ethernet Adapter provides features that facilitate effective network management, such as VLAN support and advanced traffic management capabilities. These features allow administrators to optimize network resources and ensure smooth traffic flow within the server environment.

Enhanced Virtualization Capabilities

Virtualization has become a standard practice in modern server environments, and the 4x 1GbE Ethernet Adapter supports this technology. With its support for virtual LANs (VLANs), this network adapter enables efficient network segmentation, allowing for better resource allocation and enhanced security within virtualized environments.

High Availability and Reliability

The 4x 1GbE Ethernet Adapter ensures high availability and reliability for network connectivity. With features like link aggregation (or bonding) and failover support, this adapter provides redundancy and fault tolerance. In case of a network link failure, the server can seamlessly switch to an alternative link, minimizing downtime and ensuring uninterrupted operations.

Cost-Effective Solution

The 4x 1GbE Ethernet Adapter offers a cost-effective solution for businesses that require reliable network connectivity without the need for high-speed connections. It provides ample bandwidth for most data-intensive tasks while avoiding the additional expense of higher-speed network adapters.

Controller

The HPE Proliant DL360 Gen10 Smart Choice Model is equipped with the Smart Array P408i-a SR Gen10 Controller, which plays a crucial role in managing storage devices and ensuring efficient data handling within the server.

Advanced Storage Management

The Smart Array P408i-a SR Gen10 Controller offers advanced storage management capabilities, allowing users to efficiently manage their storage devices. This controller supports RAID levels 0, 1, 5, 6, 10, 50, and 60, providing users with flexibility in configuring their storage arrays for optimal performance, data redundancy, and fault tolerance.

Improved Data Protection

Data protection is of utmost importance in any server environment. The Smart Array P408i-a SR Gen10 Controller enhances data protection through features like predictive spare activation, which proactively replaces failed drives to prevent data loss. Additionally, it offers advanced data encryption options, ensuring that sensitive information remains secure.

Enhanced Performance

The Smart Array P408i-a SR Gen10 Controller enhances overall system performance by offloading storage-related tasks from the server's main CPU. This offloading allows the server to focus on other critical operations, improving overall performance and responsiveness.

Easy Management and Monitoring

Efficient management and monitoring of storage devices are essential for maintaining a well-functioning server infrastructure. The Smart Array P408i-a SR Gen10 Controller provides a user-friendly management interface, allowing administrators to easily configure, monitor, and troubleshoot storage arrays. This intuitive interface simplifies the management process, saving time and effort.

Scalability and Flexibility

The Smart Array P408i-a SR Gen10 Controller offers scalability and flexibility in storage configuration. It supports a wide range of drive types, including SAS, SATA, and NVMe SSDs, allowing users to choose the best storage solution for their specific needs. This flexibility ensures that the server can adapt to changing storage requirements without the need for significant hardware upgrades.

Improved Fault Tolerance

The Smart Array P408i-a SR Gen10 Controller enhances fault tolerance through its support for advanced RAID levels. By configuring RAID arrays with redundancy, users can ensure that their data remains accessible even in the event of a drive failure. This fault tolerance capability minimizes downtime and reduces the risk of data loss.

Storage

The HPE Proliant DL360 Gen10 Smart Choice Model is equipped with 2x 480GB SATA SSDs, providing ample storage capacity and high-performance storage capabilities for users.

High-Performance Storage

The 2x 480GB SATA SSDs deliver high-performance storage capabilities, allowing for fast data access and retrieval. Compared to traditional hard disk drives (HDDs), SSDs offer significantly faster read and write speeds, reducing latency and improving overall system performance. This high-performance storage solution ensures that users can access their data quickly and efficiently.

Reliability and Durability

SSDs are known for their reliability and durability, making them an ideal storage solution for critical applications. Unlike HDDs, which rely on spinning magnetic disks, SSDs have no moving parts, making them less prone to mechanical failures. This increased reliability translates into fewer instances of data loss and reduced downtime.

Lower Power Consumption

Energy efficiency is a crucial consideration in server environments, and the 2x 480GB SATA SSDs excel in this aspect. SSDs consume significantly less power compared to HDDs, contributing to overall energy savings. This lower power consumption not only reduces operating costs but also results in a reduced carbon footprint.

Space Efficiency

Space efficiency is another advantage of using SSDs. These drives are typically smaller and lighter than traditional HDDs, allowing for more efficient use of server rack space. The compact form factor of the 2x 480GB SATA SSDs enables users to maximize their storage capacity while minimizing physical footprint.

Faster Data Backup and Recovery

The high-performance nature of the 2x 480GB SATA SSDs enables faster data backup and recovery processes. With faster read and write speeds, these SSDs can significantly reduce the time required to back up critical data or recover from a system failure. This increased efficiency in data backup and recovery helps minimize downtime and improve business continuity.

Enhanced I/O Performance

The I/O performance of a storage solution is a critical factor in determining overall system performance. The 2x 480GB SATA SSDs offer superior I/O performance compared to traditional HDDs, allowing for faster data transfer between storage and other system components. This enhanced I/O performance ensures that applications can access data quickly, resulting in improved responsiveness.

Drive Bays

The HPE Proliant DL360 Gen10 Smart Choice Model features 8SFF drive bays, providing users with ample storage capacity and flexibility in configuring their storage arrays.

Ample Storage Capacity

The 8SFF drive bays offer ample storage capacity, allowing users to accommodate multiple drives for their data storage needs. These drive bays support small form factor (SFF) drives, which are compact yet provide high-capacity storage options. With the ability to install up to eight drives, users can easily expand their storage capacity as their business requirements grow.

Easy Drive Installation and Maintenance

The 8SFF drive bays feature a user-friendly design that simplifies the installation and maintenance of drives. Hot-swappable drive trays ensure that drives can be easily inserted or removed without the need to power down the server. This hot-plug capability minimizes downtime during drive replacement or maintenance operations.

Flexible Storage Configuration

The 8SFF drive bays offer flexibility in storage configuration, allowing users to choose the best combination of drives for their specific needs. Whether it's a mix of SSDs and HDDs or different capacities and speeds, these drive bays provide the flexibility to create a storage array tailored to individual requirements.

Improved Airflow and Cooling

Efficient airflow and cooling are crucial for maintaining optimal operating conditions within a server. The 8SFF drive bays are designed to ensure proper airflow and cooling for installed drives. This design helps prevent overheating and ensures that drives operate within their recommended temperature ranges, reducing the risk of drive failures.

Scalability for Future Growth

The 8SFF drive bays provide scalability for future growth. With the ability to accommodate up to eight drives, users have room to expand their storage capacity as their business needs evolve. This scalability ensures that the server can keep up with increasing storage demands without requiring a complete hardware replacement.

Optimized Storage Performance

The 8SFF drive bays optimize storage performance by allowing for various storage configurations, such as RAID arrays. Users can configure their drives to achieve desired performance levels, whether it's maximizing data transfer rates or ensuring fault tolerance. This optimization ensures that the server's storage subsystem operates at its full potential.

Power Supply

The HPE Proliant DL360 Gen10 Smart Choice Model is equipped with 2x 800W Power Supply units, which are essential components for delivering reliable and efficient power to the server.

Reliable Power Delivery

The 2x 800W Power Supply units ensure reliable power delivery to the server. They are designed to provide a stable and consistent power supply, minimizing the risk of power fluctuations or interruptions that could lead to system downtime or data loss. This reliability is crucial for businesses that require continuous operation of their server infrastructure.

Redundancy and Fault Tolerance

Redundancy and fault tolerance are key considerations in server environments. The 2x 800W Power Supply units offer redundancy, allowing for continued operation even if one power supply fails. In case of a power supply failure, the server can seamlessly switch to the remaining functioning unit, ensuring uninterrupted operations and minimizing the risk of data loss.

Efficient Power Management

Efficient power management is essential for minimizing energy consumption and reducing operating costs. The 2x 800W Power Supply units feature advanced power management technologies that optimize power usage based on server workload and demand. This efficiency helps businesses save on energy costs while also reducing their environmental impact.

Hot-Plug Capability

The 2x 800W Power Supply units support hot-plug capability, allowing for easy replacement or addition of power supplies without the need to power down the server. This hot-plug capability minimizes downtime during power supply maintenance or replacement operations, ensuring uninterrupted operations and reducing the risk of data loss.

Scalability for Future Expansion

The 2x 800W Power Supply units provide scalability for future expansion. As server requirements grow, additional power supplies can be added to meet increased power demands. This scalability ensures that the server infrastructure can adapt to changing business needs without requiring a complete hardware replacement.

Compliance with Industry Standards

The 2x 800W Power Supply units comply with industry standards for efficiency and safety, ensuring that they meet the highest quality standards. These power supplies are designed to deliver optimal performance while adhering to industry regulations and certifications, providing peace of mind to users regarding their reliability and safety.

In summary, the HPE Proliant DL360 Gen10 Smart Choice Model offers a powerful and efficient solution for businesses in need of a reliable rack server. The Intel Xeon 8-core Silver 4208 CPU provides unmatched performance, enhanced security, and energy efficiency. The 4x 1GbE Ethernet Adapter ensures seamless network connectivity and efficient network management. The Smart Array P408i-a SR Gen10 Controller offers advanced storage management capabilities and improved data protection. The 2x 480GB SATA SSDs deliver high-performance storage with reliability and space efficiency. The 8SFF drive bays provide ample storage capacity and flexibility in storage configuration. The 2x 800W Power Supply units offer reliable power delivery, redundancy, and efficient power management. With these features, the HPE Proliant DL360 Gen10 Smart Choice Model is a smart investment for businesses seeking a reliable and high-performance rack server.
