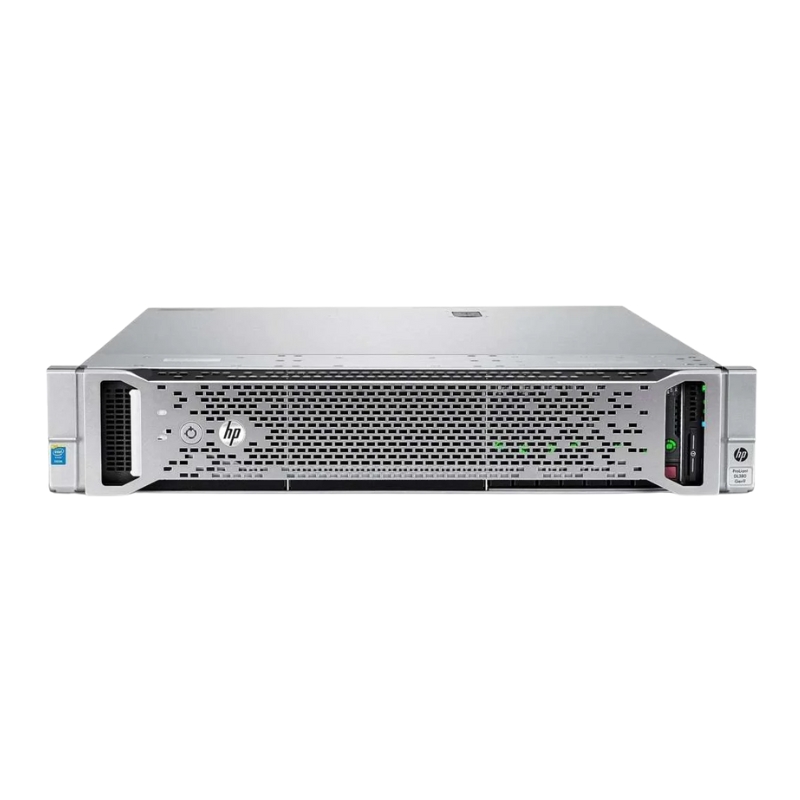

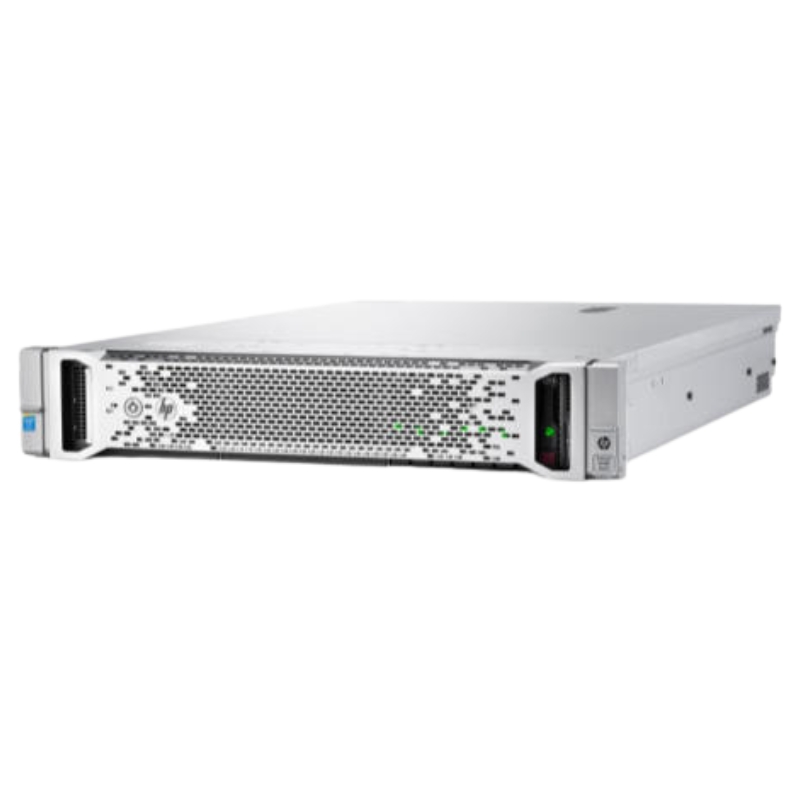

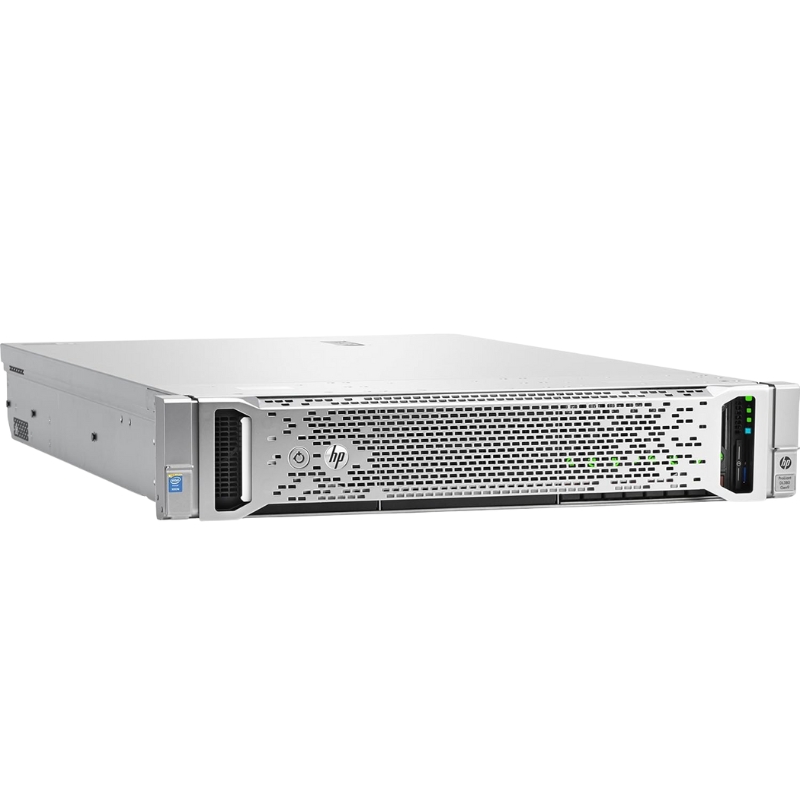

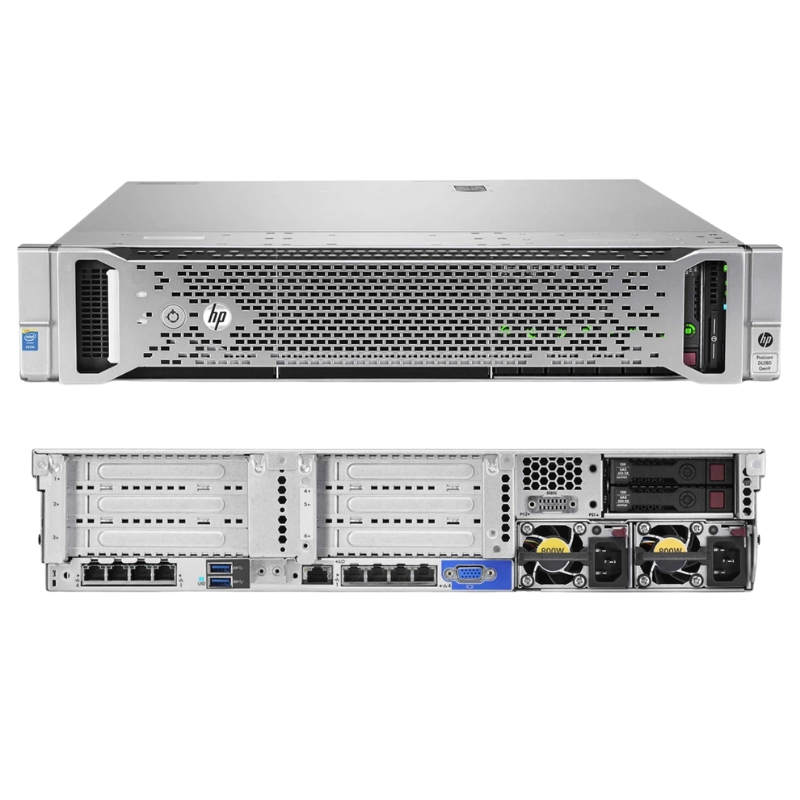

HPE Proliant DL380 826682-B21 8-Core Rack Server

Processor

The HPE Proliant DL380 Rack Server is equipped with a powerful 8-Core 2.1GHz processor, offering exceptional performance and reliability. This feature is of utmost importance for users who require high-speed processing capabilities to handle demanding workloads and complex tasks.

General Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 826682-B21
• Product Name: Proliant DL380 Gen9 - 2U Rack Mountable Server (Base Model)

Processor Specifications

CPU Details

• Processor: Intel Xeon E5-2620v4
• Clock Speed: 2.1 GHz with Turbo Boost up to 3 GHz
• Cores: 8-core
• Intel QPI Speed: 8 GT/s
• Installed CPU Quantity: 1 (supports up to 2)
• Upgradability: Upgradable

Main Features

• Hyper-Threading Technology
• Intel Turbo Boost Technology 2.0

Cache Memory

• Type: Smart Cache
• Installed Size: 40 MB
• Cache per Processor: 20 MB

Memory Configuration

Installed Memory

• Size: 16 GB, expandable up to 384 GB
• Technology: DDR4 SDRAM with Advanced ECC
• Speed: 2133 MHz
• Form Factor: DIMM 288-pin
• Specification Compliance: PC4-17000

Features

• Registered Memory
• Online Spare Memory
• Dual Rank
• Quad Channel Memory Architecture
• HP SmartMemory

Supported RAM

• PC4-17000 - 384 GB (Registered)
• PC4-17000 - 1.5 TB (Load-reduced)

Storage & Storage Controllers

Hard Drive

• Hard Drive: None
• Optical Drive: DVD-RW (SATA)

Storage Controller

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Interface: 12 Gb/s SAS / 6 Gb/s SATA
• SAS Port Link Rate: 12 Gb/s per physical link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives Supported: Up to 26
• Logical Drives Supported: Up to 64
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, RAID 1 ADM, RAID 10 ADM

Graphics & Network Interfaces

Graphics Controller

• Type: Integrated Matrox G200eh2
• Video Memory: 16 MB

Networking

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP 331i
• Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• Total: 8 x Hot-swap 2.5 SFF
• Free: 8
• External: 1 x 5.25
• Free External Bays: 0

Expansion Slots

• CPU Slots: 2 (1 free)
• DIMM Slots: 24 (23 free)
• PCIe 3.0 x16 Slots: 2 (2 free)
• PCIe 3.0 x8 Slots: 2 (2 free)
• MicroSD Card Slot: 1 (1 free)
• PCIe 3.0 x16 Full-Length Slots: 2 (2 free)

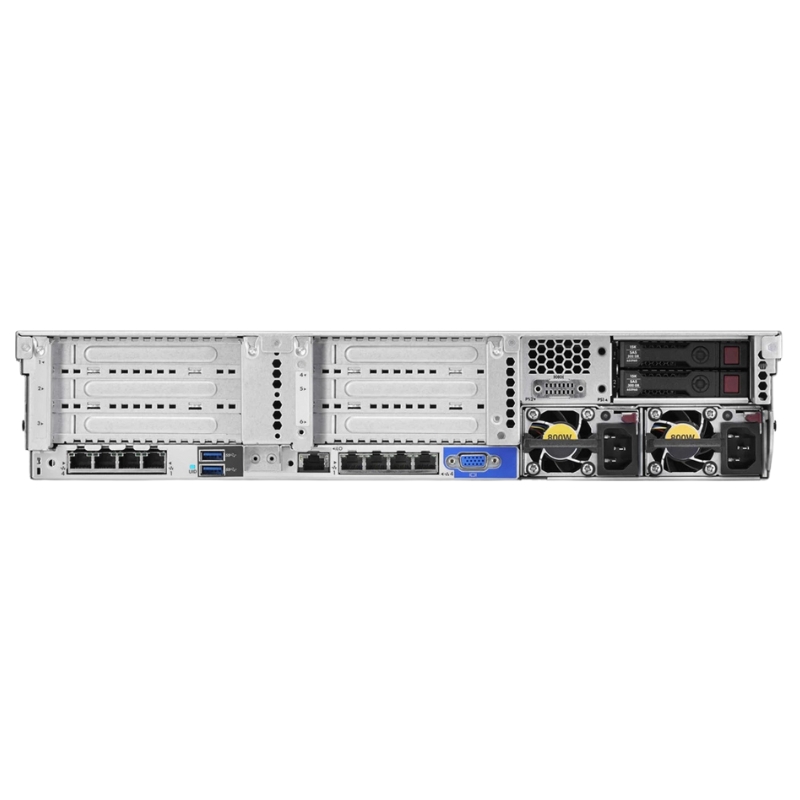

Interfaces & Ports

• LAN Ports: 4 x Gigabit Ethernet
• HP iLO Port: 1
• VGA Ports: 2 (1 Front, 1 Rear)
• USB 3.0 Ports: 5 (1 Front, 2 Rear, 2 Internal)
• USB 2.0 Ports: 2 (2 Front)

Miscellaneous Information

Included Accessories

• HP Easy Install Rails

Compliant Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 4943
• GB 9254
• ASHRAE
• CNS 13438
• BSMI CNS 14336-1

Power Specifications

• Device Type: Hot-Plug Power Supply
• Redundancy: Yes, 1+1
• Installed Quantity: 1 (max supported 2)
• Nominal Voltage: AC 120/230 V
• Power Provided: 500 Watt
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.5 lbs

Unmatched Processing Power

The 8-Core 2.1GHz processor provides users with unparalleled processing power. It enables the server to handle multiple tasks simultaneously, ensuring smooth and efficient operation even in highly demanding environments. With eight cores, the processor can efficiently distribute the workload, resulting in faster data processing and improved overall performance.

Enhanced Multi-Threaded Performance

Thanks to its multi-threaded architecture, the 8-Core 2.1GHz processor excels at handling concurrent tasks. It can execute multiple threads simultaneously, allowing for efficient multitasking and improved productivity. This is particularly beneficial for businesses that rely on their servers to handle a large number of simultaneous user requests or complex computations.

Optimized Virtualization Performance

Virtualization has become a crucial aspect of modern computing environments, enabling businesses to maximize their hardware resources and streamline operations. The 8-Core 2.1GHz processor is optimized for virtualization, delivering exceptional performance in virtualized environments. It ensures smooth and efficient execution of virtual machines, allowing businesses to consolidate their IT infrastructure and reduce costs.

Reliable and Stable Performance

The HPE Proliant DL380 Rack Server's 8-Core 2.1GHz processor is designed for reliability and stability. It undergoes rigorous testing and quality control processes to ensure it can handle continuous operation without compromising performance. This reliability is essential for businesses that rely on their servers to run critical applications and services around the clock.

Memory

The HPE Proliant DL380 Rack Server boasts DDR4 SDRAM memory, offering users a significant boost in performance and capacity. The choice of memory technology plays a crucial role in determining the server's ability to handle large workloads and efficiently manage data.

Improved Data Transfer Speeds

DDR4 SDRAM offers significantly faster data transfer speeds compared to its predecessors. This enables the HPE Proliant DL380 Rack Server to quickly retrieve and store data, resulting in improved overall performance. With faster data transfer rates, businesses can experience reduced latency and improved response times, ensuring smooth and uninterrupted operation.

Enhanced Workload Management

The increased capacity of DDR4 SDRAM allows the HPE Proliant DL380 Rack Server to handle larger workloads more efficiently. With more memory available, the server can store and manipulate more data in memory, reducing the need for frequent disk accesses. This results in improved performance and responsiveness, particularly for applications that rely heavily on memory-intensive operations.

Scalability and Future-Proofing

DDR4 SDRAM offers excellent scalability, allowing businesses to easily expand their server's memory capacity as their needs grow. The HPE Proliant DL380 Rack Server can accommodate a significant amount of DDR4 SDRAM, ensuring it can keep up with increasing demands for memory in the future. This scalability provides businesses with the flexibility to adapt to changing requirements without the need for costly hardware upgrades.

Energy Efficiency

DDR4 SDRAM is designed to be more energy-efficient compared to previous memory technologies. It operates at lower voltage levels, reducing power consumption while maintaining high performance levels. This energy efficiency not only helps businesses reduce their carbon footprint but also lowers operational costs by decreasing electricity bills.

Part Number

The HPE Proliant DL380 Rack Server's part number is 826682-B21. While it may seem like a small detail, the part number holds significant importance for users and IT professionals alike.

Identification and Compatibility

The part number serves as a unique identifier for the HPE Proliant DL380 Rack Server model. It allows users to easily identify and differentiate between different server configurations and variations. Additionally, the part number is crucial when ordering replacement parts or accessories, ensuring compatibility and avoiding any potential compatibility issues.

Efficient Technical Support

When seeking technical support or assistance, providing the correct part number is essential. IT professionals rely on accurate identification of the server model to receive appropriate guidance and troubleshooting steps. The 826682-B21 part number enables swift and efficient technical support, minimizing downtime and ensuring prompt resolution of any issues that may arise.

Documentation and Documentation Retrieval

The part number plays a vital role in accessing relevant documentation and resources related to the HPE Proliant DL380 Rack Server. Whether it's user manuals, firmware updates, or configuration guides, having the correct part number simplifies the process of finding the necessary information. This ease of access helps IT professionals make informed decisions and effectively manage their server infrastructure.

Warranty and Service Agreements

The part number is often required when registering products for warranty coverage or service agreements. By providing the 826682-B21 part number, users can ensure that their HPE Proliant DL380 Rack Server is correctly registered under the appropriate warranty or service agreement. This registration provides peace of mind, knowing that any potential hardware issues will be promptly addressed by the manufacturer or authorized service provider.

In conclusion, the HPE Proliant DL380 Rack Server's 8-Core 2.1GHz processor, DDR4 SDRAM memory, and part number 826682-B21 are all essential features that contribute to the server's exceptional performance, reliability, and ease of use. Whether it's the processing power for demanding workloads, the memory capacity for efficient data management, or the part number for identification and support purposes, these features combine to make the HPE Proliant DL380 Rack Server a top choice for businesses seeking a robust and scalable server solution.
