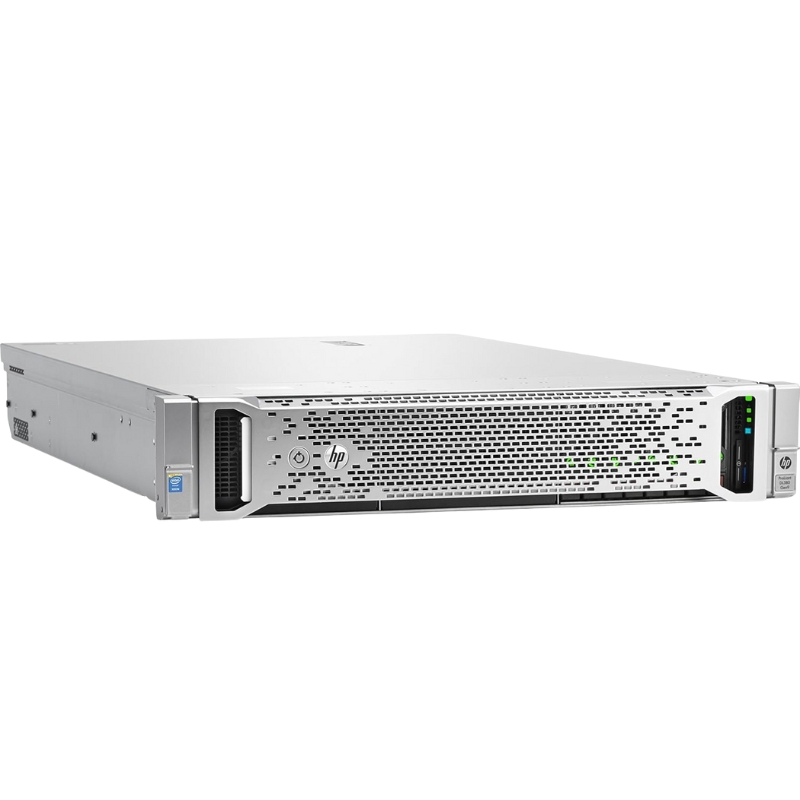

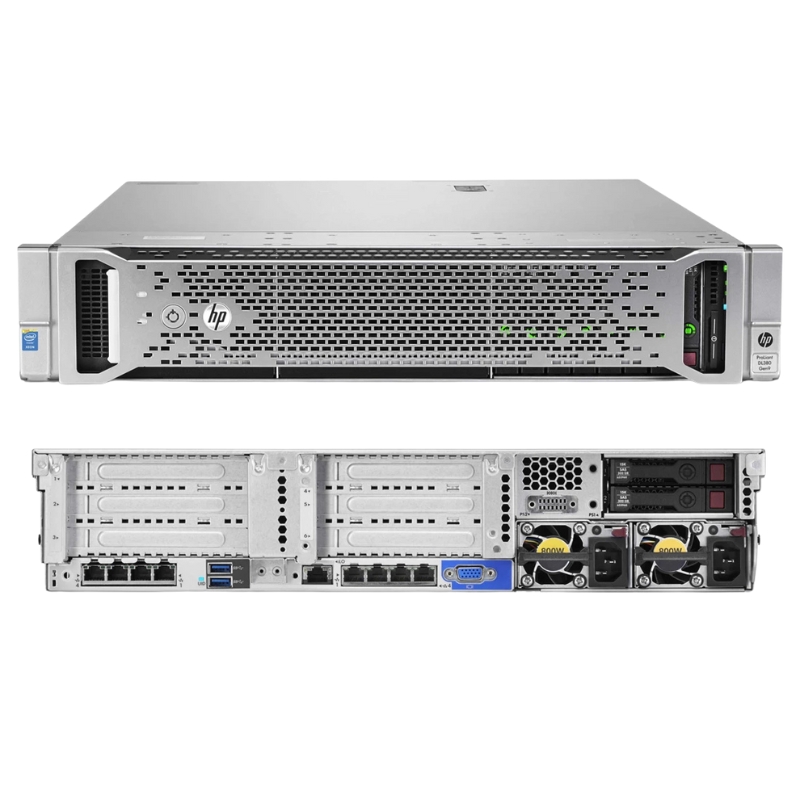

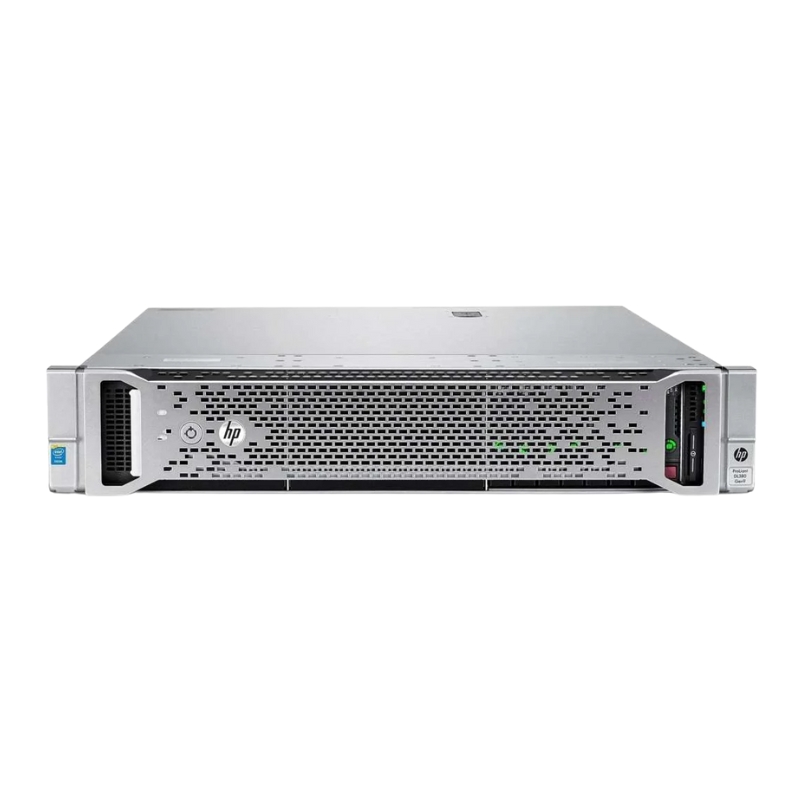

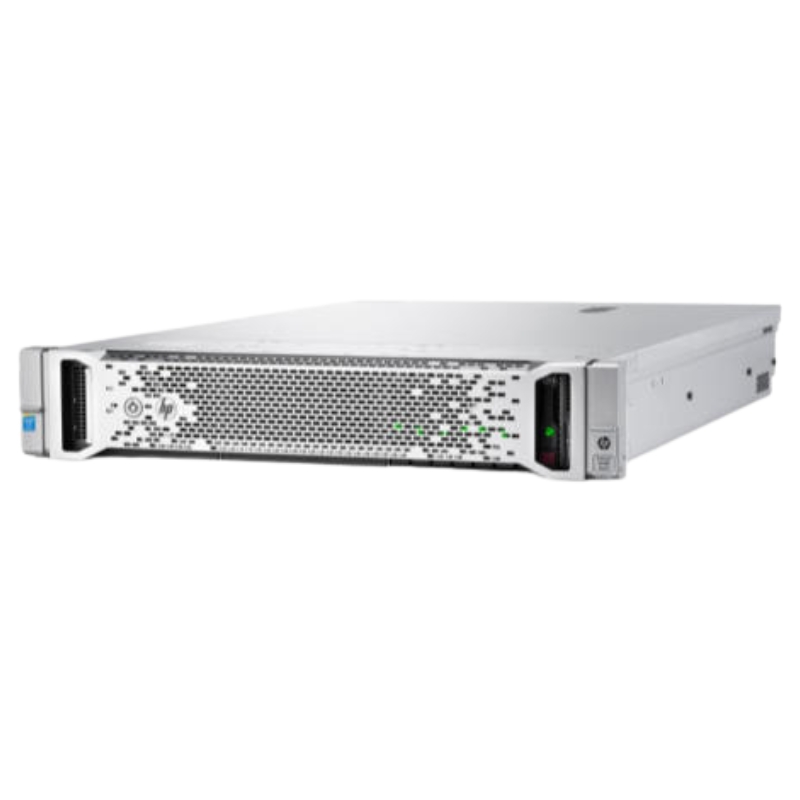

HPE Proliant DL380 826684-B21 2.2GHz Server E5-2650V4 32GB DDR4 SDRAM

Processor & Chipset

Central Processing Unit (CPU)

• Processor Type: Intel Xeon E5-2650v4
• Base Clock Speed: 2.2 GHz
• Maximum Turbo Speed: 2.9 GHz
• Number of Cores: 12-core
• CPU Quantity: 2
• Upgrade Potential: Yes, upgradable

Key Features

• Hyper-Threading Technology
• Intel Turbo Boost Technology 2.0

Cache Memory

• Type: Smart Cache
• Installed Size: 60 MB
• Cache Per Processor: 30 MB

Memory Specifications

Installed Memory

• Base Size: 32 GB
• Maximum Capacity: 384 GB

Memory Technology

• Type: DDR4 SDRAM
• Speed: 2133 MHz
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin

Features & Configuration

• Registered Memory
• Online Spare Memory
• Dual Rank
• Quad Channel Memory Architecture
• HP SmartMemory
• Standard Configuration: 2 x 16 GB
• Supported RAM: PC4-17000 - 384 GB (Registered), PC4-17000 - 1.5 TB (Load-reduced)

Storage & Controllers

Hard Drive & Optical Drive

• Hard Drive: Not included
• Optical Drive: DVD-RW SATA

Storage Controller

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Types: 12 Gb/s SAS / 6 Gb/s SATA
• SAS Port Link Rate: 12 Gb/s per physical link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives: Up to 26
• Logical Drives: Up to 64
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

Display & Graphics

• Graphics Controller: Integrated Matrox G200eh2
• Video Memory: 16 MB

Network & Communication

Networking Interfaces

• Ethernet Ports: 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Additional Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• Hot-Swap Bays: 8 x 2.5" SFF (all free)
• External Bays: 1 x 5.25" (occupied)

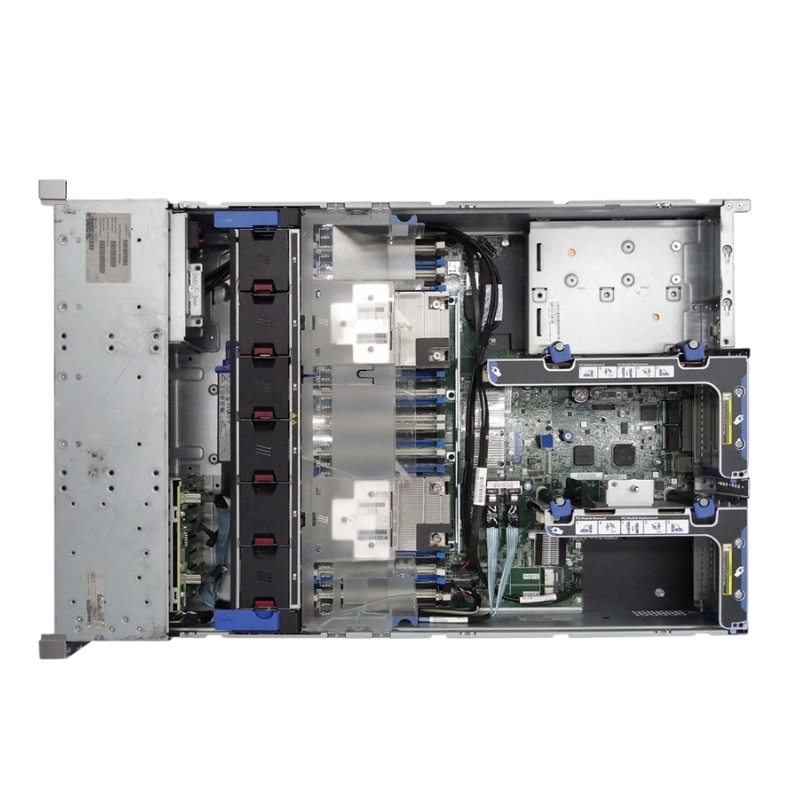

Expansion Slots

• CPU Slots: 2 (all occupied)
• DIMM Slots: 24 (22 available)
• PCIe Slots:
  • 2 x PCIe 3.0 x16 (half-length, full-height, all free)
  • 2 x PCIe 3.0 x8 (half-length, full-height, all free)
  • 1 x MicroSD Card (internal, free)
  • 2 x PCIe 3.0 x16 (full-length, full-height, all free)

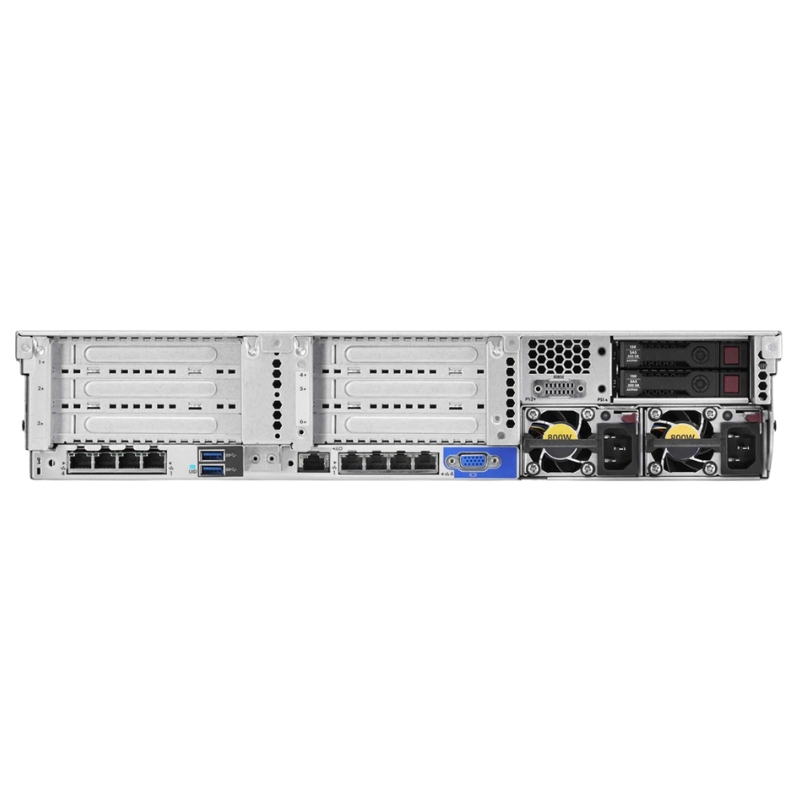

Interfaces & Ports

• LAN Ports: 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet
• HP iLO Port: 1
• VGA Ports: 2 (1 front, 1 rear)
• USB Ports:
  • 5 x USB 3.0 (1 front, 2 rear, 2 internal)
  • 2 x USB 2.0 (front)

Miscellaneous

Included Accessories

• Cable Management Arm
• HP Easy Install Rails

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• CNS 13438

Power Specifications

• Device Type: Hot-Plug Power Supply
• Power Redundancy: Yes (1+1)
• Installed Quantity: 2
• Nominal Voltage: AC 120/230 V
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inchesIncreased Processing Speed

  The 12 cores of the E5-2650V4 processor ensure that your server can handle multiple tasks simultaneously without any lag or slowdown. With a base clock speed of 2.2GHz, this processor can reach turbo speeds of up to 2.9GHz, providing you with the processing power you need to handle even the most demanding applications.

  Improved Energy Efficiency

  Energy efficiency is a crucial factor when considering server processors as it directly impacts operational costs. The E5-2650V4 processor is designed to deliver maximum performance while minimizing power consumption. This means that you can run resource-intensive applications without worrying about excessive energy consumption.

  Virtualization Capabilities

  Virtualization has become an essential component of modern data centers, allowing businesses to maximize their server resources. The 12 E5-2650V4 processor supports advanced virtualization technologies such as Intel® Virtualization Technology (Intel® VT) and Intel® Virtualization Technology for Directed I/O (Intel® VT-d). These features enable you to create virtual machines and allocate resources efficiently, resulting in improved server utilization and reduced costs.

  Reliable and Stable Performance

  The 12 E5-2650V4 processor is built using the latest technology, ensuring reliable and stable performance. It incorporates Intel® Turbo Boost Technology, which dynamically increases the clock speed when needed, delivering optimal performance for demanding workloads. With this processor, you can expect consistent and dependable performance, even during peak usage periods.

  Scalability and Flexibility

  The HPE Proliant DL380 2.2GHz Server Rack with the 12 E5-2650V4 processor offers scalability and flexibility to meet your evolving business needs. The processor supports up to 24 threads, allowing you to handle multiple tasks concurrently. Additionally, it supports a maximum memory capacity of 1.5TB, providing ample room for future expansion and growth.

  Memory: 32GB DDR4 SDRAM

  Enhanced Server Performance

  The HPE Proliant DL380 2.2GHz Server Rack is equipped with a generous 32GB DDR4 SDRAM memory. This high-performance memory module plays a crucial role in enhancing the overall performance of your server.

  Faster Data Access

  DDR4 SDRAM offers significant improvements over its predecessors in terms of speed and bandwidth. With a higher data transfer rate, this memory module ensures faster access to data, resulting in reduced latency and improved overall system responsiveness. This is particularly beneficial for businesses that deal with large datasets or run memory-intensive applications.

  Efficient Multitasking

  The 32GB capacity of the DDR4 SDRAM allows your server to handle multiple tasks simultaneously without experiencing performance bottlenecks. This is especially important in environments where multitasking is common, such as virtualization or database servers. With ample memory, you can ensure smooth and efficient operation even under heavy workloads.

  Future-Proof Investment

  Investing in a server with sufficient memory capacity is essential for future-proofing your infrastructure. The 32GB DDR4 SDRAM provides ample room for expansion and growth. As your business requirements evolve, you can easily increase the memory capacity to meet the demands of new applications or increased workloads. This flexibility saves you from the hassle and cost of replacing the entire server in the future.

  Reliable and Stable Operation

  The DDR4 SDRAM memory module is designed to deliver reliable and stable performance. It incorporates advanced error correction techniques, such as ECC (Error-Correcting Code), which helps detect and correct memory errors. This ensures data integrity and prevents system crashes or data corruption, allowing you to run critical applications with confidence.

  Energy Efficiency

  The HPE Proliant DL380 2.2GHz Server Rack with 32GB DDR4 SDRAM memory is designed with energy efficiency in mind. DDR4 technology consumes less power compared to previous generations, reducing both operational costs and environmental impact. By choosing a server with energy-efficient memory, you can contribute to sustainable practices while enjoying high-performance computing.

  Drive Bays: 8SFF

  Flexible Storage Options

  The HPE Proliant DL380 2.2GHz Server Rack is equipped with 8SFF drive bays, providing you with versatile storage options for your data.

  High-Density Storage

  The 8SFF drive bays allow you to install up to eight small form factor (SFF) hard drives or solid-state drives (SSDs) in a compact space. This high-density storage configuration enables you to maximize your storage capacity without occupying excessive rack space. Whether you need ample storage for large datasets or want to run multiple virtual machines, the 8SFF drive bays offer the necessary flexibility.

  Hot-Pluggable Drives

  The HPE Proliant DL380 server supports hot-pluggable drives, making it easy to add or replace drives without shutting down the system. This feature significantly reduces downtime and maintenance costs, allowing you to perform storage-related tasks on the fly. With hot-pluggable drives, you can ensure continuous operation and seamless data accessibility, even during drive replacements or upgrades.

  RAID Configuration

  The 8SFF drive bays support various RAID (Redundant Array of Independent Disks) configurations, providing data redundancy and enhanced performance. By configuring your drives in RAID arrays, you can protect your data against drive failures and achieve higher read and write speeds. The HPE Proliant DL380 server offers advanced RAID capabilities, allowing you to choose the most suitable configuration for your specific needs.

  Efficient Data Management

  The 8SFF drive bays enable efficient data management through features such as hot-swapping, which allows for easy drive replacement without interrupting system operation. Additionally, the server's built-in management software provides comprehensive monitoring and control capabilities, allowing you to monitor drive health, configure RAID settings, and optimize storage performance.

  Part Number: 826684-B21

  Reliable Identification and Compatibility

  The HPE Proliant DL380 2.2GHz Server Rack is identified by its unique part number, 826684-B21. This part number plays a crucial role in ensuring compatibility and facilitating easy identification of the server.

  Accurate Ordering and Replacement

  The part number serves as a precise identifier when ordering or replacing components for your HPE Proliant DL380 server. Whether you need to purchase additional memory modules, storage drives, or any other compatible component, using the correct part number ensures that you receive the exact product required for your specific server model. This eliminates any compatibility issues and saves you time and effort in finding the right parts.

  Streamlined Technical Support

  When seeking technical support or assistance, providing the part number allows service providers or support personnel to quickly identify your server model and its specific configuration. This streamlines the troubleshooting process and ensures that you receive accurate and relevant support.

  Documentation and Resources

  The part number serves as a reference when accessing documentation, manuals, and other resources related to your HPE Proliant DL380 server. Whether you need to find specific instructions for installation, configuration, or maintenance, using the correct part number ensures that you access the right information for your server model.

  Warranty and Service Coverage

  The part number is essential for registering your server for warranty and service coverage. By providing the correct part number during registration, you ensure that your server receives the appropriate warranty benefits and support options. This protects your investment and provides peace of mind knowing that you have access to reliable service if any issues arise.

  In conclusion, the HPE Proliant DL380 2.2GHz Server Rack offers exceptional performance, reliability, and flexibility. Its 12 E5-2650V4 processor delivers enhanced computing power and energy efficiency, making it suitable for demanding applications. The 32GB DDR4 SDRAM memory provides fast data access, efficient multitasking, and future expansion capabilities. The 8SFF drive bays offer versatile storage options with hot-pluggable drives and RAID configurations. Finally, the unique part number ensures accurate identification, compatibility, and streamlined support for your HPE Proliant DL380 server.
