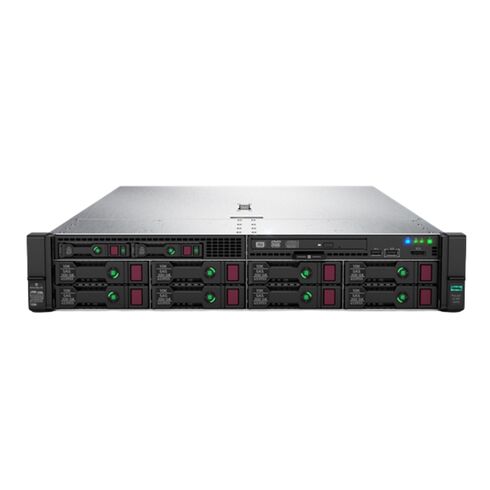

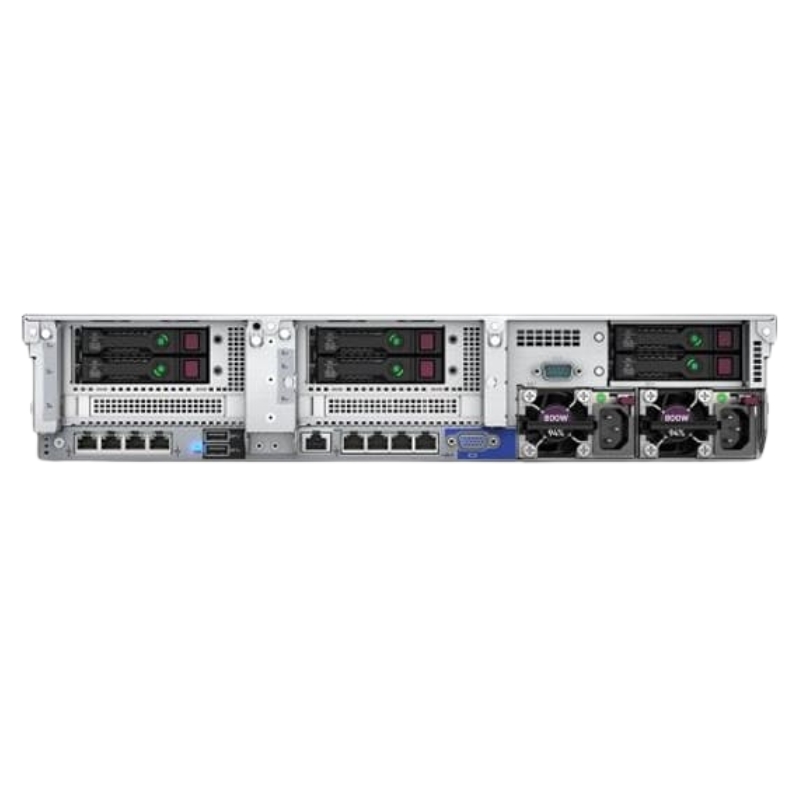

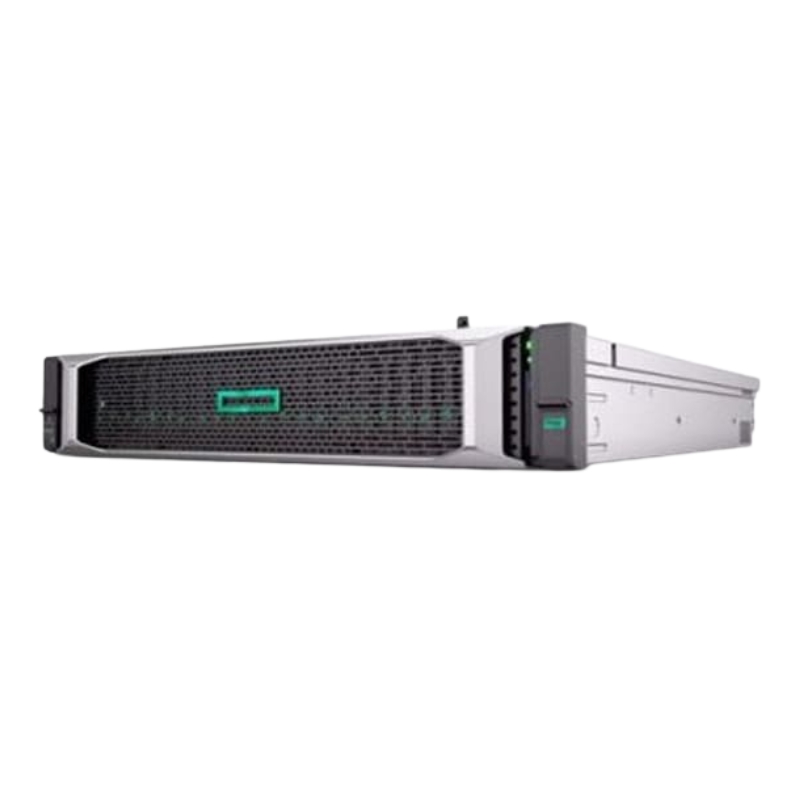

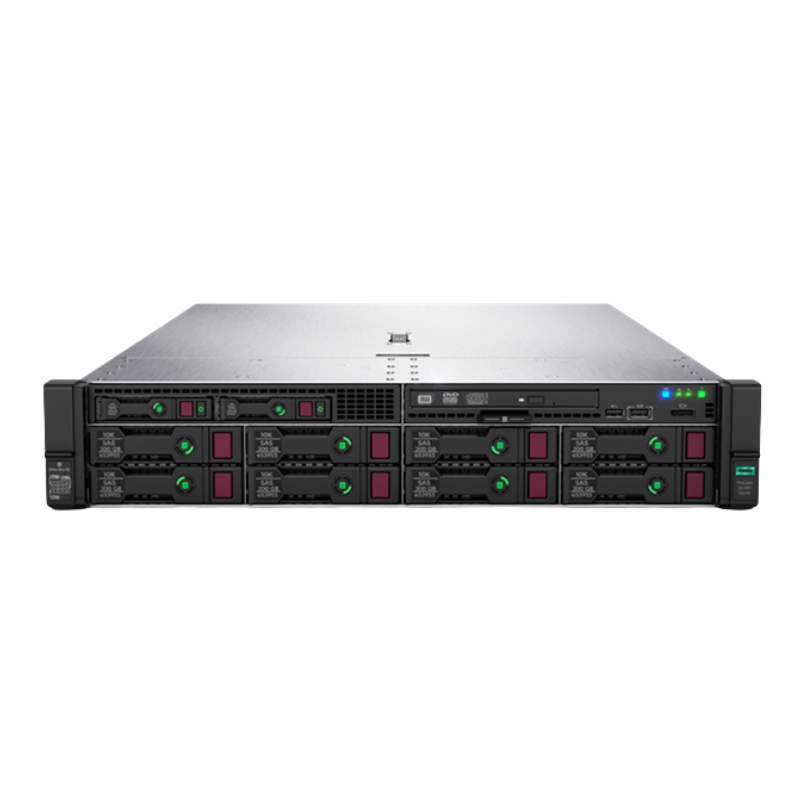

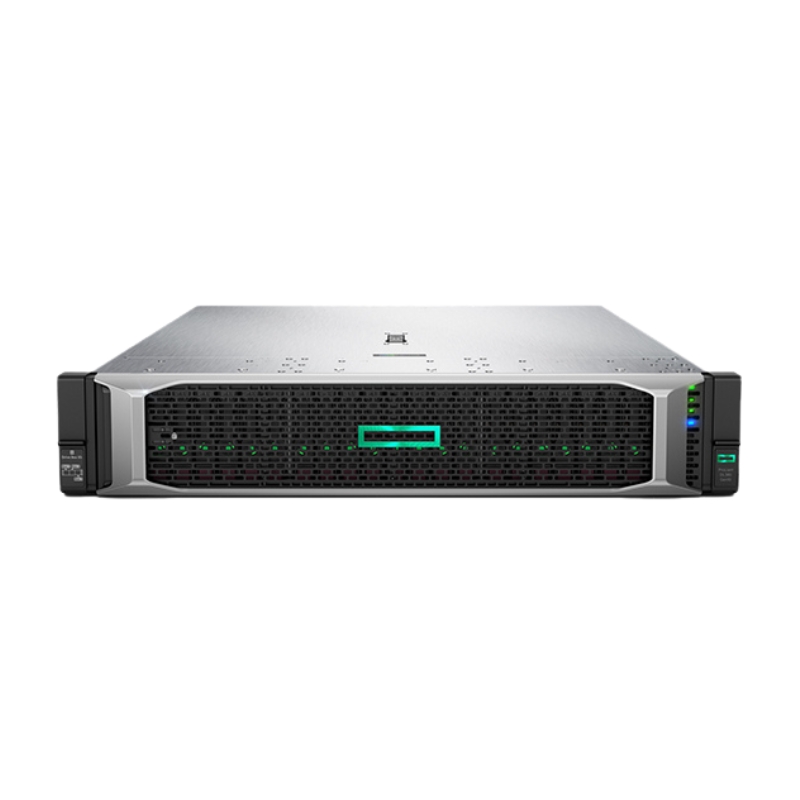

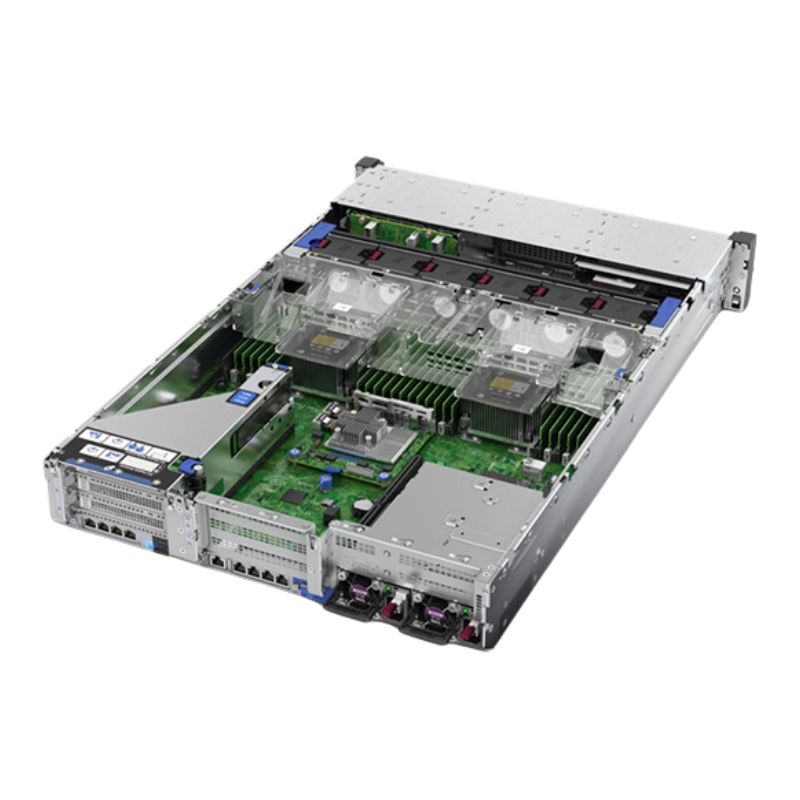

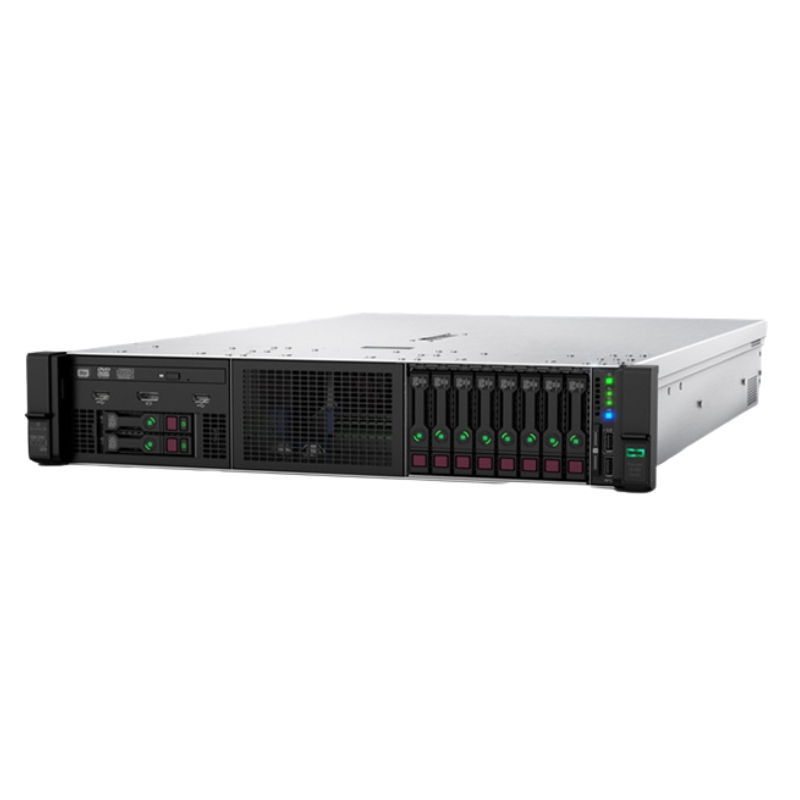

HPE P24840-B21 Proliant DL380 Gen10 SMB Xeon Silver Processor.

P24840-B21
Hover on image to enlarge

Brief Overview of P24840-B21

Proliant DL380 Gen10 SMB NC HPE P24840-B21 1x Intel Xeon 10-Core Silver 4210R/2.4 GHz 32GB Processor. New (System) Pull with 6-Month Replacement Warranty

QR Code of HPE P24840-B21 Proliant DL380 Gen10 SMB Xeon Silver Processor.
Contact us for a price
Ask a question
180 days
Additional 7% discount at checkout
SKU/MPNP24840-B21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionNew (System) Pull ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Processor

The HPE Proliant DL380 Gen10 SMB NC Server is equipped with a powerful 1x Intel Xeon 10-core Silver 4210r processor that operates at a speed of 2.4 GHz. This processor is a key feature of the server, providing exceptional performance and capabilities that are crucial for modern businesses.

Product Overview

  • Brand: Hewlett Packard Enterprise
  • Model: ProLiant DL380 Gen10 - 2U Rack Mountable Server (SMB NC Model)
  • Part Number: P24840-B21
  • Form Factor: 2U Rack

Processor & Chipset

  • Processor: Intel Xeon Silver 4210R, base speed of 2.4 GHz
  • Max Turbo Speed: 3.2 GHz
  • Cores: 10-core processor
  • CPU Capacity: Single processor installed, supports up to two
  • Features: Hyper-Threading, Intel Turbo Boost Technology 2.0
  • Socket Type: FCLGA3647
  • Chipset: Intel C621

Memory & Storage

Cache Memory

  • L3 Cache: 13.75 MB per processor

RAM

  • Installed Memory: 32 GB DDR4 SDRAM
  • Maximum Capacity: 1.5 TB with Registered DDR4, up to 6 TB with HPE Persistent Memory
  • Memory Speed: Rated at 2933 MHz, effective speed 2400 MHz
  • Memory Architecture: Dual-channel, supports registered, load-reduced, and non-volatile configurations
  • Slots: 24 DIMM slots (23 available)

Storage Controller

  • Controller Type: HPE Smart Array P408i-a
  • Interface: SATA 6Gb/s, SAS 12Gb/s
  • RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, with additional levels (RAID 1 ADM, RAID 10 ADM)
  • Buffer Size: 2 GB

Graphics & Display

  • Video Memory: 16 MB
  • Video Interface: VGA

Networking & Communication

  • Ethernet Ports: 4 x Gigabit Ethernet
  • Ethernet Controller: Intel i350-T4V2
  • Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet
  • Remote Management: Integrated Lights-Out 5 (iLO 5), SNMP 3, IPMI 2.0
  • Management Features: Wake on LAN, PXE support

Expansion & Connectivity

Bays

  • Drive Bays: 24 hot-swap 2.5" SFF bays

Expansion Slots

  • PCIe 3.0 x8: 1 full-length, full-height slot
  • PCIe 3.0 x16: 1 full-length, full-height slot
  • PCIe 3.0 x8: 1 half-length, full-height slot

Interfaces

  • USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)
  • iLO Ports: 1 front Type-A, 1 RJ-45
  • Ethernet Ports: 4 x RJ-45 (Gigabit Ethernet)
  • VGA Port: 1

Power & Efficiency

  • Power Supply: Hot-plug power supply, supports 1+1 redundancy
  • Power Capacity: 800 Watts
  • 80 Plus Certification: Platinum efficiency
  • Supported Voltage: 120/230V AC (50/60 Hz)

Physical Dimensions

  • Width: 17.5 inches
  • Depth: 26.7 inches
  • Height: 3.4 inches
  • Weight: 32.54 lbs

Compliance & Standards

  • Standards: AES, TLS v1.2, ACPI 6.1, ASHRAE Class A4 and A3, WEEE 2002/95/EC

Enhanced Performance

The Intel Xeon 10-core Silver 4210r processor offers enhanced performance that allows the HPE Proliant DL380 Gen10 SMB NC Server to handle demanding workloads with ease. With its 10 cores, it can efficiently process multiple tasks simultaneously, providing faster response times and improved overall system performance.

Efficient Resource Utilization

The multi-core architecture of the processor enables efficient resource utilization. It divides tasks among the cores, ensuring that each core is utilized optimally. This not only improves the server's performance but also reduces power consumption and operating costs.

Scalability and Future-Proofing

The 10-core configuration of the Intel Xeon Silver 4210r processor offers excellent scalability. It provides ample room for growth and expansion, allowing businesses to easily upgrade their server's capabilities when needed. This future-proofing ensures that the server can keep up with the evolving demands of technology, saving businesses from costly hardware replacements in the near future.

Advanced Security Features

Security is a critical concern for businesses, especially when it comes to servers that store and process sensitive data. The Intel Xeon Silver 4210r processor incorporates advanced security features such as Intel Software Guard Extensions (SGX) and Intel Trusted Execution Technology (TXT). These features help protect against malware attacks, unauthorized access, and data breaches, ensuring the integrity and confidentiality of your business data.

Virtualization Capabilities

The Intel Xeon Silver 4210r processor also includes built-in virtualization capabilities. It supports Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d), enabling businesses to efficiently run multiple virtual machines on a single physical server. This allows for better resource management, improved efficiency, and reduced costs by consolidating multiple servers into one.

RAM

In addition to its powerful processor, the HPE Proliant DL380 Gen10 SMB NC Server features 32GB of RAM. This ample memory capacity plays a crucial role in the server's performance and is essential for businesses that require efficient multitasking and data processing capabilities.

Increased Performance and Responsiveness

With 32GB of RAM, the server can store a large amount of data in its memory, reducing the need for frequent disk access. This results in faster data retrieval and improved overall system responsiveness. Whether it's running complex applications or handling multiple concurrent user requests, the increased memory capacity ensures smooth and seamless operations.

Efficient Multitasking

The generous amount of RAM enables efficient multitasking on the server. It allows businesses to run multiple applications simultaneously without experiencing significant performance degradation. This is particularly beneficial for businesses that rely on resource-intensive applications or need to support a large number of users concurrently.

Optimized Virtualization Performance

Virtualization has become a cornerstone of modern IT infrastructure, allowing businesses to maximize resource utilization and reduce hardware costs. The 32GB of RAM in the HPE Proliant DL380 Gen10 SMB NC Server ensures optimal performance when running virtual machines. It provides enough memory to allocate to each virtual instance, preventing resource contention and ensuring smooth operation.

Room for Expansion

The 32GB of RAM offers ample room for future expansion. As business requirements grow, the server can easily accommodate additional memory modules to increase its capacity. This scalability allows businesses to adapt to changing needs without replacing the entire server, resulting in cost savings and improved efficiency.

In conclusion, the HPE Proliant DL380 Gen10 SMB NC Server's 1x Intel Xeon 10-core Silver 4210r processor and 32GB of RAM are essential features that enhance performance, scalability, and security. The powerful processor ensures efficient processing of demanding workloads, while the ample RAM capacity allows for efficient multitasking and optimized virtualization performance. With these features, businesses can enjoy enhanced productivity, responsiveness, and future-proofing capabilities for their IT infrastructure.
