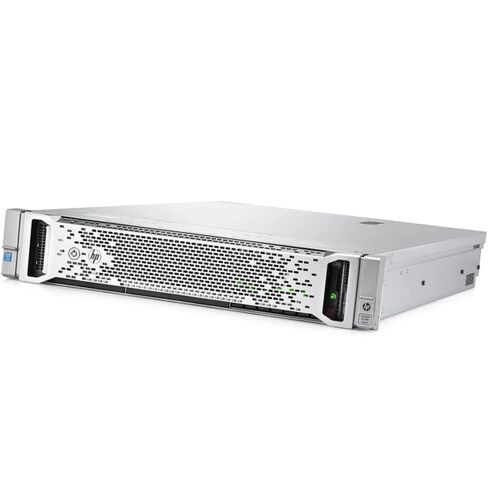

HPE Proliant DL380 Gen9 2GHz Server 852432-B21 SFP+Flexible LOM, 2x 800W PS

Processor

The HPE Proliant DL380 Gen9 Server is equipped with a powerful 2GHz processor, offering users exceptional performance and reliability. The processor serves as the brain of the server, carrying out all the necessary computations and tasks required to ensure smooth operation.

Product Overview of DL380 Gen9

• Brand: Hewlett Packard Enterprise
• Part Number: 852432-B21
• Model: Proliant DL380 Gen9 - 2U Rack Mountable Server (Performance Edition)

Processor & Chipset Specifications

• Processor Type: Intel Xeon E5-2660v4
• Clock Speed: 2.0 GHz with Max Turbo Boost up to 3.2 GHz
• Cores: 14-core
• Quantity: 2 CPUs
• Upgrade Capability: Upgradable
• Main Features: Hyper-threading, Intel Turbo Boost Technology 2.0

Cache Memory

• Cache Type: Smart Cache
• Total Installed Size: 70 MB
• Cache per Processor: 35 MB

Memory Specifications

• Current Size: 64 GB
• Maximum Capacity: 768 GB

Memory Technology

• Type: DDR4 SDRAM - Advanced ECC
• Speed: 2133 MHz
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare Memory, Quad Channel Architecture, HP SmartMemory
• Configuration: 4 x 16 GB
• Supported RAM: PC4-17000 - 768 GB (Registered) or up to 1.5 TB (Load-reduced)

Storage & Controllers

• Hard Drive: Not Included
• Optical Drive: DVD-RW SATA

Storage Controllers

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Drive Interfaces: 12 Gb/s SAS, 6 Gb/s SATA
• SAS Port Link Rate: 12 Gb/s per Physical Link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives: Up to 26
• Logical Drives: Up to 64
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

Graphics and Display

• Type: Matrox G200eh2
• Video Memory: 16 MB

Networking & Communications

• Ports: 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet
• Controller: HP 331i
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4 (iLO 4)
• Features: Wake On LAN (WOL), PXE Support
• Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

• Hot-swap Bays: 8 (total) / 8 (free) x 2.5" SFF
• External Bays: 1 (total) / 0 (free) x 5.25"

Expansion Slots

• CPU Slots: 2 (total) / 0 (free)
• DIMM Slots: 24 (total) / 20 (free)
• PCIe Slots:
  • 2 x PCIe 3.0 x16 (Half-length, Full-height, x8 Mode)
  • 2 x PCIe 3.0 x8 (Half-length, Full-height)
  • 1 x MicroSD Card (Internal)
  • 2 x PCIe 3.0 x16 (Full-length, Full-height)

Interfaces & Ports

• 4 x Gigabit Ethernet LAN Ports
• 1 x HP iLO Port
• 2 x VGA Ports (1 Front, 1 Rear)
• 5 x USB 3.0 Ports (1 Front, 2 Rear, 2 Internal)
• 2 x 10 Gigabit Ethernet LAN Ports
• 2 x USB 2.0 Ports (Front)

Power Specifications

• Type: Hot-plug Power Supply
• Redundancy: Yes (1+1 Scheme)
• Installed Quantity: 2
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V
• Power Rating: 800 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.5 lbs

Benefits of a 2GHz Processor

The 2GHz processor provides users with several key benefits:

1. Enhanced Processing Speed

The higher clock speed of 2GHz enables the server to process data and execute instructions at a faster rate. This results in improved overall performance and responsiveness, allowing users to run resource-intensive applications and handle complex workloads with ease.

2. Optimal Multitasking Capabilities

The powerful 2GHz processor enables the server to handle multiple tasks simultaneously without experiencing significant slowdowns or performance bottlenecks. This is particularly beneficial for businesses and organizations that require efficient multitasking capabilities for their IT infrastructure.

3. Increased Efficiency and Productivity

By utilizing a 2GHz processor, the HPE Proliant DL380 Gen9 Server delivers increased efficiency and productivity to users. The faster processing speed allows for quicker data analysis, faster database queries, and reduced response times, resulting in improved business operations and streamlined workflows.

4. Seamless Virtualization Performance

Virtualization has become an integral part of modern IT environments, enabling businesses to maximize their server resources and consolidate workloads. The 2GHz processor ensures seamless virtualization performance, allowing for efficient management of virtual machines and smooth operation of virtualized applications.

Importance of a Powerful Processor

The processor is a critical component of any server, and having a powerful 2GHz processor like the one in the HPE Proliant DL380 Gen9 Server is of utmost importance for users:

1. Handling Intensive Workloads

Modern businesses often deal with complex and resource-intensive workloads, such as running databases, hosting websites, or performing data analysis. A powerful processor is essential for handling these workloads efficiently and ensuring smooth operation without experiencing performance degradation.

2. Supporting Growing Business Needs

As businesses expand and their IT requirements grow, having a robust processor becomes crucial. With a 2GHz processor, the HPE Proliant DL380 Gen9 Server can accommodate the increasing demands of a growing business, providing the necessary computational power to handle larger workloads and support future scalability.

3. Enabling Resource Optimization

A powerful processor allows for better resource optimization within a server environment. By efficiently utilizing the available processing power, businesses can achieve higher levels of performance while minimizing energy consumption and reducing operational costs.

4. Future-Proofing IT Infrastructure

Investing in a server with a powerful processor is a strategic decision that helps future-proof the IT infrastructure. As technology continues to advance rapidly, having a server equipped with a 2GHz processor ensures compatibility with upcoming software updates, emerging technologies, and growing business demands.

Interface

The HPE Proliant DL380 Gen9 Server features an SFP+Flexible LOM interface, providing users with versatile connectivity options and enhanced network capabilities. The interface plays a crucial role in facilitating data transfer between the server and external devices.

Benefits of SFP+Flexible LOM Interface

The SFP+Flexible LOM interface offers several benefits to users:

1. Versatile Connectivity

The SFP+Flexible LOM interface supports a wide range of network connections, including Ethernet, Fibre Channel, and InfiniBand. This versatility enables businesses to connect the server to various network devices and infrastructure, ensuring compatibility and seamless integration within their existing network environment.

2. High-Speed Data Transfer

The SFP+Flexible LOM interface supports high-speed data transfer rates, allowing for rapid exchange of information between the server and connected devices. This is particularly advantageous for data-intensive applications, such as large file transfers, real-time video streaming, or high-performance computing tasks.

3. Scalability and Flexibility

The SFP+Flexible LOM interface provides scalability and flexibility in terms of network expansion and upgrades. Businesses can easily add or replace modules based on their evolving network requirements, ensuring that their server remains compatible with the latest networking technologies without the need for significant hardware changes.

Importance of a Versatile Interface

An interface like the SFP+Flexible LOM is essential for users due to the following reasons:

1. Seamless Network Integration

Having a versatile interface ensures seamless integration into existing network infrastructures. It enables businesses to connect their server to a wide range of devices and networking technologies, ensuring compatibility and smooth communication between the server and other network components.

2. Adapting to Changing Network Needs

Network requirements often evolve over time, requiring businesses to adapt and upgrade their infrastructure accordingly. A versatile interface allows for easy scalability and flexibility, enabling businesses to keep up with changing network needs without undergoing significant hardware changes or disruptions.

3. Supporting Diverse Applications

Modern businesses rely on a wide array of applications, each with its specific networking requirements. A versatile interface like the SFP+Flexible LOM ensures compatibility with different application protocols, enabling businesses to support diverse applications and optimize their network performance for specific use cases.

4. Future-Proofing Network Infrastructure

Investing in a server with a versatile interface is a strategic decision that helps future-proof the network infrastructure. As networking technologies continue to evolve, having an interface like the SFP+Flexible LOM ensures compatibility with emerging standards, allowing businesses to leverage new technologies and stay ahead of the competition.

Power Supply

The HPE Proliant DL380 Gen9 Server is equipped with two 800W power supplies, providing users with a reliable and efficient power delivery system. The power supply is a critical component of any server, ensuring uninterrupted operation and safeguarding against unexpected power failures.

Benefits of 2x 800W Power Supply

The inclusion of two 800W power supplies offers several benefits:

1. Redundancy and Fault Tolerance

The dual power supplies provide redundancy, ensuring that the server remains operational even if one power supply fails. This fault-tolerant design minimizes the risk of downtime and data loss, providing businesses with continuous access to critical applications and services.

2. Increased Power Efficiency

The 800W power supplies are designed with efficiency in mind, optimizing power usage and reducing energy waste. By operating at high-efficiency levels, the server minimizes electricity consumption, resulting in lower operational costs and reduced environmental impact.

3. Scalability for Growing Workloads

The dual 800W power supplies offer scalability for growing workloads. As businesses expand and their server requirements increase, the additional power supply ensures that the server can handle the growing demands without encountering power-related limitations.

Importance of a Reliable Power Supply

A reliable power supply is critical for maintaining the stability and availability of a server infrastructure:

1. Protecting Critical Data and Applications

Unexpected power failures or fluctuations can lead to data corruption or loss and disrupt critical business operations. A reliable power supply, such as the dual 800W power supplies in the HPE Proliant DL380 Gen9 Server, safeguards against these risks, ensuring the availability and integrity of data and applications.

2. Minimizing Downtime and Business Disruptions

Downtime caused by power-related issues can result in significant financial losses for businesses. The redundancy provided by the dual power supplies minimizes downtime by eliminating single points of failure. This ensures that even if one power supply fails, the server will continue to operate without interruption.

3. Meeting Industry Standards and Regulations

Many industries have specific regulations and standards regarding power redundancy and reliability. By utilizing a server with a reliable power supply, businesses can meet these requirements, ensuring compliance and avoiding potential penalties or legal issues.

4. Long-Term Cost Savings

Investing in a server with a reliable power supply can lead to long-term cost savings. The efficiency of the 800W power supplies reduces electricity consumption, resulting in lower utility bills. Additionally, the extended lifespan of a server protected by a reliable power supply reduces the need for frequent hardware replacements, further reducing costs.

Form Factor

The HPE Proliant DL380 Gen9 Server features a 2U rack form factor, offering users a compact and space-efficient solution for their server infrastructure. The form factor plays a crucial role in determining the physical size and mounting options of the server.

Benefits of 2U Rack Form Factor

The 2U rack form factor provides users with several key benefits:

1. Space Efficiency

With the 2U rack form factor, the server can be mounted vertically in a rack enclosure, allowing businesses to maximize their available space. This is particularly advantageous in data centers or server rooms with limited floor space, enabling efficient utilization of the available area.

2. Simplified Cable Management

The rack design of the server facilitates organized cable management. With the server and its components neatly arranged and secured within the rack, cables can be routed more efficiently, reducing clutter and improving airflow within the server environment. This enhances overall system reliability and ease of maintenance.

3. Scalability and Flexibility

The 2U rack form factor allows for easy scalability and flexibility in terms of adding or removing servers within a rack enclosure. Businesses can expand their server infrastructure by simply installing additional servers in vacant rack spaces, facilitating seamless growth without requiring major modifications to the existing infrastructure.

Importance of a Compact Form Factor

A compact form factor, such as the 2U rack form factor, offers significant advantages to users:

1. Efficient Space Utilization

In environments where space is at a premium, a compact form factor is essential for efficient space utilization. The 2U rack form factor enables businesses to consolidate multiple servers in a smaller footprint, freeing up valuable floor space for other equipment or operational needs.

2. Improved Airflow and Cooling

The compact design of the 2U rack form factor allows for better airflow management within the server enclosure. This results in improved cooling efficiency, preventing overheating and ensuring optimal performance and reliability of the server components. Proper cooling is crucial for maintaining the longevity of the server and minimizing the risk of hardware failures.

3. Simplified Maintenance and Upgrades

A compact form factor simplifies maintenance and upgrades. With servers mounted in a rack, technicians can easily access and service the servers without the need for extensive disassembly or disruption to the entire server environment. This reduces downtime and allows for more efficient hardware maintenance and upgrades.

4. Standardized Infrastructure

Using a common form factor like the 2U rack ensures standardized infrastructure across multiple servers within an organization. This simplifies management, as administrators can easily replicate configurations or replace faulty servers with minimal effort. Standardization also facilitates compatibility with third-party accessories or rack-mountable equipment, further enhancing flexibility.

Part Number

The HPE Proliant DL380 Gen9 Server has a part number of 852432-B21, which serves as a unique identifier for this specific server model. The part number provides users with essential information about the server's specifications and compatibility.

Benefits of Part Number Identification

Part number, 852432-B21, offers several benefits to users:

1. Accurate Identification and Compatibility

By referencing the part number, users can accurately identify and ensure compatibility with the HPE Proliant DL380 Gen9 Server model. This eliminates any confusion or potential errors when ordering or installing server components or accessories, ensuring a seamless integration into the existing IT infrastructure.

2. Easy Reference for Documentation and Support

The part number serves as a reference point for documentation and support resources. Users can quickly locate relevant manuals, technical specifications, firmware updates, and other resources specific to the 852432-B21 model. This streamlines troubleshooting, configuration, and maintenance processes.

3. Simplified Inventory Management

For businesses that manage a large number of servers, the part number simplifies inventory management. It allows for accurate tracking and identification of specific server models, facilitating efficient procurement, asset management, and lifecycle planning.

Importance of Part Number Identification

Identifying the correct part number for a server model is crucial for users due to the following reasons:

1. Ensuring Compatibility with Accessories and Components

The HPE Proliant DL380 Gen9 Server has various compatible accessories, components, and spare parts available in the market. By referencing the part number, users can ensure they select the correct items that are specifically designed for the 852432-B21 model. This eliminates compatibility issues and ensures optimal performance and reliability.

2. Streamlining Warranty and Support Processes

When registering a server for warranty or seeking support from the manufacturer, providing the accurate part number is essential. This allows manufacturers to quickly identify the exact server model and provide appropriate warranty coverage or support services. Accurate identification ensures a smooth warranty claim process and timely resolution of any technical issues.

3. Facilitating System Configuration and Integration

For businesses that require consistent server configurations across their infrastructure, the part number simplifies system configuration and integration efforts. By using the same model with the corresponding part number, organizations can streamline deployment processes, ensure uniformity, and simplify ongoing management and maintenance tasks.

4. Resale Value and Asset Management

When it comes to server resale or asset management, having the correct part number is crucial for accurate valuation and identification. Potential buyers or asset managers can quickly assess the specifications and compatibility of the server based on its part number, ensuring fair pricing and efficient asset tracking.
