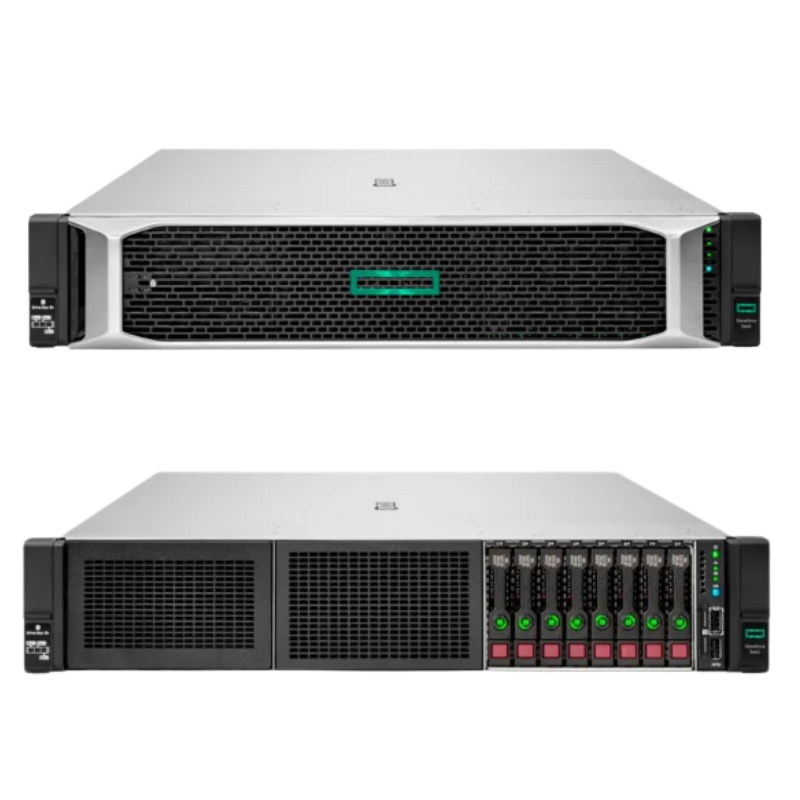

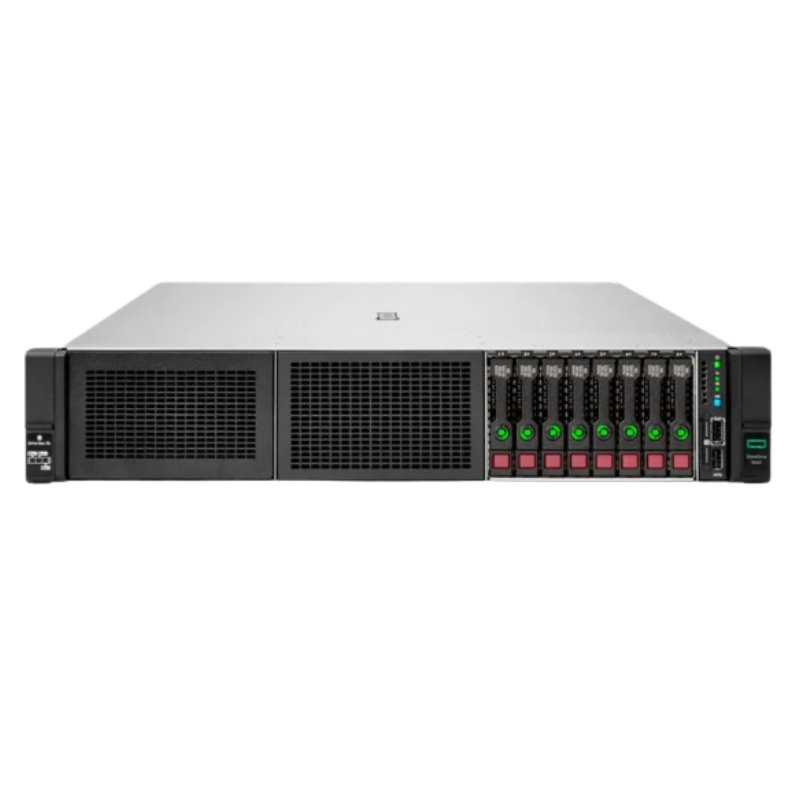

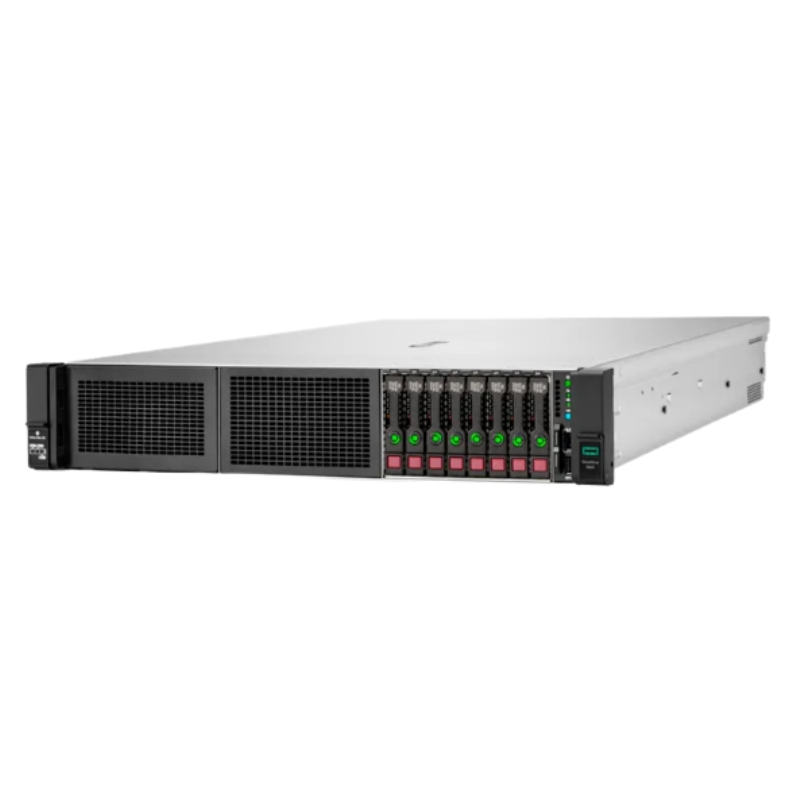

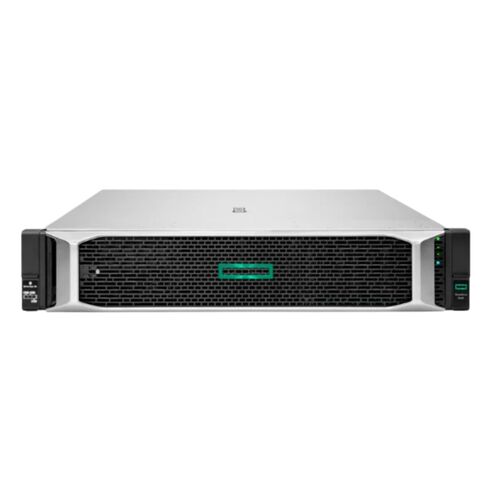

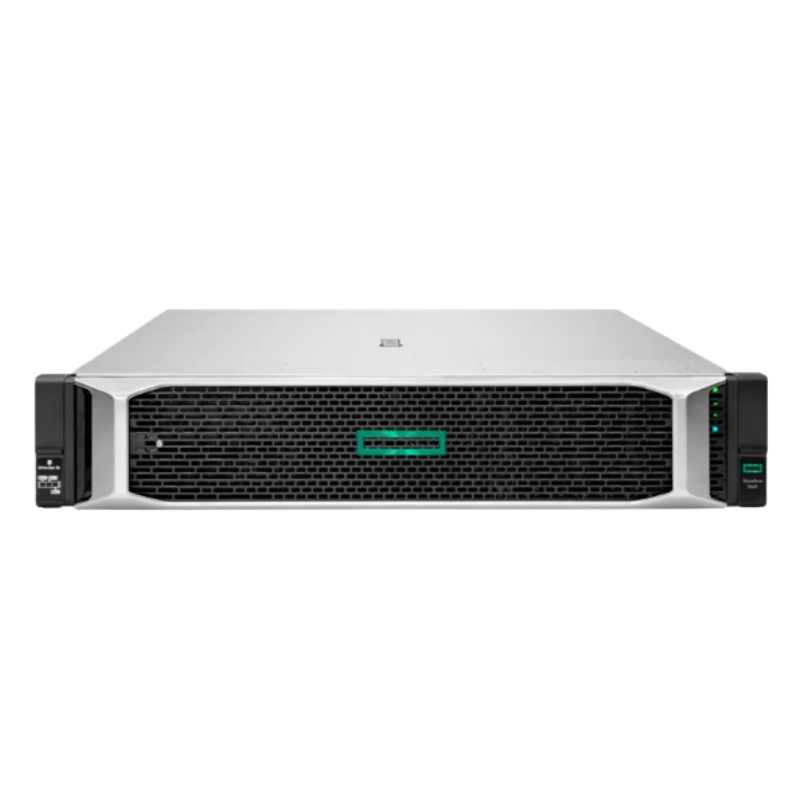

HPE Proliant DL380 Gen9 Server Xeon 1.90GHz 8GB DDR4 RAM 752686-B21

Processor

The HPE Proliant DL380 Gen9 Server is equipped with a powerful Xeon 1.90GHz processor, which provides significant benefits and importance for users. Let's delve into the various aspects of this feature to understand its capabilities and advantages.

Main Information of Proliant DL380

• Manufacturer: Hewlett Packard Enterprise
• Part Number: SKU#752686-B21
• Product Name: HPE Proliant DL380 G9 Rack Server (Entry Model)
• Form Factor: 2U Rack

Processor & Chipset

• Processor Type: Intel Xeon E5-2609 v3
• Base Clock Speed: 1.9 GHz
• Core Count: Hexa-Core (6 cores)
• Pre-installed Processors: 1
• Maximum Supported Processors: 2
• Chipset Model: Intel C610
• 64-bit Computing: Supported

Memory & RAM Specifications

• Pre-installed Memory: 8 GB DDR4 SDRAM
• Maximum Supported RAM: 384 GB (Registered), 768 GB (Load-Reduced)
• Memory Speed: 1600 MHz
• Form Factor: DIMM 288-pin
• Configuration: 1 x 8GB installed
• Supported Memory Types:
  • PC4-17000 - Registered (up to 384GB)
  • PC4-17000 - Load-Reduced (up to 768GB)

Cache Memory

• Total Installed Cache: 15MB L3 Cache
• Cache per Processor: 15MB

Storage & RAID Configuration

• Pre-installed Hard Drives: None
• Storage Controller: HP Dynamic Smart Array B140i (Integrated)
• Controller Interface: SATA 6Gb/s
• Available Channels: 10
• RAID Levels Supported: 0, 1, 5, 10

Expansion Capabilities

• Total Hot-Swap Bays: 8 (2.5" SFF)
• Available DIMM Slots: 24 (1 used, 23 free)
• Available PCIe 3.0 Slots:
  • 2 x PCIe 3.0 x16 (half-length, full-height)
  • 1 x PCIe 3.0 x8 (half-length, full-height)
• Internal Slot: MicroSD card slot

Networking & Ethernet

• Integrated Network Interface: 4x Gigabit Ethernet ports (RJ-45)
• Ethernet Controller: HP 331i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4 (iLO 4)
• Additional Features: Wake on LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, 802.3u, 802.3ab

Graphics & Video

• Graphics Controller: Integrated Matrox G200eH2
• Video Output: VGA

Power Supply

• Power Supply Type: Hot-plug Power Supply
• Power Redundancy: Optional (supports 1+1 scheme with second power supply)
• Pre-installed Power Supply: 1 x 500W
• Maximum Supported Power Supplies: 2
• Certification: 80 PLUS Platinum
• Power Requirements: 120/230V AC, 50/60 Hz

Physical Dimensions & Weight

• Height: 3.4 inches
• Width: 17.5 inches
• Depth: 26.7 inches
• Weight: 32.5 lbs

Interfaces & Ports

• 4 x Gigabit Ethernet (RJ-45)
• 1 x HP iLO (RJ-45)
• 1 x VGA
• 5 x USB 3.0 (1 front, 2 rear, 2 internal)

Enhanced Performance

The Xeon 1.90GHz processor offers exceptional performance that can handle intensive workloads and demanding applications effortlessly. With multiple cores and threads, it enables multitasking and parallel processing, ensuring efficient execution of tasks. This enhanced performance translates into improved productivity and faster response times, enabling users to accomplish more in less time.

Scalability and Flexibility

The Xeon 1.90GHz processor is designed to support scalability, allowing users to expand their server capabilities as their needs grow. Its advanced architecture enables easy integration with additional processors, facilitating future upgrades without compromising on performance. This scalability ensures that the server can adapt to changing workload requirements, making it a versatile choice for businesses of all sizes.

Reliability and Stability

With the Xeon 1.90GHz processor, users can benefit from its exceptional reliability and stability. The processor undergoes rigorous testing and validation processes to ensure that it operates flawlessly under various conditions. Its robust design minimizes the risk of system failures or crashes, providing uninterrupted operation even during peak workloads. This reliability is crucial for businesses that rely on continuous server availability to prevent downtime and maintain smooth operations.

Advanced Security Features

Security is a top priority for any server environment, and the Xeon 1.90GHz processor incorporates advanced security features to safeguard sensitive data. These features include built-in encryption capabilities, hardware-enhanced virus protection, and secure boot functionality. By leveraging these security measures, businesses can mitigate the risks associated with data breaches and unauthorized access, ensuring the confidentiality and integrity of their critical information.

Energy Efficiency

In today's eco-conscious world, energy efficiency has become a crucial consideration for businesses. The Xeon 1.90GHz processor excels in this aspect by offering optimized power consumption without compromising on performance. Its intelligent power management features dynamically adjust power usage based on workload demands, resulting in reduced energy costs and a smaller carbon footprint. By choosing a server with an energy-efficient processor, businesses can contribute to sustainability efforts while enjoying long-term cost savings.

Virtualization Capabilities

Virtualization has revolutionized server infrastructure by maximizing resource utilization and simplifying management. The Xeon 1.90GHz processor boasts advanced virtualization technologies, such as Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d). These technologies enable efficient virtual machine creation, migration, and management, delivering enhanced scalability and flexibility for virtualized environments. By harnessing the power of virtualization, businesses can optimize their IT infrastructure and achieve higher levels of efficiency.

Ram

The HPE Proliant DL380 Gen9 Server comes equipped with 8GB DDR4 RAM, a feature that offers significant benefits and importance for users. Let's explore the advantages of this RAM configuration in detail.

Enhanced Performance

The 8GB DDR4 RAM ensures smooth and efficient performance of the server. With its high-speed data transfer capabilities, it enables quick access to frequently used data and applications, reducing latency and improving overall responsiveness. This enhanced performance is particularly valuable for resource-intensive tasks such as database management, virtualization, and complex computations.

Increased Multitasking Capability

The 8GB DDR4 RAM provides ample capacity to handle multiple tasks simultaneously without experiencing significant performance degradation. Users can run multiple applications, virtual machines, or databases concurrently, ensuring smooth operation and efficient utilization of server resources. This multitasking capability enhances productivity and enables users to accomplish more in less time.

Scalability and Future-Proofing

The 8GB DDR4 RAM configuration offers scalability options for businesses that anticipate future growth or increased workload demands. The server can accommodate additional RAM modules, allowing users to expand the memory capacity as needed. This scalability ensures that the server can keep up with evolving requirements, minimizing the need for complete hardware replacements and reducing costs in the long run.

Improved Reliability and Data Integrity

Reliability is a critical factor in server environments, and the 8GB DDR4 RAM contributes to enhanced system stability. The DDR4 technology incorporates error-correcting code (ECC) capabilities, which detect and correct memory errors in real-time. This feature prevents potential data corruption or crashes caused by memory-related issues, ensuring the integrity and reliability of critical data.

Efficient Power Consumption

The 8GB DDR4 RAM is designed to be power-efficient, consuming less energy compared to its predecessors. Its low voltage requirements contribute to reduced power consumption, resulting in lower energy costs and a greener IT infrastructure. This energy efficiency aligns with modern sustainability initiatives and helps businesses optimize their operational expenses.

Compatibility and Interoperability

The 8GB DDR4 RAM offers excellent compatibility with a wide range of server hardware and software configurations. It ensures seamless integration with the HPE Proliant DL380 Gen9 Server, guaranteeing optimal performance and stability. Additionally, DDR4 technology is widely supported by leading operating systems and applications, ensuring smooth interoperability and effortless migration from older systems.

Part Number

The HPE Proliant DL380 Gen9 Server features the part number 752686-B21, which holds significant benefits and importance for users. Let's explore the advantages of having a specific part number for this server.

Easy Identification and Tracking

The Part number 752686-B21 serves as a unique identifier for the HPE Proliant DL380 Gen9 Server. This alphanumeric code allows users, support teams, and vendors to quickly identify the specific server model, simplifying inventory management and tracking. By having a standardized part number, businesses can ensure accurate documentation, efficient warranty claims, and streamlined procurement processes.

Product-Specific Documentation and Support

The part number 752686-B21 is associated with comprehensive product-specific documentation and support resources. This includes user manuals, technical specifications, firmware updates, and troubleshooting guides tailored specifically for the HPE Proliant DL380 Gen9 Server. Access to such resources ensures that users have the necessary information and assistance at their fingertips, enabling smooth deployment, configuration, and maintenance of the server.

Compatibility Assurance

Part number 752686-B21 guarantees compatibility with a range of certified components and accessories that complement the HPE Proliant DL380 Gen9 Server. This includes storage drives, expansion cards, power supplies, and networking modules. By using compatible components, users can avoid compatibility issues or performance bottlenecks, ensuring optimal functionality and reliability of their server infrastructure.

Warranty Coverage

Part number 752686-B21 is associated with a specific warranty coverage tailored to the HPE Proliant DL380 Gen9 Server. This ensures that users receive the appropriate warranty services, including hardware replacement or repairs in case of any manufacturing defects or failures. Having a dedicated part number simplifies warranty claims and ensures that users receive prompt support to minimize downtime and maintain business continuity.

Upgrade Path and Expansion Options

Part number 752686-B21 offers insight into the server's upgrade path and expansion options. By referring to the specific part number, users can identify compatible hardware upgrades, such as additional memory modules, storage options, or network adapters. This knowledge enables businesses to plan for future growth and easily scale their server infrastructure without compatibility concerns.

Vendor Support and Expertise

Part number 752686-B21 is associated with the vendor's support and expertise for the HPE Proliant DL380 Gen9 Server. This ensures that users have access to reliable technical support, consultation, and guidance from the vendor's experienced personnel. Vendor support is invaluable in resolving complex issues, optimizing server performance, and staying up-to-date with the latest advancements in server technology.

In conclusion, the HPE Proliant DL380 Gen9 Server's Xeon 1.90GHz processor, 8GB DDR4 RAM, and part number 752686-B21 are essential features that provide numerous benefits and importance for users. The powerful processor ensures enhanced performance, scalability, reliability, and advanced security features. The ample RAM capacity enables multitasking, scalability, reliability, and efficient power consumption. Lastly, the specific part number simplifies identification, compatibility assurance, access to product-specific documentation and support, warranty coverage, upgrade options, and vendor support. These features collectively make the HPE Proliant DL380 Gen9 Server a robust and versatile choice for businesses seeking a high-performance and reliable server solution.
