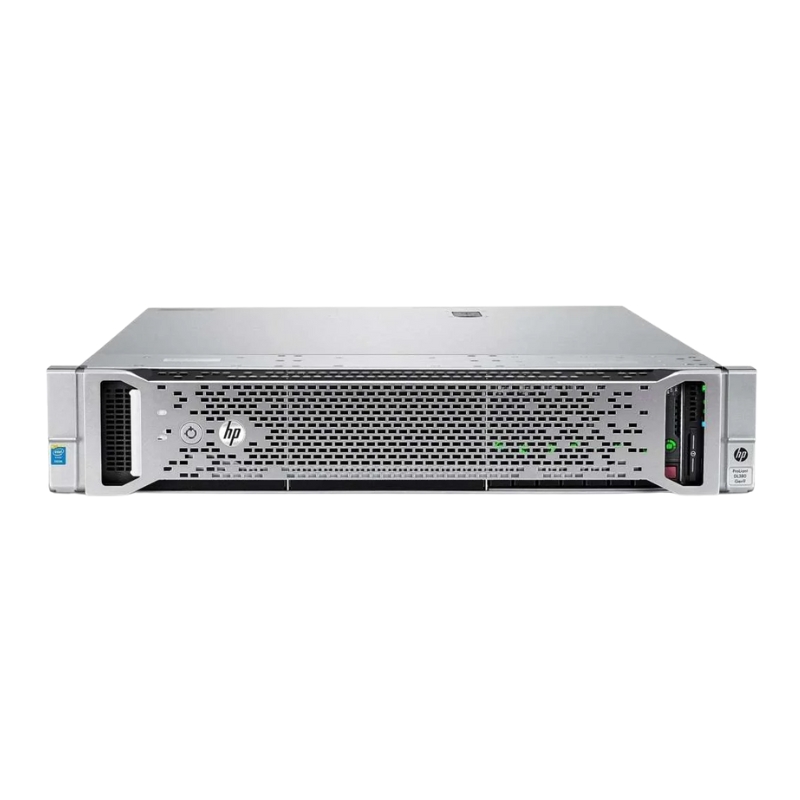

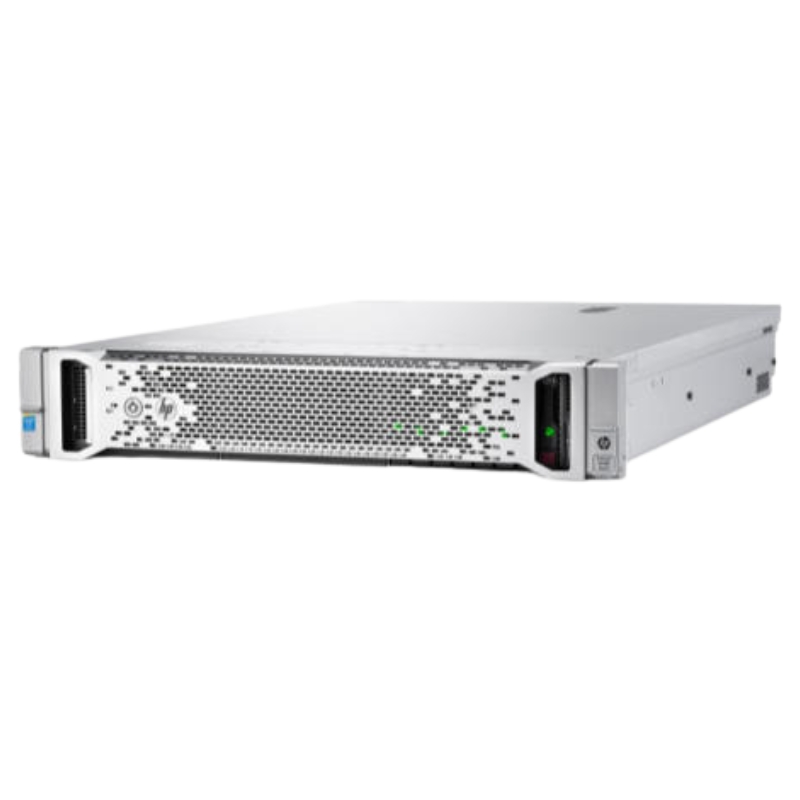

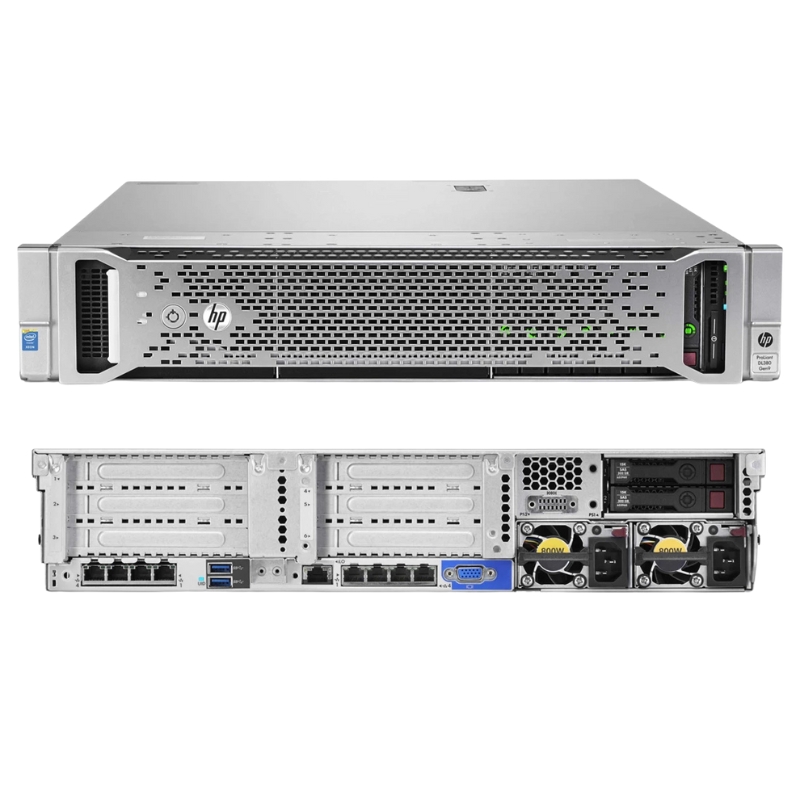

HPE Proliant DL380 Gen9 Xeon 8 Core 1.7GHz 8GB DDR4 SDRAM 826681-B21

Processor

The HPE Proliant DL380 Gen9 Server is equipped with a powerful Intel Xeon 8 Core 1.7GHz processor, making it a high-performance solution for various computing needs. This processor is designed to deliver exceptional performance, reliability, and scalability, making it an ideal choice for businesses of all sizes.

General Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 826681-B21

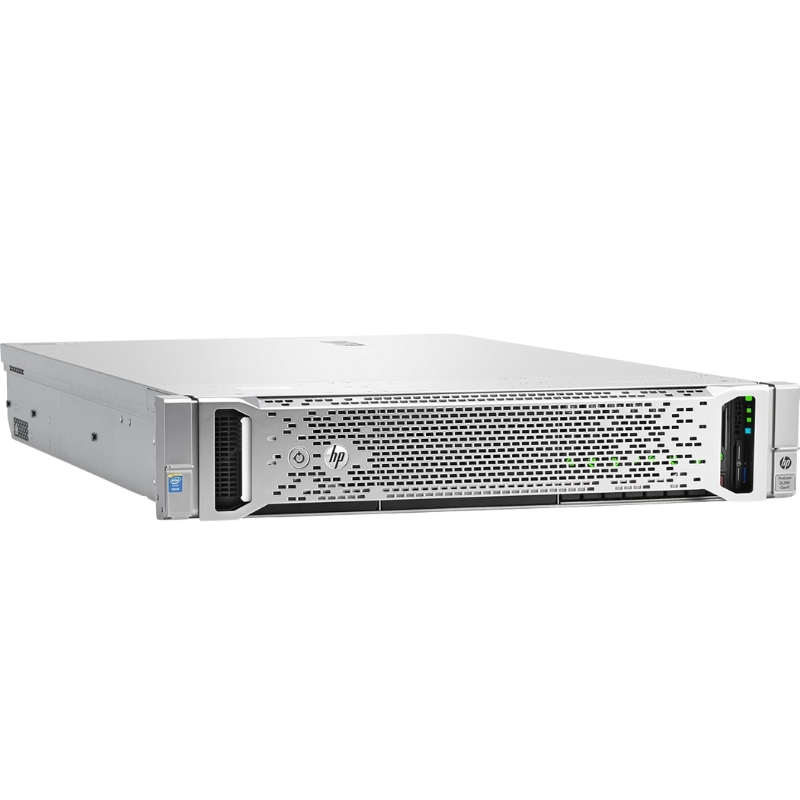

• Product Name: Proliant DL380 Gen9 - 2U Rack Mountable Server (Entry Model)

Processor & Chipset

CPU Specifications

• Processor: Intel Xeon E5-2609v4, 1.7 GHz
• Cores: 8-core
• Intel QPI Speed: 8 GT/s
• Quantity Installed: 1
• Maximum CPU Quantity: 2
• Upgrade Capability: Upgradable
• Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2.0

Cache Memory

• Type: Smart Cache
• Installed Size: 20 MB
• Cache per Processor: 20 MB

Memory

Memory Configuration

• Installed Size: 8 GB, expandable to 384 GB
• Memory Technology: DDR4 SDRAM
• Speed: 1866 MHz
• Form Factor: DIMM 288-pin
• Features: Registered, HP SmartMemory
• Configuration: 1 x 8 GB
• Supported RAM: Up to 384 GB (Registered) or 768 GB (Load-reduced)

Storage & Storage Controller

Hard Drive

• Installed: None

Storage Controllers

• Type: RAID Controller
• Interface Type: SATA 6 Gb/s
• Controller Name: HP Dynamic Smart Array B140i
• Channel Quantity: 10
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Display & Graphics Controllers

• Graphics Controller: Integrated Matrox G200eh2
• Video Memory: 16 MB

Network & Communication

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4 (iLO 4)
• Features: Wake-on-LAN (WoL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• Total Bays: 8 (all hot-swappable 2.5" SFF)

Expansion Slots

• CPU Slot: 1 x Total, 0 x Free
• DIMM Slots: 24 x Total, 23 x Free (288-pin)
• PCIe 3.0 x16 Slots: 2 x Total, 2 x Free (Half-length, Full-height, X8 Mode)
• PCIe 3.0 x8 Slot: 1 x Total, 1 x Free (Half-length, Full-height)
• MicroSD Card Slot: 1 x Total, 1 x Free (Internal)

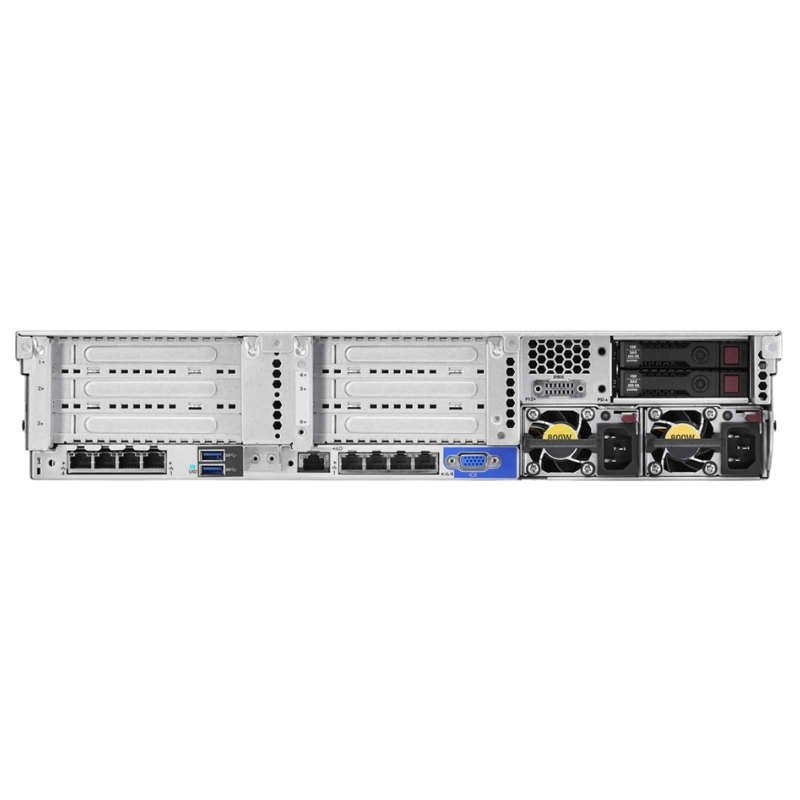

Interfaces & Ports

• LAN Ports: 4 x Gigabit Ethernet (RJ-45)
• HP iLO Port: 1 x RJ-45
• VGA Port: 1 x VGA
• USB 3.0 Ports: 5 (1 Front, 2 Rear, 2 Internal)

Miscellaneous

Included Accessories

• HP Easy Install Rails

Standards Compliance

• ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 4943, GB 9254, ASHRAE, CNS 13438, BSMI CNS 14336-1

Power Description

• Device Type: Hot-plug Power Supply
• Power Redundancy: Yes, 1+1 scheme
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V
• Power Provided: 500 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.5 lbs

Unparalleled Performance

With the Xeon 8 Core 1.7GHz processor, the HPE Proliant DL380 Gen9 Server offers unparalleled performance. The eight cores allow for efficient multitasking and processing of complex tasks. This means that you can run multiple applications simultaneously without experiencing any slowdowns. Whether you are running resource-intensive databases, virtualization workloads, or demanding applications, this server can handle it all with ease.

Improved Responsiveness

The Xeon 8 Core 1.7GHz processor also enhances the responsiveness of the server. The higher clock speed ensures faster data processing and quicker response times. This is particularly beneficial for businesses that require real-time processing and quick access to critical data. With this processor, you can expect reduced latency and improved overall system responsiveness.

Enhanced Scalability

Scalability is another important aspect of the Xeon 8 Core 1.7GHz processor. It allows you to easily scale your server as your business grows or your computational needs increase. The server supports multiple sockets, enabling you to add additional processors in the future without the need for major hardware upgrades. This ensures that your investment in the HPE Proliant DL380 Gen9 Server remains future-proof.

Energy Efficiency

In addition to its impressive performance capabilities, the Xeon 8 Core 1.7GHz processor is also designed with energy efficiency in mind. It utilizes advanced power management features to optimize power consumption without compromising performance. This not only reduces your energy bills but also contributes to a greener and more sustainable IT infrastructure.

Memory

The HPE Proliant DL380 Gen9 Server comes equipped with 8GB DDR4 SDRAM memory, providing ample capacity for efficient data storage and retrieval. The memory plays a crucial role in the overall performance and responsiveness of the server, making it an essential feature for users.

Improved System Performance

The 8GB DDR4 SDRAM memory ensures improved system performance by allowing for faster data access and retrieval. This means that your applications can access the required data quickly, resulting in reduced latency and faster response times. Whether you are running complex databases, virtualization workloads, or memory-intensive applications, this server's memory capacity can handle the demands with ease.

Enhanced Multitasking

The ample memory capacity of 8GB DDR4 SDRAM enables efficient multitasking. With more memory available, the server can handle multiple applications and processes simultaneously without experiencing performance bottlenecks. This is particularly beneficial for businesses that require running several applications concurrently or deal with heavy multitasking workloads.

Scalability and Future-Proofing

The HPE Proliant DL380 Gen9 Server's memory is easily expandable, allowing you to scale up your memory capacity as your business needs grow. The server supports additional memory modules, ensuring that you can meet future requirements without investing in a new server. This scalability and future-proofing capability make the 8GB DDR4 SDRAM an ideal choice for businesses that anticipate growth or expect increased memory demands in the future.

Reliability and Data Integrity

The 8GB DDR4 SDRAM memory also offers enhanced reliability and data integrity. The DDR4 technology provides error-checking and correction capabilities, reducing the risk of data corruption and ensuring the integrity of your critical information. This is particularly important for businesses that deal with sensitive data or require a high level of data accuracy.

Part Number

The HPE Proliant DL380 Gen9 Server's part number is 826681-B21. This unique identifier is essential for accurately identifying and ordering the server, ensuring compatibility, and facilitating easy maintenance and support.

Accuracy and Compatibility

The part number, 826681-B21, ensures accuracy when ordering or referencing the HPE Proliant DL380 Gen9 Server. With the correct part number, you can be confident that you are getting the exact server model you need, along with all the specified features and capabilities. This eliminates any confusion or potential compatibility issues that may arise from incorrect identification.

Maintenance and Support

Having the correct part number is crucial when it comes to maintenance and support. It allows you to easily communicate with customer support representatives or service technicians, providing them with the necessary information to assist you effectively. Whether you need technical assistance, spare parts, or firmware updates, having the correct part number ensures a smooth and efficient support experience.

Inventory Management

For businesses that manage a large number of servers or IT equipment, accurate inventory management is essential. The part number, 826681-B21, simplifies inventory management by providing a unique identifier for each HPE Proliant DL380 Gen9 Server unit. This allows for easier tracking, monitoring, and organization of your servers, streamlining your overall IT infrastructure management.

Easy Upgrades and Expansion

The part number facilitates easy upgrades and expansion of your server infrastructure. With the correct part number, you can easily identify compatible components and accessories for your HPE Proliant DL380 Gen9 Server. Whether you need to add more storage, upgrade the memory, or install additional network adapters, having the correct part number ensures that you can seamlessly integrate new components into your existing setup.

In conclusion, the HPE Proliant DL380 Gen9 Server stands out with its powerful Xeon 8 Core 1.7GHz processor, providing exceptional performance, responsiveness, scalability, and energy efficiency. The 8GB DDR4 SDRAM memory offers improved system performance, enhanced multitasking capabilities, scalability, and data integrity. The part number, 826681-B21, ensures accuracy, compatibility, easy maintenance and support, and streamlined inventory management. With these features, the HPE Proliant DL380 Gen9 Server is a reliable and versatile solution for businesses seeking a high-performance server for their computing needs.
