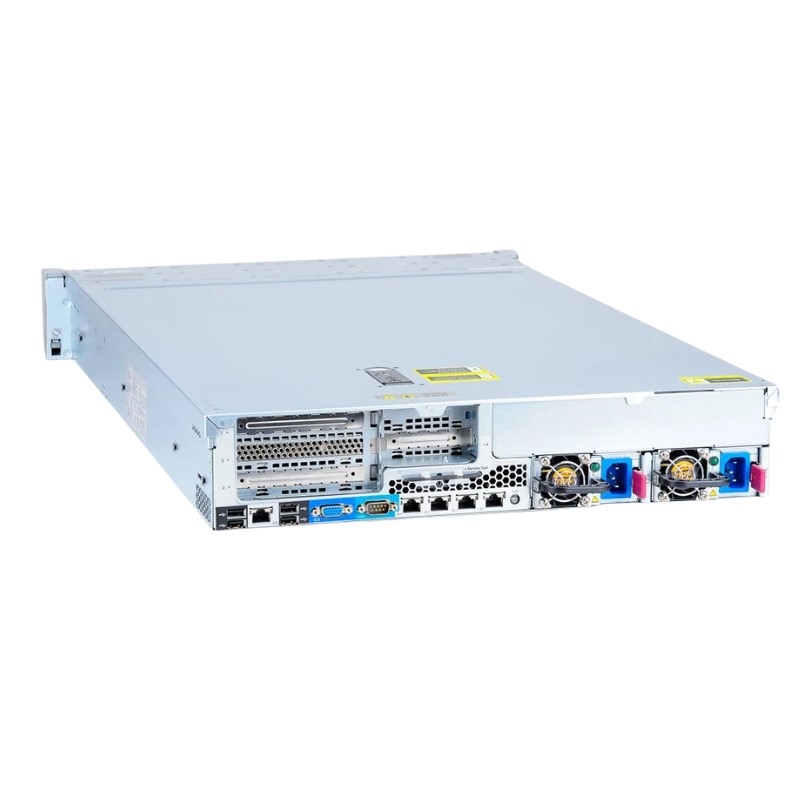

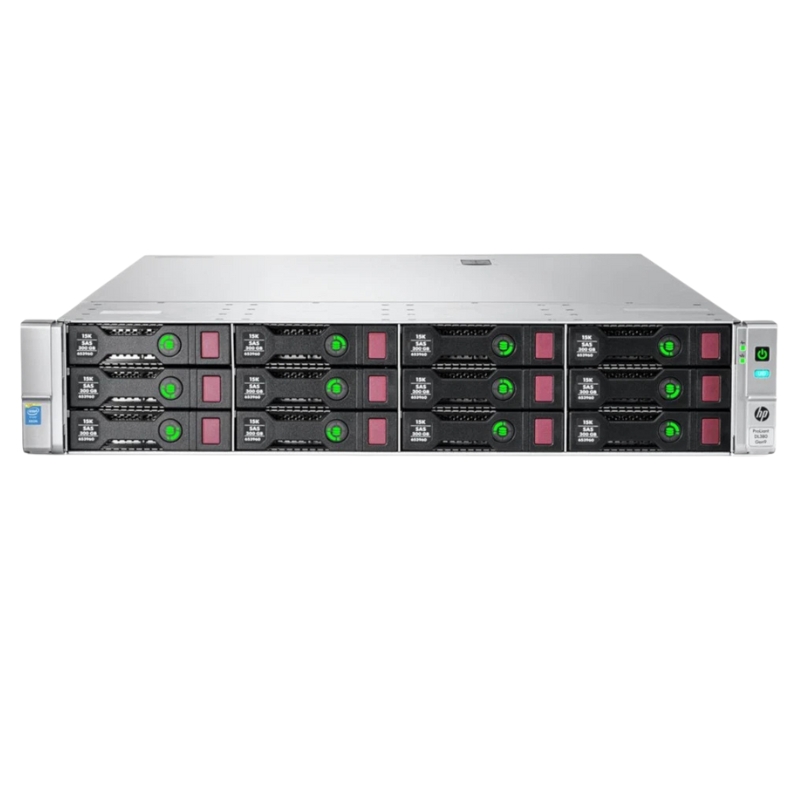

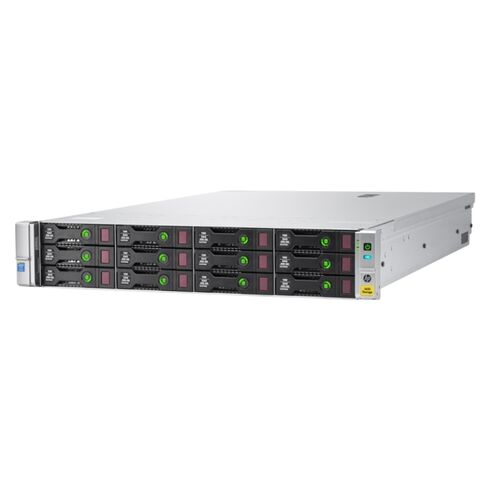

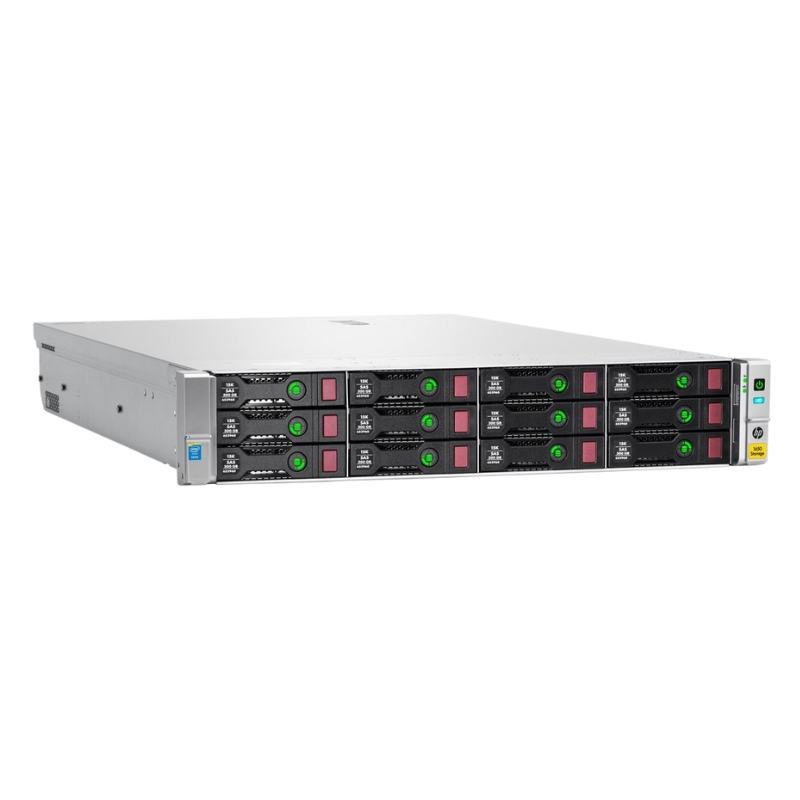

HPE Proliant DL380 Gen9 Xeon DDR4 Server 779559-S01 2.4GHz 16GB

Sku: 779559-S01

The HPE Proliant DL380 Gen9 Server is a powerful and versatile server designed to meet the demanding needs of modern businesses. One of its key features is the Sku number, specifically the 779559-S01. This Sku number represents a specific configuration of the server that offers a range of benefits and advantages for users.

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 779559-S01
• Product Name: Proliant DL380 G9 2U Rack Server (s-buy)

Processor and Chipset

• Processor Type: Intel Xeon E5-2620v3, 2.4 GHz
• Core Technology: Hexa-core
• Installed Processors: 1
• Maximum Processors: 2
• Upgrade Capability: Yes
• 64-bit Computing: Supported
• Chipset Model: Intel C610

Cache Memory

• Installed Cache Size: 15 MB L3 Cache
• Cache Per Processor: 15 MB

RAM Specifications

• Installed Memory: 16 GB
• Maximum Memory: 384 GB
• Memory Technology: DDR4 SDRAM
• Memory Speed: 1866 MHz
• Form Factor: DIMM 288-pin
• Features: Registered, HP SmartMemory
• Configuration: 1 x 16 GB
• Supported RAM Configurations:
  • PC4-17000 - 384 GB - Registered
  • PC4-17000 - 768 GB - Load-reduced

Storage and Controller

• Hard Drive: None
• Controller Type: 1x RAID - Plug-in Card - PCI Express 3.0 x8
• Controller Interface: SATA 6 Gb/s, SAS 3.0
• Storage Controller Name: HP Smart Array P840 with 4 GB FBWC
• Channel Quantity: 16
• RAID Levels Supported:
  • RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
• Buffer Size: 4 GB

Display and Graphics

• Graphics Controller Type: Integrated
• Graphics Processor: Matrox G200eh2
• Video Interfaces: VGA

Networking Capabilities

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Additional Features: Wake On LAN (WOL), PXE Support

Expansion and Connectivity

• Expansion Bays (Free): 12 x Hot-swap - 3.5 inch LFF
• Expansion Slots (Free):
  • 2 x Processor
  • 24 x DIMM 288-pin
  • 2 x PCIe 3.0 x16 - Half-length, Full-height (x8 Mode)
  • 1 x PCIe 3.0 x8 - Half-length, Full-height
  • 1 x MicroSD Card (Internal)

Interfaces

• 4 x LAN (Gigabit Ethernet) - RJ-45
• 1 x HP iLO - RJ-45
• 1 x VGA
• 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)

Power Specifications

• Power Device Type: Power Supply - Hot-plug
• Redundancy: Yes
• Redundancy Scheme: 1+1
• Installed Power Supplies: 2
• Maximum Supported Power Supplies: 2
• Voltage Required: AC 120/230 V
• Power Provided: 800 Watt Hot Plug Power Supplies
• 80 Plus Certification: 80 Plus Platinum

Dimensions and Weight

• Height: 3.4 inches
• Width: 17.5 inches
• Depth: 28.7 inches
• Weight: 32.5 lbs

Optimized Performance

With the Sku number 779559-S01, the HPE Proliant DL380 Gen9 Server is optimized for performance, allowing users to handle complex and resource-intensive tasks with ease. The server is equipped with high-performance components and advanced technologies, ensuring smooth and efficient operations even under heavy workloads.

Increased Processing Power

The 779559-S01 configuration of the HPE Proliant DL380 Gen9 Server features a powerful Xeon processor. The Xeon processor is known for its exceptional performance and reliability, making it ideal for demanding applications and workloads. With this processor, users can experience faster data processing, improved multitasking capabilities, and enhanced overall system performance.

Enhanced Scalability

The Sku 779559-S01 also offers enhanced scalability options, allowing businesses to easily expand their server capabilities as their needs evolve. This configuration supports a wide range of storage options, memory configurations, and expansion slots, providing flexibility for future growth and adaptability to changing business requirements.

Reliability and Availability

Another important aspect of the 779559-S01 configuration is its reliability and availability features. The HPE Proliant DL380 Gen9 Server is built with robust hardware components and advanced fault-tolerant technologies to ensure maximum uptime and minimize potential downtime. This means users can rely on the server to deliver consistent performance and availability, reducing the risk of disruptions and data loss.

Redundant Power Supplies

The Sku 779559-S01 includes redundant power supplies, which provide a backup power source in case of a power supply failure. This feature helps to prevent unexpected shutdowns and ensures continuous operation even in the event of a power-related issue. It adds an extra layer of protection and peace of mind for businesses that rely heavily on their server infrastructure.

Fault-Tolerant Design

The HPE Proliant DL380 Gen9 Server with the 779559-S01 Sku also incorporates a fault-tolerant design that minimizes the impact of hardware failures. It includes redundant components such as fans and network adapters, as well as advanced error-correcting memory modules. This design ensures that any potential hardware failures can be mitigated without causing significant disruptions to the system.

Processor: Xeon

The processor is one of the most critical components of a server, and the HPE Proliant DL380 Gen9 Server with its Xeon processor offers exceptional performance and capabilities.

Powerful Computing Performance

The Xeon processor featured in the HPE Proliant DL380 Gen9 Server delivers powerful computing performance, making it suitable for a wide range of demanding applications and workloads. Its multi-core architecture allows for efficient parallel processing, enabling users to handle complex tasks with ease.

Multitasking Efficiency

The Xeon processor is designed to handle multiple tasks simultaneously, making it ideal for multitasking scenarios. With its advanced technology and architecture, users can run multiple applications concurrently without experiencing significant performance degradation. This feature is particularly beneficial for businesses that require high levels of productivity and responsiveness from their server.

Virtualization Capabilities

The Xeon processor is well-known for its virtualization capabilities. Virtualization allows businesses to consolidate multiple virtual machines onto a single physical server, optimizing resource utilization and improving overall efficiency. With the Xeon processor, users can create and manage virtual environments more effectively, leading to cost savings and simplified server management.

Reliability and Security

The Xeon processor also brings several reliability and security features to the HPE Proliant DL380 Gen9 Server.

ECC Memory Support

The Xeon processor supports Error-Correcting Code (ECC) memory, which helps to detect and correct memory errors. ECC memory is crucial for maintaining data integrity and preventing system crashes or data corruption. With ECC memory support, users can trust that their critical data is protected against potential errors or failures.

Enhanced Security Features

The Xeon processor includes various security features that help protect against threats and unauthorized access. These features include hardware-based encryption and decryption capabilities, secure boot technology, and advanced threat detection mechanisms. By utilizing the Xeon processor, businesses can enhance the security of their server infrastructure and safeguard their sensitive data.

Ram: 16GB

The RAM (Random Access Memory) configuration of the HPE Proliant DL380 Gen9 Server plays a crucial role in its overall performance and responsiveness.

Faster Data Access

With 16GB of RAM, the HPE Proliant DL380 Gen9 Server can efficiently store and retrieve data, leading to faster data access times. This is particularly beneficial for applications that rely on frequent data access or require real-time processing capabilities. The ample RAM capacity ensures that the server can handle data-intensive tasks without experiencing significant performance bottlenecks.

Improved Multitasking

The 16GB RAM configuration allows for efficient multitasking, enabling the server to handle multiple concurrent tasks without sacrificing performance. Users can run multiple applications simultaneously, switch between them seamlessly, and experience minimal lag or slowdowns. This is especially advantageous for businesses that require high levels of productivity and responsiveness from their server.

Scalability and Future-Proofing

The HPE Proliant DL380 Gen9 Server with 16GB of RAM offers scalability options to accommodate future growth and expanding business needs. The server supports additional RAM modules, allowing users to easily upgrade the memory capacity as their requirements evolve. This scalability ensures that the server can adapt to changing workloads and remain performant for years to come.

Optimized Virtualization Performance

The 16GB RAM configuration is well-suited for virtualization environments, enabling businesses to effectively utilize the server's resources to run multiple virtual machines.

Increased Virtual Machine Density

The ample RAM capacity allows for a higher number of virtual machines to be hosted on the server. With 16GB of RAM, businesses can allocate sufficient memory to each virtual machine, ensuring optimal performance and preventing resource contention issues. This leads to improved efficiency and cost savings as more workloads can be consolidated onto a single physical server.

Improved Virtual Machine Performance

Virtual machines running on the HPE Proliant DL380 Gen9 Server with 16GB of RAM will benefit from improved performance and responsiveness. The ample memory capacity allows virtual machines to have enough resources to handle their respective workloads efficiently. This ensures a smooth user experience and enables businesses to meet their performance requirements in virtualized environments.

Clock Speed: 2.4GHz

The clock speed is a crucial component of a server's overall performance, and the HPE Proliant DL380 Gen9 Server with a clock speed of 2.4GHz offers several benefits and advantages for users.

Fast Data Processing

The 2.4GHz clock speed allows the HPE Proliant DL380 Gen9 Server to process data quickly and efficiently. It determines how fast the server can execute instructions and perform calculations, making it ideal for applications that require high-speed data processing capabilities. With faster data processing, users can experience improved system responsiveness and reduced latency.

Real-Time Applications

The fast clock speed of 2.4GHz makes the HPE Proliant DL380 Gen9 Server well-suited for real-time applications that require rapid data processing and quick response times. Real-time applications, such as financial trading systems or online gaming servers, rely on low latency and high-speed processing to deliver seamless user experiences. The 2.4GHz clock speed ensures that the server can handle these demanding workloads effectively.

Highly Parallel Workloads

The 2.4GHz clock speed is particularly beneficial for highly parallel workloads that can benefit from multiple cores and threads. With a higher clock speed, the server can execute instructions more quickly, allowing for faster completion of parallel tasks. This is advantageous for applications such as scientific simulations, video rendering, or data analytics that require significant computational power.

Efficient Power Consumption

Despite its high performance, the HPE Proliant DL380 Gen9 Server with a clock speed of 2.4GHz is designed to be power-efficient.

Reduced Energy Costs

The server's power-efficient design helps to reduce energy costs for businesses. By optimizing the power consumption at a clock speed of 2.4GHz, the HPE Proliant DL380 Gen9 Server ensures that it operates efficiently without excessive power usage. This can result in significant savings in electricity bills, especially for organizations with large server deployments.

Environmental Impact

The power-efficient operation of the HPE Proliant DL380 Gen9 Server contributes to a reduced environmental impact. By consuming less energy, the server helps to minimize carbon emissions and lower the overall carbon footprint of an organization. This aligns with sustainability goals and demonstrates a commitment to environmentally responsible practices.

In conclusion, the HPE Proliant DL380 Gen9 Server with Sku number 779559-S01 offers optimized performance, reliability, and scalability for modern businesses. The powerful Xeon processor ensures exceptional computing performance and enhanced security features. The 16GB RAM configuration provides a balance between speed and multitasking capabilities, ideal for virtualization environments. The 2.4GHz clock speed allows for fast data processing and efficient power consumption. Overall, this server is a robust and versatile solution that meets the demands of today's dynamic IT infrastructure requirements.
