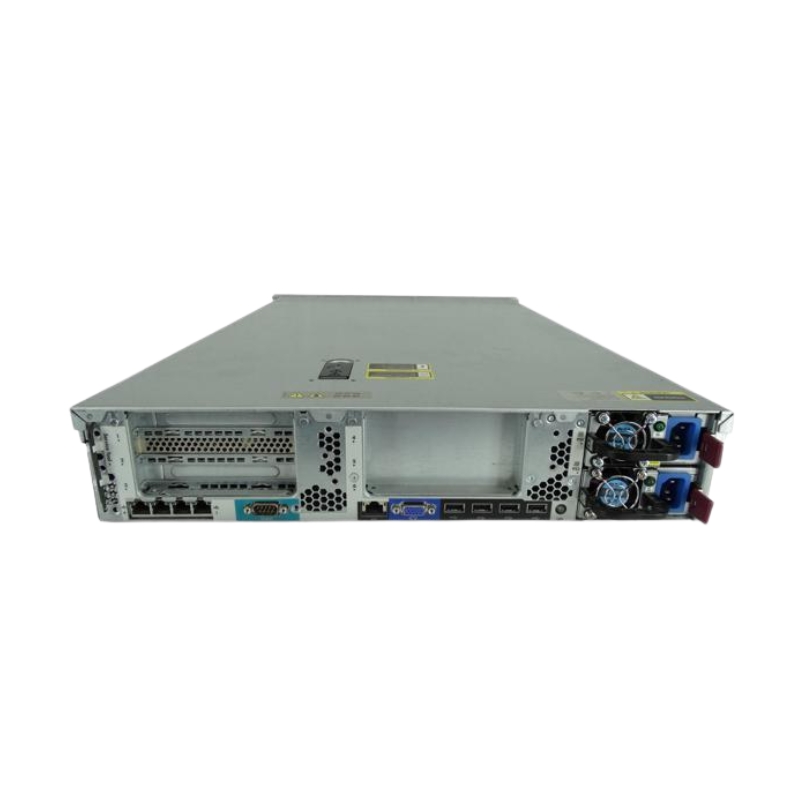

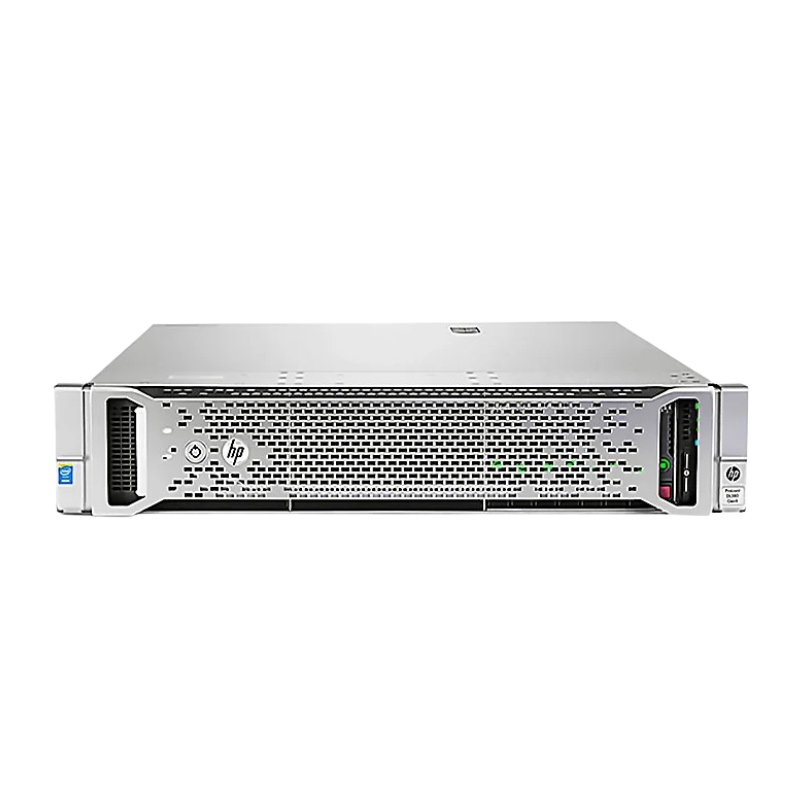

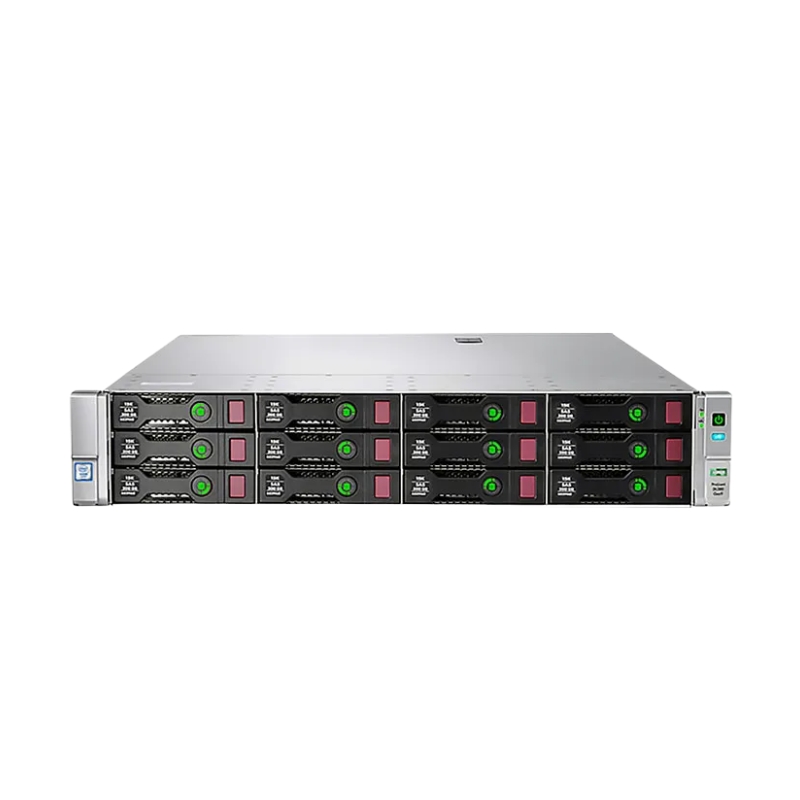

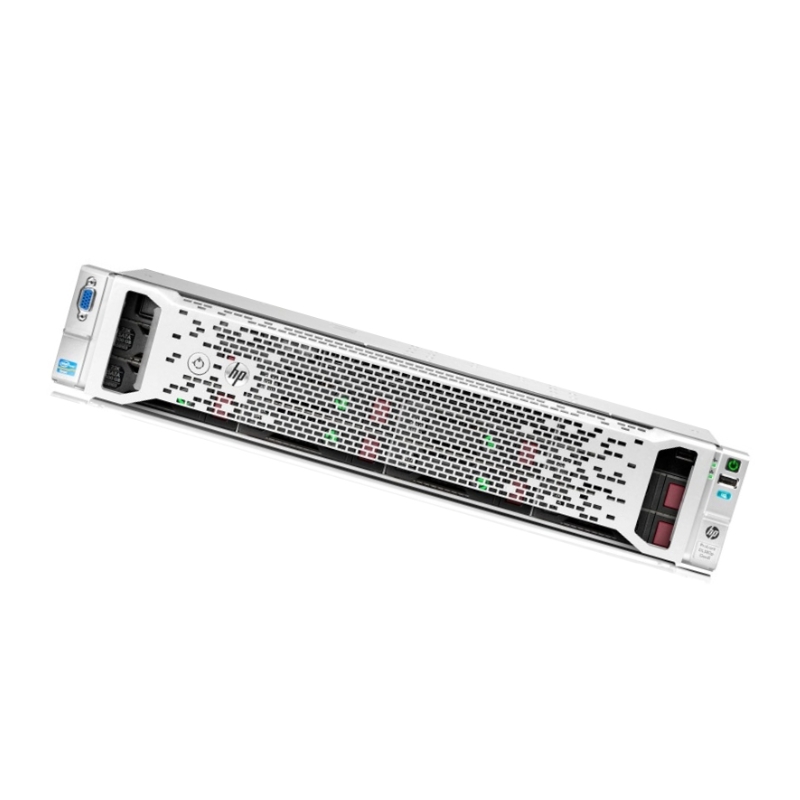

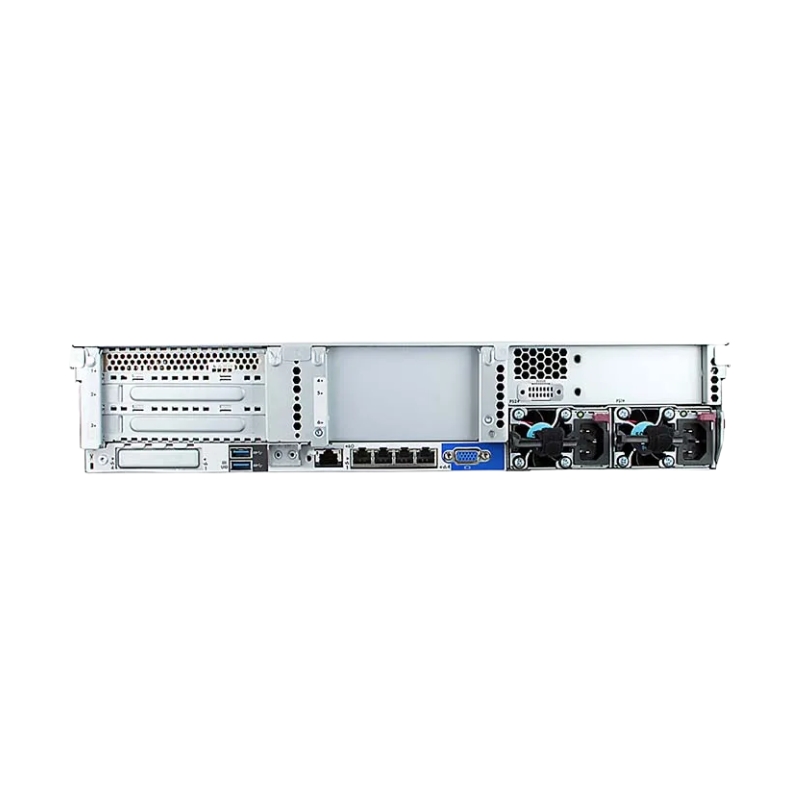

HPE Proliant DL380P 16GB DDR3 SDRAM Smart Array Rack Server 642107-001

Memory

The HPE Proliant DL380P Rack Server boasts an impressive memory capacity of 16GB DDR3 SDRAM. This feature plays a crucial role in enhancing the overall performance and efficiency of the server, making it an ideal choice for businesses that require high computing power.

Main Information of Proliant DL380p

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 642107-001
• Product Name: Proliant DL380p Gen8 - 2U Rack Mountable Server (Base Model)

Processor & Chipset

• Processor Type: Intel Xeon E5-2640 / 2.5 GHz
• Max Turbo Speed: 3.0 GHz
• Cores: 6-core
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• 64-bit Computing: Yes
• Upgradability: Upgradable
• Chipset Type: Intel C600
• Main Features: Hyper-threading, Intel QuickPath Interconnect, Turbo Boost Technology

Cache Memory

• Cache Type: L3 Cache
• Installed Size: 15 MB
• Cache per Processor: 15 MB

Memory (RAM)

• Installed Size: 16 GB, expandable up to 384 GB
• Memory Type: DDR3 SDRAM
• Effective Memory Speed: 1333 MHz
• Rated Memory Speed: 1333 MHz
• Memory Compliance: PC3-10600
• Form Factor: DIMM 240-pin
• Slots: 24 total, 20 empty
• Features: Registered, Dual Rank, Quad Channel, HP SmartMemory
• Configuration: 4 x 4 GB
• Supported Memory: Various configurations including PC3-12800 and PC3-10600

Storage

• Hard Drive: None
• Optical Drive: None

Storage Controller

• Type: Integrated RAID - PCIe 3.0 x8
• Interface: SATA 6Gb/s / SAS 6Gb/s
• Controller Name: Smart Array P420i with 1GB FBWC
• Channels: 8
• RAID Levels: RAID 0, RAID 1, RAID 10
• Buffer Size: 1 GB

Graphics & Display

• Type: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking & Communication

• Type: Plug-in Card
• Interface: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4 (iLO 4)
• Features: Wake On LAN (WOL), PXE Support
• Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion & Connectivity

• Expansion Bays: 8 x Hot-swap 2.5" SFF
• Expansion Slots:
  • 24 x DIMM 240-pin (20 free)
  • 2 x CPU (1 free)
  • 1 x PCIe 3.0 x16 (full-length, full-height, 1 free)
  • 1 x PCIe 3.0 x8 (half-length, full-height, 1 free)
  • 1 x PCIe 2.0 x8 (half-length, full-height, 1 free)
  • 1 x FlexibleLOM (1 free)
  • 1 x SD Card (internal, 1 free)

Interfaces & Ports

• 1 x Serial
• 2 x VGA (1 front, 1 rear)
• 4 x LAN (Gigabit Ethernet)
• 1 x HP iLO
• 7 x USB 2.0 (2 front, 4 rear, 1 internal)

Miscellaneous Features

• Included Accessories: HP Friction Rail Kit, Cable Management Arm
• Additional Features: Administrator Password, Power-on Password, Serial Port I/O Control, Redundant Fans
• Compliance Standards: ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438

Power Specifications

• Device Type: Hot-plug Power Supply
• Power Redundancy: Optional
• Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 460 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 inches
• Depth: 27.5 inches
• Height: 3.4 inches
• Weight: 40.98 lbs

Improved System Responsiveness

With 16GB of DDR3 SDRAM, the HPE Proliant DL380P Rack Server ensures improved system responsiveness. This means that tasks such as data retrieval, processing, and analysis can be performed swiftly, enabling businesses to save valuable time and increase productivity.

Efficient Multitasking

The ample memory capacity allows the server to handle multiple tasks simultaneously without experiencing any performance bottlenecks. This is particularly beneficial for businesses that rely on their servers to handle complex workloads and run resource-intensive applications.

Enhanced Virtualization Performance

In today's digital landscape, virtualization has become an essential component of many businesses' IT infrastructure. The 16GB DDR3 SDRAM in the HPE Proliant DL380P Rack Server ensures smooth and efficient virtualization performance. It enables businesses to run multiple virtual machines concurrently, optimizing resource allocation and maximizing server utilization.

Storage

The HPE Proliant DL380P Rack Server is equipped with a Smart Array storage solution, making it a reliable choice for businesses that require efficient and scalable storage capabilities.

Data Redundancy and Fault Tolerance

The Smart Array storage solution offers advanced data redundancy and fault tolerance features, ensuring that critical business data remains protected at all times. By utilizing various RAID levels, such as RAID 1, RAID 5, or RAID 10, businesses can achieve data redundancy, allowing for seamless recovery in case of disk failure.

Scalability and Flexibility

The Smart Array storage solution provides businesses with the flexibility to scale their storage capacity as their needs grow. With support for multiple drive bays and various storage configurations, businesses can easily expand their storage capabilities without the need for additional hardware investments.

Improved I/O Performance

The Smart Array storage solution enhances I/O performance, allowing for faster data access and retrieval. This is particularly beneficial for businesses that handle large datasets or rely on real-time data processing. The improved I/O performance translates into faster application response times, enhancing overall user experience.

Processor

The HPE Proliant DL380P Rack Server is powered by a 2.5GHz processor, delivering exceptional computing power for demanding workloads.

High-Speed Processing

The 2.5GHz processor ensures high-speed processing, enabling businesses to handle complex calculations and data-intensive tasks efficiently. This feature is particularly crucial for businesses that rely on real-time analytics or run resource-intensive applications.

Improved System Performance

The powerful processor enhances the overall system performance of the HPE Proliant DL380P Rack Server. It allows for faster execution of instructions, reducing latency and ensuring smooth operation even under heavy workloads. Businesses can rely on the server to deliver consistent and reliable performance.

Optimized Power Efficiency

The 2.5GHz processor strikes a balance between performance and power efficiency. It delivers robust processing power while minimizing energy consumption, resulting in reduced operational costs for businesses. The optimized power efficiency makes the server an environmentally friendly choice without compromising on performance.

Part Number

The HPE Proliant DL380P Rack Server features the part number 642107-001, a unique identifier that distinguishes it from other server models and configurations.

Easy Identification and Compatibility

The part number 642107-001 simplifies the identification of the HPE Proliant DL380P Rack Server, making it easier for businesses to manage their IT infrastructure. It ensures compatibility with specific hardware components, such as expansion cards, memory modules, and storage devices, enabling businesses to make informed decisions when upgrading or maintaining their servers.

Efficient Spare Parts Management

With a unique part number, businesses can efficiently manage spare parts for the HPE Proliant DL380P Rack Server. They can easily identify and procure the required components, reducing downtime in case of hardware failures and ensuring quick resolution of any issues that may arise.

Accurate Documentation and Support

The part number serves as a reference for accurate documentation and support resources related to the HPE Proliant DL380P Rack Server. Businesses can access specific manuals, drivers, firmware updates, and troubleshooting guides tailored to their server model. This ensures a smooth user experience and efficient maintenance of the server.
