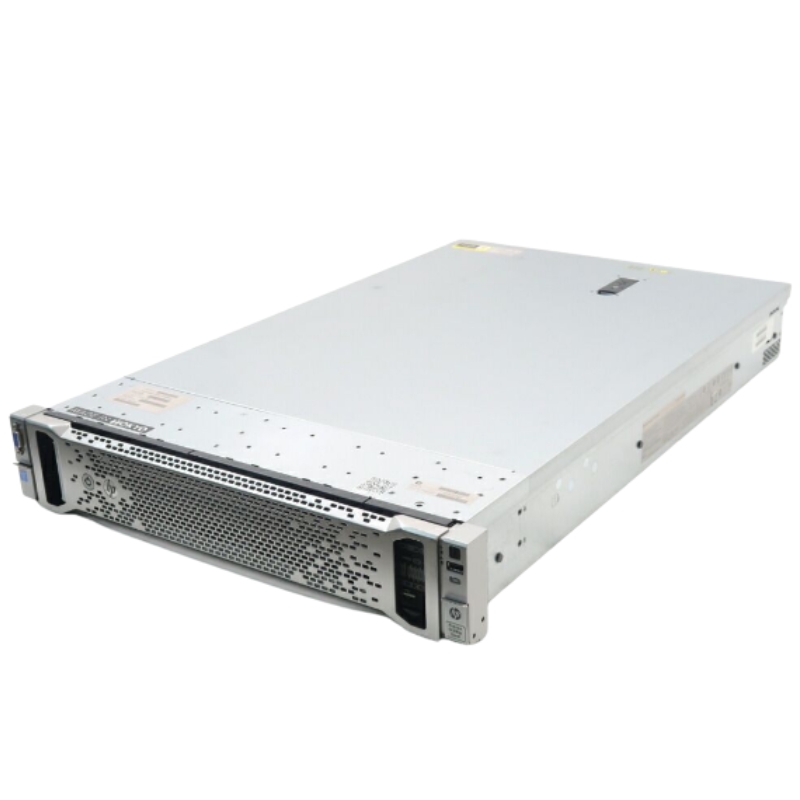

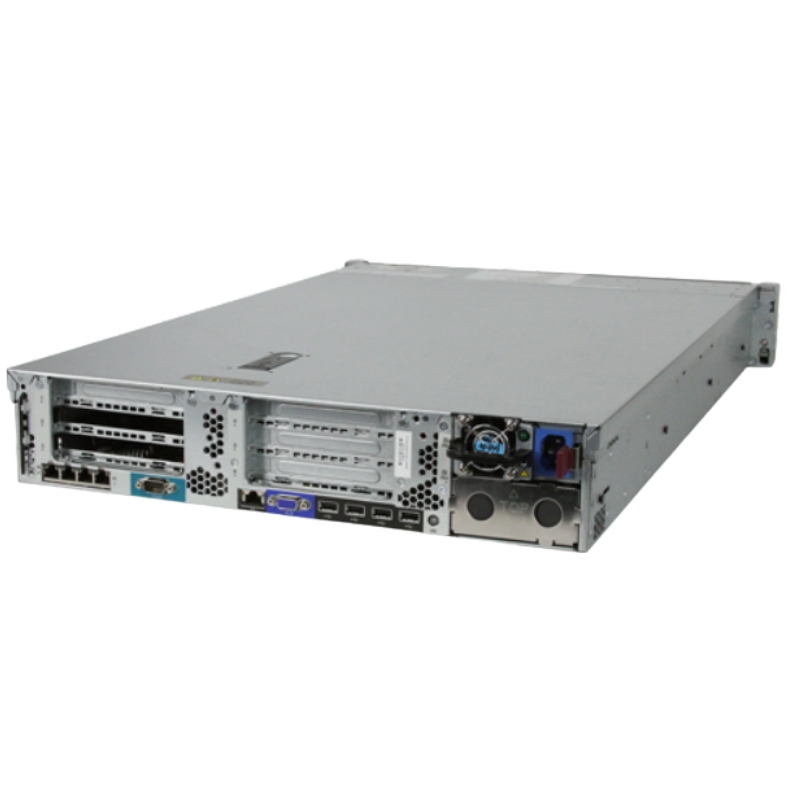

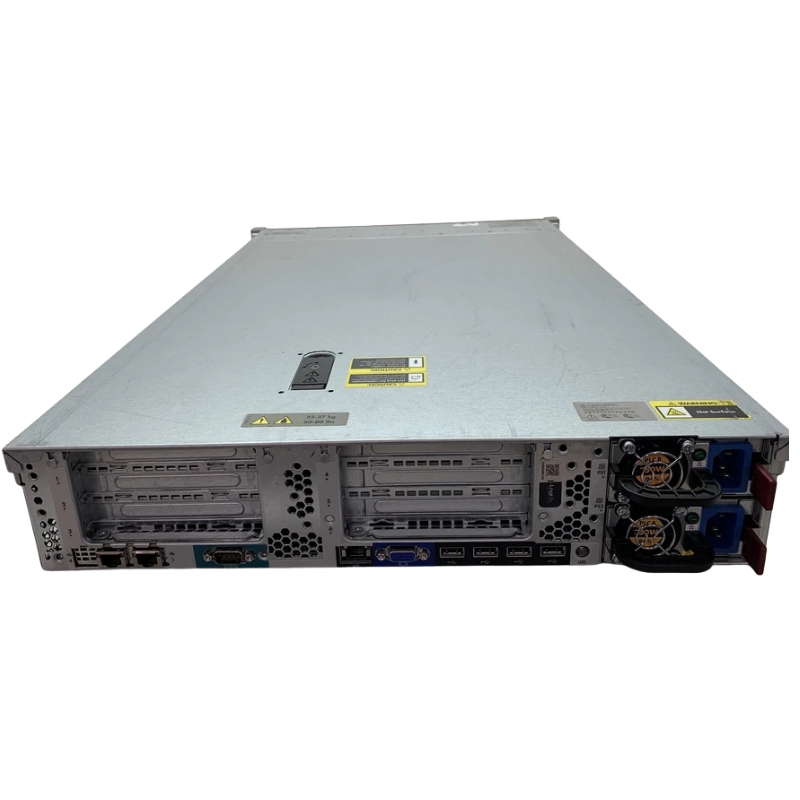

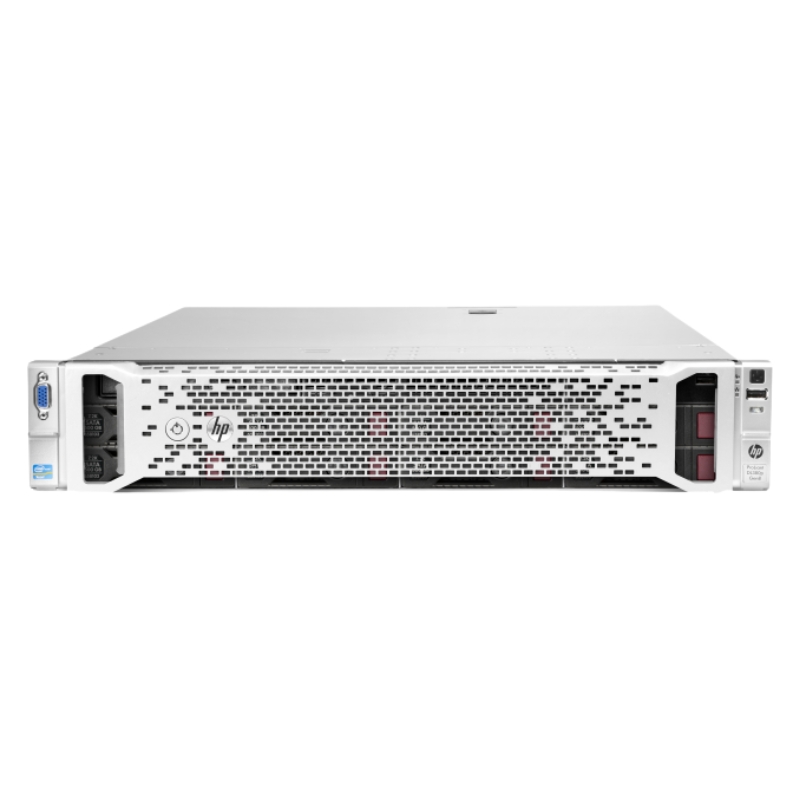

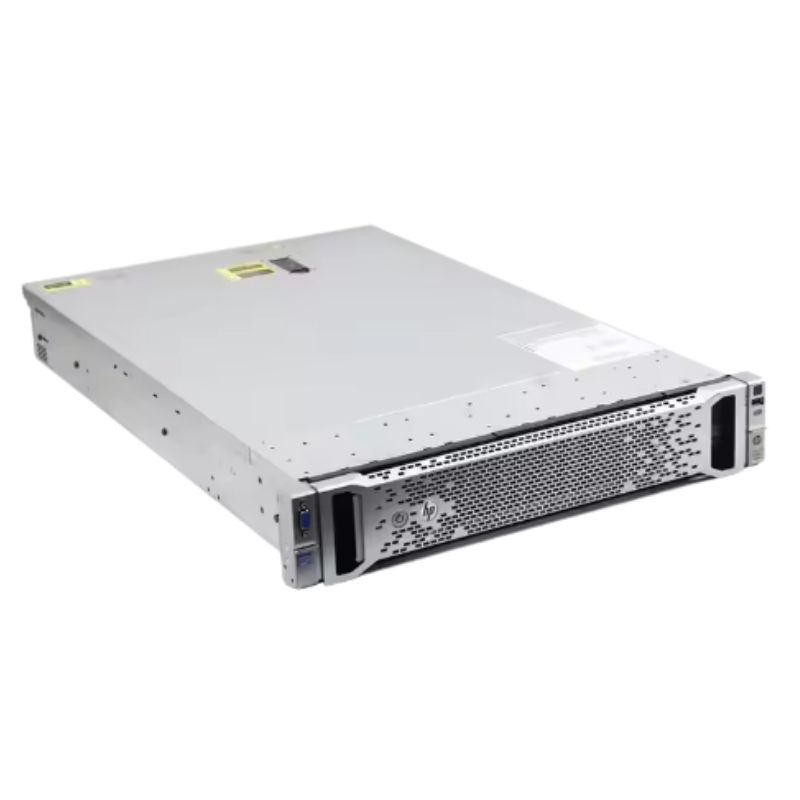

HPE Proliant DL380p 704559-001 6Core 16GB DDR3 Server 2.6GHz

Processor

The HPE Proliant DL380p Server is equipped with a powerful 6-core processor, delivering exceptional performance and efficiency. The processor is the heart of any server, responsible for executing instructions and handling data processing tasks. With a 6-core processor, users can expect enhanced multitasking capabilities, improved performance in demanding applications, and faster response times.

Product Overview

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 704559-001
• Product Name: ProLiant DL380p Gen8 - 2U Rack Server (Base Model)

Processor & Chipset

• Processor Type: Intel Xeon E5-2630v2 / 2.6 GHz
• Max Turbo Speed: 3.1 GHz
• Number of Cores: 6-core
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• 64-bit Computing: Yes
• Upgradability: Upgradeable
• Chipset Type: Intel C600
• Main Processor Features: Hyper-Threading Technology, Intel QuickPath Interconnect, Intel Turbo Boost Technology 2

Cache Memory

• Cache Memory Type: L3 Cache
• Installed Size: 30 MB
• Cache Per Processor: 15 MB

RAM Specifications

• Installed RAM Size: 16 GB / 384 GB (max)
• Technology: DDR3 SDRAM
• Effective Memory Speed: 1600 MHz
• Rated Memory Speed: 1600 MHz
• Memory Compliance: PC3-12800
• Form Factor: DIMM 240-pin
• Total Memory Slots: 24 (total) / 23 (empty)
• Features: Registered, Dual Rank, Quad Channel Memory Architecture, HP SmartMemory
• Supported RAM Configurations:
  • PC3-14900 - 384 GB Registered
  • PC3-14900 - 768 GB - Low Voltage - Load-Reduced
  • PC3-14900 - 128 GB Unbuffered - Advanced ECC
  • PC3-10600 - 384 GB HyperCloud

Storage & Optical Drives

• Hard Drive: None
• Optical Drive Type: DVD-RW / DVD-Writer - SATA

Storage Controller

• Type: RAID - Integrated - PCIe 3.0 x8
• Controller Interface: SATA 6 Gb/s / SAS 6 Gb/s
• Controller Name: Smart Array P420i with 1GB FBWC
• Channel Quantity: 8
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
• Buffer Size: 1 GB

Display & Graphics

• Graphics Controller Type: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Network & Communication

• Type: Plug-in Card
• Interface (Bus) Type: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.3ad (LACP)

Expansion & Connectivity

• Expansion Bays (Free): 8 x Hot-swap 2.5-inch SFF
• Expansion Slots (Free):
  • 24 x DIMM 240-pin
  • 2 x CPU
  • 1 x PCIe 3.0 x16 - Full-length, Full-height
  • 1 x PCIe 3.0 x8 - Half-length, Full-height
  • 1 x PCIe 2.0 x8 - Half-length, Full-height (X4 Mode)
  • 1 x FlexibleLOM

Interfaces & Ports

• Serial Port: 1
• VGA Ports: 2 (1 Front, 1 Rear)
• LAN Ports: 4 x Gigabit Ethernet
• HP iLO Port: 1
• USB 2.0 Ports: 7 (2 Front, 4 Rear, 1 Internal)

Miscellaneous

• Included Accessories: HP Ball Bearing Rail Kit
• Features: Administrator Password, Power-on Password, Serial Port I/O Control, 80 Plus Platinum Plus
• Compliant Standards: ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438, GB 9254

Power Device

• Device Type: Power Supply - Hot-plug
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 460 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 in
• Depth: 27.5 in
• Height: 3.4 in
• Weight: 40.98 lbs

Enhanced Multitasking

One of the key benefits of a 6-core processor is its ability to handle multiple tasks simultaneously. This is particularly important for businesses that rely on their servers to run a variety of applications and services. With more cores, the server can allocate processing power to different tasks, allowing for smoother multitasking and reducing the risk of slowdowns or bottlenecks.

Improved Performance

The additional cores in the processor provide a significant boost in performance compared to processors with fewer cores. Each core can handle its own set of instructions, enabling the server to process more data at once. This results in faster execution times and improved overall performance, particularly in resource-intensive applications such as virtualization or database management.

Faster Response Times

In a server environment, response time is crucial. Whether it's handling user requests or running critical services, a server needs to be able to respond quickly to ensure uninterrupted operations. With a 6-core processor, the HPE Proliant DL380p Server can process incoming requests more efficiently, reducing latency and improving response times.

Overall, the 6-core processor in the HPE Proliant DL380p Server offers significant benefits for users in terms of multitasking capabilities, performance improvements, and faster response times.

Memory

The HPE Proliant DL380p Server comes with 16GB DDR3 memory, providing ample capacity for demanding workloads and applications. Memory, also known as RAM (Random Access Memory), plays a critical role in a server's performance and responsiveness. The 16GB DDR3 memory in this server ensures smooth operations, efficient data handling, and enhanced user experience.

Increased Workload Capacity

With 16GB of memory, the HPE Proliant DL380p Server can handle a wide range of workloads without experiencing performance degradation. This is particularly important for businesses that run resource-intensive applications or virtualization environments. The ample memory capacity allows the server to store and access data quickly, reducing the need for frequent disk access and improving overall performance.

Efficient Data Handling

Memory is much faster than traditional storage systems such as hard drives or solid-state drives. By having more memory available, the server can store frequently accessed data in RAM, reducing the time required to retrieve information. This results in improved data handling capabilities and faster response times, enhancing the user experience and productivity.

Enhanced User Experience

For businesses that rely on their servers to provide services or applications to users, a smooth and responsive experience is crucial. With 16GB of DDR3 memory, the HPE Proliant DL380p Server ensures that users can access their data quickly and efficiently. This leads to increased productivity, reduced frustration, and improved overall satisfaction.

In summary, the 16GB DDR3 memory in the HPE Proliant DL380p Server offers increased workload capacity, efficient data handling, and an enhanced user experience.

Part Number

The HPE Proliant DL380p Server features the part number 704559-001. The part number serves as a unique identifier for the specific server model and configuration. It allows users to easily identify and procure the exact server they need for their specific requirements.

Identification and Compatibility

The part number is crucial when it comes to identifying the specific server model and ensuring compatibility with other hardware or software components. By referencing the part number, users can accurately determine if the server meets their technical specifications or if it is compatible with their existing infrastructure. This helps avoid compatibility issues and ensures a seamless integration into the IT environment.

Ease of Procurement

With the part number, users can easily communicate their requirements to suppliers or resellers, simplifying the procurement process. By providing the part number, users can ensure that they receive the exact server model they need, avoiding any confusion or potential mistakes in the ordering process.

Serviceability and Spare Parts

The part number is also invaluable when it comes to serviceability and obtaining spare parts. In the event of a hardware failure or a need for an upgrade, having the correct part number ensures that users can quickly source the necessary components. This minimizes downtime and ensures that the server can be repaired or upgraded promptly, reducing any potential impact on business operations.

In conclusion, the part number 704559-001 in the HPE Proliant DL380p Server serves as a unique identifier, allowing for easy identification, compatibility checking, streamlined procurement, and efficient serviceability.

Processor Speed

The HPE Proliant DL380p Server boasts a processor speed of 2.6GHz, providing users with impressive processing power for demanding workloads and applications. Processor speed plays a vital role in determining how quickly a server can execute instructions and process data. With a speed of 2.6GHz, this server delivers exceptional performance and responsiveness.

Faster Execution Times

A higher processor speed directly translates to faster execution times for tasks and applications. The 2.6GHz processor speed in the HPE Proliant DL380p Server enables it to process instructions at a rapid pace, reducing latency and improving overall performance. This is particularly beneficial for businesses that rely on their servers to handle time-sensitive operations or real-time data processing.

Improved Application Performance

Many applications, especially resource-intensive ones, require significant processing power to run smoothly. The 2.6GHz processor speed provides ample horsepower to handle demanding applications, ensuring that they can perform optimally. This results in improved application performance, reduced lag, and enhanced user experience.

Efficient Virtualization

Virtualization has become a critical component of modern IT infrastructures. Whether it's running multiple virtual machines or implementing virtualized storage solutions, a server needs sufficient processing power to handle the additional workload. The 2.6GHz processor speed in the HPE Proliant DL380p Server ensures efficient virtualization performance, allowing for smooth operations and optimal resource allocation.

In summary, the 2.6GHz processor speed in the HPE Proliant DL380p Server offers faster execution times, improved application performance, and efficient virtualization capabilities. This makes it an ideal choice for businesses with demanding workloads and applications.
