877621-001 HPE Proliant ML350 Xeon Bronze 4110/2.1GHz 16GB-r Ethernet Tower Server.

Product Overview Of Proliant ML350 Servers

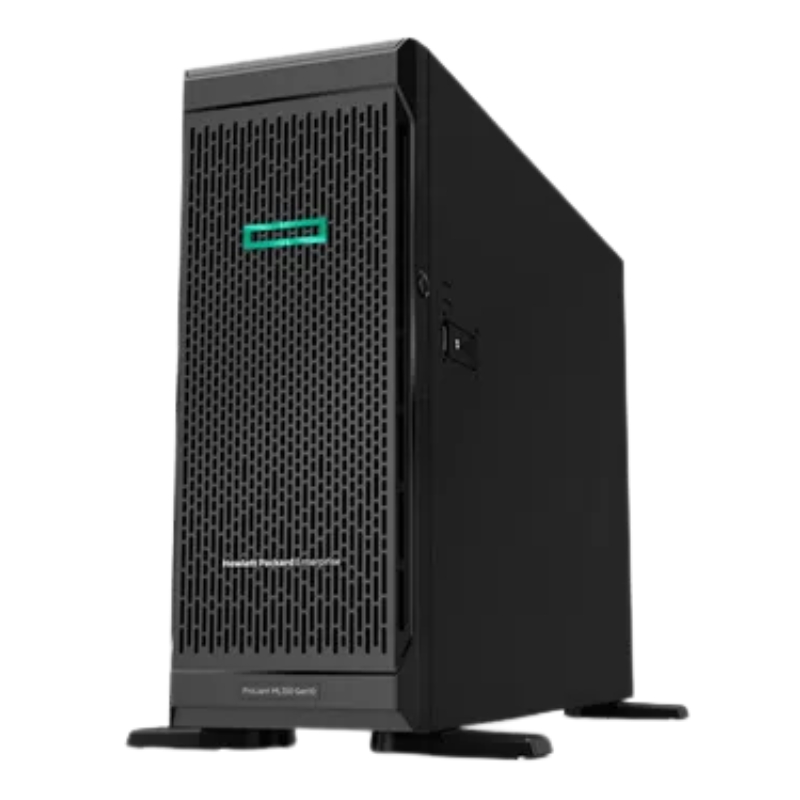

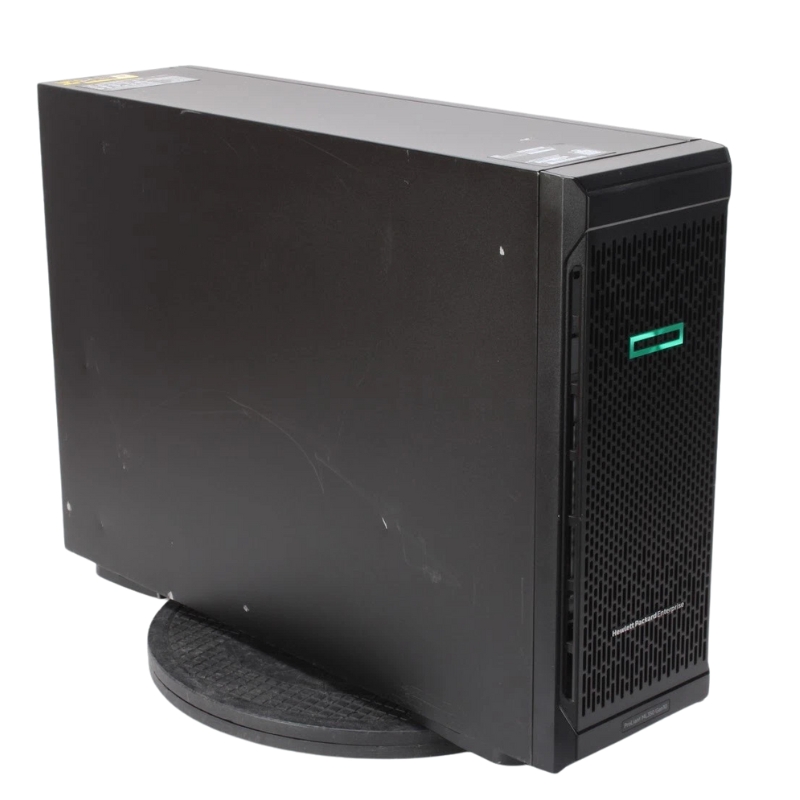

The HPE Proliant ML350 877621-001 is a robust 4U tower server designed for businesses that require high-performance computing combined with scalability and reliability. Featuring the Intel Xeon Bronze 4110 processor operating at 2.1GHz, this server provides a solid foundation for medium to large-scale workloads. Its architecture is optimized to support demanding applications while maintaining efficient energy consumption and system stability

Manufacturer & Model Information

• Manufacturer: HPE
• Part Number: 877621-001
• Product Name: HPE ML350 Gen10 4U Tower Server

Processor & Chipset Specifications

Powered by an Intel Xeon Bronze 4110 processor, the server delivers reliable multi-core performance for modern workloads. With advanced CPU features, it ensures efficient processing and optimized performance under heavy load.

• Processor Speed: 2.1 GHz (max Turbo 3.0 GHz)
• CPU Cores: 8-core
• CPU Quantity: 1 (supports up to 2 CPUs)
• Socket Type: FCLGA3647
• Chipset: Intel C622
• Main Features: Hyper-Threading, Intel Turbo Boost 2.0, Intel Smart Cache
• L3 Cache per Processor: 11 MB

Advanced Processor Features

• Hyper-threading technology for multitasking efficiency
• Intel Turbo Boost Technology 2.0 for dynamic performance scaling
• Integrated Intel Smart Cache for faster data access

Memory & Storage Capabilities

This server supports high-capacity DDR4 memory with advanced error correction and high-speed data transfer, making it ideal for intensive computing tasks.

• Installed Memory: 16 GB
• Maximum Memory: 768 GB
• Memory Technology: DDR4 SDRAM, Advanced ECC
• Effective Memory Speed: 2133 MHz
• Rated Memory Speed: 2666 MHz
• Form Factor: DIMM 288-pin
• Memory Features: Registered, HPE SmartMemory, 6-channel architecture

Memory Configuration Options

• Single 16 GB DIMM installed
• Supports up to 3 TB load-reduced memory and 768 GB registered modules

Expansion & Connectivity Options

The ML350 Gen10 tower server provides a versatile set of expansion bays and PCIe slots to meet growing business demands.

• Drive Bays: 1x External 5.25" Slim, 8x Hot-swap 2.5" SFF
• PCIe Slots:
  • 4x PCIe 3.0 x8 (Full-length, Full-height, x4 mode)
  • 3x PCIe 3.0 x16 (Full-length, Full-height)
  • 1x PCIe 2.0 x8 (Half-length, Full-height, x4 mode)
  • 1x PCIe 3.0 x16 (Full-length, Full-height, x8 mode)
  • 1x Internal MicroSD card slot
• Memory Slots: 24 DIMM slots (23 free)
• CPU Slots: 2 total (1 free)

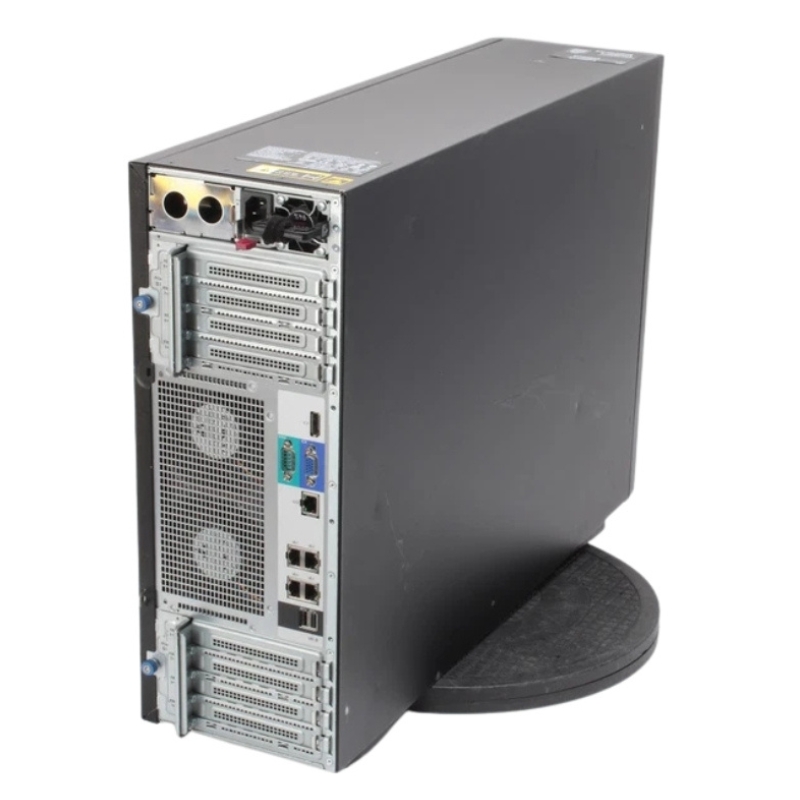

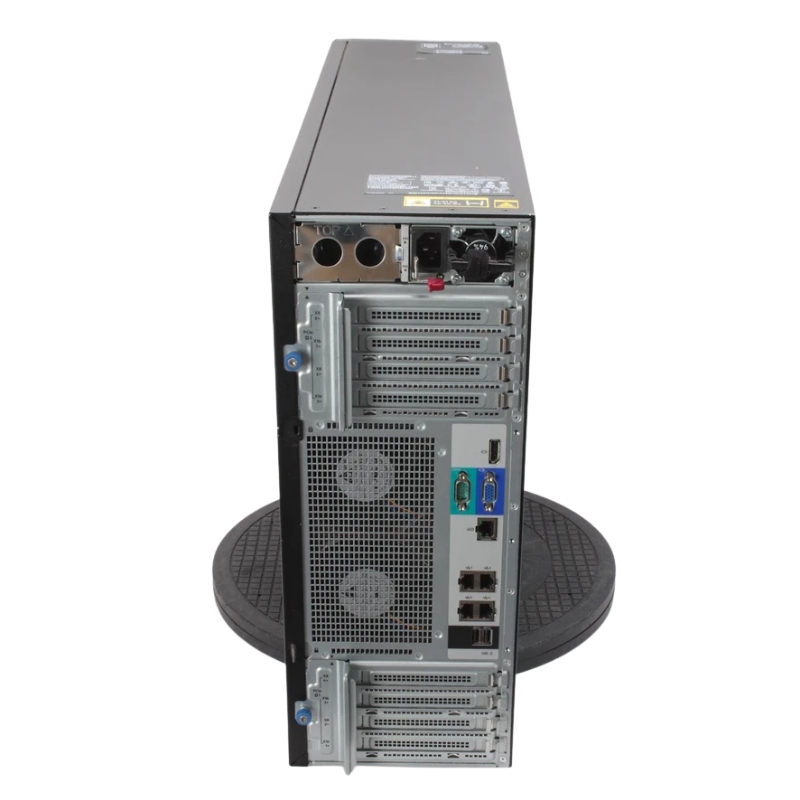

Interfaces & Peripheral Connectivity

• 1x VGA port
• 1x Serial port
• 4x Gigabit Ethernet ports
• 1x HP iLO management port
• 5x USB 3.0 ports (2 Front, 2 Rear, 1 Internal)
• 1x USB 2.0 Internal port

Networking & Remote Management

Equipped with high-speed Ethernet ports and integrated management tools, this server ensures reliable connectivity and simplified administration.

• Ethernet Ports: 4x Gigabit
• Controller: HP 369i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out (iLO 5)
• Additional Features: Wake-on-LAN (WOL), PXE boot support
• Standards Compliance: IEEE 802.3, 802.3u, 802.3ab

Storage Controller Features

The server includes an advanced Smart Array controller for reliable RAID configurations and high-performance storage management.

• Controller Type: Smart Array P408i-a
• Interface: SATA 6Gb/s, SAS 12Gb/s
• Channel Quantity: 8
• Supported RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

Power Supply & Efficiency

Designed for maximum uptime, the HPE ML350 Gen10 comes with high-efficiency hot-plug power supplies and optional redundancy.

• Power Supply: 800W hot-plug
• Redundancy: Optional 1+1 configuration
• Voltage: AC 120/230V, 50/60 Hz
• Efficiency Certification: 80 Plus Platinum, 94%

Physical Dimensions & Weight

• Width: 6.9 inches
• Depth: 25.5 inches
• Height: 18.2 inches
• Weight: 46.3 lbs

Processor and Performance Capabilities

The HPE Proliant ML350 877621-001 is powered by an Intel Xeon Bronze 4110 processor. With 8 cores and 16 threads, this CPU delivers reliable multi-threaded performance for virtualization, database management, and enterprise-level applications. The 2.1GHz base clock speed ensures consistent and efficient processing across various workloads, making it suitable for businesses seeking reliable server infrastructure.

Scalability and Future-Proofing

This server supports additional memory and storage expansion, allowing businesses to scale resources as their needs grow. With embedded support for HPE SmartMemory technology, the server ensures optimized memory performance, error correction, and maximum uptime. Users can easily expand up to multiple terabytes of memory to accommodate future demands.

Memory and Storage Options

The HPE Proliant ML350 877621-001 comes with 16GB of RAM, ensuring smooth multitasking and efficient handling of complex workloads. It offers multiple storage options, including support for SAS, SATA, and NVMe drives, enabling a flexible storage configuration to meet varying enterprise requirements. With embedded RAID support, users can configure storage for enhanced data protection and performance.

Embedded 4-Port 1GBE Ethernet Networking

Networking is crucial in modern business environments, and this server comes with an embedded 4-port 1GBE Ethernet adapter. These ports provide high-speed connectivity, redundant network paths, and improved data transfer rates. They are ideal for supporting virtualization, file sharing, and cloud integration while ensuring minimal downtime.

Optional Networking Expansion

Beyond the built-in network capabilities, the HPE Proliant ML350 877621-001 also supports optional network expansion cards such as the HPE 369i 4-port adapter. This flexibility allows businesses to enhance connectivity, improve redundancy, and meet specific network performance requirements for enterprise workloads.

Power and Efficiency

The server includes a 1x800W power supply, designed for maximum efficiency and minimal energy waste. HPE’s advanced power management features allow for dynamic power allocation, ensuring that energy consumption is optimized without compromising performance. This results in lower operational costs and improved sustainability for data center environments.

Reliability and Redundancy Features

Reliability is at the core of the ML350 series. With redundant power supply options, hot-pluggable drives, and extensive system diagnostics, this server minimizes downtime and ensures business continuity. The 4U tower design provides ample space for airflow and cooling, maintaining system stability even under high workloads.

Management and Remote Administration

The HPE Proliant ML350 877621-001 integrates with HPE iLO (Integrated Lights-Out) management technology, enabling administrators to monitor and manage servers remotely. iLO provides comprehensive server health monitoring, firmware updates, and remote troubleshooting tools, reducing IT workload and improving operational efficiency.

HPE Smart Array Controllers

This server is compatible with HPE Smart Array Controllers, offering advanced RAID capabilities, enhanced data protection, and high-speed storage performance. Administrators can configure RAID levels according to business needs, ensuring a balance between performance and redundancy.

Hot-Plug and Tool-Free Upgrades

HPE’s tool-free design allows easy upgrades and maintenance. Hard drives, memory modules, and expansion cards can be installed or replaced without specialized tools, reducing downtime and simplifying IT management. This feature is especially valuable for businesses that require minimal service interruptions.

Ideal Use Cases and Applications

The HPE Proliant ML350 877621-001 is designed for a wide range of enterprise applications, including virtualization, database management, web hosting, and business-critical applications. Its scalability and reliability make it suitable for medium-sized businesses, growing enterprises, and remote office deployments. Additionally, it is a great fit for organizations looking to consolidate multiple workloads into a single, robust tower server.

Data-Intensive Workloads

Thanks to its powerful CPU, fast memory, and high-speed networking, the HPE Proliant ML350 877621-001 handles data-intensive workloads such as analytics, business intelligence, and large-scale databases with ease. Users benefit from high throughput, low latency, and consistent performance even under heavy load conditions.

Security and Data Protection

Security is a key feature of the ML350 series. It includes firmware-level security, secure boot, and trusted platform module (TPM) support to protect sensitive business data. In addition, RAID configurations and redundant power options provide an additional layer of data protection against hardware failures.

Compliance and Enterprise-Grade Security

Organizations that require compliance with industry standards such as GDPR, HIPAA, or ISO can rely on the HPE Proliant ML350 877621-001. Built-in security features and regular firmware updates ensure that servers remain secure and compliant with evolving regulatory requirements.

Integrated Monitoring and Alerts

HPE iLO provides proactive monitoring and alerts for potential hardware issues, including temperature spikes, memory errors, and power anomalies. This proactive approach minimizes downtime and allows IT teams to address issues before they affect business operations.

Expansion and Peripheral Support

The server supports multiple PCIe expansion slots for additional storage controllers, network cards, and specialized accelerators. This flexibility enables businesses to tailor the server to specific workloads, from high-performance computing to large-scale data processing. Additionally, the tower form factor ensures easy physical access for future upgrades.

HPE Ecosystem Integration

Seamless integration with the HPE ecosystem allows organizations to leverage additional management tools, storage solutions, and networking hardware. This ensures a unified IT environment with optimized performance, simplified management, and reduced operational complexity.

Future-Ready IT Infrastructure

With its combination of performance, scalability, and reliability, the HPE Proliant ML350 877621-001 provides businesses with a future-ready IT infrastructure. Companies can adapt to evolving workloads, expand capacity as needed, and ensure continuity with enterprise-grade features designed for long-term use.
