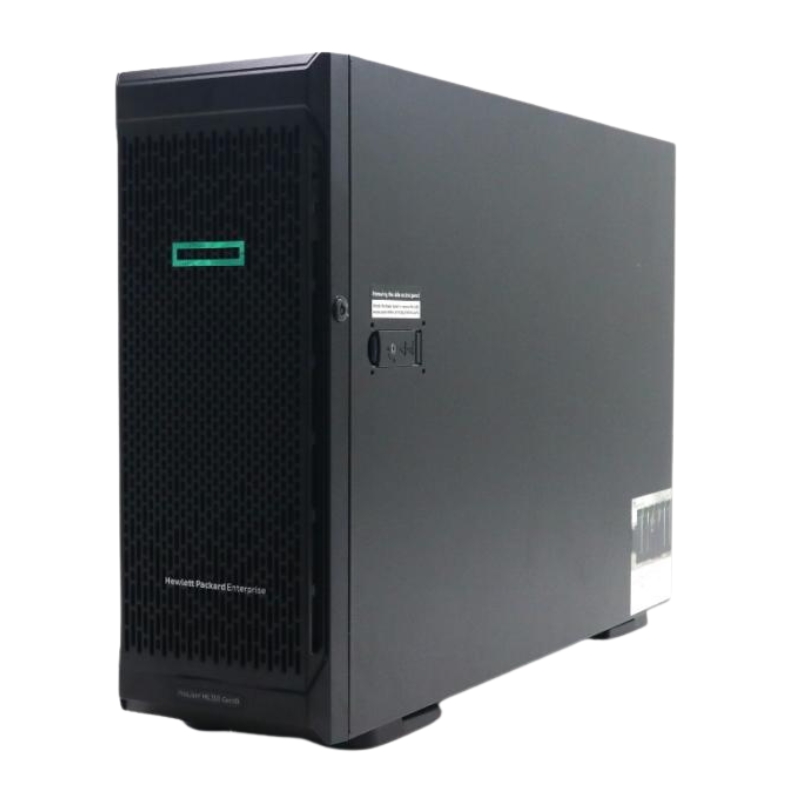

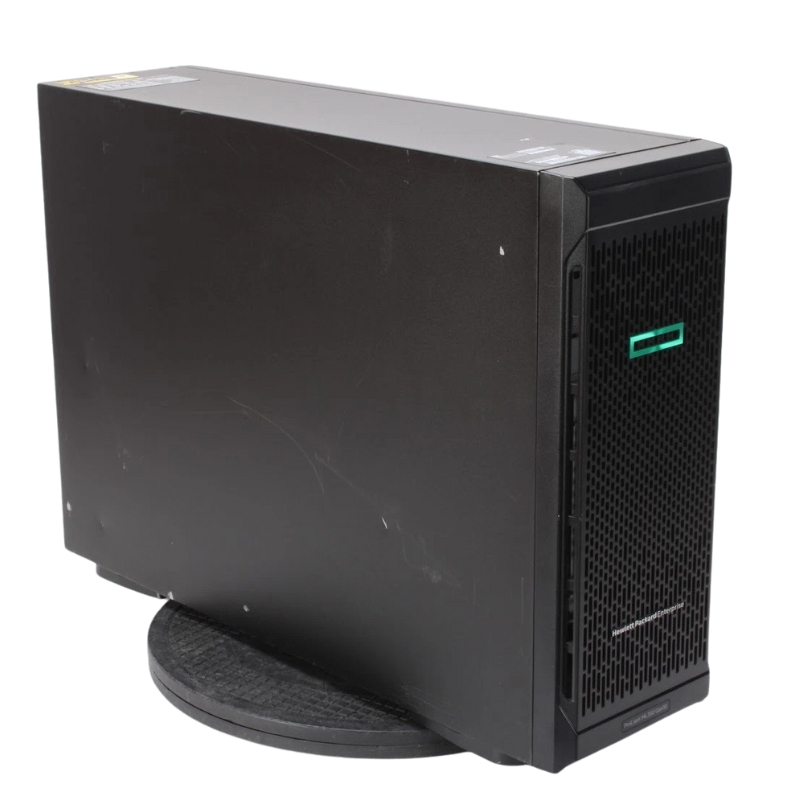

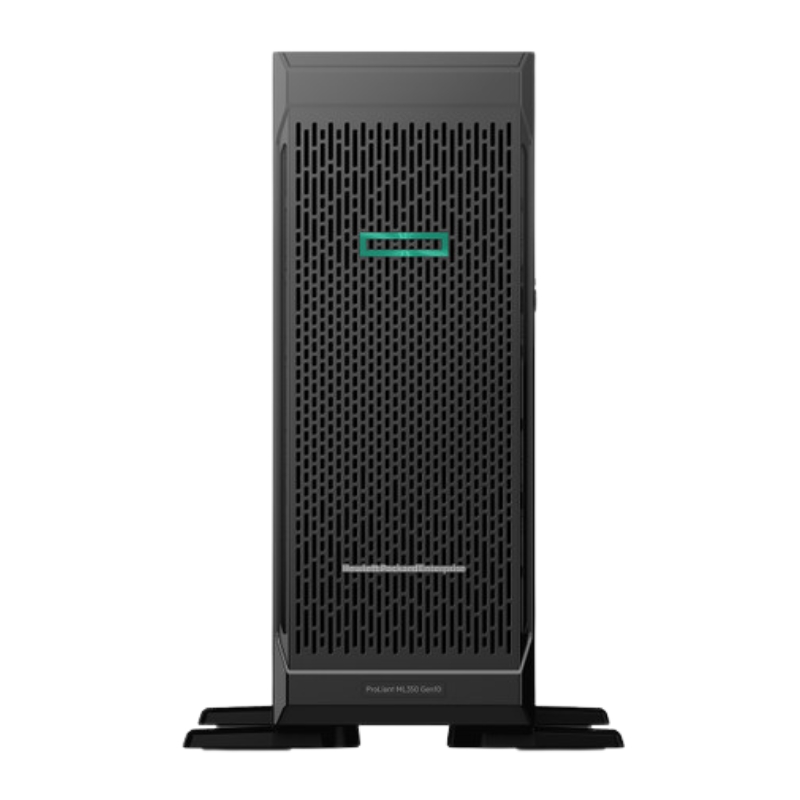

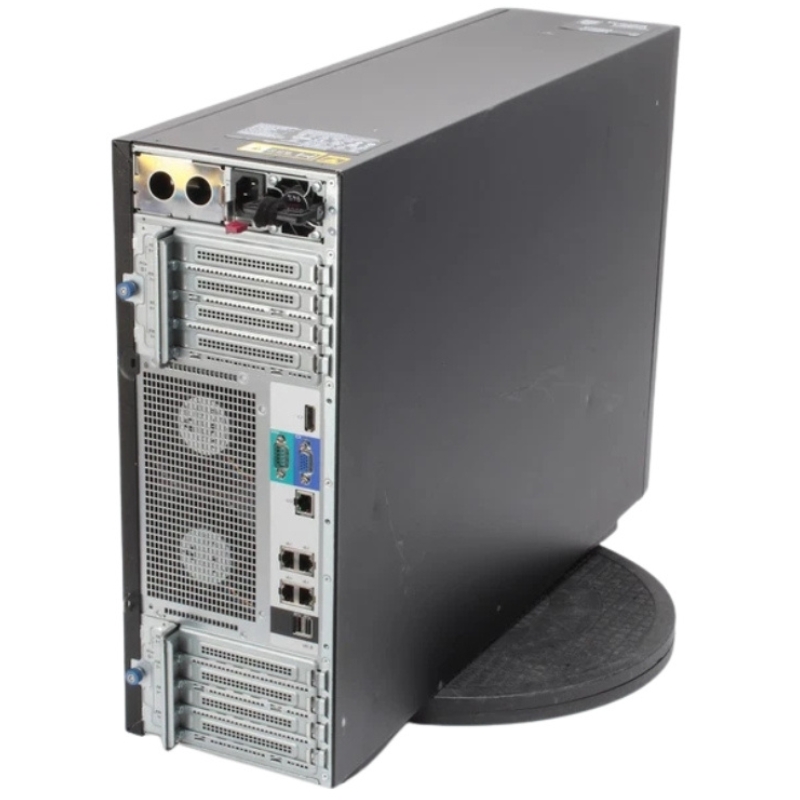

P04674-S01 HPE Proliant ML350 Gen10 Intel Xeon Silver 4110 / 2.1GHz Server.

Product Overview Of HPE Proliant ML350 Server

The HPE Proliant ML350 P04674-S01 Gen10 Tower Server is designed to deliver enterprise-grade performance, flexibility, and reliability for medium to large businesses. Built with the latest Intel Xeon Silver 4110 processor operating at 2.1GHz, this server provides a perfect balance between processing power and energy efficiency, allowing organizations to manage critical workloads with ease. Equipped with 16GB DDR4 SDRAM memory and the Smart Array E208i-a 1GB controller, the ML350 ensures fast and secure storage management while providing room for expansion as business demands grow.

General Specifications

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Manufacturer Part Number: P04674-S01
• Product Type: 4U Tower Server
• Model: ProLiant ML350 Gen10

Processor & Chipset Details

• CPU: 1st Gen Intel Xeon Silver 4110, 2.1 GHz
• Maximum Turbo Frequency: 3.0 GHz
• Core Count: 8 cores
• CPU Quantity: 1 (Upgradeable to 2)
• Processor Features: Hyper-Threading, Intel Turbo Boost 2.0, Intel Smart Cache
• Chipset Type: Intel C622

Cache Memory

• L3 Cache Size: 11 MB per processor

Memory Specifications

• Installed Memory: 16 GB
• Maximum Memory: 768 GB
• Memory Type: DDR4 SDRAM
• Effective Speed: 2400 MHz
• Rated Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Memory Slots: 24 total (23 empty)
• Supported Memory: PC4-21300 Load-Reduced, Registered
• Special Features: HPE SmartMemory, Registered DIMMs

Storage Options

• Hard Drives: None installed
• Optical Drive: Not included

Storage Controller Features

• Controller: HPE Smart Array E208i-a
• Interface: PCIe 3.0 x8
• Supported Drive Types: SATA 6Gb/s, SAS 12Gb/s
• Channels: 8
• RAID Levels: 0, 1, 5, 10

Graphics & Display

• Video Memory: 16 MB
• Video Outputs: VGA, DisplayPort

Networking & Communication

• Ethernet Ports: 4 x Gigabit
• Controller: HPE 369i
• Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: iLO Standard, SNMP 3, IPMI 2.0, SMASH CLP
• Advanced Features: Wake-on-LAN (WOL), ACPI Support, PXE Boot

Expansion & Connectivity

Drive Bays

• 8 total hot-swap 2.5" SFF bays (all available)

Expansion Slots

• 2 x PCIe 3.0 x8 (Full-length, Full-height, x4 mode)
• 4 x PCIe 3.0 x16 (Full-length, Full-height)
• 1 x Internal microSD card slot
• 2 x PCIe 3.0 x8 (Full-length, Full-height)

Interfaces & Ports

• 1 x VGA, 1 x Serial
• 4 x Gigabit LAN, 1 x HP iLO
• 5 x USB 3.0 (2 front, 2 rear, 1 internal)
• 1 x USB 2.0 internal
• 1 x HP iLO Type A (Front)

Security & Compliance

• Theft Protection: Security Lock Slot (Cable lock sold separately)
• Slot Type: Kensington Security Slot
• Standards Compliance: TLS v1.2, ASHRAE Class A3/A4, ACPI 6.1

Power & Efficiency

• Type: Hot-plug Power Supply
• Redundancy: Optional 1+1 configuration
• Installed Quantity: 1 (Max 2)
• Nominal Voltage: AC 120/230V (50/60Hz)
• Output: 800W
• Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 6.9 inches
• Depth: 25.5 inches
• Height: 18.2 inches
• Weight: 46.3 lbs

Key Features of HPE ML350 P04674-S01

Advanced Processing Power

The ML350 Gen10 Tower Server is powered by the Intel Xeon Silver 4110 CPU, which features multiple cores and supports simultaneous multi-threading. This ensures seamless handling of virtualized environments, databases, and business-critical applications. Its 2.1GHz base frequency allows efficient execution of multiple tasks simultaneously, while Turbo Boost technology ensures that peak workloads are processed without latency.

Memory and Performance Optimization

Equipped with 16GB DDR4 SDRAM, this server offers high-speed memory access and reliable performance. The DDR4 technology ensures lower power consumption compared to previous generations while delivering higher bandwidth for demanding workloads. Additionally, the HPE SmartMemory feature ensures data integrity and supports advanced memory error detection, which helps prevent system crashes and downtime.

Smart Array E208i-a Storage Controller

The Smart Array E208i-a 1GB controller provides robust RAID support, including RAID 0, 1, 5, 10, 50, and 60, allowing businesses to tailor their storage configuration for both performance and redundancy. Coupled with 8 SFF drive bays and compatibility with HPE 369i storage options, the ML350 supports scalable storage expansion while maintaining data integrity. This combination ensures that both high-speed and high-capacity storage requirements are met efficiently.

Server Expandability and Storage Options

Drive Bay Configuration

The ML350 supports up to 8 Small Form Factor (SFF) drive bays, which can be populated with a mix of SAS, SATA, and SSD drives. This flexibility allows businesses to configure the server to meet performance-intensive workloads or high-capacity storage needs. Additionally, the 369i smart storage controller enhances drive management, providing advanced features such as online RAID level migration and drive monitoring.

Memory and PCIe Expansion

With multiple DIMM slots and PCIe expansion slots, the HPE Proliant ML350 allows businesses to expand memory and add specialized cards such as graphics, network, or storage adapters. This level of expandability makes the ML350 ideal for virtualized environments, high-performance databases, and other demanding applications that require scalable infrastructure.

Power Efficiency and Reliability

Redundant Power Supply Unit (RPS)

The server comes with 1x 800W RPS, which offers redundant power support, ensuring uninterrupted operation in case of a PSU failure. This feature is critical for mission-critical applications and business continuity, providing peace of mind for IT administrators. The efficient power design also reduces operational costs while maintaining high performance.

Thermal Management and Cooling

Designed for tower form factor deployment, the ML350 includes intelligent thermal sensors and hot-pluggable fans. This ensures optimal cooling performance, even under heavy workloads, while allowing for easy maintenance without downtime. The advanced cooling system prolongs hardware life and reduces the risk of overheating, making the ML350 a reliable solution for 24/7 operations.

Networking and Connectivity

Integrated Network Options

The ML350 Gen10 features integrated Gigabit Ethernet ports, providing high-speed connectivity for small to medium-sized enterprise networks. Additional network adapters can be installed via PCIe slots to support 10GbE or specialized networking configurations. This flexibility allows the server to adapt to evolving networking requirements without compromising performance.

Remote Management with iLO

HPE Integrated Lights-Out (iLO) provides remote management capabilities, enabling IT teams to monitor, update, and troubleshoot the server remotely. iLO enhances operational efficiency by offering predictive analytics, automated alerts, and secure access controls. This feature is particularly valuable for distributed or offsite environments where physical server access may be limited.

Security Features

Data Protection and Encryption

The ML350 P04674-S01 includes built-in security features such as silicon root of trust, secure boot, and TPM support. Combined with the Smart Array controller, businesses can implement full-disk encryption and advanced RAID protection, ensuring sensitive data remains secure. The server’s security architecture is designed to comply with enterprise security standards and industry regulations.

Physical and Logical Security

HPE Proliant Gen10 servers provide both physical and logical security mechanisms. Lockable drive bays prevent unauthorized access, while role-based access control ensures that only authorized personnel can perform critical operations. These features reduce the risk of internal and external threats while safeguarding business-critical information.

Ideal Use Cases for HPE ML350 Gen10

Virtualization Environments

With its multi-core Xeon processor and expandable memory options, the ML350 is ideal for hosting virtual machines, running hypervisors, and supporting software-defined infrastructures. IT administrators can consolidate multiple workloads on a single server, reducing hardware costs and improving resource utilization.

Database and Business Applications

The combination of high-performance processors, reliable DDR4 memory, and robust RAID storage makes the ML350 well-suited for business-critical databases, ERP systems, and CRM applications. The server can handle high transaction volumes while maintaining low latency and high availability.

Backup and Storage Solutions

With scalable SFF drive bays and support for advanced RAID levels, the ML350 can serve as a central backup server or storage node for SMBs and enterprise environments. Redundant power supplies and smart storage features ensure data integrity and minimize the risk of downtime during critical backup operations.
