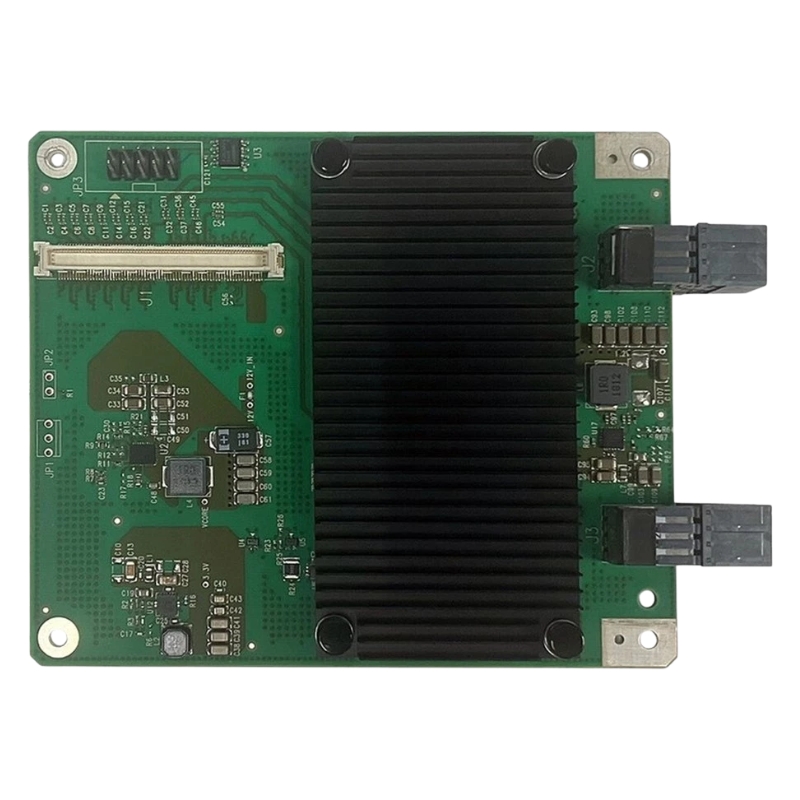

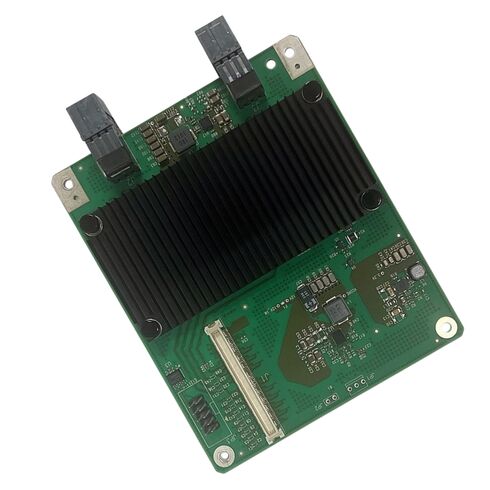

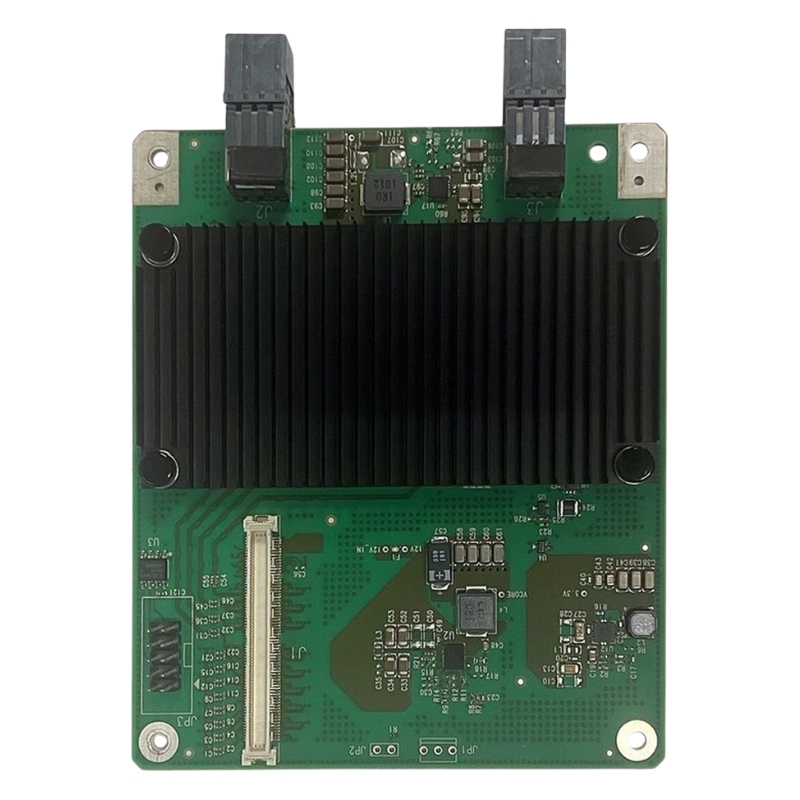

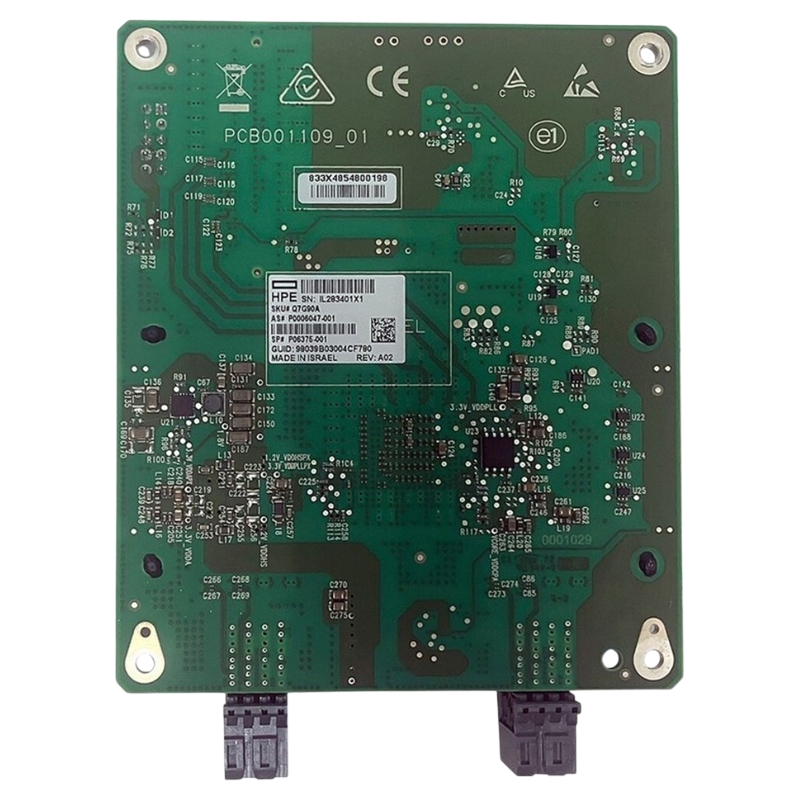

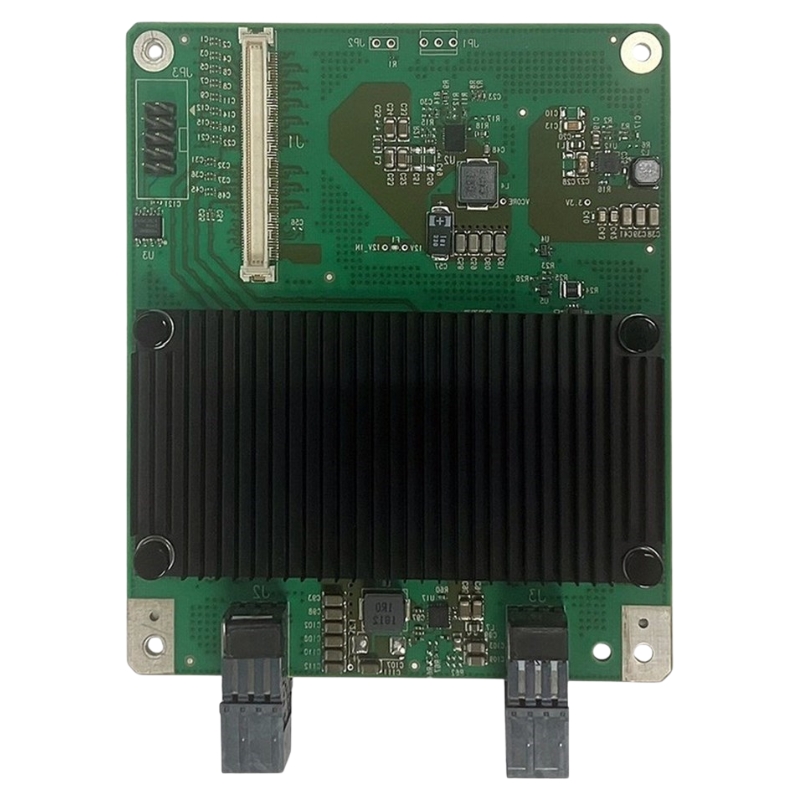

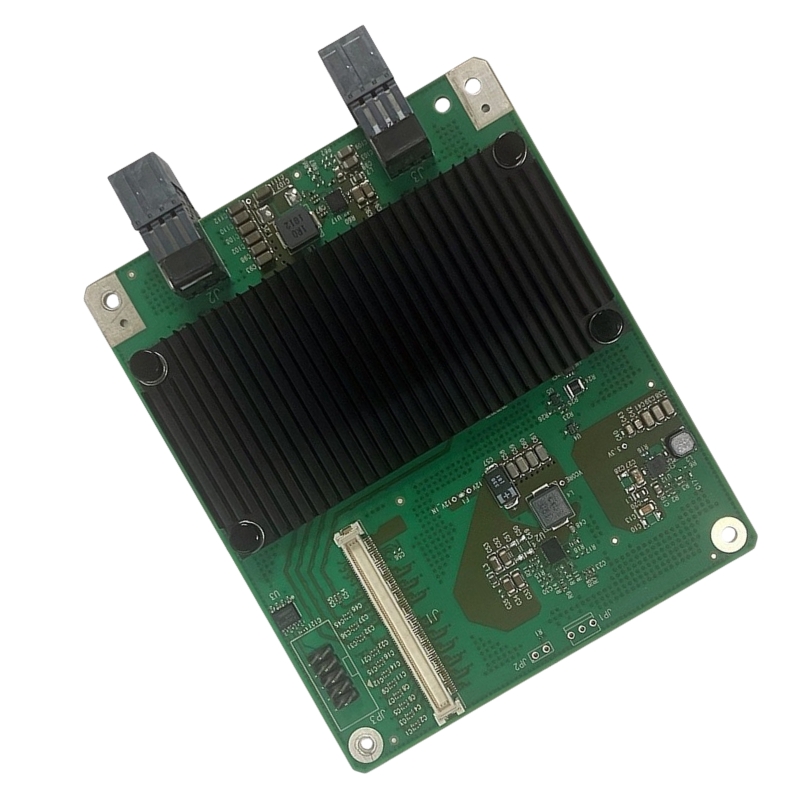

Q7G90A HPE InfiniBand EDR 2-port Mezzanine Card

HPE Q7G90A InfiniBand EDR 2-Port Mezzanine Card Overview

The HPE Q7G90A SGI CX5 InfiniBand EDR 2-port HCA Mezzanine Card is a specialized high-speed interconnect solution engineered for advanced high-performance computing (HPC), artificial intelligence (AI), machine learning (ML), and data-intensive enterprise environments. Designed for seamless integration with SGI and HPE server platforms, this InfiniBand host channel adapter delivers exceptional bandwidth, ultra-low latency, and superior scalability. Built on Mellanox ConnectX-5 technology, now part of :contentReference[oaicite:0]{index=0}, this mezzanine card empowers organizations to accelerate complex workloads across clustered computing infrastructures.

Advanced InfiniBand EDR Connectivity

InfiniBand EDR (Enhanced Data Rate) technology offers up to 100Gb/s per port, enabling blazing-fast data transfer rates that are critical for distributed computing and parallel processing tasks. The dual-port design of the HPE Q7G90A allows redundant fabric connections or doubled aggregate throughput, ensuring both resilience and high performance. Enterprises leveraging this InfiniBand adapter can achieve significant performance improvements in latency-sensitive applications such as financial modeling, genomic sequencing, weather simulation, and real-time analytics.

Optimized for HPC and AI Clusters

The mezzanine card is purpose-built for tightly coupled HPC clusters where node-to-node communication speed directly affects overall system efficiency. By minimizing communication overhead, the HPE Q7G90A ensures that large computational jobs scale effectively across hundreds or even thousands of compute nodes. Its hardware-based acceleration capabilities enhance MPI operations, RDMA transfers, and collective communication processes.

RDMA and Low-Latency Architecture

Remote Direct Memory Access (RDMA) allows direct memory-to-memory data transfer between servers without CPU intervention. This significantly reduces latency and CPU overhead, freeing system resources for primary computational tasks. The ConnectX-5 architecture embedded in this card provides intelligent packet processing, congestion control, and adaptive routing for consistent, predictable performance under demanding workloads.

Technical Architecture and Mezzanine Form Factor Benefits

The mezzanine form factor of the HPE Q7G90A SGI CX5 InfiniBand adapter ensures tight integration within supported HPE and SGI blade servers. Unlike standard PCIe adapters, mezzanine cards are purpose-built to align with server motherboard designs, delivering optimized airflow, reduced cabling complexity, and enhanced system density.

Dual-Port 100Gb/s Throughput

Each port on the HCA supports EDR speeds of up to 100Gb/s, resulting in an aggregate throughput of 200Gb/s per adapter when both ports are utilized. This high-bandwidth capability supports data-intensive operations including distributed storage access, high-frequency transaction processing, and deep learning model training.

PCIe 3.0 Interface Compatibility

The card leverages a PCIe 3.0 x16 interface to maximize host bandwidth and ensure compatibility with modern server architectures. The PCI Express interface provides high data transfer rates between the server CPU and the network adapter, maintaining full utilization of the InfiniBand fabric.

Energy-Efficient High-Performance Design

Energy efficiency is essential in modern data centers where power consumption and thermal management impact operational costs. The HPE Q7G90A is designed with optimized power utilization while maintaining peak performance. Intelligent power management features help balance energy usage with computational demand.

Scalability for Enterprise and Research Environments

Organizations deploying large-scale HPC clusters require network infrastructure that scales seamlessly. The HPE Q7G90A SGI CX5 InfiniBand EDR adapter supports advanced InfiniBand fabric features such as adaptive routing, congestion control, and QoS capabilities. These technologies ensure stable performance even as cluster sizes expand.

Support for Large Distributed Computing Frameworks

Modern distributed frameworks such as Hadoop, Spark, and TensorFlow benefit significantly from low-latency interconnects. By integrating the HPE Q7G90A into compute nodes, enterprises can accelerate data shuffling, inter-process communication, and synchronization operations essential to big data and AI workflows.

High Availability Through Dual-Port Redundancy

Redundant connectivity is critical in mission-critical infrastructures. The dual-port configuration enables failover paths within InfiniBand fabrics, reducing downtime risks and enhancing cluster resilience. Administrators can configure active-active or active-passive topologies based on workload requirements.

Enhanced Virtualization and Multi-Tenant Support

The ConnectX-5 platform supports advanced virtualization features such as SR-IOV and virtual functions, enabling efficient resource allocation in virtualized HPC environments. This ensures that multiple virtual machines or containers can share high-speed InfiniBand resources without compromising isolation or performance.

Compatibility with HPE and SGI Server Platforms

The HPE Q7G90A SGI CX5 InfiniBand mezzanine card is designed to operate seamlessly within compatible HPE ProLiant and SGI systems. Its firmware and hardware configuration are optimized for enterprise-grade stability and performance consistency.

Integration with HPE Scalable Systems

High-density compute systems such as SGI ICE and HPE Apollo platforms benefit from the bandwidth and low latency provided by this adapter. These systems are frequently deployed in research laboratories, financial institutions, oil and gas exploration, and national supercomputing facilities.

Enterprise-Class Reliability Standards

HPE products are known for rigorous testing and quality assurance processes. The Q7G90A mezzanine card meets enterprise-level reliability standards, ensuring consistent operation under continuous high-load conditions. Built-in diagnostics and management capabilities simplify monitoring and maintenance.

Security and Data Integrity in InfiniBand Fabrics

Data security is a critical concern in distributed computing environments. InfiniBand technology includes partitioning and isolation features that enhance workload security across shared fabrics. The HPE Q7G90A supports hardware-based security mechanisms to prevent unauthorized access and maintain data integrity.

Partitioning and Access Control

InfiniBand partitions allow administrators to segregate traffic between different workloads or departments within the same physical fabric. This capability is essential for multi-tenant research clusters and enterprise cloud deployments.

End-to-End Reliability Features

Error detection and correction mechanisms built into the InfiniBand protocol safeguard data transmissions. These reliability features reduce retransmissions and improve overall cluster stability.

Key Optimization in Modern Data Centers

Data centers transitioning toward exascale computing and AI-driven operations require advanced networking infrastructure. The HPE Q7G90A mezzanine adapter contributes to reduced network overhead, improved compute efficiency, and optimized workload distribution.

Latency Reduction for Distributed Workloads

Microsecond-level latency improvements have a measurable impact on large-scale cluster performance. The InfiniBand EDR architecture ensures consistent low latency across thousands of parallel tasks.

Enhanced GPU and Accelerator Integration

GPU-intensive environments benefit from direct GPU communication over InfiniBand using GPUDirect technology. This eliminates unnecessary CPU involvement, further reducing bottlenecks.
