R3B02-63001 HPE 32 Ports 100GbE 32QSFP28 Switch.

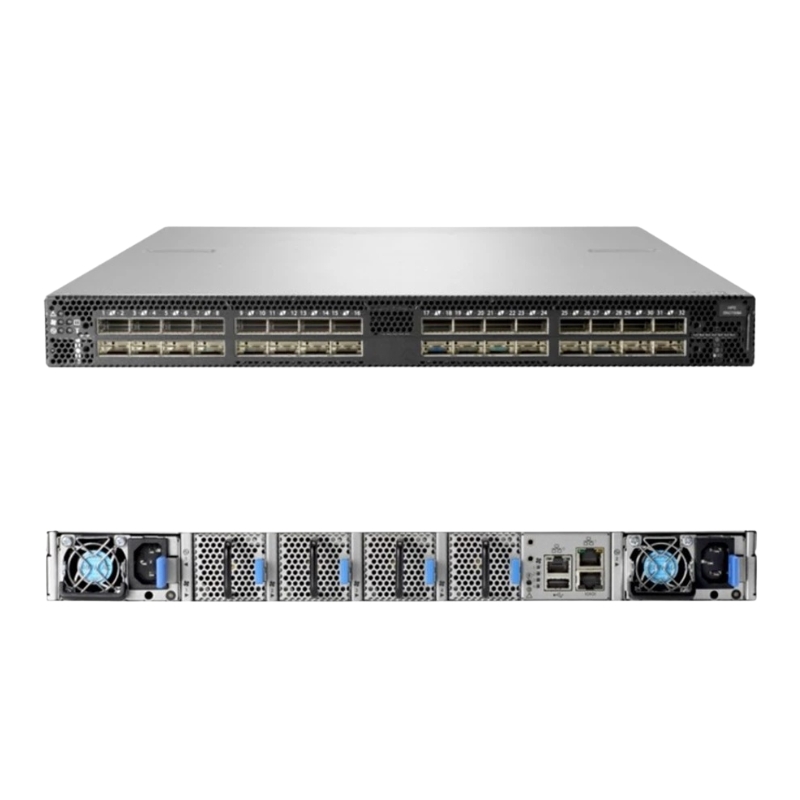

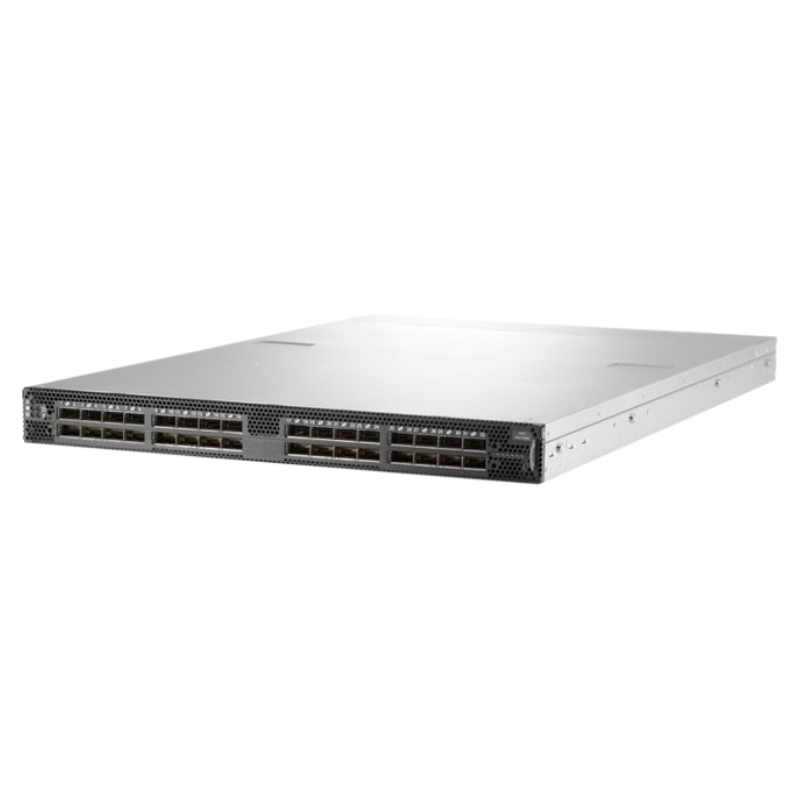

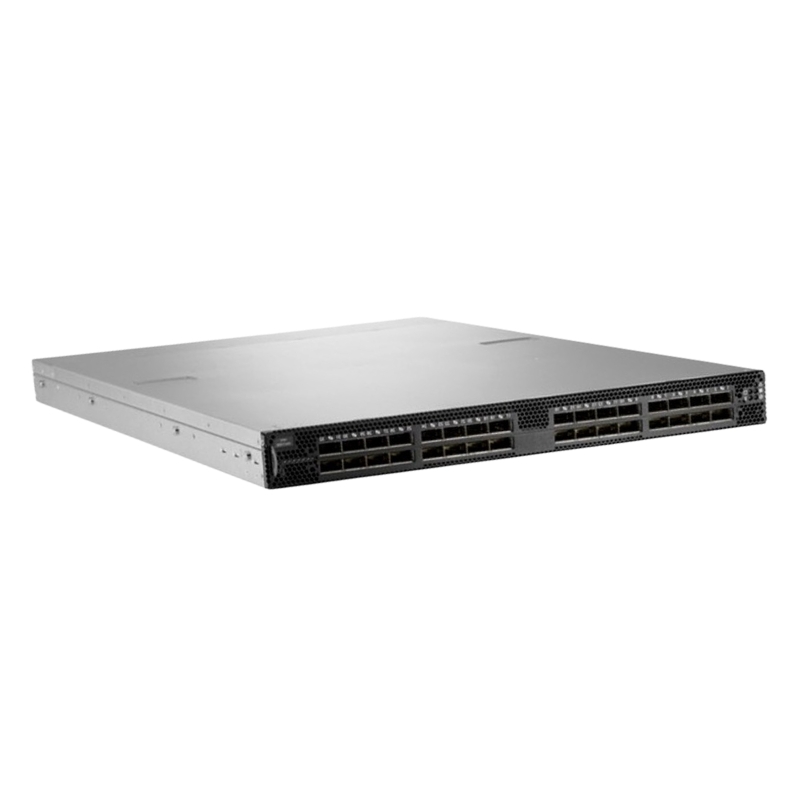

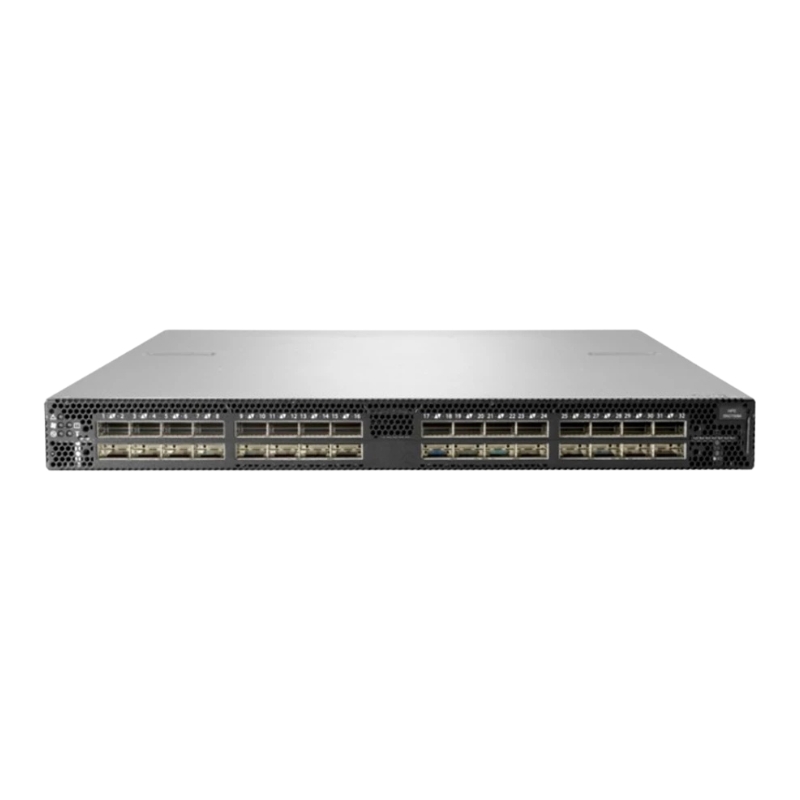

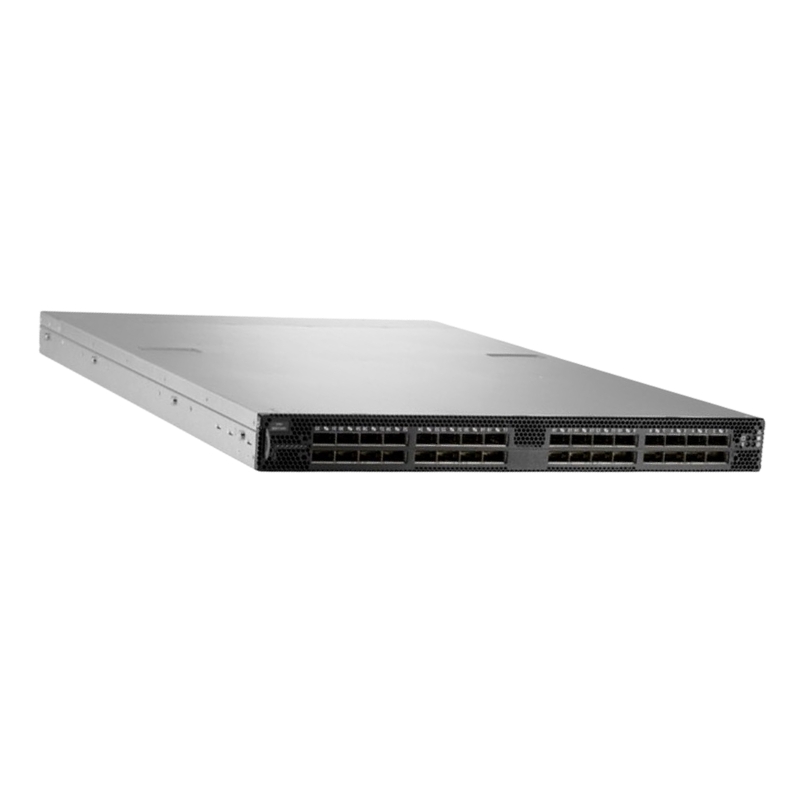

HPE R3B02-63001 SN2700M 32 Ports 100GbE 32QSFP28 ONIE DC Switch

High-Performance Networking for Modern Data Centers

The HPE R3B02-63001 SN2700M M-series Ethernet switch is engineered for contemporary server and storage networks, supporting a wide range of speeds including 10, 25, 40, 50, and 100 Gbps. Designed for predictable throughput with zero packet loss, it ensures seamless data transfer across all ports and frame sizes. This switch combines enterprise-grade performance with cost-effective efficiency, offering a strong return on investment while maintaining easy management and deployment.

Key Benefits and Capabilities

• Reliable High-Speed Connectivity: Achieve consistent wire-rate performance without packet loss, critical for applications sensitive to data loss.
• Future-Proof Architecture: Supports current 10 Gbps networks via breakout cables while being ready to scale to 25, 50, and 100 Gbps.
• Low Latency: Ultra-low port-to-port latency of under 300ns optimizes flash storage performance and accelerates software-defined and cloud data center traffic.
• Flexible Port Configuration: Options range from 64 ports at 10–50 Gbps to 32 ports at 40 or 100 Gbps, simplifying aggregation scaling and reducing total cost of ownership.
• Robust Management: Supports CLI, GUI, and advanced toolsets for intuitive configuration, monitoring, and fabric management.

Optimized for Enterprise Storage and High-Demand Workloads

HPE R3B02-63001 SN2700M switches excel in environments requiring fast, fair, and low-latency connectivity. Ideal for storage networks, hyper-converged infrastructures, financial services, and media & entertainment sectors, they deliver stable performance even under mixed traffic loads and diverse port speeds.

Advanced Performance Features

• Wire-Rate Forwarding: Guarantees 100% capacity throughput across 32 ports at 100 Gbps concurrently without packet loss.
• ECMP and Load Balancing: Equal-cost multi-path routing ensures efficient distribution of workloads in aggregation layers.
• Lossless Fabric: Supports mission-critical storage and high-performance computing applications by avoiding head-of-line blocking.
• Bandwidth Capacity: Internal switching fabric provides sufficient capacity for simultaneous 100 Gbps traffic on all ports.

Flexible Deployment and Scalability

The HPE R3B02-63001 SN2700M series is designed to grow with your network needs. Its modular port configurations allow scaling from small-scale 10 Gbps environments to full 100 Gbps topologies, providing flexibility and efficiency in network expansion.

Deployment Advantages

• Support for breakout cables to extend existing 10 Gbps infrastructure.
• Seamless upgrades to 25, 50, and 100 Gbps speeds without requiring full network redesign.
• Reduces total cost of ownership by optimizing aggregation layer switch deployment.
• Ensures predictable, high-speed performance under heavy mixed workloads.

Enhanced Storage Performance

By providing ultra-low latency and lossless fabric features, the HPE SN2700M switch maximizes flash storage efficiency and guarantees smooth, high-speed data delivery even during peak traffic periods.

Scalable and Future-Ready Networking

This switch empowers IT teams to expand network infrastructure gradually, adapting to growing demands without large-scale replacements. Flexible port speeds, high bandwidth capacity, and advanced routing protocols ensure long-term investment protection.

HPE R3B02-63001 SN2700M Overview

The HPE R3B02-63001 SN2700M is a high-performance data center switch designed to meet the demanding needs of modern enterprise and cloud networks. Featuring 32 QSFP28 ports capable of delivering 100GbE connectivity, this switch ensures ultra-low latency, high throughput, and exceptional reliability for critical networking applications.

Engineered for efficiency and scalability, the SN2700M provides advanced features that support dynamic workloads, making it ideal for data centers, high-performance computing (HPC), and large-scale enterprise deployments. Its modular design allows seamless integration with existing infrastructure while offering the flexibility to grow with evolving network requirements.

Key Features of the SN2700M 32-Port Switch

High-Speed 100GbE Connectivity

The SN2700M features 32 QSFP28 ports that support 100 Gigabit Ethernet, enabling rapid data transfer across high-bandwidth applications. Each port is optimized for low-latency switching, making it suitable for real-time applications such as virtualization, video streaming, and HPC workloads.

• 32 QSFP28 ports with 100GbE bandwidth
• Supports breakout configurations for 25GbE and 10GbE connections
• Low-latency performance for demanding applications
• Optimized for both spine and leaf network architectures

ONIE-Enabled for Flexible Network Deployment

With the Open Network Install Environment (ONIE), the SN2700M supports easy installation of a variety of network operating systems. This flexibility allows network administrators to choose the OS that best fits their requirements, including HPE’s own network OS or third-party solutions for greater customization and control.

• Supports ONIE for simplified network OS installation
• Compatibility with multiple Linux-based network OS distributions
• Enables a disaggregated networking approach for scalability

Power to Connector Airflow Design

The SN2700M is engineered with a power-to-connector airflow architecture that optimizes cooling efficiency within data center environments. This design ensures that hot air is effectively expelled, reducing thermal stress and enhancing the longevity of the switch.

• Front-to-back airflow design for rack-optimized cooling
• Efficient heat dissipation to maintain optimal operating temperatures
• Supports high-density deployments without compromising performance

Performance and Scalability

Low-Latency Switching

Latency is critical in high-speed networking environments. The SN2700M provides ultra-low latency switching, ensuring rapid packet forwarding and minimal delay, even under heavy traffic conditions. This capability is essential for real-time applications, financial trading platforms, and large-scale cloud deployments.

Advanced Scalability Features

Designed for growing networks, the SN2700M offers extensive scalability options. Its modular ports and high-density design allow for seamless expansion as network traffic and organizational demands increase.

• Scalable architecture to accommodate expanding data center networks
• Support for link aggregation and port channeling for redundancy
• High bandwidth density per rack unit to optimize space utilization

Network Security and Reliability

Enhanced Security Capabilities

Security is a top priority in enterprise networking. The SN2700M integrates multiple security features to safeguard sensitive data and prevent unauthorized access. From advanced access control lists (ACLs) to hardware-based protection mechanisms, this switch ensures that critical traffic remains secure.

• Advanced ACLs to control and filter traffic
• Secure management protocols including SSH and SNMPv3
• Hardware-assisted protection against DDoS attacks

High Availability and Redundancy

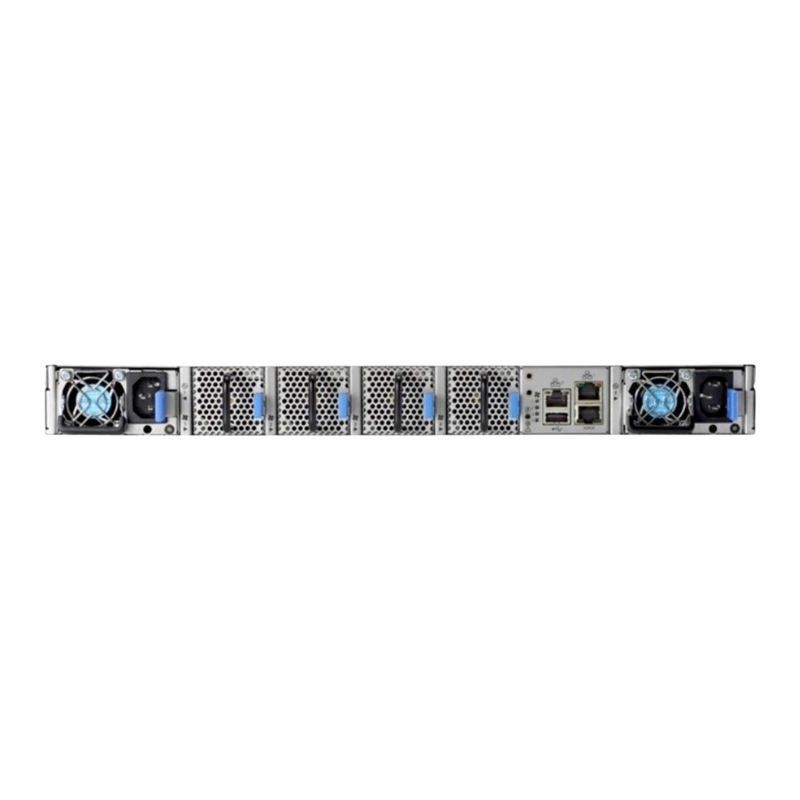

The SN2700M is built for mission-critical applications that require high availability. Redundant power supplies, hot-swappable fans, and failover mechanisms ensure uninterrupted operation, minimizing downtime and maximizing network reliability.

• Dual hot-swappable power supplies for continuous operation
• Redundant cooling fans to maintain optimal temperatures
• Support for link failover and network resiliency protocols

Advanced Networking Features

Comprehensive Layer 2 and Layer 3 Capabilities

The SN2700M supports a wide range of Layer 2 and Layer 3 networking protocols, enabling sophisticated network segmentation, routing, and traffic management. This versatility allows organizations to deploy complex network topologies without compromising performance.

• VLAN segmentation for enhanced network organization
• Static and dynamic routing protocols including OSPF and BGP
• Support for MPLS and VXLAN overlays for cloud-ready networks

Quality of Service (QoS) and Traffic Management

Maintaining optimal performance for mission-critical applications requires intelligent traffic management. The SN2700M provides advanced QoS features that prioritize latency-sensitive traffic, ensuring consistent performance across all applications.

• Traffic prioritization based on application or user-defined rules
• Rate limiting and congestion management for efficient bandwidth utilization
• Deep packet inspection for intelligent traffic shaping

Deployment and Integration

Data Center Integration

The SN2700M is ideal for both greenfield and brownfield data center deployments. Its compact form factor, combined with high port density, allows it to fit seamlessly into existing racks, providing high-speed interconnectivity across servers, storage systems, and other networking equipment.

• 1RU form factor with 32 QSFP28 ports
• Optimized for spine-leaf architecture in modern data centers
• Supports dense cabling and flexible network topologies

Compatibility with HPE Ecosystem

As part of the HPE networking portfolio, the SN2700M integrates seamlessly with other HPE products, including servers, storage, and management tools. This interoperability simplifies network management and enhances overall operational efficiency.

• Full compatibility with HPE Intelligent Management Center (IMC)
• Supports HPE OneView integration for simplified monitoring
• Works seamlessly with HPE ProLiant servers and HPE storage solutions

Software and Management Options

The SN2700M supports multiple management interfaces, including web-based GUI, CLI, and SNMP. This flexibility ensures that administrators can choose the most suitable management approach for their environment, whether it’s on-premises, remote, or automated network orchestration.

• Web-based GUI for intuitive configuration
• CLI access for advanced network scripting
• SNMP support for centralized monitoring and alerts

Energy Efficiency and Sustainability

Data center energy efficiency is a crucial consideration for modern IT infrastructure. The SN2700M is designed to minimize power consumption without sacrificing performance, contributing to lower operational costs and reduced environmental impact.

• Power-to-connector airflow reduces cooling energy requirements
• Energy-efficient components for reduced electricity usage
• Compliance with environmental standards for sustainable operations

Applications and Use Cases

High-Performance Computing (HPC)

The SN2700M’s low-latency, high-bandwidth design makes it ideal for HPC environments where rapid data transfer is critical. Applications in scientific research, simulation, and financial modeling benefit from the switch’s advanced capabilities.

Cloud and Virtualized Environments

Cloud service providers and enterprises leveraging virtualization can take advantage of the SN2700M’s scalability and ONIE flexibility. Its ability to integrate multiple network OS solutions allows for customized, agile cloud deployments.

Enterprise Data Centers

For large enterprises, the SN2700M delivers reliable connectivity, security, and high performance. It supports mission-critical applications, including database management, video conferencing, and enterprise resource planning (ERP) systems.
