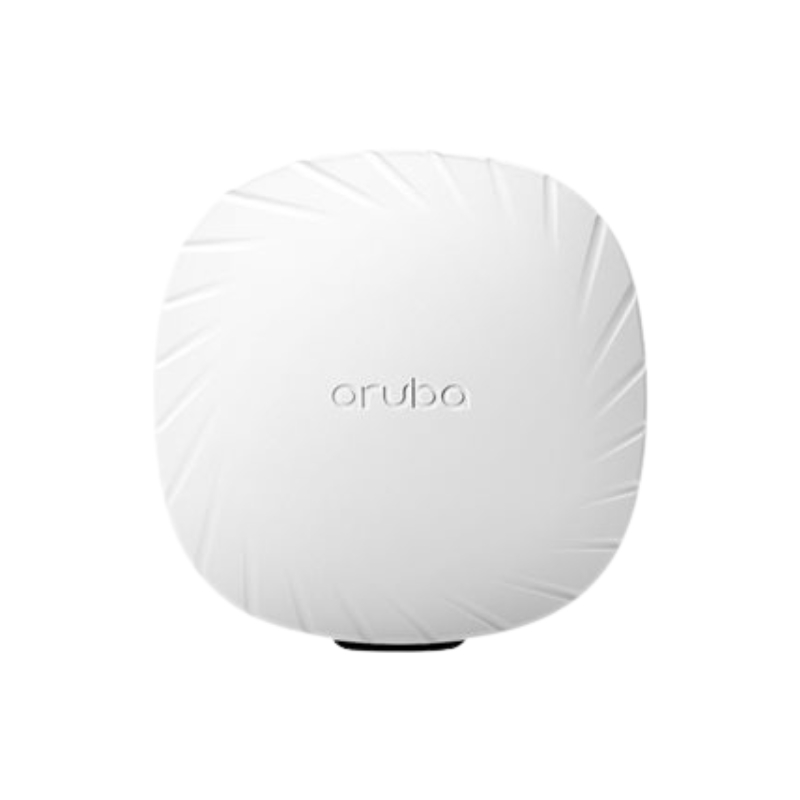

R8M99-61001 HPE Aruba Networking Ap-503 Campus Wireless Bluetooth Access Point

Advanced Wireless Connectivity with Aruba AP-503

The HPE R8M99-61001 Aruba Networking AP-503 (US) is engineered for modern campus deployments requiring robust wireless access with seamless performance. Leveraging the latest in wireless protocols, this device delivers exceptional coverage and reliability across multiple environments.

Technical Specifications

The Aruba AP-503 is engineered to support high-throughput wireless access with a minimalist hardware footprint. Its energy-efficient and environmentally conscious design contributes to a low total cost of ownership.

Radio and Antenna Details

• Dual-band 802.11ax (Wi-Fi 6) support
• 2x2:2 MIMO for both 2.4GHz and 5GHz bands
• Internal antennas with optimized coverage patterns

Connectivity and Ports

• 1 x 10/100/1000Base-T Ethernet (PoE) port
• 802.3af PoE Class 2 compliant
• Integrated BLE 5.0 radio

Power and Energy Efficiency

• Supports Power over Ethernet (PoE) for simplified deployment
• Energy-efficient Target Wake Time (TWT) and smart power saving modes
• Low power draw with typical power consumption under 10W

Environmental Specifications

• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Relative humidity: 5% to 93% non-condensing
• Compact, lightweight design for wall or ceiling mounting

Wireless Protocols and Radio Frequency Support

• Supports a wide spectrum of standards: IEEE 802.11a/b/g/n/ac/ax and Bluetooth 5.0
• Operates on both 2.4 GHz and 5 GHz bands for versatile deployment
• Advanced OFDMA and DSSS technologies enhance signal stability and efficiency

Performance Highlights and Throughput

• Delivers up to 1.2 Gbps on 5 GHz band
• Offers speeds of up to 574 Mbps on the 2.4 GHz band
• Total data transfer potential reaches 1.49 Gbps
• Capable of supporting up to 256 concurrent clients per Wi-Fi radio

Capacity and Scalability Features

• Supports 16 BSSIDs per radio for advanced segmentation
• Includes 8 OFDMA units to optimize multi-user connectivity

Design and Physical Characteristics

• Compact and indoor-optimized with dimensions: 1.4 in (H) x 5.7 in (W) x 5.7 in (D)
• Lightweight at only 8.99 ounces for unobtrusive ceiling or wall mounting
• Stylish external form factor designed for modern enterprise interiors

Reliable Power and Efficiency

• Supports Power over Ethernet (PoE) Class 3 for simplified cabling
• Energy-efficient operation with a power consumption of just 4.7 watts

Built-in Antenna and Coverage

• Includes two integrated omni-directional antennas
• Delivers a gain of 4.8 dBi for extended range in indoor settings
• 2x2:2 MIMO stream configuration ensures consistent signal distribution

Encryption and Security Protocols

• Comprehensive encryption options including WPA, WPA2, WPA3, and SSL
• Secured data link layers for enterprise-level protection
• Compliant with multiple global safety and data standards

Certifications and Industry Compliance

• Certified under UL 2043, FCC, CE/EMC, EN 60601-1-1, ISED, and more
• Meets IEEE standards: 802.11a/b/g/n/ac/ax, 802.3af/at/az
• Rated for extended lifespan with an MTBF of 106 years

Smart Connectivity Options

• One Gigabit RJ-45 Ethernet port (1000Base-T)
• One USB 2.0 Type-A port for additional peripheral support
• Micro-USB console port for direct management and setup

IoT Integration and Compatibility

• Fully compatible with Internet of Things (IoT) devices
• Supports Zigbee and Bluetooth Low Energy (LE) for seamless IoT communication
• Ideal for sensor-rich environments and smart campuses

Operating System Requirements

• Designed to work with ArubaOS and InstantOS environments
• Integrated seamlessly into existing Aruba networking infrastructures
• Supports dynamic configuration and centralized management

Status Monitoring and Indicators

• Equipped with LEDs to indicate Power, System Health, and Status
• Allows real-time monitoring for network administrators

High-Performance Wireless Networking with HPE Aruba AP-503 Access Point

The HPE R8M99-61001 Aruba Networking AP-503 Campus Wireless Bluetooth Access Point is an innovative and efficient solution designed for enterprises, educational institutions, and medium to large campus environments. As part of Aruba’s powerful networking portfolio, the AP-503 offers robust dual-radio performance, integrated Bluetooth connectivity, and enterprise-grade security, making it a preferred choice for wireless infrastructure scalability and reliability.

Key Features of the Aruba AP-503 Access Point

The AP-503 brings exceptional value to network administrators seeking compact and efficient wireless access points. It combines cutting-edge wireless technologies with integrated management capabilities and advanced security protocols to deliver consistent performance across large environments.

Dual Radio 802.11ax (Wi-Fi 6) Support

The AP-503 supports 802.11ax (Wi-Fi 6), offering faster throughput, higher capacity, and improved efficiency, especially in dense device environments such as classrooms, offices, and public venues. It operates on both 2.4GHz and 5GHz frequencies, allowing for optimal wireless load balancing and increased data rates.

Integrated Bluetooth Low Energy (BLE) Support

With built-in BLE functionality, the AP-503 supports IoT applications, asset tracking, and location services. Businesses can easily integrate beacon-based wayfinding solutions or proximity marketing, all while maintaining seamless wireless network coverage.

Compact Form Factor with Enterprise-Grade Performance

Despite its compact design, the AP-503 delivers robust wireless performance with MU-MIMO, OFDMA, and Target Wake Time (TWT) technologies. These features optimize power consumption, increase user capacity, and enhance the overall quality of experience for connected clients.

Deployment Scenarios for the Aruba AP-503

The Aruba AP-503 is purpose-built for campus-based deployments where high device density, secure access, and consistent wireless coverage are required. It serves a variety of sectors by ensuring mobility, connectivity, and operational continuity.

Enterprise Office Environments

In corporate settings, the AP-503 supports seamless roaming and bandwidth-intensive applications such as video conferencing, file sharing, and VoIP. Its integrated secure tunneling and Aruba’s role-based access policies protect sensitive enterprise data while enabling flexible user access.

Educational Institutions and Digital Classrooms

The AP-503 is ideal for schools and universities looking to expand e-learning, student mobility, and classroom technology. Wi-Fi 6 ensures uninterrupted internet access even during high-traffic periods such as lectures and exams.

Healthcare and Hospitality Industries

For hospitals and hotels, the AP-503 delivers reliable connectivity for both operational staff and guests. Integrated BLE enables patient tracking, staff location services, and personalized guest experiences through mobile apps and smart devices.

Network Management and Security

Managing and securing your wireless infrastructure is simplified with Aruba’s cloud-native management tools and enterprise-class security protocols. The AP-503 supports both controller-based and controller-less (Instant) deployments.

Aruba Central and On-Premises Management

Aruba Central provides intuitive cloud-based management, allowing administrators to monitor network health, configure settings, and deploy updates remotely. Alternatively, on-premises controllers offer centralized configuration, ideal for environments with strict data compliance requirements.

Enterprise-Grade Encryption and Authentication

The AP-503 supports WPA3 and secure tunneling technologies such as VPN integration and 802.1X authentication. It also includes Dynamic Segmentation and Aruba ClearPass compatibility for granular role-based access control.

Zero Trust Architecture

Through Zero Trust security principles, Aruba ensures that users and devices are continuously authenticated and monitored. The AP-503 is designed with this architecture in mind, reducing attack surfaces and ensuring only trusted endpoints gain access to network resources.

Seamless Scalability with Aruba’s Wireless Ecosystem

Aruba’s wireless solutions are known for their scalability and ease of integration. The AP-503 is designed to be part of a broader Aruba network ecosystem, including switches, gateways, and unified network management platforms.

Interoperability with Aruba Switches

Aruba CX Series switches seamlessly integrate with the AP-503, providing intelligent PoE, VLAN tagging, and robust QoS features that ensure optimal performance of connected devices.

Compatibility with Aruba Mobility Controllers

Aruba’s mobility controllers enable enhanced security, RF optimization, and traffic segmentation, ensuring the AP-503 operates with optimal efficiency across varying user loads and bandwidth demands.

Support for Multi-Vendor Environments

The AP-503 is compatible with industry-standard protocols, ensuring interoperability with third-party network solutions, security gateways, and IT service platforms.

Reliability and Warranty Support

As part of Hewlett Packard Enterprise’s Aruba product line, the AP-503 is backed by comprehensive technical support, long-term firmware updates, and an extended hardware warranty to ensure longevity and peace of mind.

Hardware Assurance and RMA Process

HPE offers a limited lifetime warranty on the Aruba AP-503, covering hardware defects and providing a streamlined return merchandise authorization (RMA) process for replacements and repairs.

Ongoing Software and Security Updates

With Aruba’s commitment to security and network resilience, software and firmware updates are provided regularly. These updates help organizations stay ahead of vulnerabilities and benefit from performance improvements.

Market Comparison and Competitive Advantages

Compared to other entry-level Wi-Fi 6 access points, the Aruba AP-503 offers a favorable balance between performance, cost, and advanced features. Its BLE capabilities, cloud-ready design, and compact hardware make it an exceptional choice for modern network environments.

Benefits Over Traditional Wi-Fi 5 (802.11ac) Access Points

The shift from Wi-Fi 5 to Wi-Fi 6 results in significant improvements in throughput, latency, and device density handling. The AP-503’s adoption of OFDMA and MU-MIMO ensures up to 4x greater network capacity.

Comparison to Other Campus Wireless Solutions

While other vendors offer comparable wireless hardware, Aruba stands out with its unified architecture, intuitive management platforms, and robust partner ecosystem. The AP-503 is especially competitive in education and enterprise sectors due to its cost-efficiency and feature set.

Future-Proofing Wireless Infrastructure

With growing reliance on wireless devices, streaming services, remote work, and IoT, future-ready wireless infrastructure is essential. The AP-503 ensures that organizations remain agile, secure, and scalable as they transition to digital-first operations.

Support for Wi-Fi 6 Certified Devices

The AP-503 ensures full compatibility and backward support for all major Wi-Fi standards, including seamless operation with Wi-Fi 6 smartphones, tablets, laptops, and IoT devices.

Readiness for Next-Gen IoT Applications

BLE integration makes the AP-503 a natural fit for emerging IoT ecosystems. From smart buildings to industrial automation, the AP-503 provides secure and persistent connectivity.

Remote Management and AI-Driven Insights

Aruba Central’s AI-based analytics tools provide network health metrics, predictive performance alerts, and automated troubleshooting recommendations. This makes network management both proactive and efficient.
