R8N87A HPE Aruba 6000 24G Class4 PoE 4SFP 370W Switch Rack Mountable.

HPE R8N87A Aruba 6000 24G Class4 PoE 4SFP 370W Switch

The HPE R8N87A Aruba 6000 Series Switch is a powerful and efficient networking device tailored for high-demand environments. With its 24 Gigabit Ethernet ports and 4 Gigabit SFP uplink ports, this managed switch delivers exceptional performance and flexibility. It is designed to meet the needs of modern network infrastructures, providing reliable connectivity and advanced management features in a compact 1U rack-mountable form factor.

Key Features

Device Specifications

The HPE R8N87A offers a comprehensive set of features to support robust networking requirements:

• Device Type: Switch - 24 Ports - Managed - Stackable. This switch functions as a Layer 2 and Layer 3 managed switch, allowing for advanced network management and scalability.

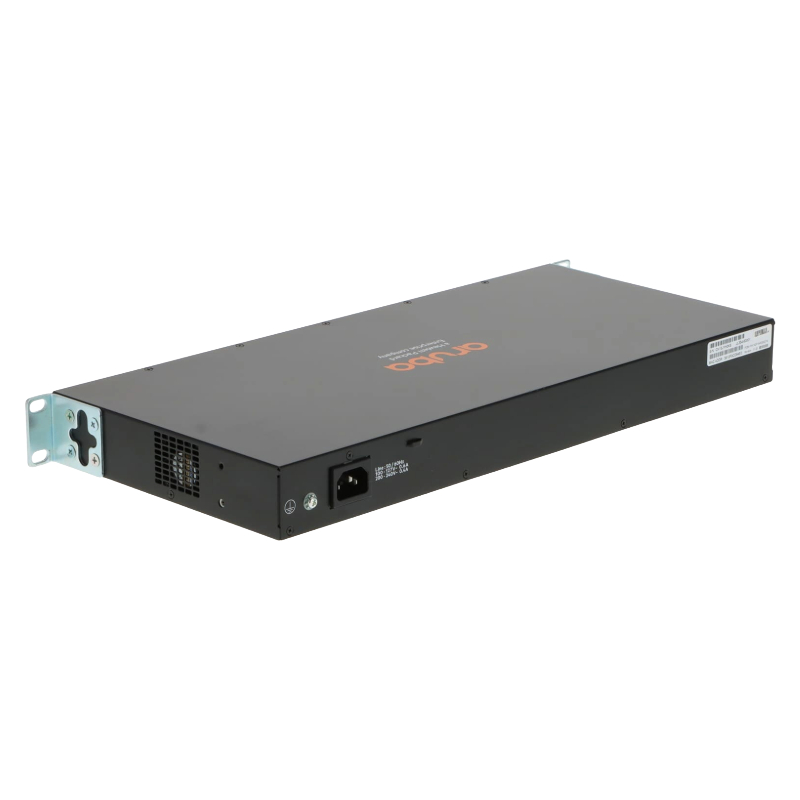

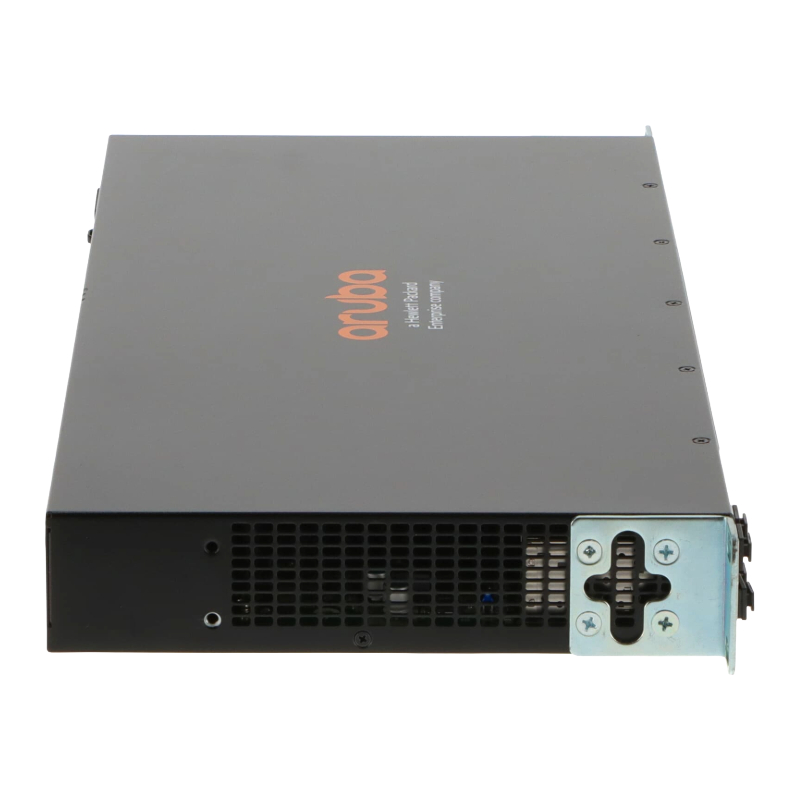

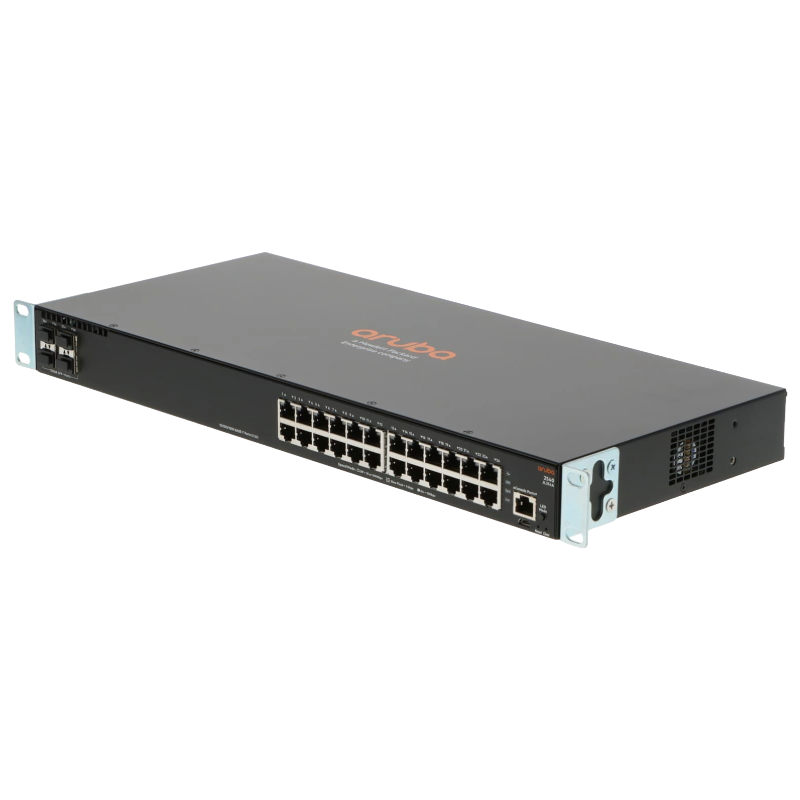

• Enclosure Type: Side-To-Side Airflow, Rack-Mountable 1U. Designed for efficient cooling and easy integration into standard 19-inch racks, this enclosure type ensures optimal performance and space-saving.
• Subtype: Gigabit Ethernet. Provides high-speed connectivity, supporting 10/100/1000 Mbps Ethernet standards.

Port Configuration and Connectivity

The switch is equipped with versatile port options to accommodate various networking needs:

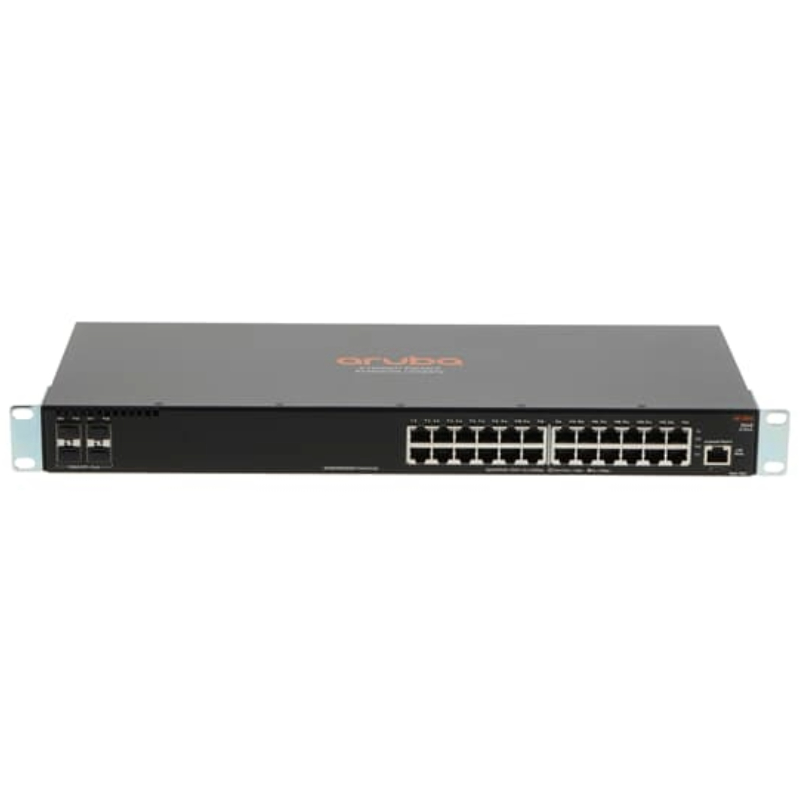

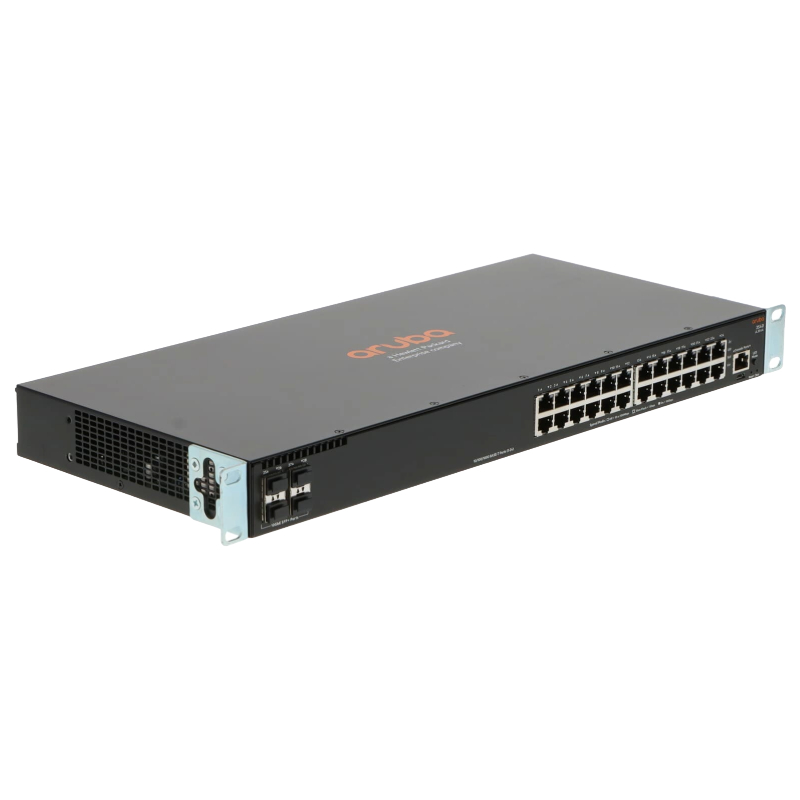

• Ports: 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP. This configuration includes 24 PoE+ (Power over Ethernet) ports, ideal for powering network devices such as IP cameras and VoIP phones, and 4 Gigabit SFP ports for flexible high-speed uplink connections.
• Expansion and Connectivity Interfaces: Features 24 x 10/100/1000 Base-T RJ-45 ports, 4 x Gigabit LAN SFP ports, 1 x USB Type-A port, and 1 x USB-C console port. These interfaces facilitate extensive connectivity options and management capabilities.

Performance Metrics

The HPE R8N87A is designed to deliver superior performance, suitable for demanding network environments:

• Packet Buffer Size: 12.38 MB. This ample buffer size helps in managing network traffic effectively, minimizing packet loss, and enhancing performance.
• Throughput: 41.6 Mpps (Million Packets per Second). High throughput ensures the switch can handle large volumes of network traffic, suitable for data-intensive applications.
• Switching Capacity: 56 Gbps. This capacity supports extensive data movement within the network, ensuring smooth operation even under heavy load.
• Latency (1 Gbps): 1.5 µs. Low latency facilitates quick data transmission, which is crucial for real-time applications and communications.

Capacity and Scalability

The switch provides significant capacity for network growth and management:

• Switched Virtual Interfaces (SVIs): 16. SVIs allow the creation of multiple VLANs for enhanced network segmentation and management.
• ARP Entries: 1024. Supports a substantial number of ARP (Address Resolution Protocol) entries for efficient address resolution within the network.
• IPv4 Routes (Unicast): 512. Accommodates up to 512 unicast routes for IPv4, enabling complex routing setups.
• IPv6 Routes (Unicast): 512. Similarly supports up to 512 unicast routes for IPv6, ensuring compatibility with modern network protocols.
• IGMP Groups: 512. Manages multicast group memberships effectively, supporting scalable multicast traffic.
• MLD Groups: 512. Supports up to 512 MLD (Multicast Listener Discovery) groups for IPv6 multicast traffic management.
• IPv4 ACL Entries (Ingress): 256. Provides granular control over IPv4 traffic with advanced ACL (Access Control List) capabilities.
• IPv6 ACL Entries (Ingress): 128. Supports IPv6 ACLs for enhanced security and traffic management.
• MAC ACL Entries (Ingress): 256. Allows detailed control over network traffic based on MAC addresses.

MAC Address Table and Frame Support

Handles MAC address entries and large frame sizes efficiently:

• MAC Address Table Size: 8192 Entries. Accommodates a large number of MAC addresses, supporting extensive device connectivity.
• Jumbo Frame Support: 9198 Bytes. Enables handling of larger packets, reducing overhead and improving performance for large data transfers.

Routing Protocols

The switch supports essential routing protocols for effective network operation:

• IGMPv2, IGMPv3: Supports multiple versions of IGMP (Internet Group Management Protocol) for efficient multicast traffic management and group membership handling.

Remote Management and Security

Advanced management and security features streamline network administration and protect data integrity:

• Remote Management Protocols: Includes SNMP (Simple Network Management Protocol) versions 1, 2c, and 3, HTTP, HTTPS, and RADIUS. These protocols offer extensive management and monitoring capabilities for network administrators.
• Encryption Algorithm: SSL (Secure Sockets Layer) for secure communication and data protection.
• Authentication Methods: Supports Secure Shell (SSH), RADIUS, TACACS+ (Terminal Access Controller Access-Control System Plus), and SSH version 2 for secure access and authentication.

Advanced Features

The switch includes a range of features to enhance network functionality and performance:

• Flow Control: Manages data flow to prevent network congestion and ensure smooth operation.
• BOOTP and ARP Support: Facilitates network booting and address resolution for efficient network operations.
• VLAN and Diffserv Support: Supports virtual LANs and differentiated services for improved network segmentation and quality of service.
• IPv6 Support: Ensures compatibility with IPv6 addressing and future network requirements.
• SNTP Support: Provides network time synchronization to maintain accurate timestamps.
• sFlow: Enables network traffic monitoring and analysis to optimize performance and troubleshoot issues.
• Multiple Spanning Tree Protocol (MSTP) Support: Enhances network redundancy and stability by managing multiple spanning tree instances.
• Trivial File Transfer Protocol (TFTP) Support: Facilitates file transfers for network management and configuration updates.
• Access Control List (ACL) Support: Provides detailed traffic control based on defined policies for improved network security.
• MLD Snooping: Enhances multicast traffic management for IPv6 networks by snooping multicast listener information.
• Trusted Platform Module (TPM): Offers hardware-based security features to protect against tampering and unauthorized access.
• LACP and LLDP Support: Facilitates link aggregation and device discovery, improving network efficiency and management.
• DHCP Client: Simplifies IP address assignment through dynamic configuration.
• Management Information Base (MIB): Supports detailed monitoring and management of network devices.
• Neighbor Discovery Protocol (NDP): Assists in discovering neighboring network devices for efficient communication.
• ICMP, DNS Client, LLDP-MED, UDP Support: Supports various protocols and services for comprehensive network management and troubleshooting.
• Rapid Spanning Tree Protocol (RSTP): Improves network stability and convergence time, reducing downtime and improving performance.
• IPv6 Addressing: Supports IPv6 addressing to accommodate modern network requirements and future-proof the network.
• Any Source Multicast (ASM): Facilitates multicast traffic from any source, improving network flexibility and scalability.

Compliant Standards

The switch complies with several industry standards to ensure interoperability and reliability:

• IEEE 802.3: Defines Ethernet standards.
• IEEE 802.1d: Spanning Tree Protocol for loop prevention.
• IEEE 802.1q: VLAN tagging for network segmentation.
• IEEE 802.3ab: Gigabit Ethernet over twisted pair.
• IEEE 802.1p: Priority tagging for quality of service.
• IEEE 802.3x: Flow control to prevent network congestion.
• IEEE 802.3ad (LACP): Link Aggregation Control Protocol for link bundling.
• IEEE 802.1w: Rapid Spanning Tree Protocol for fast network convergence.
• IEEE 802.1s: Multiple Spanning Tree Protocol for enhanced network redundancy.
• IEEE 802.3at: Power over Ethernet (PoE) enhancements.
• IEEE 802.3az: Energy-efficient Ethernet to reduce power consumption.

Power Specifications

Power details for efficient operation:

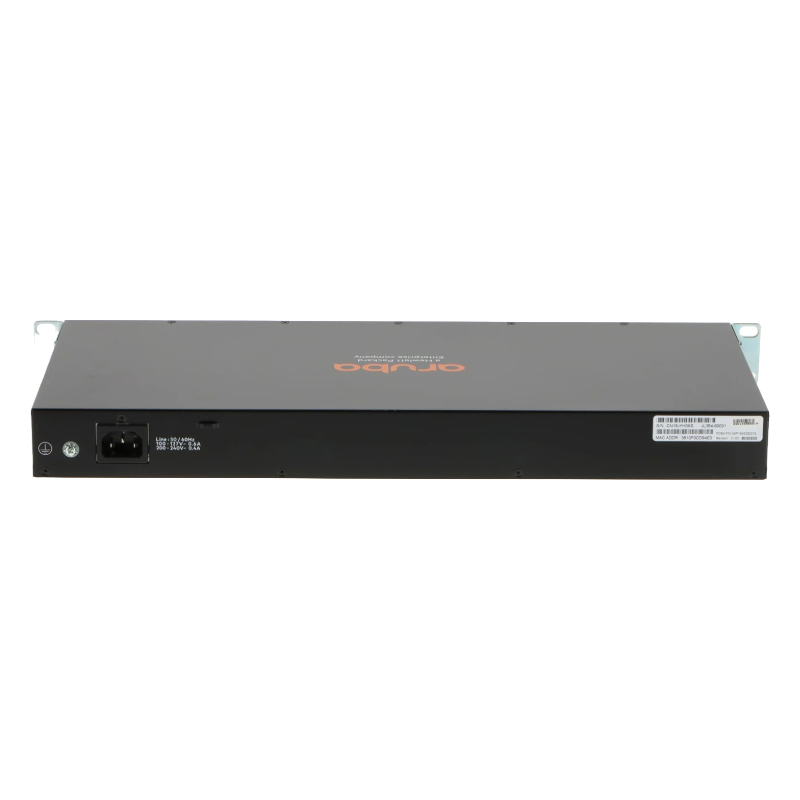

• Power Device: Internal Power Supply. Ensures stable and reliable power delivery within the switch.
• Voltage Required: AC 100-240 V (50/60 Hz). Accommodates various power sources for flexibility in deployment.
• Power Consumption Operational: 32.7 Watts. Efficient power usage helps reduce operational costs and environmental impact.

Memory and Processing

The switch includes robust memory and processing capabilities to handle demanding tasks:

• Processor: 1 x ARM A9, 1.016 GHz. Provides the computational power needed for high-performance network operations.
• RAM: 4 GB DDR3 SDRAM. Ensures smooth operation and efficient data handling.
• Flash Memory: 16 GB. Offers ample storage for firmware, configurations, and operating system.
