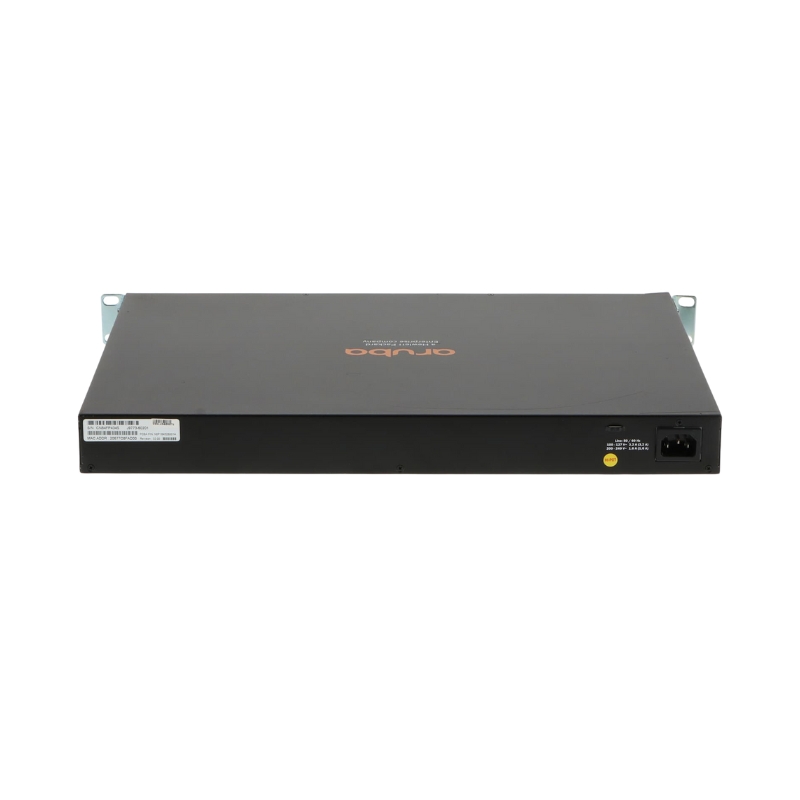

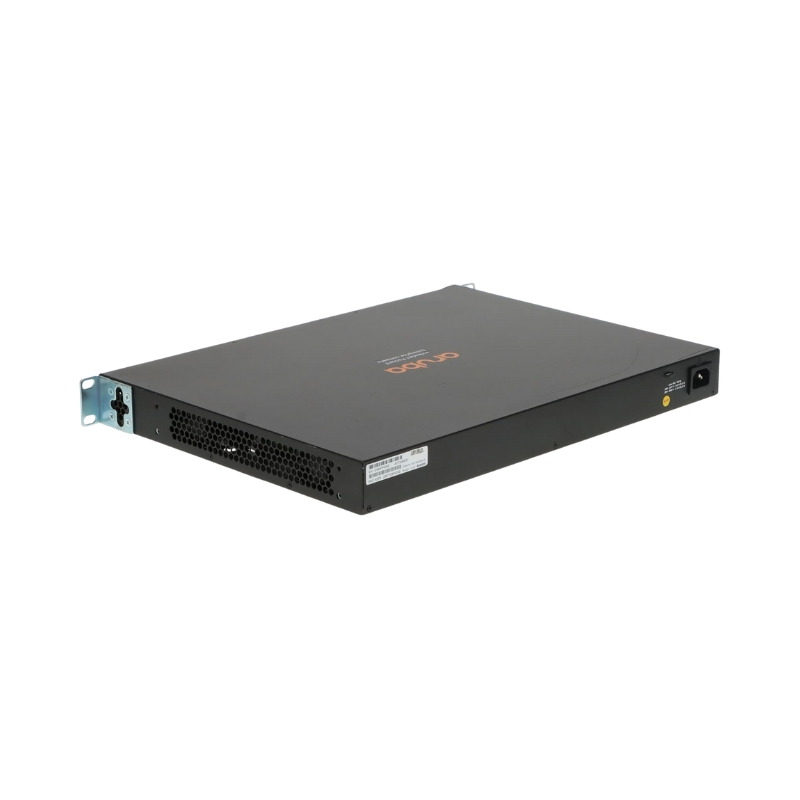

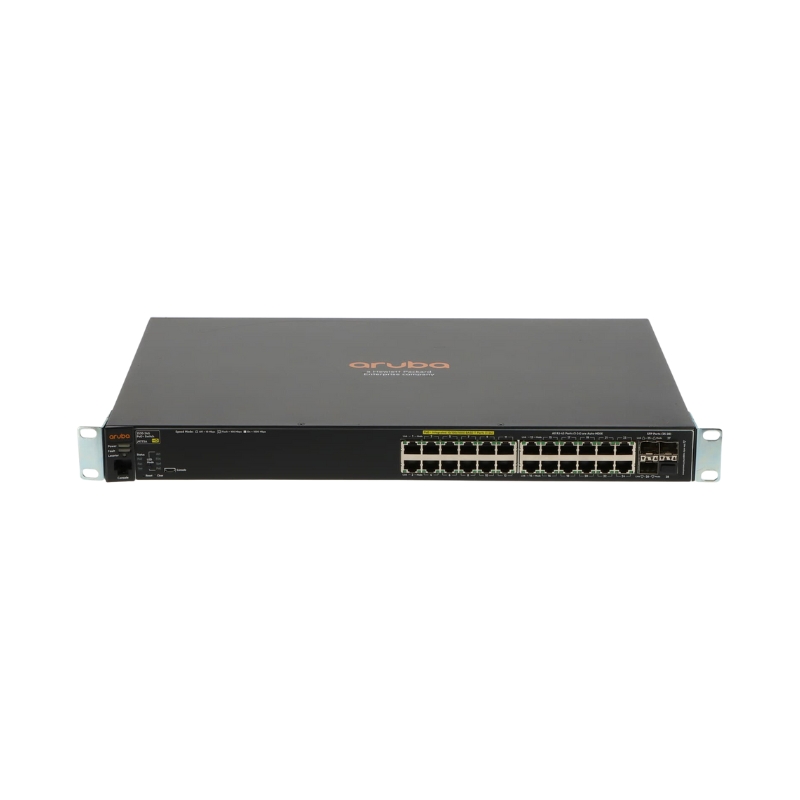

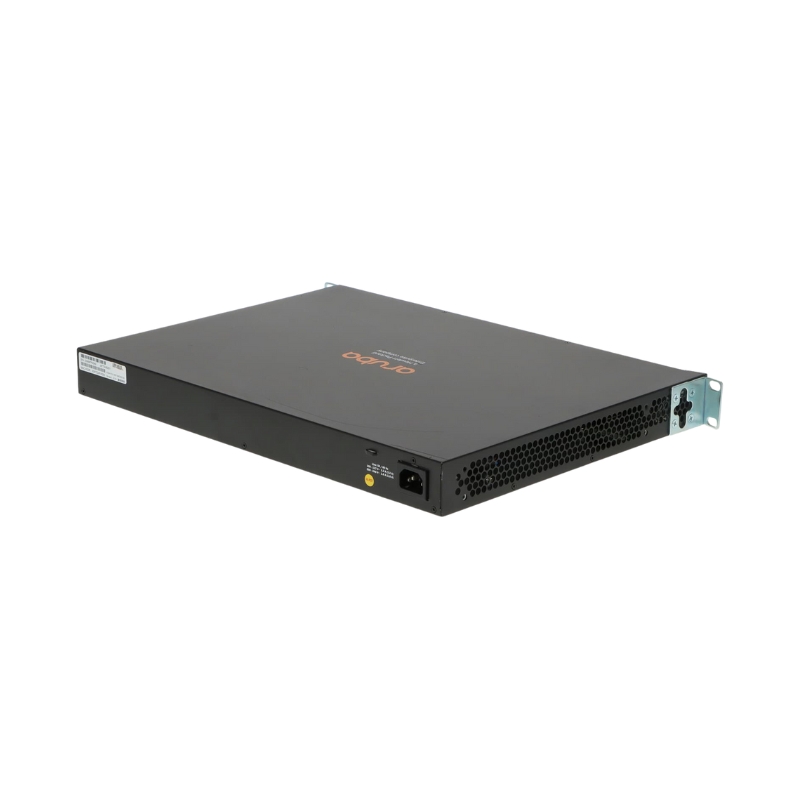

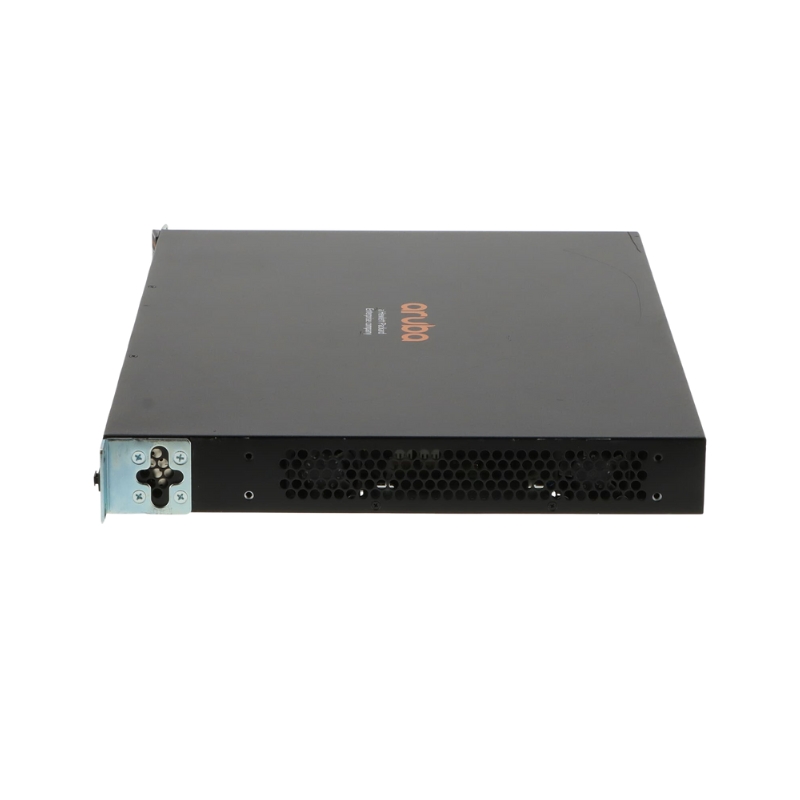

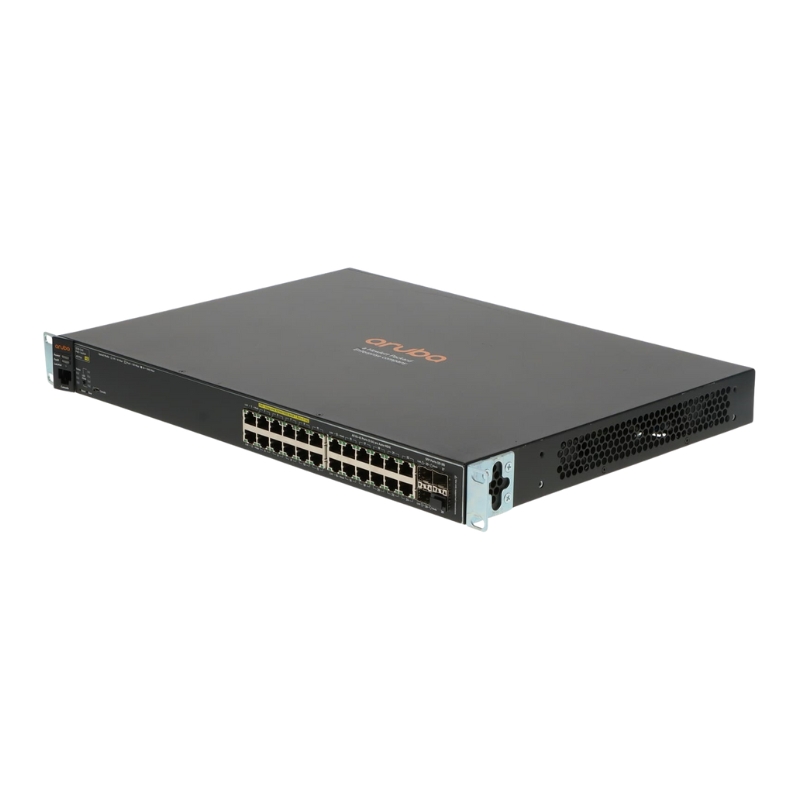

Computer & Network CablesSwitch 24-Port HPE R8S89-61001 Aruba 6300m Smart Rate Rack-mountable
R8S89-61001
Hover on image to enlarge
Brief Overview of R8S89-61001
HPE R8S89-61001 Switch 24-Port Aruba 6300m Smart Rate 1g/2.5g/5g/10g 50g And 2p 25g Managed Rack-mountable. Factory-Sealed New in Original Box (FSB) With 3 Years Warranty
Our Advantages
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
Payment Options
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
Delivery
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Please sign in so that we can notify you about a reply
Description
Overview of HPE R8S89-61001 Switch 24-Port Rack-mountable
- Brand: HPE
- Part Number: R8S89-61001
- Model Name: HPE Switch 24-Port Rack-mountable
HPE R8S89-61001 Aruba 6300M 24-Port Managed Switch
Advanced Performance and High-Speed Connectivity24-port Layer 3 managed switch with stacking capability
- Rack-mountable 1U form factor for efficient deployment
- Multi-Gigabit Ethernet support with speeds of 1G/2.5G/5G/10G
- Uplink and stacking ports: 2 x 50G SFP56 + 2 x 25G SFP56
- Power over Ethernet (PoE) support with 4P PoE
High-Capacity Switching and Low Latency
- Switching capacity of 880 Gbps for seamless data flow
- Forwarding rate of 654 Mpps ensuring high-speed performance
- Minimal latency across various bandwidths:
- 1 Gbps: 4.24 μs
- 10 Gbps: 1.5 μs
- 25 Gbps: 2.91 μs
- 50 Gbps: 3.49 μs
- Stacking bandwidth of 200 Gbps for scalable networking
Comprehensive Network Routing Capabilities
- Supports OSPF, BGP-4, IGMP, VRRP, and more
- IPv4 and IPv6 dual-stack support for modern networking
- Extensive multicast capabilities with PIM-SM, PIM-DM, and IGMPv3
- Advanced policy-based routing (PBR) for customized traffic management
Security and Remote Management
- Secure remote access via SSH, SNMP, and Telnet
- Authentication protocols including RADIUS and TACACS+
- Access Control List (ACL) support for network security
- Zero-Touch Provisioning (ZTP) for simplified deployment
Scalability and VLAN Support
- Supports up to 1024 Switched Virtual Interfaces (SVIs)
- VLAN tagging and Multiple VLAN Registration Protocol (MVRP)
- Network Timing Protocol (NTP) for synchronized operations
Robust Hardware and Connectivity
- Processor: 1.8 GHz ARM for efficient operations
- Memory: 8GB DDR4 SDRAM with 32GB flash storage
- Interface ports:
- 24 x 10/100/1000 Base-T RJ-45
- 2 x 10G/25G/50G SFP56 uplink ports
- 2 x 10G/25G SFP56 ports
- 1 x USB-C console, 1 x RJ-45 console
Energy Efficiency and Power Redundancy
- Internal hot-plug power supply for easy maintenance
- Supports up to 2 power supplies for redundancy (1+1 scheme)
- Operates on a 50/60 Hz voltage frequency
Industry Standards and Compliance
- Complies with IEEE 802.1Q, 802.3af, 802.1X, 802.3at, and more
- Supports Link Aggregation Control Protocol (LACP) for load balancing
- High availability with rapid spanning tree protocol (RSTP) and MSTP
HPE R8S89-61001 Switch 24-Port Aruba 6300M: High-Performance Network Switching
The HPE R8S89-61001 Switch 24-Port Aruba 6300M is an enterprise-class, high-performance network switch designed to support Smart Rate connectivity, Class 6 PoE, and advanced management capabilities. With cutting-edge features, this managed rack-mountable switch is ideal for modern businesses that demand scalability, speed, and reliability.
Key Features and Benefits
Advanced Connectivity Options
Equipped with 24 Smart Rate ports supporting speeds of 1G, 2.5G, 5G, and 10G, the Aruba 6300M ensures seamless, high-speed connections across devices. Additionally, it features two 50G and two 25G uplinks, offering robust bandwidth for data-intensive applications.
High-Powered Class 6 PoE Support
Power-over-Ethernet (PoE) capabilities enable the Aruba 6300M to efficiently power devices such as wireless access points, IP cameras, and VoIP phones, reducing the need for separate power sources.
Enterprise-Grade Management and Security
Designed for managed environments, the Aruba 6300M switch provides advanced security protocols, centralized management options, and automation features for optimized network performance.
Technical Specifications
Port Configuration
- 24 x Smart Rate ports (1G/2.5G/5G/10G)
- 2 x 50G uplink ports
- 2 x 25G uplink ports
Power and Performance
- Class 6 PoE support
- High-speed data processing
- Advanced cooling mechanisms
Management Features
Cloud-Enabled Control
With Aruba Central, businesses can remotely monitor and manage network performance, ensuring minimal downtime and maximum efficiency.
Automated Network Optimization
The switch includes AI-driven analytics that optimize bandwidth usage and provide actionable insights for improved connectivity.
Security Enhancements
Access Control
Role-based access ensures secure network segmentation and control over device permissions.
Threat Detection
Integrated security features provide real-time threat detection and mitigation for enhanced network protection.
Ideal Use Cases
Corporate IT Infrastructure
Designed for large-scale enterprises, the Aruba 6300M ensures uninterrupted connectivity for mission-critical applications.
High-Density Wireless Deployments
Perfect for environments with a high number of wireless devices, the Smart Rate ports facilitate smooth, high-speed connections.
Data Centers and Cloud Applications
With high-speed uplinks and intelligent traffic management, the switch supports demanding cloud-based applications.
Why Choose HPE Aruba 6300M?
The HPE Aruba 6300M is a top-tier networking solution offering unmatched speed, scalability, and security. Whether used in enterprise environments, educational institutions, or data centers, this switch provides future-proof networking capabilities for seamless digital transformation.
Features
Manufacturer Warranty:
3 Years Warranty from Original Brand
Product/Item Condition:
Factory-Sealed New in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
