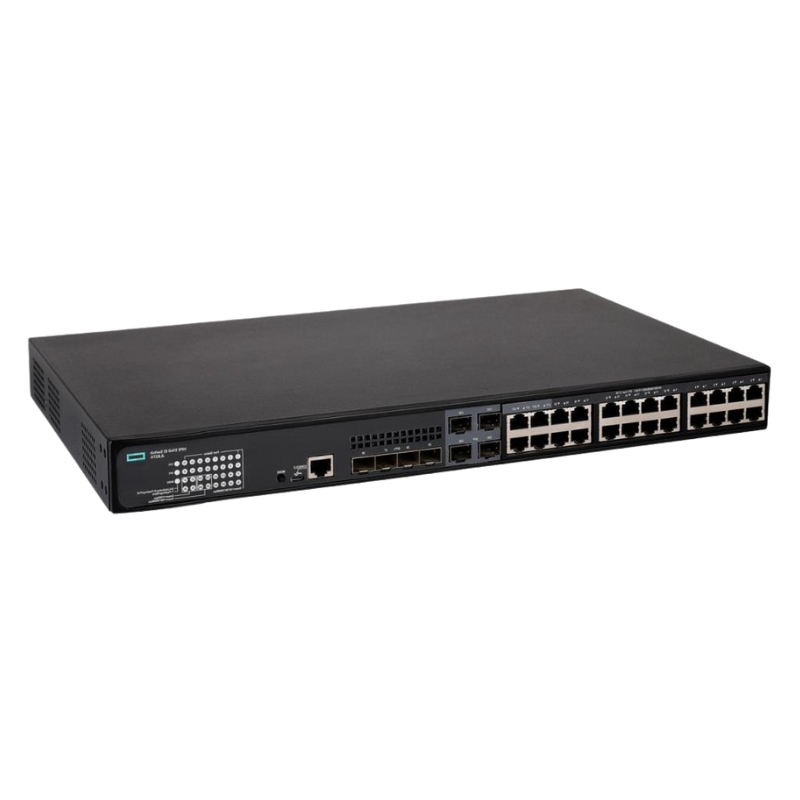

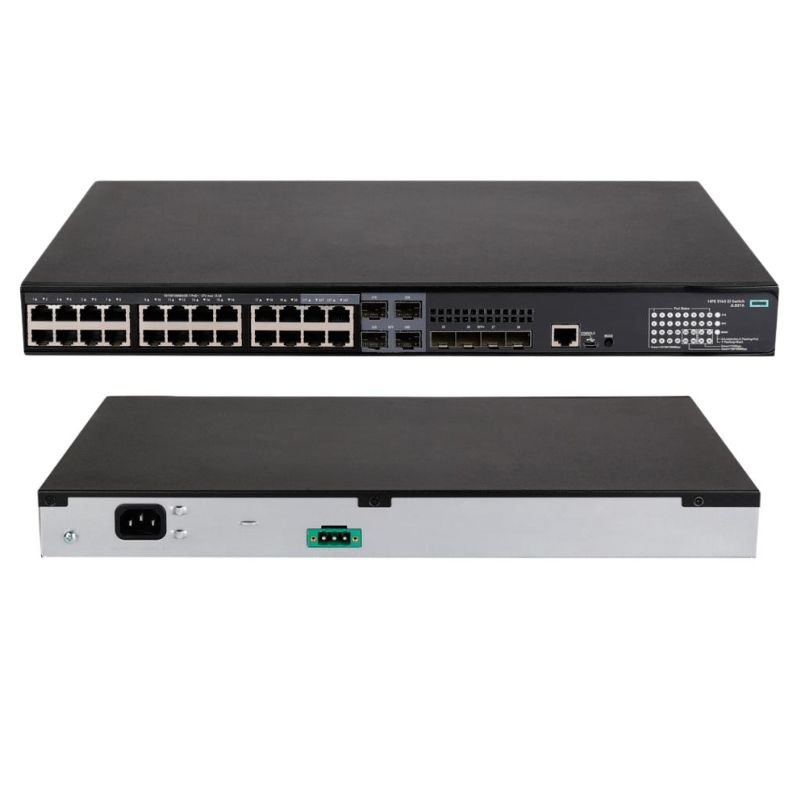

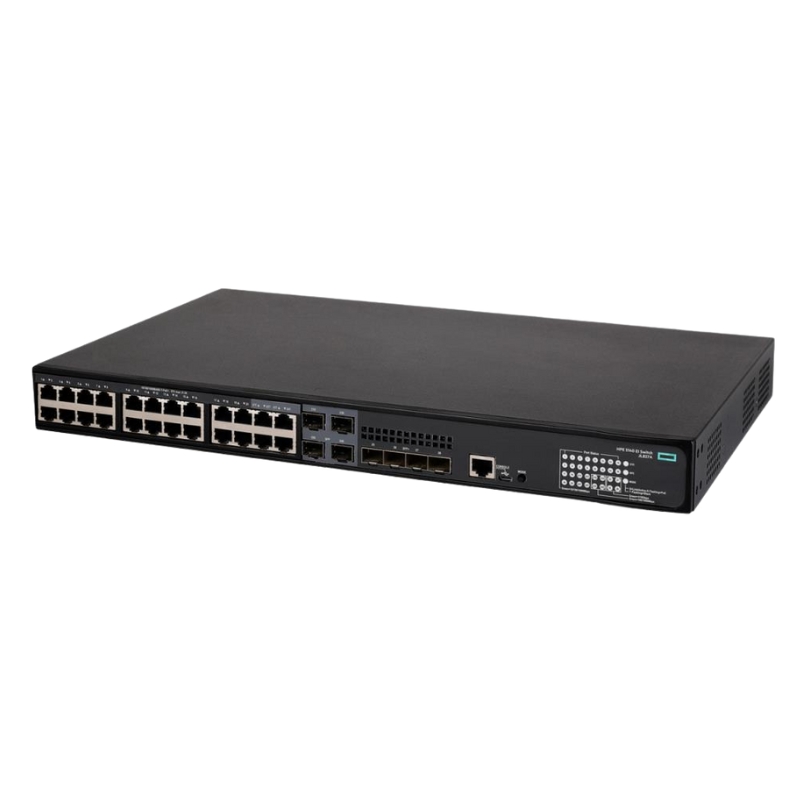

HPE FlexNetwork 5140 48G PoE+ 4SFP+ 1-slot L3 Managed HI Switch

HPE R9L64A FlexNetwork 5140 Hi - 48 Ports Managed Switch Overview

The HPE FlexNetwork 5140 Hi is a high-performance, rack-mountable switch designed for advanced network environments. It features 48 Gigabit Ethernet ports and 4 10-Gigabit SFP+ ports, making it suitable for enterprises seeking efficient and reliable networking solutions.

Device Type and Enclosure

• Switch Type: Managed Layer 3 switch
• Rack-Mountable: 1-slot, 1U form factor
• Airflow Design: Side-to-back cooling system

Networking Capabilities

The HPE FlexNetwork 5140 Hi switch offers superior networking capabilities with its range of supported standards and protocols.

Connectivity and Ports

• 48 x 10/100/1000BASE-T Ethernet Ports
• 4 x 10GbE SFP+ ports for uplink connectivity
• Console management: RJ-45, Mini-USB
• Additional USB 2.0 management port

Power Over Ethernet (PoE) Support

The switch supports PoE+ technology, providing power to connected devices such as IP phones and cameras.

• Power Standards: IEEE 802.3at (PoE+)
• Max Power Consumption: 40W in standby mode
• Dual Power Supply: Supports up to 2 internal power supplies (not installed)

Performance and Efficiency

Experience ultra-fast data transfers with minimal latency, high throughput, and robust routing capabilities.

Switching Performance

• Latency at 1000 Mbps: 5 µs
• Latency at 10 Gbps: 3 µs
• Throughput: 180 Mpps
• Routing/ Switching Capacity: 336 Gbps

Enhanced Network Efficiency

• Jumbo frame support: up to 9KB
• MAC Address Table: 32K entries
• Flow Control and Load Balancing for traffic management
• Dynamic ARP protection for enhanced security

Advanced Routing and Protocol Support

Supports a wide range of routing protocols to ensure network flexibility and scalability.

• OSPFv2/v3, RIP-1, RIP-2, VRRP
• Static IPv4 and IPv6 Routing, CIDR
• IGMP Snooping, VLAN support, Quality of Service (QoS)

Remote Management and Security

• SNMP 1/2c/3, HTTPS, SSH-2, CLI
• Energy Efficient Ethernet for power-saving
• Port security features to prevent unauthorized access
• Support for multiple VLANs, Guest VLAN, Proxy ARP

Compliance and Industry Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
• ANSI/TIA-1057, LLDP, OpenFlow support

Memory and Expansion Capabilities

This switch comes equipped with ample memory and offers various expansion options for growing network needs.

• RAM: 2 GB SDRAM
• Flash Memory:

  Ports

  The HPE FlexNetwork 5140 48G PoE+ 4SFP+ 1-slot L3 Managed HI Switch is equipped with a remarkable feature – 48 ports. This extensive number of ports provides users with a wide range of connectivity options and enables them to efficiently connect multiple devices to the network. Whether you are a small business owner or a large organization, having 48 ports at your disposal offers numerous benefits and ensures smooth and uninterrupted network operations.

  Scalability and Expansion

  One of the key advantages of the 48 ports on the HPE FlexNetwork 5140 switch is the scalability it offers. With such a vast number of ports, users can easily connect multiple devices simultaneously without the need for additional switches or complex configurations. Whether you need to connect computers, printers, servers, or any other network-enabled device, the abundance of ports allows for seamless expansion and growth of your network infrastructure.

  Moreover, the scalability provided by the 48 ports is crucial for future-proofing your network. As technology evolves and business needs change, having the ability to add more devices without limitations becomes essential. The HPE FlexNetwork 5140 switch ensures that you can effortlessly adapt to your organization's evolving requirements without compromising on network performance or efficiency.

  Improved Efficiency and Performance

  The abundance of ports offered by the HPE FlexNetwork 5140 switch enhances the overall efficiency and performance of your network. With 48 ports, you can eliminate bottlenecks and congestion that may occur when multiple devices compete for limited resources on a network with fewer ports. Each device connected to its own dedicated port ensures optimal data transfer speeds and reduces latency, resulting in improved productivity and user satisfaction.

  Furthermore, the HPE FlexNetwork 5140 switch supports advanced features such as Quality of Service (QoS) and VLANs (Virtual Local Area Networks). These features allow you to prioritize and manage network traffic effectively. For example, you can allocate more bandwidth to critical applications or ensure that voice and video data receive the necessary resources for smooth communication and uninterrupted streaming. The 48 ports on this switch enable you to implement these features across a wide range of devices, enhancing the overall network performance and user experience.

  Flexibility in Network Design

  Having 48 ports on the HPE FlexNetwork 5140 switch provides users with flexibility in network design. Whether you prefer a centralized or distributed architecture, the extensive number of ports allows for various deployment options. You can connect devices directly to the switch, create subnets, or implement a combination of both to suit your specific requirements.

  Moreover, the switch's comprehensive port configuration options enable you to customize and optimize your network design further. You have the flexibility to assign specific ports for specific purposes, create VLANs to segregate traffic, or configure link aggregation for increased bandwidth and redundancy. This level of flexibility empowers network administrators to design a network that aligns perfectly with their organization's needs, ensuring maximum efficiency and scalability.

  Cost Savings

  While the HPE FlexNetwork 5140 switch with 48 ports may initially seem like an investment, it ultimately results in cost savings in the long run. By providing ample connectivity options, this switch eliminates the need for additional switches or equipment, which can be expensive and add complexity to your network infrastructure. With 48 ports available, you can connect numerous devices without requiring additional hardware, saving both upfront costs and ongoing maintenance expenses.

  Additionally, the scalability offered by the 48 ports ensures that your network infrastructure can grow alongside your business without incurring substantial costs. Instead of investing in new switches or upgrading existing ones when your network reaches its capacity, the HPE FlexNetwork 5140 switch allows you to seamlessly expand with minimal disruptions or expenses.

  Power Over Ethernet

  Another noteworthy feature of the HPE FlexNetwork 5140 48G PoE+ 4SFP+ 1-slot L3 Managed HI Switch is its Power over Ethernet (PoE) capability. With a single PoE port, this switch provides significant benefits and convenience to users, particularly in environments where power sources are limited or difficult to access.

  Simplified Deployment

  The PoE functionality of the HPE FlexNetwork 5140 switch simplifies the deployment of network devices, especially those that require power but may not have easy access to electrical outlets. With a single PoE port, you can connect devices such as IP phones, wireless access points, and security cameras directly to the switch using an Ethernet cable. This eliminates the need for separate power adapters and significantly reduces cable clutter, making installation and maintenance hassle-free.

  Flexibility in Device Placement

  The availability of a PoE port on the HPE FlexNetwork 5140 switch allows for greater flexibility in device placement. Since devices can receive both data and power through a single Ethernet cable, you can deploy them in locations where power outlets are scarce or inaccessible. This flexibility is particularly beneficial for businesses with open floor plans, warehouses, or outdoor installations where running separate power cables would be impractical or costly.

  Cost-Efficiency

  The Power over Ethernet feature of the HPE FlexNetwork 5140 switch offers cost-efficiency by eliminating the need for additional power sources or adapters. With a single PoE port, you can power multiple devices without requiring individual power supplies for each device. This not only reduces upfront costs but also lowers ongoing maintenance expenses by minimizing the number of components that need to be managed and replaced over time.

  Furthermore, the energy-efficient design of the HPE FlexNetwork 5140 switch ensures optimal power utilization. The switch intelligently adjusts the power output based on the connected devices' requirements, eliminating wastage and reducing electricity consumption. This energy-saving feature not only contributes to cost savings but also aligns with environmental sustainability goals.

  SFP Ports

  The HPE FlexNetwork 5140 48G PoE+ 4SFP+ 1-slot L3 Managed HI Switch boasts four Small Form-Factor Pluggable (SFP) ports, further enhancing its versatility and connectivity options.

  Increased Bandwidth and Flexibility

  The inclusion of four SFP ports on the HPE FlexNetwork 5140 switch offers increased bandwidth and flexibility. SFP ports are widely used for connecting switches to other networking devices, such as routers, servers, or storage devices. These ports support various types of SFP transceivers, allowing you to choose the appropriate one based on your specific requirements.

  The use of SFP ports enables higher data transfer rates and longer transmission distances compared to traditional Ethernet ports. This is particularly useful in scenarios where you need to connect devices over longer distances or require faster data transfer speeds, such as in data centers or large-scale network deployments. The four SFP ports on the HPE FlexNetwork 5140 switch provide ample connectivity options and allow for seamless integration with a wide range of network devices.

  Easy Fiber Connectivity

  The SFP ports on the HPE FlexNetwork 5140 switch simplify fiber optic connectivity. Fiber optic cables are known for their high bandwidth capabilities and immunity to electromagnetic interference, making them ideal for long-distance and high-bandwidth applications. By offering SFP ports, this switch eliminates the need for additional media converters or specialized equipment when connecting fiber optic cables to your network.

  Redundancy and Resilience

  Having four SFP ports on the HPE FlexNetwork 5140 switch provides redundancy and resilience to your network infrastructure. You can configure link aggregation or implement redundant links using these ports, ensuring uninterrupted connectivity even if one port or link fails. Redundancy is crucial for mission-critical applications where downtime can result in significant financial losses or affect productivity. The SFP ports on this switch enable you to design a highly reliable and resilient network that can withstand failures and maintain consistent performance.

  Slot

  The HPE FlexNetwork 5140 48G PoE+ 4SFP+ 1-slot L3 Managed HI Switch features a single slot, which adds to its versatility and expandability.

  Modular Expansion

  The slot on the HPE FlexNetwork 5140 switch allows users to add modules for additional functionality and customization. You can insert various expansion cards, such as 10 Gigabit Ethernet (GbE) modules, to increase network capacity or support specific requirements. This modular approach offers flexibility and future-proofing capabilities, allowing you to adapt your network as your business needs evolve.

  Advanced Features and Services

  The slot enables the integration of advanced modules that bring additional features and services to the switch. For example, you can add modules for advanced security functionalities like firewalling or intrusion prevention systems. These modules enhance the switch's capabilities by providing deep packet inspection, threat detection, and mitigation, ensuring a secure network environment.

  Furthermore, the slot allows for the integration of management modules that enable centralized network management and monitoring. These modules provide enhanced visibility, control, and automation capabilities, simplifying network administration and reducing operational costs. By expanding the switch's capabilities through the slot, you can tailor your network to meet your specific needs and leverage advanced features and services.

  Future Expansion

  The presence of a slot on the HPE FlexNetwork 5140 switch ensures future expansion and scalability. As technology evolves and new modules become available, you can easily upgrade and enhance your switch's capabilities without replacing the entire device. This scalability is a cost-effective approach to accommodate future network requirements and maintain compatibility with emerging technologies.

  Part Number

  The HPE FlexNetwork 5140 48G PoE+ 4SFP+ 1-slot L3 Managed HI Switch is identified by its unique part number, R9L64A.

  Easy Identification and Ordering

  The part number serves as a unique identifier for the HPE FlexNetwork 5140 switch, making it easy for users to identify and order the correct product. By referencing the part number, you can ensure that you are purchasing the specific model and configuration that meets your requirements, avoiding any confusion or errors during the ordering process.

  Compatibility and Support

  The part number plays a crucial role in ensuring compatibility and support from HPE. By providing the accurate part number, you can ensure that you receive the necessary assistance, firmware updates, and warranty coverage from HPE's support team. This helps streamline troubleshooting processes and ensures that your investment in the HPE FlexNetwork 5140 switch is protected.

  Documentation and Resources

  The part number also serves as a reference point for accessing product documentation and additional resources provided by HPE. By searching for the specific part number, you can find user guides, installation manuals, technical specifications, and other relevant information that can assist in deploying, configuring, and managing the HPE FlexNetwork 5140 switch effectively.

  In conclusion, the HPE FlexNetwork 5140 48G PoE+ 4SFP+ 1-slot L3 Managed HI Switch offers exceptional features that cater to various network requirements. With its 48 ports, users benefit from scalability, improved efficiency, and cost savings. The Power over Ethernet capability simplifies deployment, enhances flexibility, and reduces costs. The four SFP ports provide increased bandwidth, ease of fiber connectivity, and redundancy. The single slot enables modular expansion, advanced features, and future scalability. Lastly, the part number ensures easy identification, compatibility, and access to relevant resources. The HPE FlexNetwork 5140 switch is a reliable and versatile solution that empowers users to build efficient and scalable networks.
