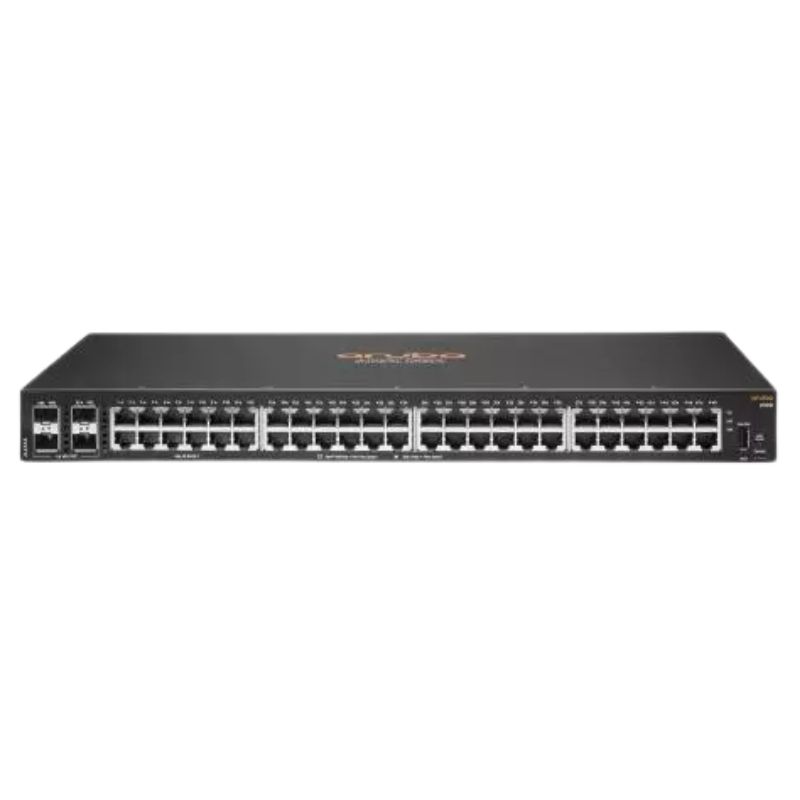

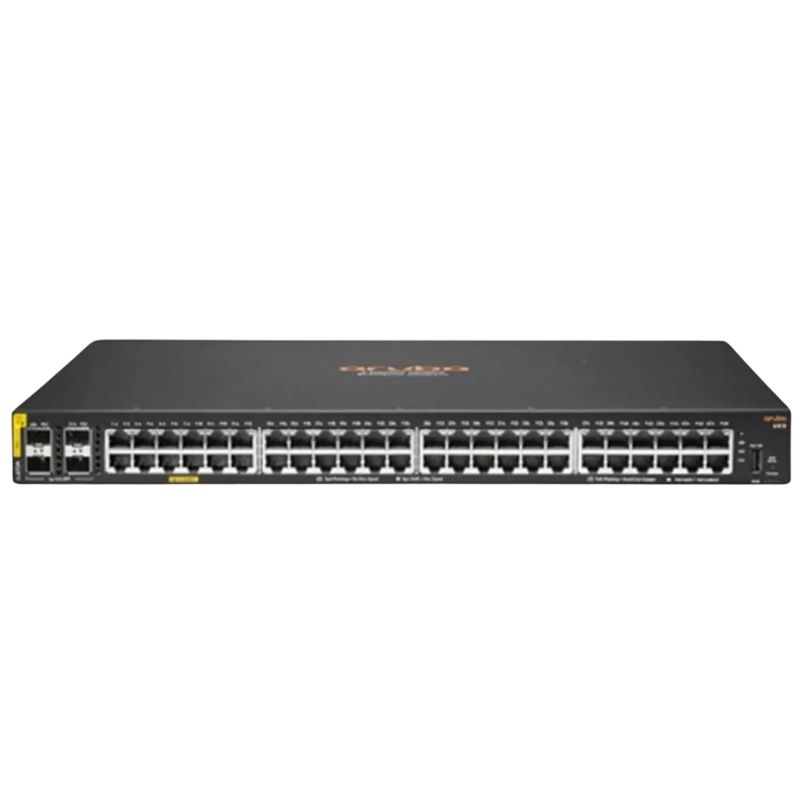

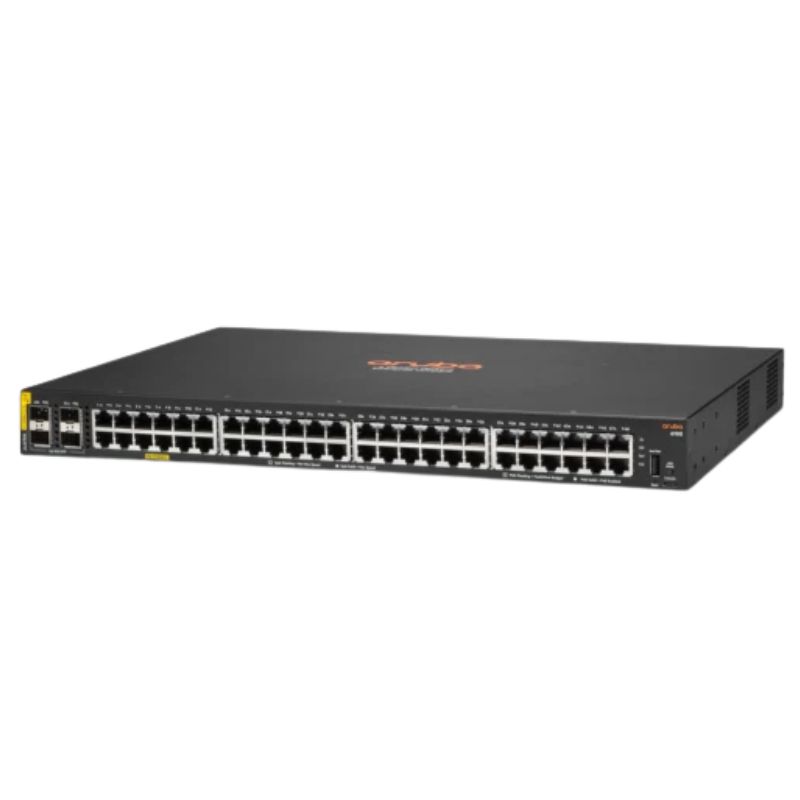

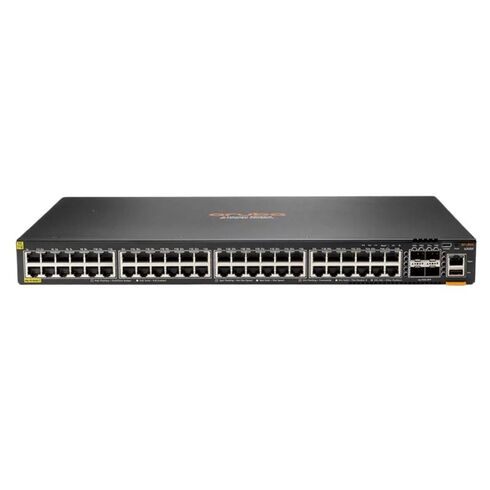

R9Y04-61001 HPE Aruba Networking Cx 6100 48 Ports Managed Switch

HPE R9Y04-61001 Aruba Networking CX 6100 48-Port PoE+ Managed Switch

Advanced Switching Capabilities

• Fully managed Layer 3 switch with robust functionality
• 48 high-speed Gigabit Ethernet PoE+ ports for seamless connectivity
• 4 SFP+ uplink slots supporting both 1G and 10G speeds
• Optimized packet processing with 176 Gbps switching capacity
• Throughput reaching up to 98.6 Mpps for superior performance

Power and Efficiency

• Power over Ethernet Plus (PoE+) with a generous 740W power budget
• Energy-efficient operation with minimal power draw of 49.7W
• Supports PoE Class 4 for high-powered devices
• Dual voltage compatibility: AC 100-127V / 200-240V (50/60 Hz)
• Side-to-side airflow for optimized rack-mounted cooling

Scalability and Network Security

• MAC address table supports up to 8,192 entries
• Jumbo frame support up to 9,220 bytes for high-efficiency data transfer
• Comprehensive ACL support for IPv4 and IPv6 ingress filtering
• Secure access with SSH, RADIUS, and TACACS+ authentication
• Advanced encryption via SSL for protected remote management

Connectivity and Expansion

• 48 x 10/100/1000BASE-T PoE+ RJ-45 ports for extensive networking
• 4 x SFP+ uplink ports supporting both Gigabit and 10 Gigabit speeds
• 1 x USB-C console port for streamlined configuration
• 1 x USB Type-A host interface for external device support

Networking Protocols and Standards

• Supports IGMPv2, IGMPv3, and MLDv2 for multicast efficiency
• Compliant with IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, and more
• Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree (MSTP) supported
• Link Layer Discovery Protocol (LLDP) for seamless device identification
• Optimized traffic management with CoS and ToS support

Hardware and Processing Power

• ARM Cortex-A9 processor clocked at 1.016 GHz for smooth operation
• 4GB DDR3 SDRAM ensures efficient data processing
• 16GB flash memory for firmware storage and configurations
• Packet buffer size of 12.38MB for low-latency data transmission

HPE Aruba Networking CX 6100 Series Managed Switches

The HPE Aruba Networking CX 6100 Series provides a high-performance, reliable networking solution designed to support modern IT infrastructures. Engineered for small to medium businesses, branch offices, and enterprise edge deployments, the CX 6100 series offers advanced Layer 2 capabilities, Power over Ethernet (PoE), and robust security features.

High-Density Gigabit Ethernet Ports

The Aruba CX 6100 series, including the R9Y04-61001 model, is equipped with 48 Gigabit Ethernet ports, ensuring seamless connectivity for wired network devices. These ports enable fast and efficient data transfer, optimizing performance for bandwidth-intensive applications.

Power over Ethernet (PoE) Capabilities

With Class 4 PoE support, this switch delivers up to 30W per port, allowing seamless integration of PoE-enabled devices such as wireless access points, IP cameras, and VoIP phones. The 740W power budget ensures robust support for high-density deployments.

Benefits of PoE in Enterprise Networks

• Eliminates the need for separate power supplies for connected devices.
• Reduces infrastructure costs and simplifies network deployments.
• Enhances flexibility in device placement without power constraints.

Enhanced Uplink Connectivity with 4 SFP+ Ports

The inclusion of four 10GbE SFP+ uplink ports ensures high-speed fiber connections, allowing for efficient data transfer across network segments. These ports enable seamless integration with core network infrastructure, improving overall network scalability and reliability.

Scalability and Network Expansion

Businesses requiring future-ready networking solutions benefit from the scalable architecture of the Aruba CX 6100 series. With support for fiber uplinks, network expansion becomes seamless, reducing latency and improving bandwidth availability.

Advanced Layer 2 Switching Features

Aruba’s CX 6100 switch series provides essential Layer 2 networking features, ensuring robust data management and enhanced security.

VLAN and Network Segmentation

Virtual LAN (VLAN) support allows network administrators to segment traffic efficiently, improving security and optimizing network performance for various applications.

Advantages of VLANs

• Improves security by isolating sensitive traffic.
• Enhances performance by reducing broadcast domains.
• Facilitates better traffic management for different departments.

Intelligent Management and Security Features

The Aruba CX 6100 switch incorporates advanced management tools and security protocols to safeguard enterprise networks against evolving threats.

Secure Network Access

With support for 802.1X authentication, MAC-based security, and DHCP snooping, the CX 6100 series prevents unauthorized access and ensures compliance with enterprise security policies.

Key Security Features

• Access Control Lists (ACLs) for traffic filtering.
• RADIUS and TACACS+ authentication for secure user access.
• DoS attack protection mechanisms.

Energy-Efficient and Reliable Performance

Designed with energy efficiency in mind, the HPE Aruba Networking CX 6100 switch optimizes power consumption without compromising performance.

Green Networking Technologies

The switch supports Energy Efficient Ethernet (EEE) and dynamic power allocation, reducing operational costs while maintaining high network availability.

Reliability and Redundancy

With redundant power options and advanced failover mechanisms, businesses can ensure uninterrupted connectivity even during hardware failures.

Rack-Mountable and Space-Efficient Design

The rack-mountable form factor of the Aruba CX 6100 series ensures easy integration into existing data center and server room configurations.

Optimized for Enterprise Environments

Its compact design and efficient cooling mechanisms make it an ideal choice for space-constrained IT environments.
