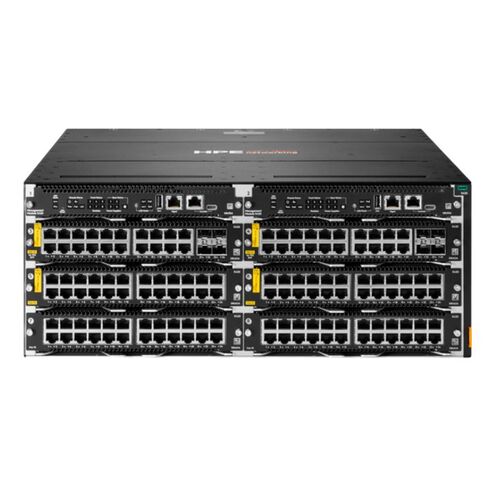

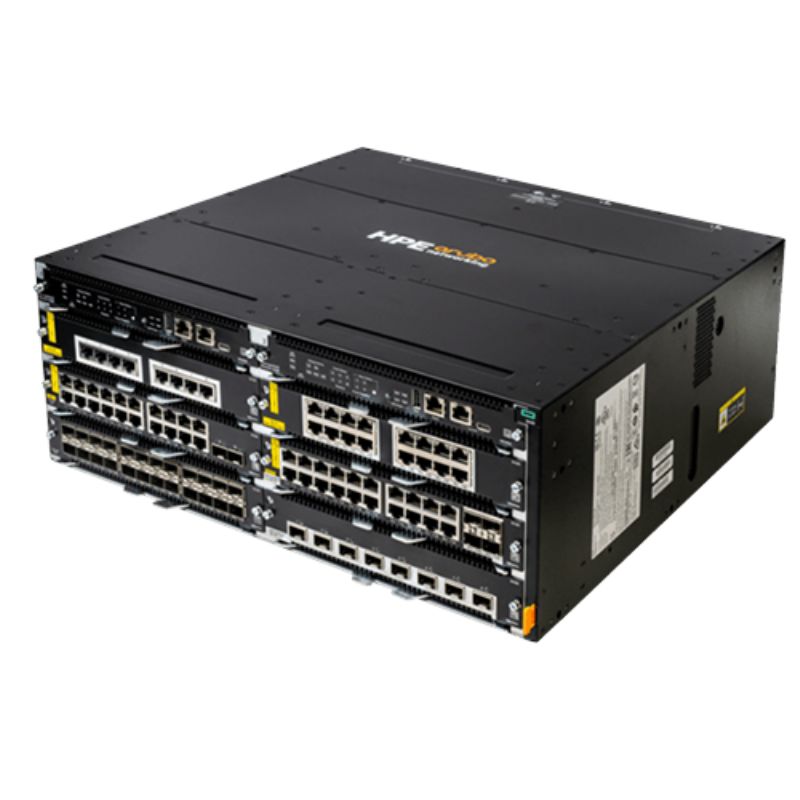

S0U59A HPE Aruba Networking CX 5420 6-slot Switch

HPE S0U59A Aruba CX 5420 Switch

The HPE S0U59A Aruba Networking CX 5420 is a high-performance Layer 3 managed switch designed for enterprise-grade environments. With a 6-slot chassis, front-to-back airflow, and rack-mountable 4U design, it delivers scalability, reliability, and advanced network management capabilities.

General Information

• Manufacturer: HPE
• Part Number: S0U59A
• Device Type: L3 Managed Switch

Technical Specifications

Enclosure & Design

• Type: Front-to-back airflow
• Form Factor: Rack-mountable 4U
• Slots: 6-slot chassis

Performance Metrics

• Switching Capacity: 960 Gbps
• Throughput: 714 Mpps
• Jumbo Frame Support: 9198 Bytes

Capacity

• IPv4 Host Table: 25,600
• IPv6 Host Table: 25,600
• IPv4 Routes (Unicast): 16,384
• IPv6 Routes (Unicast): 8,192
• IGMP Groups: 2,048
• MLD Groups: 2,048
• ACL Entries (Ingress/Egress): IPv4, IPv6, and MAC supported

Routing & Protocols

Supported Routing Protocols

• IGMP, IGMPv3
• OSPF
• VRRP
• MLDv2
• ECMP
• Static IPv4 and IPv6 Routing
• RSTP, MSTP, STP

Remote Management Protocols

• RMON
• SNMP v2c, SNMP v3
• TFTP, SFTP
• SSH, CLI
• NTP

Authentication Methods

• Secure Shell (SSH)
• RADIUS
• TACACS+

Advanced Features

Network Enhancements

• QoS (Quality of Service)
• Layer 2 Switching
• Layer 3 Routing
• VRRP Support
• LACP (Link Aggregation Control Protocol)
• UDLD, ToS, EQS
• REST API Interface
• sFlow Monitoring

Resiliency & Efficiency

• Rapid PVST+
• MVRP
• BPDU Support

Compliance Standards

• IEEE 802.1s, 802.1d, 802.1w, 802.1p, 802.1q, 802.1v, 802.1ab (LLDP)
• IEEE 802.3ad (LACP), 802.3ab, 802.3ae, 802.3af, 802.3at, 802.3az, 802.3bt, 802.3z
• Wi-Fi Certified Standards

Hardware Specifications

• Processor: AMD Ryzen Embedded V1500B
• RAM: 16 GB DDR4 SDRAM
• Flash Memory: 32 GB

Expansion & Connectivity

• Interfaces: 1 x Management RJ-45 Out-of-band
• Installed Modules: 1 (installed) / 8 (maximum)

Power Specifications

• Power Device: Internal hot-plug power supply
• Max Supported Units: 4
• Redundancy: Optional
• Redundancy Scheme: N+1 or N+N with optional power supplies
• Voltage Required: AC 100-127/200-240 V

HPE S0U59A Aruba CX 5420 6-Slot L3 Managed Switch

The HPE S0U59A Aruba Networking CX 5420 6-slot Layer 3 managed switch is engineered to deliver high-performance, resilient, and scalable network connectivity for modern enterprise environments. Designed for rack-mountable deployment with front-to-back airflow, this modular switching platform supports advanced routing, intelligent automation, and robust security features. Built on the advanced Aruba CX operating system, the 5420 series empowers organizations to modernize campus core and aggregation layers with predictable performance and simplified management.

Modular 6-Slot Chassis Design

The six-slot chassis configuration provides exceptional flexibility for enterprises seeking customizable network expansion. Each slot accommodates high-speed line cards and fabric modules, enabling IT teams to tailor port density, interface types, and throughput to specific operational requirements. This modular approach supports evolving bandwidth demands without requiring complete infrastructure replacement, making the HPE S0U59A an ideal long-term investment.

High-Density Port Scalability

The Aruba CX 5420 switch supports a broad range of interface modules, including multi-gigabit Ethernet, 10GbE, 25GbE, and higher uplink speeds depending on configuration. This scalability enables seamless integration into data-intensive campus cores, large enterprise distribution layers, and high-traffic aggregation networks. As user devices, IoT endpoints, and cloud-based applications continue to expand, the flexible architecture ensures consistent network performance.

Future-Ready Expansion Capabilities

With its modular line card slots and redundant components, the 6-slot chassis provides the capacity to scale horizontally and vertically. Enterprises can deploy additional modules as network demand increases, minimizing downtime and protecting capital expenditure. The design supports hot-swappable components, allowing maintenance and upgrades without disrupting mission-critical operations.

Advanced Layer 3 Routing Intelligence

The HPE Aruba Networking CX 5420 switch operates as a full-featured Layer 3 managed platform, supporting dynamic routing protocols and advanced network segmentation. It ensures optimized traffic flow between VLANs, departments, and branch connections while maintaining consistent latency and high availability.

Dynamic Routing Protocol Support

Support for routing protocols such as OSPF, BGP, and VRRP enhances network resiliency and traffic optimization. These protocols enable intelligent path selection, redundancy, and rapid convergence in case of link failures. By integrating advanced Layer 3 routing, the CX 5420 switch strengthens core network stability across large campus and enterprise deployments.

Network Virtualization and Segmentation

The switch enables secure segmentation through virtual routing and forwarding instances, VLAN support, and policy-based routing. These capabilities help organizations isolate sensitive data streams, protect departmental resources, and enforce compliance requirements. Logical segmentation enhances both performance and security in complex network topologies.

Performance Optimization and Switching Throughput

The Aruba CX 5420 platform is designed to handle high throughput environments that demand consistent packet forwarding performance. Its advanced switching silicon and distributed architecture reduce bottlenecks while maintaining low latency across aggregated traffic flows.

High-Speed Switching Fabric

The integrated switching fabric delivers substantial bandwidth capacity, ensuring seamless handling of real-time applications such as VoIP, video conferencing, and cloud services. By reducing congestion and enabling efficient packet buffering, the platform supports high-density enterprise traffic without compromising stability.

Low Latency and High Availability

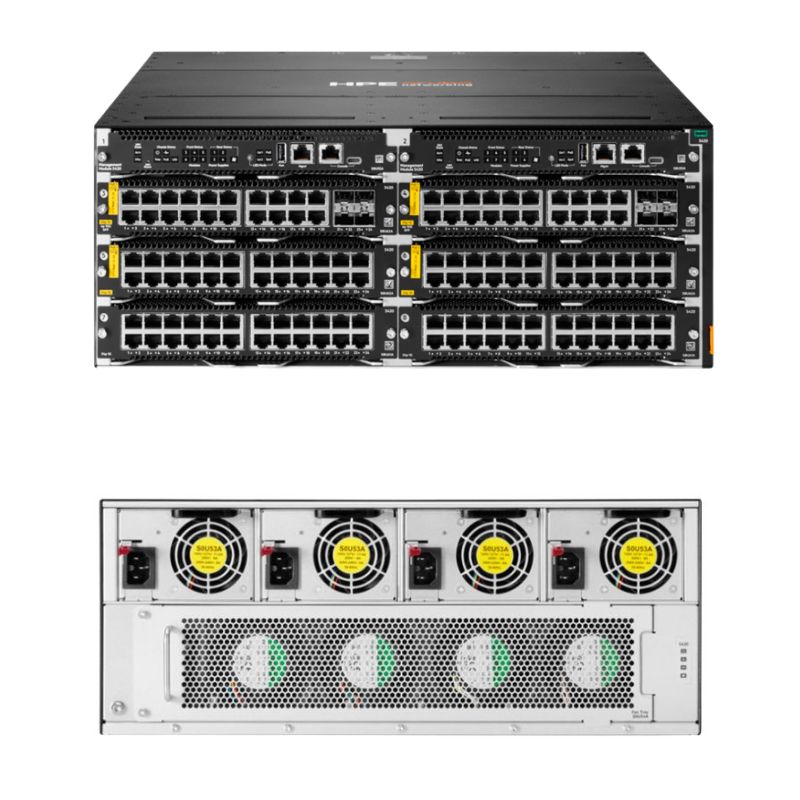

Optimized hardware architecture ensures minimal delay in packet processing. Combined with redundant power supplies and fans, the front-to-back airflow system enhances reliability and thermal efficiency in data center and enterprise rack environments.

Front-to-Back Airflow Efficiency

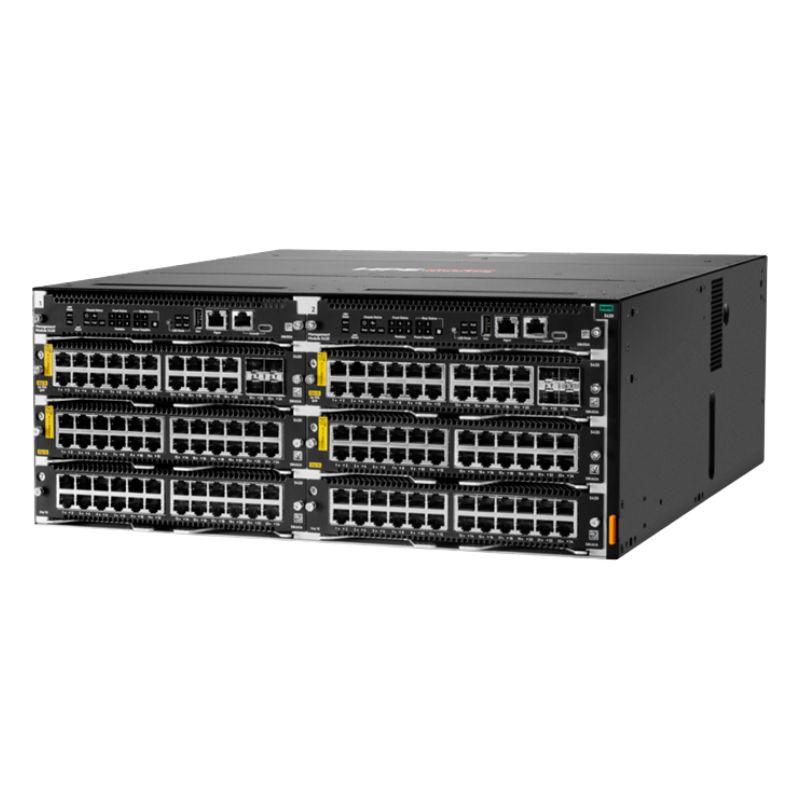

The rack-mountable chassis is engineered with a front-to-back airflow system that aligns with modern data center cooling strategies. This directional airflow supports efficient heat dissipation and reduces the risk of thermal overload in high-density installations.

Data Center Rack Compatibility

The physical design ensures compatibility with standard 19-inch racks. The airflow orientation matches hot-aisle/cold-aisle configurations, improving energy efficiency and maintaining optimal operating temperatures for continuous uptime.

Enterprise-Grade Management and Automation

The HPE S0U59A Aruba Networking CX 5420 switch leverages the Aruba CX operating system to provide advanced network automation and centralized management capabilities. This operating system introduces simplified workflows, enhanced visibility, and programmable interfaces for modern IT environments.

Aruba CX Operating System Advantages

The Aruba CX OS delivers a cloud-native microservices-based architecture, providing real-time state synchronization and improved system resiliency. Its modular design allows independent updates and consistent configuration management, reducing operational complexity.

REST APIs and Programmability

Open REST APIs enable seamless integration with automation frameworks and orchestration tools. Network administrators can implement scripted deployments, configuration backups, and policy enforcement without manual intervention. This level of programmability supports DevOps methodologies and agile network operations.

Centralized Network Visibility

Integration with centralized management platforms allows administrators to monitor traffic patterns, detect anomalies, and troubleshoot performance issues in real time. Comprehensive telemetry data enhances proactive maintenance and capacity planning.

Security and Access Control Mechanisms

Security remains a core element of enterprise switching infrastructure. The Aruba CX 5420 incorporates advanced security features to protect against internal and external threats.

Access Control and Authentication

Support for IEEE 802.1X authentication, MAC-based access control, and role-based policies ensures only authorized devices and users gain network access. These controls protect sensitive data and maintain regulatory compliance.

Advanced Threat Protection

Dynamic segmentation, ACL enforcement, and traffic filtering capabilities mitigate risks associated with malicious traffic. The switch enhances enterprise network integrity by providing granular visibility and policy-based control mechanisms.

Use Cases for Campus Core and Aggregation Layers

The Aruba Networking CX 5420 6-slot switch is ideally suited for deployment in campus core, distribution, and aggregation layers where performance, redundancy, and scalability are essential.

Large Enterprise Campus Deployments

In multi-building campus environments, the switch aggregates traffic from access-layer devices, ensuring smooth inter-VLAN routing and optimized traffic distribution. Its modular design allows growth alongside expanding departments and new technologies.

Education and Healthcare Networks

Educational institutions and healthcare facilities require reliable, secure, and high-capacity networking. The CX 5420 supports bandwidth-intensive applications such as digital classrooms, medical imaging systems, and cloud-based record management platforms.

Data Center Aggregation

The front-to-back airflow orientation and high-speed interfaces make the switch suitable for data center aggregation roles. It consolidates server and storage traffic while maintaining consistent performance and energy efficiency.

Hybrid Cloud Connectivity

Organizations adopting hybrid cloud strategies benefit from the Layer 3 routing and segmentation capabilities of the Aruba CX 5420. Secure and reliable connectivity between on-premises infrastructure and cloud environments ensures seamless workload mobility.

Reliability, Redundancy, and Business Continuity

Enterprise networks demand continuous uptime and rapid failover capabilities. The HPE S0U59A Aruba CX 5420 switch incorporates hardware and software mechanisms that ensure high availability and operational resilience.

Redundant Power and Cooling

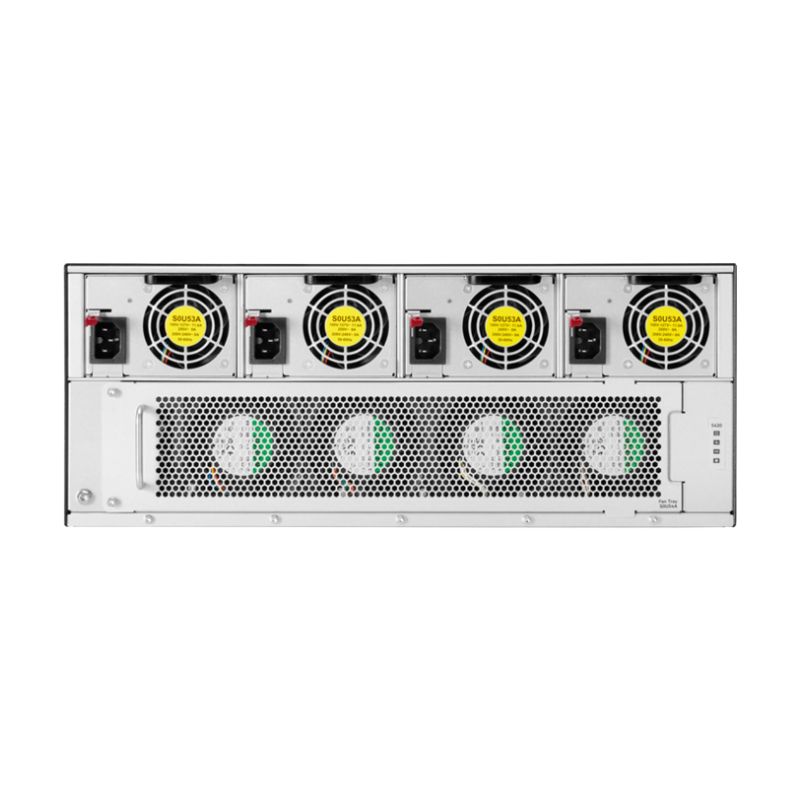

Support for redundant power supplies and hot-swappable fan modules enhances system reliability. The front-to-back airflow design ensures consistent thermal regulation, even under heavy workloads.

Fault Detection and Rapid Recovery

Advanced monitoring and state synchronization capabilities enable quick fault detection and automatic recovery procedures. These features reduce downtime and maintain uninterrupted network services.

Stacking and Virtual Switching Options

Virtual switching frameworks allow multiple chassis to operate as a single logical unit, simplifying management while increasing aggregate bandwidth and redundancy. This capability supports scalable enterprise growth strategies.

Technical Specifications and Deployment Considerations

The Aruba Networking CX 5420 6-slot L3 managed switch supports rack-mounted installation in standard data center environments. Its chassis-based architecture accommodates multiple line cards and uplink modules, providing flexibility in port configurations and bandwidth capacity.

Rack-Mountable Form Factor

The switch is engineered for installation within standard 19-inch server racks. Its physical construction ensures durability, ease of maintenance, and optimal cable management for structured enterprise networks.

Power Efficiency and Environmental Standards

Energy-efficient components and intelligent power management features reduce operational costs while maintaining high performance. Compliance with industry environmental standards supports sustainable IT initiatives.

Compatibility with Aruba Networking Ecosystem

The HPE S0U59A seamlessly integrates with other Aruba Networking solutions, including wireless access points, edge switches, and centralized management tools. This interoperability ensures cohesive network architecture and unified policy enforcement.

End-to-End Aruba Infrastructure Alignment

When deployed alongside Aruba wireless and edge solutions, the CX 5420 switch enables consistent security policies, simplified provisioning, and unified visibility across the entire enterprise network stack.

Strategic Infrastructure Investment

The modular scalability, Layer 3 intelligence, front-to-back airflow efficiency, and enterprise-grade management capabilities make the Aruba Networking CX 5420 6-slot L3 managed switch a powerful core infrastructure solution. Its adaptable design supports evolving digital transformation strategies, ensuring long-term operational agility and network resilience.
