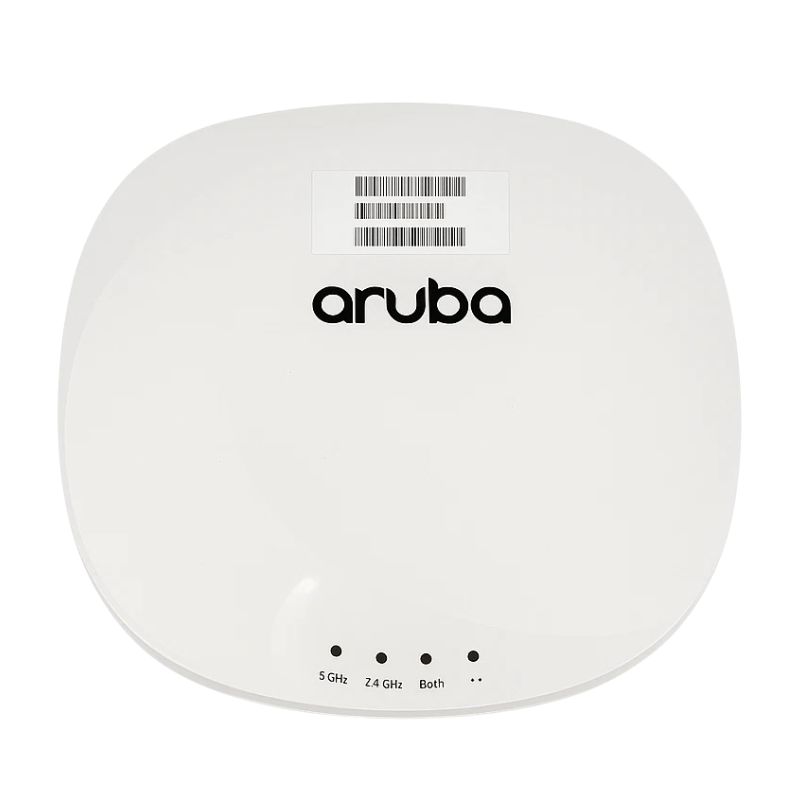

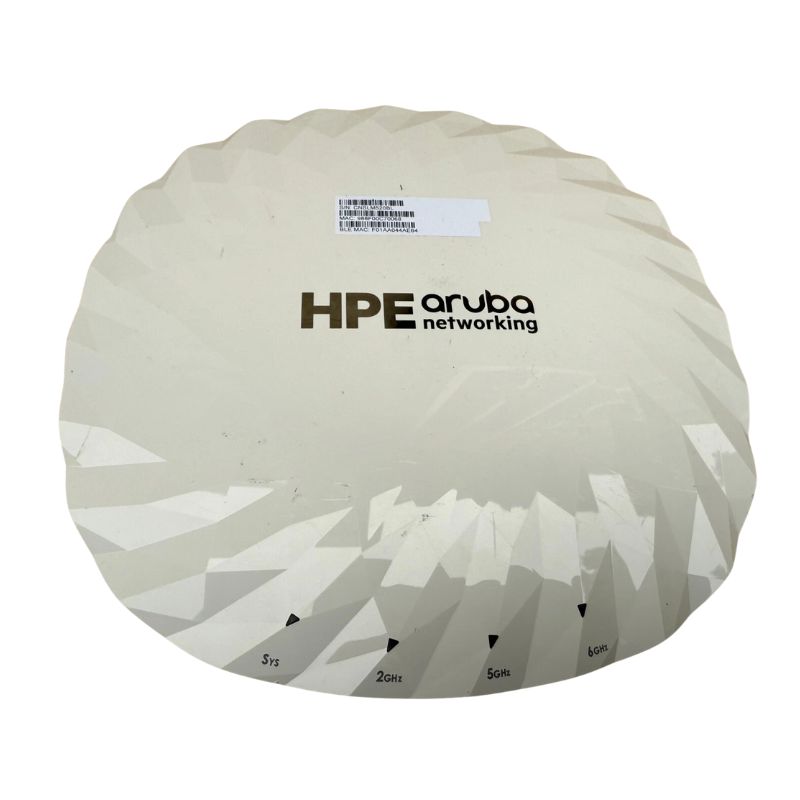

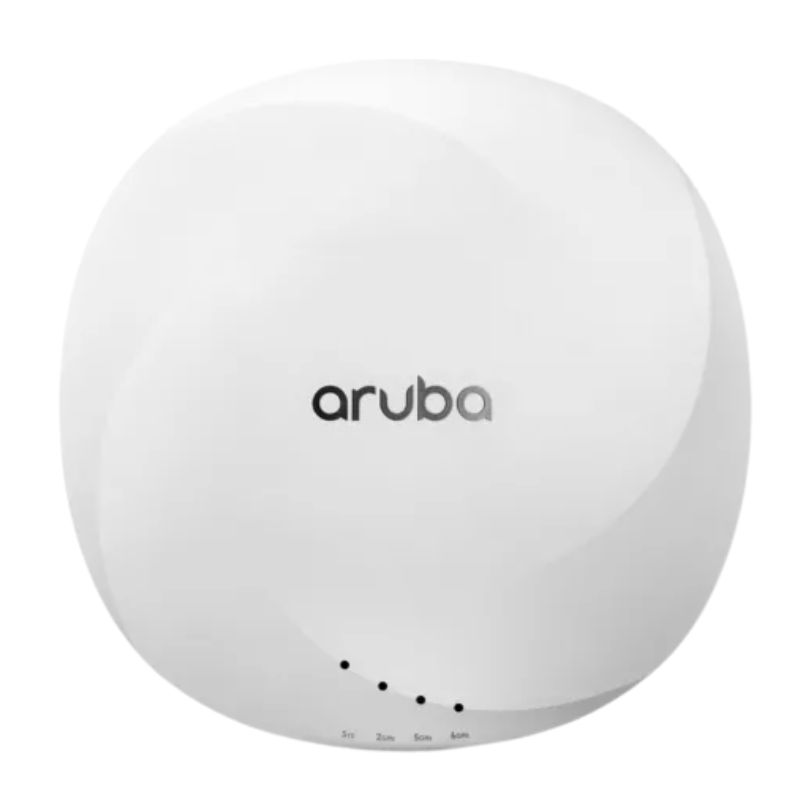

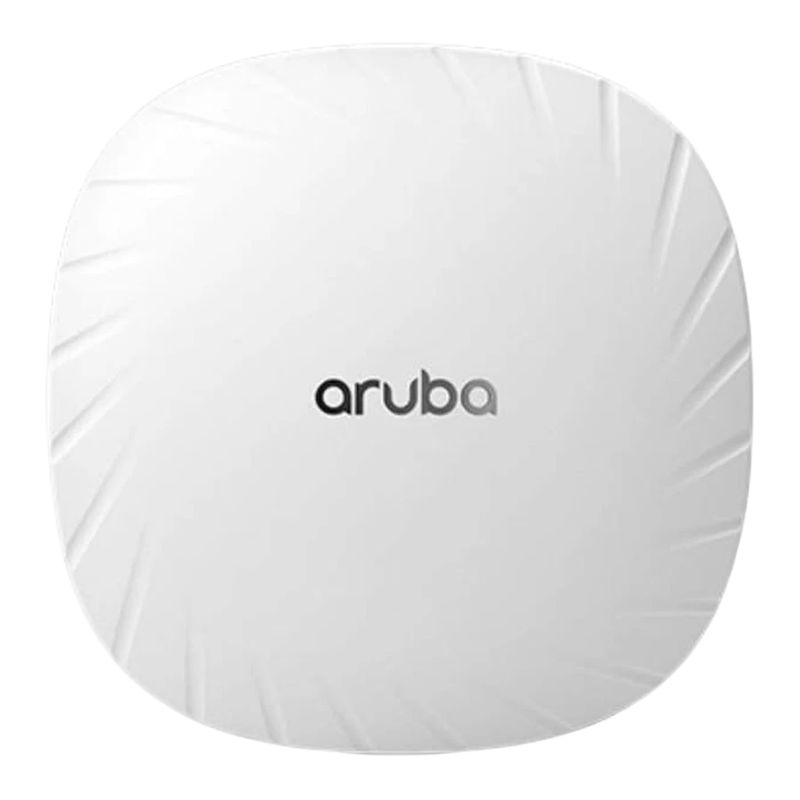

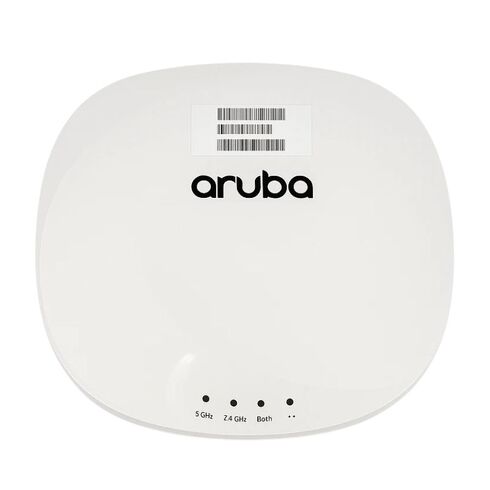

S1G79A HPE Aruba AP-754 (RW) Tri Radio 4x4 Wi-Fi 7 External Antennas TAA Campus Access Point

Advanced Tri-Radio Architecture for High-Performance Networks

Robust Multi-Band Wireless Capability

The HPE S1G79A Aruba Networking AP-754 (RW) delivers superior wireless connectivity across three concurrent frequency bands—2.4 GHz, 5 GHz, and 6 GHz—leveraging cutting-edge 802.11be Wi-Fi 7 technology. This access point supports 4x4 MIMO configuration across all bands, ensuring enhanced throughput, reduced latency, and seamless user experience in dense network environments.

• Simultaneous tri-band operation optimizes spectrum utilization
• High-efficiency 4x4 MU-MIMO streams per band
• Extended coverage and minimized interference across campus settings

Comprehensive Compliance and Certification Standards

Industry Accreditations and Global Regulatory Approvals

This access point adheres to stringent international compliance standards, delivering peace of mind for deployment in regulated environments. It holds certifications from leading organizations that validate its safety, performance, and electromagnetic compatibility.

• Wi-Fi Alliance Certified for 802.11 a/b/g/n/ac/6/7
• WPA, WPA2, WPA3 with CNSA support and Enhanced Open (OWE)
• EMC and safety standards: EN 60601-1-2, IEC/EN 62368-1, UL/IEC/EN 60950
• European regulatory compliance: RED Directive 2014/53/EU, CE Marked
• North American certifications: FCC/ISED and UL2043 Plenum Rated

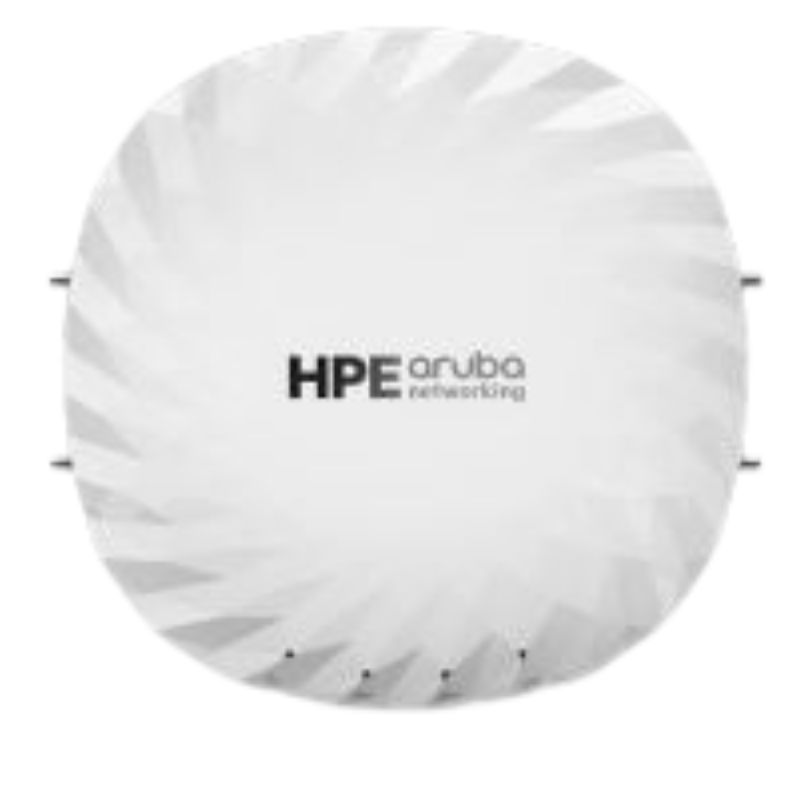

External Antenna Design for Versatile Deployment

Dual Four-Port SMA Connectors for Precise Signal Direction

The AP-754 is engineered with two independent sets of four RP-SMA (female) connectors, enabling tailored external antenna configurations. This provides deployment flexibility, essential for expansive or interference-prone environments.

• Separate connectors for 2.4/5 GHz (A0–A3) and 6 GHz (B0–B3)
• Minimal internal signal loss: 1.1 dB (2.4 GHz), 1.8 dB (5 GHz), 2.8 dB (6 GHz)
• Supports directional and high-gain external antennas for specialized coverage

Port Configuration and Physical Interfaces

Comprehensive Connectivity Options

Equipped with multiple interface ports, the AP-754 simplifies network integration and peripheral connectivity. Designed with a secure form factor, it supports standard and advanced networking peripherals via USB and Ethernet.

• Dual RJ-45 Ethernet ports: E0 and E1
• Two USB 2.0 Type-A host ports: U0 and U1
• Dedicated serial console interface (micro-B USB)
• Kensington lock slot for enhanced physical security

Optimized Power Utilization

Efficient Power Profiles for Operational Flexibility

The access point’s intelligent power management system offers multiple configurations for both DC and PoE power sources. This ensures optimal energy use, whether idle, fully operational, or in deep-sleep mode.

• DC Power draw: Up to 35W (standard), 46W (with USB peripherals)
• PoE draw: Max 40W standard, 51W with USB devices
• Idle mode power: 14W (DC), 12W (PoE)
• Deep-sleep mode: Just 2.4W (DC) or 3.5W (PoE)
• Supports up to 10W power delivery to connected USB devices

Advanced Wireless Standards and Bluetooth Integration

Next-Generation Wireless Ecosystem

This model incorporates the latest in wireless protocol compatibility, ensuring backward support and forward scalability. Integrated Bluetooth further enhances device discovery and provisioning capabilities.

• Fully compliant with IEEE 802.11be (Wi-Fi 7)
• Supports Wi-Fi Agile Multiband, WMM, and WMM-PS for traffic prioritization
• Bluetooth SIG certified for seamless IoT and BLE device interactions
• Ethernet Alliance recognition for PoE device classification (Class 6 PD)

Use Case: Secure and Scalable Campus Wi-Fi

Optimized for High-Density Environments

The HPE Aruba AP-754 is built to meet the rigorous demands of large-scale campus environments. Its tri-band functionality, external antenna flexibility, and advanced security protocols make it an ideal solution for schools, government facilities, and enterprise campuses.

• Ideal for high-density classrooms, lecture halls, and open learning spaces
• External antenna support allows customization for outdoor courtyards or atriums
• Supports centralized management and network automation
• TAA compliance ensures suitability for U.S. federal institutions

Advanced Wireless Connectivity with HPE S1G79A Aruba AP-754 (RW)

The HPE S1G79A Aruba AP-754 (RW) Tri Radio 4x4 Wi-Fi 7 External Antennas TAA Campus Access Point offers cutting-edge wireless capabilities, engineered for high-performance connectivity in complex enterprise environments. As part of Aruba's advanced campus access point series, the AP-754 is designed to meet the growing demands of modern digital infrastructures by delivering ultra-fast, reliable, and secure wireless communication. Leveraging the latest Wi-Fi 7 standard, this model introduces enhancements in throughput, latency reduction, and multi-link operation, elevating user experiences across devices and applications.

Ideal for mid-size to large enterprises, universities, healthcare facilities, and government institutions, the Aruba AP-754 delivers robust indoor and outdoor wireless support, aided by tri-radio design and 4x4 MIMO configurations. The inclusion of external antennas ensures flexibility in deployment and signal optimization. Additionally, the TAA compliance underlines its suitability for government and federally regulated environments where procurement standards require trusted supply chains.

Key Features of Aruba AP-754 (RW)

Wi-Fi 7 Integration

Wi-Fi 7, also known as IEEE 802.11be, introduces a suite of technological enhancements that revolutionize wireless communication. The Aruba AP-754 fully integrates this new standard, offering high data rates, reduced latency, and increased network efficiency through features like 320 MHz channel bandwidth, 4096-QAM modulation, and Multi-Link Operation (MLO). These features enable devices to communicate across multiple bands simultaneously, which dramatically increases throughput and responsiveness for bandwidth-intensive applications like 4K/8K video conferencing, AR/VR, and real-time collaboration tools.

Tri-Radio Architecture

The tri-radio configuration ensures that the AP-754 can manage concurrent operations on multiple bands—2.4 GHz, 5 GHz, and 6 GHz. This design allows for optimal traffic distribution and interference mitigation, especially in high-density environments. The third radio is typically used for dedicated security scanning or spectrum analysis, making it easier to maintain RF health and provide seamless security enforcement in real time.

4x4 MIMO for Optimized Performance

With a 4x4 MIMO antenna configuration, the AP-754 significantly boosts wireless performance by allowing four spatial streams per radio. This allows more simultaneous connections and enhances signal integrity, particularly in large open spaces such as auditoriums, lecture halls, or convention centers. Multi-user MIMO (MU-MIMO) and beamforming capabilities also ensure targeted signal delivery for consistent user experience.

External Antenna Flexibility

Unlike internal-antenna models, the AP-754 features external antenna connectors that support deployment flexibility across challenging physical layouts. This is particularly beneficial in historic buildings, hospitals with RF-sensitive equipment, or industrial areas where custom antenna placements are essential for signal propagation. External antennas also make it easier to adjust signal directionality for high-gain coverage across vertical or horizontal planes.

Deployment Scenarios and Use Cases

Higher Education and Campus Networks

In university campuses and large educational institutions, the Aruba AP-754 is an excellent choice for maintaining consistent wireless connectivity across lecture halls, libraries, dormitories, and outdoor quads. Its high-capacity handling makes it ideal for supporting hundreds of concurrent users accessing bandwidth-intensive educational content, cloud-based learning platforms, and collaboration tools such as Zoom or Microsoft Teams.

Healthcare Institutions

In hospitals and clinics, wireless reliability and security are paramount. The tri-radio setup allows IT administrators to separate traffic for guest access, medical IoT devices, and secure clinical applications. Aruba’s built-in security protocols and policy enforcement firewall (PEF) ensure that sensitive patient data transmitted over Wi-Fi remains secure and compliant with regulatory standards such as HIPAA.

Government and Defense Facilities

The TAA-compliant AP-754 is ideal for federal and defense applications where compliance and performance are equally crucial. Its robust feature set, including WPA3 security, FIPS 140-2 readiness, and integrated zero trust policy enforcement, ensures it meets stringent operational requirements. Integration with Aruba Central also allows centralized cloud management, essential for maintaining distributed government networks.

Enterprise and Corporate Offices

Large-scale enterprise networks benefit from the AP-754’s ability to reduce latency and increase user capacity. With support for location-based services, AI-driven insights, and seamless roaming capabilities, it ensures high employee productivity and uninterrupted access to business-critical applications across sprawling office campuses.

Security and Compliance Standards

WPA3 and Enhanced Encryption

The Aruba AP-754 supports the latest WPA3 protocol, which includes individualized data encryption, forward secrecy, and protection against dictionary attacks. It’s essential in securing enterprise environments where the confidentiality and integrity of data are non-negotiable.

Role-Based Access Control (RBAC)

Administrators can enforce RBAC policies to allocate network privileges based on user roles, device type, or application. This fine-grained control reduces lateral movement across networks and enhances organizational security posture. Integration with Aruba ClearPass adds another layer of dynamic policy enforcement for seamless and secure onboarding.

Zero Trust and Microsegmentation

With zero trust principles built into its architecture, the AP-754 ensures all devices, users, and applications must continuously prove trustworthiness before gaining access. Microsegmentation capabilities allow traffic to be logically separated across VLANs or overlay networks, minimizing the attack surface within enterprise LANs and WLANs.

Performance Optimization and Management

Aruba Central Cloud Management

IT administrators can manage the AP-754 through Aruba Central, a cloud-native platform offering AI-powered analytics, proactive alerts, and remote troubleshooting. This centralized management solution is particularly useful in multi-site environments and for minimizing operational overhead through automation.

AI-Powered RF Optimization

Using machine learning, Aruba’s AP-754 dynamically adjusts channel selection, power settings, and client distribution to maintain optimal network performance. These AI-driven adjustments reduce human intervention and significantly enhance end-user experience, especially during peak load times or in fluctuating RF conditions.

Dynamic Frequency Selection (DFS)

The AP-754 supports DFS, allowing it to operate on additional 5 GHz and 6 GHz channels typically reserved for radar. This significantly expands the usable spectrum and reduces congestion, particularly useful in urban areas or high-density deployments where non-DFS channels are crowded.

Technical Specifications

Radio Specifications

The AP-754 is equipped with three radios: one dual-band (2.4/5 GHz), one 6 GHz band, and one dedicated for scanning or secondary access. Each radio supports 4x4 MIMO, delivering a total peak aggregate throughput exceeding 10 Gbps when leveraging Wi-Fi 7 features such as 320 MHz channels and 4096-QAM.

Ports and Connectivity

The access point includes a 5 Gbps Ethernet uplink port with PoE+ support, ensuring sufficient power delivery and data throughput for high-speed applications. An additional port is available for redundancy or daisy-chaining multiple APs in larger deployments. USB and console ports are also present for initial setup and local management.

Environmental Resilience

Though primarily designed for indoor campus environments, the rugged casing and extended operational temperature range make the AP-754 suitable for semi-industrial environments and high-humidity zones. The unit meets various shock and vibration standards, ensuring performance stability in dynamic settings.

Integration and Ecosystem Compatibility

Seamless Network Interoperability

The AP-754 works seamlessly with Aruba CX switches and Aruba's SD-Branch solutions, creating an end-to-end network architecture that’s easy to scale and manage. The system supports OpenConfig and RESTful APIs for integration with third-party monitoring tools and orchestration platforms.

Support for IoT and BLE

Built-in support for Bluetooth Low Energy (BLE) and Zigbee radios allows the AP-754 to serve as a hub for IoT devices, from environmental sensors to smart locks. This reduces the need for separate IoT gateways and simplifies the deployment of smart building initiatives.

Future-Proofing and Backward Compatibility

While optimized for Wi-Fi 7, the AP-754 remains fully backward compatible with Wi-Fi 6, 5, and even legacy clients. This ensures a smooth transition for enterprises migrating infrastructure and supports mixed-client environments without compromising performance or user experience.

Aruba AP-754 (RW)

Scalability and Investment Protection

Organizations choosing the AP-754 benefit from Aruba’s long-term commitment to scalable network architecture and feature-rich firmware updates. The hardware is designed with next-generation innovations in mind, providing investment protection as standards evolve and demands increase.

Best-in-Class Support and Warranty

HPE Aruba offers comprehensive support plans, including 24/7 technical assistance, firmware upgrades, and advanced replacement warranties. With global reach and localized support networks, enterprises can rely on continued operational uptime and proactive assistance.

High Return on Investment

The combination of performance, security, and flexibility offered by the AP-754 ensures a high ROI for enterprises looking to future-proof their wireless infrastructure. Reduced downtime, enhanced employee productivity, and lower total cost of ownership further validate its place as a strategic IT asset.
