Overview of the HPE Switch

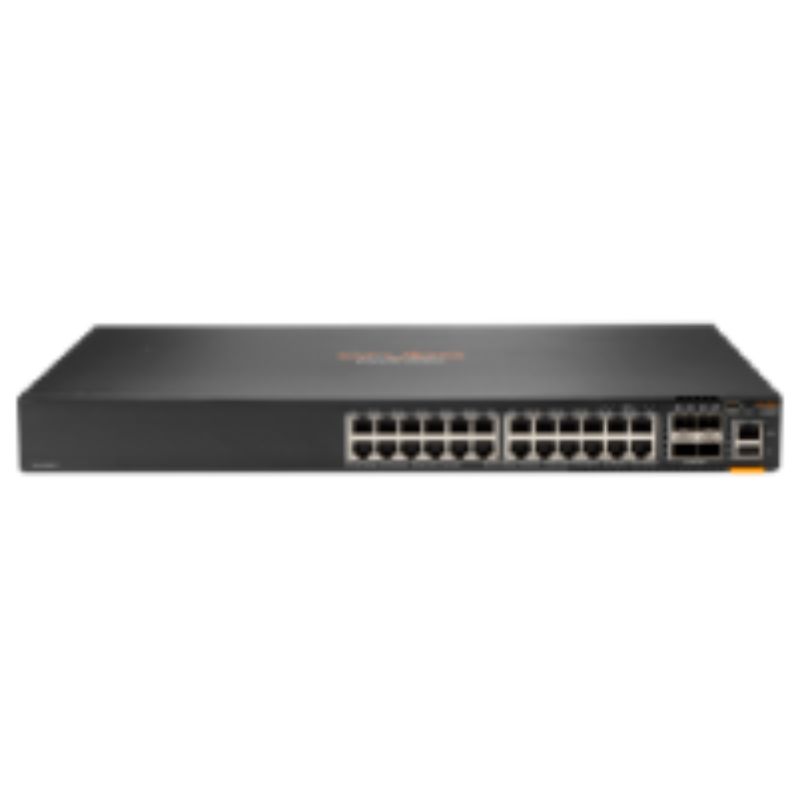

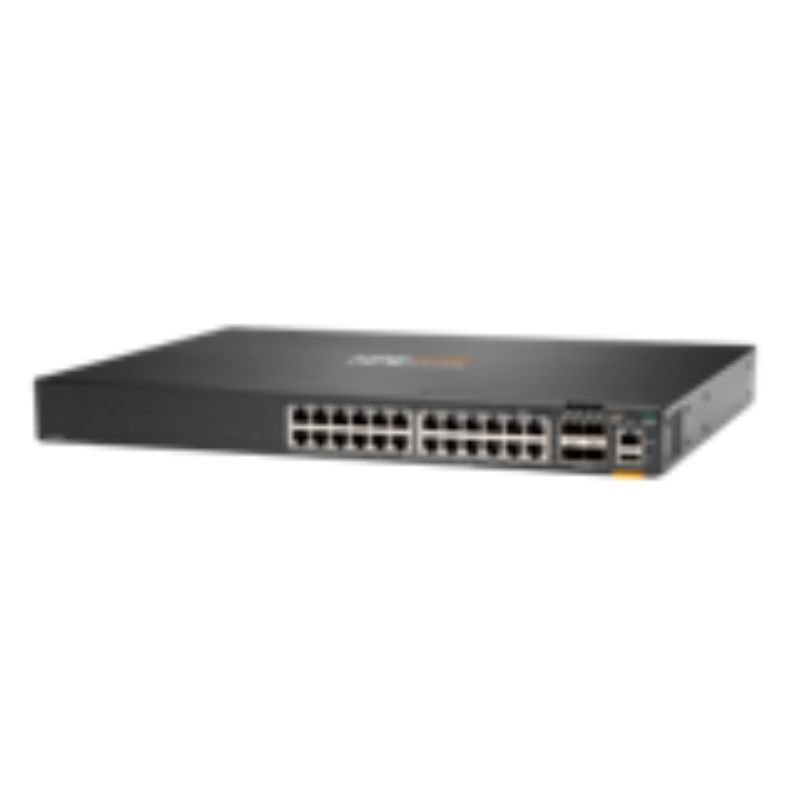

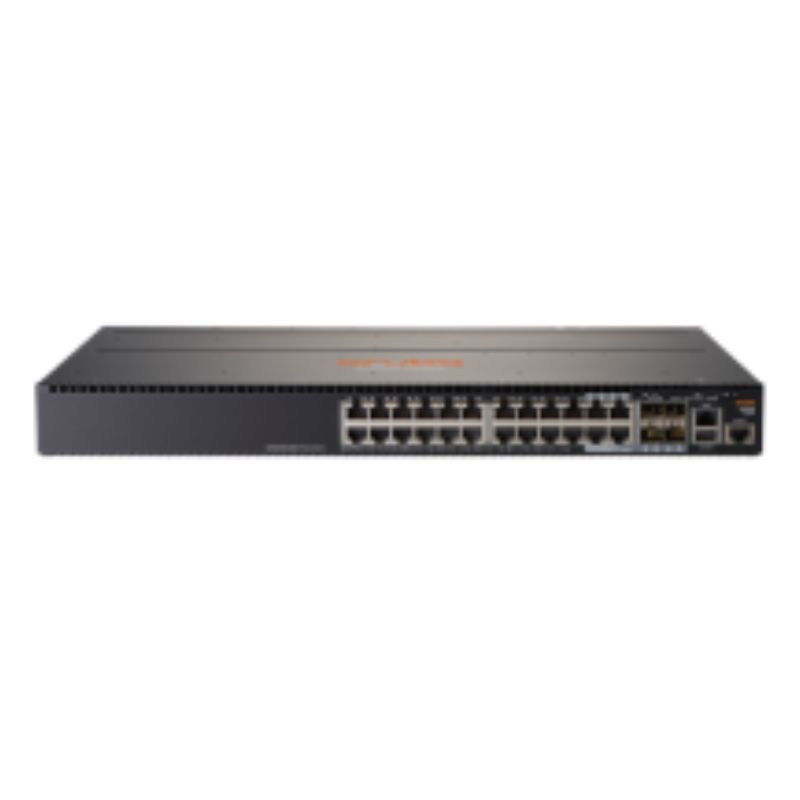

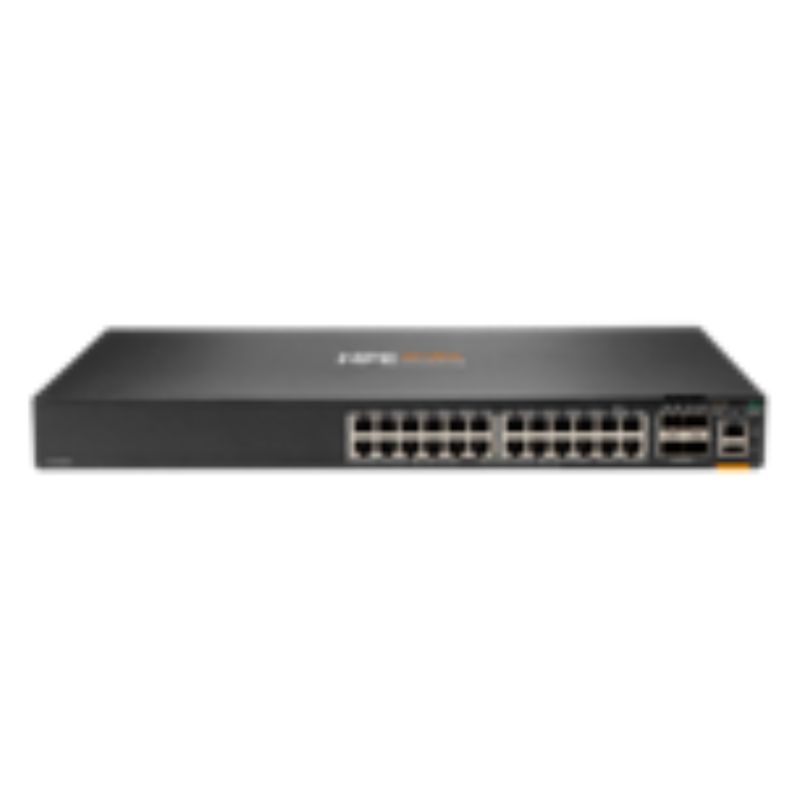

The HPE S3L75-61001 Aruba CX 6300L 24p Smart Rate L2 Switch represents the cutting-edge of enterprise networking solutions, designed to deliver unmatched performance, scalability, and flexibility for modern network environments. As part of the Aruba CX family, this switch combines advanced hardware, intelligent software, and future-ready networking capabilities that make it ideal for enterprises, data centers, and high-demand network applications.

General Information

• Part: S3L75-61001
• Brand: HPE
• Product Type: Switch

Technical Specifications

• 24 Smart Rate 1G/2.5G/5G/10G ports
• 2 x 50G uplinks (QSFP28)
• 2 x 25G uplinks (SFP28)
• Class 6 PoE on select ports

Performance Metrics

• Switching capacity: 1.28 Tbps
• Forwarding rate: 950 Mpps
• Latency: sub-3 microseconds for 10G traffic

Management and Security

• Aruba OS-CX with advanced L2 features
• Centralized monitoring and analytics via Aruba Central
• 802.1X authentication, ACLs, and VLAN support

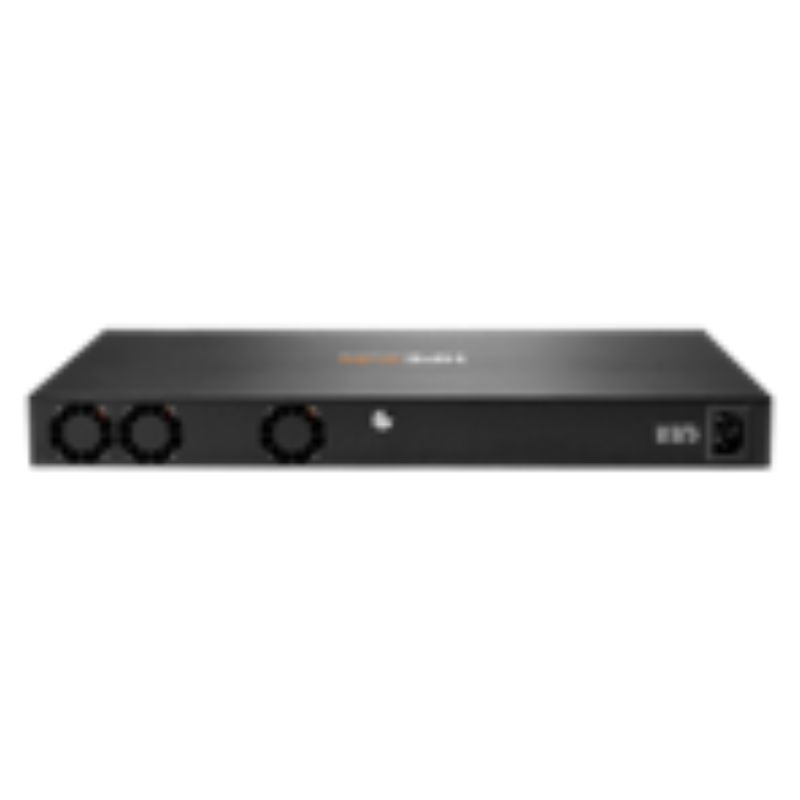

Power & Redundancy

• Integrated internal power supply with hot-swappable design.
• Supports up to 2 power units with optional redundancy.
• Redundancy Scheme: 1+1 with optional secondary power supply for uninterrupted operation.

Benefits

• Scalable architecture for growing enterprise networks.
• High-speed connectivity for bandwidth-intensive applications.
• Advanced PoE for powering multiple devices efficiently.
• Reliable stackable design reduces downtime and simplifies management.
• Robust hardware and memory configuration ensures smooth performance under heavy workloads.

HPE S3L75-61001 Aruba CX 6300L Series

The HPE S3L75-61001 Aruba CX 6300L is a high-performance Layer 2 switch designed for enterprise and campus networks that require reliability, scalability, and advanced performance features. As part of the Aruba CX 6300L family, this switch delivers multi-gigabit connectivity and comprehensive network intelligence, making it ideal for modern digital environments with high-density wireless access points, IoT devices, and bandwidth-intensive applications.

This switch offers 24 ports supporting Smart Rate speeds of 1G, 2.5G, 5G, and 10G, along with Class 6 Power over Ethernet (PoE) capabilities, allowing it to power next-generation devices such as Wi-Fi 6/6E access points, IP cameras, and VoIP phones. Additionally, the Aruba CX 6300L provides dual uplink pairs with 50G and 25G interfaces, enabling seamless aggregation and high-speed connectivity to core switches or data center networks.

Port and Connectivity Features

The Aruba CX 6300L 24p Smart Rate Switch comes equipped with 24 multi-gigabit ports that adapt to various network speeds.

The dual uplink configuration, including 2 ports at 50G and 2 ports at 25G, ensures high-bandwidth connectivity for data-intensive applications and aggregation of multiple switches in campus or data center networks. These uplink ports are fully compatible with SFP28 and QSFP28 modules, providing flexibility for network expansion and future-proofing your infrastructure.

Power over Ethernet Capabilities

The Aruba CX 6300L includes Class 6 PoE support across all 24 access ports. This allows network administrators to deploy devices such as Wi-Fi 6 access points, IP surveillance cameras, and VoIP phones without the need for additional power supplies. The total PoE budget ensures adequate power distribution across all connected devices, reducing the complexity and cost of network deployment.

HPE Aruba CX 6300L 24p Smart Rate L2 Switch

The Aruba CX 6300L is equipped with 24 Smart Rate ports supporting 1G, 2.5G, 5G, and 10G speeds, enabling organizations to leverage higher bandwidth without the need for additional infrastructure upgrades. These multi-gigabit capabilities are especially beneficial in environments with high-density wireless deployments, where access points require more than traditional 1G connectivity.

PoE and Power Management

Power over Ethernet (PoE) is essential for modern networked devices. The HPE S3L75-61001 offers Class 6 PoE across its ports, delivering up to 60W per port for demanding devices. The switch also provides efficient power management features, allowing network administrators to allocate and monitor power usage effectively across the network.

High-Speed Uplinks

The switch features two 50G and two 25G uplink ports, enabling high-capacity interconnections with aggregation switches and core network devices. This ensures low-latency, high-speed data transfer across the network backbone, supporting demanding applications such as video conferencing, large file transfers, and cloud-based services.

Performance and Reliability

The Aruba CX 6300L leverages a high-performance switching architecture that supports wire-speed L2 forwarding for all ports. This architecture ensures minimal latency, high throughput, and reliable packet delivery even under maximum load. The hardware is designed to handle intensive network traffic, making it suitable for enterprise campus networks, branch offices, and data centers.

Resilient Design for Continuous Operations

Designed with reliability in mind, the HPE S3L75-61001 ensures continuous network operations with features such as redundant power supply support, hot-swappable components, and advanced error detection. These capabilities minimize downtime and enhance network availability, which is critical for business-critical applications.

Security and Network Management

Security is a top priority in modern enterprise networks. The Aruba CX 6300L integrates advanced Layer 2 security features, including MAC-based access control, dynamic VLAN assignment, and support for 802.1X authentication. These features help protect the network from unauthorized access, mitigate potential threats, and ensure compliance with enterprise security policies.

Intelligent Network Management

The Aruba CX 6300L supports Aruba’s advanced network management tools, allowing administrators to monitor, automate, and troubleshoot the network from a centralized platform. Aruba Central provides visibility into network performance, real-time analytics, and AI-driven insights, simplifying management and reducing operational costs.

Flexibility and Scalability

The HPE S3L75-61001 is designed to grow with your network. Its modular uplinks, Smart Rate ports, and PoE capabilities allow organizations to expand without significant infrastructure changes. This scalability ensures that the switch remains a viable investment as network demands increase over time.

Future-Ready Networking

With multi-gigabit support, high-capacity uplinks, and robust PoE, the Aruba CX 6300L positions enterprises for future network technologies, including Wi-Fi 6/6E access points, IP surveillance, and IoT devices. Its support for advanced Layer 2 features and cloud-based management ensures long-term relevance in evolving IT environments.

Deployment Scenarios

In enterprise campuses, the Aruba CX 6300L acts as a high-performance edge switch, connecting end devices such as laptops, phones, and access points while ensuring seamless connectivity across multiple buildings. Its advanced PoE capabilities support IP phones, Wi-Fi access points, and surveillance cameras without the need for additional power infrastructure.

Data Center Access Layer

As part of a data center network, the switch provides high-speed connectivity between servers, storage systems, and aggregation switches. Its low-latency forwarding, redundant uplinks, and multi-gigabit ports ensure that bandwidth-intensive applications such as virtualization, backup, and cloud services operate efficiently.

Branch Offices and Remote Sites

The Aruba CX 6300L is equally suitable for branch office deployments, offering enterprise-grade performance in a compact form factor. With centralized management through Aruba Central, IT teams can maintain consistent network policies, monitor performance, and troubleshoot issues across distributed sites without requiring on-site staff.

Benefits of Choosing Aruba CX 6300L

Multi-gigabit Smart Rate ports combined with high-capacity uplinks deliver faster access and lower latency for all connected devices, ensuring a smooth and responsive network experience for end users.

Reduced Operational Complexity

Centralized management through Aruba Central simplifies configuration, monitoring, and troubleshooting, reducing the burden on IT staff and minimizing operational costs across distributed networks.

Future-Proof Investment

With advanced L2 capabilities, multi-gigabit support, and PoE, the Aruba CX 6300L ensures that your network can accommodate future growth, new applications, and emerging technologies without major infrastructure changes.

Robust Security

Integrated security features such as 802.1X, VLAN segmentation, and access control provide protection against unauthorized access, helping maintain network integrity and compliance with corporate security policies.
