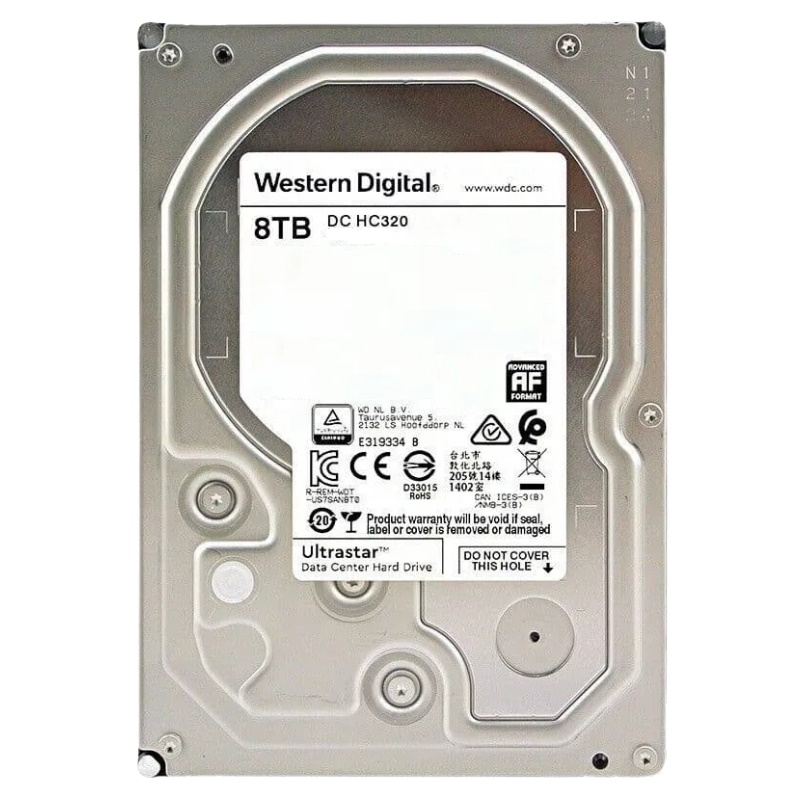

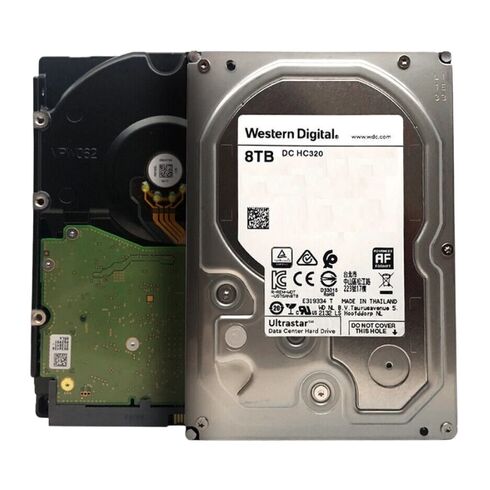

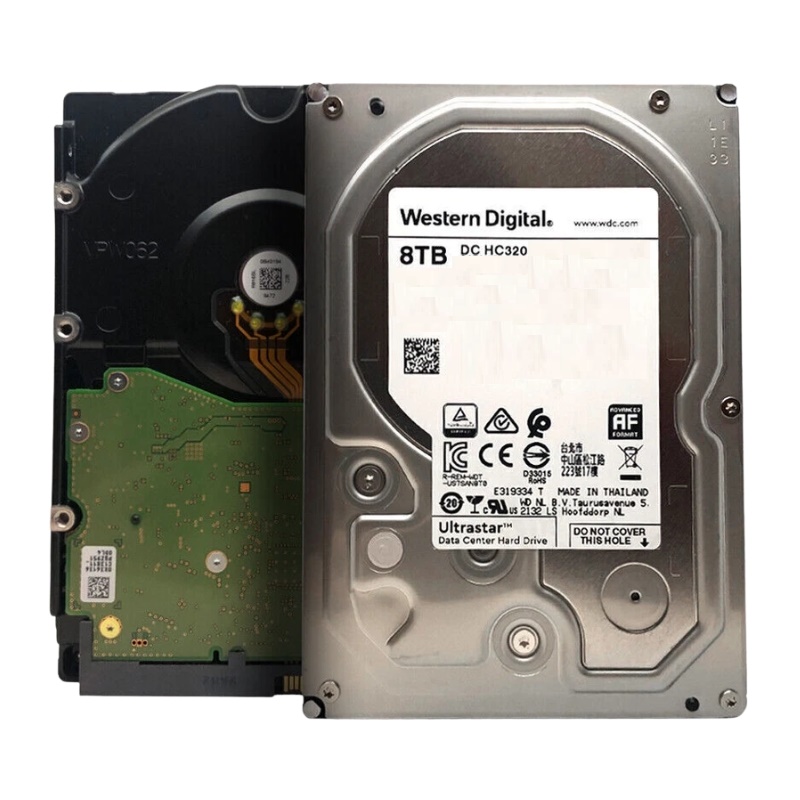

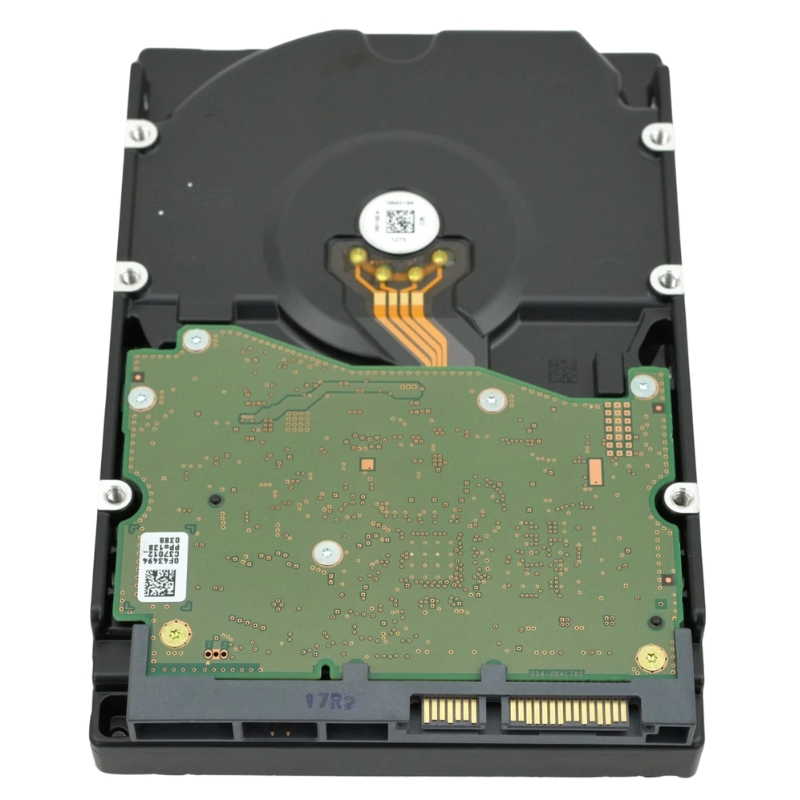

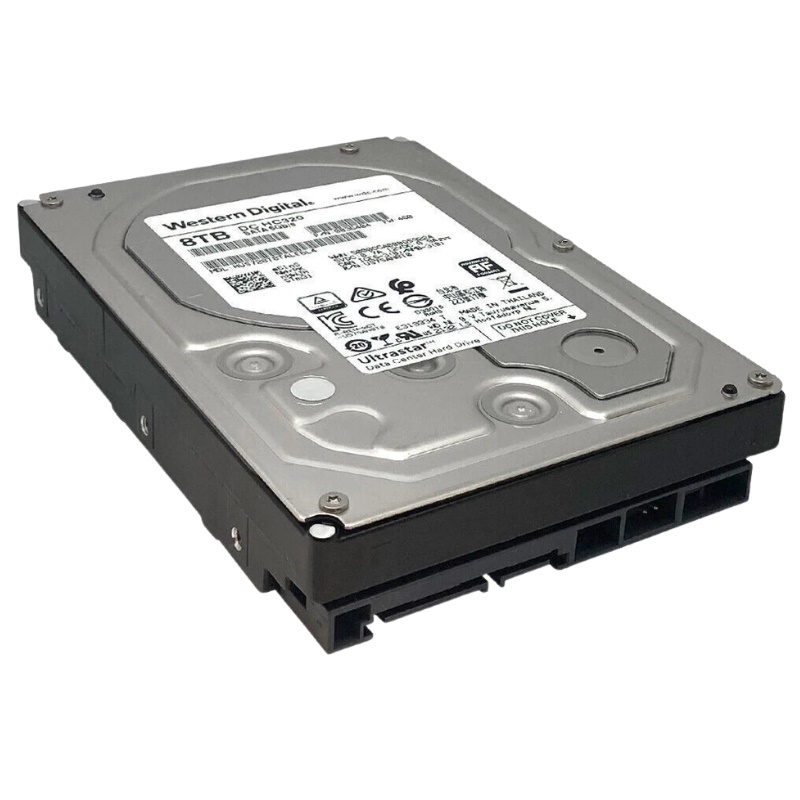

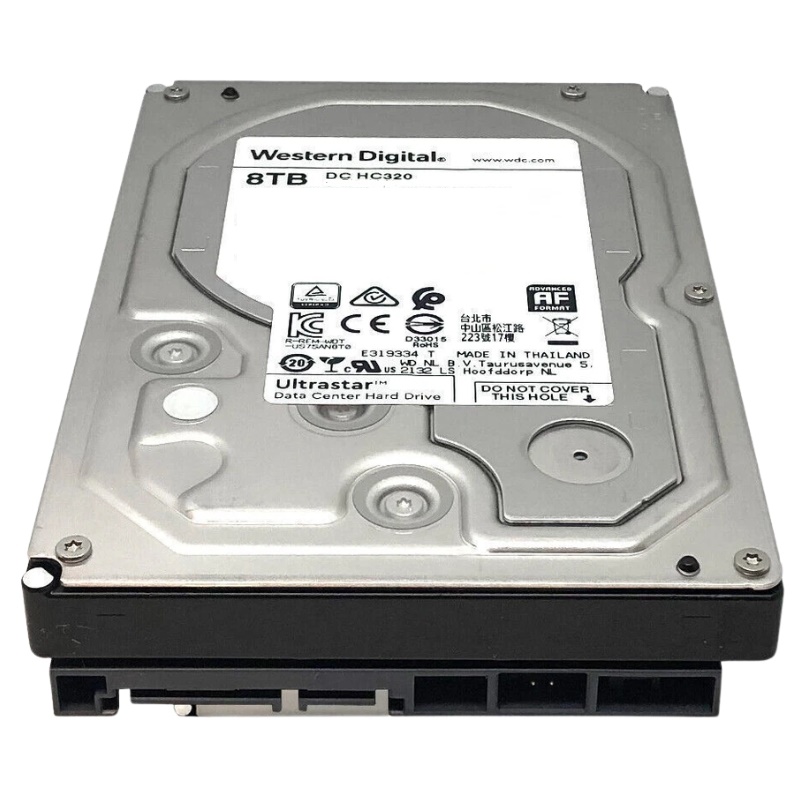

HUS728T8TAL5204 Western Digital 8TB WD 7.2K RPM SAS-12GBPS Enterprise Hard Drive

Highlights of WD 8TB SAS-12GBPS HDD

The Western Digital HUS728T8TAL5204 Ultrastar DC HC320 8TB SAS 12Gbps 3.5-inch Hard Drive is a high-capacity enterprise storage solution, engineered for reliability, scalability, and consistent performance in mission-critical environments such as cloud, big data, and distributed systems.

General Information

• Brand: Western Digital
• Part Number: HUS728T8TAL5204
• Device Type: Ultrastar DC HC320 Enterprise Hard Drive

Technical Specifications

• Capacity: 8TB
• Form Factor: 3.5-inch
• Interface: SAS 12Gbps
• Enclosure: Internal
• Maximum Areal Density: 834 Gbits/sq. inch
• MTBF: 2 Million Hours

Performance Attributes

• Rotational Speed: 7200 RPM
• Buffer Size: 256MB
• Interface Transfer Rate: 1200 Mbps
• Sustained Transfer Rate: Up to 255 Mbps
• Seek Time (Read Typical): 8.0 ms
• Seek Time (Write Typical): 8.6 ms
• Average Latency: 4.16 ms

Physical Characteristics

• Z-Height: 26.1 mm
• Width x Depth: 101.6 mm x 147 mm
• Weight: 715 g

Applications & Environments

Data Center Solutions

• Distributed file systems such as Apache Hadoop®
• Support for large-scale analytics and big data workloads

Additional Applications

• Direct Attached Storage (DAS)
• Network Attached Storage (NAS)
• RAID arrays for redundancy and performance

WD HUS728T8TAL5204 8TB SAS-12GBPS LFF HDD Overview

The Western Digital HUS728T8TAL5204 8TB 7.2K RPM SAS-12Gbps Enterprise Hard Drive is engineered for mission-critical workloads where consistent performance, high availability, and long-term reliability are essential. Designed as part of Western Digital’s enterprise-class storage portfolio, this hard drive integrates advanced mechanical engineering with SAS interface technology to deliver dependable throughput in demanding server and storage environments.

Built on a robust 3.5-inch form factor, this drive is optimized for high-capacity data centers, cloud storage infrastructure, virtualization platforms, and enterprise backup systems. Its 8TB storage capacity allows organizations to scale efficiently while maintaining predictable performance under sustained workloads.

Target Applications and Enterprise Use Cases

High-Density Data Center Storage Systems

In modern data centers, storage density and reliability are crucial. The Western Digital HUS728T8TAL5204 is designed to meet the demands of hyperscale environments where large volumes of structured and unstructured data must be stored efficiently. Its 8TB capacity allows storage architects to reduce physical rack space while increasing overall data availability.

Cloud Infrastructure and Virtualization Platforms

Cloud computing environments require storage systems capable of handling continuous read and write operations across multiple virtual machines. This enterprise SAS hard drive supports multi-tenant workloads, ensuring stable performance in virtualized infrastructures such as VMware, Hyper-V, and KVM-based deployments.

Enterprise Backup and Archival Solutions

For long-term data retention, backup servers require high-capacity drives that can operate continuously without performance degradation. The 7.2K RPM speed ensures a balance between energy efficiency and sustained data transfer rates, making it ideal for archival storage systems and disaster recovery setups.

Database and Transactional Workloads

Enterprise databases demand consistent I/O performance for transaction processing. The SAS-12Gbps interface ensures stable data communication between storage and processing units, enabling reliable database operations in financial systems, ERP platforms, and large-scale analytics engines.

Performance Engineering and Mechanical Design

7.2K RPM Spindle Speed Optimization

The 7200 RPM rotational speed is carefully engineered to balance performance and energy efficiency. Unlike high-speed enterprise SSD alternatives, this HDD provides a cost-effective solution for bulk storage while still maintaining sufficient throughput for enterprise workloads. The spindle design reduces vibration and ensures consistent read/write stability over extended operational cycles.

SAS-12Gbps Interface Architecture

The Serial Attached SCSI (SAS) 12Gbps interface is a critical component of the Western Digital HUS728T8TAL5204. This high-speed interface enables faster communication between storage devices and server controllers. It also supports dual-port functionality, enhancing redundancy and failover capabilities in enterprise storage arrays.

Improved Data Integrity and Signal Reliability

The SAS architecture includes advanced error detection and correction mechanisms, ensuring data integrity during high-volume transfers. This is particularly important in environments where even minor data corruption can lead to operational disruptions or financial loss.

Vibration Resistance in Multi-Drive Enclosures

Enterprise storage systems often operate multiple drives in close proximity, leading to vibration challenges. The Western Digital HUS728T8TAL5204 incorporates rotational vibration sensors that help stabilize performance and maintain consistent read/write accuracy even in densely populated storage arrays.

Reliability and Data Protection Features

Enterprise-Grade Error Recovery Systems

This hard drive includes sophisticated error recovery control mechanisms that reduce the risk of data loss. These systems automatically detect anomalies and apply corrective measures without interrupting ongoing operations, ensuring uninterrupted access to stored information.

Rotational Vibration Safeguards

The drive is equipped with integrated vibration management technology that actively compensates for mechanical disturbances. This is essential in rack-mounted servers where multiple drives operate simultaneously, generating mechanical resonance that can affect performance.

Thermal Management and Heat Dissipation

Thermal stability is a key factor in enterprise storage reliability. The Western Digital HUS728T8TAL5204 is designed to operate efficiently under sustained heat conditions. Its internal thermal calibration systems ensure that performance remains stable even during prolonged high-load operations.

Power Efficiency Optimization

Energy consumption is a major consideration in enterprise environments. This drive is optimized to deliver a balance between performance and power efficiency, reducing operational costs in large-scale deployments while maintaining consistent data throughput.

Scalability in Modern Storage Architectures

Integration into Storage Area Networks (SAN)

The SAS interface allows seamless integration into Storage Area Networks, enabling centralized data management across multiple servers. This scalability is essential for enterprises managing petabytes of structured and unstructured data across distributed systems.

Compatibility with RAID Configurations

The Western Digital HUS728T8TAL5204 is fully compatible with various RAID configurations, including RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10. These configurations enhance redundancy, performance, and fault tolerance depending on enterprise requirements.

Data Redundancy and Fault Tolerance

RAID-based deployments benefit from the drive’s consistent performance characteristics. In the event of a drive failure, RAID systems can rebuild data using parity or mirrored copies, ensuring minimal downtime and data protection continuity.

Scalable Cloud Storage Expansion

Cloud providers rely on predictable storage scaling to meet increasing user demands. This 8TB enterprise HDD allows infrastructure engineers to expand storage clusters without redesigning existing architectures, ensuring seamless scalability in dynamic environments.

Data Throughput and Transfer Efficiency

Consistent Sequential Read and Write Performance

The drive is optimized for sequential workloads, making it ideal for backup operations, media storage, and large dataset processing. Its mechanical architecture ensures stable throughput even under sustained workloads.

Optimized Cache Architecture

An integrated caching system enhances data retrieval efficiency by temporarily storing frequently accessed information. This reduces latency and improves overall system responsiveness in enterprise applications.

Minimized Latency in High-Demand Environments

Latency optimization is essential for enterprise systems handling concurrent data requests. The drive’s firmware-level optimizations ensure that response times remain consistent even during peak workload conditions.

Security and Data Protection Integration

Enterprise Data Security Compatibility

While the drive itself focuses on storage reliability, it is fully compatible with enterprise encryption systems and hardware-based security frameworks. This ensures secure data handling in compliance-driven environments.

Secure Erase and Data Sanitization Support

In enterprise lifecycle management, secure data destruction is essential. The drive supports secure erase procedures, enabling organizations to safely decommission storage devices without risking data exposure.

Compliance with Enterprise Storage Standards

The Western Digital HUS728T8TAL5204 adheres to strict enterprise storage standards, ensuring compatibility with regulatory frameworks that govern data retention and security across industries.
