HMCG78AGBRA188N Hynix 16GB DDR5 5600MT/s PC5-44800 RDIMM Memory Module

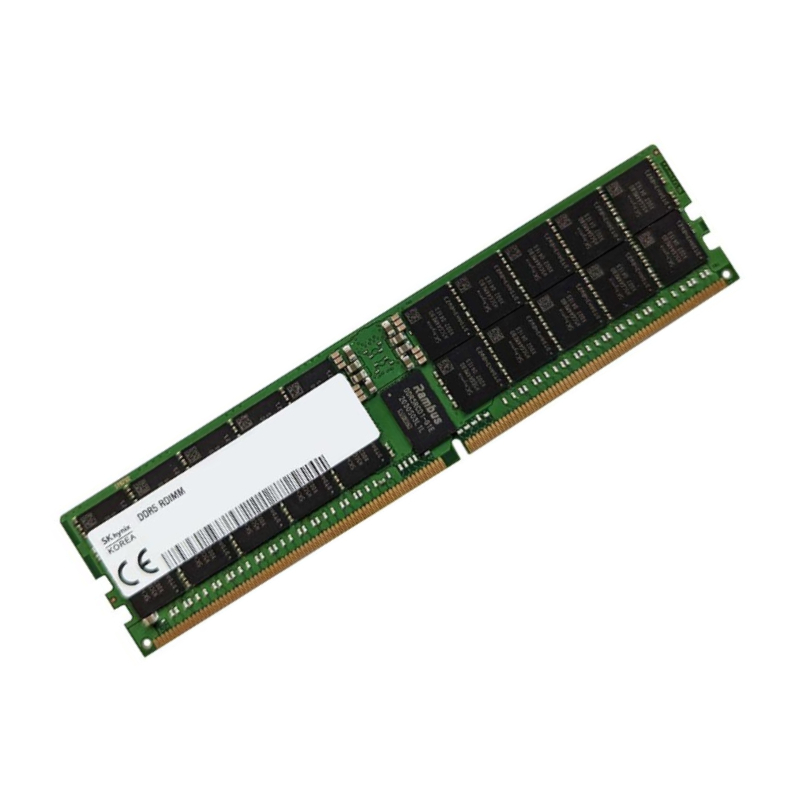

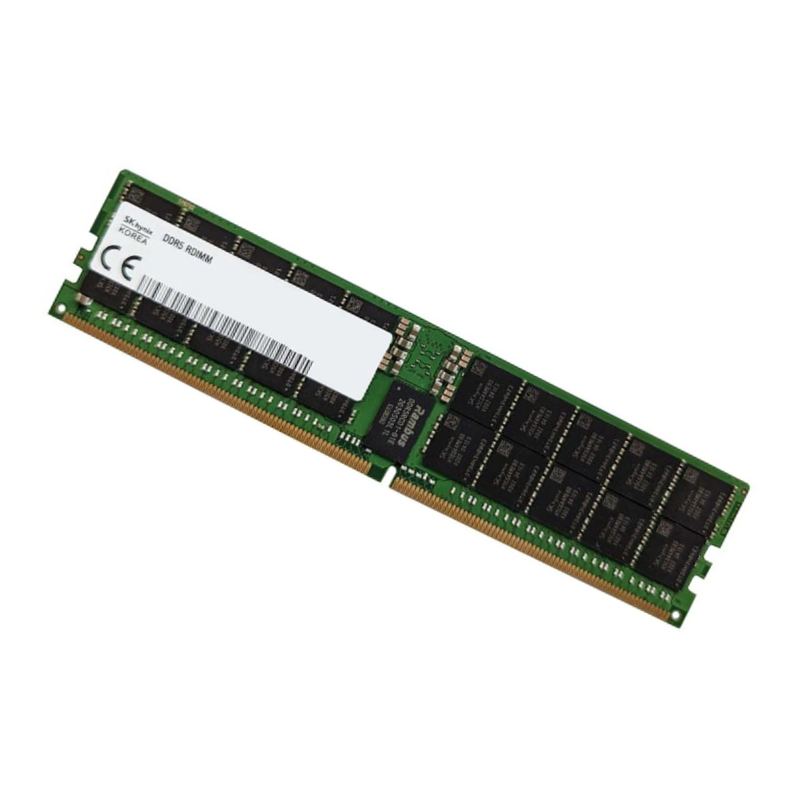

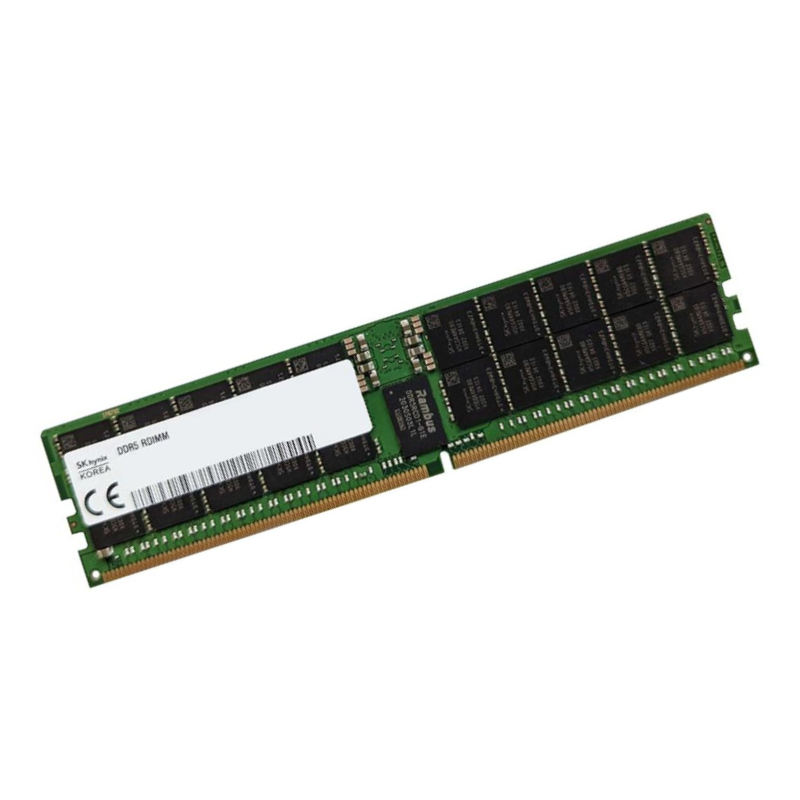

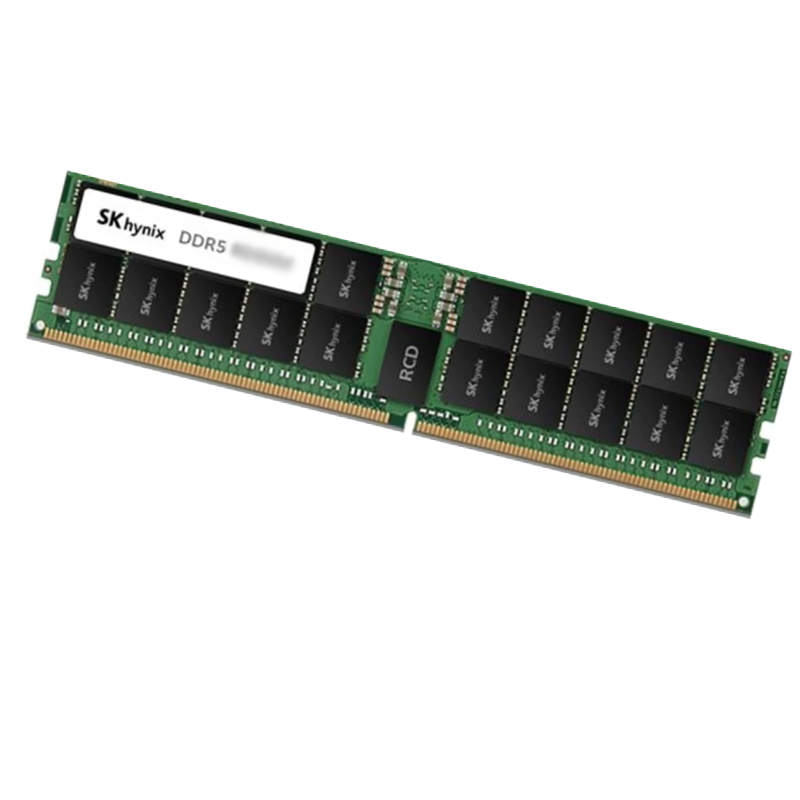

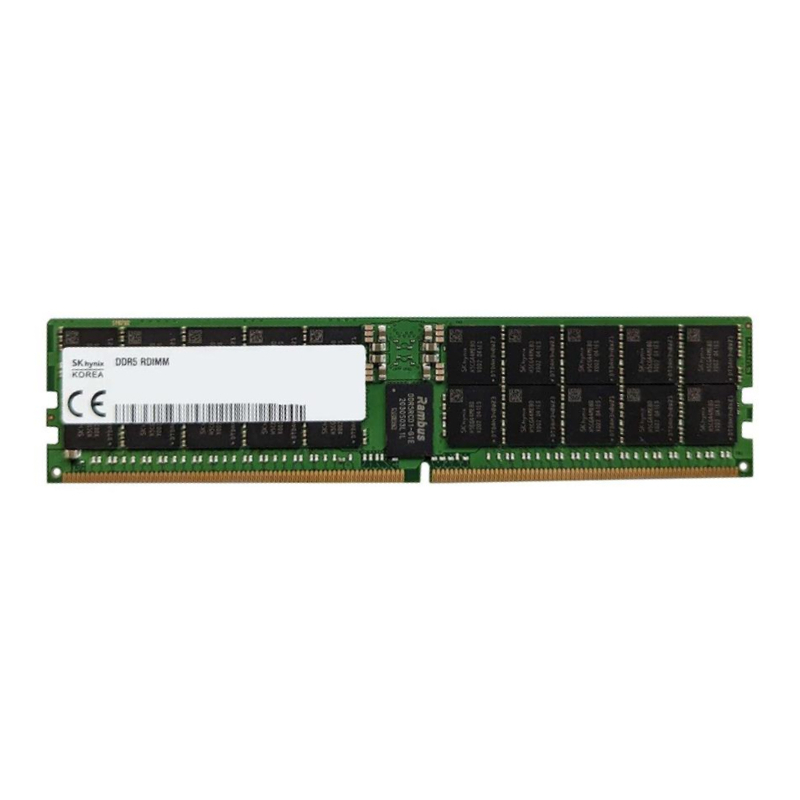

Hynix HMCG78AGBRA188N Server Memory Module

The Hynix HMCG78AGBRA188N represents a significant advancement in server memory technology with its single 16GB capacity configuration. This 1x16GB module utilizes a single-rank architecture (1Rx8) that optimizes memory access patterns and reduces electrical load on the memory controller. The 16GB capacity per module provides substantial memory headroom for enterprise applications while maintaining optimal signal integrity across the memory bus. This configuration is particularly well-suited for memory-intensive workloads where large datasets require rapid processing and access.

Performance Characteristics

Operating at 5600MT/s (MegaTransfers per second), this DDR5 module delivers exceptional data transfer rates that significantly outperform previous DDR4 generations. The PC5-44800 designation confirms compliance with industry-standard performance metrics for DDR5 memory. With a CAS Latency of CL46, this module balances high-speed data transfer with responsive access times, ensuring that server systems can handle demanding computational tasks without memory-related bottlenecks. The 1.1V operating voltage represents a substantial improvement in power efficiency compared to DDR4 modules, reducing overall server power consumption and thermal output.

Advanced DDR5 Architecture

Enhanced Data Integrity

The Hynix HMCG78AGBRA188N incorporates sophisticated error correction mechanisms and on-die ECC (Error Correcting Code) that automatically detect and correct single-bit errors in real-time. This advanced error correction capability is crucial for server environments where data integrity is paramount. The module's architecture includes redundant circuitry that maintains system stability even under continuous heavy workloads, ensuring mission-critical applications remain operational without data corruption or system crashes due to memory errors.

Power Efficiency

DDR5 technology introduces revolutionary power management capabilities through its integrated Power Management IC (PMIC). This dedicated power regulation system distributes power more efficiently across the memory module, reducing noise and improving signal quality. The PMIC enables more precise voltage control than previous generations, allowing the module to maintain stable operation even during power fluctuations.

Server-Specific Memory Technology

RDIMM Performance Advantages

As a Registered DDR5 DIMM (RDIMM), the Hynix HMCG78AGBRA188N incorporates memory registers that buffer address, command, and control signals between the memory controller and DRAM chips. This buffering reduces the electrical load on the memory controller, enabling support for higher memory capacities and more modules per channel. The registered design significantly improves signal integrity in multi-DIMM configurations, making this module ideal for servers requiring large memory arrays. The registration circuitry ensures stable operation at high speeds while maintaining compatibility with server-grade motherboards and processors.

System Stability Enhancements

The registered architecture provides crucial stability benefits for enterprise server environments. By reducing the electrical demand on the memory controller, RDIMMs prevent signal degradation that can occur in unbuffered configurations, especially in systems with multiple memory modules. This enhanced stability translates to improved system reliability, reduced error rates, and consistent performance under varying load conditions. The Hynix HMCG78AGBRA188N's registered design ensures optimal performance in memory-intensive applications such as database management, virtualization, and high-performance computing.

Form Factor

The Hynix HMCG78AGBRA188N utilizes the standard 288-pin DDR5 DIMM form factor with specific modifications for server applications. The pin configuration includes additional contacts for enhanced power delivery, improved grounding, and advanced signal integrity features. The physical layout ensures proper mechanical compatibility with server motherboard DIMM slots while providing secure electrical connections. The module's PCB (Printed Circuit Board) incorporates multiple layers with optimized trace routing to minimize signal skew and crosstalk, maintaining data integrity at high transfer rates.

Performance in Enterprise Environments

Virtualization and Cloud Applications

The Hynix HMCG78AGBRA188N excels in virtualized environments where multiple virtual machines require simultaneous access to memory resources. The module's high bandwidth and low latency characteristics ensure smooth operation of hypervisors and efficient memory allocation across virtual instances. In cloud computing applications, the 16GB capacity per module provides substantial memory headroom for containerized applications and microservices architectures. The DDR5 architecture's improved bank grouping and burst length optimization further enhance performance in these memory-intensive scenarios.

Database and Transaction Processing

For database servers and transaction processing systems, the Hynix memory module delivers exceptional performance through its advanced prefetch algorithms and improved command efficiency. The DDR5 architecture's dual 32-bit sub-channels effectively double the memory access parallelism compared to previous generations, significantly accelerating database query processing and transaction commit operations. The module's reliability features ensure data integrity during critical write operations, while the high transfer rates reduce latency in read-intensive database applications.

1Rx8 Memory Rank

The 1Rx8 (single rank, eight internal banks) organization of the Hynix HMCG78AGBRA188N represents an optimal balance between performance and power efficiency. This configuration enables efficient memory access patterns while minimizing electrical load on the memory controller. The eight internal banks per device allow for concurrent activation of multiple rows across different banks, significantly reducing access latency through bank interleaving. This organization is particularly effective in server applications where memory access patterns are often random and distributed across the entire address space.

Server Platforms

The Hynix HMCG78AGBRA188N is designed for compatibility with server platforms supporting DDR5 registered DIMM technology. This includes next-generation server processors from major manufacturers that incorporate DDR5 memory controllers. The module operates within standard DDR5 voltage and timing specifications while supporting advanced features such as gear modes that optimize performance based on system configuration. Compatibility with major server operating systems is ensured through rigorous testing and certification processes, guaranteeing seamless integration into existing server infrastructures.

On-Die ECC Implementation

The Hynix HMCG78AGBRA188N incorporates on-die ECC (Error Correction Code) that operates transparently to the system-level error correction. This dual-level error correction provides unprecedented data integrity by correcting errors at the DRAM device level before they can affect system operation. The on-die ECC functionality works in conjunction with traditional module-level ECC to create a comprehensive error correction strategy that addresses both single-cell errors and broader memory access issues. This multi-layered approach to data integrity is particularly valuable in mission-critical applications where data corruption is unacceptable.

DDR5 Generation Compatibility

The Hynix HMCG78AGBRA188N is positioned within the broader DDR5 technology roadmap, ensuring compatibility with future server platforms while delivering current-generation performance. As DDR5 technology evolves, this module provides a foundation for system upgrades and expansions. The 5600MT/s speed grade represents an optimal balance between performance availability and cost-effectiveness for current server deployments. The module's design anticipates future speed bin improvements while maintaining backward compatibility with initial DDR5 server platforms, protecting infrastructure investments.

Scalability

Server memory requirements continue to grow with increasing application demands and dataset sizes. The Hynix 16GB module provides building blocks for scalable memory configurations that can expand with business needs. The registered architecture supports high-DIMM-count configurations, enabling total system memory capacities that meet the requirements of memory-intensive applications such as in-memory databases, large-scale virtualization, and analytical processing. This scalability ensures that systems built with Hynix memory modules can adapt to evolving workload requirements without fundamental architectural changes.
