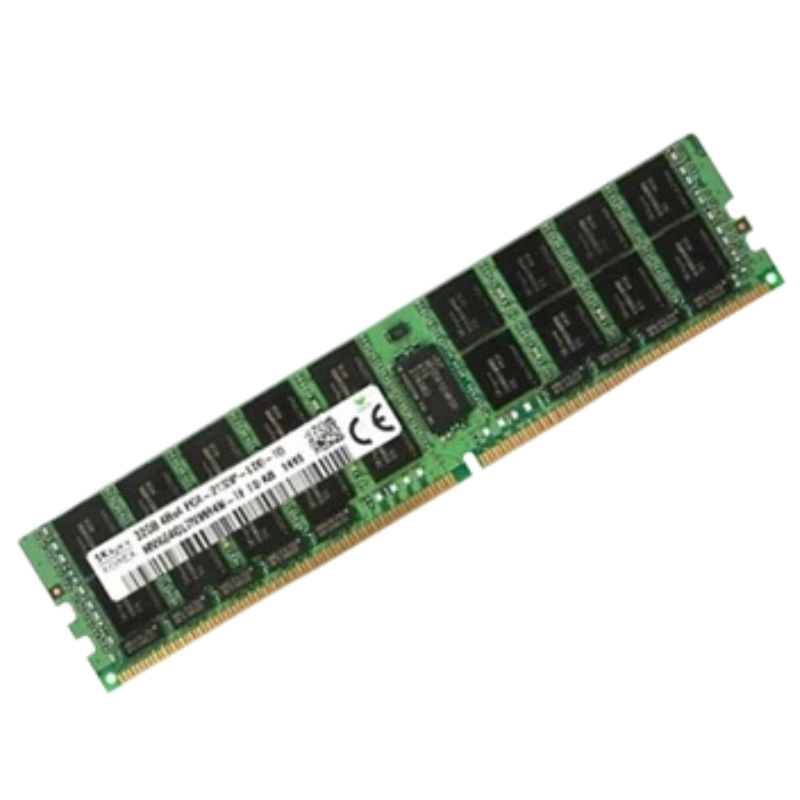

HMABAGL7MBR4N-WM Hynix 128gb 2933mhz Pc4-21300 ECC 1.2v Memory Module

HMABAGL7MBR4N-WM Hynix 128GB 2933MHz PC4-21300 ECC DDR4 SDRAM Memory Module

Technical Specifications

Below is a detailed breakdown of the HMABAGL7MBR4N-WM memory module’s specifications:

Memory Type & Speed

• Type: DDR4 SDRAM
• Speed: 2933MHz (PC4-21300)
• Data Rate: 23,400 MB/s (theoretical bandwidth)

Capacity & Configuration

• Capacity: 128GB (Single Module)
• Organization: 8Gx72 (ECC Registered)
• Rank: Dual Rank (DR)

Voltage & Timing

• Voltage: 1.2V
• CAS Latency (CL): TBD (varies by manufacturer settings)
• Timings: Industry-standard DDR4 timings

Form Factor & Compatibility

• Form Factor: 288-Pin DIMM
• Compatibility: Enterprise servers, cloud computing, and high-end workstations

Key Features of the HMABAGL7MBR4N-WM DDR4 Memory Module

This Hynix memory module is engineered for reliability and efficiency, making it ideal for mission-critical applications. Below are its standout features:

High Capacity & Performance

With a 128GB capacity, this module supports memory-intensive workloads, including virtualization, database management, and high-performance computing (HPC). The 2933MHz frequency ensures swift data access and reduced latency.

ECC (Error-Correcting Code) Support

The ECC functionality detects and corrects single-bit memory errors, preventing system crashes and data corruption. This feature is essential for servers and workstations requiring uninterrupted operation.

Low Power Consumption (1.2V)

Operating at just 1.2 volts, this DDR4 module reduces power consumption without compromising performance, making it energy-efficient for large-scale deployments.

288-Pin DIMM Design

The 288-pin configuration ensures compatibility with modern server motherboards, providing a secure and stable connection.

Applications & Use Cases

The HMABAGL7MBR4N-WM is designed for environments requiring high-speed, high-capacity, and error-resistant memory. Below are its primary applications:

Enterprise Servers

Ideal for data centers, cloud servers, and virtualization hosts, where stability and large memory pools are crucial.

High-Performance Computing (HPC)

Used in scientific research, AI/ML workloads, and big data analytics, where rapid data processing is essential.

Workstations & CAD Applications

Supports 3D rendering, video editing, and engineering simulations that demand high bandwidth and reliability.

Advantages of Using DDR4 ECC Memory

DDR4 ECC memory, such as the HMABAGL7MBR4N-WM, offers several benefits over standard memory modules:

Enhanced Data Integrity

ECC technology minimizes the risk of data corruption, ensuring accurate computations in critical applications.

Improved System Stability

By correcting memory errors in real-time, system crashes and unexpected reboots are reduced.

Higher Bandwidth & Efficiency

Compared to DDR3, DDR4 offers higher speeds and lower power consumption, improving overall system efficiency.

Compatibility & Installation Guidelines

Before purchasing, ensure compatibility with your system. Follow these guidelines for optimal performance:

Motherboard Compatibility

Verify that your motherboard supports:

• DDR4 ECC Registered (RDIMM) memory
• 2933MHz speed (or compatible underclocking)

Installation Best Practices

• Power off the system before installation.
• Align the notch on the DIMM with the slot.
• Apply even pressure when inserting the module.
• Check BIOS/UEFI settings to ensure proper detection.

Key Attributes of the Memory Module

• Model Number: HMABAGL7MBR4N-WM – Reliable performance under heavy data loads
• Memory Capacity: Enormous 128GB per stick – ideal for virtualization and data-heavy environments
• Memory Type: DDR4 SDRAM for faster, more power-efficient computing
• Manufacturer: SK Hynix – global leader in high-end memory technology

Speed, Format & Signal Control

• Clock Speed: 2933MHz – ensures quick and stable data access
• Data Rate Classification: PC4-23400 (also known as DDR4-2933)
• Memory Form: LRDIMM (Load-Reduced DIMM) – suitable for large-scale server use
• Pins: 288-pin configuration – standard for modern enterprise-grade systems

Advanced Architecture and Reliability Features

• Utilizes ECC (Error-Correcting Code) technology to prevent data corruption
• Features Quad Rank X4 structure for enhanced bandwidth and multitasking
• Signal Type: Registered – enables stability in high-capacity memory environments
• CAS Latency: CL21 – optimized for performance and reduced delay

Compact Physical Structure with Server-Ready Build

• Module Size: Industry-standard length with a height of 1.00 inch
• Depth: 6.75 inches – fits easily into server slots
• Net Weight: Approx. 0.20 lbs – lightweight but powerful

Designed for Data Centers & Enterprise Workloads

• Perfect for memory-intensive applications like cloud computing, virtualization, and large databases
• Quad Rank configuration enables higher density per channel – excellent for scale-up server deployments
• Voltage requirement of just 1.2V ensures power efficiency with reduced heat output
