Hynix HMCG78AHBRA289N 16GB DDR5 6400MT/s PC5-51200 CL52 ECC Memory

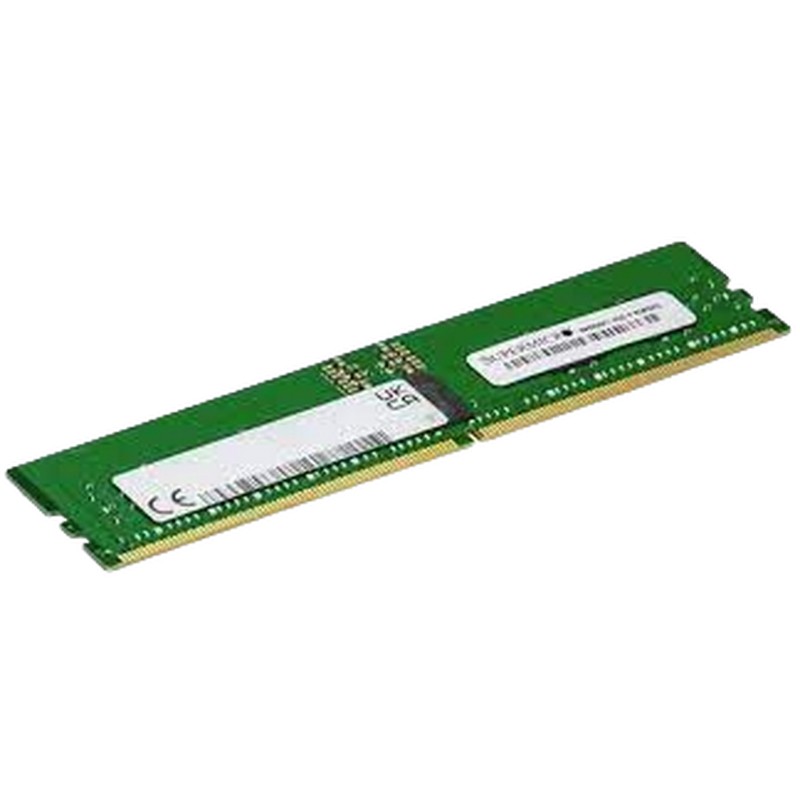

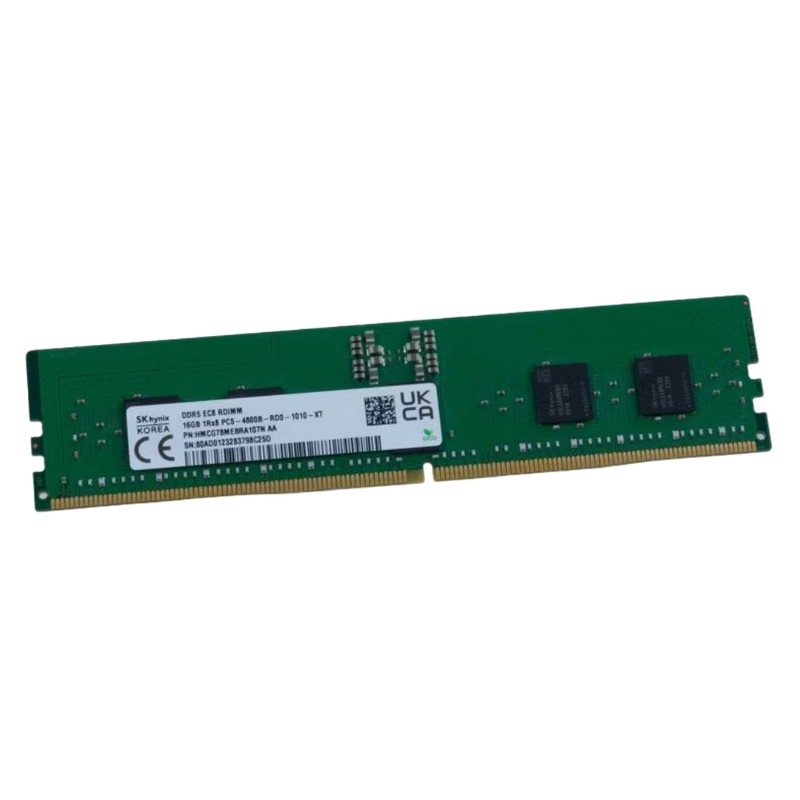

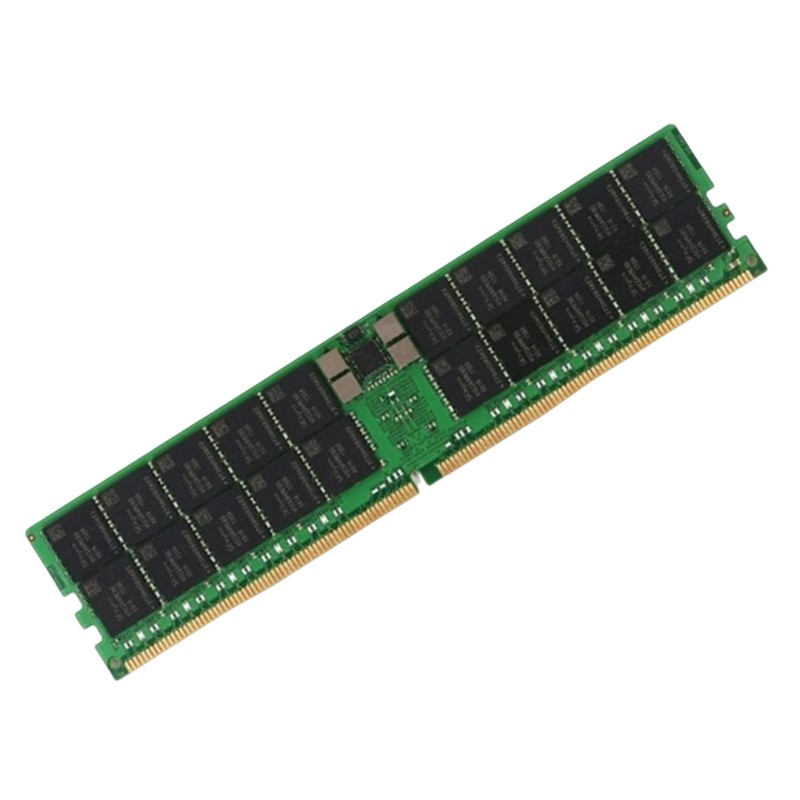

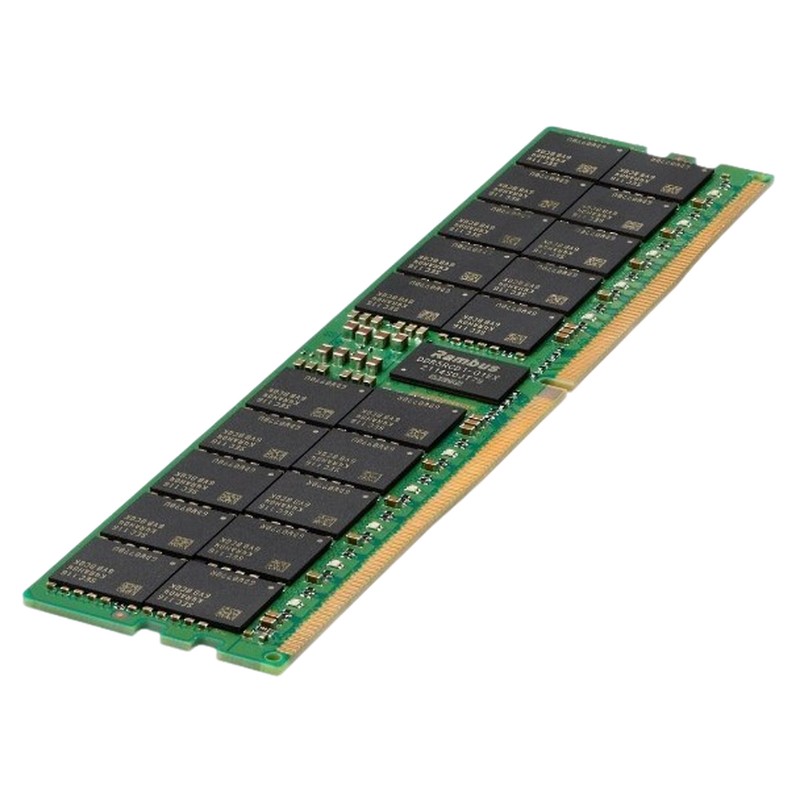

Hynix HMCG78AHBRA289N 16GB DDR5 Memory Module

The Hynix HMCG78AHBRA289N represents a significant advancement in server memory technology, delivering 16GB of high-performance DDR5 SDRAM. This module operates at a blazing-fast 6400MT/s (MegaTransfers per second), which translates to a raw data rate of 6.4 billion transfers per second per pin. This speed is classified under the PC5-51200 standard, indicating a peak theoretical bandwidth of approximately 51.2 GB/s for a single module. The module operates at an efficient 1.1V, a reduction from previous DDR4 standards, contributing to lower power consumption and heat generation in dense server environments. The CAS Latency (CL) is rated at 52, which defines the number of clock cycles between a read command and the moment data is available.

Memory Density

This is a single 16GB module, organized as a 1Rx8 configuration. The "1R" denotes a single rank of memory chips on the module. A rank is a set of DRAM chips that work together to respond to a memory request from the memory controller. The "x8" refers to the physical organization of the individual DRAM chips, indicating they have an 8-bit data width. This 1Rx8 organization is optimized for balanced performance and compatibility across a wide range of server platforms, allowing for efficient population of memory channels without overburdening the memory controller.

Form Factor

The module utilizes the standard 288-pin RDIMM (Registered Dual In-line Memory Module) form factor. This pin count is specific to DDR5 technology and is not compatible with DDR4 (288-pin but different keying) or older generations. The physical dimensions conform to the industry-standard specifications, ensuring proper fit in server memory slots. The inclusion of a Registering Clock Driver (RCD), a key component of RDIMMs, is located centrally on the module to buffer the command and address signals, reducing the electrical load on the server's memory controller.

Advanced DDR5 Technology

DDR5 memory, as exemplified by the HMCG78AHBRA289N, introduces a fundamental architectural shift from DDR4. The most significant change is the decentralization of the Power Management IC (PMIC). In DDR5, the PMIC is located on the memory module itself, moving it away from the motherboard. This allows for more granular and efficient power delivery and management, reducing noise and improving signal integrity for more stable operation at high speeds. The on-module PMIC efficiently converts the 12V supply from the server power rail down to the required 1.1V for the DRAM chips.

Server-Grade Features

Error Correcting Code (ECC) Fundamentals

The Hynix HMCG78AHBRA289N is equipped with on-die ECC (Error Correcting Code). This is a critical feature for server reliability. ECC works by adding extra bits (check bits) to the data stored in memory. When data is read back, the memory controller recalculates the check bits and compares them to the stored ones. This allows the module to detect and correct single-bit errors automatically, without any intervention from the operating system or application. It can also detect, though not correct, multi-bit errors. This dramatically reduces the probability of silent data corruption, which is a paramount concern in data centers, financial computing, and scientific simulations.

On-Die ECC vs. Sideband ECC

It is important to distinguish the on-die ECC in this module from a different technology sometimes referred to as "ECC memory." This module does not provide traditional sideband ECC, which uses extra DRAM chips on the module to store ECC codes for the entire data word. The on-die ECC in this DDR5 module is an internal function of each individual DRAM chip, correcting errors within that chip before they are sent to the memory controller. This improves the yield and reliability of the core DRAM silicon itself.

RDIMMs

The "Registered" aspect of this RDIM is managed by a Registering Clock Driver (RCD) chip. The RDIMM design buffers the command and address (CA) signals from the memory controller before they are sent to the individual DRAM chips on the module. This buffering reduces the electrical load on the server's memory controller, allowing a single memory channel to support a greater number of DIMMs. This is essential for scaling memory capacity in multi-socket servers and large-scale systems. The RCD introduces a one-clock-cycle latency penalty, which is a trade-off for the significantly improved system stability and capacity scaling it enables.

Performance Characteristics and Bandwidth

Real-World Bandwidth

While the theoretical peak bandwidth for this 6400MT/s module is 51.2 GB/s (calculated as 6400 MT/s * 8 bytes / 1000 for conversion), real-world sustained bandwidth will be lower. Factors such as the efficiency of the memory controller, the nature of the application's memory access patterns (random vs. sequential), and system configuration (number of populated channels) all influence the achievable throughput. In a typical dual-channel or quad-channel server configuration, the aggregate bandwidth scales nearly linearly, allowing systems equipped with multiple HMCG78AHBRA289N modules to achieve hundreds of gigabytes per second of memory bandwidth.

Latency Considerations

The CL52 latency specification must be understood in the context of the high clock speed. Absolute latency in nanoseconds is a more useful metric for cross-comparison. It can be calculated as (CAS Latency / Clock Speed) * 2000. For this module: (52 / 3200 MHz) * 2000 = 32.5 nanoseconds. While the CL number is higher than typical DDR4 modules, the massively increased bandwidth and architectural efficiencies of DDR5 often result in superior overall performance for data-intensive server workloads that are less sensitive to absolute latency and more dependent on sheer throughput.

DDR5's Dual 32-bit Sub-Channels

Another major DDR5 innovation is the splitting of the 64-bit data channel into two independent 32-bit sub-channels. The Hynix HMCG78AHBRA289N presents two 32-bit sub-channels to the memory controller, each with its own I/O. This increases command efficiency and bank parallelism. The memory controller can issue separate commands to each sub-channel, effectively treating a single DIMM more like two smaller DIMMs. This design reduces command conflicts and data bus turn-around times, contributing to the higher overall efficiency and performance of the DDR5 architecture at 6400MT/s.

Compatibility Server Platforms

The Hynix HMCG78AHBRA289N 16GB DDR5 RDIM is designed for next-generation enterprise servers and workstations. It is compatible with server platforms built around modern CPU architectures from Intel (such as the Xeon Scalable "Sapphire Rapids" and later families) and AMD (such as the EPYC "Genoa" and later families) that natively support DDR5 memory and the RDIM form factor. It is absolutely critical to consult the server manufacturer's qualified vendor list (QVL) to ensure this specific part number is tested and certified for use in a particular server model, as BIOS and firmware dependencies are common.

Ideal Workloads and Applications

This memory module is ideally suited for a wide array of demanding server-side applications that benefit from high bandwidth and large memory capacity. Key use cases include in-memory databases (e.g., SAP HANA, Redis), big data analytics platforms (e.g., Hadoop, Spark), high-performance computing (HPC) simulations and modeling, virtualized and cloud infrastructure (hosting numerous virtual machines), and memory-intensive applications in artificial intelligence and machine learning for data pre-processing and model training. The ECC functionality ensures the integrity of critical calculations and business data in these environments.

High-Performance Computing

In high-performance computing clusters, memory bandwidth often represents a performance bottleneck for scientific simulations, engineering analysis, and research applications. The Hynix HMCG78AHBRA289N addresses this challenge with its high data transfer rates and efficient architecture. The module's support for advanced RAS features ensures computational integrity for extended-duration calculations, while the thermal characteristics maintain stability under sustained high-utilization conditions typical in HPC environments.

Power Efficiency

The Hynix HMCG78AHBRA289N operates at a nominal voltage of 1.1V, a substantial reduction from the 1.2V standard of DDR4. This lower operating voltage directly translates to lower power consumption, which is a critical factor in large-scale data center deployments where power and cooling costs are a major operational expense. The integrated PMIC provides a more stable power supply to the DRAM cells, which also contributes to overall reliability and signal integrity, especially during power-up and power-down sequences.

Data Integrity

Beyond basic error correction, the module employs multiple techniques to ensure data integrity throughout its operational range. These include improved signal integrity through better PCB design, on-die termination that reduces signal reflection, and decision feedback equalization (DFE) that compensates for channel loss at high frequencies. These advanced features maintain signal quality even in challenging server environments with multiple memory modules and high component density.
