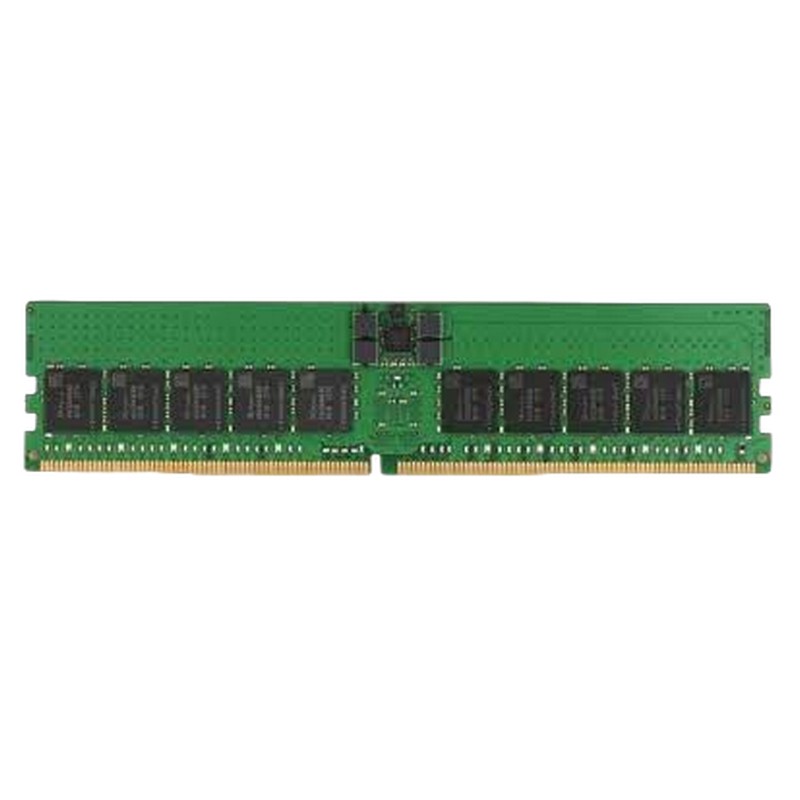

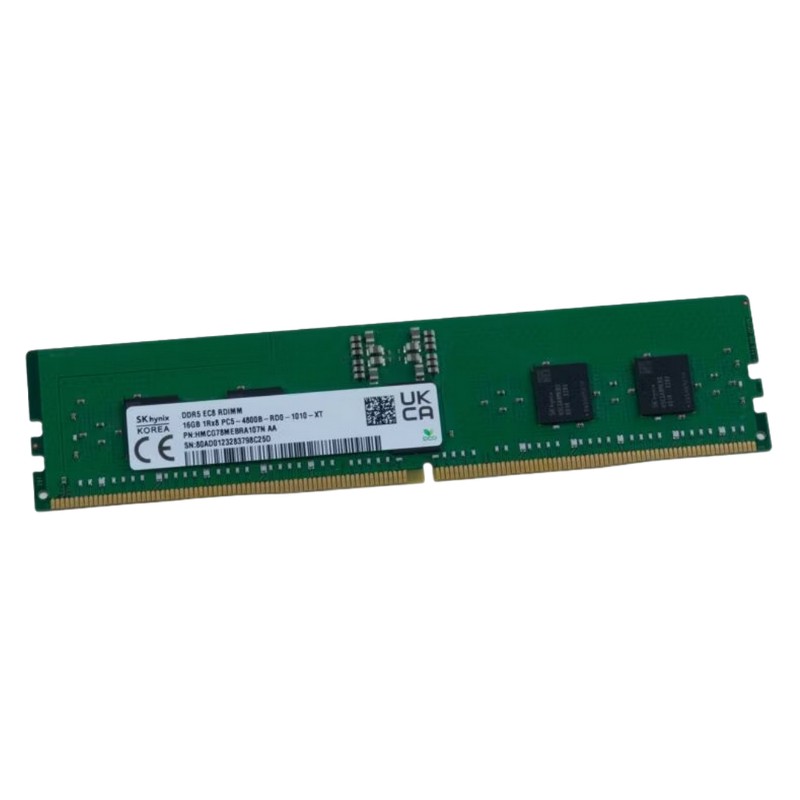

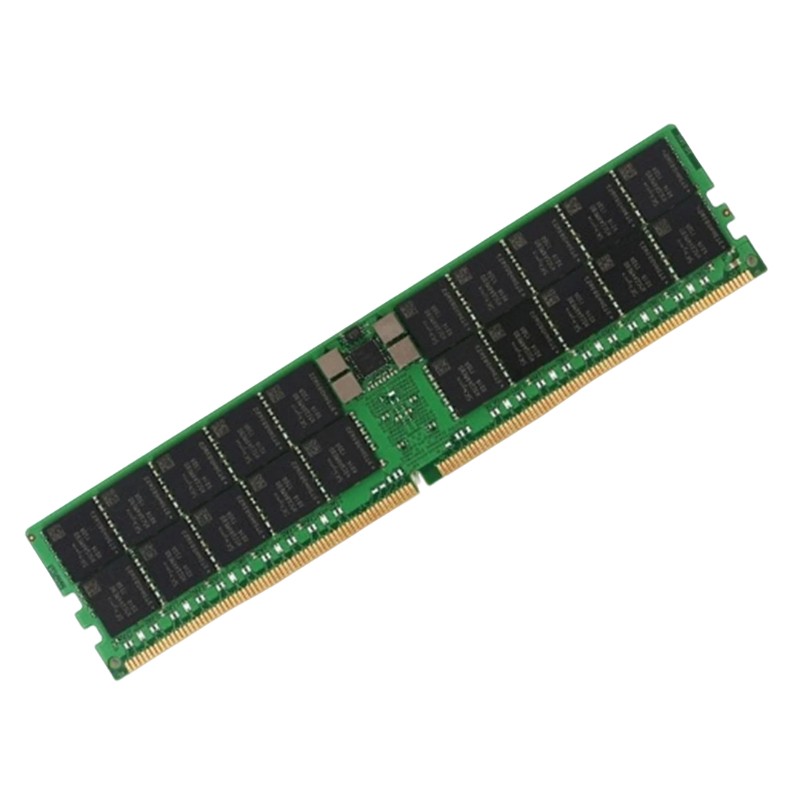

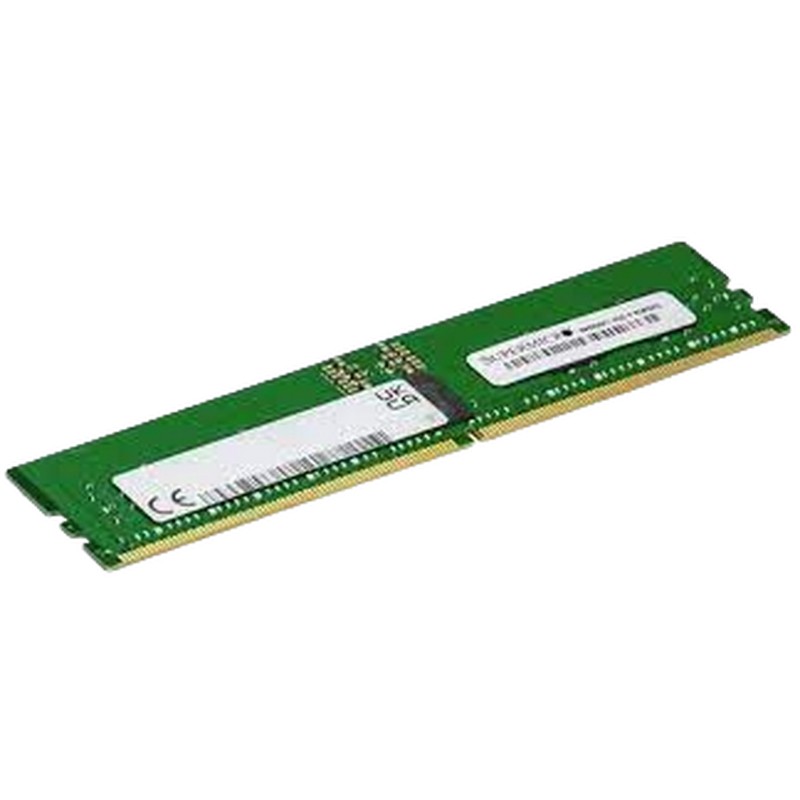

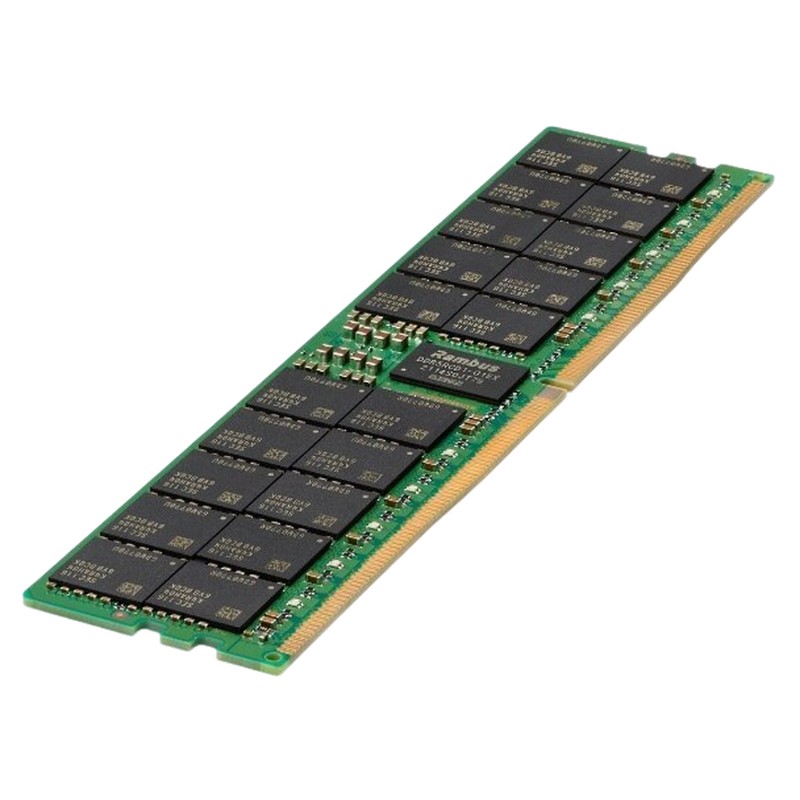

Hynix HMCG78MEBRA110N 16GB (1x16gb) DDR5 4800MHz PC5-38400 1RX8 ECC Registered RAM

Understanding Hynix DDR5 ECC Registered Memory Modules

The Hynix HMCG78MEBRA110N represents a significant advancement in server memory technology, combining DDR5 architecture with Error Correcting Code (ECC) and Registered DIMM functionality. This 16GB module operates at 4800MHz with PC5-38400 classification, specifically engineered for enterprise-level servers, workstations, and data center environments where reliability, performance, and data integrity are paramount.

Memory Architecture and Design

This module utilizes a 1RX8 configuration, meaning it features one rank of memory with 8-bit organizational structure. The 288-pin RDIMM form factor ensures compatibility with modern server motherboards designed for DDR5 memory. The registered design incorporates a register between the memory controller and DRAM chips, reducing electrical load on the memory controller and enabling higher module capacities and more stable operation in multi-DIMM configurations.

Performance Characteristics

Operating at 4800MHz (PC5-38400), this module delivers substantial bandwidth improvements over previous DDR4 generations. The CL40 timing represents the CAS latency, balanced appropriately for server workloads that prioritize stability and capacity over ultra-low latency. The 1.1v operating voltage represents a significant power efficiency improvement compared to DDR4's 1.2v standard, contributing to reduced power consumption in large-scale deployments.

DDR5 Technology Revolution

Architectural Improvements Over DDR4

DDR5 memory represents a fundamental shift in memory architecture, introducing several key innovations that distinguish it from previous generations. The Hynix HMCG78MEBRA110N leverages these advancements to deliver superior performance in demanding server environments.

Enhanced Bandwidth and Speed

With data rates starting at 4800MT/s (compared to DDR4's 3200MT/s maximum for similar applications), DDR5 provides approximately 50% higher bandwidth out of the gate. This increased bandwidth directly translates to improved application performance, faster data processing, and better overall system responsiveness in memory-intensive workloads.

Power Management Innovations

The integration of Power Management ICs (PMICs) on the DIMM itself represents one of DDR5's most significant advancements. This distributed power architecture enables more precise voltage regulation, improved power efficiency, and better signal integrity compared to the motherboard-based power delivery used in previous memory generations.

Channel Architecture Changes

DDR5 implements a dual-channel architecture on each DIMM, effectively doubling the burst length and bank groups compared to DDR4. This architectural change allows for more efficient data access patterns and improved concurrent operations, particularly beneficial in server environments handling multiple simultaneous requests.

ECC Technology: Ensuring Data Integrity

Error Correcting Code Fundamentals

ECC (Error Correcting Code) memory incorporates additional bits and sophisticated algorithms to detect and correct single-bit memory errors in real-time. The Hynix HMCG78MEBRA110N implements advanced ECC capabilities that are essential for mission-critical applications where data corruption cannot be tolerated.

How ECC Protects Your Data

ECC memory works by storing extra bits alongside actual data bits, creating what's known as a checksum. When data is read from memory, the ECC circuitry recalculates the checksum and compares it to the stored value. If single-bit errors are detected, they are automatically corrected before the data is passed to the processor. Multi-bit errors are detected and reported to the system for appropriate handling.

Server-Grade Reliability Features

Beyond basic ECC, this Hynix module incorporates additional reliability features including temperature sensors, enhanced signal integrity through improved PCB design, and advanced error logging capabilities that help system administrators identify potential memory issues before they impact system stability.

Registered DIMM Architecture

Understanding RDIMM Technology

Registered DIMMs (RDIMMs) incorporate memory registers (also known as buffers) between the memory controller and the DRAM chips. The Hynix HMCG78MEBRA110N utilizes this technology to improve signal integrity and enable higher memory capacities in server configurations.

Benefits of Registered Memory

The primary advantage of RDIMMs lies in their ability to support larger memory configurations by reducing the electrical load on the memory controller. This allows servers to populate all memory slots with high-density modules without compromising signal quality or stability. The registered design also enables better timing consistency across multiple DIMMs, crucial for maintaining performance in multi-processor systems.

Comparison with Unbuffered and Load Reduced DIMMs

Unlike Unbuffered DIMMs (UDIMMs) that connect directly to the memory controller, RDIMMs provide better signal integrity at the cost of slightly increased latency. Load Reduced DIMMs (LRDIMMs) take this further with additional buffering but at higher cost and power consumption. The Hynix HMCG78MEBRA110N strikes an optimal balance for most server applications.

Performance Characteristics and Benchmarks

Real-World Performance Metrics

The 4800MHz operating frequency combined with DDR5's architectural improvements delivers substantial performance benefits across various server workloads. Database applications, virtualization environments, and computational tasks all benefit from the increased bandwidth and efficiency.

Power Efficiency Considerations

The reduction to 1.1v operating voltage represents meaningful power savings, particularly important in large-scale data center deployments. When multiplied across hundreds or thousands of servers, the power savings become substantial while maintaining performance characteristics essential for enterprise workloads.

Application Scenarios and Use Cases

Enterprise Server Deployment

This memory module excels in traditional enterprise server environments running database management systems, enterprise resource planning applications, and file serving workloads. The ECC protection ensures data integrity while the registered design supports the high-density configurations required in these scenarios.

Virtualization and Cloud Infrastructure

In virtualized environments and cloud infrastructure, the Hynix HMCG78MEBRA110N provides the reliability and capacity needed to support multiple virtual machines simultaneously. The memory's stability characteristics are particularly valuable in high-availability configurations and hyper-converged infrastructure deployments.

High-Performance Computing

While not specifically optimized for extreme low-latency applications, this memory provides excellent performance for many HPC workloads, particularly those benefiting from high bandwidth and large memory capacities. Scientific computing, financial modeling, and engineering simulations all benefit from the module's characteristics.

Technical Deep Dive: DDR5 Advancements

On-Die ECC Implementation

Beyond the module-level ECC, DDR5 incorporates on-die ECC that corrects errors within the DRAM chips themselves. This two-tiered approach to error correction provides unprecedented levels of data integrity, making DDR5 particularly suitable for applications where data corruption cannot be tolerated.

Improved Bank Group Architecture

DDR5 doubles the number of bank groups compared to DDR4 (16 vs 8 in equivalent density devices), enabling more efficient access patterns and better parallelism. This architectural improvement contributes significantly to the overall bandwidth improvements in DDR5 memory.

Decision Feedback Equalization

DDR5 introduces Decision Feedback Equalization (DFE) in the receiver, which helps maintain signal integrity at higher data rates. This technology, previously reserved for high-speed serial interfaces, enables the higher operating frequencies of DDR5 while maintaining signal quality.
