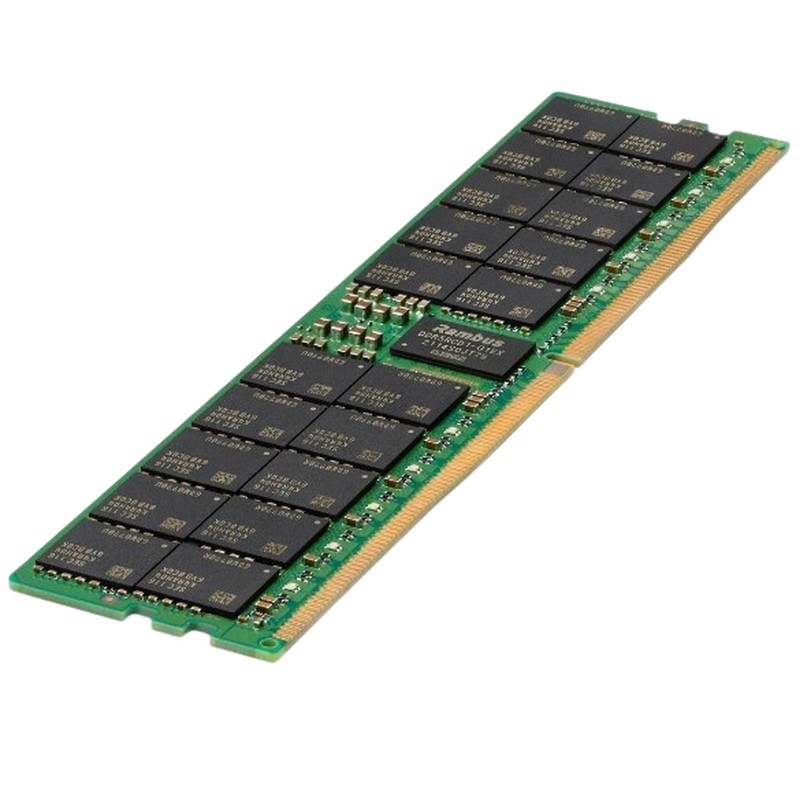

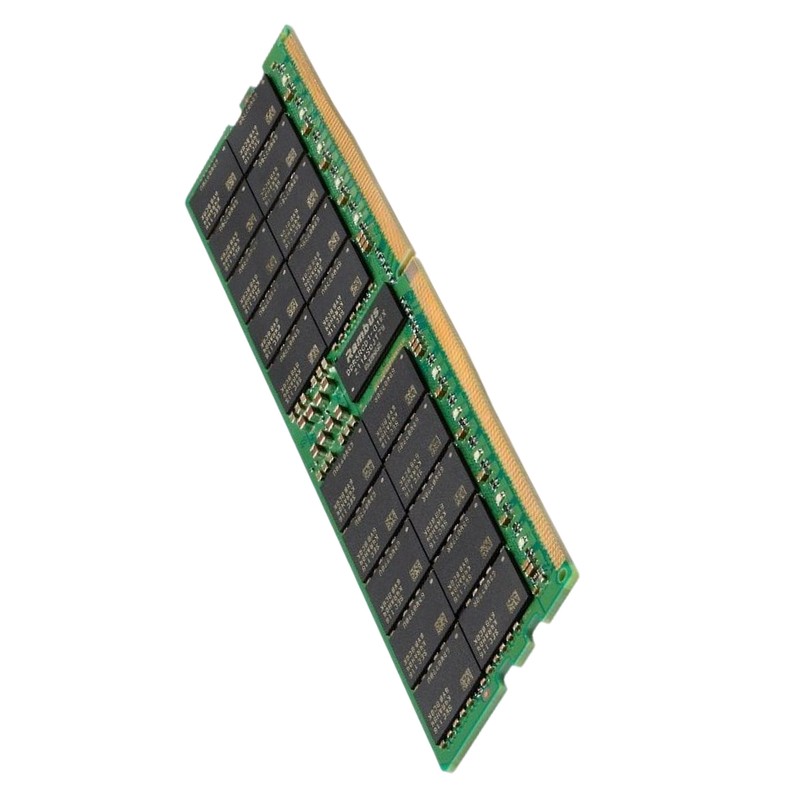

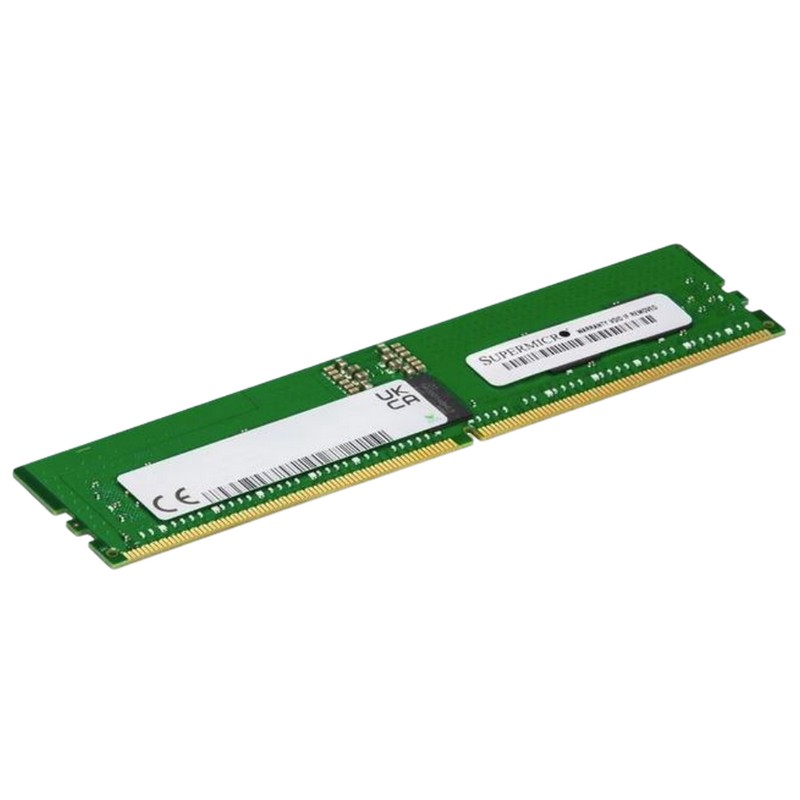

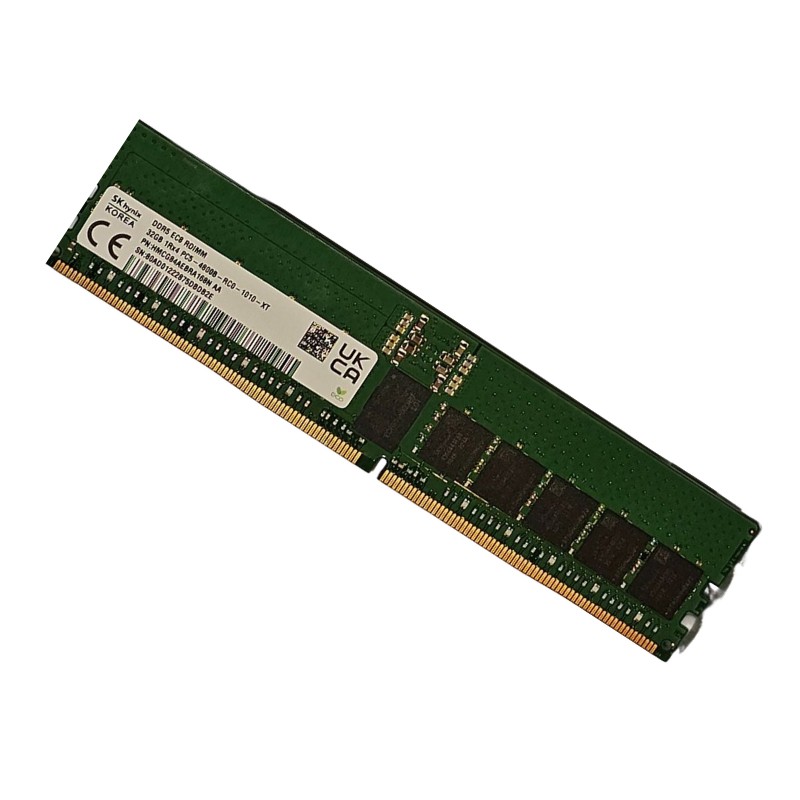

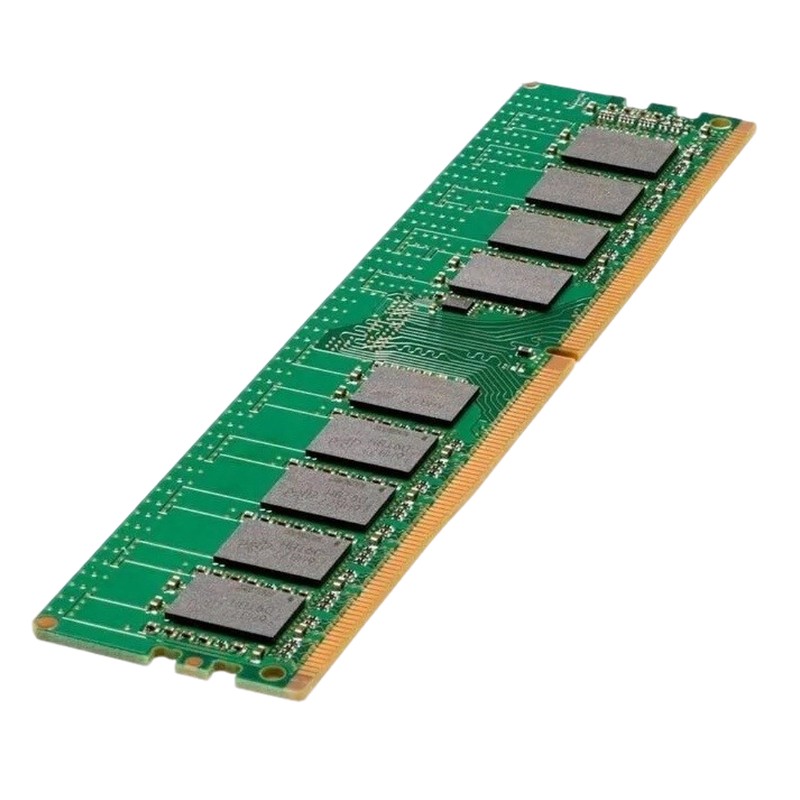

Hynix HMCG84AGBRA188N 32GB DDR5 5600MT/S PC5-44800 ECC Registered RDIMM Memory

Hynix HMCG84AGBRA188N 32GB DDR5 Memory Overview

The Hynix HMCG84AGBRA188N represents a significant advancement in server and workstation memory technology, delivering exceptional performance, reliability, and power efficiency for demanding computational environments. This 32GB DDR5 module operates at 5600MHz with advanced error correction capabilities, making it an ideal solution for data centers, enterprise servers, high-performance computing clusters, and professional workstations requiring uncompromising stability and speed.

Key Performance Characteristics

Engineered with Hynix's cutting-edge semiconductor technology, this memory module offers substantial improvements over previous DDR4 generations in bandwidth, power efficiency, and signal integrity. The implementation of on-die ECC (Error Correction Code), decision feedback equalization (DFE), and a dual 32-bit subchannel architecture enables higher data transfer rates while maintaining exceptional reliability in 24/7 operational environments.

Technical Specifications Deep Dive

Memory Architecture and Design

DDR5 Technological Advancements

The transition to DDR5 architecture represents a fundamental shift in memory design philosophy. Unlike DDR4, which utilized a single 64-bit data channel, DDR5 implements two independent 32-bit data channels (subchannels) per module. This architectural change allows for improved concurrent access patterns and reduces latency in multi-threaded workloads. The Hynix HMCG84AGBRA188N leverages this dual subchannel design to deliver superior performance in memory-intensive applications.

Single Rank X4 Configuration

The "Single Rank X4" designation indicates this module uses a single rank of memory chips with x4 device organization. This configuration is particularly beneficial for server environments as it optimizes memory capacity while maintaining signal integrity across the memory bus. The x4 organization enables stronger error correction capabilities compared to x8 configurations, as it allows for stronger chipkill error correction, which can correct entire DRAM chip failures.

Performance Metrics

Speed and Bandwidth

Operating at 5600MT/s (Mega Transfers per second), this module delivers a peak transfer rate of 5600 million data transfers per second. With a 64-bit (effectively dual 32-bit) bus, this translates to a theoretical peak bandwidth of 44.8 GB/s per module (5600 MT/s × 64 bits ÷ 8 bits/byte). This represents a significant 75% increase in bandwidth compared to typical DDR4-3200 modules, enabling faster data processing for CPU-intensive workloads.

Timing Parameters

The CL46 timing specification indicates a CAS Latency of 46 clock cycles. While this number appears high compared to DDR4 modules, it's important to consider the relationship between absolute latency and clock frequency. At 5600MHz, each clock cycle is approximately 0.179 nanoseconds, resulting in an absolute CAS latency of approximately 8.21 nanoseconds (46 × 0.179ns), which is competitive with high-performance DDR4 modules while offering substantially higher bandwidth.

Power Management

Voltage Regulation

The Hynix HMCG84AGBRA188N operates at a nominal voltage of 1.1V, representing a significant reduction from DDR4's typical 1.2V operation. This 8.3% voltage reduction translates to substantial power savings in large-scale deployments where hundreds or thousands of modules may be operating simultaneously. The module incorporates an integrated voltage regulator (PMIC) that enables more precise power delivery and reduces motherboard power delivery complexity.

Power Management Integrated Circuit (PMIC)

DDR5's onboard PMIC represents a fundamental shift in memory power architecture. By moving voltage regulation from the motherboard to the memory module itself, the Hynix HMCG84AGBRA188N can achieve more stable power delivery with reduced voltage droop and improved signal integrity. This distributed power architecture also enables finer-grained power management, allowing different modules in a system to operate at slightly different voltages optimized for their specific characteristics.

Advanced Features and Technologies

Error Correction Capabilities

ECC Registered Architecture

The "ECC Registered" designation indicates this module incorporates both register chips and error correcting code capabilities. The registered design includes a register between the memory controller and DRAM chips, which reduces electrical load on the memory controller and enables higher module capacities and more DIMMs per channel. The ECC functionality provides single-bit error correction and double-bit error detection, significantly improving system reliability and reducing the likelihood of silent data corruption.

On-Die ECC

Beyond the traditional module-level ECC, DDR5 introduces on-die ECC, where each DRAM chip includes its own error correction capabilities. This additional layer of protection corrects errors within the DRAM chip itself before they can affect the wider memory system. The Hynix HMCG84AGBRA188N leverages this technology to improve manufacturing yields and enhance data integrity, particularly important for applications requiring extreme reliability.

Signal Integrity Enhancements

Decision Feedback Equalization (DFE)

The implementation of DFE in DDR5 represents a significant advancement in signal integrity management. This technology helps compensate for channel losses and inter-symbol interference at high data rates, enabling stable operation at 5600MT/s and beyond. By reducing signal degradation, DFE allows for more reliable data transmission between the memory controller and DRAM chips, which is particularly important in multi-DIMM configurations where signal quality can be challenging to maintain.

Write Leveling and Training

DDR5 memory subsystems employ sophisticated write leveling and training sequences to compensate for timing skews between data, command, and address signals. The Hynix HMCG84AGBRA188N supports these advanced calibration procedures, ensuring optimal signal timing across varying environmental conditions and system configurations. This capability becomes increasingly important as data rates continue to escalate in future DDR5 implementations.

Applications and Use Cases

Enterprise Server Environments

Data Center Deployment

In data center environments, the Hynix HMCG84AGBRA188N provides the reliability, capacity, and performance necessary for virtualization, database management, and cloud computing workloads. The ECC protection ensures data integrity for critical business applications, while the power efficiency contributes to reduced total cost of ownership through lower electricity consumption and cooling requirements.

High-Availability Systems

For systems requiring continuous operation, such as financial transaction processing, healthcare information systems, and telecommunications infrastructure, the robust error correction capabilities and signal integrity features of this memory module help prevent system crashes and data corruption that could result in service interruptions or data loss.

High-Performance Computing

Scientific and Research Applications

In scientific computing, engineering simulation, and research applications, the high bandwidth of the Hynix HMCG84AGBRA188N enables faster processing of large datasets and complex computational models. The 32GB capacity per module allows researchers to work with substantial datasets entirely in memory, reducing I/O bottlenecks and accelerating time to solution.

Artificial Intelligence and Machine Learning

AI and ML workloads often involve processing massive datasets through complex neural networks. The combination of high bandwidth and large capacity provided by this memory module supports faster training times and more sophisticated models. The reliability features are particularly important for long-running training jobs that would be costly to restart due to memory errors.

Professional Workstations

Content Creation and Media Production

For video editing, 3D rendering, and digital content creation, the Hynix HMCG84AGBRA188N delivers the performance needed to handle high-resolution assets and complex scenes. The high bandwidth facilitates smooth playback and scrubbing of high-bitrate video files, while the large capacity enables working with multiple applications and large project files simultaneously.

Engineering and Design

In CAD/CAM, architectural visualization, and product design applications, this memory module supports the manipulation of complex models and assemblies. The ECC functionality provides an additional layer of protection against corruption of valuable design data, while the high-speed operation reduces wait times during rendering and simulation tasks.

Comparative Analysis

DDR5 vs. Previous Generations

Performance Evolution

The transition from DDR4 to DDR5 represents the most significant architectural change in memory technology since the introduction of DDR itself. Compared to DDR4-3200, the Hynix HMCG84AGBRA188N offers approximately 75% higher bandwidth while operating at lower voltage. The dual subchannel architecture provides more efficient memory access patterns, particularly for workloads that benefit from concurrent memory operations.

Feature Advancements

Beyond raw speed improvements, DDR5 introduces several architectural enhancements not available in previous generations. These include the integrated voltage regulator (PMIC), on-die ECC, more sophisticated training patterns, and improved command bus efficiency. The Hynix HMCG84AGBRA188N leverages these advancements to deliver not just higher performance, but also improved power efficiency and reliability compared to DDR4 solutions.

Competitive Landscape

Differentiating Factors

Within the DDR5 server memory market, the Hynix HMCG84AGBRA188N distinguishes itself through Hynix's vertical integration and manufacturing expertise. As a leading DRAM manufacturer, Hynix controls the entire production process from silicon wafer to finished module, enabling tighter quality control and optimization throughout the manufacturing process. This results in modules with consistent performance characteristics and reliability.

Application-Specific Advantages

For specific use cases, the combination of 32GB capacity, 5600MT/s speed, and single rank x4 configuration offers particular benefits. In memory-intensive applications where capacity and bandwidth are both important, this module provides an optimal balance. The x4 organization enables stronger error correction compared to x8-based modules, making it particularly suitable for applications where data integrity is paramount.
