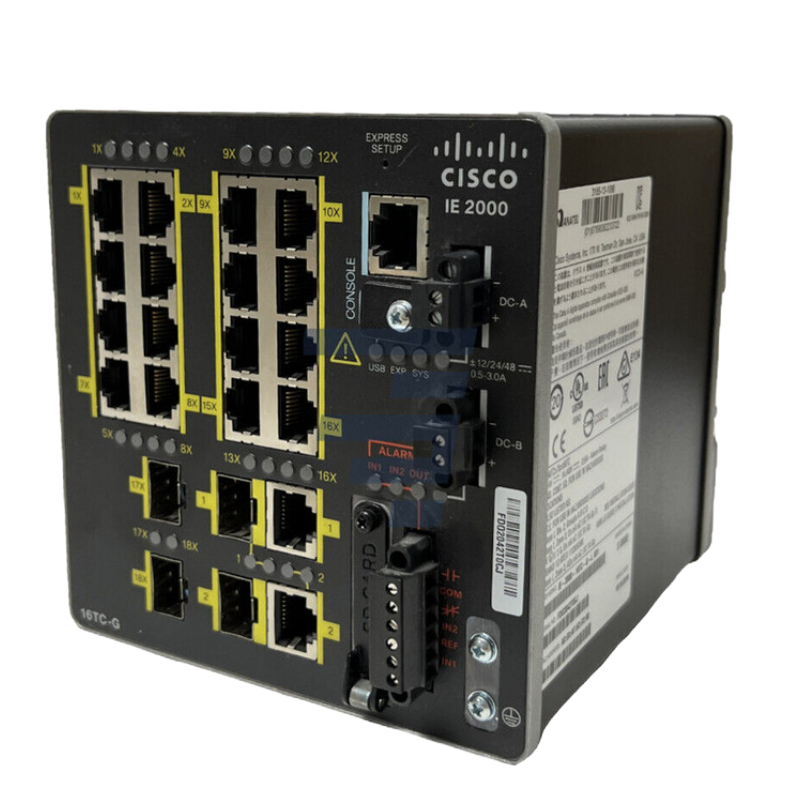

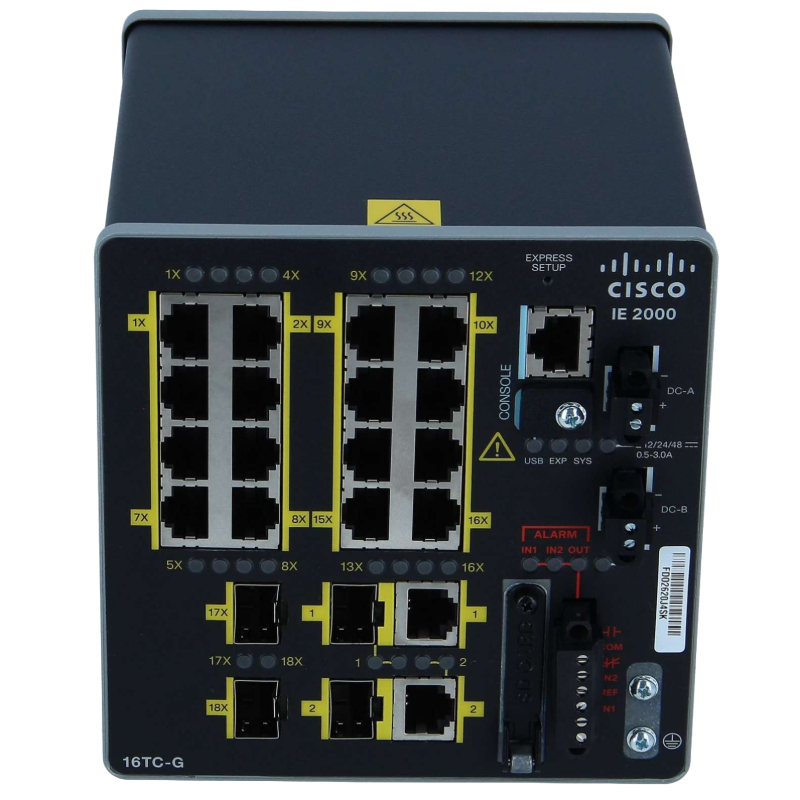

IE-2000-16TC-G-N Cisco Industrial 2000 Series Ethernet Switch

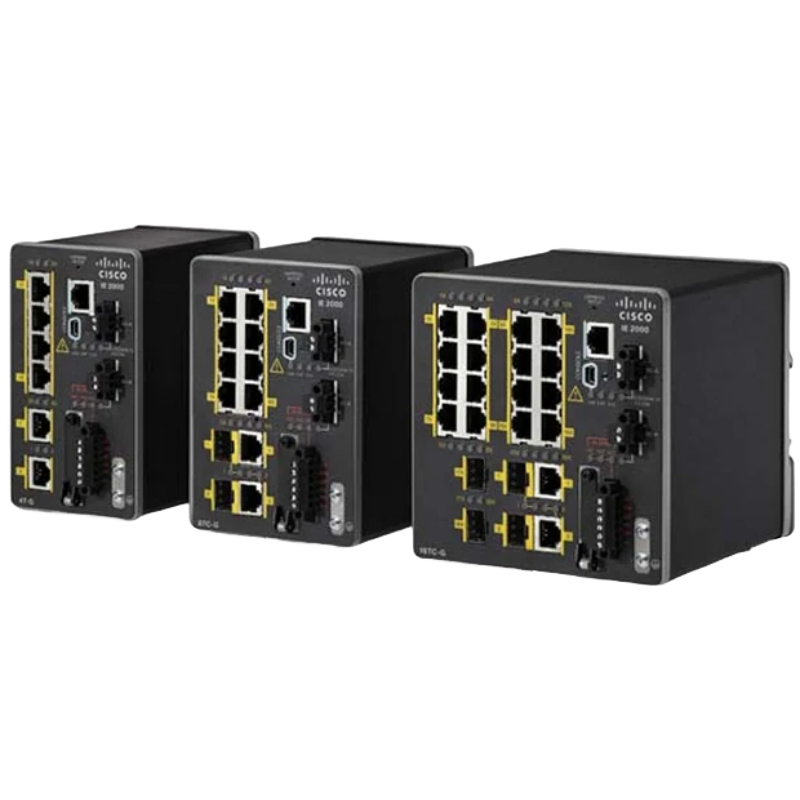

Series: Industrial 2000

Introduction

The Cisco IE-2000-16TC-G-N Ethernet Switch is a part of the Industrial 2000 series, which is specifically designed to meet the unique requirements of industrial environments. This rugged and compact switch enables seamless connectivity and communication in harsh conditions, making it an ideal choice for various industrial applications.

Device Characteristics

• Type: Managed Switch
• Port Count: 20 Ports

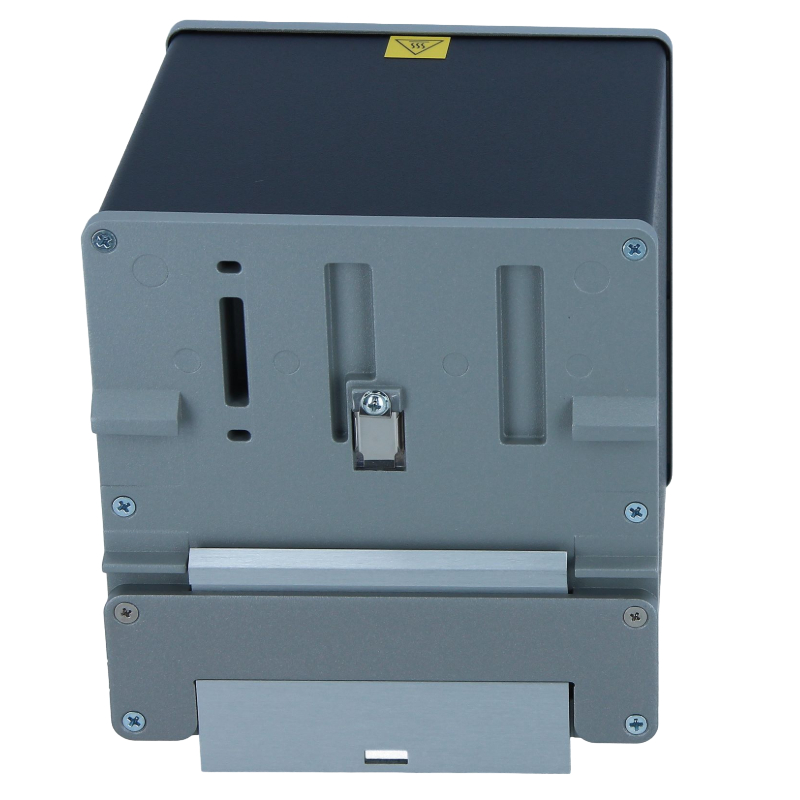

• Mounting Option: Din Rail Compatible

Network Capabilities

• Subtype: Gigabit Ethernet

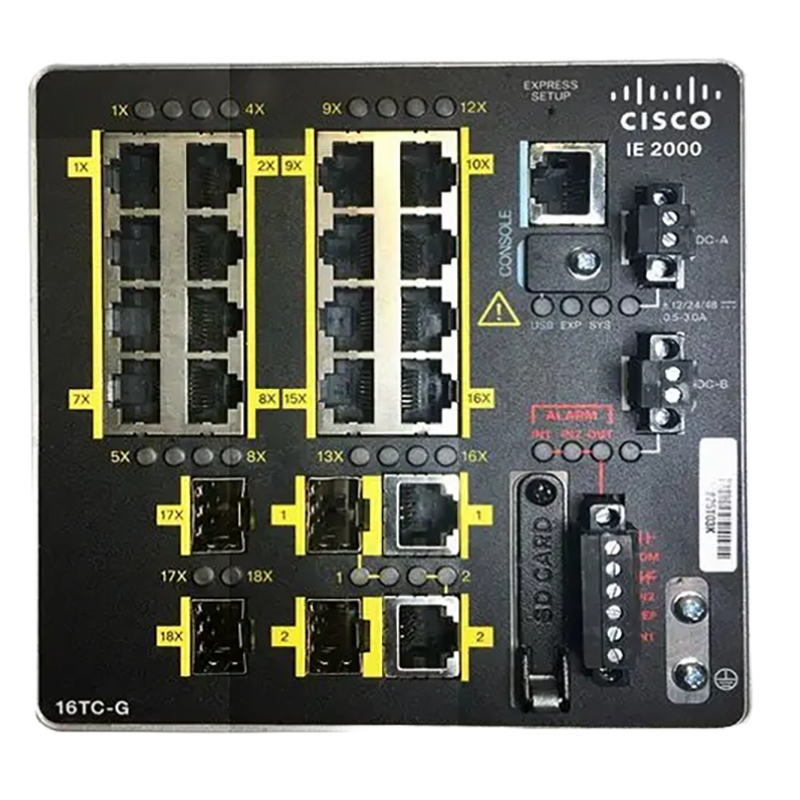

• Port Configuration: 16 x 10/100 + 2 Combo Gigabit SFP + 2 Fast Ethernet SFP

Performance Specifications

• Forwarding Capacity: 6.5 Mpps for 64-byte Packets
• VLAN Support: Up to 255 Virtual Interfaces
• MAC Address Table: 8,000 Entries

Routing and Management

• Routing Protocols: IGMP, Static IPv4 Routing
• Remote Management: SNMP v3, HTTPS, SSH
• Authentication Methods: Secure Shell (SSH), RADIUS, TACACS+

System and Software Details

• Software Included: CISCO IOS LAN Base
• Dimensions: 2.9 in x 4.5 in x 5 in (W x D x H)

Enhanced Durability

One of the key benefits of the Industrial 2000 series is its enhanced durability. The Cisco IE-2000-16TC-G-N Ethernet Switch is built to withstand extreme temperatures, shock, vibration, and electromagnetic interference. This means that it can function reliably in challenging environments where other switches may fail. With its robust construction, the switch ensures uninterrupted operation even in harsh industrial settings.

Temperature Resistance

Industrial environments often experience extreme temperature fluctuations. The Cisco IE-2000-16TC-G-N Ethernet Switch is designed to operate within a wide temperature range, from -40°C to 75°C (-40°F to 167°F). This temperature resistance ensures that the switch remains operational in environments with hot or cold conditions, such as manufacturing plants, warehouses, and outdoor installations.

Shock and Vibration Tolerance

In industrial settings, equipment is often subjected to shocks and vibrations due to heavy machinery or transportation activities. The Industrial 2000 series is engineered to withstand such conditions. The Cisco IE-2000-16TC-G-N Ethernet Switch has been tested for shock resistance up to 30G and vibration resistance up to 2.5 Grms. This guarantees that the switch can handle the physical stress associated with industrial operations without affecting its performance.

Electromagnetic Interference (EMI) Protection

Industrial environments are prone to electromagnetic interference, which can disrupt communication and cause data transmission errors. The Industrial 2000 series is designed to mitigate the impact of EMI on network connectivity. The Cisco IE-2000-16TC-G-N Ethernet Switch features shielding and grounding mechanisms to minimize electromagnetic interference, ensuring reliable and uninterrupted data transmission.

Reliable Connectivity

The Industrial 2000 series is known for providing reliable connectivity in industrial environments. The Cisco IE-2000-16TC-G-N Ethernet Switch offers advanced features that ensure seamless and uninterrupted communication, even in challenging conditions.

Redundant Power Supply

Power outages can be detrimental in industrial settings, leading to downtime and potential losses. To prevent such situations, the Cisco IE-2000-16TC-G-N Ethernet Switch supports redundant power supply options. It can be connected to dual power sources, allowing automatic failover in case of a power failure. This ensures continuous operation and uninterrupted connectivity, minimizing the impact of power disruptions on industrial processes.

Fast Ethernet and Gigabit Ethernet Ports

The Industrial 2000 series is equipped with Fast Ethernet and Gigabit Ethernet ports, providing high-speed connectivity for industrial applications. The Cisco IE-2000-16TC-G-N Ethernet Switch features 16 Fast Ethernet ports, allowing seamless data transfer between devices. Additionally, it offers two Gigabit Ethernet uplink ports for connecting to higher-level networks or devices that require faster transmission speeds. This combination of Fast Ethernet and Gigabit Ethernet ports ensures efficient communication and supports bandwidth-intensive applications in industrial environments.

Advanced Network Management

Effective network management is crucial in industrial environments to monitor and control network devices efficiently. The Cisco IE-2000-16TC-G-N Ethernet Switch provides comprehensive network management capabilities, making it easier to maintain and troubleshoot the network infrastructure.

Web-based Management Interface

The switch offers a user-friendly web-based management interface, allowing administrators to configure and monitor the network through a web browser. This intuitive interface simplifies the management process, enabling quick setup and easy access to various network settings. Administrators can easily monitor port status, configure VLANs, set up Quality of Service (QoS), and perform firmware upgrades through the web-based interface.

Simple Network Management Protocol (SNMP) Support

The Cisco IE-2000-16TC-G-N Ethernet Switch supports Simple Network Management Protocol (SNMP), which allows integration with network management systems for centralized monitoring and control. SNMP enables administrators to gather detailed information about the switch, such as port statistics, device status, and performance metrics. This facilitates proactive network management, helps identify potential issues, and ensures optimal network performance in industrial environments.

Virtual Local Area Networks (VLANs)

The switch supports Virtual Local Area Networks (VLANs), which enable logical segmentation of the network for improved security and efficiency. VLANs allow administrators to group devices based on their functions or departments, isolating traffic between different VLANs. This enhances security by preventing unauthorized access to sensitive data and helps optimize network performance by reducing broadcast traffic. VLANs offer greater flexibility in managing the network infrastructure and ensure efficient data flow in industrial environments.

Quality of Service (QoS)

Industrial applications often require prioritization of certain types of traffic to ensure smooth operation. The Cisco IE-2000-16TC-G-N Ethernet Switch supports Quality of Service (QoS) features that enable administrators to prioritize critical traffic over less time-sensitive traffic. QoS ensures that important data, such as real-time control signals or video streams, receives higher priority and is delivered with minimal delay or packet loss. This guarantees reliable and efficient communication for mission-critical applications in industrial environments.

Ports: 16

Introduction

The Cisco IE-2000-16TC-G-N Ethernet Switch is equipped with 16 ports, making it suitable for various industrial applications that require multiple connections. The ample number of ports ensures seamless connectivity and allows for easy expansion of the network infrastructure, making it a versatile choice for industrial environments.

Flexible Network Expansion

The 16 ports on the Cisco IE-2000-16TC-G-N Ethernet Switch provide flexibility for network expansion in industrial settings. These ports can be used to connect a wide range of devices, including computers, servers, printers, IP cameras, and other network-enabled devices. The switch supports both copper and fiber connections, allowing for versatile deployment options.

Fast Ethernet Ports

The switch features 16 Fast Ethernet ports that support data transfer rates of up to 100 Mbps. These ports are ideal for connecting devices that do not require high-speed connectivity but still need reliable and stable connections. Fast Ethernet ports are commonly used for connecting end-user devices such as computers, printers, and IP phones in industrial environments.

Gigabit Ethernet Uplink Ports

In addition to the 16 Fast Ethernet ports, the Cisco IE-2000-16TC-G-N Ethernet Switch also provides two Gigabit Ethernet uplink ports. These uplink ports offer higher data transfer rates of up to 1000 Mbps, allowing for faster and more efficient communication with higher-level networks or devices that require greater bandwidth. The Gigabit Ethernet uplink ports enable seamless integration with core networks or servers, ensuring smooth data transmission in industrial environments.

Network Segmentation

Having multiple ports on the switch allows for effective network segmentation in industrial environments. Network segmentation involves dividing the network into smaller subnetworks or VLANs to improve security, performance, and manageability.

Improved Security

By dividing the network into smaller segments using VLANs, administrators can isolate sensitive devices or systems from the rest of the network. This enhances security by limiting access to critical resources and preventing unauthorized communication between different segments. The 16 ports on the Cisco IE-2000-16TC-G-N Ethernet Switch enable administrators to create multiple VLANs, ensuring secure communication and protecting valuable data in industrial environments.

Enhanced Performance

Segmenting the network into VLANs allows administrators to prioritize traffic and optimize network performance. By separating devices based on their functions or departments, administrators can allocate network resources more efficiently. This ensures that critical devices or applications receive sufficient bandwidth and reduces the impact of broadcast traffic on the network. The 16 ports on the switch facilitate network segmentation, enabling administrators to create logical subnetworks for improved performance in industrial environments.

Simplified Network Management

Network segmentation simplifies network management by organizing devices into smaller groups. Administrators can easily monitor and control each segment independently, reducing complexity and enhancing network manageability. With 16 ports, the Cisco IE-2000-16TC-G-N Ethernet Switch allows for effective network segmentation in industrial environments, making it easier to maintain and troubleshoot the network infrastructure.

Features: Managed, Gigabit Ethernet, Industrial-grade

Introduction

The Cisco IE-2000-16TC-G-N Ethernet Switch is packed with a range of features that cater to the unique requirements of industrial environments. Its managed capabilities, Gigabit Ethernet support, and industrial-grade construction make it an ideal choice for demanding industrial applications.

Managed Switching

The Cisco IE-2000-16TC-G-N Ethernet Switch is a managed switch, which means it offers advanced capabilities for network management and control. Managed switches provide administrators with greater flexibility, control, and visibility over the network infrastructure.

Advanced Network Monitoring

As a managed switch, the Cisco IE-2000-16TC-G-N Ethernet Switch allows administrators to monitor network performance and troubleshoot issues. It provides detailed statistics on port utilization, bandwidth usage, and error rates, enabling proactive network management. Administrators can identify bottlenecks, analyze traffic patterns, and optimize the network for maximum efficiency. The advanced network monitoring capabilities of the switch ensure reliable and efficient operation in industrial environments.

Remote Configuration and Management

Managed switches like the Cisco IE-2000-16TC-G-N Ethernet Switch can be configured and managed remotely. This eliminates the need for physical access to the switch, making it easier to manage the network infrastructure in large or geographically dispersed industrial environments. Administrators can remotely configure VLANs, set up QoS policies, update firmware, and perform other management tasks through a centralized management system or web-based interface. Remote configuration and management capabilities save time and effort, enhancing the overall efficiency of network operations.

Gigabit Ethernet Support

The Cisco IE-2000-16TC-G-N Ethernet Switch supports Gigabit Ethernet technology, which offers significantly higher data transfer rates compared to Fast Ethernet. Gigabit Ethernet provides a bandwidth of up to 1000 Mbps, making it suitable for bandwidth-intensive applications in industrial environments.

High-Speed Data Transfer

Gigabit Ethernet enables fast and efficient data transfer between devices connected to the Cisco IE-2000-16TC-G-N Ethernet Switch. This is particularly beneficial in industrial applications that involve large file transfers, video streaming, or real-time control signals. The switch's Gigabit Ethernet support ensures smooth operation of bandwidth-intensive applications and minimizes latency or delay in data transmission.

Future-Proofing

The adoption of Gigabit Ethernet technology future-proofs the network infrastructure, ensuring compatibility with emerging technologies and increasing bandwidth requirements. The Cisco IE-2000-16TC-G-N Ethernet Switch's Gigabit Ethernet support allows it to seamlessly integrate with higher-level networks or devices that require faster transmission speeds. This flexibility enables industrial environments to adapt to evolving technological trends without requiring significant infrastructure upgrades.

Industrial-Grade Construction

The Cisco IE-2000-16TC-G-N Ethernet Switch is designed to withstand the harsh conditions of industrial environments. Its industrial-grade construction ensures reliability, durability, and performance in challenging settings.

Ruggedized Design

Industrial environments often expose network equipment to extreme temperatures, humidity, dust, and vibrations. The Cisco IE-2000-16TC-G-N Ethernet Switch features a ruggedized design that can withstand these conditions. It is built with high-quality materials and components that can tolerate temperature variations, resist moisture and dust ingress, and withstand mechanical stress. The rugged construction of the switch ensures uninterrupted operation and extends its lifespan in industrial environments.

Extended Lifecycle

Industrial-grade switches like the Cisco IE-2000-16TC-G-N Ethernet Switch are designed for long-term use. They undergo rigorous testing and adhere to strict quality standards to ensure reliability and durability. The extended lifecycle of industrial-grade switches reduces the need for frequent replacements, minimizing downtime and maintenance costs in industrial environments. With its industrial-grade construction, the Cisco IE-2000-16TC-G-N Ethernet Switch offers a reliable networking solution that can withstand the demanding conditions of industrial applications.

In conclusion, the Cisco IE-2000-16TC-G-N Ethernet Switch from the Industrial 2000 series is a robust and versatile networking solution for industrial environments. Its series feature, Industrial 2000, highlights its enhanced durability and resilience in harsh conditions. The switch's ability to operate within a wide temperature range, withstand shocks and vibrations, and mitigate electromagnetic interference makes it an ideal choice for industrial applications. The 16 ports feature of the switch allows for flexible network expansion, network segmentation, and simplified network management. With its support for Fast Ethernet and Gigabit Ethernet, the switch ensures reliable and high-speed connectivity for various industrial devices. The managed, Gigabit Ethernet, and industrial-grade features of the Cisco IE-2000-16TC-G-N Ethernet Switch further enhance its capabilities. Its advanced network management capabilities, Gigabit Ethernet support for fast data transfer, and ruggedized construction make it a reliable and future-proof networking solution for industrial environments.
