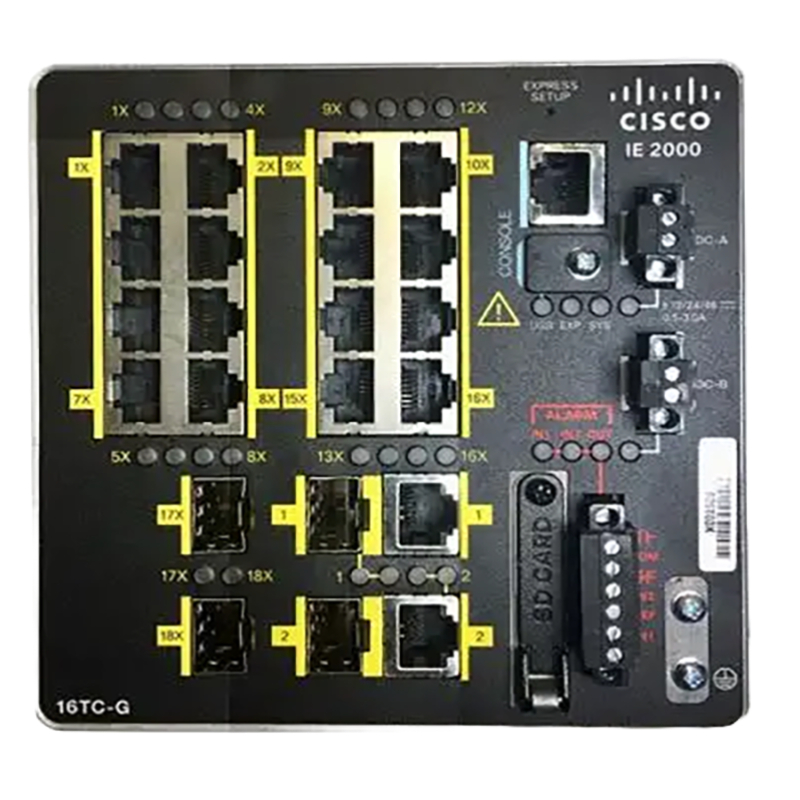

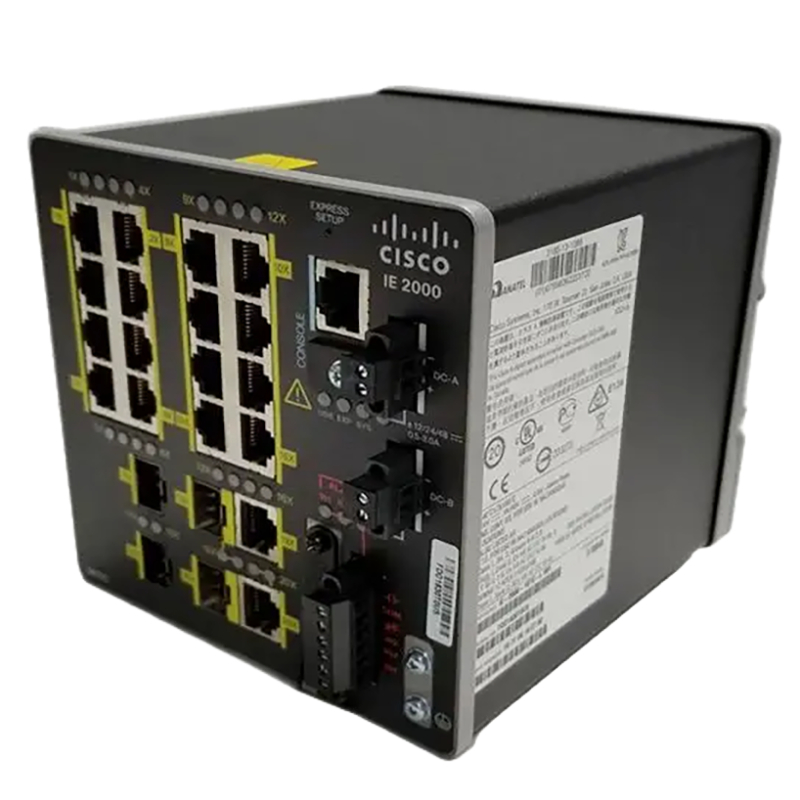

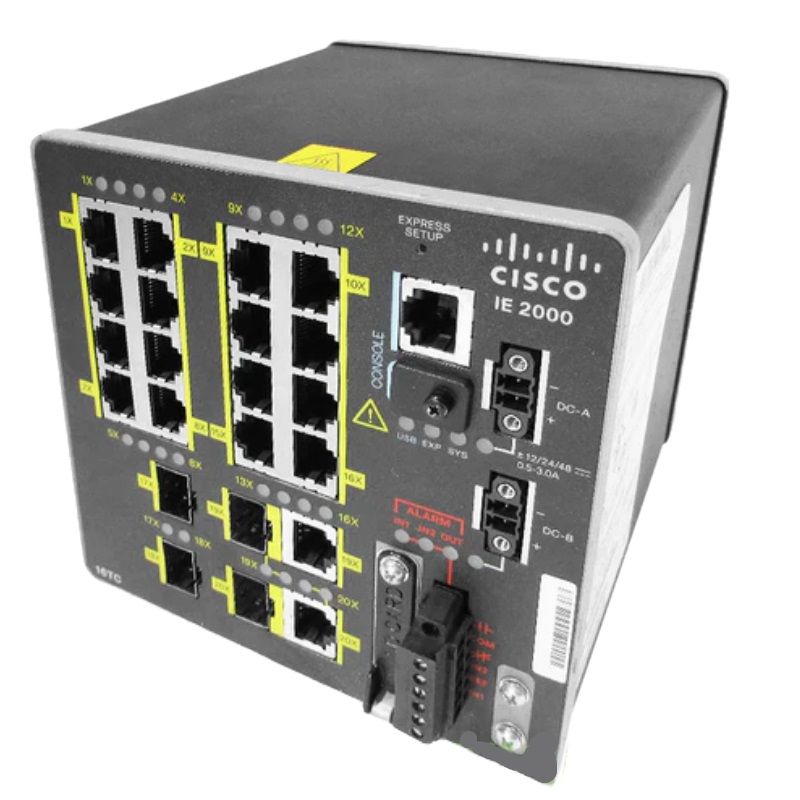

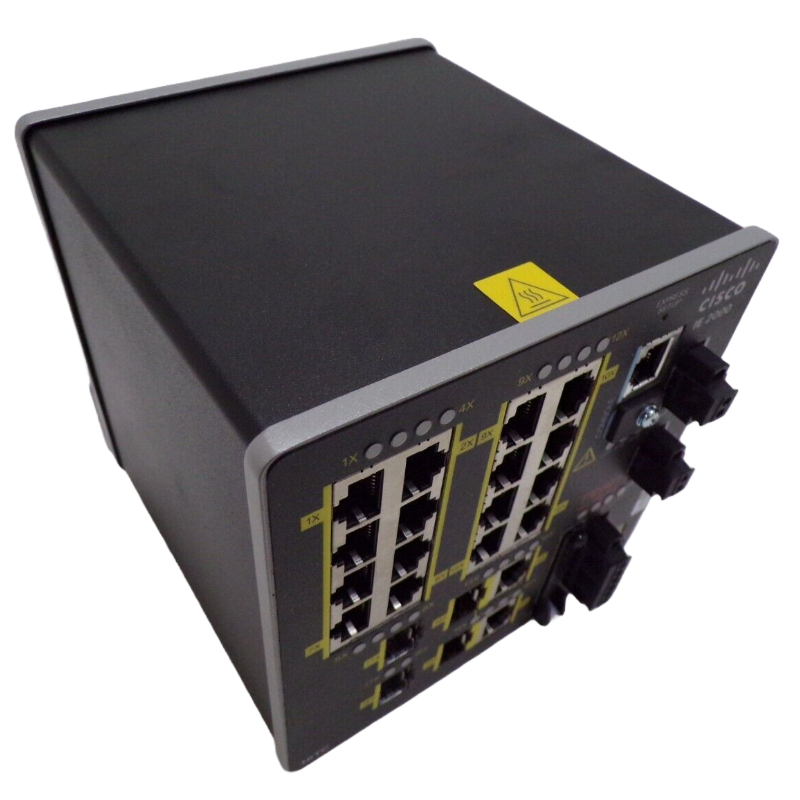

Cisco IE-2000-16TC-L Ethernet Switch

Cisco Industrial Ethernet 2000 Series Switch - IE-2000-16TC-L

Overview of the Switch

The Cisco Industrial Ethernet 2000 Series Switch (part number IE-2000-16TC-L) is engineered for efficient network management and robust connectivity. This managed switch features 20 ports, including a blend of Fast Ethernet and SFP interfaces to meet diverse networking needs.

Key Specifications

• Device Type: Managed Switch with 20 Ports
• Subtype: Fast Ethernet

Port Configuration

• 16 x 10/100 Fast Ethernet Ports
• 2 x Combo Fast Ethernet SFP Ports
• 2 x Fast Ethernet SFP Ports

Interface Details

• 16 x 100BASE-TX RJ-45 Ports
• 2 x 100BASE-TX RJ-45 Ports
• 4 x SFP (Mini-GBIC) Ports

Performance Metrics

• Forwarding Performance: 6.5 Million Packets Per Second (Mpps) for 64-byte Packet Size
• Virtual Interfaces (VLANs): Supports Up to 255 VLANs
• MAC Address Table: 8,000 Entries

Routing and Management

• Supported Routing Protocols: IGMP, Static IPv4 Routing
• Remote Management Protocols: SNMP Version 3, HTTPS, SSH

Physical Characteristics

• Dimensions: 2.9 inches (W) x 4.5 inches (D) x 5 inches (H)
• Weight: 2.45 lbs

Expansion Capabilities

• 1 SD Memory Card Slot (1 Free Slot)

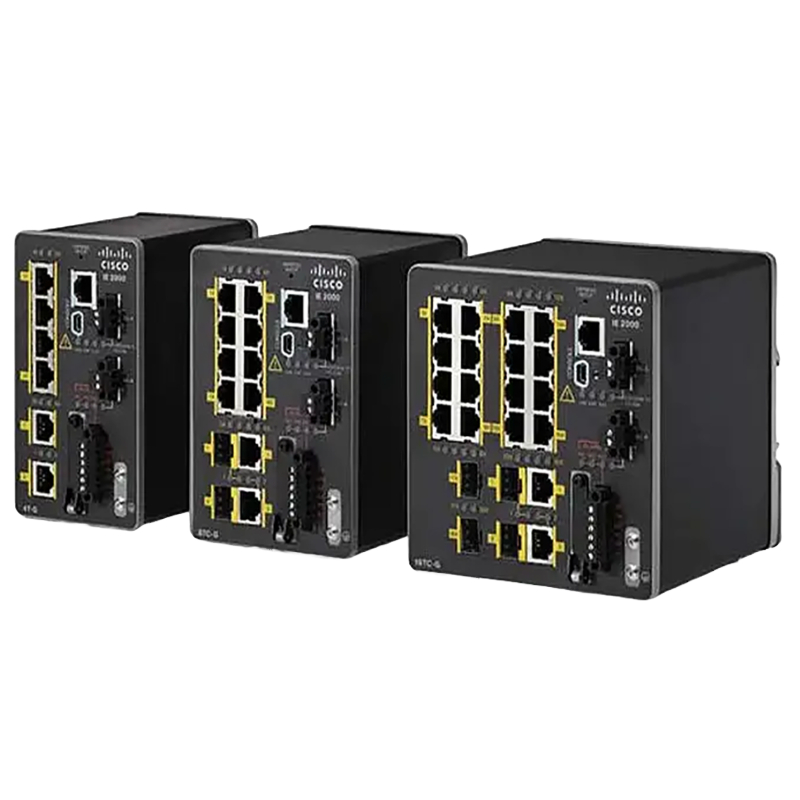

Series

The Cisco IE-2000-16TC-L Ethernet Switch is part of the Cisco Industrial Ethernet 2000 Series. This series is designed specifically for industrial applications, providing reliable and secure connectivity in harsh environments. The "2000" in the series name signifies its capabilities and features that are tailored for industrial use.

Robust and Rugged Design

One of the key benefits of the Cisco IE-2000-16TC-L being part of the 2000 series is its robust and rugged design. Industrial environments often present challenging conditions such as extreme temperatures, dust, and vibrations. The switch is built to withstand these conditions, ensuring uninterrupted operation even in demanding settings.

Extended Temperature Range

The Cisco IE-2000-16TC-L is capable of operating within a wide temperature range of -40°C to +70°C (-40°F to +158°F). This makes it suitable for deployments in environments where temperature fluctuations are common, such as manufacturing plants, warehouses, and outdoor installations.

Dust and Particle Resistance

Industrial settings often have high levels of dust and particles in the air. The switch's enclosure is designed to prevent the ingress of dust, ensuring that internal components are protected from damage. This feature enhances the longevity and reliability of the switch in such environments.

Vibration and Shock Resistance

The Cisco IE-2000-16TC-L can withstand high levels of vibration and shock, which are typical in industrial environments. This capability ensures that the switch remains operational even when subjected to mechanical stress caused by machinery or equipment nearby.

Importance for Users

The robust and rugged design of the Cisco IE-2000-16TC-L, as part of the 2000 series, is crucial for users in industrial environments. It provides peace of mind, knowing that the switch can endure the challenges presented by such settings. With its ability to operate within extended temperature ranges, resist dust and particles, and withstand vibrations and shocks, users can rely on the switch to maintain uninterrupted connectivity in critical industrial applications.

Ports

The Cisco IE-2000-16TC-L Ethernet Switch features 16 ports, which offer numerous benefits for users in industrial environments. These ports provide the necessary connectivity to connect various devices, enabling efficient communication and data transfer within the network.

Flexible Device Connectivity

With 16 ports, users have the flexibility to connect a wide range of devices to the switch. This includes industrial equipment, computers, printers, cameras, and many more. The ample number of ports allows for easy expansion and scalability as the network grows or new devices are added.

PoE Support

Some of the ports on the Cisco IE-2000-16TC-L support Power over Ethernet (PoE) technology. This capability eliminates the need for separate power cables for devices such as IP cameras or wireless access points. The switch can provide both data connectivity and power to these devices over a single Ethernet cable, simplifying installation and reducing clutter.

Gigabit Ethernet Speed

The 16 ports on the Cisco IE-2000-16TC-L support Gigabit Ethernet, allowing for high-speed data transfer between connected devices. This is particularly important in industrial applications where large amounts of data need to be transmitted quickly, such as in real-time monitoring or video surveillance systems.

Importance for Users

The 16 ports on the Cisco IE-2000-16TC-L offer users in industrial environments the flexibility and connectivity they need to build a robust network infrastructure. The ability to connect a variety of devices ensures compatibility with existing equipment and allows for future expansion. The support for PoE simplifies installation and reduces the need for additional power outlets, while the Gigabit Ethernet speed ensures efficient data transfer for time-sensitive applications.

Management

The Cisco IE-2000-16TC-L Ethernet Switch offers multiple management options, including web-based and Command Line Interface (CLI) interfaces. This flexibility in management capabilities ensures that users can easily configure, monitor, and troubleshoot the switch according to their specific requirements.

Web-Based Management

The web-based management interface provides a user-friendly graphical interface that allows users to configure and monitor the switch through a web browser. This intuitive interface simplifies the management process, making it accessible to users with varying levels of technical expertise. Users can easily navigate through menus, configure VLANs, set up Quality of Service (QoS), and monitor network performance.

Remote Management

The web-based management interface also enables remote management of the switch. Users can access and manage the switch from any location with an internet connection, eliminating the need for physical presence at the switch's location. This feature is particularly beneficial for industrial environments where switches may be installed in remote or hard-to-reach locations.

Configuration Templates

The Cisco IE-2000-16TC-L supports configuration templates, allowing users to quickly deploy multiple switches with consistent settings. Instead of manually configuring each switch individually, users can create a template with predefined configurations and apply it to multiple switches simultaneously. This saves time and effort, especially in large-scale deployments.

Importance for Users

The management capabilities of the Cisco IE-2000-16TC-L provide users in industrial environments with convenient options to configure and monitor their network infrastructure. The web-based management interface offers an easy-to-use platform for users of all technical backgrounds, while remote management enables efficient maintenance and troubleshooting. The support for configuration templates simplifies the deployment process, ensuring consistency and reducing the chances of configuration errors.
