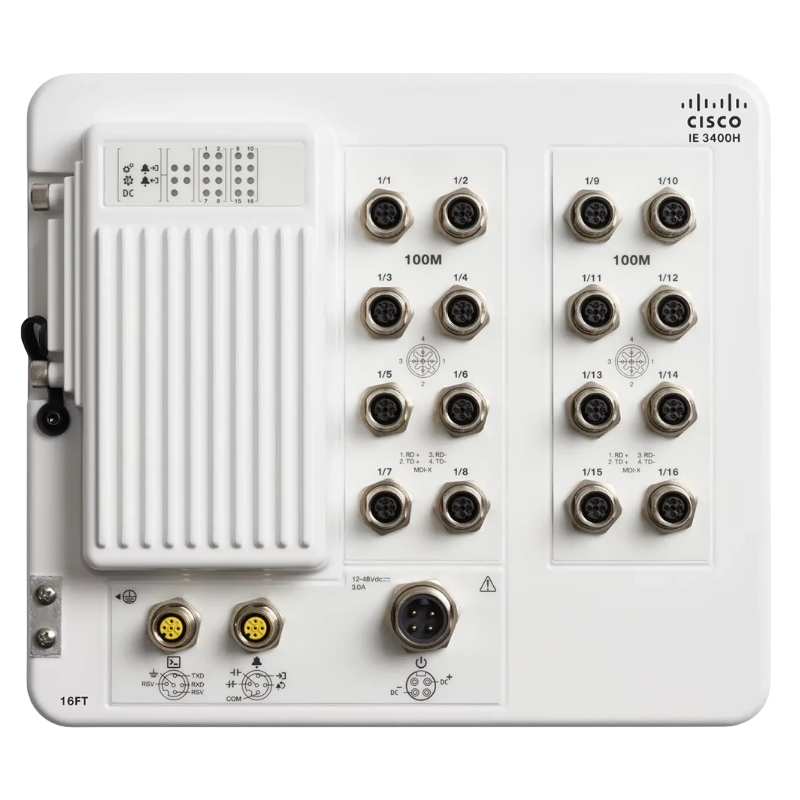

Cisco IE-3400H-16T-E Catalyst IE3400 Network Essentials M12 Managed Network Switch - 16 Ports

Product Overview

Device Type and Design

• Type: Managed Switch
• Port Count: 16 Ports
• Mounting: Wall-mountable Enclosure

Performance Specifications

Network Connectivity

• Subtype: Gigabit Ethernet
• Port Configuration: 16 x 10/100/1000 Mbps

Capacity Details

• Queues: 8
• IGMP Groups: 1000
• VLAN IDs: 256
• STP Instances: 128
• ACL Entries: 1500
• MAC Address Table: 8,000 Entries

Routing and Protocols

• Supported Routing Protocols: IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP
• Remote Management Protocols: SNMP v1, v2, v3; RMON; Telnet; HTTP; TFTP; SSH; SCP; NTP

Encryption and Security

• Encryption: 256-bit AES
• Authentication Methods: SSH, RADIUS, TACACS+

Advanced Features

Support and Management

• DHCP and BOOTP Support
• ARP Support
• IGMP Snooping
• Syslog and Diffserv Support
• Broadcast Storm Control
• IPv6 and IPv4 Support
• Multicast and Unicast Storm Control
• Spanning Tree Protocol (STP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Dynamic ARP Inspection (DAI)
• Per-VLAN Spanning Tree Plus (PVST+)
• Uni-Directional Link Detection (UDLD)
• Port Security
• Remote Switch Port Analyzer (RSPAN)
• Management Information Base (MIB)
• 802.1x Authentication
• Precision Time Protocol (PTP)
• IGMP Filtering and Querier
• Voice VLAN and Guest VLAN
• VLAN Trunking Protocol (VTP) v2 and v3
• BPDU Guard and Dying Gasp
• Internet Control Message Protocol (ICMP)
• CIP Sync (IEEE 1588)
• Smartport Technology
• IP Source Guard
• Resilient Ethernet Protocol (REP)

Compliance and Standards

• IEEE 802.3 Series
• IEEE 802.3u, 802.3z
• IEEE 802.1d, 802.1q, 802.3ab
• IEEE 802.1p, 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w, 802.1x, 802.1s
• IEEE 802.3ah
• IEEE 802.1ab (LLDP)
• IEEE 1588v2

Hardware Specifications

Memory and Storage

• RAM: 4 GB
• Flash Memory: 1.5 GB

Built-in Devices

• SD Card Reader

Expansion and Connectivity Options

Interfaces

• 16 x Gigabit LAN Ports (4 Pin)
• 1 x Console Port
• 2 x Alarm Ports

Expansion Slots

• 1 Slot for SD Memory Card (1 available)

Power Requirements

Power Supply and Consumption

• Power Device: Internal Power Supply
• Required Voltage: DC 9.6 - 60 V
• Current Requirement: 4.4 A
• Operational Power Consumption: 42.3 Watts

Ports

The Cisco Catalyst IE3400 Managed Network Switch is equipped with an impressive 16 ports, making it an excellent choice for businesses and organizations that require a high level of connectivity and flexibility. These ports allow for the seamless integration of multiple devices, enabling efficient data transmission and network management.

Enhanced Connectivity

With 16 ports, the Cisco Catalyst IE3400 provides enhanced connectivity options for users. Each port can be utilized to connect various devices such as computers, printers, servers, and other networking equipment. This versatility allows for the creation of a robust network infrastructure that can handle a wide range of applications and services.

Improved Data Transfer Speeds

The 16 ports on the Cisco Catalyst IE3400 are designed to support high-speed data transfer rates. This means that users can experience faster file transfers, smoother video streaming, and improved overall network performance. Whether you are transferring large files or running bandwidth-intensive applications, the Cisco Catalyst IE3400 ensures that data is transmitted quickly and efficiently.

Seamless Network Expansion

Another significant advantage of having 16 ports is the ability to expand your network easily. As your business grows or your network requirements change, you can effortlessly add more devices to your existing infrastructure without the need for additional equipment. This scalability ensures that your network remains flexible and adaptable to future needs.

Efficient Network Management

Managing a network with multiple devices can be challenging without sufficient connectivity options. However, with the Cisco Catalyst IE3400's 16 ports, network administrators can efficiently monitor and control the connected devices. The increased number of ports simplifies the process of assigning IP addresses, configuring settings, and troubleshooting any issues that may arise.

In addition to the benefits mentioned above, the 16 ports on the Cisco Catalyst IE3400 offer redundancy options to ensure uninterrupted network connectivity. By utilizing link aggregation technologies such as EtherChannel, administrators can combine multiple ports to create a logical link with increased bandwidth and redundancy. This feature provides enhanced network reliability and uptime, minimizing the risk of downtime and improving overall network performance.

Features

In addition to its impressive port count, the Cisco Catalyst IE3400 Managed Network Switch boasts several other notable features that make it a powerful and reliable networking solution. Two of these features that stand out are the "Network Essentials" and "M12 Connector."

Network Essentials

The inclusion of Network Essentials in the Cisco Catalyst IE3400 ensures that users have access to essential network services and features. Network Essentials provides a comprehensive set of tools and protocols that simplify network management, enhance security, and optimize performance. With Network Essentials, organizations can benefit from advanced features such as VLANs, QoS, and advanced routing protocols.

Enhanced Security

One of the key benefits of Network Essentials is its focus on security. The feature includes advanced security measures such as Access Control Lists (ACLs), which allow administrators to control traffic flow and restrict unauthorized access to the network. Additionally, Network Essentials supports secure guest access, enabling businesses to provide Wi-Fi connectivity to visitors without compromising their internal network's security.

Optimized Performance

Another advantage of Network Essentials is its ability to optimize network performance. The feature supports Quality of Service (QoS) mechanisms that prioritize critical applications and ensure smooth transmission of data across the network. This ensures that bandwidth-intensive applications such as video conferencing or VoIP calls receive the necessary resources, resulting in an improved user experience.

Simplified Network Management

Network Essentials also simplifies network management by providing intuitive interfaces and tools. The feature includes a user-friendly web-based management interface that allows administrators to easily configure settings, monitor network performance, and troubleshoot issues. This streamlined management process saves time and resources, enabling IT teams to focus on other critical tasks.

M12 Connector

The Cisco Catalyst IE3400 also features an M12 Connector, which is specifically designed for industrial environments. This connector ensures reliable and robust connectivity in harsh conditions, making the switch suitable for deployment in industries such as manufacturing, transportation, and oil and gas.

Rugged Design

The M12 Connector is known for its rugged design that can withstand extreme temperatures, vibrations, and electromagnetic interference. This makes the Cisco Catalyst IE3400 highly resilient in challenging environments where traditional connectors may fail. The switch's ability to operate flawlessly in such conditions ensures uninterrupted network connectivity, preventing costly downtime and maintaining productivity.

Secure Connections

The M12 Connector provides secure connections that are resistant to accidental disconnections. Its robust locking mechanism ensures that cables remain firmly attached, even in high-vibration environments. This feature eliminates the risk of network disruptions caused by loose connections, ensuring continuous data flow and reliable network performance.

Industry Compliance

The M12 Connector is widely used in various industries due to its compliance with industry standards such as IP67 and IP69K ratings. These ratings indicate that the connector is dust-tight and water-resistant, offering protection against dust ingress and high-pressure water jets. By adhering to these standards, the Cisco Catalyst IE3400 can be confidently deployed in demanding environments without compromising its performance or durability.

In conclusion, the Cisco Catalyst IE3400 Managed Network Switch's 16 ports provide users with enhanced connectivity, improved data transfer speeds, seamless network expansion, and efficient network management. Additionally, its features such as Network Essentials and the M12 Connector offer enhanced security, optimized performance, simplified network management, ruggedness, secure connections, and compliance with industry standards. These features make the Cisco Catalyst IE3400 an ideal choice for businesses and organizations that require a reliable, high-performance network switch in industrial or demanding environments.
