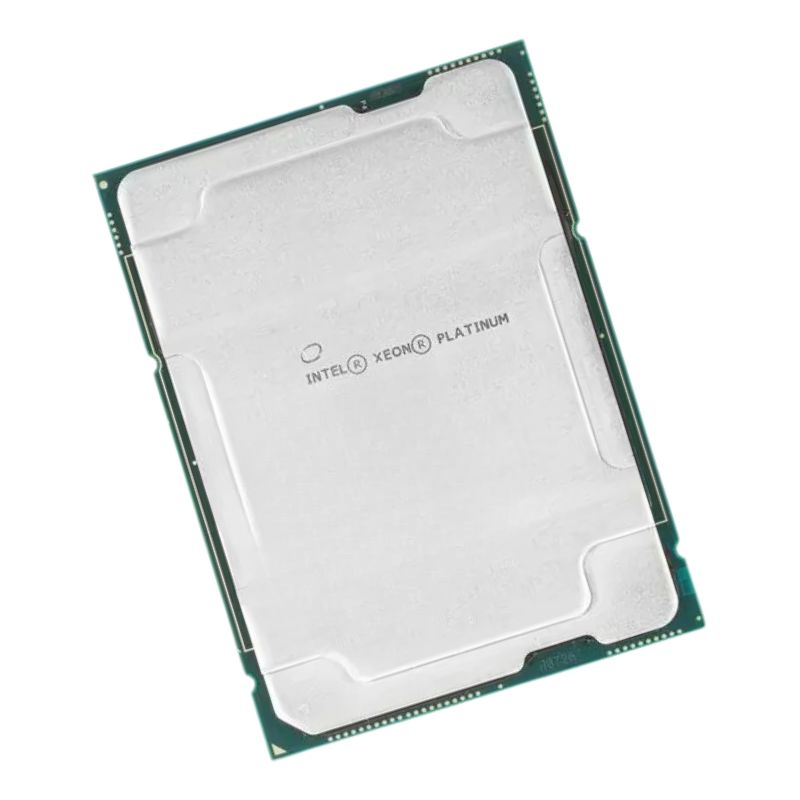

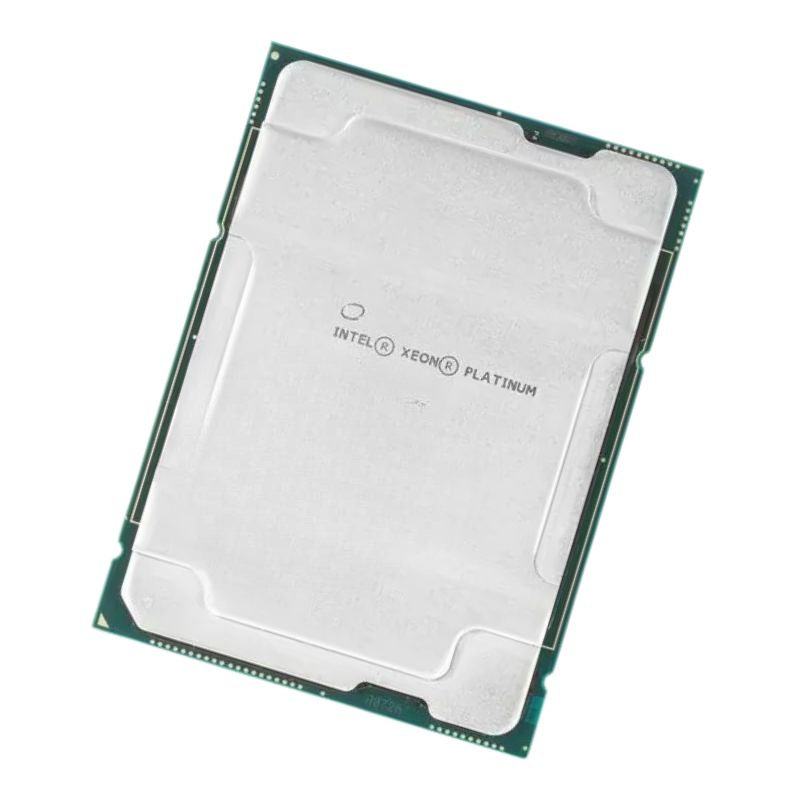

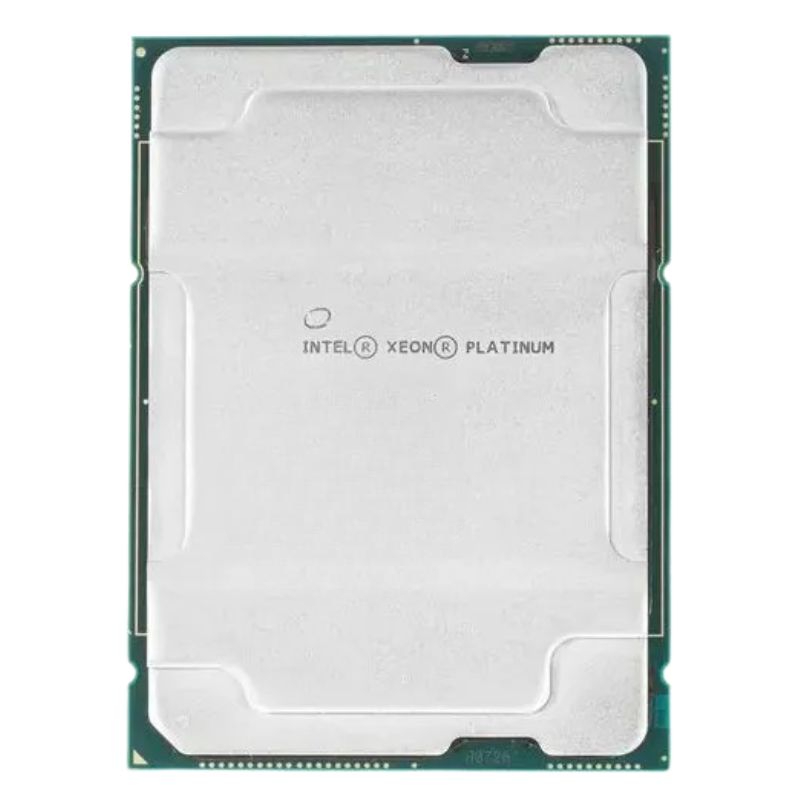

Intel CD8069504195301 Xeon Platinum Processor

The Intel CD8069504195301 Xeon Platinum 8276L 2.2GHz 28 Core 165W Processor is part of Intel's Xeon Platinum 8200 series, engineered to meet the high-performance demands of modern data centers, cloud computing, and enterprise server environments. With 28 cores, 56 threads, and advanced security features, this processor is designed for intensive multi-threaded applications, virtualization, and mission-critical workloads. It delivers exceptional performance, scalability, and reliability, making it an excellent choice for businesses requiring robust computing power and flexibility in their IT infrastructure.

Processor Code Name and Vertical Segment

The 2nd Generation Intel Xeon Scalable Processors, previously known as Cascade Lake, are engineered to meet the demanding requirements of modern server environments. These processors are specifically designed for server applications, offering advanced features and exceptional performance for enterprise and data center solutions.

Processor Number and Lithography

The Intel Xeon Scalable Processor with SKU CD8069504195301 is part of the 8276L series, built on a 14 nm lithography process. This processor integrates cutting-edge technology to deliver high performance and efficiency in server workloads.

Recommended Customer Price

The recommended customer price for the Intel Xeon Processor 8276L is $13,422.00. For additional details and to access more SKU-specific information, users should sign in with their CNDA account.

CPU Specifications

Designed to handle complex computational tasks, the Intel Xeon 8276L processor features:

• Total Cores: 28
• Total Threads: 56
• Part Number: CD8069504195301

Frequency and Cache

Performance is further enhanced by the following specifications:

• Max Turbo Frequency: 4.00 GHz
• Processor Base Frequency: 2.20 GHz
• Cache Size: 38.5 MB

Power and Thermal Design

Efficiency and stability are critical, and this processor supports:

• Max Number of UPI Links: 3
• Thermal Design Power (TDP): 165 W

Memory Specifications

For optimal performance, the processor supports extensive memory options:

• Maximum Memory Size: Up to 4.5 TB (dependent on memory type)
• Supported Memory Types: DDR4-2933
• Maximum Memory Speed: 2933 MHz

Memory Channels and Features

Enhanced memory capabilities are provided through:

• Maximum Number of Memory Channels: 6
• Intel Optane Persistent Memory: Supported
• Error-Correcting Code (ECC) Memory: Supported

Expansion and Connectivity

The Intel Xeon 8276L processor offers versatile expansion options:

• Scalability: S8S
• PCI Express Revision: 3.0
• Maximum Number of PCI Express Lanes: 48

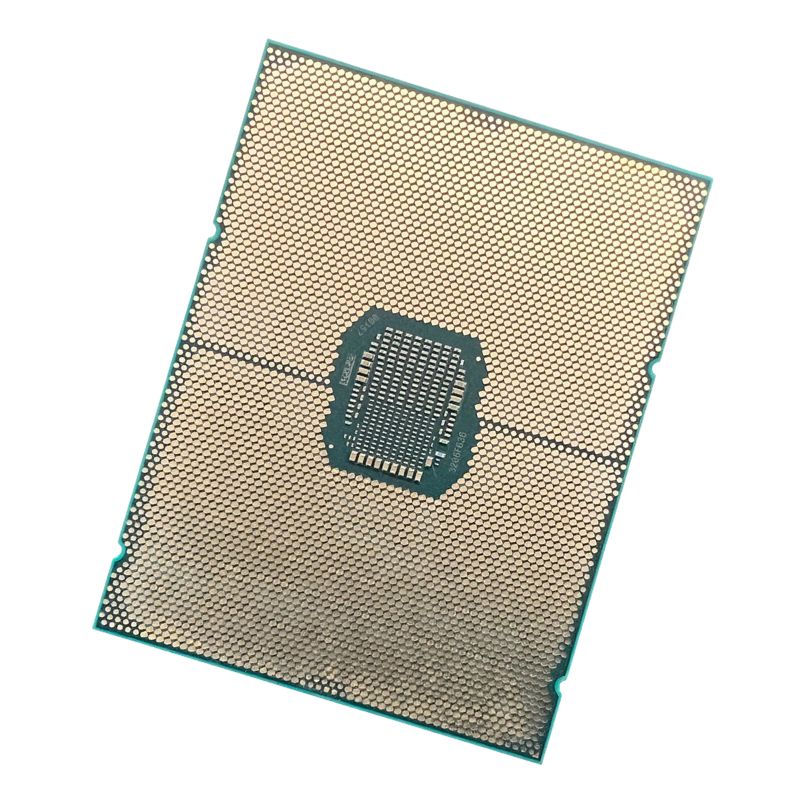

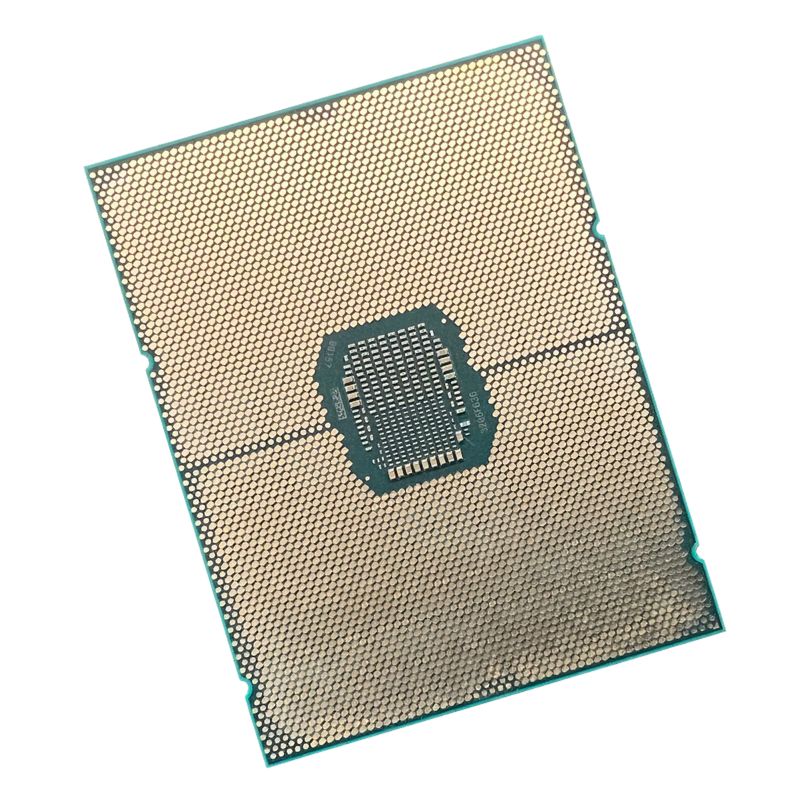

Package Specifications

Physical characteristics of the processor include:

• Supported Socket: FCLGA3647
• Case Temperature (TCASE): 89°C
• Package Dimensions: 76.0mm x 56.5mm

Advanced Technologies

The processor is equipped with several advanced technologies to boost performance:

• Intel Deep Learning Boost (Intel DL Boost): Yes
• Intel Speed Select Technology - Performance Profile: No
• Intel Speed Select Technology - Base Frequency: No
• Intel Resource Director Technology (Intel RDT): Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Max Technology 3.0: No
• Intel Turbo Boost Technology: 2.0
• Intel Hyper-Threading Technology: Yes
• Intel Transactional Synchronization Extensions: Yes
• Intel 64: Yes

Instruction Set Extensions

Supports a range of instruction set extensions for enhanced performance:

• Intel SSE4.2
• Intel AVX
• Intel AVX2
• Intel AVX-512

AVX-512 Units and Technologies

The processor features:

• Number of AVX-512 FMA Units: 2
• Enhanced Intel SpeedStep Technology: Yes
• Intel Volume Management Device (VMD): Yes

Security and Reliability

The processor incorporates several security technologies to safeguard data:

• Intel vPro Platform: Yes
• Intel AES New Instructions: Yes
• Intel Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel Run Sure Technology: Yes
• Mode-based Execute Control (MBEC): Yes

Virtualization Technologies

Enhances virtualization capabilities with:

• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes

Usage and Applications

The Intel Xeon 8276L processor is ideally suited for:

• Enterprise Servers: Ideal for handling large-scale enterprise applications and workloads.
• Data Centers: Provides reliable performance for data center operations and cloud services.
• High-Performance Computing (HPC): Delivers the computing power needed for scientific research and complex simulations.
• Virtualization: Supports multiple virtual machines with efficient resource allocation.

Compatibility and Integration

This processor integrates seamlessly with various server configurations and is compatible with a range of hardware setups:

• Compatible Servers: Designed to work with servers equipped with FCLGA3647 sockets.
• Memory Integration: Supports a wide array of DDR4 memory modules for flexible configuration.
• Expansion Options: Compatible with PCI Express 3.0 for additional expansion capabilities.

Performance and Efficiency

The Intel Xeon 8276L processor balances high performance with energy efficiency:

• High Performance: With 28 cores and 56 threads, it excels in handling parallel tasks.
• Energy Efficiency: Advanced power management features help reduce energy consumption without compromising performance.
• Reliability: Built with advanced technologies to ensure stable and reliable operation in critical environments.

Features of Intel CD8069504195301

High Core Count for Parallel Processing

With 28 cores and 56 threads, the Intel Xeon Platinum 8276L excels in parallel processing, making it ideal for tasks that require handling multiple processes simultaneously. Its hyper-threading capability enables each core to manage two threads, effectively doubling the number of tasks the processor can handle at once. This high core count is particularly beneficial for environments with heavy computational needs, such as AI workloads, large-scale data analytics, and complex simulations.

Intel Turbo Boost Technology 2.0

The Intel Xeon Platinum 8276L utilizes Turbo Boost Technology 2.0, which dynamically adjusts the processor's clock speed beyond its base frequency of 2.2GHz based on workload demands. This feature provides a significant performance boost during critical tasks, ensuring that the processor delivers optimal power when it is most needed. Turbo Boost enhances performance without compromising energy efficiency, making it ideal for applications with fluctuating computational requirements.

Advanced Security Features

Security is a critical consideration in modern computing, and the Intel CD8069504195301 Xeon Platinum 8276L integrates a suite of advanced security technologies designed to protect data and operations. With Intel SGX (Software Guard Extensions), Intel Secure Key, and Intel OS Guard, this processor offers hardware-enhanced security that helps safeguard sensitive data, protect against malware, and ensure the integrity of applications running on the server.

Core and Thread Configuration

The processor features 28 cores and 56 threads, optimized for heavy-duty multitasking and parallel processing. This configuration allows for efficient management of high-volume workloads, making it suitable for database management, virtualization, and enterprise resource planning (ERP) applications.

Base and Maximum Turbo Frequency

The Intel Xeon Platinum 8276L operates at a base frequency of 2.2GHz, with the potential to achieve higher clock speeds through Turbo Boost technology. This frequency adjustment provides a balance between performance and power consumption, ensuring that the processor can handle demanding tasks efficiently.

Cache Memory

Equipped with 38.5 MB of L3 cache, the processor provides rapid access to frequently used data and instructions, significantly reducing latency and improving performance in data-intensive applications. The large cache size helps speed up computations, particularly in environments where quick data retrieval is essential, such as financial modeling and scientific simulations.

Thermal Design Power (TDP)

The 165W TDP rating of the Intel Xeon Platinum 8276L reflects its efficiency in delivering high performance without excessive power draw. This balanced power consumption helps maintain lower operating temperatures, reducing the need for extensive cooling solutions and contributing to overall energy savings in the data center.

Applications and Use Cases

High-Performance Computing (HPC)

Designed for high-performance computing environments, the Intel Xeon Platinum 8276L is ideal for running complex simulations, large-scale computations, and intensive data processing tasks. Its high core count and robust architecture provide the computational power needed for scientific research, engineering simulations, and other demanding workloads.

Artificial Intelligence and Machine Learning

AI and machine learning workloads require significant processing capabilities, and the Intel CD8069504195301 Xeon Platinum 8276L delivers with its parallel processing and advanced vector extensions. It accelerates deep learning, neural network training, and predictive analytics, making it an excellent choice for AI-driven applications that need high throughput and low latency.

Data Analytics and Big Data

In data analytics and big data environments, the Intel Xeon Platinum 8276L excels by providing the processing power necessary to manage large datasets efficiently. Its combination of high core count, large cache, and high memory bandwidth ensures that businesses can perform real-time data analysis, business intelligence, and data mining tasks effectively.

Virtualization and Cloud Computing

The Intel Xeon Platinum 8276L supports advanced virtualization technologies, making it an ideal processor for cloud computing and virtualized environments. It allows multiple virtual machines (VMs) to run efficiently on a single physical server, optimizing resource allocation and improving overall system performance. This capability is essential for cloud service providers and enterprises seeking to maximize their server utilization and scalability.

Cascade Lake Architecture

The processor is built on Intel's Cascade Lake architecture, which offers several improvements over previous generations. These enhancements include increased memory support, improved data throughput, and enhanced security features. The architecture is designed to handle today’s data-centric workloads with efficiency and speed, making the 8276L processor a powerful component in any high-performance server setup.

Memory Support and Bandwidth

The Intel Xeon Platinum 8276L supports up to 1.5TB of DDR4 memory per socket, providing ample capacity for memory-intensive applications. Its six-channel memory architecture enhances data throughput, ensuring that large datasets can be processed rapidly. This high memory bandwidth is crucial for applications like in-memory databases, large-scale simulations, and other data-heavy workloads.

Support for Intel Optane DC Persistent Memory

One of the key innovations of the Cascade Lake architecture is support for Intel Optane DC Persistent Memory, which allows servers to achieve higher memory capacities with improved data retention. This technology enhances system resilience and speeds up data retrieval times, making it especially valuable for high-availability applications and large-scale data processing.

Intel Advanced Vector Extensions 512 (AVX-512)

AVX-512 is a set of instructions that significantly enhances the performance of vector processing, which is used extensively in scientific computations, cryptography, and data analysis. The inclusion of AVX-512 in the Intel Xeon Platinum 8276L enables it to perform complex calculations faster and more efficiently, contributing to overall system performance improvements.

Enhanced Security Capabilities

Intel Software Guard Extensions (SGX)

Intel SGX technology provides hardware-based memory encryption, creating secure enclaves that protect sensitive data even if the system is compromised. This feature is critical for applications that handle confidential information, such as financial transactions, healthcare records, and encrypted communications, ensuring that sensitive data remains protected.

Intel Trusted Execution Technology (TXT)

TXT helps protect the system against software-based attacks, ensuring that critical applications run in a secure environment. This technology establishes a hardware-based root of trust, preventing unauthorized access and maintaining the integrity of applications and data.

Intel Secure Key

Intel Secure Key is a hardware-based random number generator that enhances cryptographic security. By generating highly unpredictable encryption keys, this feature helps protect data from unauthorized access and cyber threats, making the processor ideal for secure data environments.

Advanced Encryption Standard New Instructions (AES-NI)

AES-NI accelerates the encryption and decryption of data, providing faster and more secure encryption without significantly impacting performance. This set of instructions is essential for applications that require high-speed encryption, such as secure web transactions, VPNs, and encrypted data storage solutions.

Compatibility and Integration

Broad Server Compatibility

The Intel CD8069504195301 Xeon Platinum 8276L is compatible with a wide range of server platforms from leading manufacturers, including Dell, HPE, Lenovo, and Cisco. This broad compatibility ensures that the processor can be easily integrated into existing server infrastructures, simplifying upgrades and enhancing scalability for growing businesses.

PCI Express 3.0 Support

The processor supports PCIe 3.0, providing high-speed connectivity for storage devices, GPUs, and networking components. This support enhances system performance by allowing rapid data transfer between the processor and connected devices, reducing latency and improving overall efficiency in data-intensive environments.

Support for Intel Ultra Path Interconnect (UPI)

Intel UPI technology provides high-speed interconnects between processors, enhancing data transfer rates and reducing bottlenecks in multi-processor configurations. This feature is particularly valuable in server environments that require multiple processors working in tandem to manage large workloads, such as in HPC and large-scale data processing applications.

Performance and Benchmarking

Benchmark Performance

In benchmarking tests, the Intel Xeon Platinum 8276L consistently performs at the top of its class, delivering superior performance in multi-threaded workloads, data analytics, and virtualization tasks. Its high core count, large cache, and advanced architectural features make it a leader among enterprise processors, providing businesses with the computational power needed to stay competitive.

Energy Efficiency and Cost Savings

While delivering exceptional performance, the Intel Xeon Platinum 8276L also prioritizes energy efficiency. Its 165W TDP ensures that it provides high performance without excessive power consumption, translating into lower operational costs and a reduced environmental footprint for data centers.

Enhanced Workload Optimization

The processor's built-in workload optimization technologies automatically adjust performance settings based on application needs, ensuring that resources are used efficiently. This dynamic optimization helps balance performance and power consumption, maximizing system efficiency and extending the life of server hardware.

Market Adoption and Industry Use Cases

Enterprise Adoption

The Intel CD8069504195301 Xeon Platinum 8276L is widely adopted across various industries, including finance, healthcare, scientific research, and manufacturing. Its robust performance, advanced security features, and scalability make it a preferred choice for enterprises seeking to enhance their data center capabilities.

Cloud Service Providers

Cloud service providers benefit from the processor's advanced virtualization support, enabling them to deliver high-performance virtual machines with superior reliability. The processor's scalability and energy efficiency make it a valuable asset for managing cloud workloads and supporting large-scale, distributed computing environments.

Scientific and Research Applications

Research institutions and universities leverage the Intel Xeon Platinum 8276L for high-performance computing tasks, such as climate modeling, genomics research, and complex scientific simulations. The processor's powerful architecture and advanced features provide the computational speed and accuracy needed for cutting-edge research.

Future-Proofing IT Investments

Investing in the Intel CD8069504195301 Xeon Platinum 8276L ensures that organizations are prepared for future technological advancements. Its compatibility with next-generation technologies, such as AI, machine learning, and big data analytics, makes it a forward-thinking choice for businesses looking to stay ahead in an ever-evolving IT landscape.
