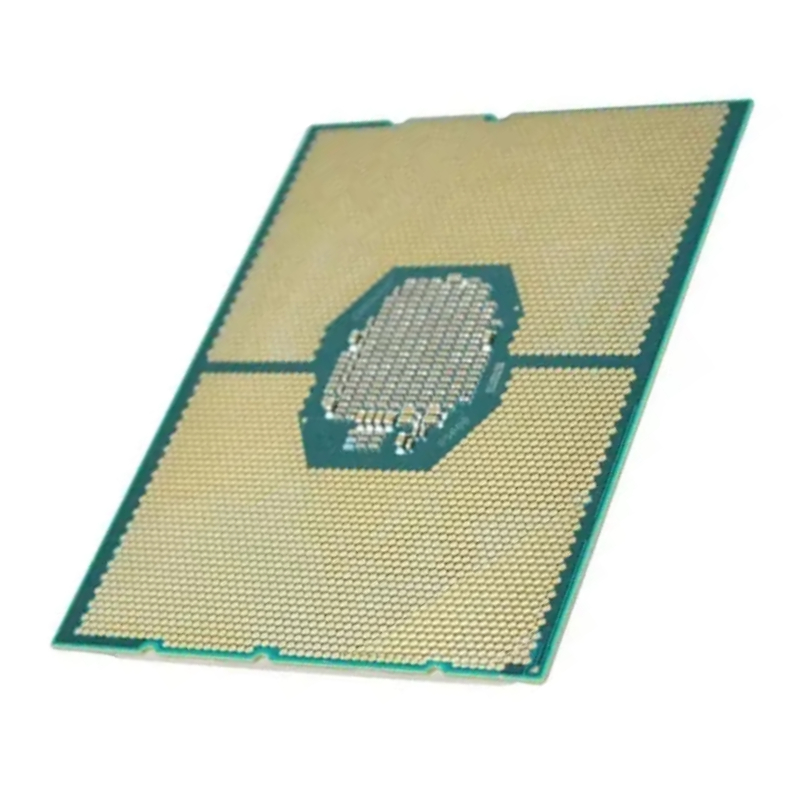

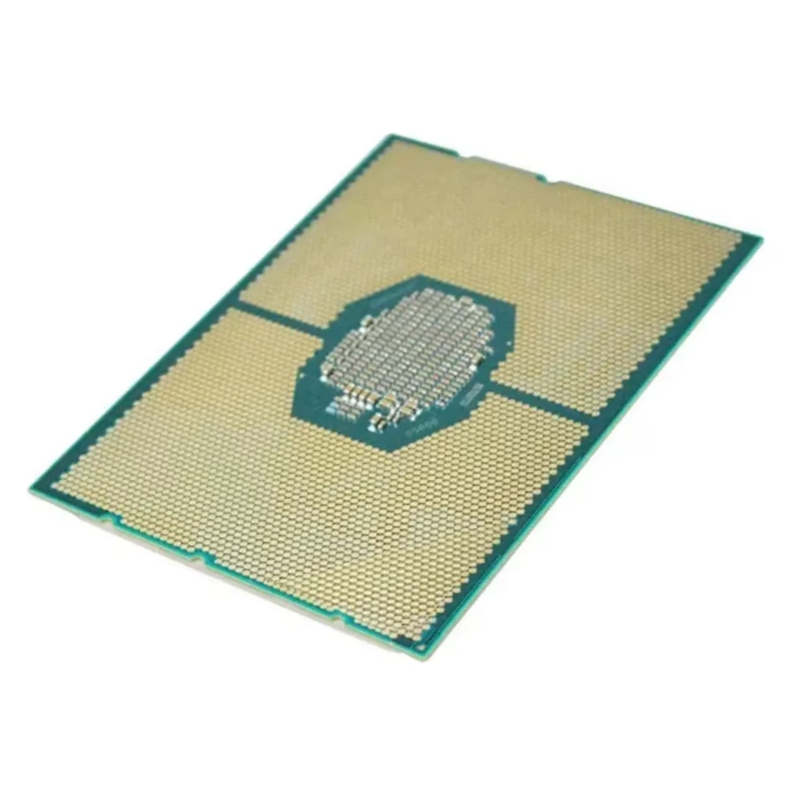

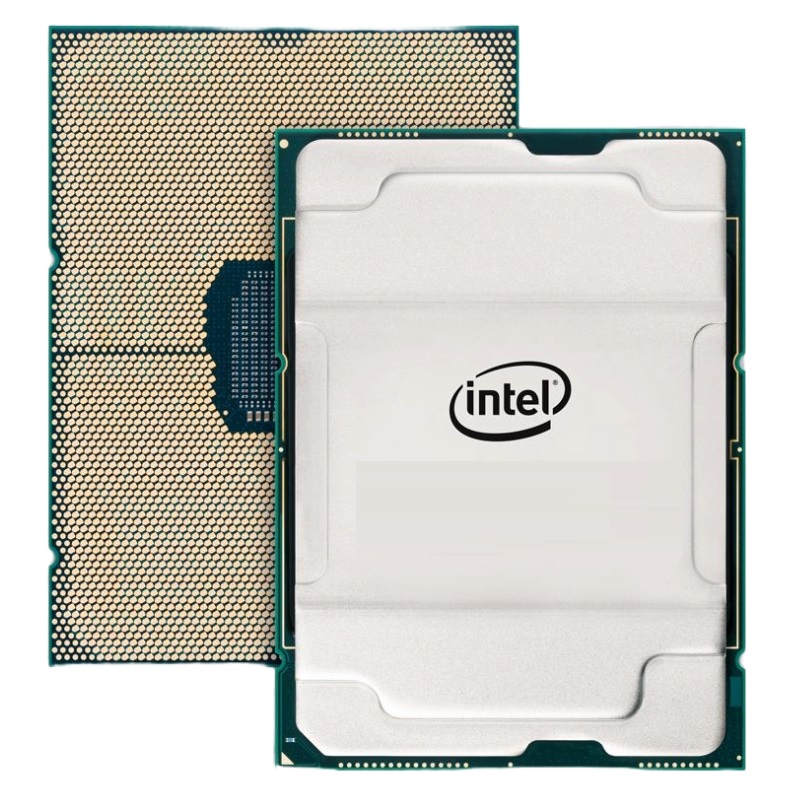

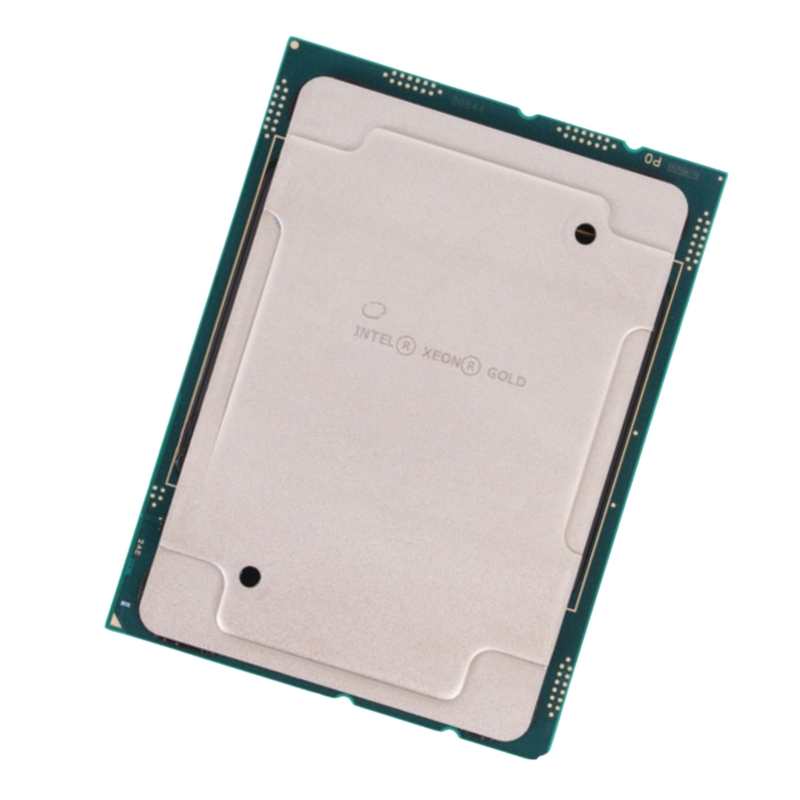

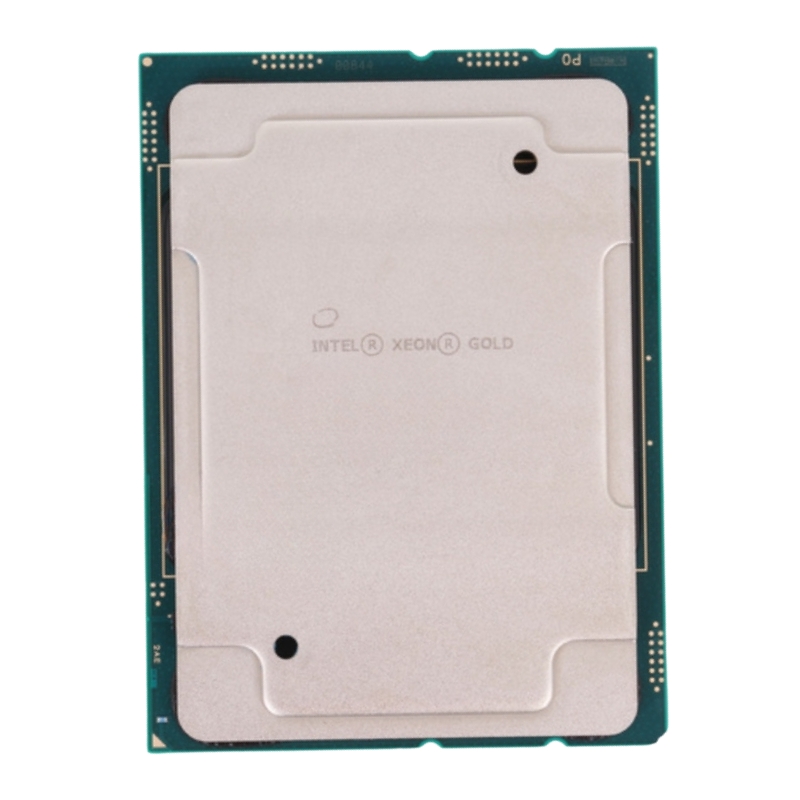

Intel CD8069504425301 Xeon Gold 12 Core Processor

Intel CD8069504425301 Xeon Gold Processor Overview

The Intel CD8069504425301 Xeon Gold 6256 is a powerful 12-core processor designed for high-performance computing environments. With a base clock speed of 3.60GHz and 33MB of cache, this processor is tailored for demanding applications that require fast data processing, robust multitasking, and exceptional reliability. As part of the Intel Xeon Gold series, the 6256 is optimized for data centers, enterprise servers, and cloud computing, delivering superior performance for virtualization, analytics, and complex workloads.

Intel Xeon CD8069504425301 Processor Details

Product Overview

• Manufacturer: Intel
• Part Number: CD8069504425301
• Series: 2nd Gen Intel Xeon Scalable (Gold 5200 Series)
• Processor Code Name: Cascade Lake
• Socket Type: FCLGA3647 (Socket P)
• Cooling Device: Processor only, cooling device not included

Performance Specifications

• Base Frequency: 3.60 GHz
• Maximum Turbo Frequency: 4.50 GHz
• Total Cores: 12
• Total Threads: 24
• Cache Memory: 33 MB
• Number of UPI Links: 3
• Lithography: 14 nm
• Thermal Design Power (TDP): 205 W

Supplemental Information

• Embedded Options: Not available

Memory Specifications

• Maximum Memory Size: 1 TB
• Supported Memory Types: DDR4-2933
• Maximum Memory Speed: 2933 MHz
• Memory Channels: 6
• ECC Memory Support: Yes
• Intel Optane DC Persistent Memory Support: Yes

Expansion Options

• Scalability: S4S
• PCI Express Revision: 3.0
• Maximum PCI Express Lanes: 48

Advanced Technologies

• Intel Deep Learning Boost (DL Boost): Yes
• Intel Speed Select Technology - Performance Profile: No
• Intel Speed Select Technology - Base Frequency: No
• Intel Resource Director Technology (RDT): Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Max Technology 3.0: No
• Intel Turbo Boost Technology 2.0: Yes
• Intel vPro Platform Eligibility: Yes
• Intel Hyper-Threading Technology: Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• Intel Transactional Synchronization Extensions: Yes
• Intel 64 Technology: Yes
• Instruction Set Extensions: Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
• Number of AVX-512 FMA Units: 2
• Enhanced Intel SpeedStep Technology: Yes
• Intel Volume Management Device (VMD): Yes

Security and Reliability Features

• Intel Advanced Encryption Standard (AES) New Instructions: Yes
• Intel Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel Run Sure Technology: Yes
• Mode-Based Execute Control (MBE): Yes

Key Features of the Intel Xeon Gold 6256 Processor

High Clock Speed for Superior Performance

The Intel Xeon Gold 6256 boasts a high base clock speed of 3.60GHz, making it one of the fastest processors in its class. This high frequency provides outstanding single-thread performance, which is crucial for applications that rely on rapid data processing and low latency. The high clock speed also ensures that the processor can handle demanding tasks such as financial modeling, scientific simulations, and database management with ease.

12-Core Architecture for Enhanced Multitasking

Equipped with 12 cores, the Intel Xeon Gold 6256 is designed to manage multiple workloads simultaneously, making it ideal for multitasking environments. This multi-core architecture allows the processor to efficiently handle concurrent applications, enhancing productivity and reducing processing times. The 12-core configuration is particularly beneficial for virtualization, where multiple virtual machines can operate smoothly without performance degradation.

Large 33MB Smart Cache for Faster Data Access

The processor features a substantial 33MB Intel Smart Cache, which helps speed up data retrieval and processing times. This large cache size ensures that frequently accessed data is stored closer to the processor cores, reducing latency and improving overall system performance. The Smart Cache is particularly advantageous in data-intensive applications, such as big data analytics and real-time processing, where quick access to data is critical.

Intel Turbo Boost Technology for On-Demand Performance

Intel Turbo Boost Technology allows the Xeon Gold 6256 to dynamically increase its clock speed beyond the base frequency when extra performance is needed. This feature is especially useful during peak workloads, enabling the processor to deliver additional power for short bursts when required. Turbo Boost helps optimize the CPU's performance across various applications, from single-threaded tasks to complex, multi-threaded operations.

High Thermal Design Power (TDP) of 205W

With a TDP of 205W, the Intel Xeon Gold 6256 is engineered to deliver high performance while maintaining effective thermal management. The 205W TDP reflects the processor's powerful capabilities, and efficient cooling solutions are essential to ensure stable operation under heavy loads. Advanced cooling systems, such as high-performance heatsinks or liquid cooling setups, are recommended to maintain optimal temperatures and prevent thermal throttling.

Support for High-Speed DDR4 Memory

The Xeon Gold 6256 supports high-speed DDR4 memory, providing the bandwidth needed for handling large datasets and intensive computing tasks. This memory support enhances overall system performance, making it ideal for environments that demand rapid data processing, such as artificial intelligence (AI), machine learning, and deep learning applications. The processor's compatibility with DDR4 also allows for efficient memory utilization, boosting system responsiveness and stability.

Advanced Security Features

Security is paramount in enterprise computing, and the Intel Xeon Gold 6256 is equipped with advanced security features to protect data and maintain system integrity. Technologies such as Intel Secure Key, Intel Software Guard Extensions (SGX), and Intel Trusted Execution Technology (TXT) provide robust protections against cyber threats, data breaches, and unauthorized access. These security features are critical for industries that handle sensitive information, such as finance, healthcare, and government sectors.

Benefits of the Intel Xeon Gold 6256 Processor

Optimized for Enterprise Applications

The Intel Xeon Gold 6256 excels in enterprise environments where performance, scalability, and reliability are essential. Its 12-core design and high clock speed make it suitable for running complex enterprise applications, including database servers, enterprise resource planning (ERP) systems, and large-scale data analytics. The processor's robust capabilities ensure consistent performance, supporting critical business operations and enhancing overall productivity.

Exceptional Virtualization Performance

Virtualization is a key component of modern IT infrastructure, and the Xeon Gold 6256 offers excellent support for virtualized environments. Its multi-core architecture and advanced virtualization technologies enable efficient management of multiple virtual machines, reducing latency and enhancing workload distribution. This makes the processor an ideal choice for server consolidation, private cloud deployments, and software-defined data centers.

High-Performance Computing (HPC) Applications

The Intel Xeon Gold 6256 is designed to meet the demands of high-performance computing (HPC) applications, where speed, precision, and reliability are critical. Its high clock speed and large cache size provide the computational power needed for tasks such as scientific simulations, engineering modeling, and data-intensive research. The processor's performance ensures accurate and timely results, supporting innovation in fields such as aerospace, automotive, and energy.

Energy Efficiency and Cost Management

Despite its high TDP, the Xeon Gold 6256 is engineered for energy efficiency, balancing performance with power consumption. The processor's power management features help reduce energy usage during low-demand periods, contributing to lower operational costs and sustainable computing practices. This efficiency makes the Gold 6256 a cost-effective choice for data centers and enterprises looking to maximize performance while managing energy expenses.

Applications and Use Cases

Enterprise Servers and Data Centers

The Intel Xeon Gold 6256 is tailored for enterprise servers and data centers that demand high processing power and reliability. Its ability to handle complex server workloads, including data processing, transaction management, and storage optimization, makes it a key component of modern IT infrastructures. The processor’s robust performance ensures that critical applications run smoothly and securely, supporting business continuity and operational efficiency.

Cloud Computing and Virtualization Environments

Cloud computing and virtualization are at the forefront of digital transformation, and the Xeon Gold 6256 is well-suited for these environments. Its advanced multi-threading capabilities and high core count support efficient cloud operations, including virtual machine management and software-defined networking. The processor’s scalability and reliability make it an ideal choice for public, private, and hybrid cloud deployments.

High-Performance Computing (HPC) and Research

For high-performance computing and research applications, the Gold 6256 offers the speed and accuracy needed to tackle complex computational tasks. Its high clock speed and large cache make it ideal for scientific research, engineering simulations, and financial analytics. The processor’s capabilities allow researchers and engineers to perform detailed analyses quickly, driving innovation and discovery across various scientific disciplines.

Compatibility and Integration

Motherboard Compatibility

The Intel Xeon Gold 6256 is compatible with motherboards featuring the FCLGA3647 socket, allowing for seamless integration into a wide range of server and workstation platforms. Its compatibility with a variety of chipsets ensures flexibility in system design, enabling custom configurations tailored to specific workload requirements. Selecting a compatible motherboard with robust power delivery and cooling solutions is essential for maintaining peak processor performance.

Optimizing System Performance

To optimize the performance of the Xeon Gold 6256, it is important to pair it with compatible hardware components, including high-speed DDR4 memory and efficient cooling solutions. Fine-tuning BIOS settings, such as enabling Intel Turbo Boost and configuring memory timings, can further enhance the processor’s capabilities. Regular system maintenance, including firmware and driver updates, also helps ensure optimal performance and stability.

Advanced Cooling Solutions

Given the processor’s 205W TDP, advanced cooling solutions are necessary to maintain stable temperatures during operation. Options such as liquid cooling systems or high-performance air coolers provide the thermal management needed to prevent overheating and thermal throttling. Proper cooling not only enhances performance but also extends the lifespan of the processor, ensuring long-term reliability and efficiency.

Comparing the Intel Xeon Gold 6256 with Other Processors

Performance Comparison

When compared to other processors in the Intel Xeon Gold lineup, the 6256 stands out due to its high clock speed and 12-core architecture. Its superior single-thread performance makes it an excellent choice for applications that prioritize speed, such as database management and real-time analytics. In comparison to lower-clocked models, the Gold 6256 offers a significant performance boost, particularly in environments that require rapid data processing and response times.

Energy Efficiency and Cost Analysis

The 205W TDP of the Xeon Gold 6256 reflects its high-performance design, necessitating efficient power management strategies to maintain energy efficiency. Despite its higher power consumption, the processor’s performance-to-cost ratio remains favorable, offering enterprises a powerful solution for their computing needs. When compared to other models, the Gold 6256 provides a balance of performance and energy efficiency, making it a valuable asset for demanding workloads.

Scalability and Future-Proofing

The Xeon Gold 6256 is designed with scalability in mind, allowing for future upgrades and expansions as computing demands evolve. Its compatibility with current server platforms and support for advanced technologies ensure that the processor remains relevant in rapidly changing IT environments. This scalability makes the Gold 6256 a future-proof investment, capable of adapting to new applications and increasing workloads over time.

Maintenance and Best Practices

Regular System Checks

Maintaining optimal performance of the Intel Xeon Gold 6256 requires regular system checks and maintenance. Monitoring system temperatures, ensuring proper airflow, and keeping the system environment clean are essential practices to prevent overheating and ensure reliable operation. Implementing these maintenance strategies helps extend the life of the processor and maintain peak performance levels.

Firmware and Driver Updates

Staying up-to-date with firmware and driver updates is crucial for maintaining compatibility and enhancing the performance of the Xeon Gold 6256. These updates address security vulnerabilities, improve system stability, and introduce performance optimizations. Regularly checking for updates from Intel and motherboard manufacturers ensures that the processor operates at its full potential, providing consistent and reliable performance.

Power Management Techniques

Implementing power management techniques can help balance performance and energy consumption, especially in data center environments. Utilizing built-in power-saving features and adjusting system settings to match workload demands can significantly reduce energy costs. Effective power management not only supports sustainable computing practices but also contributes to the overall efficiency of the IT infrastructure.
