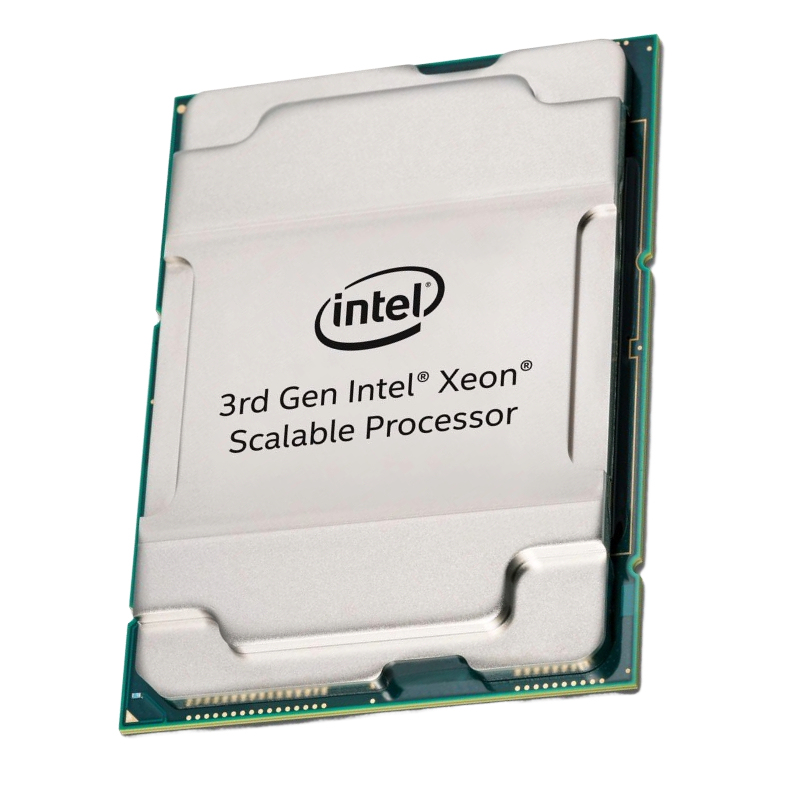

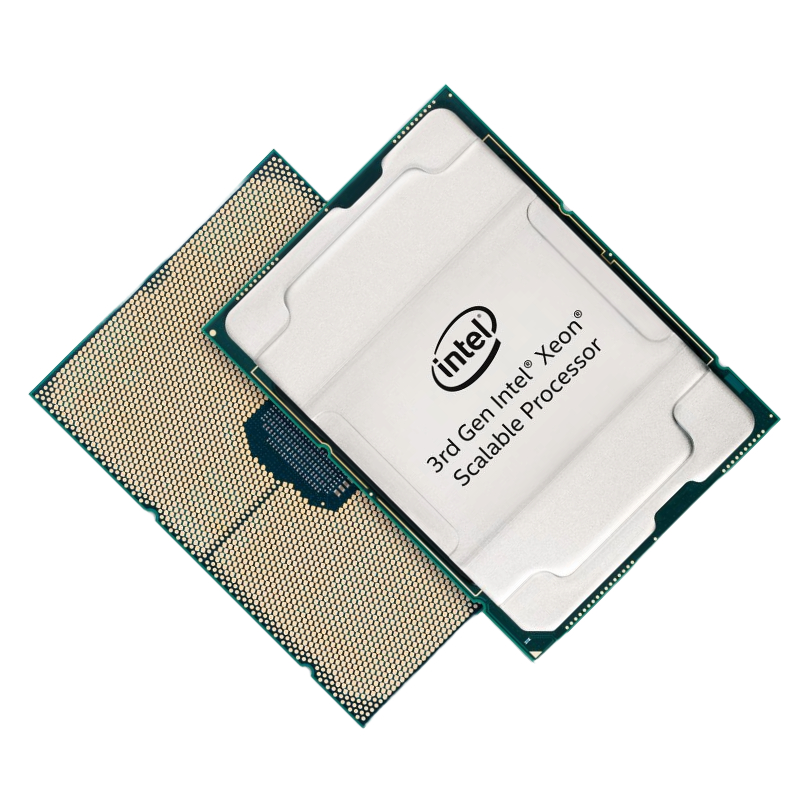

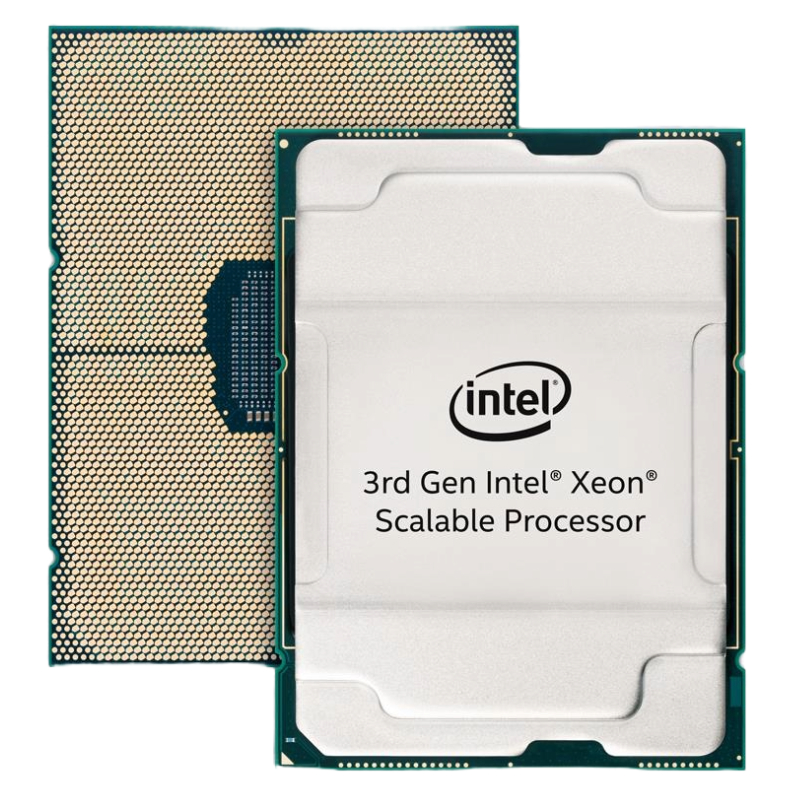

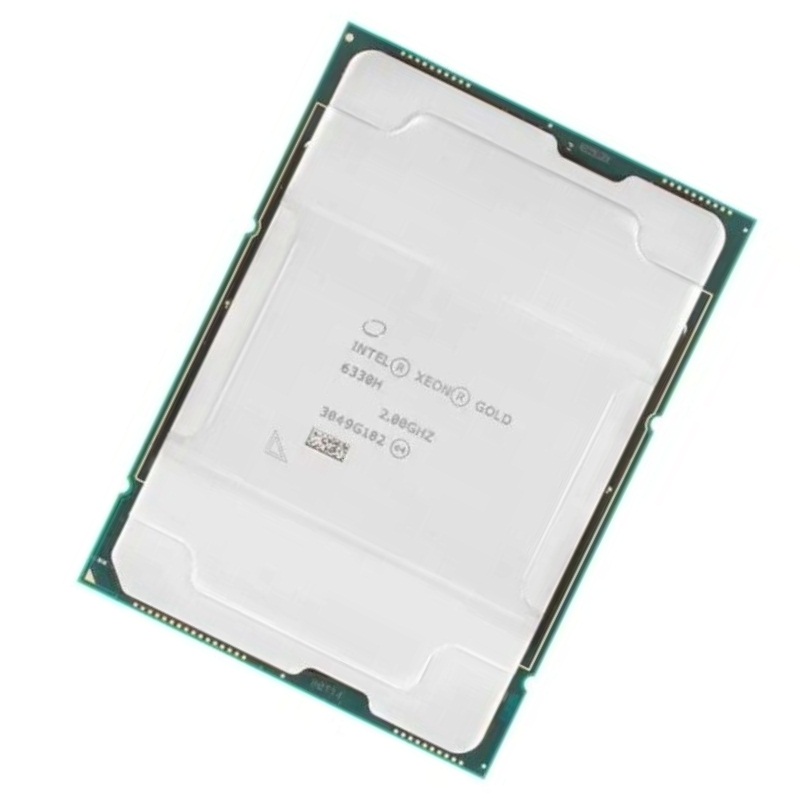

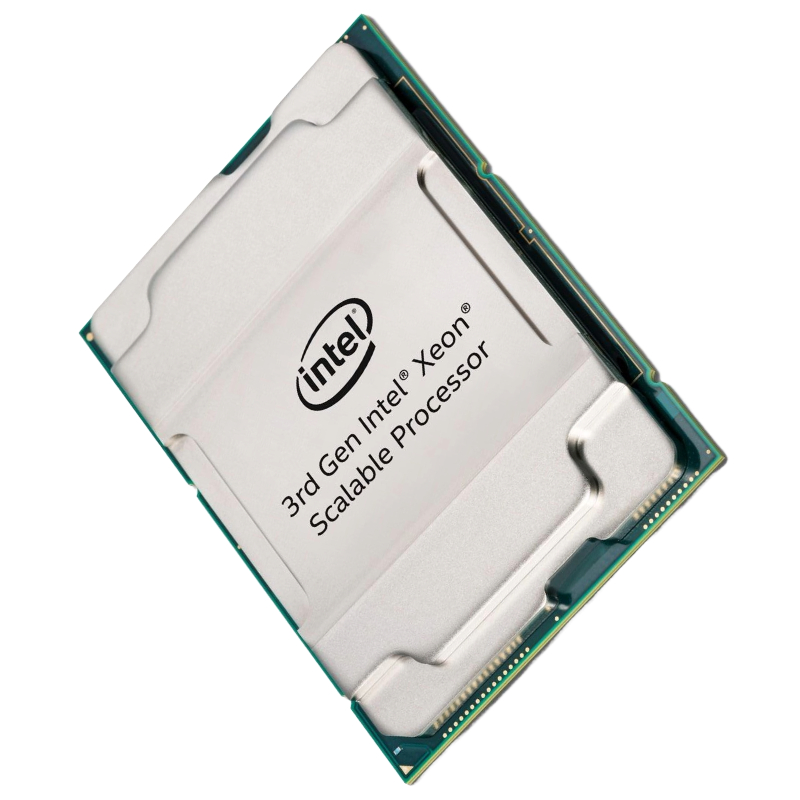

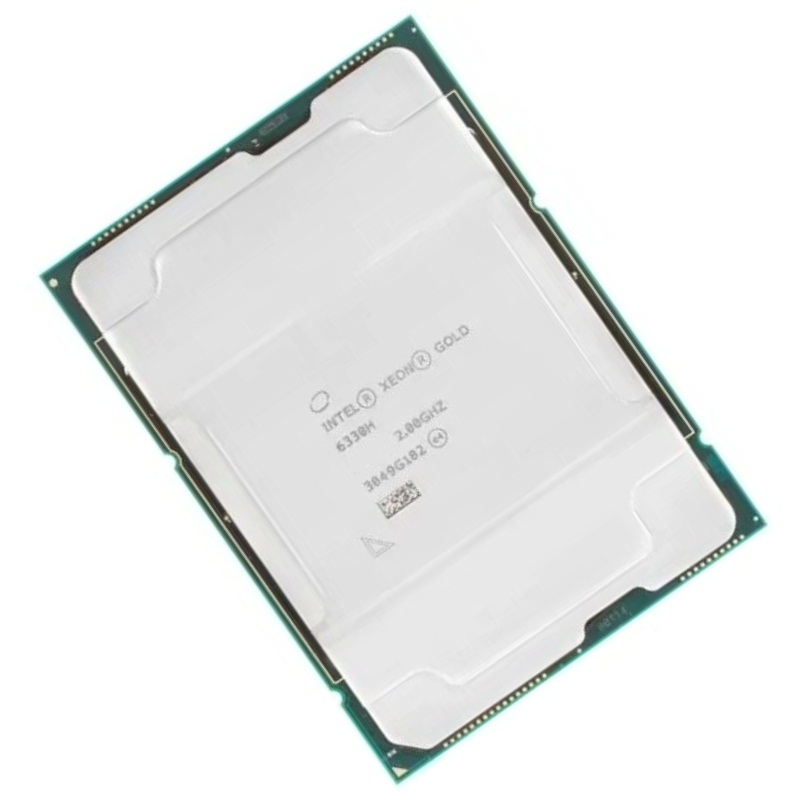

Intel CD8070604560002 Xeon Gold 6330H 2.0GHz 24-Core Processor

Intel® Xeon® Gold Processors Overview

Intel® Xeon® Gold processors are designed to deliver high performance, advanced security, and scalable solutions for modern data centers and enterprise environments. These processors support up to 4-socket configurations, making them ideal for multi-processor server setups. With enhanced capabilities, including support for high-speed DDR4 memory and state-of-the-art security features, the Xeon Gold series elevates the performance standards of mid-tier processors, positioning itself as a powerful choice for businesses needing efficient, reliable computing.

Intel Xeon Gold 6330 Processor

General Specifications

• Manufacturer: Intel
• Part Number: CD8070604560002
• Processor Family: 3rd Generation Intel Xeon Scalable, Gold 6300 Series
• Code Name: Cooper Lake
• Supported Socket: FCLGA4189
• Important Note: No heatsink, accessories, or tools included

Performance and Core Features

• Base Clock Speed: 2.00 GHz
• Maximum Turbo Frequency: Up to 3.70 GHz
• Multi-Core Configuration: 24 cores, 48 threads
• Cache Size: 33MB
• UPI Links: 6 links for high data transfer rates
• Manufacturing Technology: 14nm process
• Power Consumption: 150W TDP (Thermal Design Power)

Memory Capabilities

• Maximum Memory Capacity: Supports up to 1.12TB (1,120GB) of DDR4 RDIMM
• Supported Memory Speeds: Up to 2933 MHz
• Memory Channels: 6 channels for optimal bandwidth
• ECC Support: Yes, includes Error-Correcting Code memory
• Intel Optane DC Persistent Memory: Fully supported

Expansion and Scalability Options

• Scalability: Supports 4-socket configurations (4S scalability)
• PCI Express Revision: Version 3.0
• PCI Express Lanes: Up to 48 lanes for improved connectivity

Advanced Intel Technologies

• Intel Speed Select Technology: Customizable Core Power and Turbo Frequency features
• Intel Deep Learning Boost (DL Boost): Enhances AI workload performance
• Intel Resource Director Technology (RDT): Intelligent resource allocation and management
• Optane Memory Support: Boosts data processing speeds with Intel Optane technology
• Speed Shift Technology: Dynamic adjustments for improved performance
• Hyper-Threading Technology: Enables simultaneous multithreading
• Virtualization Support (VT-x and VT-d): Facilitates virtual environments and direct I/O
• Enhanced Intel SpeedStep Technology: Optimizes power and performance dynamically

Instruction Set and Security Features

• Supported Instruction Set Extensions: Intel SSE4.2, AVX, AVX2, AVX-512 with 2 AVX-512 FMA units
• Security Technologies: Intel AES New Instructions, Execute Disable Bit, and Intel Run Sure Technology
• Intel TSX: Provides Transactional Synchronization Extensions for advanced multi-threading
• Intel 64 Architecture: 64-bit computing supported
• Mode-Based Execute Control (MBE): Enhances security during execution

High-Performance Core Architecture

The core architecture of Intel® Xeon® Gold processors is optimized for multitasking and parallel processing, making it ideal for demanding workloads such as virtualization, data analytics, and complex computational tasks. Each core operates in harmony to maximize the overall system efficiency, allowing applications to fully leverage the processing power available.

24 Cores for Efficient Multitasking

The Intel® Xeon® Gold series features up to 24 cores, providing substantial parallel processing power. This multi-core configuration enhances the processor's ability to handle multiple tasks simultaneously, significantly boosting performance in data-intensive and multi-threaded environments. The large number of cores is especially beneficial for applications that can split workloads across multiple threads, making it ideal for enterprise and cloud computing solutions.

Threads: Maximizing Core Efficiency

With 48 threads enabled by Intel’s Hyper-Threading technology, the Xeon Gold processors effectively double the number of execution paths available. Hyper-Threading allows each physical core to handle two threads simultaneously, which optimizes performance in heavily threaded workloads such as virtualization, complex simulations, and database management. This 1:2 core-to-thread ratio ensures that the processor can handle a high volume of simultaneous tasks, improving efficiency and responsiveness under load.

Frequency and Turbo Boost Performance

Processor frequency, measured in GHz, indicates the speed at which a CPU can execute instructions. While a higher clock speed generally means faster processing, the balance of core count and frequency is crucial for optimized performance, especially in multi-core processors like the Intel® Xeon® Gold series.

Base Clock Speed of 2.00 GHz

The Intel® Xeon® Gold processors operate at a base frequency of 2.00 GHz, providing a stable foundation for consistent performance across a variety of workloads. This frequency ensures efficient power consumption while maintaining sufficient processing speed for general server tasks, including web hosting, application serving, and virtualization.

Turbo Boost Up to 3.70 GHz

With Intel Turbo Boost Technology, the Xeon Gold processors can dynamically increase their clock speed up to 3.70 GHz during peak demand. This capability is particularly valuable for burst workloads, where additional processing power is required to handle spikes in activity without compromising overall system stability. Turbo Boost provides the flexibility to deliver higher performance when it’s most needed, enhancing the processor’s adaptability across various application scenarios.

Advanced Cache Design

The cache architecture in Intel® Xeon® Gold processors plays a pivotal role in enhancing data access speeds and overall performance. By storing frequently accessed data closer to the cores, the processor can significantly reduce latency and improve throughput, especially during complex computational tasks.

33 MB L3 Cache for Faster Data Access

The 33 MB L3 cache in Intel® Xeon® Gold processors serves as a large, shared repository for frequently accessed data, reducing the time needed to fetch data from main memory. This is particularly beneficial in multi-core configurations, where each core can leverage the shared cache to accelerate processing tasks. The substantial cache size is a key contributor to the processor’s ability to handle large datasets and memory-intensive applications efficiently.

Multi-Level Cache System

Intel Xeon Gold processors incorporate a multi-level cache system (L1, L2, and L3) that optimizes data retrieval paths for different types of workloads. The L1 and L2 caches are smaller but closer to each core, providing rapid access for immediate data needs. The larger L3 cache serves as a shared resource across all cores, enhancing performance in multi-threaded applications by reducing bottlenecks associated with memory access.

Memory Compatibility and Performance

Memory compatibility is a critical factor when selecting a processor, as it directly impacts the overall performance and scalability of the system. Intel® Xeon® Gold processors support advanced memory configurations that enhance data throughput and processing efficiency.

Support for High-Speed DDR4 Memory

Intel® Xeon® Gold processors are compatible with high-speed DDR4-3200 memory, offering up to 6 memory channels. This configuration provides exceptional memory bandwidth, essential for data-driven applications such as big data analytics, artificial intelligence, and real-time processing. The ability to support large amounts of memory enables these processors to handle expansive datasets and complex workloads efficiently.

Scalable Memory Capacity

The memory capacity supported by Intel® Xeon® Gold processors allows for significant scalability, accommodating growing data needs over time. This scalability is critical in server environments where expanding memory resources can directly translate to improved performance and enhanced system responsiveness. By supporting extensive memory configurations, the Xeon Gold series helps future-proof server infrastructure investments.

Memory Frequency Optimization

Intel Xeon Gold processors automatically optimize memory frequency settings to align with the processor’s capabilities, ensuring stable and efficient operation. If the installed memory exceeds the processor’s maximum supported frequency, the system adjusts accordingly to maintain optimal performance without compromising stability. This intelligent frequency management ensures compatibility and reliable performance in diverse server configurations.

Scalability and Multi-Socket Configurations

One of the defining features of Intel® Xeon® Gold processors is their scalability, particularly in multi-socket server environments. Supporting up to 4-socket configurations, these processors provide the flexibility to expand computing power as business needs evolve.

Up to 4-Socket Configurations

The ability to configure Intel® Xeon® Gold processors in up to 4-socket setups allows enterprises to scale their computing resources efficiently. Multi-socket configurations are ideal for applications requiring high levels of parallelism, such as scientific simulations, financial modeling, and large-scale virtualization. The seamless communication between processors in multi-socket setups ensures that the system can handle heavy computational loads with minimal latency.

Ultra Path Interconnect (UPI) Links

Intel® Xeon® Gold processors utilize Ultra Path Interconnect (UPI) links to facilitate high-speed communication between processors in multi-socket configurations. UPI technology enhances data throughput and reduces latency, ensuring that processors can work together efficiently in handling large-scale, complex tasks. This interconnect technology is critical in maximizing the performance of multi-socket server setups, delivering smooth and efficient data flow across the system.

Thermal Design Power (TDP) and Energy Efficiency

Thermal Design Power (TDP) is an essential consideration when deploying processors in server environments, as it dictates the cooling requirements and overall energy consumption of the system. Intel® Xeon® Gold processors are engineered to balance high performance with energy efficiency, making them suitable for dense data center deployments.

205W TDP: Balancing Performance and Efficiency

The TDP of Intel® Xeon® Gold processors is set at 205W, reflecting the power consumption and thermal output under maximum load conditions. This TDP rating ensures that the processors deliver robust performance without exceeding manageable power and cooling requirements. The efficient thermal profile supports deployment in high-density server environments where space and energy savings are critical.

Advanced Power Management Features

Intel® Xeon® Gold processors include advanced power management technologies, such as Intel Speed Select Technology (SST) and dynamic frequency scaling. These features allow the processor to adjust power consumption in real-time based on workload demands, optimizing performance-per-watt and reducing overall operational costs. This intelligent power management ensures that the processor maintains peak performance while minimizing energy usage, enhancing the sustainability of server operations.

Optimized Cooling for Enhanced Reliability

Efficient thermal management is crucial in maintaining the reliability and longevity of Intel Xeon Gold processors. Advanced cooling solutions, such as liquid cooling and enhanced airflow designs, help dissipate the heat generated during peak operation. By maintaining optimal operating temperatures, these processors can deliver consistent performance and reduce the risk of thermal throttling, ensuring reliable service in mission-critical environments.

Security Features and Data Protection

Security is a cornerstone of Intel® Xeon® Gold processors, with a suite of built-in technologies designed to protect data integrity, enhance system security, and ensure safe operation in sensitive environments. These features are particularly important in industries where data protection and compliance are critical.

Intel SGX (Software Guard Extensions)

Intel SGX provides a secure enclave for sensitive data and applications, protecting them from unauthorized access even if the rest of the system is compromised. This hardware-based security feature is invaluable for applications that handle sensitive information, such as financial services, healthcare, and government sectors. SGX helps ensure that critical data remains protected from potential threats, enhancing overall system security.

Intel® Total Memory Encryption (TME)

Intel® TME safeguards data by encrypting the entire system memory, providing an additional layer of protection against physical attacks. This feature is particularly valuable in environments where servers are exposed to potential physical threats, ensuring that even if unauthorized access to memory is gained, the data remains unreadable. TME enhances the overall security posture of systems using Intel® Xeon® Gold processors.

Advanced Threat Detection and Mitigation

Intel® Xeon® Gold processors include advanced threat detection capabilities, such as Intel Threat Detection Technology (TDT) and Intel Control-Flow Enforcement Technology (CET). These features work together to identify and mitigate various types of cyber threats, including malware and advanced persistent threats (APTs). By incorporating these security measures at the hardware level, Intel® Xeon® Gold processors provide robust defense mechanisms that help safeguard critical workloads from evolving security challenges.
