EX710DA4FHG2P5 Intel Quad Port Ethernet Network Adapter

Intel EX710DA4FHG2P5 Quad Port Ethernet Network Adapter Overview

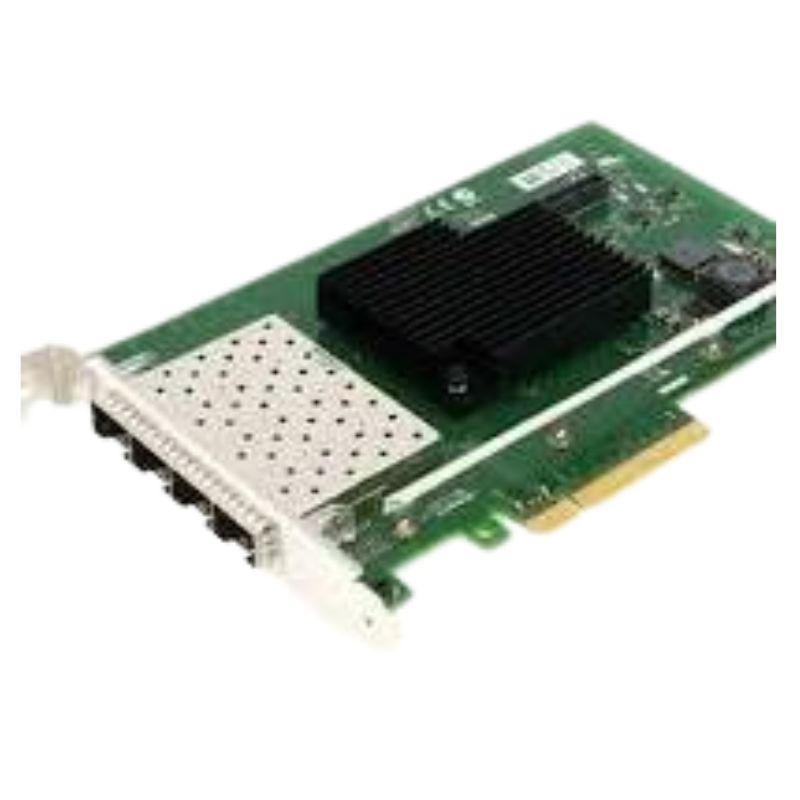

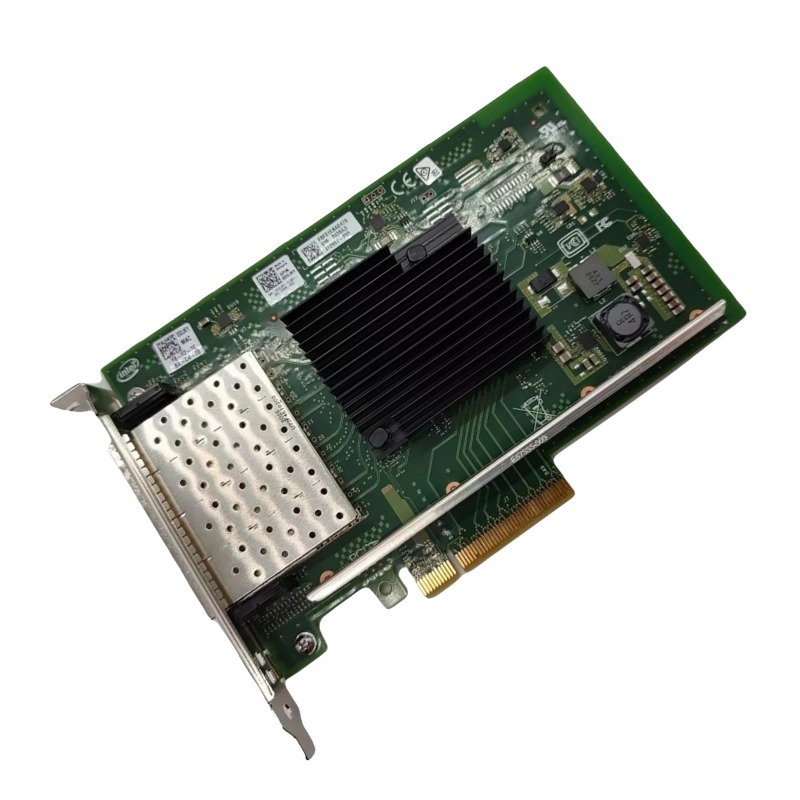

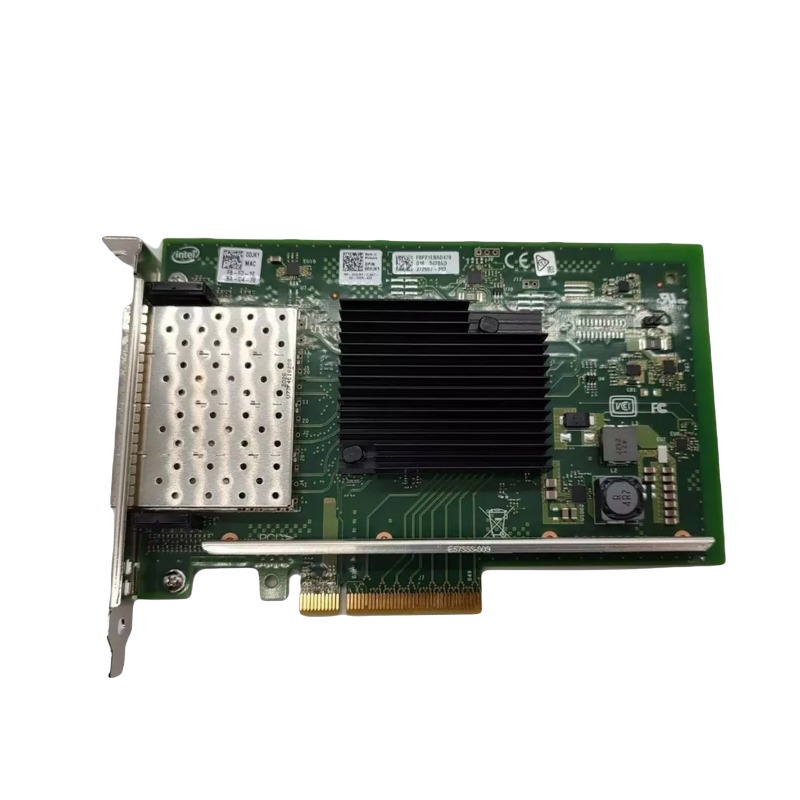

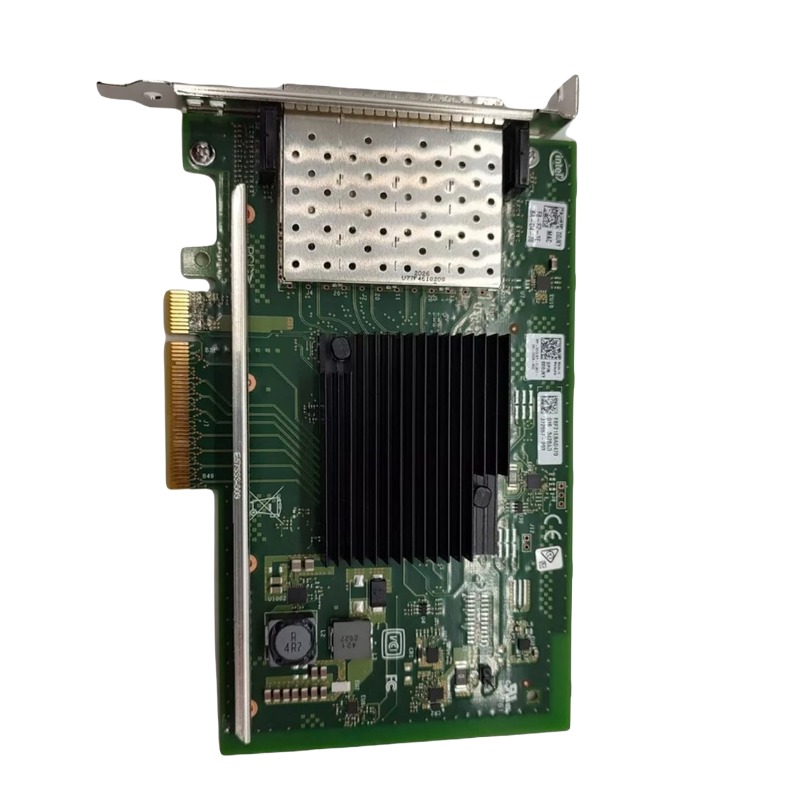

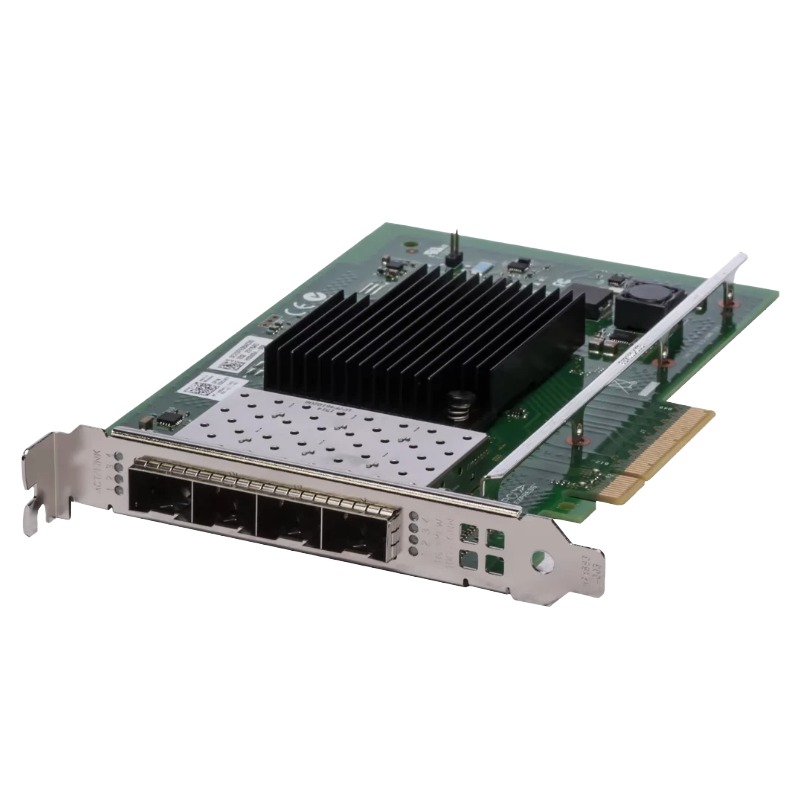

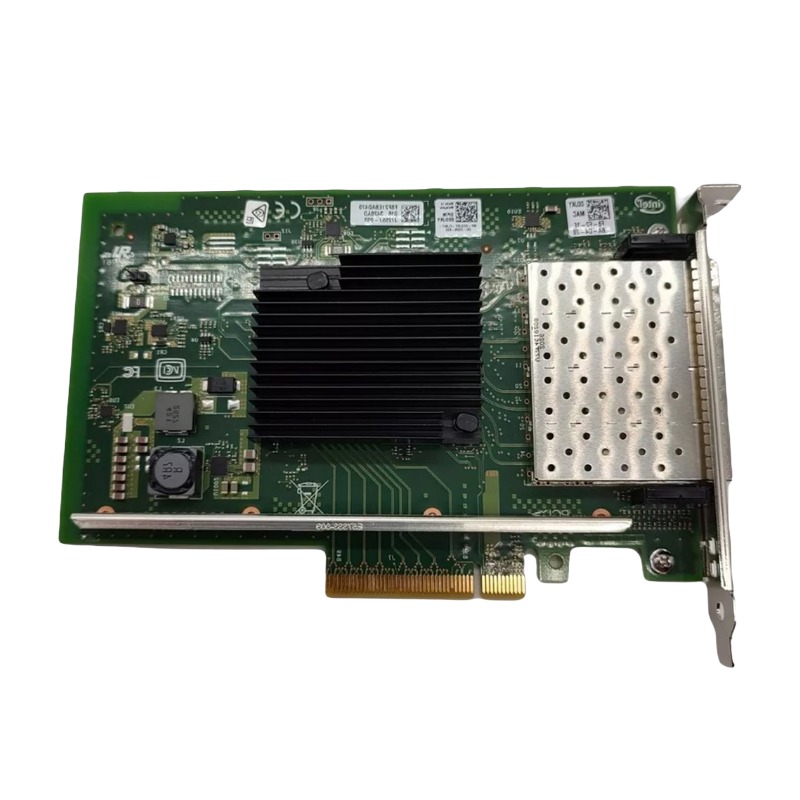

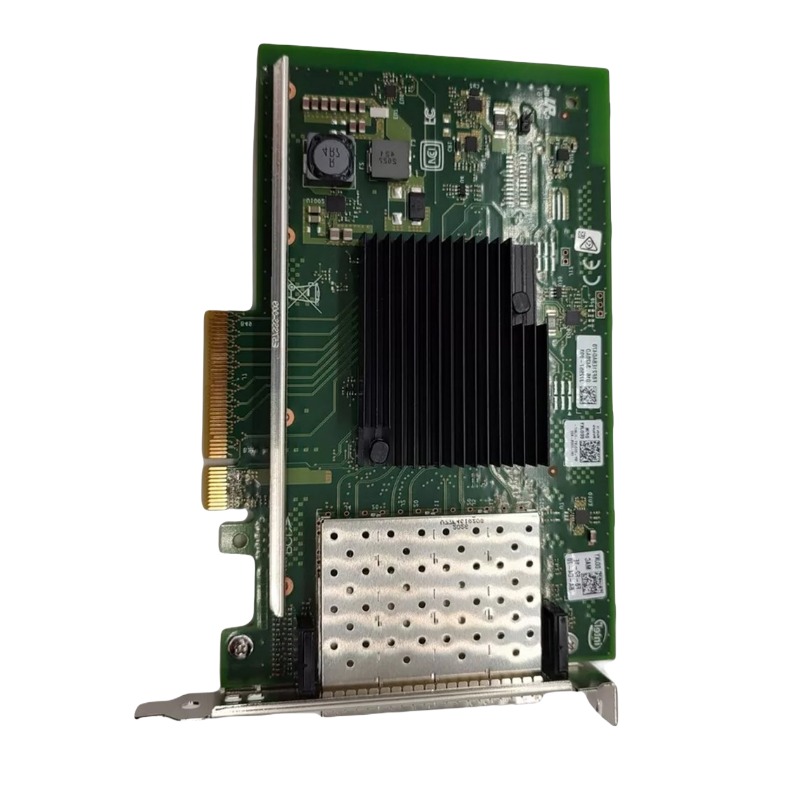

The Intel EX710DA4FHG2P5 Quad Port Ethernet Network Adapter with Full Height Brackets is a high-performance networking solution designed to meet the demanding needs of modern data centers and enterprise networks. Built on Intel’s cutting-edge Ethernet 700 series technology, this adapter delivers exceptional throughput, low latency, and advanced offload capabilities, making it ideal for applications that require robust and reliable connectivity. With four SFP28 ports supporting up to 25GbE per port, the EX710DA4FHG2P5 ensures scalable bandwidth for virtualization, cloud computing, storage networks, and software-defined infrastructures.

Key Features of the Intel EX710DA4FHG2P5

Quad Port SFP28 Connectivity

The Intel EX710DA4FHG2P5 features four SFP28 ports, each capable of delivering up to 25 gigabits per second of Ethernet throughput. This quad-port design allows for aggregated bandwidth of up to 100Gbps, supporting high-speed data transfers, network-intensive applications, and scalable network configurations. SFP28 modules provide flexibility in choosing compatible transceivers and cables, allowing deployment across a variety of network topologies and distances.

Full Height Bracket Design

Equipped with full height brackets, the EX710DA4FHG2P5 is designed for installation in standard server chassis and enterprise-grade rackmount systems. The robust bracket ensures secure attachment and optimal airflow within the server enclosure, contributing to system stability and performance in high-density environments. Full height brackets are ideal for traditional data center installations requiring high availability and easy maintenance.

Advanced Offload Capabilities

This adapter leverages advanced offload technologies such as TCP/IP checksum offload, Large Send Offload (LSO), and Receive Side Scaling (RSS) to reduce CPU utilization and enhance overall system efficiency. By offloading compute-intensive networking tasks from the server processor, the EX710DA4FHG2P5 enables improved application performance and increased server consolidation ratios, which are essential for virtualized and cloud environments.

SR-IOV and Virtualization Support

Designed with virtualization in mind, the Intel EX710DA4FHG2P5 supports Single Root I/O Virtualization (SR-IOV), enabling efficient allocation of network resources across multiple virtual machines (VMs). SR-IOV enhances I/O performance by allowing direct access to the network interface, significantly reducing I/O overhead and improving VM scalability. This feature is critical for hyper-converged infrastructures and cloud service providers seeking to optimize resource utilization and deliver high-quality services.

Performance and Reliability Advantages

High Throughput and Low Latency

The EX710DA4FHG2P5 is engineered to deliver exceptional network throughput with minimal latency. Its optimized architecture ensures that data packets are processed swiftly, meeting the low-latency requirements of latency-sensitive applications such as financial services, real-time analytics, and high-frequency trading platforms. The combination of high port density and advanced data path optimizations enables consistent and reliable network performance under heavy workloads.

Enhanced Data Security

Intel integrates advanced security features into the EX710DA4FHG2P5, including support for IPsec and MACsec encryption standards. These features provide end-to-end data protection, safeguarding sensitive information from unauthorized access and potential cyber threats. By enabling hardware-based encryption, the adapter ensures data confidentiality and integrity without compromising network performance, making it suitable for secure enterprise environments.

Energy Efficient Ethernet (EEE)

With Energy Efficient Ethernet (EEE) capabilities, the EX710DA4FHG2P5 reduces power consumption during periods of low network activity. This eco-friendly feature dynamically adjusts power usage based on network traffic, contributing to reduced operational costs and improved energy efficiency in data center deployments. EEE compliance also supports environmental sustainability initiatives within IT infrastructures.

Compatibility and Integration

Wide OS and Hypervisor Support

The Intel EX710DA4FHG2P5 offers broad compatibility with leading operating systems and hypervisors, including Windows Server, Linux distributions, VMware ESXi, and Microsoft Hyper-V. This extensive support ensures seamless integration into existing network infrastructures and simplifies deployment across diverse IT environments. Certified drivers and firmware updates from Intel guarantee optimal performance and long-term support for enterprise customers.

Support for Intel Ethernet Flow Director

The adapter is equipped with Intel Ethernet Flow Director, an advanced traffic steering technology that enhances application performance by optimizing the flow of network data. Flow Director provides intelligent packet steering to improve cache efficiency and reduce network-induced latency. This feature is particularly beneficial in multi-core processor environments, where it enhances throughput and load balancing across CPU cores.

Compatibility with 10/25GbE Networks

Offering backward compatibility with 10GbE networks while fully supporting 25GbE connectivity, the EX710DA4FHG2P5 provides investment protection and flexible deployment options. Enterprises can leverage existing 10GbE infrastructures while gradually upgrading to higher bandwidth 25GbE networks, ensuring a future-proof network architecture that scales with business needs.

Use Cases for Intel EX710DA4FHG2P5

Data Center Networking

Ideal for data center environments, the Intel EX710DA4FHG2P5 supports high-speed server-to-server communication, storage area networking, and hyper-converged infrastructure applications. Its quad-port design enables efficient network segmentation, load balancing, and fault tolerance, ensuring high availability and resilience in mission-critical deployments.

Cloud Computing Environments

Cloud service providers benefit from the adapter’s scalability, virtualization support, and advanced offloads, which enhance resource utilization and improve service delivery. The EX710DA4FHG2P5 enables rapid deployment of virtualized workloads, supports multi-tenant architectures, and facilitates efficient network traffic management in cloud infrastructures.

High-Performance Computing (HPC)

In high-performance computing applications, the need for ultra-low latency and high throughput is paramount. The Intel EX710DA4FHG2P5 addresses these requirements by providing reliable, high-speed connectivity for compute clusters, scientific simulations, and real-time data processing tasks. Its robust design and feature-rich capabilities make it an excellent choice for HPC deployments.

Enterprise Virtualization and Storage Networks

Enterprises utilizing virtualization technologies and software-defined storage solutions benefit from the EX710DA4FHG2P5’s efficient I/O processing, advanced virtualization features, and high-bandwidth connectivity. The adapter facilitates smooth data flow between virtual machines and storage devices, optimizing application performance and supporting scalable IT infrastructures.

Technical Specifications

Interface and Form Factor

The Intel EX710DA4FHG2P5 utilizes a PCI Express 3.0 x8 interface, ensuring high-speed data transfer between the network adapter and server motherboard. Its full height form factor bracket allows for secure installation in standard server chassis, providing robust mechanical support and optimal alignment within rack-mounted systems.

Data Rate and Port Configuration

Each of the four SFP28 ports supports data rates of up to 25Gbps, with aggregate throughput reaching up to 100Gbps. The adapter is compatible with both optical and direct attach copper (DAC) SFP28 modules, offering deployment flexibility across short and long-distance network links. Support for auto-negotiation ensures seamless integration with compatible network devices.

Environmental and Operating Conditions

The EX710DA4FHG2P5 is engineered to operate reliably within a wide range of environmental conditions. It supports operating temperatures from 0°C to 55°C and is designed to withstand humidity levels of up to 85% non-condensing. These specifications ensure consistent performance in controlled data center environments and enterprise server rooms.

Compliance and Certifications

Intel’s stringent quality standards ensure that the EX710DA4FHG2P5 complies with relevant industry certifications, including RoHS, CE, FCC Class A, and VCCI. These certifications guarantee that the adapter meets global regulatory requirements for safety, electromagnetic compatibility, and environmental sustainability. Compliance with these standards assures enterprise customers of the product’s reliability and adherence to best practices.
