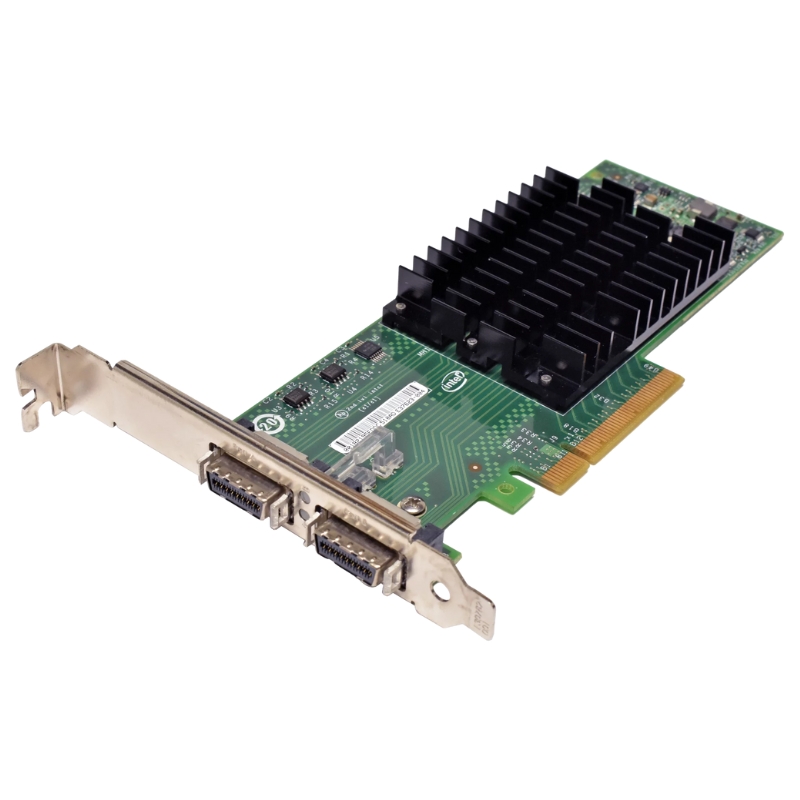

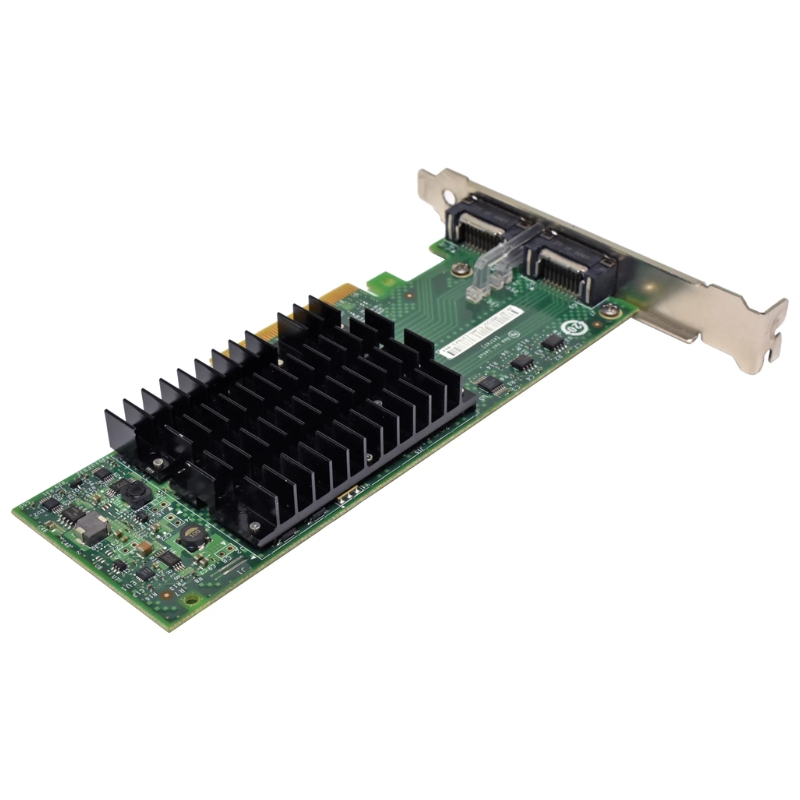

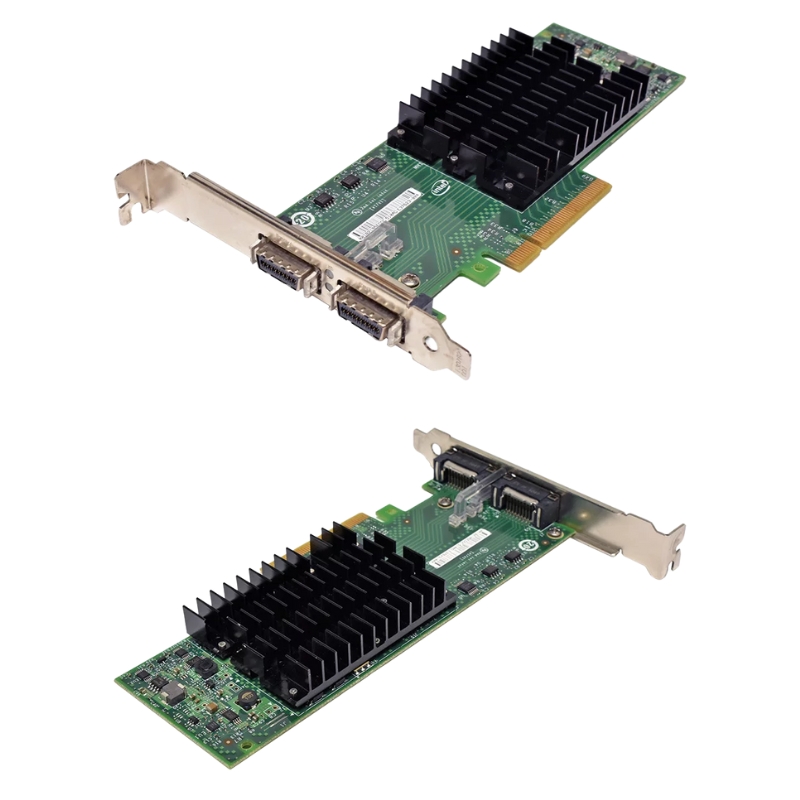

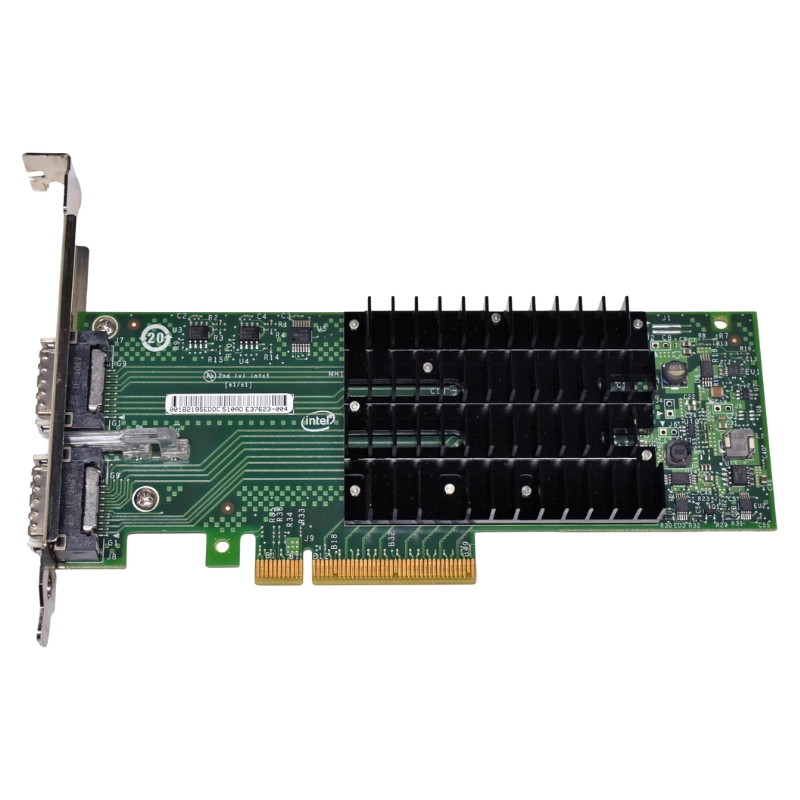

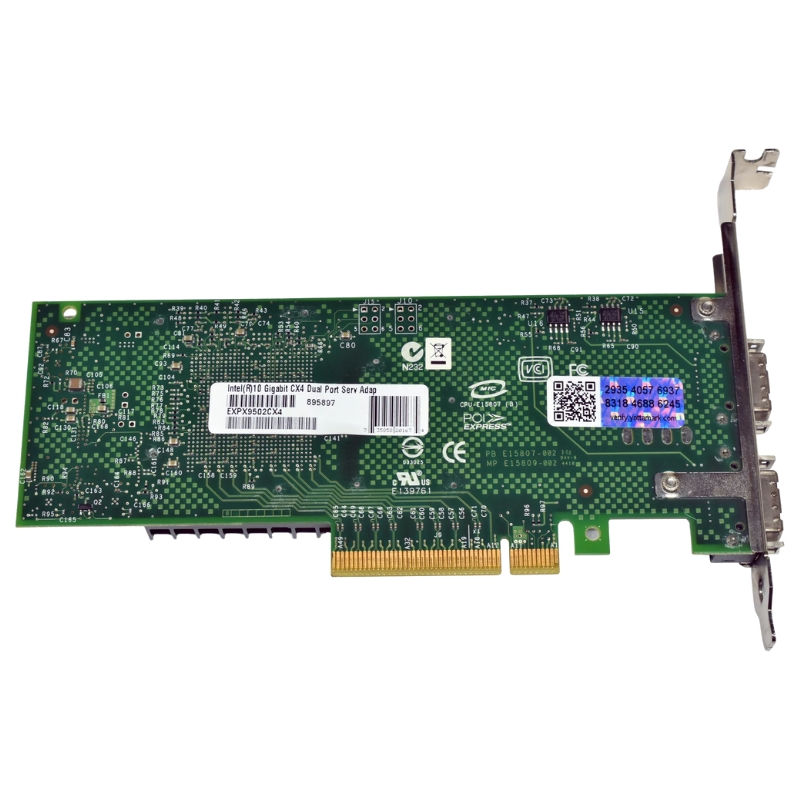

EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter

Overview of the Server Adapter

The EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category represents a high-performance class of enterprise networking hardware designed to deliver ultra-low latency, high bandwidth throughput, and reliable connectivity for modern data center infrastructures. Built around advanced 10 Gigabit Ethernet (10GbE) technology, this category of server adapters is engineered to support mission-critical workloads where network speed, stability, and scalability are essential. As part of the broader enterprise NIC (Network Interface Card) ecosystem developed by these adapters are widely used in virtualization environments, cloud computing architectures, high-frequency trading systems, storage area networks, and large-scale server clusters.

Main Information

• Manufacturer: Intel
• Part Number: EXPX9502CX4
• Product Type: Server Adapter

Key Features

• Device Type: Dual-Port Network Adapter
• Form Factor: Low Profile Plug-in Card
• Interface Type: PCI Express 2.0 X8

Networking Capabilities

• Connectivity: Wired, Ethernet 10GBase-CX4
• Data Transfer Rate: 10 Gbps for high-speed networking
• Network Protocols: TCP/IP, UDP/IP, iSCSI
• Remote Management: SNMP, DMI 2.0
• Status Indicators: Link Activity LED

Advanced Features

• Duplex Support: Full Duplex Capability for simultaneous bidirectional data transmission
• Fault Tolerance: Ensures network stability in case of hardware failure
• ACPI Support: Power management capabilities
• Auto-negotiation: Automatically adjusts to the optimal network speed
• Load Balancing: Distributes network traffic to avoid bottlenecks
• VLAN Support: Virtual LAN support for network segmentation

Compliance & Standards

• IEEE Standards: Complies with IEEE 802.3, IEEE 802.1q, IEEE 802.1p, IEEE 802.11d, IEEE 802.3ak

Expansion & Connectivity

• Ports: 2 x 10GBase-CX4 Ethernet network interfaces
• Infiniband Support: 4x Infiniband (SFF-8470) for advanced networking
• Compatible Slots: PCI Express x8 (Low Profile)

The Intel 10GbE PCIe 2.0 x8 Server Adapter

The PCI Express 2.0 x8 interface ensures sufficient bandwidth between the adapter and the host system, allowing the full 10Gbps line rate performance without bottlenecks. This category is especially relevant in environments where traditional Gigabit Ethernet solutions are no longer sufficient to handle the increasing demand for high-speed data transmission, distributed applications, and real-time analytics workloads.

Core Architecture and PCIe 2.0 x8 Interface Design

The architectural foundation of the EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category is centered around the integration of a high-performance Ethernet controller with a PCI Express Gen 2.0 x8 host interface. This design enables theoretical upstream and downstream throughput capable of supporting sustained 10GbE traffic without packet loss or congestion under optimized configurations.

PCIe 2.0 doubles the per-lane throughput of PCIe 1.0, offering 5 GT/s per lane. With eight lanes (x8 configuration), the total available bandwidth is sufficient to accommodate full-duplex 10GbE communication while leaving headroom for overhead, offloading operations, and burst traffic scenarios. This ensures that server applications running on high-performance computing clusters can rely on deterministic network behavior.

Within this category, adapter designs typically incorporate advanced offload engines that reduce CPU overhead by handling tasks such as TCP segmentation offload (TSO), large receive offload (LRO), checksum offloading, and interrupt moderation. These hardware-level optimizations significantly improve server efficiency and allow CPU resources to be redirected toward application processing rather than network packet handling.

10GbE Networking Capabilities and Throughput Optimization

The defining feature of the EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category is its ability to deliver consistent 10 Gigabit Ethernet connectivity across enterprise environments. This capability is essential for modern workloads such as virtualization clusters, distributed databases, and high-speed backup systems.

10GbE networking provides up to ten times the bandwidth of traditional Gigabit Ethernet, enabling rapid transfer of large datasets, improved storage replication speeds, and reduced latency for time-sensitive applications. In environments such as financial trading platforms or real-time analytics engines, microseconds of latency reduction can have a measurable impact on system performance and business outcomes.

Adaptive load balancing, link aggregation (LACP), and multi-queue receive-side scaling (RSS) are commonly supported within this category. These features distribute network traffic efficiently across multiple CPU cores and logical queues, ensuring that no single processing thread becomes a bottleneck. As a result, server throughput scales more effectively with workload intensity.

Data Center Deployment and Enterprise Integration

The EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category is widely deployed in enterprise data centers where scalability and reliability are paramount. These adapters are commonly installed in rack-mounted servers, blade systems, and high-density compute nodes to support east-west and north-south traffic flows within modern distributed architectures.

In cloud computing environments, these adapters enable seamless communication between virtual machines, container clusters, and storage backends. Their high throughput ensures that hypervisors such as VMware ESXi, Microsoft Hyper-V, and KVM-based platforms can maintain consistent performance even under heavy virtualization density.

Enterprise storage systems also benefit significantly from this category, particularly in iSCSI, NFS, and SMB-based storage networks. The high bandwidth capacity allows for faster disk access, reduced backup windows, and improved disaster recovery performance. This makes the adapter category a critical component in business continuity planning and data protection strategies.

Virtualization and Multi-Queue Performance Scaling

Virtualization environments place significant demands on network interfaces, requiring support for high packet rates and parallel processing capabilities. The EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category is designed to handle these requirements through multi-queue architecture and hardware-based packet steering.

Receive Side Scaling (RSS) distributes incoming network traffic across multiple CPU cores, allowing parallel processing of packets and reducing latency spikes. This is particularly beneficial in environments with high virtual machine density, where each VM may generate independent network flows.

Single Root I/O Virtualization (SR-IOV) support, where available in this category, enables physical network interfaces to be partitioned into multiple virtual functions. These virtual functions can be directly assigned to virtual machines, bypassing the hypervisor network stack and significantly improving throughput while reducing CPU overhead.

Storage Networking and High-Speed Data Transfer Applications

Storage-intensive workloads benefit significantly from the capabilities of the EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category. In modern IT infrastructures, storage is often decoupled from compute, requiring fast and reliable networking to maintain system performance.

iSCSI-based storage area networks rely heavily on stable and high-bandwidth connections to ensure that block-level storage operations occur without latency degradation. This adapter category provides the necessary throughput to support large enterprise databases, virtualization storage clusters, and backup repositories.

Similarly, network-attached storage (NAS) environments utilizing protocols such as NFS and SMB benefit from reduced file transfer times and improved concurrency handling. Large media production environments, scientific research institutions, and data analytics platforms frequently depend on this level of performance for real-time file access and manipulation.

Hardware Acceleration and Offload Engine Capabilities

A critical advantage of the EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category is the inclusion of hardware acceleration features that significantly reduce CPU utilization. These offload engines handle compute-intensive networking tasks directly on the adapter hardware.

TCP/IP offloading reduces the burden on host processors by handling segmentation, reassembly, and checksum calculations at the hardware level. This results in improved application performance, particularly in environments where multiple high-bandwidth connections are active simultaneously.

Interrupt moderation techniques further optimize system performance by reducing the number of interrupts generated per second. Instead of triggering an interrupt for every packet, the adapter aggregates events, allowing the CPU to process network activity more efficiently in batches.

Driver Ecosystem and Operating System Compatibility

The driver ecosystem for the EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category is designed to ensure compatibility across major operating systems and enterprise platforms. This includes support for Linux distributions, Windows Server environments, and various Unix-based systems commonly used in enterprise infrastructure.

Integration with kernel-level networking stacks allows for advanced configuration options, including traffic shaping, VLAN tagging, and QoS prioritization. These features are essential for maintaining service level agreements (SLAs) in complex network environments where multiple applications compete for bandwidth.

Continuous driver updates from ensure long-term stability, security patches, and performance enhancements, making this category suitable for long-term enterprise deployment cycles.

Network Security and Traffic Isolation Features

Security is a critical aspect of enterprise networking, and the EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category incorporates multiple mechanisms to enhance traffic isolation and data protection. VLAN segmentation enables logical separation of network traffic within the same physical infrastructure, reducing the risk of unauthorized access and improving network organization.

Advanced filtering capabilities allow administrators to define rules for packet inspection and traffic prioritization. This is particularly important in multi-tenant environments such as cloud service providers, where isolation between customers is mandatory.

Hardware-based security offloads also help reduce the attack surface by minimizing reliance on software-based packet handling, which can be more vulnerable to exploitation under high-load conditions.

Performance Tuning and Optimization Strategies

Optimizing performance within the EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category requires careful tuning of both hardware and software parameters. Adjustments to MTU size, buffer allocation, and queue depth can significantly impact throughput and latency.

Jumbo frames are often enabled in high-performance environments to reduce packet overhead and increase effective throughput. By allowing larger packet sizes, the system reduces CPU interrupts and improves overall efficiency in bulk data transfer scenarios.

Proper alignment of NUMA (Non-Uniform Memory Access) nodes with network interface queues further enhances performance by reducing memory access latency and improving cache efficiency during high-volume data transfers.

Comparison with Traditional Gigabit Ethernet Solutions

Compared to legacy Gigabit Ethernet adapters, the EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category offers substantial improvements in bandwidth, latency, and scalability. While Gigabit solutions are sufficient for basic networking tasks, they quickly become bottlenecks in modern data-intensive environments.

The 10GbE architecture eliminates many of the constraints associated with older networking standards, enabling faster backup operations, more responsive virtualization platforms, and improved database replication performance. This makes it a preferred choice for enterprise-grade deployments requiring long-term scalability.

High-Density Compute and Cloud Infrastructure Applications

In cloud infrastructure environments, the EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category plays a critical role in supporting dense compute clusters. These environments require fast inter-node communication to maintain workload balance and ensure consistent application performance across distributed systems.

Container orchestration platforms such as Kubernetes rely heavily on efficient networking to manage microservices communication. High-bandwidth 10GbE connectivity ensures that service discovery, load balancing, and inter-service communication remain efficient even under high deployment density.

Reliability, Redundancy, and Fault Tolerance Features

Enterprise networking requires high levels of redundancy and fault tolerance. The EXPX9502CX4 Intel 10GbE PCIe 2.0 x8 Server Adapter category supports link aggregation and failover configurations that ensure continuous network availability even in the event of hardware or link failure. By combining multiple network interfaces into a single logical connection, administrators can achieve both increased bandwidth and improved reliability. If one link fails, traffic is automatically rerouted to maintain uninterrupted service delivery.
