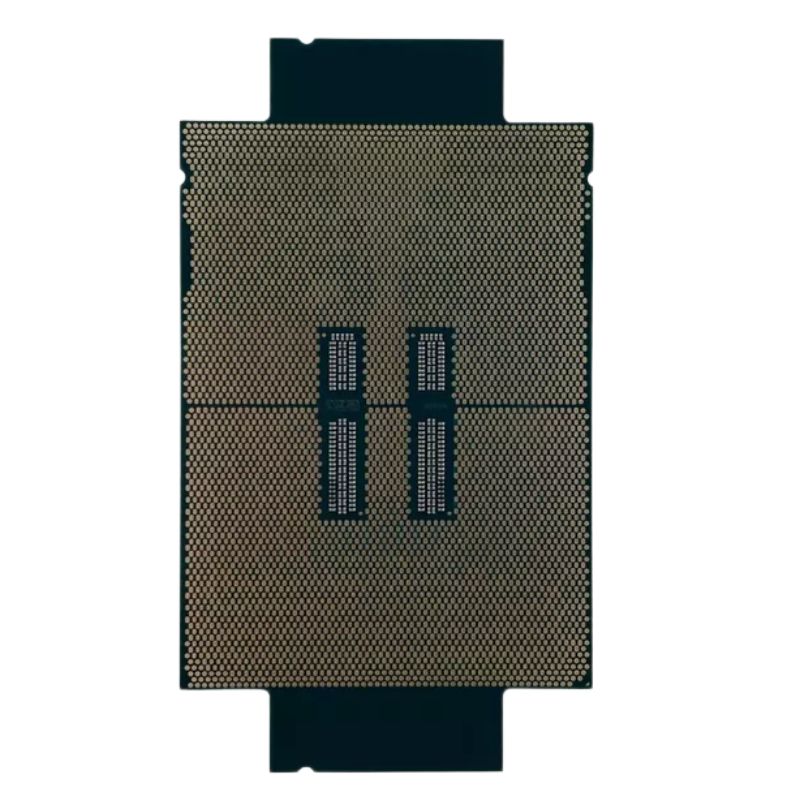

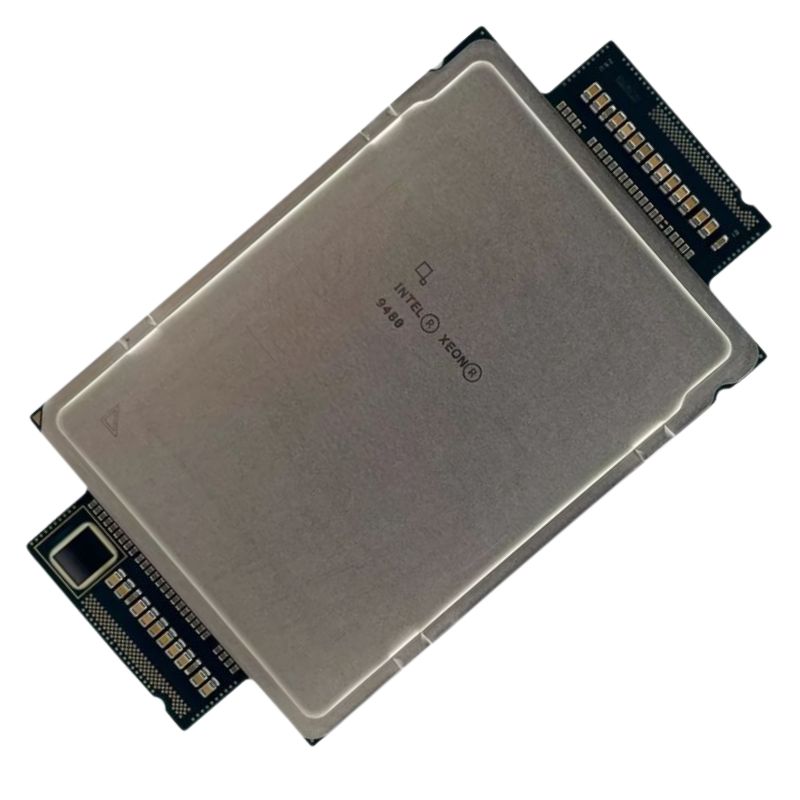

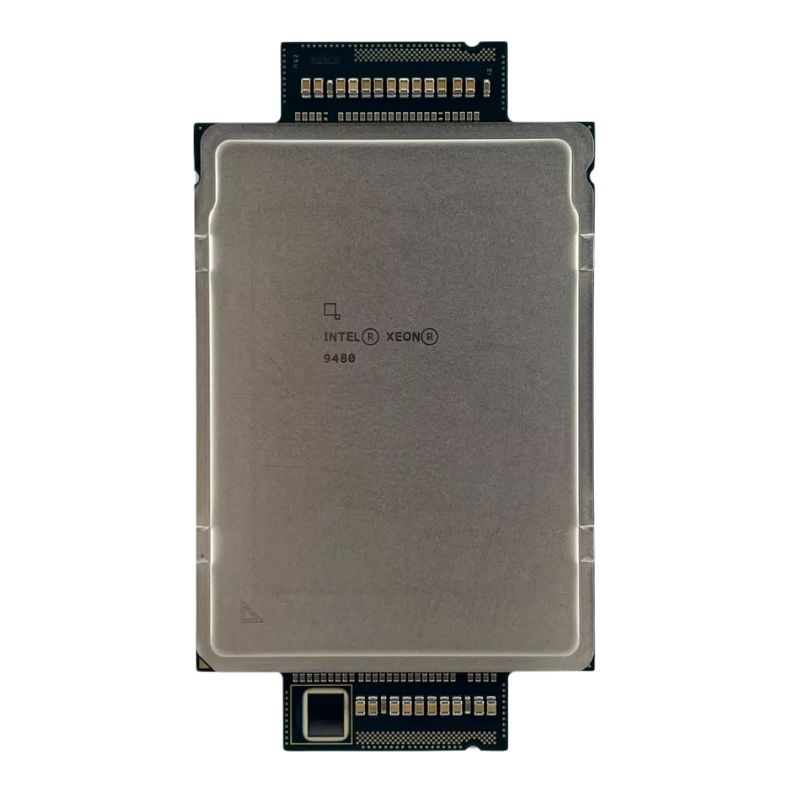

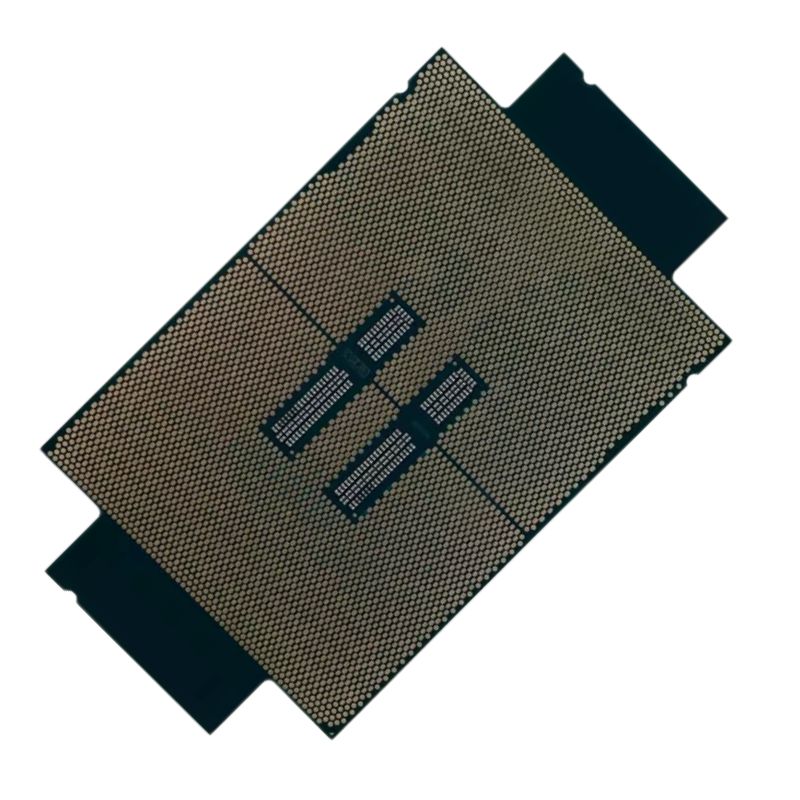

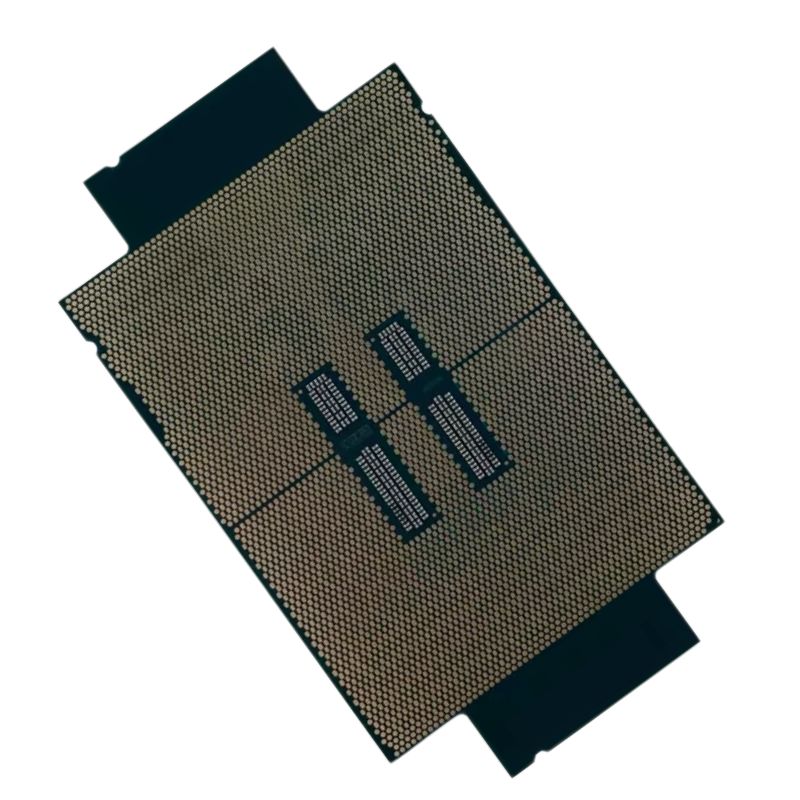

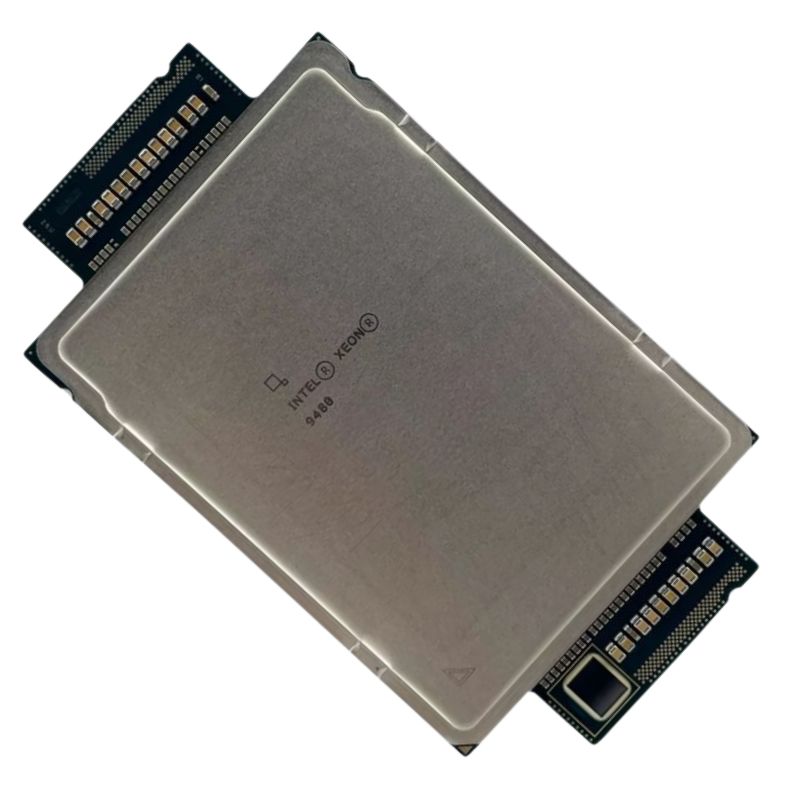

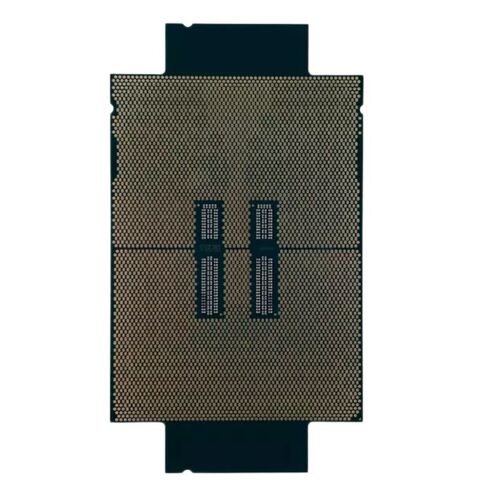

Intel PK8071305223000 Xeon Platinum 9480 Processor

Intel PK8071305223000 Xeon Platinum 9480 Processor

The Intel PK8071305223000 Xeon Platinum 9480 Processor is a high-performance server processor designed to meet the needs of demanding data center and enterprise environments. With its 56 cores and a base clock speed of 1.9GHz, this processor provides exceptional parallel processing power and efficiency for complex applications and workloads. The robust 350W thermal design power (TDP) ensures stability and reliable performance even under high loads, making it an ideal choice for a range of intensive computing tasks.

Intel Xeon Platinum 9480 Processor

Explore the Intel® Xeon® Platinum 9480, a high-performance server CPU designed for demanding enterprise environments. Known for its advanced features and exceptional processing power, this processor is a cornerstone of modern server architecture.

Key Specifications

• Processor Number: 9480
• Part Number: PK8071305223000
• Code Name: Formerly Sapphire Rapids HBM
• Processor Base Frequency: 1.90 GHz
• Max Turbo Frequency: 3.50 GHz
• Total Cores: 56
• Total Threads: 112
• Cache Size: 112.5 MB
• Intel UPI Speed: 16 GT/s
• TDP: 350 W

Memory and Expansion

• Maximum Memory Size: Up to 4 TB (depends on memory type)
• Memory Types: DDR5 4800 MT/s 1DPC, DDR5 4400 MT/s 2DPC
• Max Memory Channels: 8
• High Bandwidth Memory (HBM): 64 GB
• ECC Memory Support: Yes
• PCI Express Revision: 5.0
• Max PCI Express Lanes: 80
• Scalability: 2S

Package Details

• Supported Socket: FCLGA4677
• Package Carrier: E1C
• Max DTS Temperature: 82°C
• TCASE: 64°C
• Package Size: 100mm x 56.5mm

Advanced Technologies

• Intel Data Streaming Accelerator (DSA): 4 default devices
• Intel Advanced Matrix Extensions (AMX): Yes
• Intel Speed Select Technology – Core Power: Yes
• Intel Deep Learning Boost (Intel® DL Boost): Yes
• Intel Resource Director Technology (Intel® RDT): Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Technology 2.0: Yes
• Intel Hyper-Threading Technology: Yes
• Intel Transactional Synchronization Extensions: Yes
• Intel 64: Yes
• Instruction Set Extensions: Intel® AMX, Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512
• Number of AVX-512 FMA Units: 2

Security and Reliability Features

• Intel Software Guard Extensions (Intel® SGX): Yes, with Intel® SPS
• Maximum Enclave Page Cache (EPC) Size for Intel® SGX: 512 GB
• Intel Crypto Acceleration: Yes
• Intel Platform Firmware Resilience: Yes
• Intel Control-Flow Enforcement Technology: Yes
• Intel Total Memory Encryption: Yes
• Intel AES New Instructions: Yes
• Intel OS Guard: Yes
• Intel Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel Boot Guard: Yes
• Intel Run Sure Technology: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes

Launch Information

• Marketing Status: Launched
• Launch Date: Q1'23
• Servicing Status: Baseline Servicing
• Embedded Options Available: Yes
• Recommended Use: Server/Enterprise

Key Features of the Intel PK8071305223000 Xeon Platinum 9480 Processor

High Core Count and Superior Processing Power

The Intel PK8071305223000 Xeon Platinum 9480 Processor boasts an impressive 56 physical cores, making it well-suited for handling large-scale, multi-threaded applications. This high core count enables efficient parallel processing and multitasking, allowing for significant improvements in performance for compute-intensive tasks. Coupled with a base clock speed of 1.9GHz, the processor delivers reliable and consistent performance, while Intel Turbo Boost technology dynamically adjusts the clock speed to accommodate peak performance demands.

Advanced Thermal Design and Management

With a thermal design power (TDP) of 350W, the PK8071305223000 Xeon Platinum 9480 is engineered to support high-performance workloads while maintaining thermal stability. The advanced thermal management system ensures the processor operates efficiently under peak loads, preventing overheating and ensuring sustained performance. Proper cooling solutions are essential to handle the processor's thermal output and maintain optimal system reliability.

Support for Cutting-Edge Technologies

Intel Optane Persistent Memory Support

The Xeon Platinum 9480 Processor supports Intel Optane Persistent Memory, which provides high-capacity, high-performance memory solutions. This technology enhances overall system responsiveness and memory bandwidth, making it ideal for applications that require rapid access to large datasets. Intel Optane Persistent Memory complements the processor's core capabilities by enabling significant performance improvements and supporting more demanding workloads.

Enhanced Security Features

Security is a crucial consideration for modern computing environments, and the PK8071305223000 Xeon Platinum 9480 incorporates advanced security technologies to safeguard sensitive data. Intel Total Memory Encryption (TME) encrypts data stored in memory, while Intel Software Guard Extensions (SGX) provides secure enclaves for critical operations. These features ensure data integrity and protect against unauthorized access, contributing to a secure computing environment.

Scalability and Flexibility

The Intel PK8071305223000 Xeon Platinum 9480 Processor is designed with scalability in mind, providing flexibility for various server and workstation configurations. The processor's support for Intel Scalable Memory Buffer (SMB) technology allows for efficient memory scaling, enabling organizations to tailor their systems to meet specific performance and capacity requirements. This scalability makes the Xeon Platinum 9480 suitable for both small-scale deployments and extensive data center environments.

Applications and Use Cases

High-Performance Computing (HPC)

The PK8071305223000 Xeon Platinum 9480 Processor excels in high-performance computing environments, where its high core count and processing power can be fully leveraged. Applications such as scientific simulations, data analysis, and complex modeling benefit from the processor's ability to handle extensive computations and process large volumes of data with exceptional speed and efficiency.

Data Centers and Enterprise Solutions

In data center and enterprise environments, the Intel PK8071305223000 Xeon Platinum 9480 delivers the performance and reliability needed for mission-critical applications. Its high core count, advanced thermal management, and support for cutting-edge memory and security technologies make it well-suited for virtualized environments, large-scale databases, and high-throughput transactional systems. The processor's robust capabilities ensure reliable operation and optimal performance for enterprise-level deployments.

Artificial Intelligence and Machine Learning

The Xeon Platinum 9480 Processor is highly effective for artificial intelligence (AI) and machine learning (ML) workloads, where its high core count and advanced performance features can accelerate training and inference processes. The processor's support for Intel AI and ML frameworks streamlines the development and deployment of AI solutions, making it a valuable asset for organizations utilizing data-driven insights and advanced automation technologies.

Technical Specifications

Core and Thread Count

The Intel PK8071305223000 Xeon Platinum 9480 Processor features 56 physical cores and supports simultaneous multithreading (SMT), resulting in a total of 112 threads. This extensive core and thread count allows for efficient parallel processing and multitasking, optimizing performance across a wide range of applications and workloads.

Clock Speed and Turbo Boost Technology

The processor operates at a base clock speed of 1.9GHz, providing reliable performance for a variety of computing tasks. Intel Turbo Boost Technology dynamically adjusts the clock speed to meet the demands of peak workloads, ensuring that the processor can deliver optimal performance when needed. This feature enhances overall system efficiency and responsiveness.

Memory Support and Bandwidth

The PK8071305223000 Xeon Platinum 9480 supports a range of memory configurations, including DDR4 and Intel Optane Persistent Memory. It offers high memory bandwidth, which is essential for applications requiring fast access to large datasets. The processor's support for substantial memory capacities and advanced memory technologies contributes to improved system performance and responsiveness.

Thermal Design Power (TDP)

With a thermal design power (TDP) of 350W, the Xeon Platinum 9480 is designed to handle high-performance workloads while maintaining thermal stability. Proper cooling solutions are necessary to manage the processor's thermal output and ensure consistent performance. Effective thermal management is crucial for preventing overheating and supporting the longevity of the processor and surrounding components.

Security Technologies

The Intel PK8071305223000 Xeon Platinum 9480 incorporates advanced security features to protect data and ensure system integrity. Key technologies include Intel Total Memory Encryption (TME) and Intel Software Guard Extensions (SGX). TME encrypts data stored in memory, while SGX provides secure enclaves for critical operations. These features enhance data security and contribute to a secure computing environment, safeguarding valuable information from unauthorized access.

Compatibility and Integration

Motherboard and Chipset Compatibility

To integrate the Intel PK8071305223000 Xeon Platinum 9480 Processor into a server or workstation, it is important to ensure compatibility with the appropriate motherboard and chipset. The processor is compatible with specific Intel server chipsets and motherboards designed to support its advanced features and performance capabilities. Verifying compatibility is essential for seamless integration and optimal system performance.

Cooling Solutions

Given its high thermal design power (TDP) of 350W, the Xeon Platinum 9480 requires effective cooling solutions to maintain optimal performance and prevent overheating. Advanced air or liquid cooling systems are recommended to manage the processor's thermal output. Proper cooling is crucial for ensuring system stability and extending the processor's operational lifespan in high-density server environments.

Power Supply Considerations

When deploying the Intel PK8071305223000 Xeon Platinum 9480 Processor, it is important to use a power supply unit (PSU) capable of delivering adequate power to support the processor and other system components. The power supply should be rated to handle the combined power requirements of the processor, memory, storage, and peripherals. Ensuring sufficient power delivery is vital for reliable operation and to prevent power-related issues.
