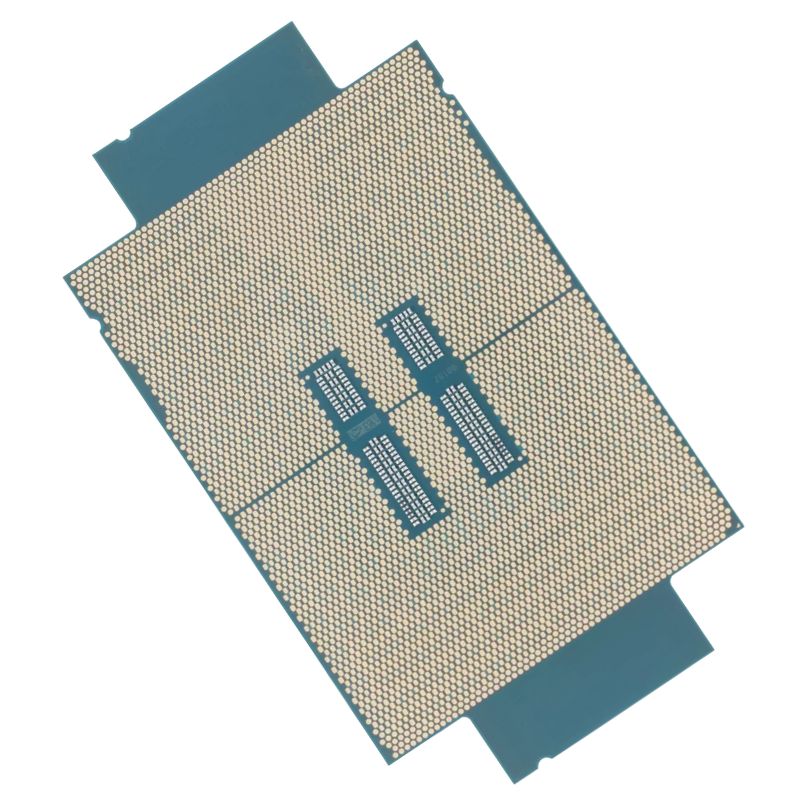

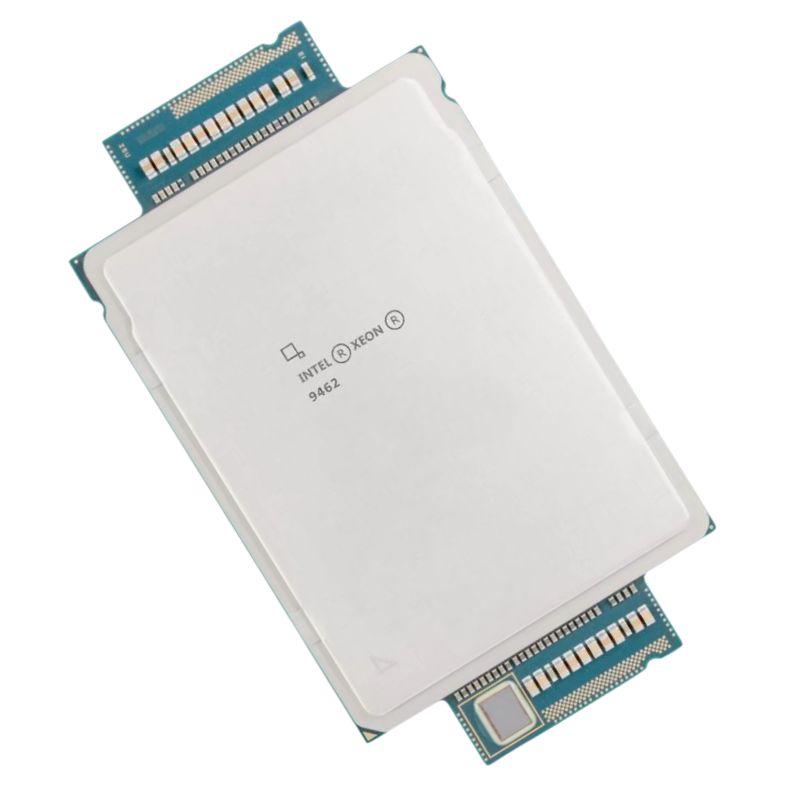

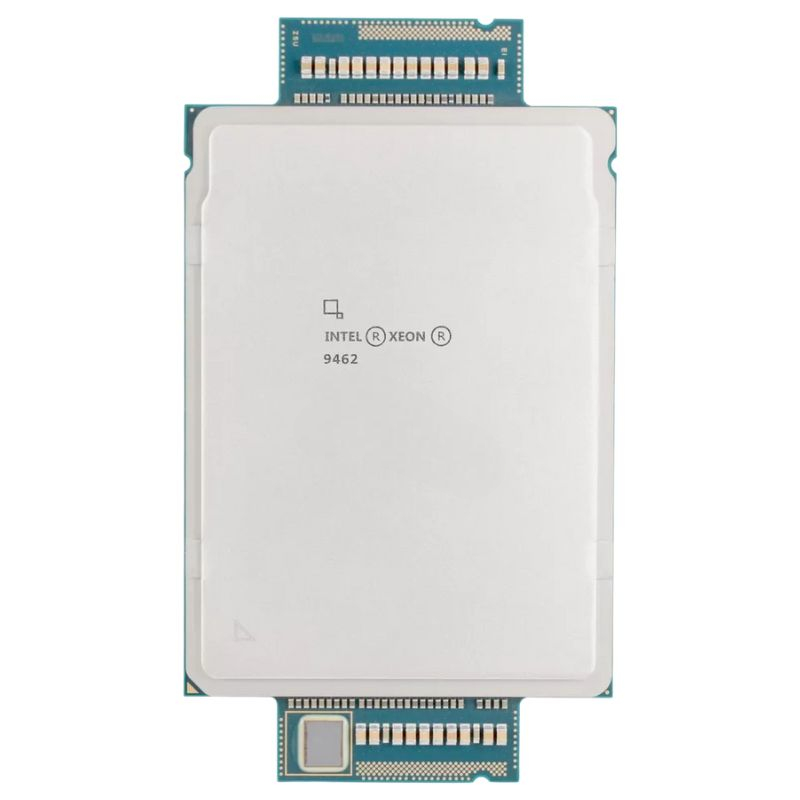

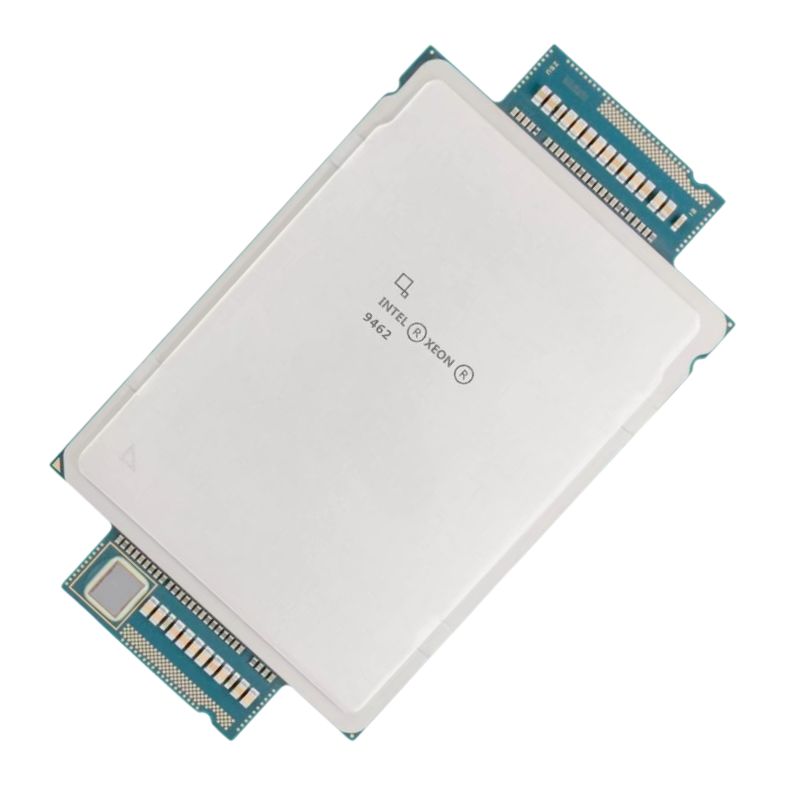

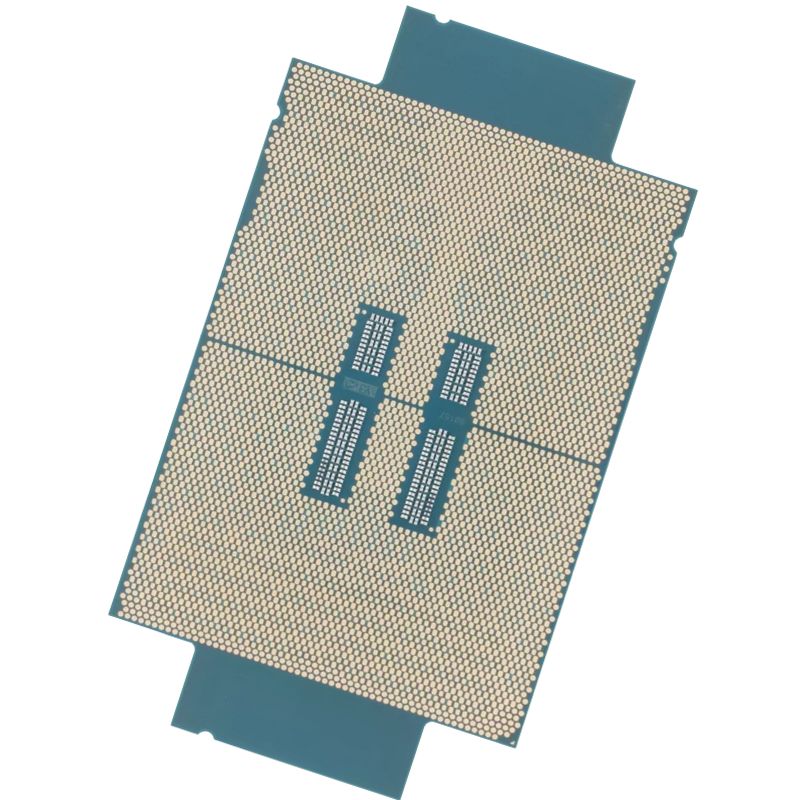

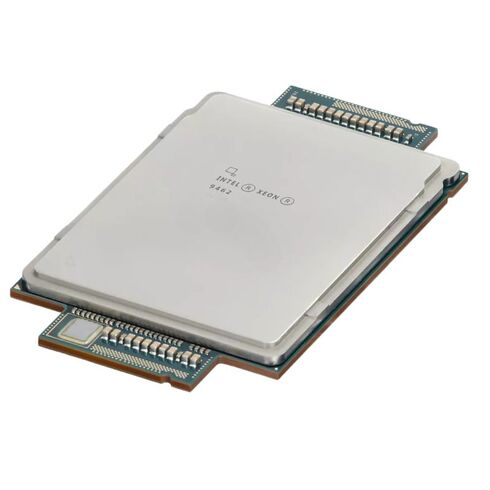

Intel PK8071305223900 Xeon-Platinum 9462 2.7GHz 32ores Processor

Intel PK8071305223900 Processor

The Intel PK8071305223900 Xeon Platinum 9462 Processor is engineered to meet the demanding needs of contemporary data centers, enterprise applications, and cloud computing environments. With a robust architecture featuring 32 cores, a base clock speed of 2.7GHz, and a substantial thermal design power (TDP) of 350W, this processor is designed to deliver high performance, reliability, and scalability for a wide range of computational tasks.

Core Specifications

• Device Type: Processor
• Model Number: 9462
• Part Number: PK8071305223900
• Base Clock Speed: 2.70 GHz
• Maximum Turbo Speed: 3.50 GHz
• Core Count: 32 Cores
• Thread Count: 64 Threads
• Manufacturing Technology: 7 nm
• Intel UPI Speed: 16 GT/s
• Number of UPI Links: 3
• Product Series: Intel Xeon CPU Max Series
• Processor Code Name: Previously Sapphire Rapids HBM
• Application Area: Server

Cache and Power

• Cache Size: 75 MB
• Thermal Design Power (TDP): 350 W

Memory Specifications

Memory Capacity and Types

• Maximum Memory Size: 4 TB (dependent on memory configuration)
• Supported Memory Types:
  • DDR5 up to 4800 MT/s (1DPC)
  • DDR5 up to 4400 MT/s (2DPC)
• Maximum Number of Memory Channels: 8
• Maximum High Bandwidth Memory (HBM): 64 GB
• Error-Correcting Code (ECC) Support: Yes

Expansion and Connectivity

Scalability and PCI Express

• Scalability: 2S (Dual Socket)
• PCI Express Revision: 5
• Maximum Number of PCI Express Lanes: 80

Package Details

Physical Specifications

• Supported Socket: FCLGA4677
• Package Carrier: E1C
• Maximum DTS (Die Temperature Sensor): 100 °C
• Case Temperature: 77 °C
• Package Dimensions: 100mm x 56.5mm

Miscellaneous Information

Usage Conditions

• Intended Use: Server/Enterprise Applications

High-Core Count and Multi-Threading Efficiency

The Xeon Platinum 9462 is equipped with 32 cores and 64 threads, providing exceptional multi-threading capabilities. This high core count allows for effective parallel processing, enabling the processor to handle complex workloads and multitasking with ease. Applications such as virtualization, large-scale data processing, and high-performance computing benefit significantly from the processor’s ability to execute multiple threads simultaneously.

Advantages of 32 Cores and 64 Threads

The 32-core architecture of the Xeon Platinum 9462 ensures efficient management of parallel tasks, reducing processing bottlenecks and enhancing system performance. The high thread count supports a wide range of applications, including large database management, enterprise resource planning (ERP) systems, and scientific simulations. The processor’s multi-threading capability enables faster data processing and improved responsiveness in high-demand environments.

Clock Speed and Turbo Boost Capabilities

Operating at a base clock speed of 2.7GHz, the Xeon Platinum 9462 offers a solid foundation for performance. The processor features Intel Turbo Boost Technology, which dynamically increases the clock speed when additional performance is needed. This technology allows the processor to handle peak workloads efficiently by providing higher clock speeds during intensive tasks.

Dynamic Frequency Scaling

Intel Turbo Boost Technology enables dynamic frequency scaling, allowing the Xeon Platinum 9462 to adjust its clock speed based on real-time workload demands and thermal conditions. This scaling capability ensures optimal performance while maintaining energy efficiency. During high-demand periods, the processor can boost its clock speed to deliver enhanced performance, while conserving power during lighter loads.

Cache Size and Memory Configuration

The Xeon Platinum 9462 features a large Intel Smart Cache, which provides rapid access to frequently used data, reducing latency and improving overall system performance. The processor supports advanced memory configurations, including high-capacity and high-bandwidth memory modules, to accommodate demanding applications and workloads.

Benefits of Large Cache Size

The substantial cache size of the Xeon Platinum 9462 reduces data retrieval times and enhances processing efficiency. A large cache is particularly beneficial for applications that require real-time data access and processing, such as big data analytics and high-performance computing. By storing frequently accessed data closer to the processor, the cache minimizes delays and improves system responsiveness.

Advanced Memory Support

The processor’s support for advanced memory configurations ensures efficient data transfer and improved performance for memory-intensive applications. The Xeon Platinum 9462 accommodates multiple memory channels and high-capacity memory modules, making it suitable for tasks such as virtualization, database management, and large-scale enterprise applications.

Thermal Design Power (TDP) and Power Efficiency

With a thermal design power (TDP) of 350W, the Xeon Platinum 9462 is engineered to handle demanding workloads while maintaining optimal power efficiency. The high TDP rating reflects the processor’s capacity to manage intense processing tasks without compromising stability. The processor incorporates advanced power management features to optimize energy consumption and enhance system efficiency.

Advanced Power Management Features

Intel’s power management technologies, including dynamic voltage and frequency scaling (DVFS), enable the Xeon Platinum 9462 to adjust its power usage based on workload demands. These features help reduce energy costs and improve overall system efficiency. By optimizing power consumption during lighter workloads and boosting performance when needed, the processor ensures effective energy use and cost savings.

Effective Cooling Solutions

Effective cooling is essential for maintaining the performance and reliability of high-power processors. The Xeon Platinum 9462 includes advanced cooling solutions to manage heat dissipation effectively. These cooling technologies prevent overheating and ensure consistent performance, contributing to the processor’s longevity and operational stability.

Applications and Use Cases

Data Centers and Cloud Computing

The Xeon Platinum 9462 is highly suitable for data centers and cloud computing environments due to its high core count, performance, and scalability. The processor’s ability to handle large-scale virtualization and cloud services makes it ideal for managing multiple virtual machines and high-demand applications. Its reliability and performance support a wide range of cloud-based services and data center operations.

High-Performance Computing (HPC)

In high-performance computing (HPC) scenarios, the Xeon Platinum 9462 delivers exceptional computational power and scalability. Its 32-core architecture and advanced features enable efficient handling of scientific simulations, complex calculations, and large-scale data processing. The processor’s capabilities make it an ideal choice for research institutions, financial modeling, and other HPC applications requiring substantial computational resources.

Artificial Intelligence and Machine Learning

The Xeon Platinum 9462 is equipped with technologies that enhance performance for artificial intelligence (AI) and machine learning tasks. It supports Intel Deep Learning Boost (DL Boost) and other AI-optimized features, accelerating deep learning training and inferencing processes. This makes the processor valuable for AI-driven applications, including natural language processing, image recognition, and real-time data analysis.

Enterprise Resource Planning (ERP) and Large Databases

The Xeon Platinum 9462 excels in managing enterprise resource planning (ERP) systems and large-scale databases. The processor’s high core count and large cache size ensure efficient data processing and retrieval, supporting complex business operations and extensive datasets. Its performance capabilities contribute to improved efficiency and reliability in enterprise applications.

Architectural Innovations and Technologies

4th Generation Intel Xeon Scalable Architecture

The Xeon Platinum 9462 is built on Intel’s 4th Generation Xeon Scalable architecture, which introduces advancements in performance, scalability, and efficiency. This architecture features improved core designs, faster interconnects, and support for next-generation memory technologies, ensuring that the processor meets the evolving demands of modern computing environments.

Intel Deep Learning Boost (DL Boost)

Intel DL Boost technology enhances the Xeon Platinum 9462’s performance for AI and machine learning tasks. This technology includes specialized instructions that accelerate deep learning training and inferencing, improving the speed and accuracy of AI models. DL Boost is essential for applications requiring high-performance AI processing, such as real-time data analysis and advanced machine learning algorithms.

Vector Neural Network Instructions (VNNI)

Vector Neural Network Instructions (VNNI) is a key component of Intel DL Boost that optimizes the execution of convolutional neural networks (CNNs). By accelerating these operations, VNNI enhances AI tasks such as image and speech recognition, providing faster and more accurate results for AI-driven applications.

Intel Advanced Vector Extensions 512 (AVX-512)

The Xeon Platinum 9462 supports Intel Advanced Vector Extensions 512 (AVX-512), which improves the processor’s ability to handle complex vector and floating-point calculations. AVX-512 accelerates applications requiring intensive numerical computations, such as scientific simulations, financial modeling, and high-performance analytics.

Security Features: Intel SGX and TME

The Xeon Platinum 9462 incorporates advanced security features such as Intel Software Guard Extensions (SGX) and Total Memory Encryption (TME). These features provide robust protection for sensitive data and enhance overall system security.

Intel Software Guard Extensions (SGX)

Intel SGX enables the creation of secure enclaves within the processor to protect code and data from unauthorized access. This technology is crucial for applications handling sensitive information, ensuring data remains secure and private even in potentially vulnerable environments.

Total Memory Encryption (TME)

Total Memory Encryption (TME) encrypts all data stored in system memory, safeguarding against data breaches and physical attacks. This feature is particularly important for high-security environments where data confidentiality and integrity are paramount.

Market Position and Competitive Advantage

Adoption in Enterprise and Cloud Computing

The Xeon Platinum 9462 is widely adopted across various sectors, including enterprise IT, cloud computing, and high-performance computing. Its high core count, robust performance, and scalability make it a preferred choice for managing complex workloads and supporting a wide range of applications. Organizations leveraging the Xeon Platinum 9462 benefit from its ability to handle demanding tasks efficiently and reliably.

Comparison with Competitors

In comparison to competitors, the Xeon Platinum 9462 stands out for its superior core count, clock speed, and advanced features. Its combination of performance, scalability, and efficiency provides a competitive edge in the high-performance processor market. Organizations investing in the Xeon Platinum 9462 gain access to cutting-edge computing capabilities, positioning them advantageously in their respective fields.

Long-Term Value and Return on Investment

The Intel PK8071305223900 Xeon Platinum 9462 offers long-term value through its high performance, energy efficiency, and advanced features. The processor’s ability to handle a broad range of applications and workloads ensures a strong return on investment, reducing the need for frequent hardware upgrades and lowering the total cost of ownership (TCO). Organizations can expect sustained performance and reliability, contributing to long-term operational success and cost savings.
