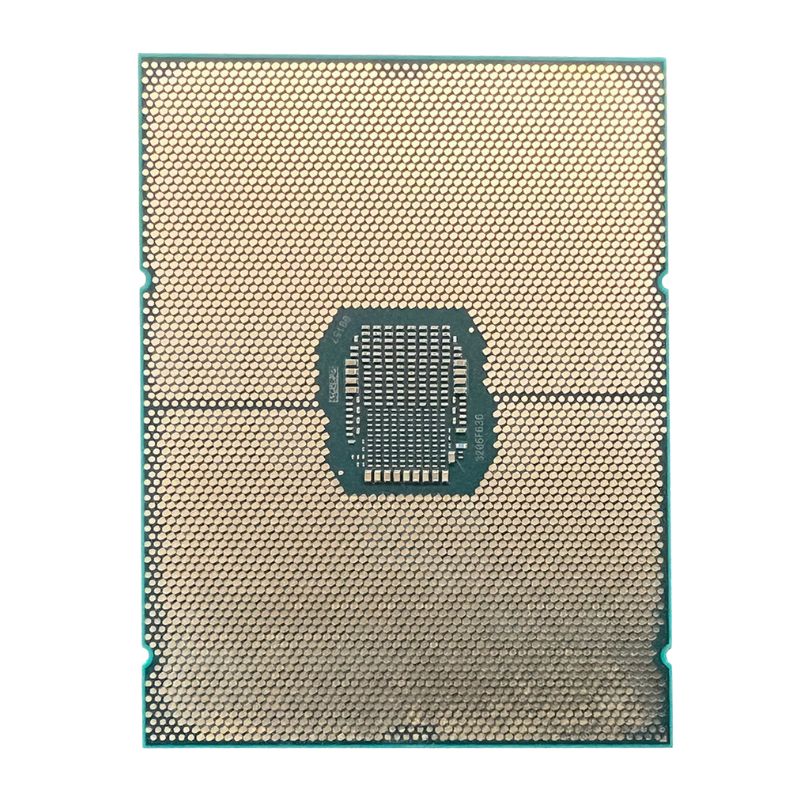

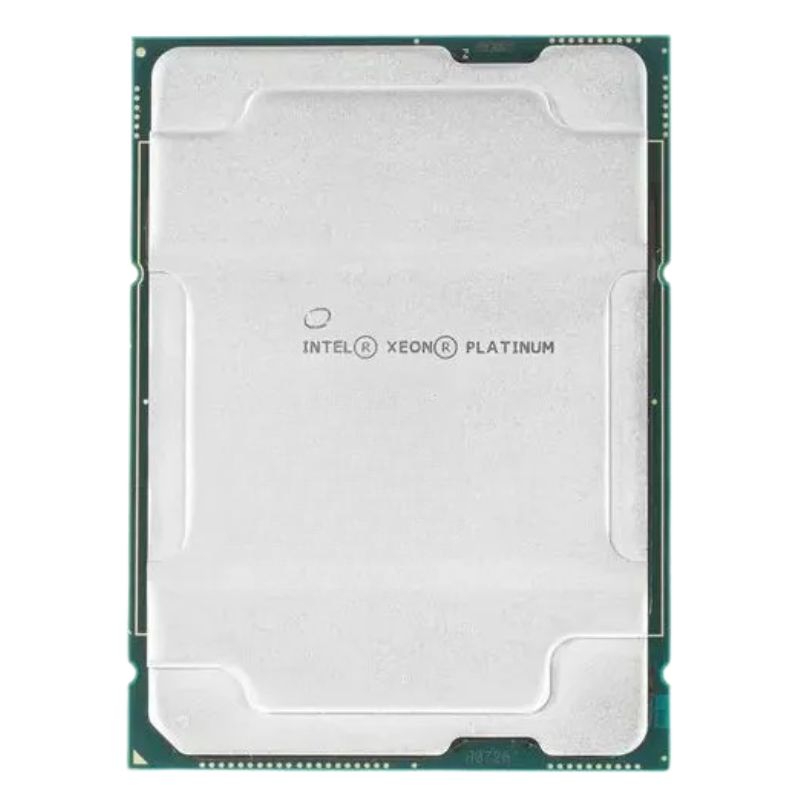

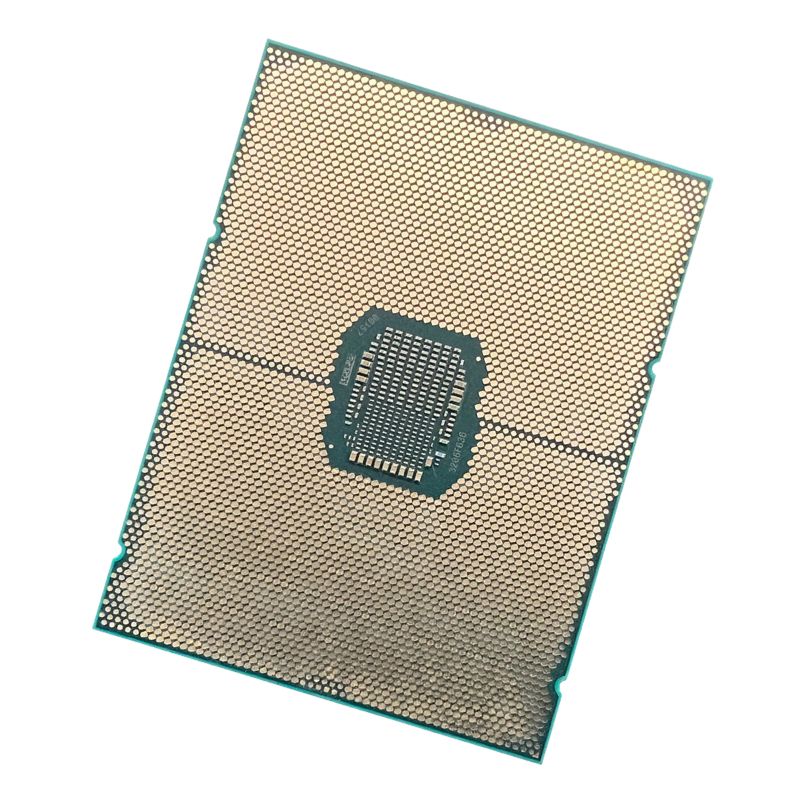

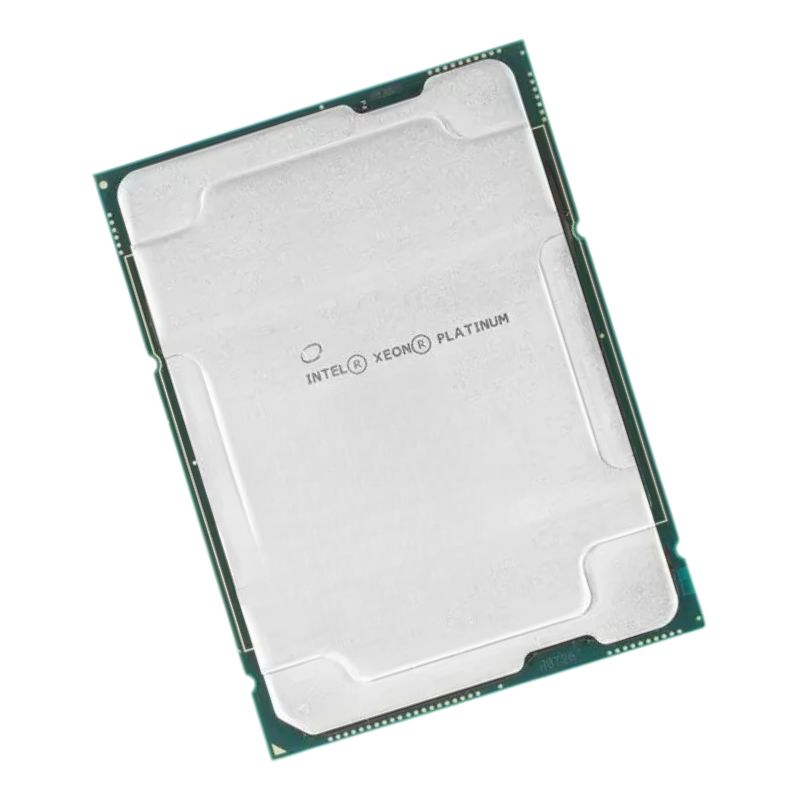

Intel SRF97 Xeon Platinum 8276L 2.2GHz 28 Core 165W Processor.

Intel SRF97 Xeon Platinum 8276L Processor

The Intel SRF97 Xeon Platinum 8276L 2.2GHz 28 Core 165W Processor is a high-performance CPU designed for enterprise-grade servers and data centers. With advanced architecture, large core count, and robust power efficiency, this processor is ideal for handling intensive workloads, including data analytics, artificial intelligence, and high-performance computing applications. As part of Intel's Xeon Platinum 8200 series, the SRF97 model delivers exceptional reliability, scalability, and security features, making it a preferred choice for businesses requiring powerful and flexible computing solutions.

2nd Generation Intel Xeon Scalable Processors

Code Name & Vertical Segment

• Code Name: Previously Cascade Lake
• Targeted Use: Server environments
• Part Number: SRF97

Processor Number & Lithography

• Processor Number: 8276L
• Manufacturing Process: 14 nm

CPU Specifications

Core and Thread Count

• Total Cores: 28
• Total Threads: 56

Frequency and Cache

• Max Turbo Frequency: 4.00 GHz
• Base Processor Frequency: 2.20 GHz
• Cache Size: 38.5 MB

Power and Thermal Design

• Max Number of UPI Links: 3
• Thermal Design Power (TDP): 165 W

Memory Specifications

Memory Capacity and Types

• Maximum Memory Size: Up to 4.5 TB (dependent on memory type)
• Supported Memory Types: DDR4-2933
• Maximum Memory Speed: 2933 MHz

Memory Channels and Features

• Maximum Number of Memory Channels: 6
• Intel Optane Persistent Memory: Supported
• Error-Correcting Code (ECC) Memory: Supported

Expansion and Connectivity

Scalability and PCI Express

• Scalability: S8S
• PCI Express Revision: 3.0
• Maximum Number of PCI Express Lanes: 48

Package Specifications

• Supported Socket: FCLGA3647
• Case Temperature (TCASE): 89°C
• Package Dimensions: 76.0mm x 56.5mm

Advanced Technologies

• Intel Deep Learning Boost: Yes
• Intel Speed Select Technology - Performance Profile: No
• Intel Speed Select Technology - Base Frequency: No
• Intel Resource Director Technology: Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Max Technology 3.0: No
• Intel Turbo Boost Technology: 2.0
• Intel Hyper-Threading Technology: Yes
• Intel Transactional Synchronization Extensions: Yes
• Intel 64: Yes
• Instruction Set Extensions: Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
• Number of AVX-512 FMA Units: 2
• Enhanced Intel SpeedStep Technology: Yes
• Intel Volume Management Device (VMD): Yes

Security and Reliability

• Intel vPro Platform: Yes
• Intel AES New Instructions: Yes
• Intel Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel Run Sure Technology: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes

Key Features of the Intel SRF97 Xeon Platinum 8276L Processor

High Core Count and Multi-Threading Performance

The SRF97 Xeon Platinum 8276L features 28 cores and 56 threads, enabling it to perform complex computations and handle multiple tasks simultaneously with ease. The processor’s hyper-threading technology ensures that each core can manage two threads simultaneously, maximizing processing efficiency and overall throughput, which is particularly beneficial for parallel computing environments.

Advanced Intel Turbo Boost Technology

With Intel Turbo Boost Technology 2.0, the SRF97 Xeon Platinum 8276L automatically increases the processor's clock speed from its base frequency of 2.2GHz to higher speeds, depending on workload demand and thermal conditions. This feature allows for dynamic adjustment of performance, ensuring that peak computational power is available during critical tasks without sacrificing energy efficiency.

Enhanced Security and Reliability

Security is a crucial aspect of server and data center operations, and the Intel SRF97 Xeon Platinum 8276L does not disappoint. It incorporates several security enhancements, including Intel SGX (Software Guard Extensions), which protect data integrity and confidentiality at the hardware level. Intel Secure Key and OS Guard also enhance protection against malware and other security threats, safeguarding sensitive workloads.

Technical Specifications of Intel SRF97 Xeon Platinum 8276L

Core and Thread Count

The processor boasts 28 cores and 56 threads, designed to provide outstanding parallel processing capabilities. This high core count is particularly advantageous for virtualization, database management, and other resource-intensive applications.

Base and Maximum Turbo Frequency

With a base frequency of 2.2GHz and a maximum turbo frequency that can reach higher levels based on demand, the SRF97 delivers adaptable performance suited to various tasks. This dynamic adjustment helps balance power consumption and computational output.

Cache Memory

Equipped with 38.5 MB of Smart Cache, the Intel SRF97 Xeon Platinum 8276L ensures fast access to frequently used data and instructions, reducing latency and enhancing overall performance. The large cache size plays a critical role in optimizing multi-threaded applications, as it allows for quicker data retrieval.

Power Efficiency

The processor operates at 165W TDP (Thermal Design Power), which reflects its balance between performance and energy efficiency. This optimized power usage ensures that the CPU can handle intensive workloads without excessive heat generation, contributing to a more sustainable and cost-effective data center operation.

Use Cases and Applications of Intel SRF97 Xeon Platinum 8276L

High-Performance Computing (HPC)

The Intel SRF97 Xeon Platinum 8276L is engineered to meet the rigorous demands of high-performance computing environments. Its extensive core count and multi-threading capabilities make it ideal for simulations, scientific modeling, and complex computational tasks that require significant processing power.

Artificial Intelligence and Machine Learning

AI and machine learning workloads benefit greatly from the SRF97 processor's powerful parallel processing capabilities. It can manage the vast data processing and algorithmic computations required for deep learning, neural network training, and other advanced AI applications, thereby accelerating time-to-insight.

Data Analytics and Big Data Processing

Organizations dealing with big data can leverage the Intel SRF97 Xeon Platinum 8276L to perform large-scale data analysis and processing efficiently. The processor's high bandwidth and cache memory allow it to handle massive datasets, making it a valuable component in analytics platforms and business intelligence solutions.

Virtualization and Cloud Computing

With robust support for virtualization technologies, the SRF97 Xeon Platinum 8276L is well-suited for cloud computing environments. Its ability to efficiently allocate resources across multiple virtual machines (VMs) ensures optimal performance and reliability, supporting cloud service providers and enterprises in delivering seamless services to their customers.

Intel SRF97 Xeon Platinum 8276L Architecture

Intel Cascade Lake Architecture

The SRF97 Xeon Platinum 8276L is built on Intel's Cascade Lake architecture, which introduces several improvements over its predecessor, including enhanced memory support, increased bandwidth, and improved data security features. This architecture provides the foundation for the processor's superior performance and adaptability.

Memory Support and Bandwidth

The processor supports up to 1.5 TB of DDR4 memory per socket, providing ample capacity for memory-intensive applications such as large-scale simulations and in-memory databases. Additionally, the six-channel memory architecture enhances bandwidth, ensuring faster data access and reduced latency during operations.

Intel Optane DC Persistent Memory Support

One of the standout features of the Cascade Lake architecture is support for Intel Optane DC Persistent Memory, which offers an innovative solution for increasing memory capacity beyond traditional DRAM limitations. This technology provides a significant boost in data retention and access speeds, especially for applications that require rapid data retrieval.

Advanced Vector Extensions 512 (AVX-512)

The inclusion of AVX-512 allows the processor to handle more complex vector calculations, significantly improving performance for tasks such as cryptography, scientific simulations, and 3D modeling. AVX-512 extends the processor's computational capabilities, making it a versatile tool for a wide range of industries.

Enhanced Security Features

Intel Software Guard Extensions (SGX)

Intel SGX is a key security feature that enables the creation of private regions of memory called enclaves, designed to protect sensitive data even when the system is compromised. This feature is particularly beneficial for applications that handle confidential information, such as financial transactions, healthcare data, and encrypted communications.

Intel Trusted Execution Technology (TXT)

TXT provides hardware-based security features that help protect against software-based attacks and ensure that critical applications run in a trusted environment. This technology is essential for maintaining system integrity and safeguarding workloads from potential threats.

Intel Secure Key

Intel Secure Key is a hardware-based random number generator that enhances cryptographic security, ensuring that encryption keys are highly unpredictable. This feature is vital for secure data encryption and protection against cyberattacks.

Advanced Encryption Standard New Instructions (AES-NI)

AES-NI accelerates the encryption and decryption processes, making data security more efficient without compromising performance. This set of instructions is crucial for applications that require high-speed encryption, such as virtual private networks (VPNs) and secure data storage solutions.

Compatibility and Integration

Server and Platform Compatibility

The Intel SRF97 Xeon Platinum 8276L is compatible with a wide range of server platforms, including those from leading manufacturers like Dell, HP, and Lenovo. Its versatile design ensures easy integration into existing data center infrastructures, making upgrades and expansions straightforward.

PCIe 3.0 Support

With support for PCIe 3.0, the processor offers high-speed connectivity for peripherals, including GPUs, storage devices, and networking cards. This capability enhances overall system performance, particularly in applications that rely on fast data transfer between components.

Intel Ultra Path Interconnect (UPI)

UPI technology provides fast, point-to-point connectivity between processors, enhancing data transfer speeds and reducing latency. This is particularly beneficial in multi-socket configurations where communication between CPUs is critical for performance optimization.

Why Choose the Intel SRF97 Xeon Platinum 8276L?

Unmatched Performance for Critical Workloads

The SRF97 Xeon Platinum 8276L is designed to deliver high performance across a variety of demanding workloads. Whether your applications involve data analytics, machine learning, or complex simulations, this processor offers the processing power and scalability to meet your needs.

Scalability for Growing Business Needs

As businesses expand, their IT infrastructure must scale accordingly. The Intel SRF97 Xeon Platinum 8276L provides the scalability required to support growing data volumes, increased user demand, and evolving application requirements, ensuring that your server environment remains future-proof.

Energy Efficiency and Cost Savings

With a balanced power-to-performance ratio, the SRF97 processor helps reduce energy consumption, contributing to lower operational costs. Its efficient design ensures that businesses can achieve high performance without excessive power usage, aligning with sustainability goals and reducing overall environmental impact.

Advanced Security for Data Protection

Data security is a top priority for any organization, and the Intel SRF97 Xeon Platinum 8276L includes several advanced security features to protect sensitive information. From hardware-based encryption to secure boot technologies, this processor helps safeguard your data against potential threats.

Intel SRF97 Xeon Platinum 8276L in Competitive Markets

Comparison with Other Xeon Platinum Processors

When compared to other models in the Xeon Platinum 8200 series, the 8276L stands out due to its optimal balance of core count, performance, and energy efficiency. Its capabilities make it a versatile choice for a wide range of applications, providing excellent value for businesses seeking top-tier performance.

Market Demand and Industry Adoption

The Intel SRF97 Xeon Platinum 8276L is widely adopted across industries such as finance, healthcare, manufacturing, and research. Its ability to handle complex workloads efficiently makes it a popular choice among organizations that require reliable and scalable server solutions.

Future-Proof Technology Investments

Investing in the SRF97 Xeon Platinum 8276L means investing in future-ready technology. With support for emerging technologies such as AI and advanced analytics, this processor ensures that your IT infrastructure remains competitive and capable of meeting evolving business demands.
