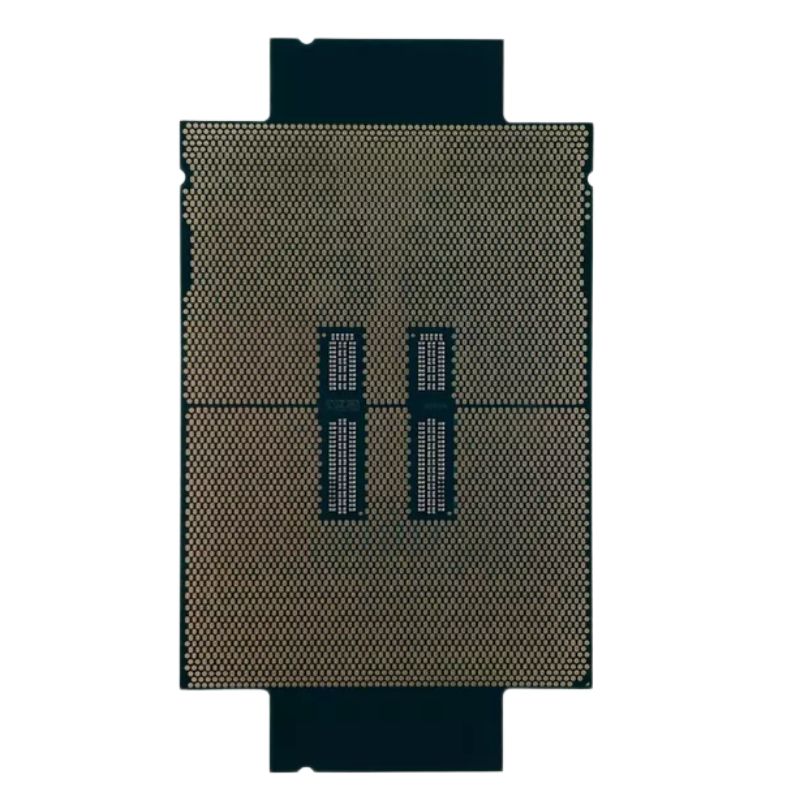

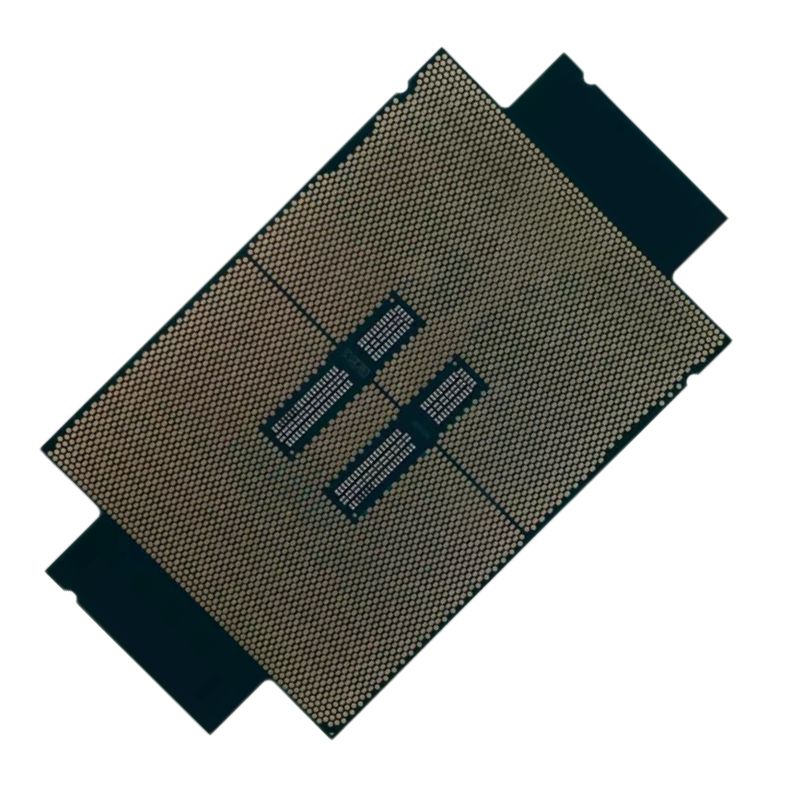

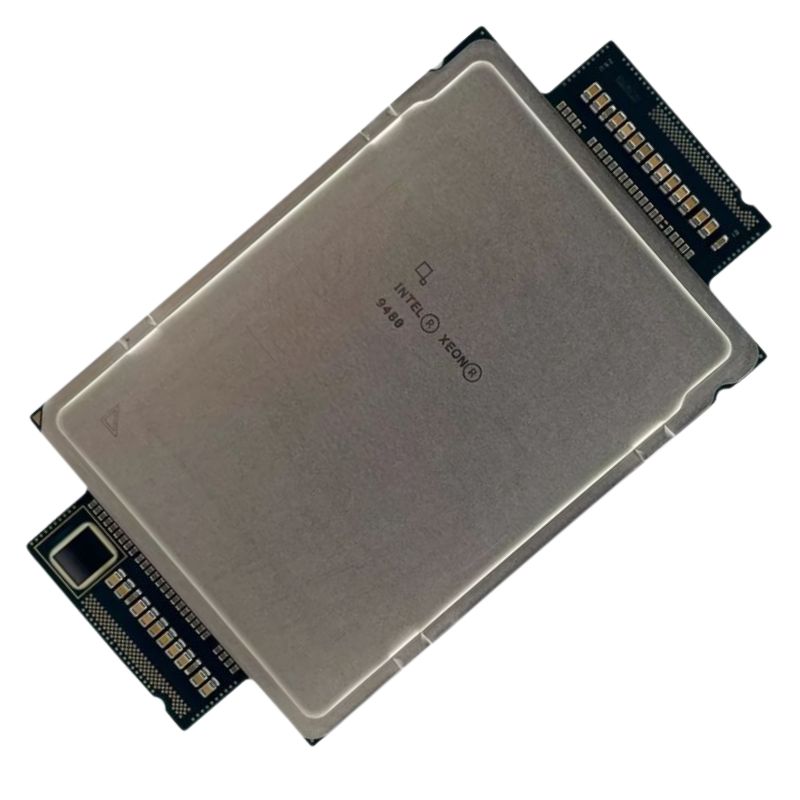

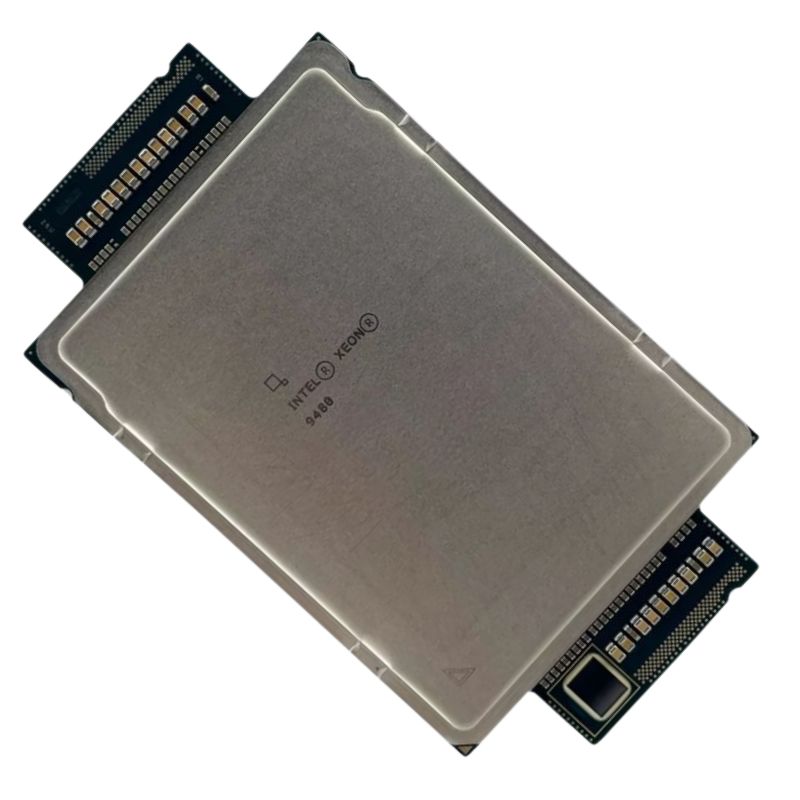

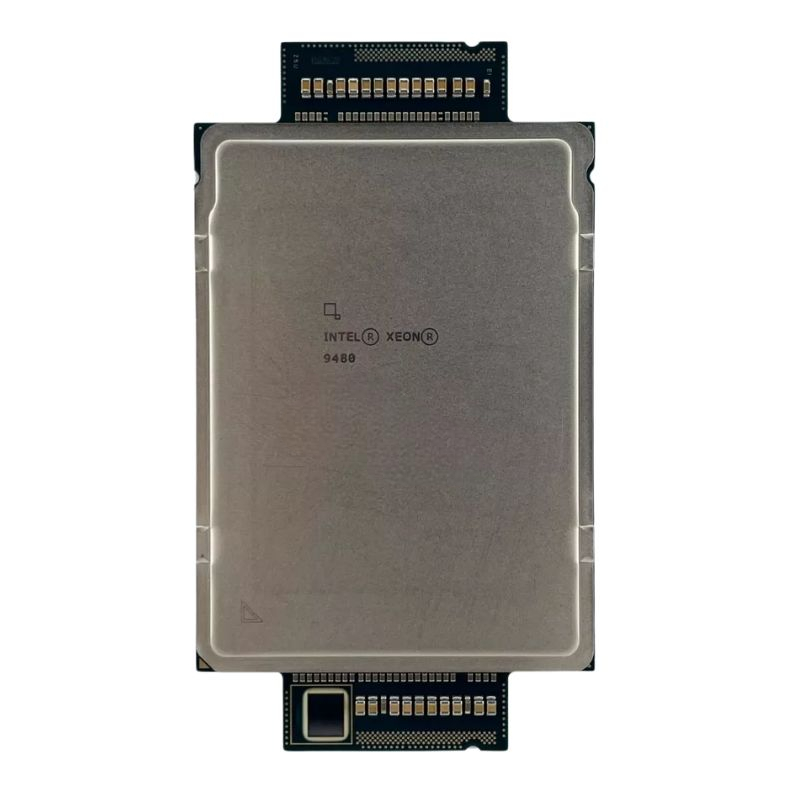

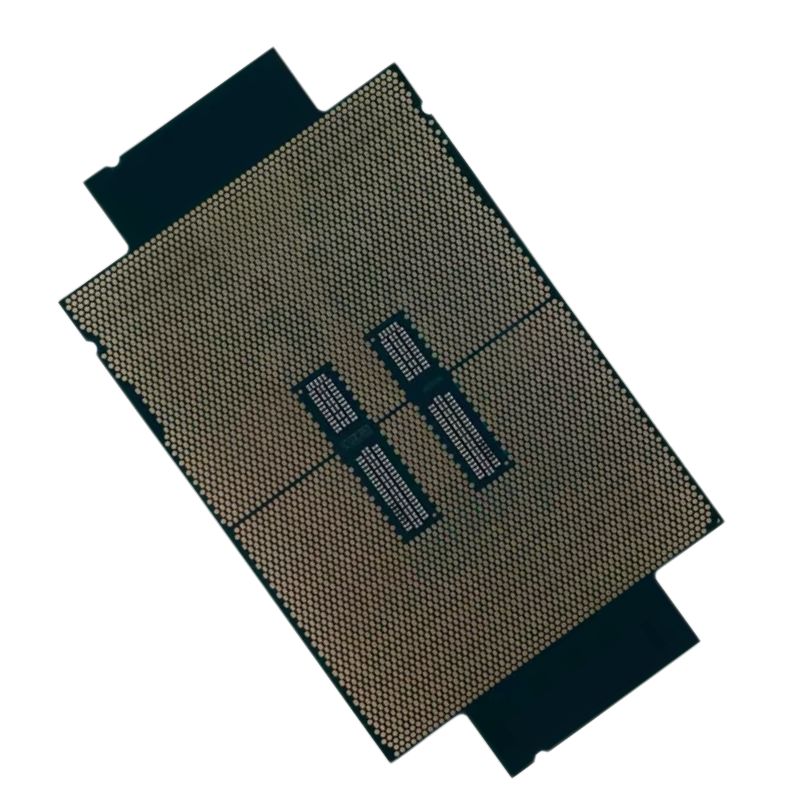

Intel SRMJC Xeon Platinum 9470 Processor 2GHz 52 Cores

Intel SRMJC Xeon Platinum 9470 Processor

The Intel SRMJC Xeon Platinum 9470 Processor is a high-performance server processor designed to meet the demands of enterprise-level computing and data center environments. Boasting 52 cores and a base clock speed of 2GHz, this processor is engineered to handle intensive workloads and complex applications with unparalleled efficiency. Its robust 350W thermal design power (TDP) ensures reliable operation even under peak performance conditions, making it an ideal choice for high-performance computing (HPC) and mission-critical applications.

General Information

• Type: CPU / Microprocessor
• Family: Intel Xeon
• Processor Model: 9470
• Part Number: SRMJC
• Base Frequency: 2.0 GHz
• Maximum Turbo Frequency: 3.5 GHz
• Clock Multiplier: 20
• Package Type: 4677-land FC-LGA
• Socket Type: Socket 4677

Architecture and Microarchitecture

• Core Stepping: B3
• Processor Core Design: Sapphire Rapids HBM
• Manufacturing Process: 0.010 Micron
• Core Count: 52 Cores
• L2 Cache Size: 104 MB
• L3 Cache Size: 105 MB

Key Features

Performance and Technology

• AES (Advanced Encryption Standard): Supported
• AMX (Advanced Matrix Extensions): Supported
• AVX (Advanced Vector Extensions): Supported
• AVX2: Supported
• AVX-512: Supported
• CFET (Control Flow Enforcement Technology): Enabled
• Crypto Acceleration: Enabled
• DLB (Deep Learning Boost): Enabled
• EM64T (Extended Memory 64 Technology): Supported
• Execute Disable Bit: Enabled
• Hyper-Threading Technology: Enabled
• MMX (MultiMedia Extensions): Supported
• SGX (Software Guard Extensions): Enabled
• SSE (Streaming SIMD Extensions): Supported
• SSE2: Supported
• SSE3: Supported
• SSE4: Supported
• SSSE3 (Supplemental Streaming SIMD Extensions 3): Supported
• TME (Total Memory Encryption): Enabled
• Transactional Synchronization Extensions: Enabled
• Trusted Execution Technology: Enabled
• Turbo Boost Technology: Enabled
• Virtualization Technology (VT-d): Supported
• Virtualization Technology (VT-x): Supported

Power and Thermal Management

Thermal Design Power

• Thermal Design Power (TDP): 350 Watts

Physical Specifications

Package Details

• Package Dimensions: 100mm x 56.5mm
• Socket Supported: FCLGA4677
• Package Carrier: E1C
• Maximum DTS (Die Temperature Sensor): 100°C
• Case Temperature: 77°C

Applications and Use Cases

Recommended Usage

• Target Use: Ideal for Server and Enterprise environments

Key Features of the Intel SRMJC Xeon Platinum 9470 Processor

Unmatched Core Count and Performance

The Intel SRMJC Xeon Platinum 9470 Processor is equipped with 52 physical cores, providing exceptional parallel processing capabilities. This high core count translates to superior multitasking and the ability to handle numerous simultaneous threads, enhancing overall system performance. The processor's base clock speed of 2GHz is complemented by Intel's advanced turbo boost technologies, which dynamically increase the clock speed to accommodate demanding workloads.

Advanced Thermal Design

With a thermal design power (TDP) of 350W, the Intel SRMJC Xeon Platinum 9470 is built to sustain high performance even in demanding environments. The processor's advanced thermal management features ensure stable operation and reliability, reducing the risk of thermal throttling and maintaining consistent performance levels. This makes the SRMJC 9470 an excellent choice for high-density server configurations and data centers with stringent cooling requirements.

Support for Latest Technologies

Intel Optane Persistent Memory Support

The SRMJC Xeon Platinum 9470 processor supports Intel Optane Persistent Memory, offering high-capacity, high-performance memory that complements the processor's core capabilities. This technology provides substantial improvements in memory bandwidth and system responsiveness, making it ideal for applications requiring large datasets and fast access times.

Enhanced Security Features

Security is a critical aspect of modern computing, and the Intel SRMJC Xeon Platinum 9470 integrates advanced security features to protect sensitive data. These features include Intel Total Memory Encryption (TME), Intel Software Guard Extensions (SGX), and Intel Platform Protection Technology. These technologies work together to safeguard data integrity and protect against unauthorized access, ensuring a secure computing environment.

Scalability and Flexibility

The Intel SRMJC Xeon Platinum 9470 processor offers extensive scalability options, making it suitable for a wide range of applications from single-socket servers to multi-socket configurations. Its support for Intel Scalable Memory Buffer (SMB) technology enables efficient memory scaling, allowing organizations to tailor their systems to meet specific performance and capacity requirements.

Applications and Use Cases

High-Performance Computing (HPC)

The SRMJC Xeon Platinum 9470 processor excels in high-performance computing environments, where its high core count and processing power can be fully utilized. Applications such as scientific simulations, complex data analysis, and advanced research benefit from the processor's ability to handle large-scale computations and process vast amounts of data quickly and efficiently.

Data Centers and Enterprise Environments

In data center and enterprise environments, the Intel SRMJC Xeon Platinum 9470 provides the performance and reliability needed for mission-critical applications. Its high core count and advanced thermal management make it suitable for virtualized environments, large-scale databases, and transactional processing systems. The processor's support for advanced memory technologies and security features further enhances its suitability for enterprise-level deployments.

Artificial Intelligence and Machine Learning

The SRMJC Xeon Platinum 9470 processor is well-suited for artificial intelligence (AI) and machine learning (ML) workloads, where its high core count and advanced performance capabilities can accelerate training and inference processes. The processor's support for Intel AI and ML frameworks helps streamline AI development and deployment, making it a valuable asset for organizations leveraging these technologies for data-driven insights and automation.

Technical Specifications

Core and Thread Count

The Intel SRMJC Xeon Platinum 9470 features 52 physical cores and supports simultaneous multithreading (SMT), providing a total of 104 threads. This extensive core and thread count enables efficient parallel processing and multitasking capabilities, optimizing performance across a wide range of applications and workloads.

Clock Speed and Turbo Boost

With a base clock speed of 2GHz, the SRMJC Xeon Platinum 9470 offers reliable performance for sustained operations. The processor also includes Intel Turbo Boost Technology, which dynamically increases the clock speed to improve performance during peak workloads. This capability ensures that the processor can adapt to varying performance demands and deliver optimal results in demanding scenarios.

Memory Support and Bandwidth

The SRMJC Xeon Platinum 9470 supports a range of memory configurations, including DDR4 and Intel Optane Persistent Memory. It provides high memory bandwidth, which is crucial for applications requiring rapid access to large datasets. The processor's support for large memory capacities and advanced memory technologies enhances overall system performance and responsiveness.

Thermal Design Power (TDP)

The processor's thermal design power (TDP) is rated at 350W, reflecting its high-performance capabilities and the associated cooling requirements. This TDP rating ensures that the processor can operate effectively under load while maintaining thermal stability. Proper cooling solutions are essential to maximize performance and longevity in high-density server configurations and data center environments.

Security Features

The Intel SRMJC Xeon Platinum 9470 incorporates several security features to safeguard data and protect against threats. Key security technologies include Intel Total Memory Encryption (TME), which encrypts data stored in memory, and Intel Software Guard Extensions (SGX), which provides secure enclaves for sensitive operations. These features contribute to a secure computing environment and help protect valuable information from unauthorized access.

Compatibility and Integration

Motherboard and Chipset Compatibility

When integrating the Intel SRMJC Xeon Platinum 9470 processor into a server or workstation, it's essential to ensure compatibility with the appropriate motherboard and chipset. The processor is compatible with select Intel server chipsets and motherboards designed to support its advanced features and performance capabilities. Verifying compatibility ensures seamless integration and optimal system performance.

Cooling Solutions

Due to its high thermal design power (TDP) of 350W, the SRMJC Xeon Platinum 9470 requires robust cooling solutions to maintain optimal performance and prevent overheating. Effective cooling solutions include advanced air or liquid cooling systems designed to handle the processor's thermal output. Proper cooling is crucial for maintaining stability and ensuring the longevity of the processor and surrounding components.

Power Supply Requirements

Incorporating the Intel SRMJC Xeon Platinum 9470 processor into a server or workstation requires a power supply unit (PSU) capable of delivering sufficient power to support the processor and other system components. The power supply should be rated to handle the combined power requirements of the processor, memory, storage, and other peripherals to ensure reliable operation and prevent power-related issues.
