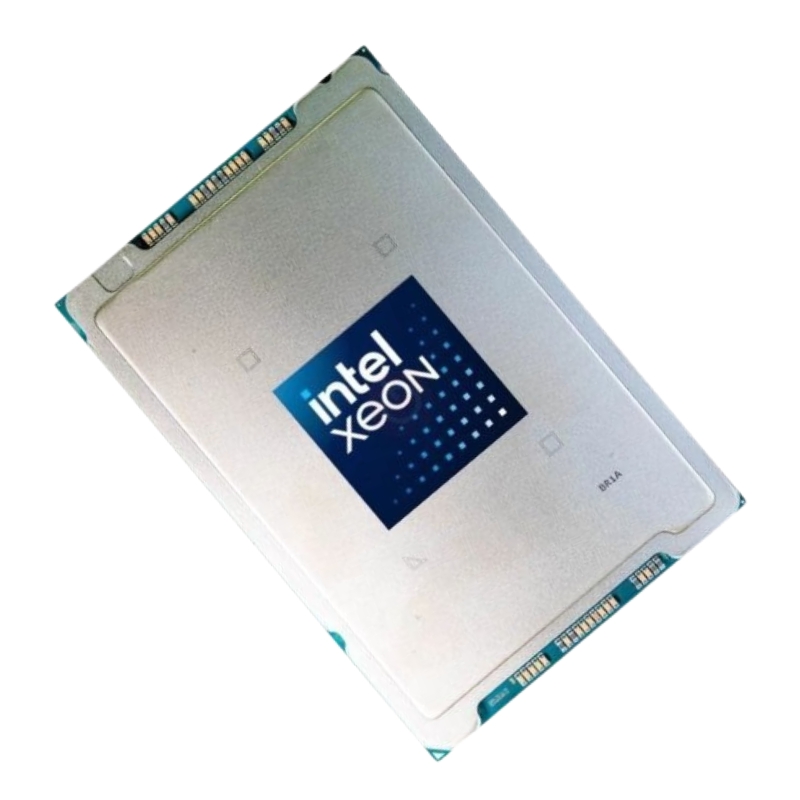

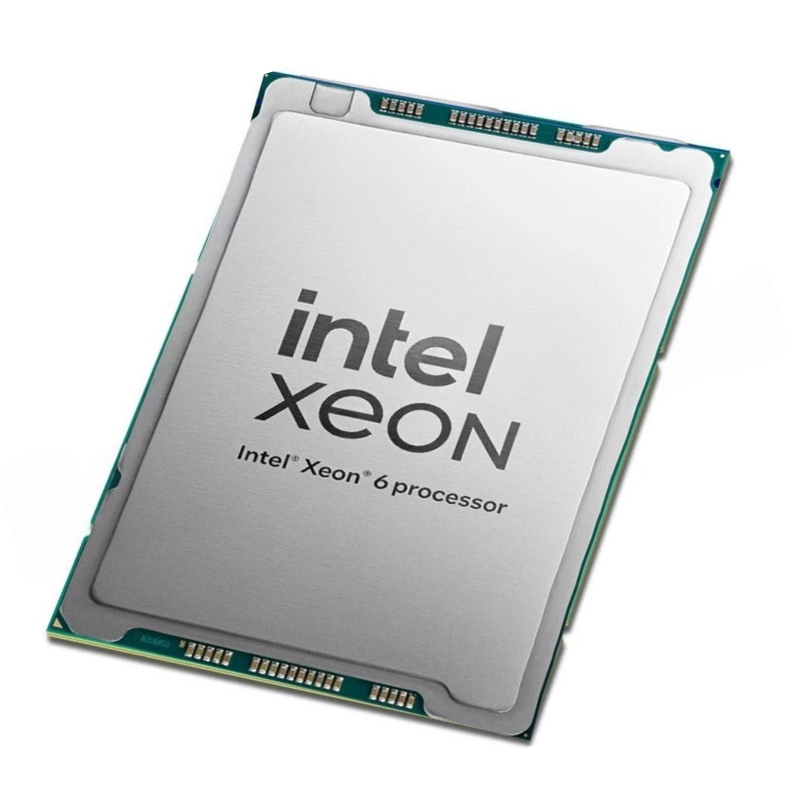

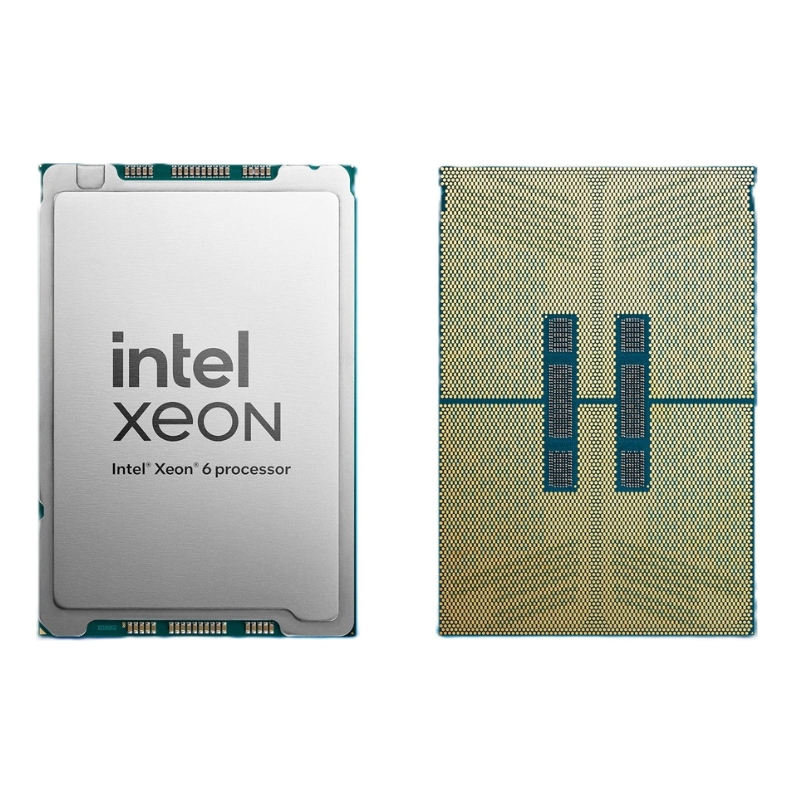

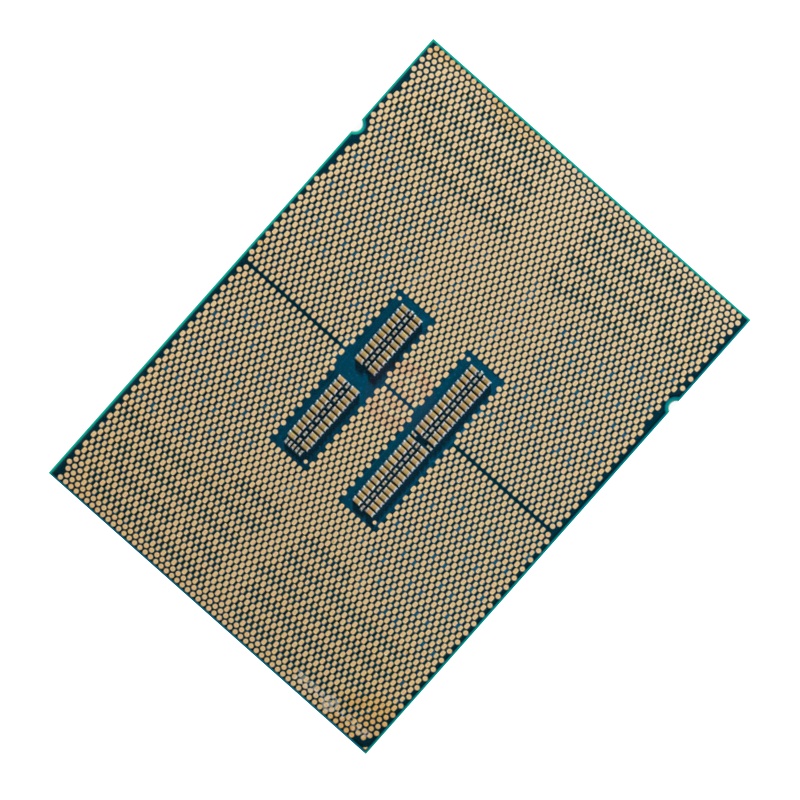

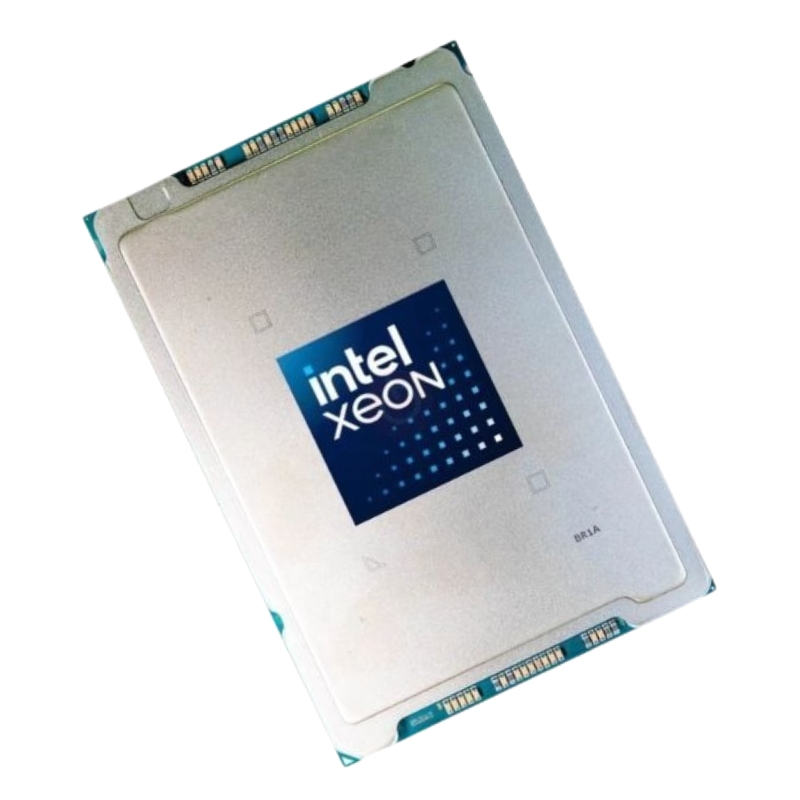

SRVNP Intel Xeon 6530P 2.3GHz 32-Core Processor

Technical Specifications (Quick Reference)

• Cores: 32
• Base Clock: 2.3 GHz
• Max Turbo: 4.1 GHz
• Instruction Set: 64-bit
• Extensions: Intel AMX, SSE4.2, AVX, AVX2, AVX-512
• UPI Speed: 24 GT/s
• UPI Links: 4
• L3 Cache: 144 MB
• Max Memory Capacity: 4 TB (platform-dependent)
• Memory Type: DDR5
• Max Memory Speed: 6400 MT/s
• ECC: Supported
• Intel® Optane™ PMem: Not supported
• Socket: FCLGA4710
• TDP: 225 W
• MPN: SRVNP
• Model: 6530P
• Process: Intel 3

Intel® 6530P (SRVNP) Server CPU — Key Highlights

• High-density 32-core compute engine built on Intel 3 lithography for efficient performance per watt.
• Base frequency of 2.3 GHz with boost up to 4.1 GHz for bursty, latency-sensitive tasks.
• FCLGA4710 socket compatibility for modern enterprise and cloud platforms.
• Cutting-edge DDR5-6400 MT/s memory support and robust ECC reliability.
• 144 MB shared L3 cache to accelerate multi-threaded and cache-hungry workloads.
• 4× UPI links at 24 GT/s for swift multi-socket interconnects.
• Advanced instruction sets: Intel AMX, AVX-512, AVX2, AVX, SSE4.2 for AI, HPC, analytics, and virtualization.
• 225 W TDP class with data-center-grade thermal headroom and power management.

Compute Architecture & Performance Profile

• Cores / Threads: 32 cores for dense consolidation and parallel compute.
• Base / Turbo: 2.3 GHz base, up to 4.1 GHz Max Turbo Frequency.
• Instruction Set Width: 64-bit ISA with wide-vector acceleration.
• Power Envelope: 225 W TDP for predictable thermal design in rack environments.

Vector, Matrix & AI Acceleration

• Intel AMX (Advanced Matrix Extensions): speeds up matrix ops common in AI inference and training.
• Intel AVX-512 / AVX2 / AVX: high-throughput vectorization for HPC, simulations, and media pipelines.
• SSE4.2: broad software ecosystem compatibility for legacy and modern workloads.

Interconnect & Scalability

• Intel® UPI: 24 GT/s link speed to minimize cross-socket latency.
• UPI Topology: 4 UPI links enable balanced multi-CPU configurations with ample bandwidth.
• Socket: FCLGA4710 for next-gen server boards and enterprise platforms.

Cache Hierarchy

To keep cores fed and reduce trips to main memory, the CPU integrates a generous shared last-level cache:

• L3 Cache: 144 MB (shared), tuned for analytics, in-memory databases, and virtualization density.

Memory Capability & Reliability

• Maximum Capacity: up to 4 TB (dependent on DIMM population and platform).
• Supported Types: DDR5 memory with speeds up to 6400 MT/s.
• ECC Support: Yes — enterprise-grade data integrity and fault detection.
• Intel® Optane™ Persistent Memory: Not supported on this model.

Memory Tuning Tips

• Favor symmetrical channel population for peak bandwidth at 6400 MT/s.
• Match DIMM ranks and capacities across channels to minimize latency variance.
• Use ECC RDIMMs/LRDIMMs qualified by your motherboard vendor for best stability.

Platform Fit & Ideal Workloads

• Virtualization & Cloud Nodes: 32 cores help consolidate VMs and containers without bottlenecks.
• Databases & In-Memory Analytics: Large L3 and fast DDR5 boost query throughput and cache hit rates.
• AI Inference & Data Engineering: AMX/AVX-512 accelerate tensor and vector operations.
• High-Performance Compute: Scientific codes, modeling, and simulation benefit from wide vectors and high turbo.
• Content Delivery & Microservices: Balanced frequency and core count maintain responsive P95 latency.

Compatibility & Integration Checklist

• Verify FCLGA4710 socket on the target motherboard or server chassis.
• Confirm BIOS/firmware revision supports the 6530P (SRVNP) stepping and microcode.
• Provision cooling for a 225 W TDP part; observe airflow guidelines for dense racks.
• Install qualified DDR5-6400 ECC DIMMs to realize full memory bandwidth.
• Plan UPI topology if deploying multi-socket nodes to avoid inter-socket contention.

Why Choose This Processor for Your Fleet?

• Balanced Design: Excellent blend of core count, frequency headroom, and memory bandwidth.
• Scalable Fabric: Four UPI links preserve inter-socket bandwidth for NUMA-aware apps.
• Modern Memory: DDR5-6400 improves throughput and reduces latency versus prior generations.
• Security & Stability: ECC memory support and data-center-grade platform validation.

Deployment Scenarios & Sizing Pointers

• Dual-Socket Clusters: Use UPI-optimized topologies for distributed databases and message brokers.
• Edge & Private Cloud: High per-socket capability reduces hardware footprint in space-constrained racks.
• Licensing-Aware Environments: 32 cores strike a smart balance for per-core licensed software.
