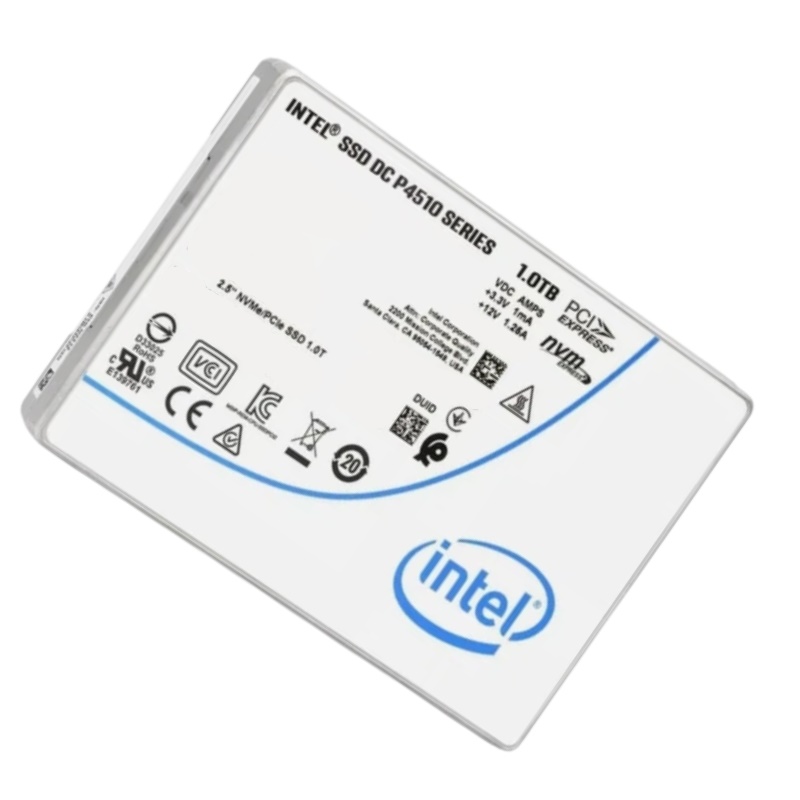

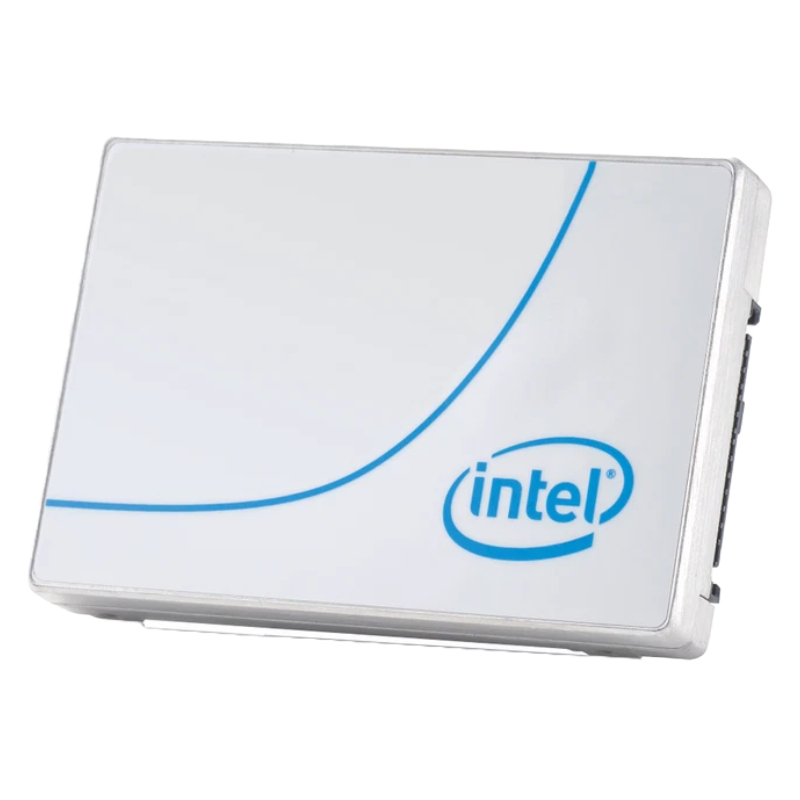

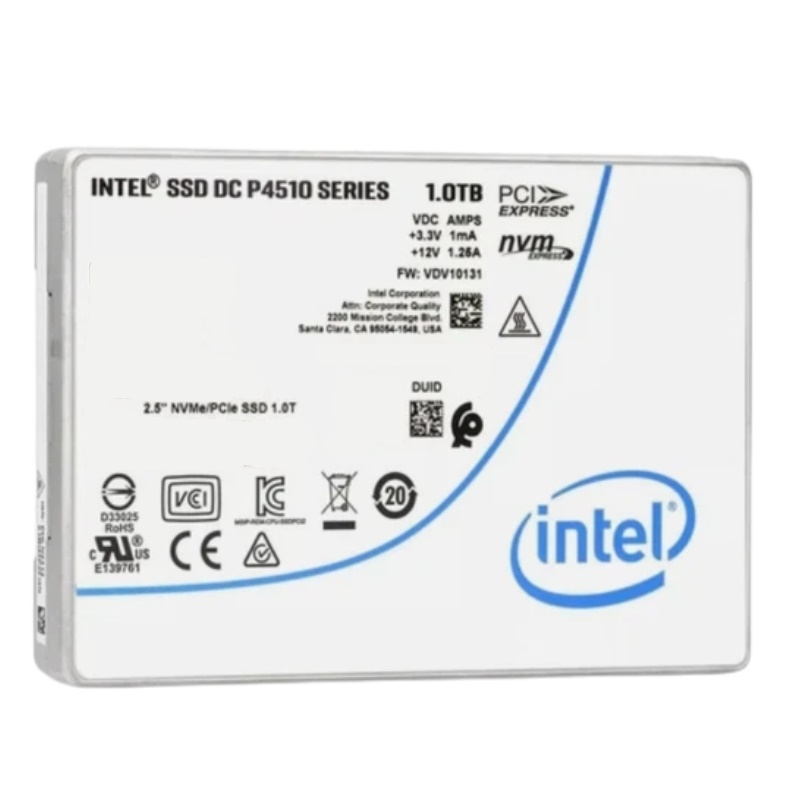

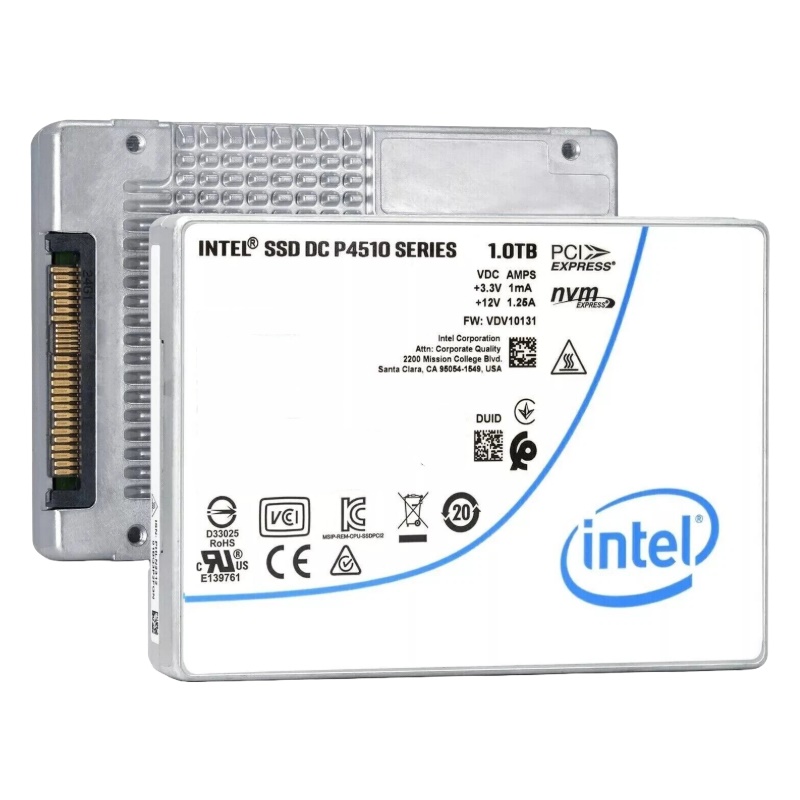

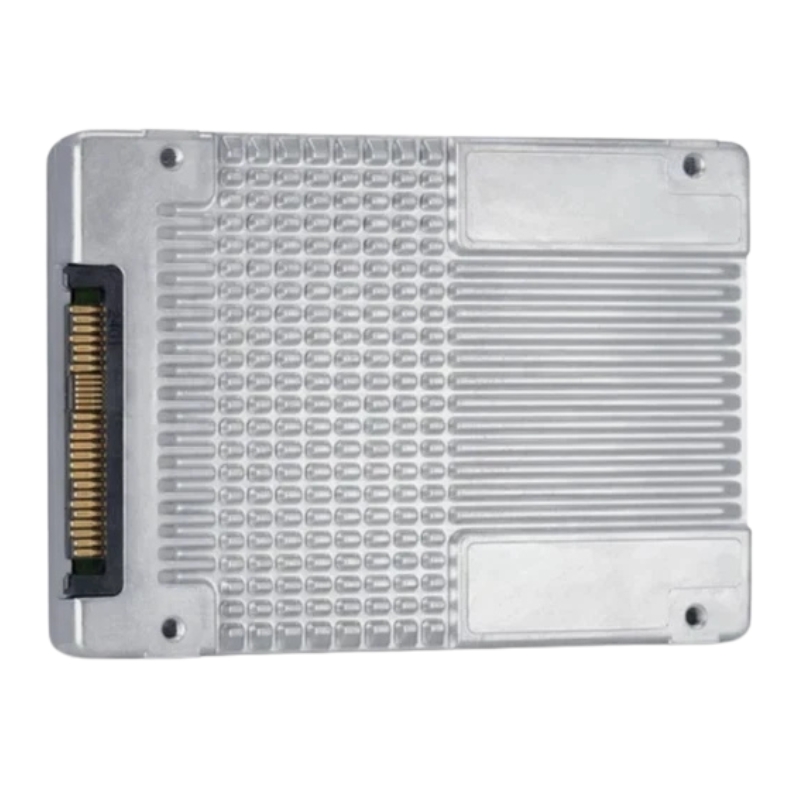

SSDPE2KX010T807 Intel DC P4510 Series 1TB PCIE NVMe TLC SFF SSD

Details of Intel 1TB PCIE TLC SFF SSD

The Intel SSDPE2KX010T807 DC P4510 Series 1TB PCIe NVMe TLC SFF SSD is a powerful enterprise-grade storage solution, delivering high-speed performance, advanced endurance, and secure data protection for mission-critical workloads.

Main Information

• Manufacturer: Intel
• Model Number: SSDPE2KX010T807
• Drive Type: DC P4510 Series TLC Solid State Drive

Technical Specifications

Storage & Memory

• Capacity: 1TB
• NAND Technology: 64-layer 3D TLC NAND

Form Factor & Interface

• Form Factor: 2.5-inch, 15mm thickness
• Interface Standard: PCIe NVMe 3.1 x4

Durability & Reliability

• Shock Resistance: 1000G / 0.5 msec
• Mean Time Between Failures (MTBF): 2,000,000 hours

Performance Metrics

Sequential Operations

• Read Speed: Up to 2850 MB/s
• Write Speed: Up to 1100 MB/s

Random Operations

• Random Read (100% Span): 465,000 IOPS
• Random Write (100% Span): 70,000 IOPS

Performance Highlights

• Optimized for enterprise workloads
• High throughput for data-intensive applications
• Reliable efficiency for continuous operations

Advanced Technologies

Data Protection & Security

• Enhanced power loss data protection
• Hardware encryption with 256-bit AES
• End-to-end data protection

Endurance & Monitoring

• High Endurance Technology (HET)
• Temperature monitoring and logging

Technology Benefits

• Secure storage for sensitive information
• Improved reliability under heavy workloads
• Advanced monitoring for system stability

Physical Characteristics

Weight

• Drive Weight: 139g

Intel DC P4510 Series High-Performance SSD Overview

The Intel SSDPE2KX010T807 DC P4510 Series 1TB SSD represents a pinnacle of enterprise-class storage designed to meet the demanding requirements of modern data centers. Leveraging PCIe NVMe 3.1 technology and advanced 3D2 NAND TLC memory, these SSDs deliver exceptional throughput, low latency, and unparalleled endurance, making them ideal for high-intensity workloads and critical applications. The 2.5-inch, 15mm form factor ensures compatibility with a wide array of servers and storage arrays, allowing enterprises to scale performance without compromise.

Advanced PCIe NVMe 3.1 Interface

The Intel DC P4510 series employs the PCIe NVMe 3.1 x4 interface, providing a substantial improvement over traditional SATA-based SSDs. This interface significantly enhances read and write speeds, allowing for accelerated data access and reduced bottlenecks in enterprise environments. NVMe 3.1 offers advanced features such as multiple queue support, optimized command sets, and efficient handling of parallel workloads, which is crucial for applications that require rapid data processing, such as database management, virtualization, and analytics.

Optimized Read and Write Performance

With sequential read speeds exceeding 3,200 MB/s and sequential write speeds up to 2,200 MB/s, the Intel DC P4510 SSD ensures that high-volume data transfers occur swiftly and reliably. Random read and write IOPS performance is equally impressive, supporting thousands of operations per second with minimal latency. These capabilities are essential for enterprise applications that demand consistent and predictable storage performance, including high-frequency trading platforms, cloud storage systems, and AI-driven analytics pipelines.

Low Latency for Real-Time Data Processing

Latency is a critical factor in enterprise storage, and the Intel DC P4510 Series excels in this regard. With read and write latencies measured in microseconds, these SSDs provide near-instantaneous access to data. This low latency reduces application response times and enhances the overall efficiency of data-intensive workloads, enabling businesses to deliver faster insights and improved user experiences in real-time processing scenarios.

3D2 NAND TLC Technology for Enhanced Endurance

The Intel SSDPE2KX010T807 utilizes 3D2 NAND TLC (Triple-Level Cell) technology, offering a balance between high storage density, endurance, and cost-effectiveness. Unlike traditional planar NAND, 3D2 NAND stacks memory cells vertically, increasing capacity while maintaining reliability. This architecture ensures that the SSD can sustain heavy write cycles typical of enterprise workloads without degradation, extending its operational lifespan and minimizing total cost of ownership.

Enterprise-Grade Reliability Features

Intel’s DC P4510 SSDs incorporate a suite of reliability enhancements designed specifically for enterprise usage. End-to-end data path protection safeguards against corruption, while power loss protection ensures that data in transit is securely written to NAND even during unexpected power failures. These features are vital for critical applications where data integrity cannot be compromised, such as financial systems, healthcare databases, and government infrastructure storage.

High Endurance Ratings

The endurance of the Intel P4510 Series is engineered to support demanding write-intensive workloads, with terabytes written (TBW) ratings that exceed typical enterprise requirements. This ensures that IT administrators can deploy these SSDs in multi-user, high-transaction environments without concern for premature wear. Endurance, combined with superior performance metrics, positions the DC P4510 as a dependable solution for cloud service providers and large-scale enterprise data centers.

Scalable Storage for Data Center Applications

The Intel DC P4510 1TB SSD is designed for scalability in modern data center architectures. Its high-capacity configuration allows organizations to consolidate storage while reducing the number of drives needed. The 2.5-inch 15mm form factor provides a high-density storage solution that fits into standard enterprise servers and storage arrays. By supporting NVMe over PCIe, these SSDs offer improved scalability in virtualized environments and hyperconverged infrastructures.

Optimized for Cloud and Virtualized Workloads

Cloud providers and virtualized environments benefit from the Intel DC P4510’s high IOPS and low latency performance. The SSD efficiently handles mixed workloads, including virtualization, containerized applications, and multi-tenant cloud storage. The ability to sustain simultaneous read and write operations across multiple virtual machines ensures consistent performance, even under heavy load, which is critical for maintaining service level agreements (SLAs) in enterprise cloud services.

Energy Efficiency and Thermal Management

Despite its high-performance capabilities, the Intel P4510 Series is engineered with energy efficiency in mind. The 2.5-inch 15mm design supports efficient thermal management, minimizing heat generation in dense server environments. This efficiency reduces cooling requirements, lowers operational costs, and contributes to greener data center operations. Energy-conscious enterprises benefit from a storage solution that balances high throughput with minimal power consumption, supporting sustainability initiatives without compromising performance.

Compatibility and Integration

Designed for broad compatibility, the Intel DC P4510 SSD seamlessly integrates with a wide range of enterprise platforms. The drive supports standard NVMe protocols and is recognized by major server operating systems and hypervisors, simplifying deployment and management. IT administrators can leverage existing infrastructure while upgrading to NVMe performance, reducing the need for extensive reconfiguration or additional hardware investments.

Enterprise-Grade Firmware and Management Tools

Intel provides robust firmware and management utilities to maximize the operational potential of the DC P4510 Series. Tools for monitoring drive health, tracking endurance, and managing firmware updates empower IT teams to maintain optimal performance and reliability. Firmware features such as dynamic thermal throttling and adaptive power management enhance stability under diverse operating conditions, ensuring that enterprise workloads run uninterrupted and efficiently.

Security Features for Data Protection

Data security is a core aspect of enterprise storage, and the Intel DC P4510 SSD includes built-in security features to protect sensitive information. Self-encrypting drive (SED) technology and secure erase capabilities allow organizations to maintain compliance with regulatory standards while safeguarding critical data. These security mechanisms help mitigate risks in cloud, virtualized, and on-premises environments, ensuring that confidential data remains protected from unauthorized access.

Application-Specific Performance Optimization

The Intel DC P4510 series is optimized for a wide range of enterprise workloads. Databases, transaction processing, analytics, and virtual desktop infrastructure (VDI) applications all benefit from the SSD’s high throughput, low latency, and reliability. The drive’s ability to sustain predictable performance under mixed workloads ensures that applications run smoothly, maintaining responsiveness for end users and preventing bottlenecks in high-demand environments.

Enterprise Data Center Use Cases

Data centers handling large-scale storage requirements, such as cloud hosting, online transaction processing (OLTP), and high-frequency trading, can leverage the Intel P4510’s performance characteristics to achieve operational excellence. The combination of NVMe speed, 3D2 NAND endurance, and enterprise-grade reliability allows organizations to support critical services with minimal latency and maximum uptime, meeting the rigorous demands of modern digital infrastructures.

Integration in High-Performance Computing (HPC)

For high-performance computing environments, where data throughput and computational speed are paramount, the Intel DC P4510 SSD offers a substantial advantage. Its high IOPS and sequential performance accelerate workloads in scientific research, simulations, and AI/ML training tasks. The NVMe interface ensures that large datasets are processed efficiently, enabling researchers and engineers to achieve faster results while maintaining data integrity and reliability.

Future-Proof Storage Infrastructure

Investing in Intel DC P4510 SSDs ensures that enterprise storage infrastructures remain future-ready. NVMe 3.1 support, combined with scalable 3D2 NAND capacity, positions organizations to handle evolving workloads, increased virtualization demands, and next-generation cloud applications. By adopting high-performance SSDs like the P4510 Series, data centers can extend the life of their storage infrastructure while maintaining peak performance and operational efficiency for years to come.
