X540T2G1P5 Intel Dual Port PCIe Network Adapters - 10 Gigabit Ethernet

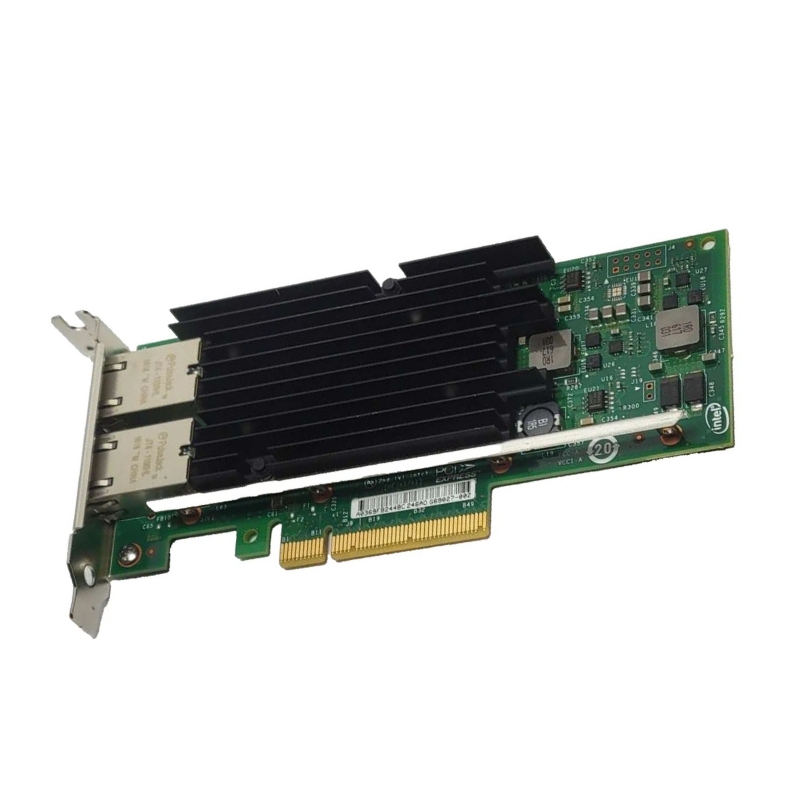

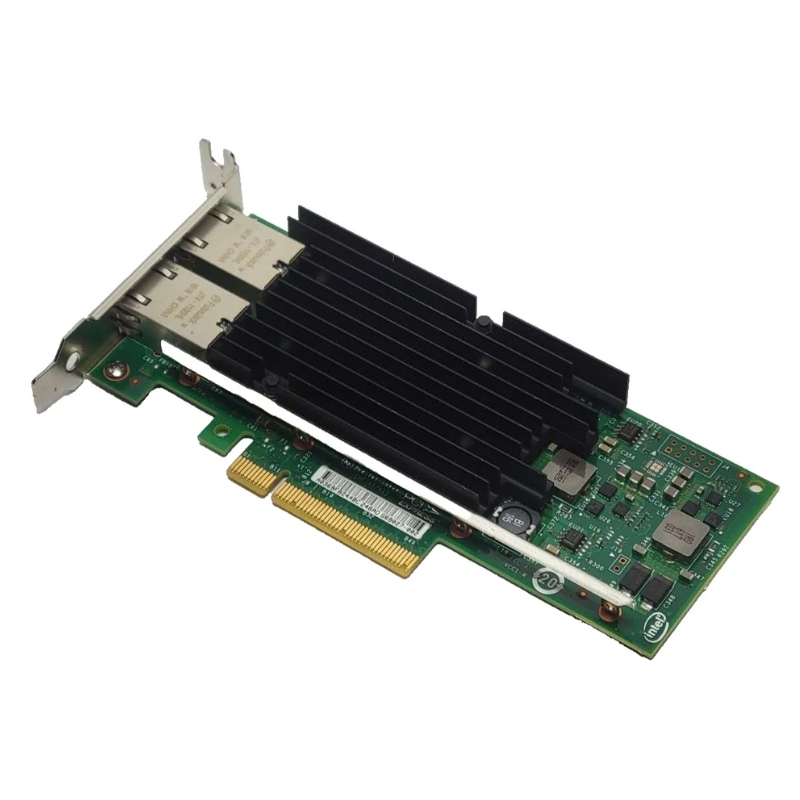

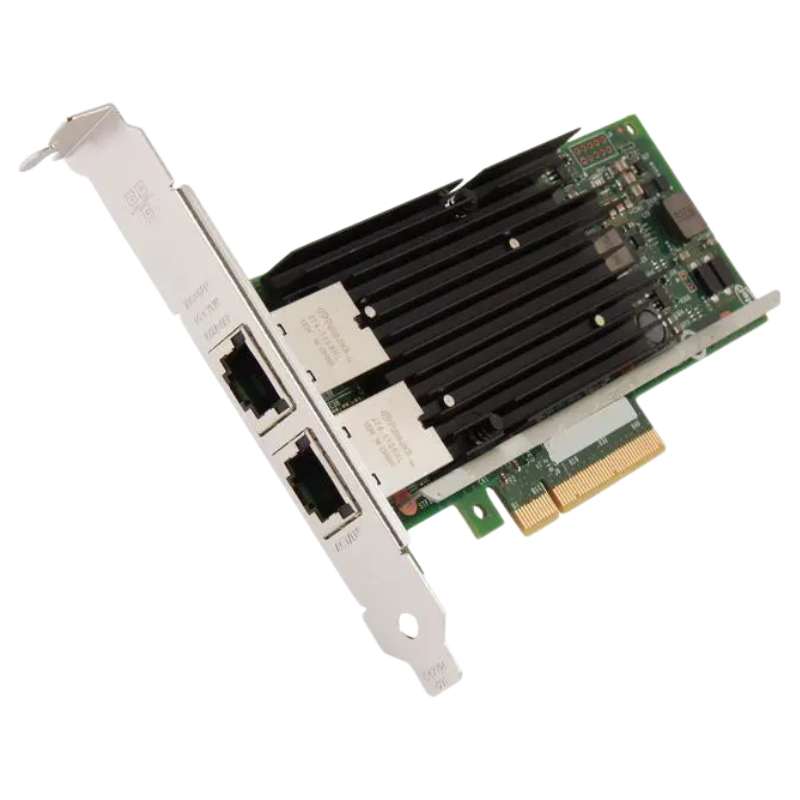

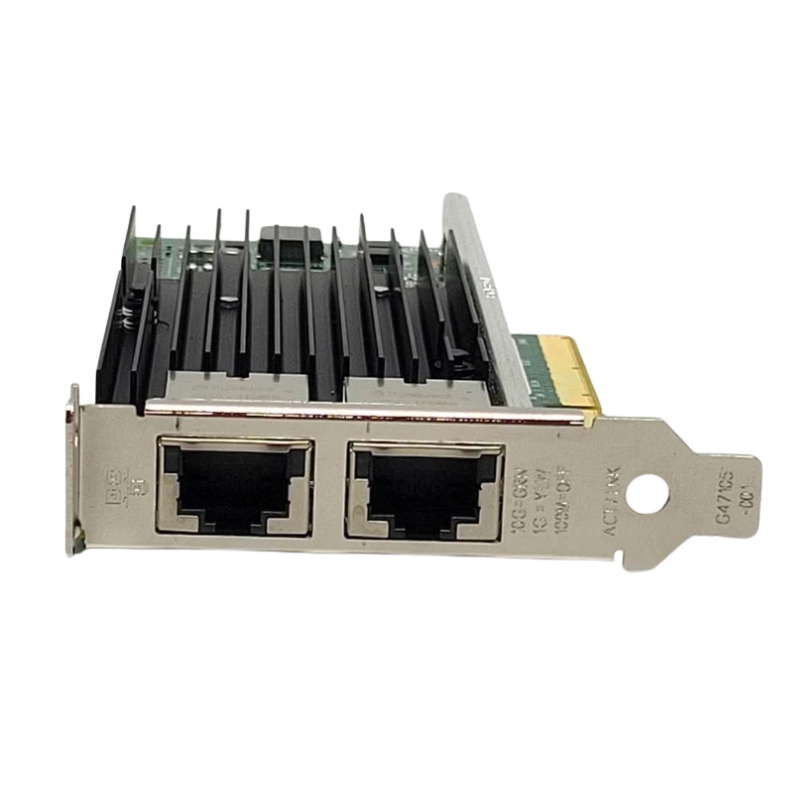

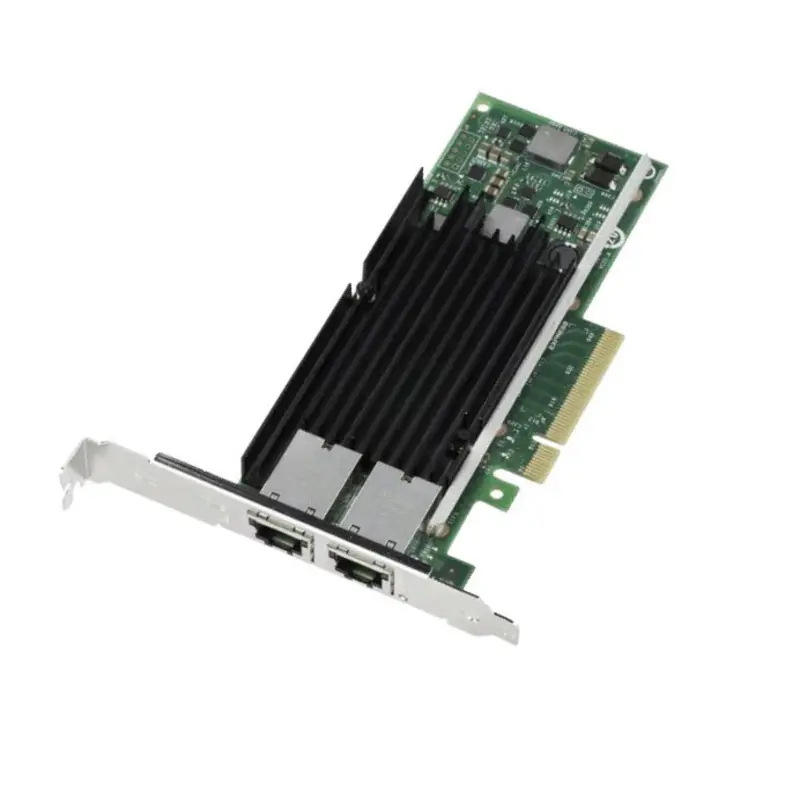

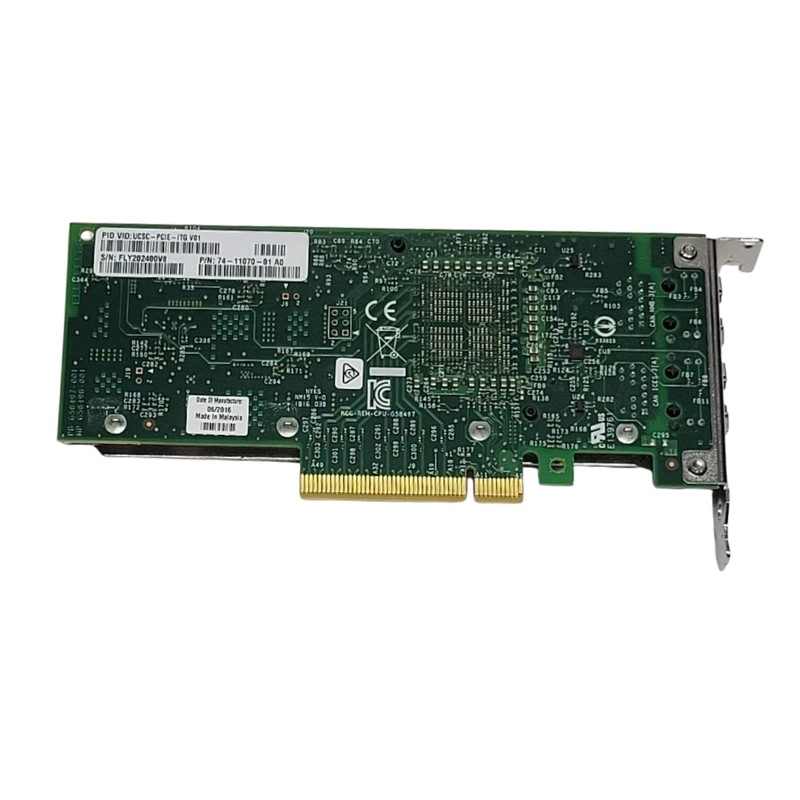

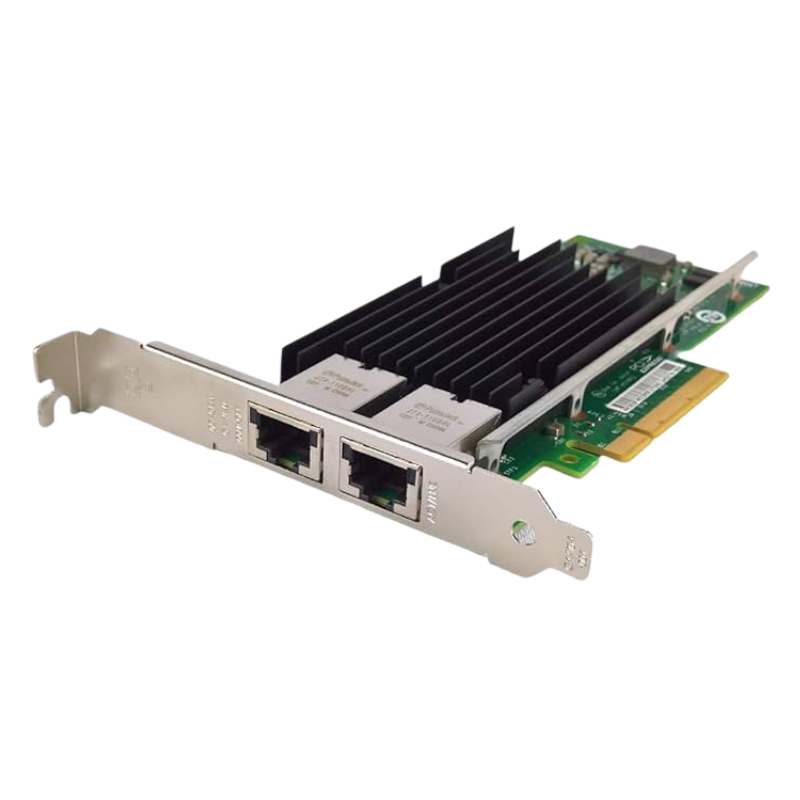

Intel X540T2G1P5 Converged 2-Port Network Adapter Overview

The Intel X540T2G1P5 Converged Network Adapter is engineered to deliver robust, high-speed networking performance for enterprise environments, data centers, and advanced workstation infrastructures. Designed with a dual-port architecture, this internal network interface card ensures reliable connectivity, optimized throughput, and reduced latency for demanding workloads.

General Specification

• Manufacturer: Intel
• Part Number: X540T2G1P5
• Device Type: Network Adapter

Technical Specifications

• Interface Type: PCI Express (PCIe)
• Model: Intel X540T2G1P5 Converged Adapter
• Port Count: 2 x Ethernet ports
• Form Factor: Internal PCI Express-based card
• Data Link Protocol: 10 Gigabit Ethernet
• Network Technology: 10GBASE-T copper-based networking
• Data Transfer Rate: Up to 10 Gbps per port
• Bandwidth Optimization: Supports high-volume traffic environments with minimal packet loss

Performance Advantages

• Improved throughput for data-intensive applications
• Reduced network congestion through dual-port balancing
• Efficient handling of virtualization workloads and server traffic
• Enhanced reliability for mission-critical systems

Seamless System Compatibility

• High-speed internal bus connection for maximum data flow efficiency
• Compatible with enterprise-grade server and workstation motherboards
• Plug-in module design for simplified installation and upgrades

Connectivity Advantages

• Direct motherboard integration reduces latency overhead
• Stable physical connection for continuous data transmission
• Supports scalable network infrastructure expansion

Designed for Modern IT Environments

• Supports converged networking environments combining multiple traffic types
• Enhances server efficiency in cloud and virtualization platforms
• Reduces CPU utilization through hardware offloading capabilities
• Improves packet processing efficiency under heavy network loads

Reliability and Stability Enhancements

• Consistent high-speed data delivery across both ports
• Minimized downtime through stable dual-channel architecture
• Optimized for continuous operation in enterprise networks

Ideal Application Scenarios

• Data center networking and server interconnects
• Virtualized infrastructure and cloud computing platforms
• High-performance enterprise workstations
• Storage area networks requiring fast data throughput
• Enterprise routing and switching environments

Operational Benefits in Real Environments

• Accelerates data-heavy application performance
• Improves multitasking efficiency in server systems
• Enables scalable network architecture upgrades

Performance-Driven Design Benefits

• High-speed dual 10GbE ports for maximum bandwidth utilization
• Reliable PCIe-based internal connectivity for stable operation
• Optimized for enterprise-grade networking workloads
• Supports next-generation data infrastructure requirements

Efficiency and Scalability Benefits

• Reduces network bottlenecks in high-traffic environments
• Enables smooth scaling of IT infrastructure
• Supports long-term deployment in enterprise systems
• Improves overall system responsiveness under load

Core Highlights of the Network Interface Card

• Dual-port 10 Gigabit Ethernet connectivity for enhanced bandwidth efficiency
• Internal form factor designed for PCI Express slot integration
• Optimized for virtualization, cloud computing, and enterprise networking
• Stable and scalable data transmission performance
• Converged networking support for unified data and traffic handling

Overview of Intel X540T2G1P5 2-Port Network Adapter

The Intel X540T2G1P5 Converged 2-Port Network Adapter category represents a high-performance class of server networking solutions designed to deliver reliable, scalable, and cost-efficient 10 Gigabit Ethernet connectivity for modern enterprise infrastructures. Built around Intel’s advanced Ethernet controller architecture, this category of converged network adapters is engineered to meet the growing demands of virtualization, cloud computing, data center consolidation, and high-throughput storage networking environments. These adapters are widely deployed in mission-critical systems where consistent low latency, high bandwidth, and protocol offloading capabilities are essential for maintaining operational efficiency.

As organizations transition from traditional Gigabit Ethernet to higher-speed interconnects, dual-port 10GbE copper-based adapters such as the X540T2G1P5 class provide a seamless upgrade path while maintaining compatibility with existing RJ45 cabling infrastructure. This ensures reduced deployment costs while significantly improving network performance. The convergence capability of this adapter category allows simultaneous handling of data, storage, and virtualized traffic streams over a unified network interface, simplifying architecture design and reducing hardware complexity.

Architecture and Design Principles

Dual-Port 10GbE Converged Connectivity Architecture

The dual-port configuration in the Intel X540T2G1P5 category enables simultaneous high-speed communication across two independent 10GbE interfaces. This architecture supports load balancing, link aggregation, redundancy, and failover mechanisms that enhance network resilience and availability. Each port operates independently while sharing the processing capabilities of the integrated controller, ensuring optimal throughput distribution across network workloads.

This design is particularly beneficial in environments requiring continuous uptime, such as enterprise virtualization clusters and storage replication systems. By distributing traffic across two ports, the adapter minimizes bottlenecks and ensures consistent packet delivery even under peak load conditions. The architecture also supports advanced traffic segmentation strategies, enabling administrators to isolate workloads for improved performance tuning and security enforcement.

PCI Express Interface and Bandwidth Optimization

The Intel X540T2G1P5 adapter category is typically built on a PCI Express interface, which provides a high-bandwidth communication channel between the network adapter and the host system. The PCIe architecture ensures minimal latency and maximized data transfer efficiency, allowing the adapter to fully utilize 10GbE throughput across both ports without performance degradation.

Bandwidth optimization is achieved through intelligent lane allocation and efficient packet processing pipelines. The adapter dynamically balances traffic across PCIe lanes to prevent congestion and ensure stable data flow. This is critical in high-density server environments where multiple virtual machines and applications compete for network resources simultaneously.

Key Features of the Intel X540T2G1P5 Category

Converged Networking Support

One of the defining characteristics of this adapter category is its support for converged networking technologies. Converged networking enables the consolidation of multiple network types, including LAN, SAN, and management traffic, into a single unified infrastructure. This reduces the need for multiple network interface cards and simplifies cabling complexity within data centers.

By supporting protocols such as iSCSI and Fibre Channel over Ethernet (FCoE), the adapter allows storage and data traffic to coexist efficiently on the same physical network. This convergence not only reduces hardware costs but also improves scalability and simplifies network management tasks.

Virtualization Optimization and SR-IOV Technology

The Intel X540T2G1P5 category is designed with virtualization in mind, supporting advanced technologies such as Single Root I/O Virtualization (SR-IOV). SR-IOV enables a single physical network adapter to be partitioned into multiple virtual functions, each of which can be assigned directly to virtual machines. This reduces hypervisor overhead and improves I/O performance in virtualized environments.

Virtualization optimization ensures that network traffic is handled efficiently even in dense virtual machine deployments. By bypassing the hypervisor in certain data paths, SR-IOV significantly reduces latency and improves packet processing efficiency. This makes the adapter ideal for cloud service providers and enterprise virtualization clusters running workloads such as database systems, application servers, and containerized services.

Virtual Machine Density and Workload Efficiency

The ability to support high virtual machine density is a key advantage of this adapter category. Each virtual function operates as an independent network interface, enabling isolated traffic handling and predictable performance. This ensures that workloads running on different virtual machines do not interfere with each other, maintaining consistent application responsiveness and throughput.

Advanced TCP/IP Offload Engine Capabilities

The integrated TCP/IP offload engine within the Intel X540T2G1P5 category reduces CPU utilization by offloading common networking tasks such as checksum calculation, segmentation, and packet reassembly. This allows server processors to focus on application-level processing rather than network stack management.

By reducing CPU overhead, the adapter improves overall system efficiency and enables higher application performance. This is particularly beneficial in high-throughput environments such as web hosting platforms, virtualization clusters, and distributed computing systems where CPU cycles are a critical resource.

Energy Efficiency and Thermal Optimization

Energy efficiency is an important design consideration in modern data center environments. The Intel X540T2G1P5 category incorporates advanced power management features that dynamically adjust power consumption based on network load. When traffic levels are low, the adapter reduces power usage to minimize energy costs without compromising performance readiness.

Thermal optimization ensures stable operation even under sustained high-load conditions. Intelligent heat distribution and adaptive power scaling help maintain optimal operating temperatures, reducing the risk of thermal throttling and hardware degradation over time.

Use Cases and Application Scenarios

Enterprise Data Centers

In enterprise data centers, the Intel X540T2G1P5 category plays a critical role in enabling high-speed communication between servers, storage systems, and network infrastructure components. The dual-port 10GbE configuration supports high availability architectures, ensuring uninterrupted service delivery for mission-critical applications.

These adapters are commonly deployed in server racks where virtualization clusters, database servers, and application hosting platforms require consistent low-latency connectivity. Their ability to handle converged traffic makes them ideal for modern data center consolidation strategies.

Cloud Computing Infrastructure

Cloud service providers rely heavily on high-performance network adapters to ensure scalability and reliability across distributed environments. The Intel X540T2G1P5 category supports the demands of cloud computing by enabling efficient VM migration, distributed storage access, and multi-tenant network isolation.

Its virtualization features and high throughput capabilities make it suitable for Infrastructure-as-a-Service (IaaS) platforms where dynamic workload allocation is a core requirement. The adapter ensures consistent performance even during peak demand periods.

High-Performance Storage Networking

Storage networking is another key application area for this adapter category. With support for iSCSI and FCoE, it enables efficient access to centralized storage systems over Ethernet infrastructure. This eliminates the need for dedicated storage networks, reducing complexity and cost.

High-speed data transfer ensures that storage-intensive applications such as database management systems, virtual desktop infrastructures, and backup solutions operate with minimal latency and maximum reliability.

Data Replication and Backup Systems

The adapter's dual-port redundancy is particularly useful in backup and replication systems where data integrity and availability are critical. By providing multiple network paths, it ensures continuous data replication even in the event of a link failure.

Performance Benefits and Optimization Capabilities

High Throughput Efficiency

The Intel X540T2G1P5 category delivers exceptional throughput performance, supporting full 10 Gigabit Ethernet speeds on both ports simultaneously. This high bandwidth capability ensures efficient handling of large data transfers, making it suitable for environments with heavy network traffic demands.

Throughput optimization is achieved through advanced packet processing engines and hardware acceleration features that reduce latency and maximize data flow efficiency. This ensures stable performance even under sustained heavy workloads.

Low Latency Network Processing

Low latency is essential for applications requiring real-time data processing. The adapter minimizes packet processing delays through hardware-level optimizations and efficient data path management. This is particularly important in financial systems, high-frequency trading platforms, and real-time analytics environments.

By reducing the number of CPU cycles required for network processing, the adapter ensures faster response times and improved application performance across all connected systems.

CPU Offload and System Efficiency

CPU offloading is a critical feature of this adapter category. By handling network-related tasks at the hardware level, the adapter significantly reduces CPU utilization. This allows system resources to be redirected toward application processing, improving overall server efficiency.

This feature is particularly valuable in virtualized environments where multiple workloads share the same physical hardware. Reduced CPU overhead translates into higher virtual machine density and improved system scalability.

Compatibility and Integration

The Intel X540T2G1P5 category is designed for broad compatibility across enterprise server platforms. It supports major operating systems, virtualization hypervisors, and network management frameworks, ensuring seamless integration into existing IT infrastructures.

Compatibility with standard RJ45 Ethernet cabling allows organizations to leverage existing network infrastructure while upgrading to 10GbE performance. This reduces deployment costs and simplifies migration strategies from legacy Gigabit Ethernet systems.

Operating System and Hypervisor Support

The adapter is widely supported across major operating systems, including enterprise Linux distributions, Windows Server environments, and virtualization platforms such as VMware and Hyper-V. This ensures flexibility in deployment across heterogeneous IT environments.

Deployment Scenarios and Network Design

Rack Server Integration

In rack-mounted server environments, the dual-port design of the adapter enables efficient use of limited PCIe slots while maximizing network connectivity. This is particularly important in high-density server configurations where space optimization is critical.

High Availability Network Topologies

The adapter supports redundant network configurations that enhance system availability. By leveraging dual ports, administrators can design failover systems that ensure continuous connectivity even in the event of hardware or link failures.

Load Balancing Strategies

Load balancing across both ports allows efficient distribution of network traffic, reducing congestion and improving overall system performance. This ensures that no single port becomes a bottleneck under heavy workloads.

Security and Data Integrity Features

Security is a fundamental aspect of modern network infrastructure. The Intel X540T2G1P5 category incorporates features designed to enhance data integrity and protect against network-level vulnerabilities.

Support for VLAN tagging enables logical segmentation of network traffic, improving security isolation between different workloads. This is essential in multi-tenant environments where data separation is critical.

Advanced Packet Filtering and Traffic Control

The adapter supports intelligent packet filtering mechanisms that allow administrators to control traffic flow based on predefined policies. This enhances network security and ensures that only authorized traffic is processed.
