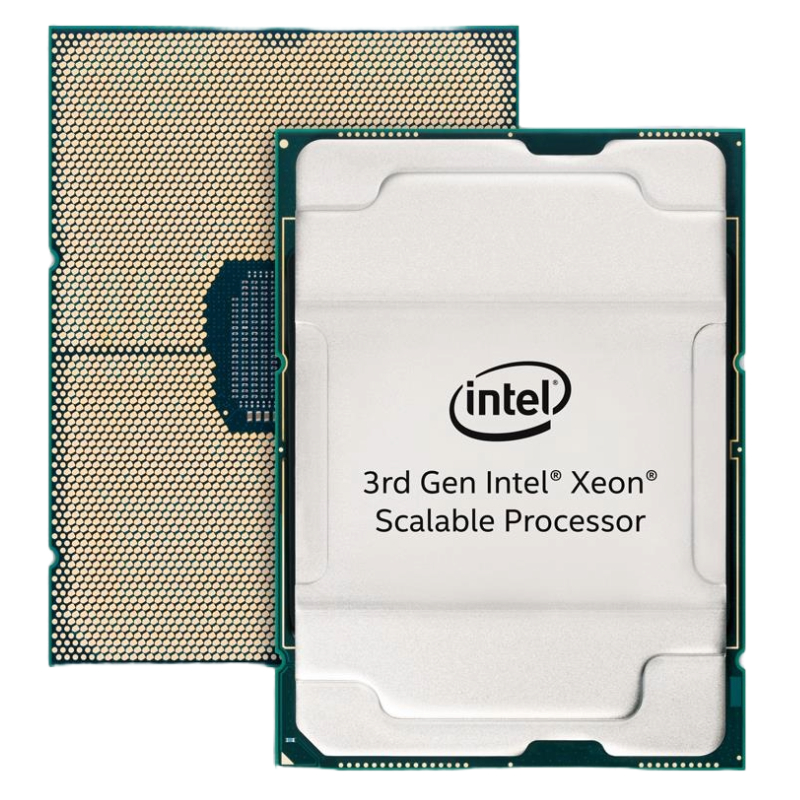

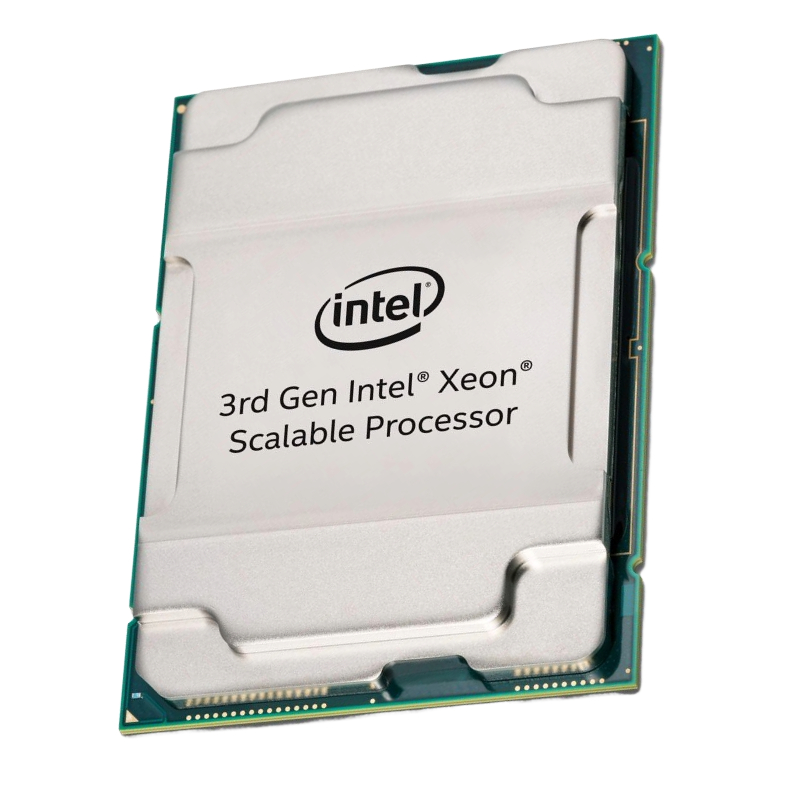

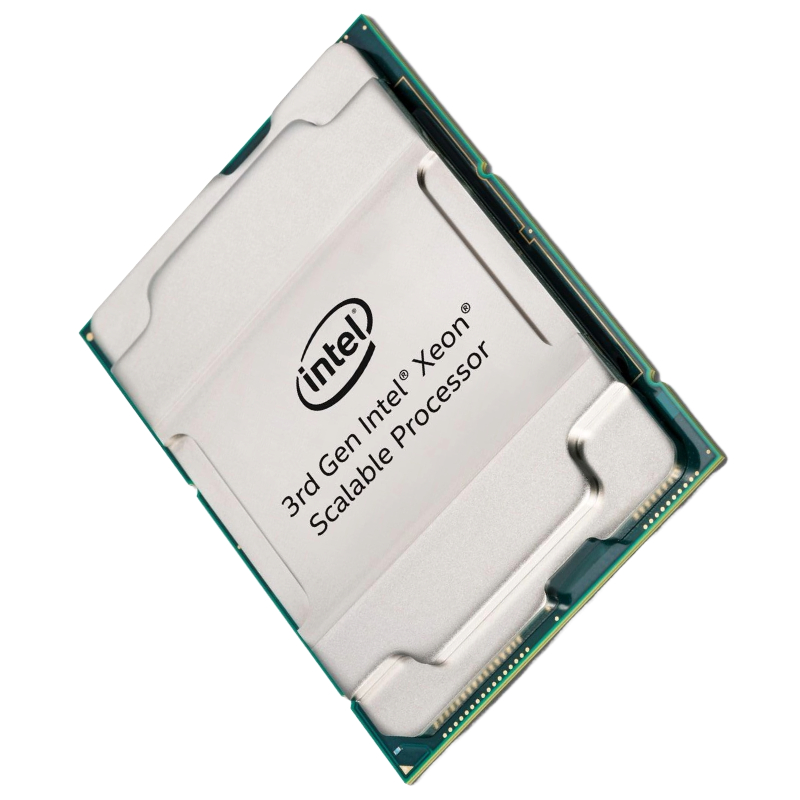

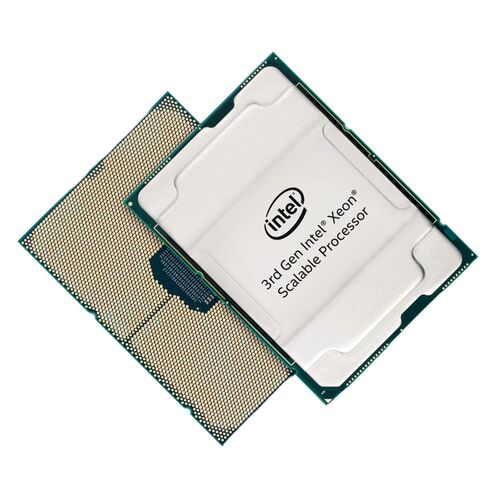

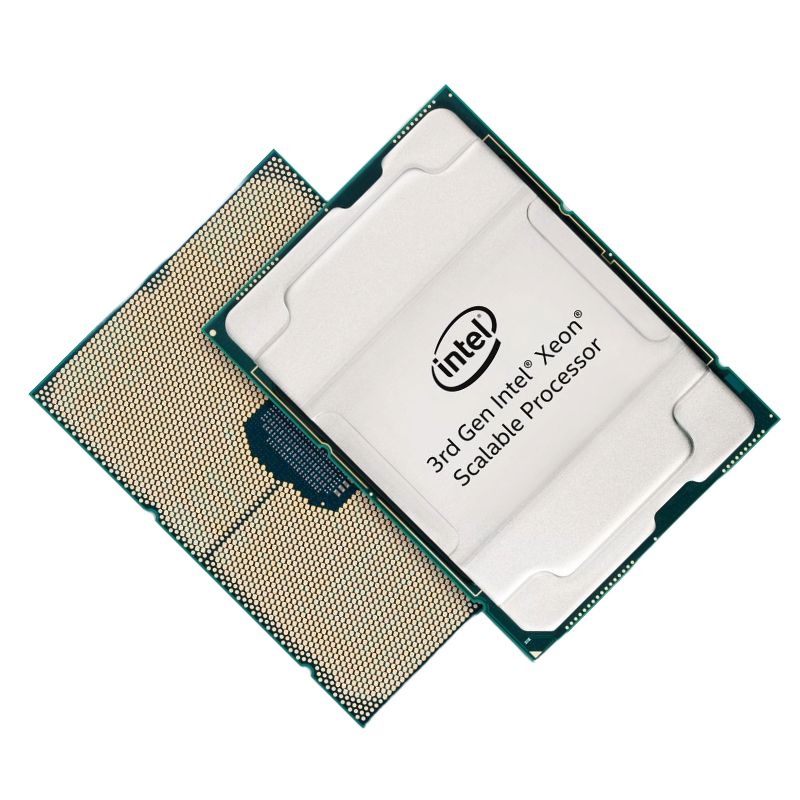

Intel Xeon CD8070604559900 Platinum 3.00 GHz SRK59 225W 24 Core Server CPU

Intel Xeon CD8070604559900 Platinum Server CPU

The Intel Xeon CD8070604559900 Platinum 3.00 GHz SRK59 225W 24 Core Server CPU is a high-performance processor designed for demanding enterprise-level applications. It offers exceptional processing power, advanced security features, and reliability, making it ideal for data centers, cloud computing, and high-end server deployments. With 24 cores, 48 threads, and a high base clock speed of 3.00 GHz, this CPU provides outstanding performance for multitasking, virtualization, and data-intensive workloads.

Intel Xeon Platinum 8360H Processor Overview

General Information

• Product Line: 3rd Gen Intel® Xeon® Scalable Processors
• Part Number: CD8070604559900
• Segment: Server
• Processor Model: 8360H
• Manufacturing Process: 14 nm

Performance Specifications

Core and Frequency Details

• Total Cores: 24
• Total Threads: 48
• Base Clock Frequency: 3.00 GHz
• Max Turbo Frequency: 4.20 GHz
• Cache Size: 33 MB
• Number of UPI Links: 6
• Thermal Design Power (TDP): 225 W

Memory and Expansion

Memory Specifications

• Maximum Memory Size: 1.12 TB (dependent on memory type)
• Supported Memory Types: DDR4 RDIMM
• Maximum Memory Speed: 3200 MHz
• Number of Memory Channels: 6
• Intel® Optane™ Persistent Memory: Supported
• ECC Memory Support: Yes

Expansion and Connectivity

• Scalability: S8S
• PCI Express Revision: 3.0
• Number of PCI Express Lanes: 48

Package and Physical Attributes

• Socket Type: FCLGA4189
• Package Dimensions: 77.5 x 56.5 mm

Advanced Technologies

Technology and Features

• Intel® Volume Management Device (VMD): Yes
• Intel® Deep Learning Boost (DL Boost): Yes
• Intel® Resource Director Technology (RDT): Yes
• Intel® Optane™ Memory Support: Yes
• Intel® Speed Shift Technology: Yes
• Intel® Hyper-Threading Technology: Yes
• Intel® Transactional Synchronization Extensions: Yes
• Intel® 64: Yes
• Instruction Set Extensions: SSE4.2, AVX, AVX2, AVX-512
• Number of AVX-512 FMA Units: 2
• Enhanced Intel SpeedStep® Technology: Yes

Security and Reliability Features

• Intel® AES New Instructions: Yes
• Execute Disable Bit: Yes
• Intel® Run Sure Technology: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel® Virtualization Technology (VT-x): Yes
• Intel® Virtualization Technology for Directed I/O (VT-d): Yes
• Intel® VT-x with Extended Page Tables (EPT): Yes

Key Features of Intel Xeon Platinum SRK59 3.00 GHz Processor

High Core Count and Multithreading Capabilities

The Intel Xeon Platinum SRK59 processor features 24 cores and 48 threads, providing exceptional parallel processing power. This makes it an ideal choice for environments that require handling multiple complex tasks simultaneously, such as virtualization, AI processing, and large-scale data analytics.

Advanced Turbo Boost Technology

Equipped with Intel Turbo Boost Technology, the Xeon SRK59 can dynamically increase its clock speed beyond the base frequency of 3.00 GHz, maximizing performance during heavy workloads. This feature ensures that applications requiring additional computing power receive it when needed, optimizing overall system responsiveness.

225W Thermal Design Power (TDP) for Optimal Performance

With a 225W TDP, the Intel Xeon Platinum SRK59 processor strikes a balance between power consumption and performance. This TDP rating allows the CPU to operate at higher clock speeds while maintaining thermal efficiency, making it suitable for demanding server environments where performance is a critical factor.

Support for Intel Optane Persistent Memory

The Intel Xeon Platinum SRK59 processor supports Intel Optane Persistent Memory, which significantly enhances data storage and retrieval speeds. This feature is particularly beneficial for in-memory databases, real-time analytics, and other applications where data access speed is crucial.

Performance and Efficiency of the Intel Xeon SRK59 CPU

Optimized for Data-Intensive Workloads

The 3.00 GHz base clock speed and advanced multithreading capabilities of the Intel Xeon SRK59 processor make it ideal for data-intensive workloads. Whether running large-scale simulations, managing extensive databases, or processing real-time analytics, this processor delivers reliable and consistent performance.

Enhanced Performance with AVX-512

The Intel Xeon SRK59 supports AVX-512 (Advanced Vector Extensions 512), which accelerates data processing tasks and enhances performance for scientific simulations, financial modeling, AI, and machine learning applications. AVX-512 allows for improved parallelism, boosting the CPU’s efficiency in handling complex computations.

Security Features for Mission-Critical Applications

Intel SGX (Software Guard Extensions)

Intel SGX enhances security by providing application-level data protection, enabling secure enclaves within the CPU for sensitive computations. This feature helps safeguard data from unauthorized access, making the Xeon SRK59 an excellent choice for industries with stringent security requirements.

Intel Trusted Execution Technology (Intel TXT)

Intel TXT adds an extra layer of security by providing hardware-based mechanisms to protect the system against software-based attacks. It ensures that the system starts in a known, trusted state, offering robust protection for critical data and processes.

Compatibility and Integration Capabilities

Support for Scalable System Configurations

The Intel Xeon SRK59 CPU is designed for scalable multi-socket configurations, making it a suitable choice for high-performance servers that require extensive computing resources. Its scalability supports configurations of up to 8 sockets, allowing businesses to scale their infrastructure according to their needs.

Seamless Integration with Intel C620 Series Chipsets

The Xeon SRK59 processor is optimized for Intel C620 series chipsets, providing enhanced I/O, storage, and networking capabilities. This compatibility ensures that the processor can fully leverage chipset features to optimize overall server performance and efficiency.

Applications and Use Cases

Cloud Computing and Virtualization

The Intel Xeon SRK59 Platinum processor excels in cloud computing and virtualization environments, where its high core count and advanced multithreading capabilities enable efficient resource allocation. It supports multiple virtual machines and containers, providing businesses with the flexibility to scale their cloud infrastructure seamlessly.

High-Performance Computing (HPC)

With support for AVX-512 and Intel Optane Persistent Memory, the Xeon SRK59 is well-suited for high-performance computing tasks such as scientific research, engineering simulations, and financial modeling. Its ability to handle large datasets and complex calculations makes it a valuable asset in HPC environments.

Artificial Intelligence and Machine Learning

The advanced processing capabilities of the Intel Xeon SRK59 make it an excellent choice for AI and machine learning applications. Its support for deep learning frameworks and optimized performance for data-heavy computations ensure faster training and inference times, enhancing AI-driven insights and decision-making.

Power Efficiency and Thermal Management

Enhanced Power Management Features

The Intel Xeon SRK59 processor includes advanced power management features that dynamically adjust power consumption based on workload demands. This helps reduce energy usage in low-demand scenarios while maintaining peak performance during high-demand periods, optimizing overall energy efficiency.

Thermal Management Technologies

Intel’s thermal management technologies in the Xeon SRK59 help maintain optimal operating temperatures, even under heavy workloads. Features such as dynamic thermal monitoring and advanced cooling technologies ensure the processor remains within safe temperature limits, preventing thermal throttling and maximizing performance.

Liquid Cooling Compatibility

For data centers requiring enhanced cooling solutions, the Xeon SRK59 is compatible with advanced liquid cooling systems. This compatibility allows for more efficient heat dissipation, especially in environments where traditional air cooling may not suffice.

Reliability and Durability for Enterprise Use

Intel Run Sure Technology

Intel Run Sure Technology enhances the reliability of the Xeon SRK59 processor by providing advanced diagnostics and fault management features. This ensures continuous operation in mission-critical environments, minimizing downtime and enhancing overall system stability.

Error-Correcting Code (ECC) Memory Support

ECC memory support in the Xeon SRK59 helps detect and correct memory errors, reducing the risk of data corruption. This is particularly important in data centers and enterprise environments where data integrity is crucial for operations.

Reliability, Availability, and Serviceability (RAS) Features

The Xeon SRK59 comes with built-in RAS features that enhance system uptime and maintainability. These features include advanced error detection, self-healing capabilities, and predictive failure analysis, making the processor highly reliable for 24/7 operation.

Scalability and Future-Proofing

Investment Protection with Future-Ready Technology

The Intel Xeon SRK59 processor offers investment protection through its support for the latest technology standards and scalable architecture. Its compatibility with upcoming Intel technologies ensures that businesses can upgrade their systems without significant overhaul costs, making it a future-proof choice for growing enterprises.

Seamless Integration with Existing Infrastructure

Designed to integrate seamlessly with existing IT infrastructure, the Xeon SRK59 processor supports legacy and new technologies, providing a smooth transition for businesses upgrading their server hardware. This reduces the complexity of migration and ensures continued operational efficiency.

Support for Intel's Next-Gen Software Tools

Intel provides a comprehensive suite of software tools to optimize the performance of the Xeon SRK59 processor. These tools assist in workload balancing, power management, and performance tuning, enabling businesses to get the most out of their server investments.

Summary of Benefits

The Intel Xeon CD8070604559900 Platinum 3.00 GHz SRK59 225W 24 Core Server CPU is engineered for performance, reliability, and scalability, making it an ideal choice for data centers, cloud platforms, and enterprise-level applications. Its advanced features, such as Intel Optane support, AVX-512, and robust security measures, provide a comprehensive solution for modern computing challenges.
