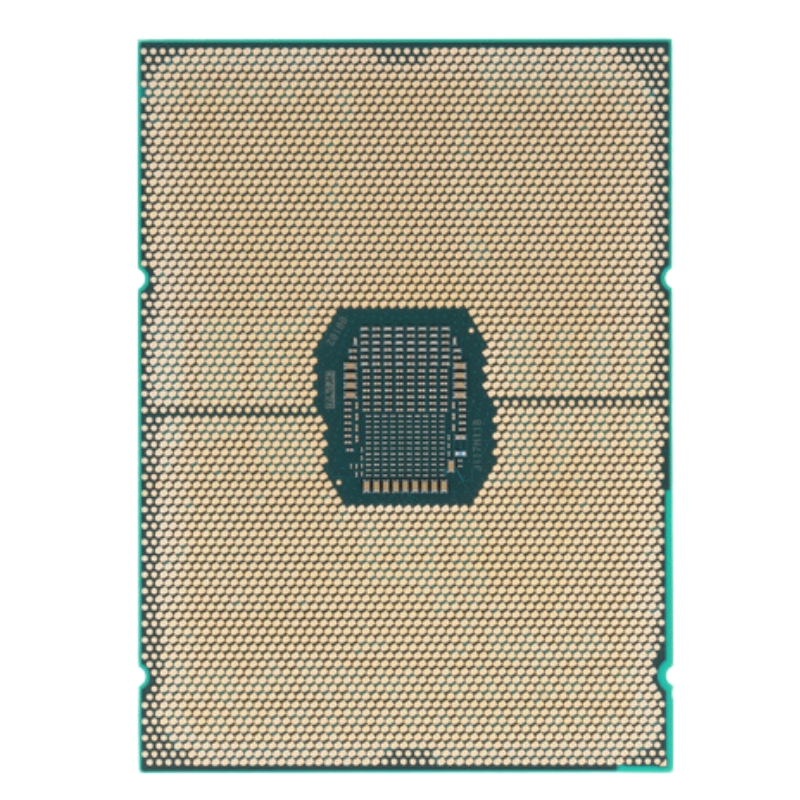

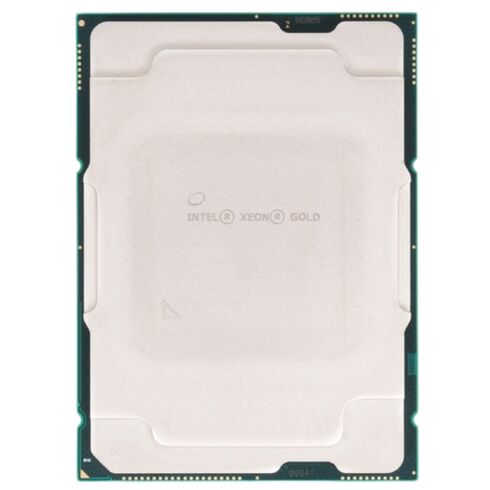

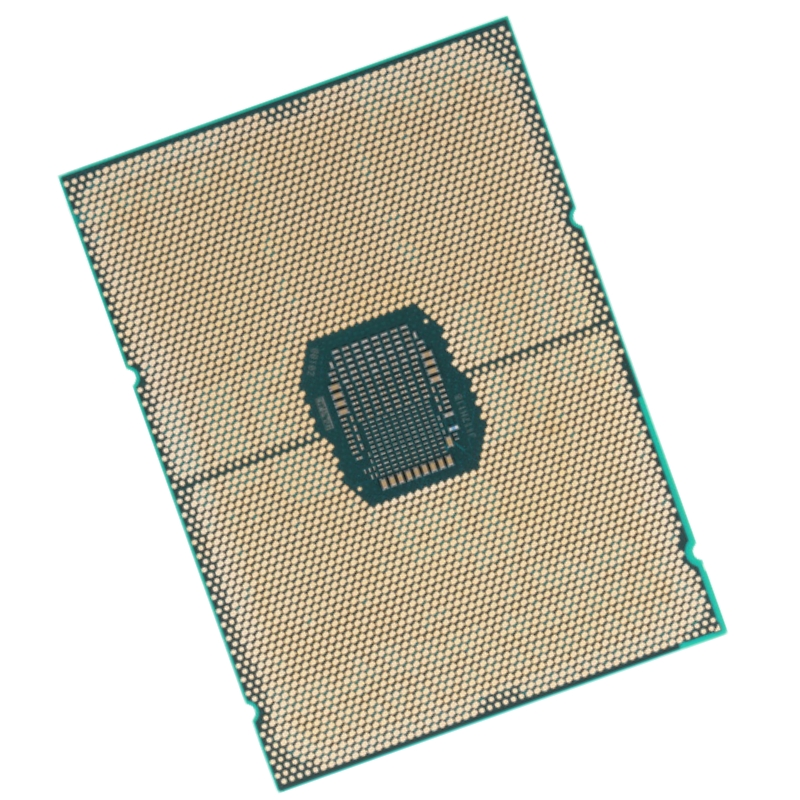

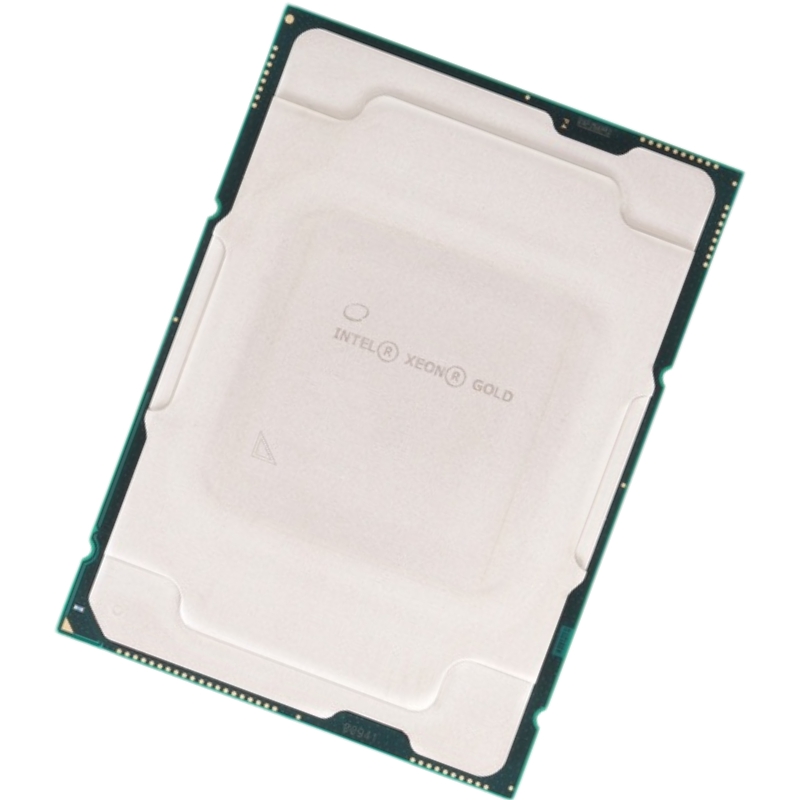

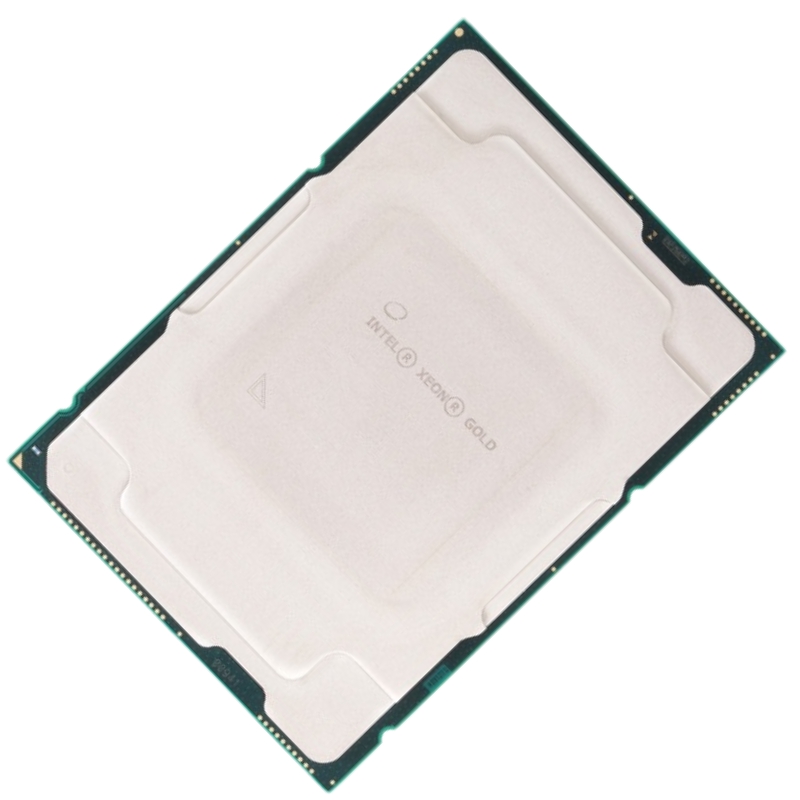

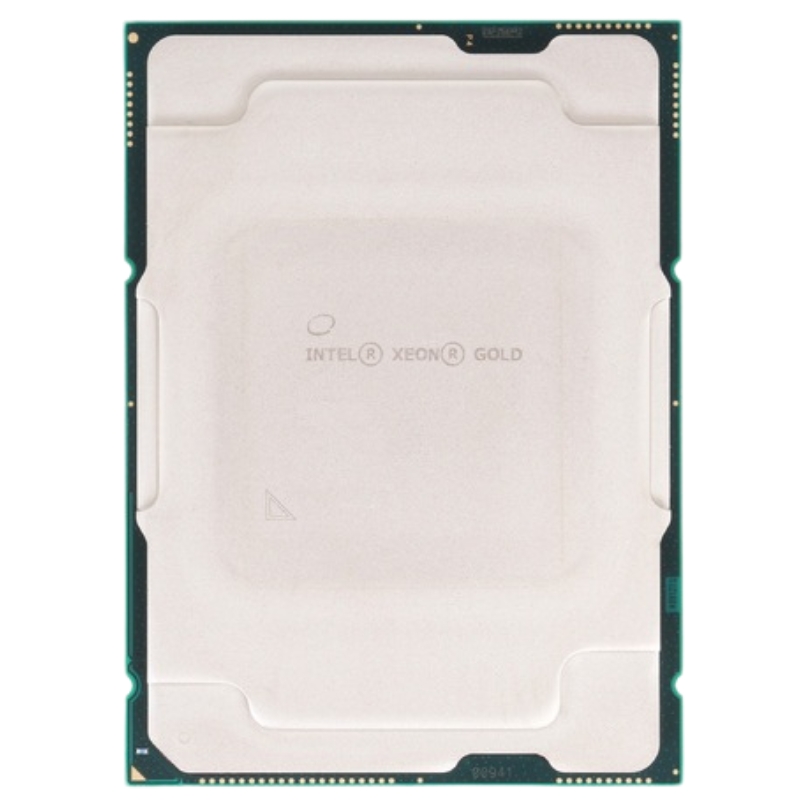

Intel Xeon Gold 24 Core Processor 6338T 2.10GHz CD8068904658201.

Intel Xeon Gold 6338T Overview

The Intel Xeon Gold 6338T processor, identified by SKU CD8068904658201, represents a powerful solution for high-performance computing needs in data centers and enterprise environments. With its robust 24-core architecture, 2.1 GHz base clock, and advanced DDR4-3200 memory support, the Xeon Gold 6338T is engineered to handle intensive workloads, large-scale virtualization, and demanding applications with efficiency and reliability.

Intel Xeon Gold 6330N Processor Detailed Description

General Specifications

• Manufacturer: Intel
• Part Number: CD8068904658201
• Series: 3rd Gen Intel Xeon Scalable, Gold 6300 Series
• Processor Code Name: Ice Lake
• Supported Socket: FCLGA4189

Performance and Core Specifications

• Base Frequency: 2.10 GHz
• Maximum Turbo Frequency: 3.40 GHz
• Core Count: 24 cores with 48 threads
• Cache Memory: 36MB
• Intel UPI Speed: 11.2 GT/s
• UPI Links: 3 links for enhanced data bandwidth
• Manufacturing Process: 10nm lithography
• Power Consumption: 165W TDP (Thermal Design Power)
• Embedded Options Available: Yes

Memory Capabilities

• Maximum Memory Capacity: Supports up to 6TB (6,000GB) DDR4
• Maximum Memory Speed: 3200 MHz
• Memory Channels: 8 channels for superior performance
• ECC Memory Support: Yes, provides error correction for data integrity
• Intel Optane DC Persistent Memory: Supported for expanded memory options

Expansion and Scalability Features

• Scalability: Supports 2-socket configurations (2S scalability)
• PCI Express Version: PCIe 4.0
• PCI Express Lanes: Up to 64 lanes for high-speed connectivity

Advanced Intel Technologies

• Intel Speed Select Technology: Adaptive Core Power, Turbo Frequency, and Base Frequency tuning
• Deep Learning Boost (DL Boost): Accelerates AI workloads for faster machine learning performance
• Intel Resource Director Technology (RDT): Efficient management of system resources
• Intel Speed Shift Technology: Enhanced dynamic performance tuning
• Intel Turbo Boost Technology 2.0: Increased performance during peak workloads
• Hyper-Threading Technology: Supports simultaneous multithreading for enhanced multitasking
• Virtualization Support (VT-x and VT-d): Enables advanced virtualization and direct I/O
• Transactional Synchronization Extensions (TSX): Advanced synchronization capabilities for multithreading
• Enhanced Security Features: Includes Intel SGX with SPS, Intel Trusted Execution Technology, and Total Memory Encryption

Instruction Set and Security Enhancements

• Supported Instruction Set Extensions: Intel SSE4.2, AVX, AVX2, AVX-512 with two AVX-512 FMA units
• Security and Reliability: Intel AES New Instructions, Execute Disable Bit, Intel Run Sure Technology
• Intel Crypto Acceleration: Improves cryptographic performance for secure applications
• Platform Firmware Resilience: Intel Platform Firmware Resilience Support enhances platform security
• Maximum EPC Size for Intel SGX: 64GB, optimizing secure enclave execution
• Intel VMD: Supports enhanced storage management and data protection

Processor Specifications and Features

The Intel Xeon Gold 6338T is designed to deliver exceptional performance and scalability, making it a key component for modern data centers and high-performance computing environments. Its specifications and features are tailored to meet the needs of enterprises requiring advanced computing power and flexibility.

24 Cores for Enhanced Multitasking

Equipped with 24 cores, the Intel Xeon Gold 6338T processor excels in multitasking and parallel processing. The high core count allows the processor to efficiently manage multiple simultaneous tasks, making it ideal for applications that require significant computational power, such as large-scale virtualization, cloud computing, and data analytics.

Base Clock Speed and Turbo Boost

The processor operates at a base clock speed of 2.1 GHz, providing a solid foundation for consistent performance across a variety of workloads. Additionally, it features Intel Turbo Boost Technology, which enables the processor to dynamically increase its clock speed beyond the base frequency when needed. This capability enhances performance during peak demand periods, ensuring that the Xeon Gold 6338T can handle demanding tasks efficiently.

Advanced Cache and Memory Support

The Intel Xeon Gold 6338T is equipped with advanced cache and memory support to optimize data access speeds and overall system performance. The processor’s cache architecture and memory compatibility play a crucial role in enhancing computing efficiency and handling large datasets.

36 MB L3 Cache for Faster Data Retrieval

The processor includes a substantial 36 MB L3 cache, which acts as a high-speed buffer to store frequently accessed data. This large cache size reduces the time required to fetch data from the main memory, improving overall performance and responsiveness, especially in multi-threaded and data-intensive applications.

Support for DDR4-3200 Memory

Intel Xeon Gold 6338T supports DDR4-3200 memory, offering high bandwidth and fast data transfer rates. This memory support is critical for applications that require rapid data access and processing, such as large-scale databases, real-time analytics, and high-performance computing tasks. The processor’s ability to handle high-speed DDR4 memory enhances system performance and scalability.

Thermal Design Power (TDP) and Energy Efficiency

Thermal Design Power (TDP) is an important aspect of processor performance, influencing both cooling requirements and energy efficiency. The Intel Xeon Gold 6338T is designed with a 165W TDP, balancing high performance with efficient energy consumption.

165W TDP for Efficient Cooling

The 165W TDP rating indicates the maximum amount of heat the processor will generate under full load. This TDP rating ensures that the processor operates efficiently while maintaining manageable cooling requirements. Effective thermal management is essential for maintaining optimal performance and system stability, particularly in high-density server environments.

Energy Efficiency Considerations

While delivering high performance, the Intel Xeon Gold 6338T also focuses on energy efficiency. By optimizing power consumption, the processor helps reduce overall operational costs and supports sustainable data center operations. Advanced power management features, such as Intel Speed Select Technology, enable dynamic adjustments to power consumption based on workload demands, further enhancing energy efficiency.

Applications and Use Cases

The Intel Xeon Gold 6338T processor is designed for a wide range of applications, from enterprise-level servers to high-performance computing systems. Its versatile features make it suitable for various use cases, including virtualization, cloud computing, and large-scale data processing.

Virtualization and Cloud Computing

With its high core count and advanced cache architecture, the Xeon Gold 6338T is well-suited for virtualization and cloud computing environments. The processor’s ability to handle multiple virtual machines and large-scale workloads makes it an ideal choice for cloud service providers and enterprises running extensive virtualized environments.

Efficient Multi-Tenant Environments

The processor’s support for multiple cores and threads enables efficient operation in multi-tenant cloud environments, where numerous virtual machines share the same physical resources. This capability ensures that each virtual machine receives adequate processing power and maintains optimal performance, regardless of the number of active tenants.

Scalable Cloud Infrastructure

For cloud service providers building scalable infrastructure, the Intel Xeon Gold 6338T offers the performance and flexibility needed to support a growing number of users and applications. Its high core count and advanced memory support contribute to a scalable cloud environment that can adapt to changing workloads and demand.

High-Performance Computing (HPC)

The Intel Xeon Gold 6338T’s powerful processing capabilities make it suitable for high-performance computing applications, such as scientific simulations, financial modeling, and complex data analysis. The processor’s large cache size and support for high-speed memory enhance its ability to handle large datasets and perform complex calculations efficiently.

Scientific and Engineering Simulations

In scientific and engineering fields, the Xeon Gold 6338T’s high core count and processing power enable rapid execution of simulations and data analysis. This performance is critical for research and development projects that require significant computational resources to model complex systems and analyze large volumes of data.

Financial and Data Analytics

For financial services and data analytics applications, the Xeon Gold 6338T’s performance characteristics support real-time data processing and analysis. The processor’s ability to manage large datasets and execute complex algorithms efficiently makes it well-suited for applications requiring high-speed data processing and rapid decision-making.

Security Features and Data Protection

Data security is a crucial aspect of modern computing, and the Intel Xeon Gold 6338T incorporates advanced security features to protect sensitive information and ensure secure operation in enterprise environments.

Intel SGX (Software Guard Extensions)

Intel SGX provides a secure enclave for protecting data and applications from unauthorized access, even if the rest of the system is compromised. This hardware-based security technology is essential for applications handling sensitive information, ensuring that critical data remains secure and protected from potential threats.

Protected Data Execution

With Intel SGX, applications can execute critical code and data within isolated memory regions, preventing unauthorized access and tampering. This capability is particularly valuable in industries such as finance, healthcare, and government, where data confidentiality and integrity are paramount.

Intel Total Memory Encryption (TME)

Intel Total Memory Encryption (TME) offers an additional layer of data protection by encrypting the entire system memory. This feature safeguards against physical attacks and ensures that data remains encrypted even if the server is compromised. TME enhances the overall security posture of systems using the Xeon Gold 6338T processor.

Comprehensive Memory Protection

TME ensures that all data in memory is encrypted, providing protection against unauthorized access and potential data breaches. This comprehensive memory protection is crucial for maintaining data confidentiality and ensuring compliance with regulatory requirements in sensitive environments.

Advanced Threat Detection and Mitigation

The Intel Xeon Gold 6338T incorporates advanced threat detection technologies to identify and mitigate various types of cyber threats. These features enhance system security by providing real-time protection against malware, ransomware, and other malicious activities.

Intel Threat Detection Technology (TDT)

Intel Threat Detection Technology (TDT) leverages machine learning and behavioral analysis to detect and respond to potential threats. By continuously monitoring system activity, TDT helps identify and mitigate advanced threats before they can impact system performance or data integrity.

Intel Control-Flow Enforcement Technology (CET)

Intel Control-Flow Enforcement Technology (CET) provides hardware-based protection against control-flow attacks, such as return-oriented programming (ROP) and jump-oriented programming (JOP). This technology enhances system security by ensuring that execution flows follow expected paths, reducing the risk of exploitation from malicious code.
